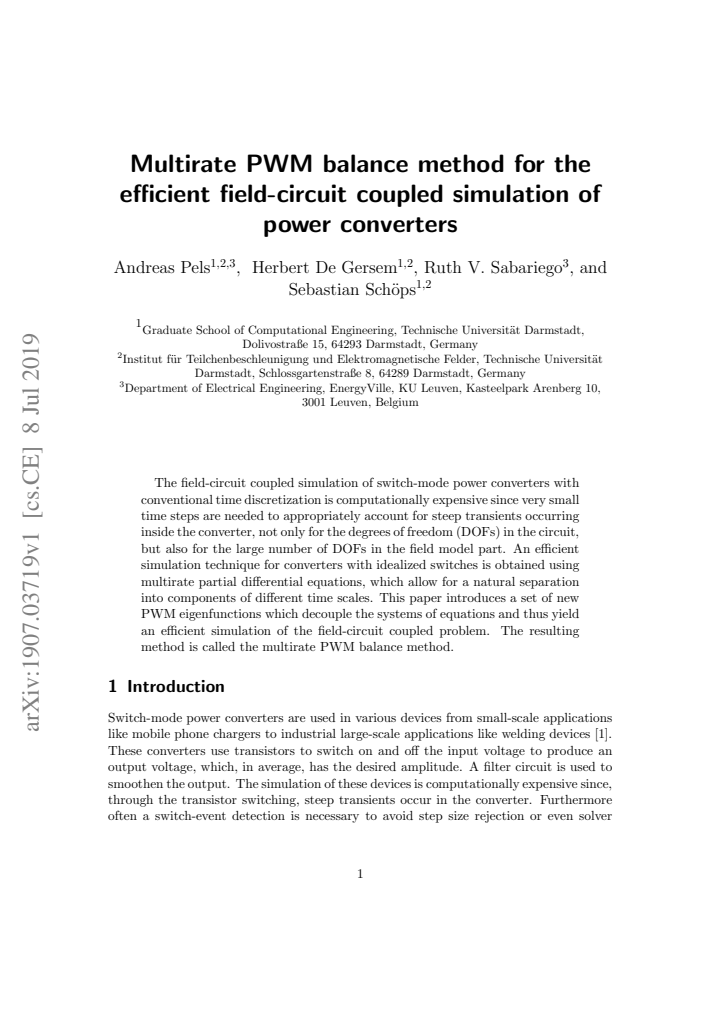

Multirate PWM balance method for the efficient field-circuit coupled simulation of power converters

Andreas Pels , Herbert De Gersem , Ruth V. Sabariego , Sebastian Sch\"ops This is my paper

Pith reviewed 2026-05-25 00:46 UTC · model grok-4.3

classification 💻 cs.CE cs.NAmath.NA
keywords multirate simulationPWMfield-circuit couplingpower converterseigenfunctionspartial differential equationsswitch-mode converters
0
0 comments X

The pith

New PWM eigenfunctions decouple equation systems to enable efficient multirate simulation of field-circuit coupled power converters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a multirate PWM balance method for simulating switch-mode power converters that include both circuit equations and large field models. Standard time-stepping demands tiny steps to capture steep transients across all degrees of freedom, which becomes prohibitively slow. Multirate partial differential equations separate the problem into components with distinct time scales. A new set of PWM eigenfunctions is introduced that decouples the resulting algebraic systems. The approach therefore reduces computational effort for converters that use idealized switches.

Core claim

A set of new PWM eigenfunctions decouples the systems of equations obtained from multirate partial differential equations and thereby yields an efficient simulation of the field-circuit coupled problem for power converters with idealized switches.

What carries the argument

The PWM eigenfunctions that decouple the multirate PDE systems into independent equations for different time scales.

If this is right

  • Only the fast-scale components require fine time discretization while slow-scale components use coarser steps.
  • The total number of degrees of freedom that must be advanced at the smallest time step is reduced.
  • Field and circuit parts can be advanced at time steps matched to their respective physical scales.
  • The method remains applicable as long as the switches are treated as ideal.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same eigenfunction construction might be adapted to converters whose switches include small but nonzero resistances.
  • Decoupling via eigenfunctions could be tested on other periodic multirate electromagnetic problems such as rotating machines.
  • If the eigenfunctions are precomputed once per duty cycle, the method could be embedded in existing circuit-field co-simulation tools.
  • A direct comparison on a standard benchmark converter would quantify the achieved speedup factor.

Load-bearing premise

Converters must use idealized switches so that multirate partial differential equations can separate the solution into components of different time scales.

What would settle it

Apply the method to a converter whose switches are modeled with finite on/off resistances and compare the computed waveforms and run time against a conventional fine-step reference simulation; any loss of accuracy or speedup would falsify the efficiency claim.

Figures

Figures reproduced from arXiv: 1907.03719 by Andreas Pels, Herbert De Gersem, Ruth V. Sabariego, Sebastian Sch\"ops.

Figure 1

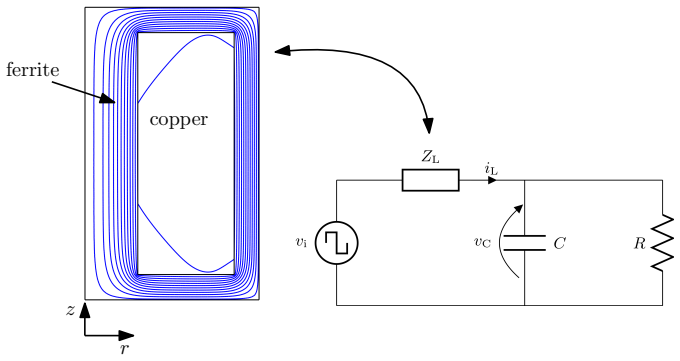

Figure 1. Figure 1: Simplified circuit of the buck converter in continuous conduction mode with [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

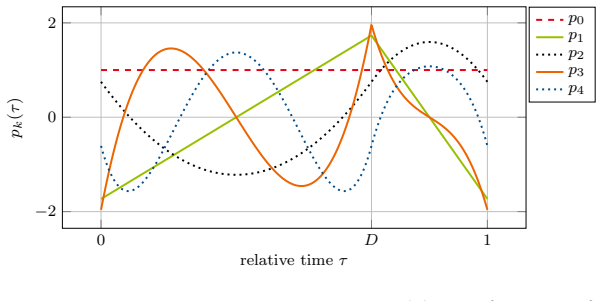

Figure 2. Figure 2: Original PWM basis functions pk(τ ), k ∈ {0, 1, 2, 3, 4}. gk(τ ) as linear combinations of the PWM basis functions, i.e., gk(τ ) := X Np l=0 vk,l pl(τ ), (9) where vk,l are unknown coefficients with k ∈ {0, . . . , Np}, and gk(τ ) are eigenfunctions of the time derivative operator d dτ gk(τ ) = λk gk(τ ). (10) We enforce this property in a weak sense by a Galerkin approach, i.e., − Z 1 0 gk(τ ) dpm(τ ) dτ … view at source ↗
Figure 3

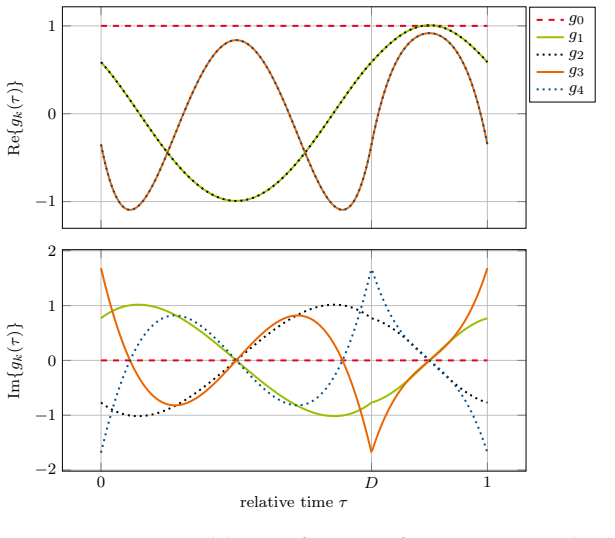

Figure 3. Figure 3: PWM eigenfunctions gk(τ ), k ∈ {0, 1, 2, 3, 4}, i.e., Np = 4. (top) real part. (bottom) imaginary part. where A as in (5), Be = J ⊗ B + Λ ⊗ A, (14) Ce(t1) = Z Ts 0 ¯g(τ (t2)) ⊗ bc(t1, t2)dt2 , (15) and Λ is a diagonal matrix with diagonal entries λ0, λ1, . . . , λNp . Thus the resulting matrices in (13) are block-diagonal and the degrees of freedom can be block-wisely decoupled. This leads to Np + 1 indepe… view at source ↗
Figure 4

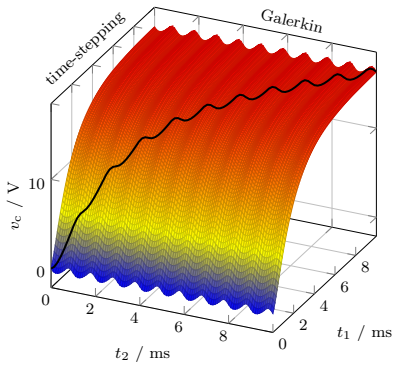

Figure 4. Figure 4: Multivariate voltage at the capacitor calculated using the multirate PWM [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

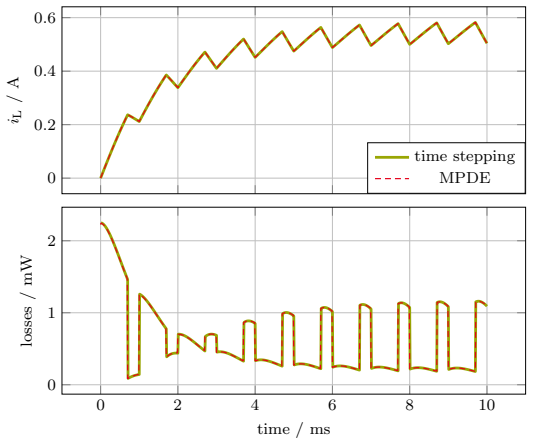

Figure 5. Figure 5: (top) Reference solution calculated using conventional adaptive time dis [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Error  as defined in (27) over time for solving the systems of equations. The MPDE approach with PWM eigenfunctions (multirate PWM balance method) is considerably faster than the MPDE approach with the original PWM basis functions and the conventional time discretization. faster simulation. The overall accuracy of the method is problem-specific and always depends on both the tolerance for the solver and t… view at source ↗
Figure 7

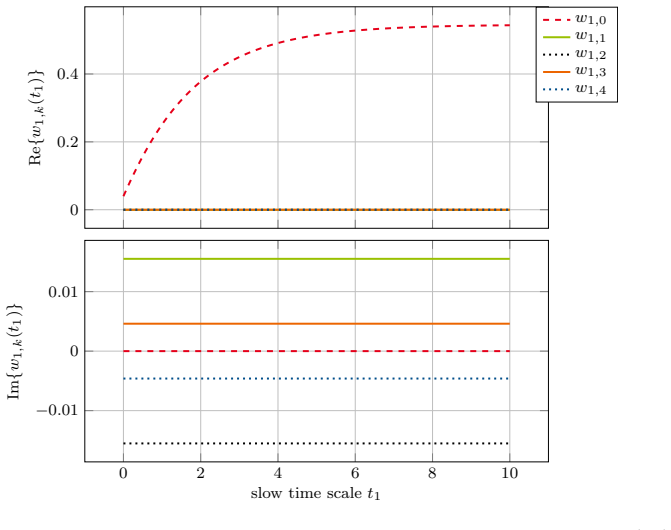

Figure 7. Figure 7: Coefficients w1,k for the inductor current calculated by solving (13) with Np,pwmbal = 4. (top) real part. The coefficients w1,1, . . . , w1,4 are approx￾imately the same therefore they are hard to distinguish visually. (bottom) imaginary part. speed-up amounting to a factor 4 for the test example. 7 Acknowledgements This work is supported by the “Excellence Initiative” of German Federal and State Governme… view at source ↗
read the original abstract

The field-circuit coupled simulation of switch-mode power converters with conventional time discretization is computationally expensive since very small time steps are needed to appropriately account for steep transients occurring inside the converter, not only for the degrees of freedom (DOFs) in the circuit, but also for the large number of DOFs in the field model part. An efficient simulation technique for converters with idealized switches is obtained using multirate partial differential equations, which allow for a natural separation into components of different time scales. This paper introduces a set of new PWM eigenfunctions which decouple the systems of equations and thus yield an efficient simulation of the field-circuit coupled problem. The resulting method is called the multirate PWM balance method.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript introduces the multirate PWM balance method for efficient field-circuit coupled simulation of switch-mode power converters with idealized switches. It employs multirate partial differential equations to separate components across different time scales and defines a new set of PWM eigenfunctions that are claimed to decouple the resulting system of equations, thereby avoiding the need for very small time steps in both the circuit and field models.

Significance. If the claimed decoupling property of the PWM eigenfunctions holds and produces the stated efficiency gains without loss of accuracy, the approach would provide a practical advance for computational simulation of power electronics, where conventional time-stepping methods are often prohibitive due to the combination of large field DOFs and steep switching transients.

minor comments (2)
  1. [Abstract] Abstract: the description of the PWM eigenfunctions and the precise mechanism of decoupling would benefit from a short statement of their construction or orthogonality properties to orient the reader before the technical sections.
  2. The manuscript would be strengthened by the addition of at least one concrete numerical comparison (e.g., wall-clock time or DOF count versus conventional time discretization) to quantify the efficiency improvement asserted in the abstract.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of the manuscript and the recommendation for minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper's central claim is the introduction of new PWM eigenfunctions that decouple multirate PDE systems arising from field-circuit coupling with idealized switches. No load-bearing step reduces by construction to a fitted input, self-definition, or self-citation chain; the derivation is presented as a direct consequence of the multirate PDE framework and the proposed eigenfunctions. The abstract and reader's summary indicate a self-contained methodological advance without the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review is based on abstract only; no free parameters, axioms, or invented entities are specified in the provided text.

pith-pipeline@v0.9.0 · 5661 in / 1055 out tokens · 24227 ms · 2026-05-25T00:46:45.076807+00:00 · methodology
