arxiv: 1907.11803 · v1 · pith:3CPZH3OPnew · submitted 2019-07-26 · 💻 cs.DB

qwLSH: Cache-conscious Indexing for Processing Similarity Search Query Workloads in High-Dimensional Spaces

Omid Jafari , John Ossorgin , Parth Nagarkar This is my paper

Pith reviewed 2026-05-24 14:50 UTC · model grok-4.3

classification 💻 cs.DB
keywords Locality Sensitive Hashingcache-conscious indexingsimilarity searchquery workloadshigh-dimensional spacesapproximate nearest neighborindex structures
0
0 comments X

The pith

qwLSH uses novel cost models to divide cache space for faster processing of similarity search query workloads in high-dimensional spaces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces qwLSH as an index structure that processes groups of similarity search queries more efficiently than standard LSH methods. Existing LSH approaches are built for isolated queries and ignore cache behavior across an entire workload. qwLSH applies new cost models that allocate cache resources according to data characteristics and workload patterns. The result is reduced cache misses and higher throughput when queries arrive together in domains such as image processing and machine learning. The central argument is that accounting for cache utilization during index construction directly improves performance on real-world query batches.

Core claim

qwLSH is an index structure for efficiently processing similarity search query workloads in high-dimensional spaces. It intelligently divides a given cache during processing of a query workload by using novel cost models. Experimental results show that, given a query workload, qwLSH is able to perform faster than existing techniques due to its unique cost models and strategies.

What carries the argument

Novel cost models that divide cache based on data characteristics and workload patterns to improve utilization during approximate similarity search.

If this is right

  • qwLSH executes similarity search workloads faster than prior LSH variants.
  • The index accounts for cache utilization explicitly in its design for high-dimensional data.
  • It mitigates the single-query focus limitation of standard LSH when queries arrive in batches.
  • The approach remains applicable in settings where exact indexing fails due to the curse of dimensionality.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The cache-division strategy could be adapted to other approximate indexing families beyond LSH.
  • Workload-aware cost models might inform query scheduling policies inside database engines.
  • Further tests on varying dimensionality and cache sizes could identify the range where the models remain effective.

Load-bearing premise

The novel cost models accurately capture and predict cache utilization behavior for the given query workloads and data characteristics.

What would settle it

An experiment in which the cost models are applied to a workload but measured cache hit rates show no improvement or a drop, resulting in no speedup or slower execution than baseline LSH, would falsify the performance claim.

Figures

Figures reproduced from arXiv: 1907.11803 by John Ossorgin, Omid Jafari, Parth Nagarkar.

Figure 1
Figure 1. Figure 1: Effect of Cardinality over the ratio IndexIO/TotalIO. We create versions of the Deepsat dataset (see Section 6 for more details) with different cardinalities but same dim. [=1500] for 250 top-50 queries using QALSH alg. [11]. sacrifice accuracy for a much faster performance. Formally, the goal of the approximate version of the similarity search problem, also called c-approximate Nearest Neighbor search, is… view at source ↗
Figure 2

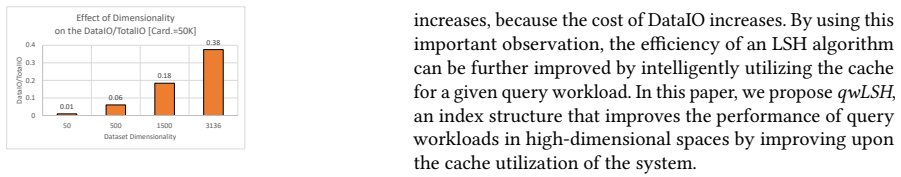

Figure 2. Figure 2: Effect of Dimensionality over DataIO/TotalIO over the Deepsat dataset with different dimensionalities but same card. [=50K] for 250 top-50 queries using QALSH alg. [11]. 1.2 Motivation Often times, in real-world settings, queries arrive as part of a query workload. Several research works have shown the benefits of designing index structures particularly for effi￾cient handling of query workloads [3, 8, 17,… view at source ↗
Figure 3
Figure 3. Figure 3: Different Strategies for designing the cache 25K 50K 100K 250K 0 20 40 60 80 100 50 250 500 1500 3136 Optimal Setting for Index Cache Cardinality Size (in % of Total Cache Size) Dimensionality Optimal Setting for Index Cache Size [DeepSat dataset] 25K 50K 100K 250K [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Optimal Setting for Index Cache Size (in % of the Total Available Cache Size) on different versions of the Deepsat dataset [16MB Cache Size, |Q|=250] 0 200 400 600 800 0 20 40 60 80 100 TotalIO (in MB) Index Cache Size Setting (in %) Effect of Index Cache Size Setting on IO [P53 Dataset] IndexIO DataIO TotalIO [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Effect of Index Cache Size Setting on the In￾dexIO, DataIO, and TotalIO for P53 dataset [16MB Cache Size, |Q|=250] on the size of CD . Thus, given a query workload Q, we want to find size(CI) (or size(CD )) such that cost(C) is minimized: minimize Õ |Q| д=1  αcar d × Õm i=1 (cost(C д Ii )) + αd im × Õw j=1 (cost(C д Dj )) subject to size(CI) = size(C) − size(CD ). 5 qwLSH In this section, we describe our… view at source ↗
Figure 6
Figure 6. Figure 6 [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Effect of varying top-k on P53 dataset [16MB Cache, |Q|=250] 6 Experimental Evaluation In this section, we evaluate the effectiveness of our proposed index structure, qwLSH. For these evaluations, we use several real data sets with different cardinality and dimensionality, under different system parameters. All experiments were run on machines with the following specifications: Intel Core i7-6700, 16GB RAM… view at source ↗
Figure 8
Figure 8. Figure 8: Comparison of qwLSH (TotalIO) against its alternatives (for different real datasets) and default settings 1,517.74 609.30 1,063.23 609.30 689.98 0 400 800 1200 1600 QA_Naive QA_Ci QA_CiCd QA_Opt qwLSH TotalIO (in MB) Audio [8MB Cache, |Q|=250, k=50] 1,041.33 433.39 501.04 396.10 431.93 0 300 600 900 1200 QA_Naive QA_Ci QA_CiCd QA_Opt qwLSH TotalIO (in MB) P53 [8MB Cache, |Q|=250, k=50] 1,517.74 38.44 357.8… view at source ↗
Figure 9
Figure 9. Figure 9: Comparison of qwLSH (TotalIO) for varying cache size against its alternatives (for Audio and P53 datasets) 319.21 17.53 114.95 14.74 17.09 0 90 180 270 360 QA_Naive QA_Ci QA_CiCd QA_Opt qwLSH TotalIO (in MB) Audio [16MB Cache, |Q|=50, k=50] 226.36 90.77 15.78 15.78 15.78 0 70 140 210 280 QA_Naive QA_Ci QA_CiCd QA_Opt qwLSH TotalIO (in MB) P53 [16MB Cache, |Q|=50, k=50] 626.94 23.14 234.43 17.94 24.29 0 175… view at source ↗
Figure 10
Figure 10. Figure 10: Comparison of qwLSH (TotalIO) for varying number of queries against its alternatives (for Audio and P53 datasets) • QALSH_Ci: In this alternative, we allocate the maximum size of 99% (of the total cache size) to CI . Hence, CD will have 1% of the total cache size allocation. • QALSH_Cd: Here, we allocate the maximum size of 99% (of the total cache size) to CD . Hence, CI will have 1% of the total cache si… view at source ↗
Figure 11

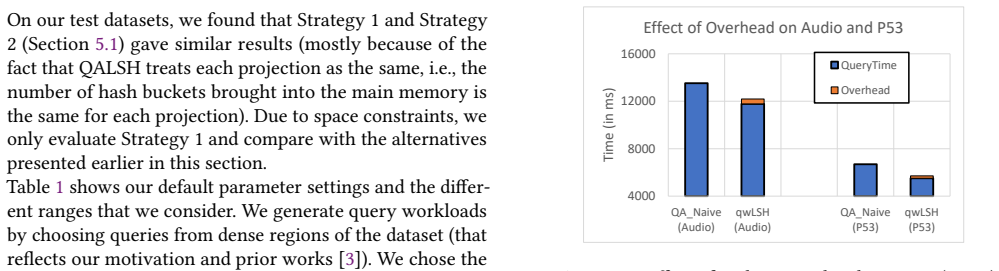

Figure 11. Figure 11: Effect of caching overhead on Time (in ms) qwLSH can always adapt and return results closer to the optimal setting. Overhead of qwLSH’s Cache Implementation [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
read the original abstract

Similarity search queries in high-dimensional spaces are an important type of queries in many domains such as image processing, machine learning, etc. Since exact similarity search indexing techniques suffer from the well-known curse of dimensionality in high-dimensional spaces, approximate search techniques are often utilized instead. Locality Sensitive Hashing (LSH) has been shown to be an effective approximate search method for solving similarity search queries in high-dimensional spaces. Often times, queries in real-world settings arrive as part of a query workload. LSH and its variants are particularly designed to solve single queries effectively. They suffer from one major drawback while executing query workloads: they do not take into consideration important data characteristics for effective cache utilization while designing the index structures. In this paper, we present qwLSH, an index structure for efficiently processing similarity search query workloads in high-dimensional spaces. We intelligently divide a given cache during processing of a query workload by using novel cost models. Experimental results show that, given a query workload, qwLSH is able to perform faster than existing techniques due to its unique cost models and strategies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper presents qwLSH, an LSH-based index structure for similarity search query workloads in high-dimensional spaces. It introduces novel cost models to intelligently divide cache during workload processing for improved utilization, claiming that experimental results demonstrate faster performance than existing techniques due to these models and strategies.

Significance. If the cost models are shown to accurately predict cache behavior and yield reproducible gains, the work could advance cache-conscious approximate indexing for workload-driven similarity search in domains such as image processing and machine learning, addressing a limitation of standard LSH methods that focus on single queries.

major comments (1)
  1. [Abstract] Abstract: the claim that 'experimental results show that, given a query workload, qwLSH is able to perform faster than existing techniques due to its unique cost models and strategies' supplies no quantitative data, baselines, error bars, workload characteristics, or experimental setup, preventing verification of whether the cost models accurately capture cache utilization (the weakest assumption underlying the central claim).

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their feedback on the abstract. We address the major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that 'experimental results show that, given a query workload, qwLSH is able to perform faster than existing techniques due to its unique cost models and strategies' supplies no quantitative data, baselines, error bars, workload characteristics, or experimental setup, preventing verification of whether the cost models accurately capture cache utilization (the weakest assumption underlying the central claim).

    Authors: We agree that the abstract is a high-level summary and does not include quantitative experimental details such as specific speedups, baselines, workload characteristics, or setup information. This limits the ability to immediately verify the claims about cache utilization. In the revised manuscript, we will update the abstract to concisely include key quantitative results from the experiments (e.g., observed performance improvements and workload types) while maintaining its brevity. The body of the paper already contains the full experimental evaluation, including direct measurements of cache behavior and comparisons that support the cost models' effectiveness. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper introduces qwLSH with novel cost models for cache-conscious indexing of query workloads in high-dimensional spaces using LSH variants. The central claim rests on these models enabling better performance, validated empirically in experiments. No equations, definitions, or derivations in the provided abstract or description reduce a prediction to a fitted input by construction, invoke self-citations as load-bearing uniqueness theorems, or rename known results. The cost models are presented as new contributions whose accuracy is tested externally rather than assumed tautologically. This is a standard empirical systems paper with independent content in its strategies and evaluations.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no free parameters, axioms, or invented entities are specified in the provided text.
