Lectures on SL(3) foams and link homology

T0 review · 2 major / 3 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read For every oriented SL(3) web, the state space of the foam TQFT is a free graded abelian group whose graded rank is the Kuperberg invariant, so the quantum sl3 link invariant lifts to a functorial homology theory.

desk verdict Solid, useful lecture notes on SL(3) foams; the main caveat is that the TQFT assertion in Theorem 3.1 is deferred to the literature rather than proved in the text. read the letter →

arxiv 2507.17119 v1 pith:3E2TLX3I submitted 2025-07-23 math.QA math.GTmath.RT

Mikhail Khovanov , Dmitry Solovyev This is my paper
classification math.QAmath.GTmath.RT MSC 05C1557M1557K1618N25
keywords SL(3)foamslinkhomologyKuperberginvariantplanarwebsTQFTTaitcoloringscategorificationfoamevaluation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

These lecture notes develop a topological quantum field theory whose inputs are $\mathrm{SL}(3)$ foams, two-dimensional complexes embedded in $\mathbb{R}^3$ with seams where three sheets meet, and whose outputs are graded state spaces for planar webs. Their central claim is that, for every oriented $\mathrm{SL}(3)$ web $\Gamma$, the state space $\langle\Gamma\rangle$ is a free graded abelian group whose graded rank equals the Kuperberg invariant $P(\Gamma)$, and that foam cobordisms between webs induce homogeneous maps, making the assignment a TQFT. Applying this to link diagrams, by resolving crossings into webs and taking cones of the maps induced by elementary foam cobordisms, yields a bigraded link homology whose Euler characteristic is the quantum $\mathfrak{sl}_3$ link invariant that the webs compute. The notes also carry out the same universal construction for unoriented foams in characteristic 2, where state spaces are modules over symmetric polynomials and their ranks count Tait colorings for reducible webs, and they review the generalization to $\mathrm{GL}(N)$ foams. A reader should take away that the quantum $\mathfrak{sl}_3$ invariant is not being treated as a bare polynomial but as the shadow of a functorial homology theory with concrete topological building blocks.

What carries the argument

The load-bearing machinery is the universal construction applied to a multiplicative evaluation of closed foams. A Tait coloring labels every facet by one of three colors so that the three facets along each seam have distinct colors; the colored evaluation is a product over dot decorations and over the bicolored surfaces $F_{ij}(c)$, with exponents $\chi(F_{ij}(c))/2$, and the total evaluation is the sum over all Tait colorings. In the oriented case the evaluation can be computed by surgery along seam circles using two Frobenius algebras, the cohomology rings $H^*(\mathbb{CP}^2)$ and $H^*(\mathrm{Fl}_3)$, and the universal construction then defines the state space $\langle\Gamma\rangle$ as the quotient of the free module spanned by foams with boundary $\Gamma$ by the kernel of the gluing-pairing form. What carries the argument is that oriented foams have no vertices, only seam circles, which makes the surgery evaluation finite and explicit.

What would settle it

Take a single closed oriented foam with two seam circles arranged so that the surgery formula can be applied in either order; if the two orders produce different integers, the evaluation is not well-defined and the TQFT of Theorem 3.1 does not exist. Alternatively, compute $\operatorname{grk}\langle\Gamma\rangle$ for an oriented web $\Gamma$ in two different skein-reduction orders and check that the graded ranks agree with $P(\Gamma)$.

Watch

Extended reading notes

Core claim

The paper's core claim is Theorem 3.1: for every oriented $\mathrm{SL}(3)$ web $\Gamma$, the state space $\langle\Gamma\rangle$ is a free graded abelian group with graded rank $\operatorname{grk}\langle\Gamma\rangle = P(\Gamma)$, where $P(\Gamma)$ is the Kuperberg invariant, and the foam-induced maps define a TQFT from the category of oriented webs and foams to graded abelian groups. For an oriented link $L$, the complex built from the cube of web resolutions has homology $H(L)$ satisfying $P(L)=\sum_{i,j}(-1)^i q^j \operatorname{rk} H^{i,j}(L)$, so the homology categorifies the quantum $\mathfrak{sl}_3$ link invariant. In the unoriented characteristic-2 setting, the same universal construction gives free graded modules over the ring of symmetric polynomials in three variables, with rank equal to the number of Tait colorings for every reducible web, and the general foam evaluation extends the story to $\mathrm{GL}(N)$ webs.

Load-bearing premise

The construction depends on the topological fact that every two-colored slice of a foam embedded in $\mathbb{R}^3$ is a closed orientable surface, which makes its Euler characteristic even and the exponents in the evaluation formula integers.

Editorial extensions

If this is right

  • The Kuperberg invariant of a link becomes the Euler characteristic of a bigraded homology, so the polynomial is accompanied by algebraic structure that is functorial under link cobordisms.
  • The tangle extension yields a 2-functor from tangle cobordisms to complexes of graded bimodules up to homotopy, making the theory a fully functorial invariant rather than a diagram-dependent construction.
  • For unoriented webs, reducible webs have free state spaces whose rank equals the number of Tait colorings, giving a categorified, graded version of the coloring count.
  • The same universal-construction method, applied to the general $\mathrm{GL}(N)$ foam evaluation described in the notes, gives a TQFT for $\mathrm{GL}(N)$ webs and categorifies the quantum $\mathrm{GL}(N)$ invariants colored by exterior powers of the fundamental representation.
  • Conditional on the conjectures stated in the notes, the characteristic-2 state-space ranks would imply the Four-Color Theorem.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A testable extension would be to compute the characteristic-2 state space of the smallest non-reducible web, the dodecahedron graph, and compare its graded dimension with its number of Tait colorings; the notes report this as an open problem, so an affirmative computation would strengthen the conjectural route to the Four-Color Theorem.
  • An editor's inference is that the oriented theory's reliance on exactly two Frobenius algebras suggests a hierarchy: link homology for higher-rank spiders or for non-fundamental colors may require a chain of flag-variety cohomology rings, one per fundamental weight.
  • Because the unoriented evaluation is defined only in characteristic 2, a natural next step is to find an integral lift with vertices present; the paper's comparison with the oriented, vertex-free theory indicates where sign conventions would have to be introduced.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 3 minor

Summary. These lecture notes, based on three talks at Tsinghua University in 2023, provide an introduction to SL(3) foams and their use in link homology. The first part develops unoriented SL(3) foams, their evaluation by Tait colorings, and the universal construction of state spaces, following Khovanov--Robert. The second part treats oriented SL(3) foams and states a categorification of the Kuperberg quantum sl_3 invariant, including a TQFT assertion for oriented webs and foams. Later sections review SL(3)-web algebras, tangle invariants, oriented GL(N) foams and the Robert--Wagner evaluation, and the connection to Kronheimer--Mrowka gauge theory and the Four-Color Theorem. The notes are expository: most substantial theorems are drawn from the existing literature, especially Khovanov's sl(3) link homology paper, Khovanov--Robert, Mackaay--Vaz, and Robert--Wagner, and proofs are often only sketched or cited.

Significance. If its statements are accurate, these notes are a useful service to the community: they collect the unoriented and oriented SL(3) foam evaluations, the universal construction, the categorification of the Kuperberg invariant, the web-algebra approach to tangles, and the Robert--Wagner GL(N) evaluation into a single readable document, with instructive examples such as the sphere, theta-foam, and digon relations. The notes also helpfully situate the Kronheimer--Mrowka conjecture and the open Problem 2.1. However, the paper is a review rather than a new research paper, and its value depends on the precision with which the cited results are presented. The main technical weakness is that Theorem 3.1, the central categorification statement, is asserted without an actual proof or an exact citation for the monoidality part. The orientability of bicolored surfaces in Proposition 1.1 is adequately justified for foams embedded in R^3, so I do not regard that topological point as a serious gap; the load-bearing unsupported step is the TQFT/monoidality assertion in the oriented theory.

major comments (2)
  1. [§3.2, Theorem 3.1] Theorem 3.1 asserts that the oriented state-space functor is a TQFT, which in particular requires the monoidality map ⟨Γ1⟩⊗⟨Γ2⟩→⟨Γ1⊔Γ2⟩ to be an isomorphism for all oriented webs. The text preceding the theorem only says that the direct-sum decompositions categorifying Kuperberg's skein rules are 'straightforward to derive' and cites [46, Section 3.4]. Freeness and the graded-rank formula do not by themselves imply monoidality: in the unoriented theory the analogous map (16) is proved only when at least one web is reducible (Proposition 2.7) and is left open in general (Problem 2.1). Since the TQFT assertion is precisely what upgrades the construction from a lax TQFT to a TQFT, the manuscript should either supply a proof of the monoidality isomorphism or state Theorem 3.1 as a theorem of a specific cited work, with a precise reference. As written, the theorem overstates what is demonstrated in these notes.
  2. [§3.2, evaluation of closed oriented foams] The oriented evaluation is defined by a surgery procedure: one pushes a circle off each seam circle, applies the neck-cutting relation (Figure 3.10), and evaluates the resulting surfaces and theta-foams using the traces (19) and (20). The text says that 'using the rules above, an arbitrary closed foam F in R^3 can be evaluated to an integer', but it does not prove that the result is independent of the choices involved (choice of push-off circles, order of surgeries) or invariant under isotopy of the foam. This well-definedness is a load-bearing ingredient for both Theorem 3.1 and the link invariant in Section 3.3. A precise reference to the original proof in [46] or [78] should be given, or a proof should be sketched; otherwise the evaluation underlying the TQFT is not fully established in these notes.
minor comments (3)
  1. [§2.1, proof of Proposition 2.2] In the paragraph after equations (13) and (14), 'combined with (1314)' should read 'combined with (13)–(14)' or 'with (14)'.
  2. [§2.1, proof of Theorem 1.1] After the phrase 'for some l ∈ 2Z', the symbol ℓ appears in the displayed formulas without being defined; it appears to denote l/2, and this should be stated explicitly.
  3. [§3.2, formula (20)] In the definition of the trace ε on H^*(Fl_3), the third case '0, for (a,b,c) ≠ (2,1,0)' is confusing because (2,1,0) is a cyclic permutation of (0,2,1), which is already handled by the second case. The intended wording is presumably '0 otherwise'.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the notes are a review whose central theorems are cited to published independent sources, and the universal-construction setup does not define the Kuperberg ranks into the state spaces by construction.

full rationale

The paper is a lecture-note survey, and its central claims are presented as reviews of established results. Theorem 3.1, asserting grk<Γ> = P(Γ) and TQFT-ness, is justified by direct sum decompositions that the text says are 'straightforward to derive' and cites [46, Section 3.4]; this is a citation to a published proof by one of the present authors, not a redefinition. The universal construction of Section 1.3 defines state spaces from a multiplicative evaluation of closed foams, and the oriented evaluation of Section 3.2 is built from the Frobenius algebras H*(CP^2) and H*(Fl_3) with traces (19) and (20). The Kuperberg invariant P(Γ) is not fed into the evaluation as an input; matching its skein rules requires the nontrivial direct-sum decompositions. The reader's flagged Euclidean-topology point (Proposition 1.1, even Euler characteristic of bicolored surfaces) is proved geometrically in the text and is a hypothesis used to make the exponents in (2) integral; it is not an assumption of the desired conclusion. The only genuinely unsupported point is the monoidality assertion in Theorem 3.1, which the notes do not prove and instead attribute to prior work; that is a proof-gap or rigor concern, not a circular reduction. Under the rules, self-citation with independent published content and external verification (e.g., Lewark's computations, Mackaay--Vaz comparison) does not raise the circularity score.

Assumptions & free parameters 0 free parameters · 2 assumptions · 0 invented entities

This is an expository paper; its content rests on prior published theorems (especially [55], [64], [103]) that are cited and not reproved. There are no new free parameters or invented entities.

assumptions (2)
  • domain assumption The Kuperberg web invariant P(Γ) is well-defined via the skein relations in Figure 3.3 (Kuperberg [64]).
    The notes build the categorification on this invariant and cite it without proof.
  • domain assumption The Robert-Wagner evaluation for GL(N) foams is well-defined and lands in symmetric polynomials, and the state spaces of MOY webs are free graded modules with graded rank equal to the MOY invariant (Propositions 5.2 and 5.3 from [103]).
    These are the main external theorems used in Section 5; the notes cite [103] rather than proving them.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Lectures on SL(3) foams and link homology." pith.science (2026). https://pith.science/paper/3E2TLX3I

@misc{pith2026250717119,
  author       = {Pith},
  title        = {Pith review of: Lectures on SL(3) foams and link homology},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/3E2TLX3I}},
  note         = {Machine review of arXiv:2507.17119}
}
abstract

These notes are based on the three lectures that one of the authors gave at Tsinghua University in the summer of 2023 as part of the workshop on Geometric Representation Theory and Applications. They contain an introduction to the evaluation of $\mathsf{SL}(3)$ foams and the associated topological theory of trivalent planar graphs and foam cobordisms between them. A categorification of the Kuperberg quantum $\mathfrak{sl}_3$ web and link invariant and the Robert-Wagner $\mathsf{SL}(N)$ foam evaluation are reviewed as well.

Figures

Figures reproduced from arXiv: 2507.17119 by the authors.

Figure 1.1
Figure 1.1. Three types of points of a foam. From left to right: a regular point, a seam point, and a vertex. Remark 1.1. Locally a foam looks like a spine of a 3-manifold. Consider a triangulation T of a 3-manifold M then take the Poincare dual P D(T). The two-skeleton P D(T) 2 of the Poincare dual of T is a spine of M. Singularities of a spine are seams and vertices, as depicted in [PITH_FULL_IMAGE:figures/full_fig_p005_1_1.png] view at source ↗
Figure 1.2
Figure 1.2. The Θ-foam has a singular seam which is a circle. Its singular graph s(Θ) = S 1 consists of a verticeless circle, and the foam has three facets, which are all (open) two-disks. Remark 1.2. According to our definition a facet of F is open in F. Sometimes by a facet we will mean its closure in F. We will either talk about open or closed facets, or it will be clear from the context whether an open or a closed facet is … view at source ↗
Figure 1.3
Figure 1.3. Foam F with three facets and a single singular vertex. Unlike previous examples, this foam has a vertex point. The singular graph of this foam, s(F) = S 1 ∨ S 1 , is a 4-valent graph with a single vertex and two loops. The set of facets f(F) consists of three open disks D2 . Example 1.4. Example 1.3 can be extended by replacing the meridional disk by n parallel disks and the longitudional disk by m parallel disks. T… view at source ↗
Figures from the paper (74 more)
Figure 1.4
Figure 1.4. Figure 1.4: Facets along each seam should be colored by three distinct colors. In Example 1.1, the foam admits 3m different Tait colorings, where m is the number of connected components of the surface S, since there are three color choices for each component. Θ-foam in Example 1…
Figure 1.5
Figure 1.5. Figure 1.5: Surface F12(c); facet colored 3 is omitted. Next we examine the neighbourhood of a vertex in Fij (c). Picking distinct colors for two adjacent facets forces a unique coloring on the remaining four facets at the vertex, see [PITH_FULL_IMAGE:figures/full_fig_p007_1_5.png]
Figure 1.6
Figure 1.6. Figure 1.6: An example of F13(c) and corresponding colored graph. Taking the union of facets colored i or j shows that Fij (c) is a surface in the neighbour￾hood of any vertex v of F, and a suitable neighbourhood of v in Fij (c) is homeomorphic to R 2 . Note that the bicolored s…
Figure 1.7
Figure 1.7. Figure 1.7: Merging several dots on a facet into a single weighted dot. The dots can be thought of as observables of the theory we are about to construct. Next we set up the algebraic side of the story. We work over a field k of characteristic two, char k = 2. The characteristic…
Figure 1.8
Figure 1.8. Figure 1.8: The two-sphere foam. Label 1 depics the coloring of the unique facet by that color. Let us look at some examples before sketching a proof of the theorem. Example 1.5. Consider the two-sphere foam F = S 2 decorated by n dots, see [PITH_FULL_IMAGE:figures/full_fig_p00…
Figure 1.9
Figure 1.9. Figure 1.9: Coloring cσ of a Θ-foam. For any coloring cσ and any pair of colors i, j, i < j the bicolored surface Fij (cσ) is a two-sphere. Consequently, the denominator term does not depend on the coloring, and Fij (cσ) = S 2 , χij (cσ) 2 = 1, [PITH_FULL_IMAGE:figures/full_fig…
Figure 1.10
Figure 1.10. Figure 1.10: Swapping colors 1, 2 on a two-sphere component of F12(c). The two-sphere S results in the denominator xi + xj in the evaluations ⟨F, c⟩ and ⟨F, c′ ⟩. The idea is to compare these two evaluations and show that xi + xj in the denominator will cancel out in their sum ⟨…
Figure 1.11
Figure 1.11. Figure 1.11: R-valued bilinear form on α(Γ) is obtained by gluing two foams F1 and F2 along the common boundary web Γ = ∂F1 = ∂F2 and evaluating the resulting closed foam. Extending R-linearly, one obtains a symmetric bilinear form on Fr(Γ). Foams F1, F2 in this construction may…
Figure 1.12
Figure 1.12. Figure 1.12: Composing F with various foams F0 with boundary Γ0 induces a map of state spaces α(F) : α(Γ0) −→ α(Γ1). In this example Γ0 has two connected components [PITH_FULL_IMAGE:figures/full_fig_p015_1_12.png]

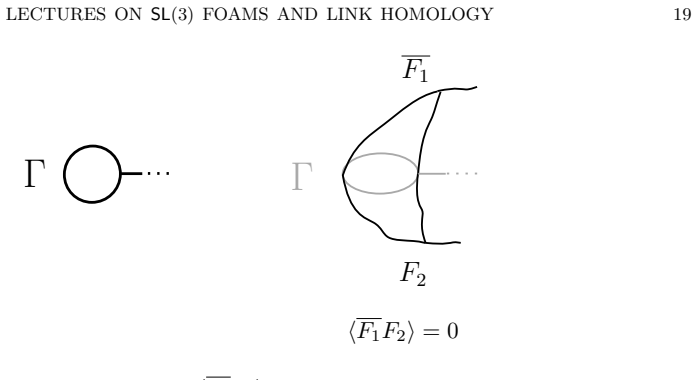

Figure 2.1
Figure 2.1. Figure 2.1: The evaluation ⟨F1F2⟩ is 0 since this foam has no Tait colorings Proof. To understand the state space of Γ we look at all foams F1 such that ∂F1 = Γ, then we pair it up with F2 such that ∂F2 = Γ and compute the evaluation ⟨F1F2⟩. Foam F1F2 is schematically depicted o…
Figure 2.2
Figure 2.2. Figure 2.2: Foams F1 and F2. We claim that these two foams have the same evaluation, ⟨F1⟩ = ⟨F2⟩. Indeed, pick a Tait coloring c of the foam F1, shown in [PITH_FULL_IMAGE:figures/full_fig_p019_2_2.png]
Figure 2
Figure 2. Figure 2: in the center and right and denoted [PITH_FULL_IMAGE:figures/full_fig_p019_2.png]
Figure 2.3
Figure 2.3. Figure 2.3: Coloring c of F1 and its extensions to colorings cj , ck of F2. Let us compare ⟨F1, c⟩ and ⟨F2, c′ ⟩, where c ′ stands for ck or cj . Looking at the respective bicolored surfaces, we see that F1,ij (c) and F2,ij (c ′ ) are homeomorphic and likewise for F1,ik(c) and F…
Figure 2.4
Figure 2.4. Figure 2.4: An equality between foam evaluations, where the first foam on the right-hand side has a dot on the top facet away from the reader, while the second foam on the right-hand side has a dot on the bottom facet facing the reader [PITH_FULL_IMAGE:figures/full_fig_p020_2_4.png]
Figure 2.5
Figure 2.5. Figure 2.5: Identity foam cobordism for the digon facet and its coloring c. There are two colorings c ′ of foams G1 and G2 on the right-hand side which extend the coloring c of the foam F. We denote them cj and ck, with the index referring to the color of the back facet of the u…
Figure 2.6
Figure 2.6. Figure 2.6: Extending coloring c of F to colorings cj , ck of G1, G2. Now let us compare ⟨F, c⟩ and ⟨G1, c′ ⟩ + ⟨G2, c′ ⟩. First consider intermediate foam G3 with induced coloring c ′ , as depicted in [PITH_FULL_IMAGE:figures/full_fig_p021_2_6.png]
Figure 2.7
Figure 2.7. Figure 2.7: Foam G3 and its colorings cj , ck. Direct computation leads to the following relations (13) ⟨G1, cj ⟩ + ⟨G2, cj ⟩ = (xj + xk)⟨G3, cj ⟩, (14) ⟨G1, ck⟩ + ⟨G2, ck⟩ = 2xk⟨G3, ck⟩ = 0. Also note that χ(Fij (c)) = χ(G3,ij (cj )), χ(Fik(c)) = χ(G3,ik(cj )), but χ(Fjk(c)) = …

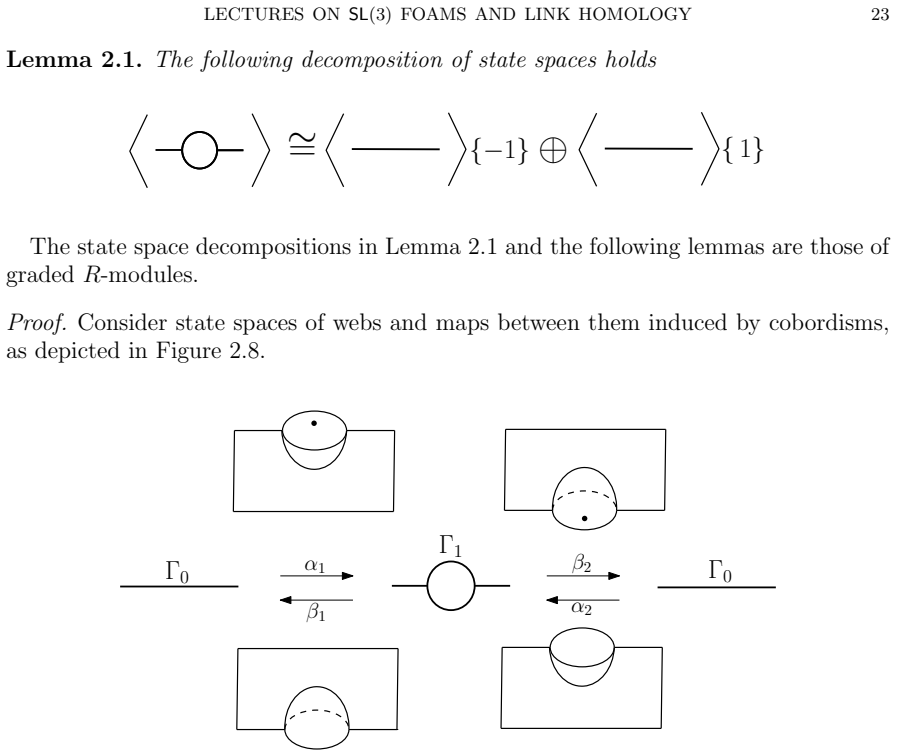

Figure 2.8
Figure 2.8. Figure 2.8: Foams for the direct sum decomposition of a digon web. Cobordisms in [PITH_FULL_IMAGE:figures/full_fig_p023_2_8.png]
Figure 2
Figure 2. Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p024_2.png]
Figure 2.10
Figure 2.10. Figure 2.10: A neck-cutting relation Proof. Proof is similar to that of the identity in [PITH_FULL_IMAGE:figures/full_fig_p024_2_10.png]
Figure 2.11
Figure 2.11. Figure 2.11: Foam maps for the direct sum decomposition in Lemma 2.2. The remaining relations for the direct sum decomposition: βiαj = δij follow from evaluations of dotted spheres in Example 1.5. □ The following two relations are straightforward to verify. Proposition 2.4. “Tri…
Figure 2.12
Figure 2.12. Figure 2.12: Trivalent bubble relation. Proposition 2.5. “Vertices removal” relation depicted in [PITH_FULL_IMAGE:figures/full_fig_p026_2_12.png]
Figure 2.13
Figure 2.13. Figure 2.13: Two vertices connected by an edge can be cancelled, re￾sulting in a simpler foam with the same evaluation. These, in turn, give rise to the following isomorphism Lemma 2.3. The following webs have isomorphic state spaces ∼ = Proof. The relations in Figures 2.12, 2.1…
Figure 2.14
Figure 2.14. Figure 2.14: Cobordisms that give mutually-inverse isomorphisms of state spaces for a web with a triangle and a contracted web. These identities follow by looking at possible colorings of foams αβ and βα. Colorings of αβ are in a natural bijection with colorings of the identity …

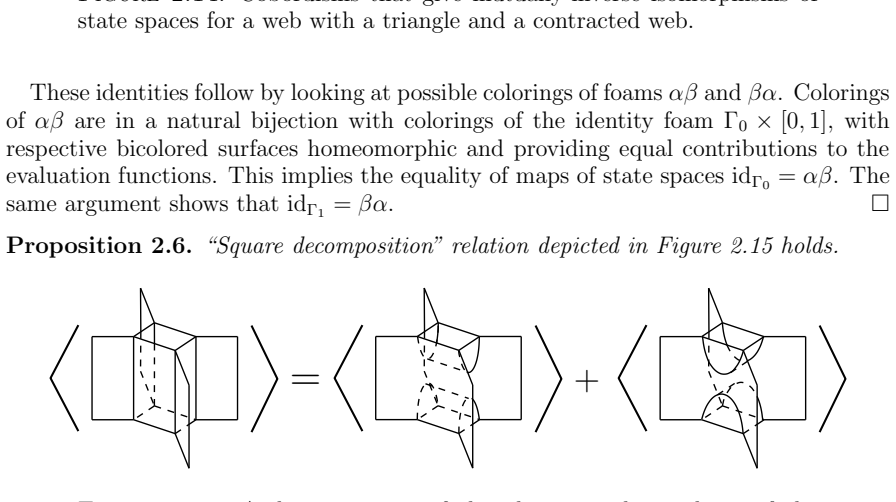

Figure 2.15
Figure 2.15. Figure 2.15: A decomposition of the identity endomorphism of the square web. We refer to [55, Proposition 2.24] for a proof. This relation, together with a relation in Remark 2.1 and a relation to simplify a tube with two parallel disks leads to the following decomposition. Lemm…
Figure 2.16
Figure 2.16. Figure 2.16: This web can be reduced using skein relations 2.1, 2.2 and 2.4. For a web Γ we define a Tait coloring c as a map c : e(Γ) −→ {1, 2, 3} from the set of edges of Γ to the 3-element set of colors so that the colors of the three edges at each vertex of Γ are distinct. I…
Figure 2.17
Figure 2.17. Figure 2.17: Skein relations on t(Γ). These relations mirror the above direct sum decompositions for the state spaces of webs. Induction on the complexity of a web Γ yields the following result [PITH_FULL_IMAGE:figures/full_fig_p028_2_17.png]
Figure 2.18
Figure 2.18. Figure 2.18: Left: foam for the generator x of the state space ⟨O⟩. Center and right: the identity element and monomial x 2 1x2 of ⟨Θ⟩. The state spaces are free graded modules over the ground ring R of graded ranks 1, [3] = q 2 + 1 + q −2 and [3][2] = (q 2 + 1 + q −2 )(q + q −1…
Figure 2.19
Figure 2.19. Figure 2.19: Graph of the dodecahedron is not reducible. Determining state spaces of non-reducible graphs is an open problem, see Boozer [17, 18]. One can propose the following problem. Problem 2.1. Is the state space ⟨Γ⟩ of any planar web Γ a free R-module ⟨Γ⟩ of rank t(Γ)? [P…
Figure 3.1
Figure 3.1. Figure 3.1: In-vertex and an out-vertex of an oriented SL(3) web. Webs were first considered by Kuperberg, who used them to develop a uniform ap￾proach to quantum invariants for Lie algebras of rank two [64]. For the root system A2 Kuperberg webs come from representation theory …
Figure 3.2
Figure 3.2. Figure 3.2: Left: a trivalent out-vertex, respectively in-vertex, repre￾sents a vector in the one-dimensional space of quantum sl3 invariants of V ⊗3 , respectively in InvUq(sl3)((V ∗ ) ⊗3 ). Right: vertical lines denote the identity endomorphism of V and V ∗ , depending on line…
Figure 3.3
Figure 3.3. Figure 3.3: Kuperberg skein relations for the SL(3) web invariant. We use a shortcut writing Γ in place of P(Γ). Relations in [PITH_FULL_IMAGE:figures/full_fig_p033_3_3.png]
Figure 3.4
Figure 3.4. Figure 3.4: Resolving crossings into linear combinations of webs in the Kuperberg invariant. to planar trivalent graphs, proves that such a web always has a region with at most 5 sides. Due to the parity constraint, such a region has 0, 2 or 4 sides, with a 0-sided region being …
Figure 3.5
Figure 3.5. Figure 3.5: Compatible orientations of facets near a seam of an oriented SL(3) foam. Next, consider a vertex of an unoriented foam, as in [PITH_FULL_IMAGE:figures/full_fig_p036_3_5.png]
Figure 3.6
Figure 3.6. Figure 3.6: A closed oriented foam. Singular circles (seams) are high￾lighted in blue. Two of the facets are shaded for convenience of pre￾sentation. Fixing an orientation along a singular circle determines the orientation for all facets and all circles, since this foam is conne…
Figure 3.7
Figure 3.7. Figure 3.7: Cobordism F merging Γ ⊔ Γ into Γ is indicated in grey. This cobordism is defined for any web Γ with a symmetry axis. F [PITH_FULL_IMAGE:figures/full_fig_p038_3_7.png]
Figure 3.8
Figure 3.8. Figure 3.8: Foam that represents the unit element in the ring ⟨Γ⟩, see also [PITH_FULL_IMAGE:figures/full_fig_p038_3_8.png]

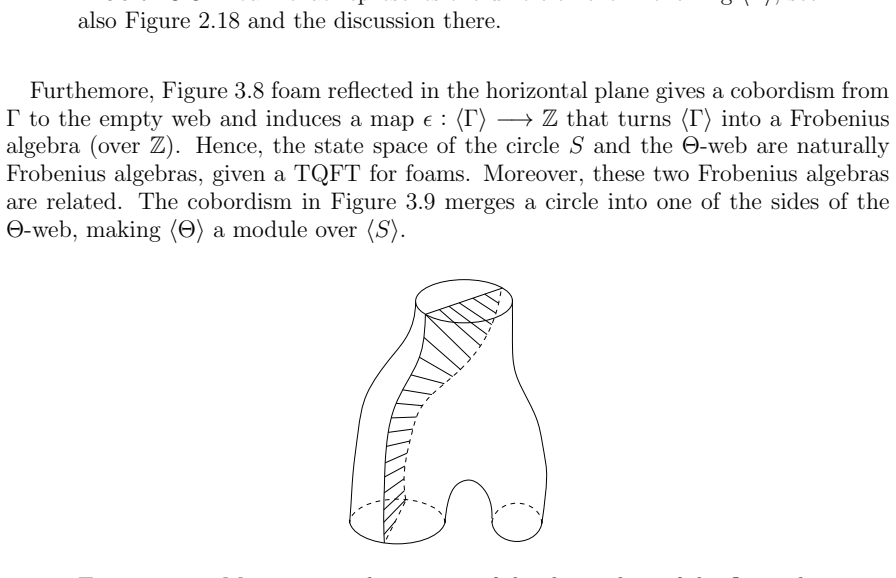

Figure 3.9
Figure 3.9. Figure 3.9: Merging a circle into one of the three edges of the Θ-graph [PITH_FULL_IMAGE:figures/full_fig_p038_3_9.png]

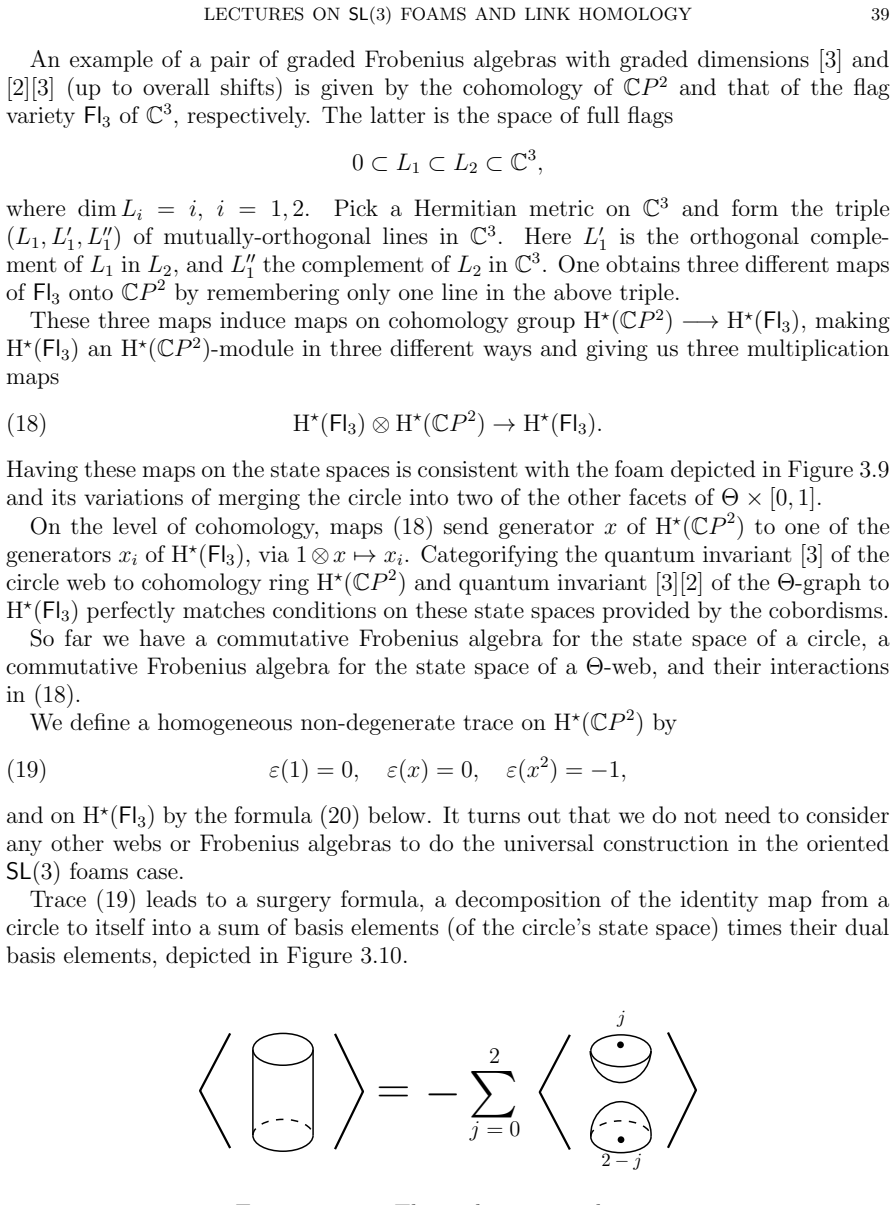

Figure 3.10
Figure 3.10. Figure 3.10: The neck-cutting relation [PITH_FULL_IMAGE:figures/full_fig_p039_3_10.png]
Figure 3.11
Figure 3.11. Figure 3.11: Foam on bottom left represents a monomial x a 1x b 2x c 3 ∈ H∗ (Fl3). Foam in on the top left describes the trace map ε : H∗ (Fl3) −→ Z. Closed foam F Fa,b,c on the right evaluates to ε(x a 1x b 2x c 3 ) ∈ Z. A foam of the first type (connected surface, possibly wit…
Figure 3
Figure 3. Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p041_3.png]
Figure 3.13
Figure 3.13. Figure 3.13: Skein relation for the Reshetikhin-Turaev quantum SL(3) invariant, a.k.a. the Kuperberg link invariant, and its normalization. This invariant is also a specialization of the HOMFLYPT 2-variable in￾variant, via (t, q) 7→ (q 3 , q). = = {−2} 0 { 3} 0 {−3} { 2} −1 0 0 …
Figure 3.14
Figure 3.14. Figure 3.14: Converting the crossing into its web resolutions and form￾ing the cone of the map between corresponding complexes induced by the foam F or F. resolutions consists of two arcs, the other is a web with two trivalent vertices. There are 2n possible resolutions of D int…
Figure 3
Figure 3. Figure 3: and its reflection [PITH_FULL_IMAGE:figures/full_fig_p044_3.png]
Figure 3.15
Figure 3.15. Figure 3.15: Foam F between two adjacent resolutions Γ0, Γ1 of D induces the map ⟨F⟩ : ⟨Γ0⟩ −→ ⟨Γ1⟩. Foam F is the reflection of F in a horizontal plane, inducing the map ⟨F⟩ : ⟨Γ1⟩ −→ ⟨Γ0⟩. Summing over all resolutions of the remaining crossings gives corresponding maps between…
Figure 4.1
Figure 4.1. Figure 4.1: An example of Γ′ ∈ Webϵ ′ ϵ and its composition with Γ ∈ Webϵ , which results in Γ′Γ ∈ Webϵ ′ . Here ϵ = (+, +, −, −, −, +) and ϵ ′ = (−, −, +, +). The composition web is simplified using the second skein relation in [PITH_FULL_IMAGE:figures/full_fig_p048_4_1.png]
Figure 4.2
Figure 4.2. Figure 4.2: For ϵ = ϵ ′ = (+, +), Webϵ ′ ϵ is a free Z[q, q−1 ]-module with a two-element basis B ++ ++ = {W1, W2}. Category Web is monoidal. The monoidal structure is given on objects by concate￾nating two sign sequences, ϵ1 ⊗ ϵ2 := ϵ1 ⊔ ϵ2 . The tensor product of webs is given…
Figure 4.3
Figure 4.3. Figure 4.3: An example illustrating the monoidal structure for webs ⊗ : Webϵ ′ 1 ϵ1 ⊗ Webϵ ′ 2 ϵ ′ 2 → Webϵ ′ 1⊔ϵ ′ 2 ϵ1⊔ϵ2 . Category Web is pivotal. This means that each object has a dual, with the dual of a sequence ϵ given by the sequence ϵ ∗ which is ϵ written in the opposi…
Figure 4.4
Figure 4.4. Figure 4.4: Action of duality morphisms given by pivotal structure on Webϵ ′ ϵ for ϵ = (−, −), ϵ ′ = (+, +, −). Here duality morphisms are emphasized in blue, and the resulting web gives an element of Webϵ ′ ϵ ∗ . Using pivotal structure one can rotate webs in any direction. Rem…
Figure 4.5
Figure 4.5. Figure 4.5: An example of a web in the lower-plane R 2 − with boundary ϵ = (+, −, +, +, +, −, +). This is a non-elliptic web with an inner region. Essentially the same web in the disk D2 is bounded by the gray circle. Category Web is braided, with the braiding structure on pairs…
Figure 4.6
Figure 4.6. Figure 4.6: An example of an oriented (4, 4)-tangle T ∈ Tan with ∂0T = (−, +, −, +) and ∂1T = (+, −, −, +). There is a functor Ku : Tan −→ Web which is the identity on objects. To define it on a morphism (tangle) T, project T generically from R 2 × [0, 1] onto the strip R × [0, …
Figure 4.7
Figure 4.7. Figure 4.7: An example of a graph ΓjΓi , which is a gluing of two objects in B ϵ , here ϵ = (+, +, −, −). As an intermediate object, for a balanced sequence ϵ introduce the category Hϵ . Objects of Hϵ are non-elliptic webs Γ with boundary conditions ∂1Γ = ϵ and ∂0Γ = ∅. We denot…
Figure 4.8
Figure 4.8. Figure 4.8: Elements Γ1, Γ2 of B ϵ , where ϵ = (+, +, −, −). It is straightforward to convert webs in the lower half-plane to webs in a disk, see Remark 4.1 and [PITH_FULL_IMAGE:figures/full_fig_p053_4_8.png]
Figure 4.9
Figure 4.9. Figure 4.9: Foam F ∈ HomHϵ (Γ1, Γ2), where Γ1, Γ2 are highlighted in blue, singular saddle is highlighted in gray. This foam is homeomorphic rel boundary to the foam considered in [PITH_FULL_IMAGE:figures/full_fig_p054_4_9.png]
Figure 4
Figure 4. Figure 4: on the left. In general, for a foam [PITH_FULL_IMAGE:figures/full_fig_p054_4.png]
Figure 4.11
Figure 4.11. Figure 4.11: State spaces assigned to pairs of generating objects Γ1, Γ2 for ϵ = (+, +, −, −), all with the shift {4} from (25). Γ2Γ1 ∂F Γ2 Γ1 [PITH_FULL_IMAGE:figures/full_fig_p055_4_11.png]
Figure 4.10
Figure 4.10. Figure 4.10: Identification of ∂F with Γ2Γ1. For this sequence the category has only two objects Γ1, Γ2, see [PITH_FULL_IMAGE:figures/full_fig_p055_4_10.png]

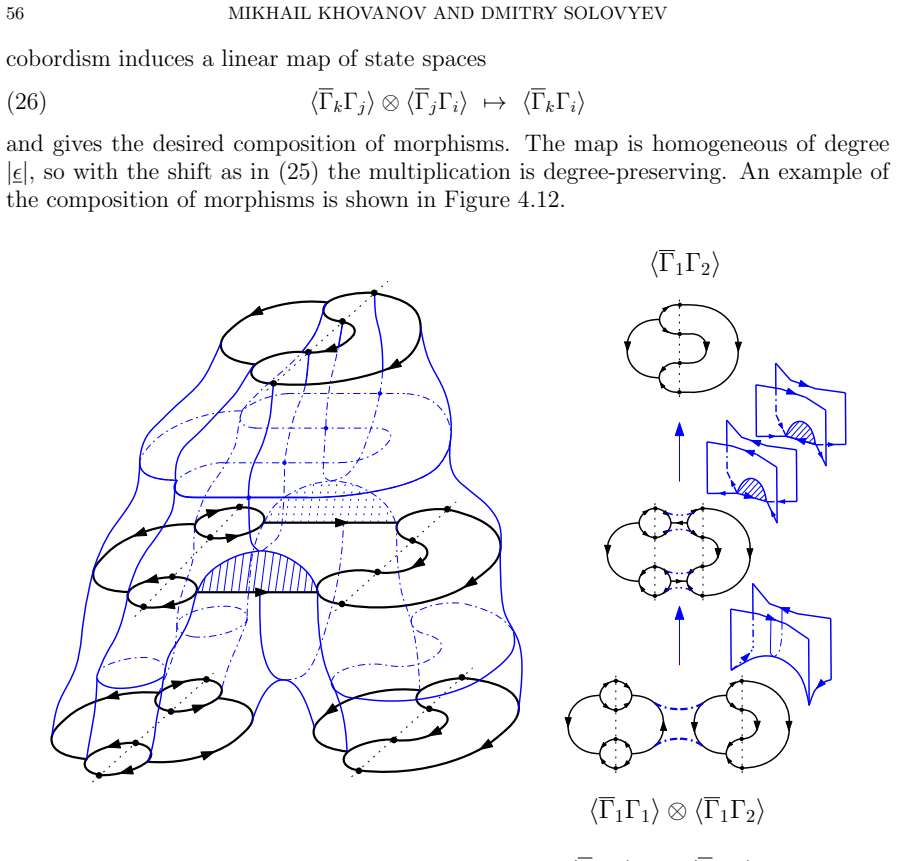

Figure 4.12
Figure 4.12. Figure 4.12: Multiplication of elements ⟨Γ1Γ1⟩ and ⟨Γ1Γ2⟩. Category Hϵ has finitely many objects, and it is a pre-additive category. The sum of its hom spaces, over all possible pairs of objects, is an associative ring. Namely, define the graded ring Hϵ by (27) Hϵ := M Γi,Γj∈Bϵ …
Figure 4.13
Figure 4.13. Figure 4.13: Γ1 Γ1 ∅ [PITH_FULL_IMAGE:figures/full_fig_p057_4_13.png]
Figure 4.14
Figure 4.14. Figure 4.14: An example of H(U) for ϵ = (−, −, −) and ϵ ′ = (−, +). For these sequences diagrams Γi , Γj are unique, and H(U) is the state space of the single web shown on the right and called the Θ-web, with the grading shifted up by 3. In other words, we complete U to a closed…
Figure 4.15
Figure 4.15. Figure 4.15: Example of a cobordism S from U0 to U1, where U0, U1 ∈ Wϵ ′ ϵ for ϵ = ϵ ′ = (+, −). To S we assign a homomorphism H(S) of (Hϵ ′ , Hϵ )-bimodules. To define it, recall that a web with boundary U is converted into closed webs ΓjUΓi to get the corresponding bimodule, s…
Figure 4.16
Figure 4.16. Figure 4.16: Left-hand side represents manifold M as a cobordism in HomZ(K)(N1, N2), right-hand side represents manifold M as an element of the k-vector space Z(N2N1). In the category Z(K), it seems natural to further restrict to objects N with ∂N ∼= K such that each connected c…
Figure 5.1
Figure 5.1. Figure 5.1: Reshetikhin-Turaev invariant f(T). This is the Reshetikhin-Turaev construction [100], which is a (braided monoidal) functor from the category OFTang of oriented framed tangles, with components labelled by irreducible representations Vλ of g, to the category Rep(Uq(g)…
Figure 5
Figure 5. Figure 5: on the left, but not in a [PITH_FULL_IMAGE:figures/full_fig_p069_5.png]
Figure 5.2
Figure 5.2. Figure 5.2: Vertices of MOY graphs, where thick lines split and merge. representations of quantum groups: Λ a+b q (V ) −→ Λ a q (V ) ⊗ Λ b q (V ), Λ a q (V ) ⊗ Λ b q (V ) −→ Λ a+b q (V ) [PITH_FULL_IMAGE:figures/full_fig_p069_5_2.png]
Figure 5.3
Figure 5.3. Figure 5.3: Two types of vertices in SL(N) MOY webs, with all orien￾tations either in or out. The case N = 3, restricted to webs with all edges of weight 1, reproduces webs for the Kuperberg invariant [64] and foam evaluation for its categorification in Section 3. A crossing dec…
Figure 5.4
Figure 5.4. Figure 5.4: Decomposition of an (a, b)-crossing into a q-linear combi￾nation of planar MOY webs. Normalization of the unknot is chosen as in [PITH_FULL_IMAGE:figures/full_fig_p070_5_4.png]
Figure 5.5
Figure 5.5. Figure 5.5: A circle of thickness a evaluates to the quantum binomial coefficient, also see (17) for the definition of quantum integer [n] [PITH_FULL_IMAGE:figures/full_fig_p070_5_5.png]
Figure 5.6
Figure 5.6. Figure 5.6: Three types of points of a GL(N) foam, left to right: regular points, points along a seam, and vertices. ure 5.8 and the middle picture in [PITH_FULL_IMAGE:figures/full_fig_p071_5_6.png]
Figure 5.7
Figure 5.7. Figure 5.7: Associativity diagram for merging three strands of thick￾ness a, b, c into a single strand of thickness a + b + c [PITH_FULL_IMAGE:figures/full_fig_p071_5_7.png]
Figure 5.8
Figure 5.8. Figure 5.8: Orientations of three facets along a seam of a GL(N) foam. Similar to SL(3) foams, dots on facets of a GL(N) foam are allowed. A dot d on a facet f of thickness a carries a homogeneous symmetric functions in a variables (42) Pd ∈ Z[y1, . . . , ya] Sa . Homogeneity co…

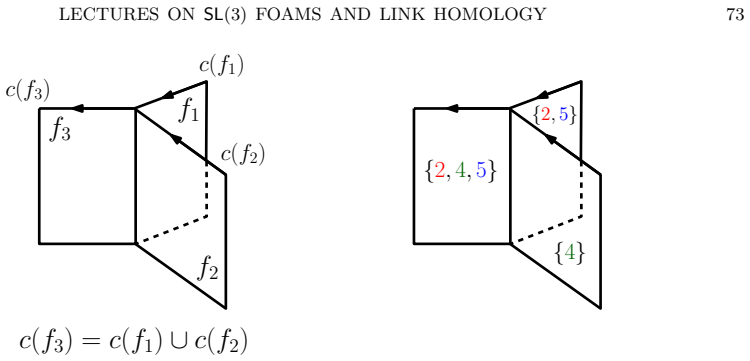

Figure 5.9
Figure 5.9. Figure 5.9: Left: the flow rule along the seam. Right: an example of a flow along the seam, where a = 2, c(f1) = {2, 5} and b = 1, c(f2) = {4}. oriented closed surface. It is embedded in R 3 since F ⊂ R 3 . Being a closed surface in F ⊂ R 3 , it has even Euler characteristic χ(F…
Figure 5.10
Figure 5.10. Figure 5.10: The second diagram in Figure 5.10 shows the same cross-section viewed [PITH_FULL_IMAGE:figures/full_fig_p074_5_10.png]
Figure 5.10
Figure 5.10. Figure 5.10: Positive and negative types of seam circles on the 2- colored subfoam Fi(c) ∪ Fj (c) ⊂ F, where i < j. Central dot denotes orientation of the singular circle pointing in the direction outside of the plane of the figure, while a cross denotes the opposite orientation…

Discussion (0). Sign in to comment.

Reference graph

Works this paper leans on

126 extracted references · 49 canonical work pages

  1. [46]

    , sl(3) link homology , Algebr. Geom. Topol. 4 (2004), 1045–1081, https://doi.org/10. 2140/agt.2004.4.1045. MR2100691

    2004

  2. [78]

    Marco Mackaay and Pedro Vaz, The universal sl3-link homology, Algebr. Geom. Topol. 7 (2007), 1135–1169, https://doi.org/10.2140/agt.2007.7.1135. MR2336253

    work page doi:10.2140/agt.2007.7.1135 2007

  3. [1]

    Mohammed Abouzaid and Ivan Smith, Khovanov homology from Floer cohomology , J. Amer. Math. Soc. 32 (2019), no. 1, 1–79, https://doi.org/10.1090/jams/902. MR3867999

    work page doi:10.1090/jams/902 2019

  4. [2]

    MR3967356

    Ian Agol and Vyacheslav Krushkal, Structure of the flow and Yamada polynomials of cubic graphs 102 (2019), 1–20, https://doi.org/10.1090/pspum/102/01. MR3967356

    work page doi:10.1090/pspum/102/01 2019

  5. [3]

    Knot Theory Ramifications 32 (2023), no

    Rostislav Akhmechet, Equivariant annular Khovanov homology , J. Knot Theory Ramifications 32 (2023), no. 2, Paper No. 2350002, 31, https://doi.org/10.1142/S0218216523500025. MR4564614

    work page doi:10.1142/s0218216523500025 2023

  6. [4]

    Rostislav Akhmechet and Mikhail Khovanov, Anchored foams and annular homology , Algebr. Geom. Topol. 23 (2023), no. 7, 3129–3204, https://doi.org/10.2140/agt.2023.23.3129. MR4647674

    work page doi:10.2140/agt.2023.23.3129 2023

  7. [5]

    Rostislav Akhmechet, Mikhail Khovanov, and Melissa Zhang, Annular sl(3) web algebras (in preparation)

  8. [6]

    Rina Anno, Affine tangles and irreducible exotic sheaves, arXiv preprint 0802.1070 (2008),https: //doi.org/10.48550/arXiv.0802.1070

    work page Pith review arXiv doi:10.48550/arxiv.0802.1070 2008

Show all 126 references
  1. [7]

    Rina Anno and Vinoth Nandakumar, Exotic t-structures for two-block Springer fibres , Trans. Amer. Math. Soc. 376 (2023), no. 3, 1523–1552, https://doi.org/10.1090/tran/8765. MR4549684

    2023 doi

  2. [9]

    Appel, W

    K. Appel, W. Haken, and J. Koch, Every planar map is four colorable. II. Reducibility , Illi- nois J. Math. 21 (1977), no. 3, 491–567, http://projecteuclid.org/euclid.ijm/1256049012. MR543793

    1977

  3. [10]

    Scott Baldridge and Ben McCarty, A new way to prove configuration reducibility using gauge theory, arXiv preprint 2412.18558 (2024), https://arxiv.org/abs/2412.18558

    2024 arXiv

  4. [11]

    Dror Bar-Natan, Khovanov’s homology for tangles and cobordisms, Geom. Topol. 9 (2005), 1443– 1499, https://doi.org/10.2140/gt.2005.9.1443. MR2174270

    2005 doi

  5. [12]

    Anna Beliakova and Stephan Wehrli, Categorification of the colored Jones polynomial and Ras- mussen invariant of links , Canad. J. Math. 60 (2008), no. 6, 1240–1266, https://doi.org/10. 4153/CJM-2008-053-1 . MR2462446

    2008

  6. [13]

    (N.S.) 5 (1999), no

    Joseph Bernstein, Igor Frenkel, and Mikhail Khovanov, A categorification of the Temperley-Lieb algebra and Schur quotients of U (sl2) via projective and Zuckerman functors , Selecta Math. (N.S.) 5 (1999), no. 2, 199–241, https://doi.org/10.1007/s000290050047. MR1714141

    1999 doi

  7. [14]

    Blanchet, N

    C. Blanchet, N. Habegger, G. Masbaum, and P. Vogel, Topological quantum field theories derived from the Kauffman bracket , Topology 34 (1995), no. 4, 883–927, https://doi.org/10.1016/ 0040-9383(94)00051-4. MR1362791

    1995

  8. [15]

    Knot Theory Ramifications 19 (2010), no

    Christian Blanchet, An oriented model for Khovanov homology , J. Knot Theory Ramifications 19 (2010), no. 2, 291–312, https://doi.org/10.1142/S0218216510007863. MR2647055

    2010 doi

  9. [16]

    Elijah Bodish, Ben Elias, and David E. V. Rose, Spin link homology , arXiv preprint 2407.00189 (2024), https://arxiv.org/abs/2407.00189

    2024 arXiv

  10. [17]

    David Boozer, Computer bounds for Kronheimer-Mrowka foam evaluation, Exp. Math. 32 (2023), no. 4, 615–630, https://doi.org/10.1080/10586458.2021.1982078. MR4669283

    2023

  11. [18]

    , The combinatorial and gauge-theoretic foam evaluation functors are not the same , Math. Ann. 392 (2025), no. 1, 47–56, https://doi.org/10.1007/s00208-024-03064-8 . MR4887753

    2025 doi

  12. [19]

    Chris Bowman, Maud De Visscher, Alice Dell’Arciprete, Amit Hazi, Rob Muth, and Catharina Stroppel, Quiver presentations and Schur–Weyl duality for Khovanov arc algebras, arXiv preprint 2411.15520 (2024), https://arxiv.org/abs/2411.15520

    2024 arXiv

  13. [20]

    Jonathan Brundan, On the definition of Kac-Moody 2-category , Math. Ann. 364 (2016), no. 1-2, 353–372, https://doi.org/10.1007/s00208-015-1207-y . MR3451390

    2016 doi

  14. [21]

    Theory 15 (2011), 170–243, https://doi.org/10

    Jonathan Brundan and Catharina Stroppel, Highest weight categories arising from Khovanov’s diagram algebra III: category O, Represent. Theory 15 (2011), 170–243, https://doi.org/10. 1090/S1088-4165-2011-00389-7 . MR2781018

    2011

  15. [22]

    Freedman, and Kevin Walker, Positivity of the universal pairing in 3 dimensions , J

    Danny Calegari, Michael H. Freedman, and Kevin Walker, Positivity of the universal pairing in 3 dimensions , J. Amer. Math. Soc. 23 (2010), no. 1, 107–188, https://doi.org/10.1090/ S0894-0347-09-00642-0 . MR2552250

    2010

  16. [23]

    Carmen Livia Caprau, sl(2) tangle homology with a parameter and singular cobordisms , Al- gebr. Geom. Topol. 8 (2008), no. 2, 729–756, https://doi.org/10.2140/agt.2008.8.729. MR2443094

    2008 doi

  17. [24]

    Scott Carter, Daniel E

    J. Scott Carter, Daniel E. Flath, and Masahico Saito, The classical and quantum 6 j-symbols, Mathematical Notes, vol. 43, Princeton University Press, Princeton, NJ, 1995. MR1366832

    1995

  18. [25]

    Scott Carter and Masahico Saito, Knotted surfaces and their diagrams , Mathematical Surveys and Monographs, vol

    J. Scott Carter and Masahico Saito, Knotted surfaces and their diagrams , Mathematical Surveys and Monographs, vol. 55, American Mathematical Society, Providence, RI, 1998. MR1487374

    1998

  19. [26]

    Sabin Cautis, Clasp technology to knot homology via the affine Grassmannian , Math. Ann. 363 (2015), no. 3-4, 1053–1115, https://doi.org/10.1007/s00208-015-1196-x . MR3412353

    2015 doi

  20. [27]

    Sabin Cautis and Joel Kamnitzer, Knot homology via derived categories of coherent sheaves. I. The sl(2)-case, Duke Math. J. 142 (2008), no. 3, 511–588, https://doi.org/10.1215/ 00127094-2008-012. MR2411561

    2008

  21. [28]

    , Knot homology via derived categories of coherent sheaves. II. slm case, Invent. Math. 174 (2008), no. 1, 165–232, https://doi.org/10.1007/s00222-008-0138-6 . MR2430980 LECTURES ON SL(3) FOAMS AND LINK HOMOLOGY 81

    2008 doi

  22. [29]

    Sabin Cautis, Joel Kamnitzer, and Scott Morrison, Webs and quantum skew Howe duality , Math. Ann. 360 (2014), no. 1-2, 351–390, https://doi.org/10.1007/s00208-013-0984-4 . MR3263166

    2014 doi

  23. [30]

    Joseph Chuang and Rapha¨ el Rouquier, Derived equivalences for symmetric groups and sl2- categorification, Ann. of Math. (2) 167 (2008), no. 1, 245–298, https://doi.org/10.4007/ annals.2008.167.245. MR2373155

    2008

  24. [31]

    David Clark, Functoriality for the su3 Khovanov homology, Algebr. Geom. Topol. 9 (2009), no. 2, 625–690, https://doi.org/10.2140/agt.2009.9.625. MR2482322

    2009 doi

  25. [32]

    David Clark, Scott Morrison, and Kevin Walker, Fixing the functoriality of Khovanov homol- ogy, Geom. Topol. 13 (2009), no. 3, 1499–1582, https://doi.org/10.2140/gt.2009.13.1499. MR2496052

    2009 doi

  26. [33]

    3 (2012), no

    Benjamin Cooper and Vyacheslav Krushkal, Categorification of the Jones-Wenzl projectors , Quantum Topol. 3 (2012), no. 2, 139–180, https://doi.org/10.4171/QT/27. MR2901969

    2012 doi

  27. [34]

    Frenkel, Four-dimensional topological quantum field theory, Hopf cate- gories, and the canonical bases , 1994, pp

    Louis Crane and Igor B. Frenkel, Four-dimensional topological quantum field theory, Hopf cate- gories, and the canonical bases , 1994, pp. 5136–5154. Topology and physics. MR1295461

    1994

  28. [35]

    Michael Ehrig, Daniel Tubbenhauer, and Paul Wedrich, Functoriality of colored link homologies, Proc. Lond. Math. Soc. (3) 117 (2018), no. 5, 996–1040, https://doi.org/10.1112/plms. 12154. MR3877770

    2018 doi

  29. [36]

    Freedman, Alexei Kitaev, Chetan Nayak, Johannes K

    Michael H. Freedman, Alexei Kitaev, Chetan Nayak, Johannes K. Slingerland, Kevin Walker, and Zhenghan Wang, Universal manifold pairings and positivity , Geom. Topol. 9 (2005), 2303– 2317, https://doi.org/10.2140/gt.2005.9.2303. MR2209373

    2005 doi

  30. [37]

    Freyd, D

    P. Freyd, D. Yetter, J. Hoste, W. B. R. Lickorish, K. Millett, and A. Ocneanu, A new polynomial invariant of knots and links , Bull. Amer. Math. Soc. (N.S.) 12 (1985), no. 2, 239–246, https: //doi.org/10.1090/S0273-0979-1985-15361-3 . MR776477

    1985 doi

  31. [38]

    Eugene Gorsky and Paul Wedrich, Evaluations of annular Khovanov-Rozansky homology , Math. Z. 303 (2023), no. 1, Paper No. 25, 57, https://doi.org/10.1007/s00209-022-03163-9 . MR4526088

    2023 doi

  32. [39]

    Elisenda Grigsby, Anthony M

    J. Elisenda Grigsby, Anthony M. Licata, and Stephan M. Wehrli, Annular Khovanov homology and knotted Schur-Weyl representations , Compos. Math. 154 (2018), no. 3, 459–502, https: //doi.org/10.1112/S0010437X17007540. MR3731256

    2018 doi

  33. [40]

    Mee Seong Im, Mikhail Khovanov, and Victor Ostrik, Universal construction in monoidal and non-monoidal settings, the Brauer envelope, and pseudocharacters , Theory Appl. Categ. 44 (2025), Paper No. 2, 15–83. MR4851408

    2025

  34. [41]

    Vaughan F. R. Jones, A polynomial invariant for knots via von Neumann algebras , Bull. Amer. Math. Soc. (N.S.) 12 (1985), no. 1, 103–111, https://doi.org/10.1090/ S0273-0979-1985-15304-2 . MR766964

    1985

  35. [42]

    Kauffman, State models and the Jones polynomial , Topology 26 (1987), no

    Louis H. Kauffman, State models and the Jones polynomial , Topology 26 (1987), no. 3, 395–407, https://doi.org/10.1016/0040-9383(87)90009-7. MR899057

    1987 doi

  36. [43]

    Kauffman and S´ ostenes L

    Louis H. Kauffman and S´ ostenes L. Lins, Temperley-Lieb recoupling theory and invariants of 3-manifolds, Annals of Mathematics Studies, vol. 134, Princeton University Press, Princeton, NJ, 1994. MR1280463

    1994

  37. [44]

    Mikhail Khovanov, A categorification of the Jones polynomial , Duke Math. J. 101 (2000), no. 3, 359–426, https://doi.org/10.1215/S0012-7094-00-10131-7 . MR1740682

    2000 doi

  38. [45]

    , A functor-valued invariant of tangles , Algebr. Geom. Topol. 2 (2002), 665–741, https: //doi.org/10.2140/agt.2002.2.665. MR1928174

    2002 doi

  39. [47]

    Knot Theory Ramifications 14 (2005), no

    , Categorifications of the colored Jones polynomial , J. Knot Theory Ramifications 14 (2005), no. 1, 111–130, https://doi.org/10.1142/S0218216505003750. MR2124557 82 MIKHAIL KHOV ANOV AND DMITRY SOLOVYEV

    2005 doi

  40. [48]

    , An invariant of tangle cobordisms, Trans. Amer. Math. Soc. 358 (2006), no. 1, 315–327, https://doi.org/10.1090/S0002-9947-05-03665-2 . MR2171235

    2006 doi

  41. [49]

    , Universal construction of topological theories in two dimensions , arXiv preprint 2007.03361 (2020), https://doi.org/10.48550/arXiv.2007.03361

    2020 doi arXiv

  42. [50]

    Mikhail Khovanov and Greg Kuperberg, Web bases for sl(3) are not dual canonical , Pacific J. Math. 188 (1999), no. 1, 129–153, https://doi.org/10.2140/pjm.1999.188.129. MR1680395

    1999 doi

  43. [51]

    Lauda, A diagrammatic approach to categorification of quantum groups

    Mikhail Khovanov and Aaron D. Lauda, A diagrammatic approach to categorification of quantum groups. I , Represent. Theory 13 (2009), 309–347, https://doi.org/10.1090/ S1088-4165-09-00346-X . MR2525917

    2009

  44. [52]

    Mikhail Khovanov and Robert Lipshitz, Categorical lifting of the Jones polynomial: a survey , Bull. Amer. Math. Soc. (N.S.)60 (2023), no. 4, 483–506,https://doi.org/10.1090/bull/1772. MR4642116

    2023 doi

  45. [53]

    Przytycki, Louis-Hadrien Robert, and Marithania Silvero, A topo- logical theory for unoriented SL(4) foams, Mediterr

    Mikhail Khovanov, J´ ozef H. Przytycki, Louis-Hadrien Robert, and Marithania Silvero, A topo- logical theory for unoriented SL(4) foams, Mediterr. J. Math. 21 (2024), no. 2, Paper No. 62, 33, https://doi.org/10.1007/s00009-024-02591-7 . MR4715397

    2024 doi

  46. [54]

    Mikhail Khovanov and You Qi, Categorification course notes , Lecture notes (2012), https: //you-qi2121.github.io/mypage/categorificationnotes.html

    2012

  47. [55]

    Mikhail Khovanov and Louis-Hadrien Robert, Foam evaluation and Kronheimer-Mrowka theo- ries, Adv. Math. 376 (2021), Paper No. 107433, 59, https://doi.org/10.1016/j.aim.2020. 107433. MR4178907

    2021 doi

  48. [56]

    Mikhail Khovanov, Louis-Hadrien Robert, and Emmanuel Wagner, Foams and Soergel bimodules (in preparation)

  49. [57]

    Mikhail Khovanov and Lev Rozansky, Topological Landau-Ginzburg models on the world-sheet foam, Adv. Theor. Math. Phys. 11 (2007), no. 2, 233–259, https://doi.org/10.4310/atmp. 2007.v11.n2.a2. MR2322554

    2007 doi

  50. [58]

    , Matrix factorizations and link homology , Fund. Math. 199 (2008), no. 1, 1–91, https: //doi.org/10.4064/fm199-1-1. MR2391017

    2008 doi

  51. [59]

    II , Geom

    , Matrix factorizations and link homology. II , Geom. Topol. 12 (2008), no. 3, 1387–1425, https://doi.org/10.2140/gt.2008.12.1387. MR2421131

    2008 doi

  52. [60]

    Kirillov and Nicolai Reshetikhin, Representations of the algebra Uq(sl(2)), q-orthogonal polynomials and invariants of links , Adv

    Anatol. Kirillov and Nicolai Reshetikhin, Representations of the algebra Uq(sl(2)), q-orthogonal polynomials and invariants of links , Adv. Ser. Math. Phys., vol. 7, World Sci. Publ., Teaneck, NJ, 1989. MR1026957

    1989

  53. [61]

    P. B. Kronheimer and T. S. Mrowka, Exact triangles for SO(3) instanton homology of webs , J. Topol. 9 (2016), no. 3, 774–796, https://doi.org/10.1112/jtopol/jtw010. MR3551837

    2016 doi

  54. [62]

    , Tait colorings, and an instanton homology for webs and foams , J. Eur. Math. Soc. (JEMS) 21 (2019), no. 1, 55–119, https://doi.org/10.4171/JEMS/831. MR3880205

    2019 doi

  55. [63]

    Kronheimer and Tomasz S

    Peter B. Kronheimer and Tomasz S. Mrowka, A deformation of instanton homology for webs , Geom. Topol. 23 (2019), no. 3, 1491–1547, https://doi.org/10.2140/gt.2019.23.1491. MR3956896

    2019 doi

  56. [64]

    Greg Kuperberg, Spiders for rank 2 Lie algebras, Comm. Math. Phys. 180 (1996), no. 1, 109–151, http://projecteuclid.org/euclid.cmp/1104287237. MR1403861

    1996

  57. [65]

    Lauda, A categorification of quantum sl(2), Adv

    Aaron D. Lauda, A categorification of quantum sl(2), Adv. Math. 225 (2010), no. 6, 3327–3424, https://doi.org/10.1016/j.aim.2010.06.003. MR2729010

    2010 doi

  58. [66]

    , An introduction to diagrammatic algebra and categorified quantum sl2, Bull. Inst. Math. Acad. Sin. (N.S.) 7 (2012), no. 2, 165–270. MR3024893

    2012

  59. [67]

    Lauda, Hoel Queffelec, and David E

    Aaron D. Lauda, Hoel Queffelec, and David E. V. Rose, Khovanov homology is a skew Howe 2-representation of categorified quantum slm, Algebr. Geom. Topol. 15 (2015), no. 5, 2517–2608, https://doi.org/10.2140/agt.2015.15.2517. MR3426687 LECTURES ON SL(3) FOAMS AND LINK HOMOLOGY 83

    2015 doi

  60. [68]

    Thang T. Q. Le, Integrality and symmetry of quantum link invariants , Duke Math. J. 102 (2000), no. 2, 273–306, https://doi.org/10.1215/S0012-7094-00-10224-4 . MR1749439

    2000 doi

  61. [69]

    Lukas Lewark, Foamho, an sl3-homology calculator (2012), https://people.math.ethz.ch/ ~llewark/foamho.php

    2012

  62. [70]

    , sl3-foam homology calculations , Algebr. Geom. Topol. 13 (2013), no. 6, 3661–3686, https://doi.org/10.2140/agt.2013.13.3661. MR3248745

    2013 doi

  63. [71]

    , Rasmussen ’s spectral sequences and the slN -concordance invariants, Adv. Math. 260 (2014), 59–83, https://doi.org/10.1016/j.aim.2014.04.003. MR3209349

    2014 doi

  64. [72]

    Lukas Lewark and Andrew Lobb, Upsilon-like concordance invariants from sln knot cohomol- ogy, Geom. Topol. 23 (2019), no. 2, 745–780, https://doi.org/10.2140/gt.2019.23.745. MR3939052

    2019 doi

  65. [73]

    Andrew Lobb, A note on Gornik’s perturbation of Khovanov-Rozansky homology , Algebr. Geom. Topol. 12 (2012), no. 1, 293–305, https://doi.org/10.2140/agt.2012.12.293. MR2916277

    2012 doi

  66. [74]

    110, Birkh¨ auser Boston, Inc., Boston, MA, 1993

    George Lusztig, Introduction to quantum groups , Progress in Mathematics, vol. 110, Birkh¨ auser Boston, Inc., Boston, MA, 1993. MR1227098

    1993

  67. [75]

    Algebra 409 (2014), 54–100, https://doi.org/10.1016/j.jalgebra.2014.02.036

    Marco Mackaay, The slN -web algebras and dual canonical bases , J. Algebra 409 (2014), 54–100, https://doi.org/10.1016/j.jalgebra.2014.02.036. MR3198835

    2014 doi

  68. [76]

    Marco Mackaay, Weiwei Pan, and Daniel Tubbenhauer,The sl3-web algebra, Math. Z. 277 (2014), no. 1-2, 401–479, https://doi.org/10.1007/s00209-013-1262-6 . MR3205780

    2014 doi

  69. [77]

    Marco Mackaay, Marko Stoˇ si´ c, and Pedro Vaz,sl(N )-link homology (N ≥ 4) using foams and the Kapustin-Li formula , Geom. Topol. 13 (2009), no. 2, 1075–1128, https://doi.org/10.2140/ gt.2009.13.1075. MR2491657

    2009

  70. [79]

    , The foam and the matrix factorization sl3 link homologies are equivalent, Algebr. Geom. Topol. 8 (2008), no. 1, 309–342, https://doi.org/10.2140/agt.2008.8.309. MR2443231

    2008 doi

  71. [80]

    , The diagrammatic Soergel category and sl(N )-foams, for N ≥ 4, Int. J. Math. Math. Sci. (2010), Art. ID 468968, 20, https://doi.org/10.1155/2010/468968. MR2671770

    2010 doi

  72. [81]

    Marco Mackaay and Ben Webster, Categorified skew Howe duality and comparison of knot ho- mologies, Adv. Math. 330 (2018), 876–945, https://doi.org/10.1016/j.aim.2018.03.034. MR3787560

    2018 doi

  73. [82]

    Pure Appl

    Marco Mackaay and Yasuyoshi Yonezawa,slN -web categories and categorified skew Howe duality, J. Pure Appl. Algebra 223 (2019), no. 5, 2173–2229, https://doi.org/10.1016/j.jpaa.2018. 07.013. MR3906545

    2019 doi

  74. [83]

    Ciprian Manolescu, Link homology theories from symplectic geometry , Adv. Math. 211 (2007), no. 1, 363–416, https://doi.org/10.1016/j.aim.2006.09.007. MR2313538

    2007 doi

  75. [84]

    , Khovanov homology and 4-manifolds (2025), https://viasm.edu.vn/Cms_Data/ Contents/viasm/Media/2025/bvchinh/VIASM-ICTP/04_Manolescu_Khovanov4M.pdf

    2025

  76. [85]

    Volodymyr Mazorchuk and Catharina Stroppel, A combinatorial approach to functorial quantum slk knot invariants , Amer. J. Math. 131 (2009), no. 6, 1679–1713, https://doi.org/10.1353/ ajm.0.0082. MR2567504

    2009

  77. [86]

    Knot Theory Ramifications 17 (2008), no

    Scott Morrison and Ari Nieh, On Khovanov’s cobordism theory for su3 knot homology , J. Knot Theory Ramifications 17 (2008), no. 9, 1121–1173, https://doi.org/10.1142/ S0218216508006555. MR2457839

    2008

  78. [87]

    Scott Morrison, Kevin Walker, and Paul Wedrich, Invariants of 4-manifolds from Khovanov- Rozansky link homology, Geom. Topol. 26 (2022), no. 8, 3367–3420, https://doi.org/10.2140/ gt.2022.26.3367. MR4562565

    2022

  79. [88]

    Hitoshi Murakami, Tomotada Ohtsuki, and Shuji Yamada, Homfly polynomial via an invariant of colored plane graphs , Enseign. Math. (2) 44 (1998), no. 3-4, 325–360. MR1659228 84 MIKHAIL KHOV ANOV AND DMITRY SOLOVYEV

    1998

  80. [89]

    Alexei Oblomkov, Notes on matrix factorizations and knot homology , Geometric Representation Theory and Gauge Theory, (2019), pp. 83–127. MR4286062

    2019

  81. [90]

    Alexei Oblomkov and Lev Rozansky, Soergel bimodules and matrix factorizations, arXiv preprint 2010.14546 (2020), https://arxiv.org/abs/2010.14546

    2020 arXiv

  82. [91]

    Przytycki and Pawe l Traczyk, Invariants of links of Conway type , Kobe J

    J´ ozef H. Przytycki and Pawe l Traczyk, Invariants of links of Conway type , Kobe J. Math. 4 (1988), no. 2, 115–139. MR945888

    1988

  83. [92]

    You Qi, Louis-Hadrien Robert, Joshua Sussan, and Emmanuel Wagner, Symmetries of equivari- ant Khovanov-Rozansky homology, arXiv preprint 2306.10729 (2023), https://arxiv.org/abs/ 2306.10729

    2023 arXiv

  84. [93]

    (2024), https://ems.press/journals/qt/ articles/14297777, available at 2212.10106

    , Symmetries of gln-foams, Quantum Topol. (2024), https://ems.press/journals/qt/ articles/14297777, available at 2212.10106

    2024

  85. [94]

    Hoel Queffelec and David E. V. Rose, The sln foam 2-category: a combinatorial formulation of Khovanov-Rozansky homology via categorical skew Howe duality , Adv. Math. 302 (2016), 1251– 1339, https://doi.org/10.1016/j.aim.2016.07.027. MR3545951

    2016 doi

  86. [95]

    , Sutured annular Khovanov-Rozansky homology , Trans. Amer. Math. Soc. 370 (2018), no. 2, 1285–1319, https://doi.org/10.1090/tran/7117. MR3729501

    2018 doi

  87. [96]

    Hoel Queffelec, David E. V. Rose, and Antonio Sartori, Annular evaluation and link homology , arXiv preprint 1802.04131 (2018), https://arxiv.org/abs/1802.04131

    2018 arXiv

  88. [97]

    Jacob Rasmussen, Khovanov homology and the slice genus , Invent. Math. 182 (2010), no. 2, 419–447, https://doi.org/10.1007/s00222-010-0275-6 . MR2729272

    2010 doi

  89. [98]

    Nicolai Reshetikhin, Quantized universal enveloping algebras, the Yang-Baxter equation and invariants of links. 1. , LOMI preprint, LOMI-E-4-87 (1988), https://math.berkeley.edu/ ~reshetik/Publications/QGInv-1-1987.pdf

    1988

  90. [99]

    , Quantized universal enveloping algebras, the Yang-Baxter equation and invariants of links. 2. , LOMI preprint, LOMI-E-17-87 (1988), https://math.berkeley.edu/~reshetik/ Publications/QGInv-2-1987.pdf

    1988

  91. [100]

    Nicolai Reshetikhin and Vladimir Turaev, Ribbon graphs and their invariants derived from quan- tum groups, Comm. Math. Phys. 127 (1990), no. 1, 1–26, http://projecteuclid.org/euclid. cmp/1104180037. MR1036112

    1990

  92. [101]

    Karim Ritter von Merkl, Computing colored Khovanov homology , arXiv preprint 2505.03916 (2025), https://arxiv.org/abs/2505.03916

    2025

  93. [102]

    (103 p.), http://www.theses.fr/2013PA077240

    Louis-Hadrien Robert, Sur l’homologie sl3 des enchevˆ etrements : alg` ebres de Khovanov– Kuperberg (2013), 1 vol. (103 p.), http://www.theses.fr/2013PA077240. In English with an introduction in French

    2013

  94. [103]

    11 (2020), no

    Louis-Hadrien Robert and Emmanuel Wagner, A closed formula for the evaluation of foams , Quantum Topol. 11 (2020), no. 3, 411–487, https://doi.org/10.4171/qt/139. MR4164001

    2020 doi

  95. [104]

    , Symmetric Khovanov-Rozansky link homologies , J. ´Ec. polytech. Math. 7 (2020), 573– 651, https://doi.org/10.5802/jep.124. MR4086581

    2020 doi

  96. [105]

    Sanders, Paul Seymour, and Robin Thomas, A new proof of the four- colour theorem, Electron

    Neil Robertson, Daniel P. Sanders, Paul Seymour, and Robin Thomas, A new proof of the four- colour theorem, Electron. Res. Announc. Amer. Math. Soc. 2 (1996), no. 1, 17–25, https:// doi.org/10.1090/S1079-6762-96-00003-0 . MR1405965

    1996 doi

  97. [106]

    David E. V. Rose and Paul Wedrich, Deformations of colored slN link homologies via foams , Geom. Topol. 20 (2016), no. 6, 3431–3517, https://doi.org/10.2140/gt.2016.20.3431. MR3590355

    2016 doi

  98. [107]

    org/abs/0812.5023

    Rapha¨ el Rouquier, 2-Kac-Moody algebras, arXiv preprint 0812.5023 (2008), https://arxiv. org/abs/0812.5023

    2008 arXiv

  99. [108]

    Lev Rozansky, An infinite torus braid yields a categorified Jones-Wenzl projector , Fund. Math. 225 (2014), no. 1, 305–326, https://doi.org/10.4064/fm225-1-14. MR3205575 LECTURES ON SL(3) FOAMS AND LINK HOMOLOGY 85

    2014 doi

  100. [109]

    Knot The- ory Ramifications 30 (2021), no

    Taketo Sano, Fixing the functoriality of Khovanov homology: a simple approach , J. Knot The- ory Ramifications 30 (2021), no. 11, Paper No. 2150074, 12, https://doi.org/10.1142/ S0218216521500747. MR4376719

    2021

  101. [110]

    Dirk Schuetz, On variations of s-invariants from sl(3)-link homology, arXiv preprint 2504.07806 (2025), https://arxiv.org/abs/2504.07806

    2025 arXiv

  102. [111]

    Paul Seidel and Ivan Smith, A link invariant from the symplectic geometry of nilpo- tent slices , Duke Math. J. 134 (2006), no. 3, 453–514, https://doi.org/10.1215/ S0012-7094-06-13432-4 . MR2254624

    2006

  103. [112]

    Steinberger, An unavoidable set of D-reducible configurations, Trans

    John P. Steinberger, An unavoidable set of D-reducible configurations, Trans. Amer. Math. Soc. 362 (2010), no. 12, 6633–6661, https://doi.org/10.1090/S0002-9947-2010-05092-5 . MR2678989

    2010 doi

  104. [113]

    Catharina Stroppel, Categorification of the Temperley-Lieb category, tangles, and cobordisms via projective functors, Duke Math. J. 126 (2005), no. 3, 547–596, https://doi.org/10.1215/ S0012-7094-04-12634-X . MR2120117

    2005

  105. [114]

    Pure Appl

    Catharina Stroppel and Joshua Sussan, A Lie theoretic categorification of the coloured Jones polynomial, J. Pure Appl. Algebra 226 (2022), no. 10, Paper No. 107043, 43, https://doi.org/ 10.1016/j.jpaa.2022.107043. MR4385197

    2022

  106. [115]

    proquest.com/openurl?url_ver=Z39.88-2004&rft_val_fmt=info:ofi/fmt:kev:mtx: dissertation&res_dat=xri:pqdiss&rft_dat=xri:pqdiss:3267369

    Joshua Sussan, Category O and sl(k) link invariants (2007), 131, http://gateway. proquest.com/openurl?url_ver=Z39.88-2004&rft_val_fmt=info:ofi/fmt:kev:mtx: dissertation&res_dat=xri:pqdiss&rft_dat=xri:pqdiss:3267369. Thesis (Ph.D.)–Yale University. MR2710319

    2007

  107. [116]

    Thesis (Ph.D.)–Columbia Univer- sity

    Mrudul Madhav Thatte, Webs and foams of simple Lie algebras (2023), 87, https:// academiccommons.columbia.edu/doi/10.7916/h5nw-0a73. Thesis (Ph.D.)–Columbia Univer- sity

    2023 doi

  108. [117]

    Vladimir Turaev, The Yang-Baxter equation and invariants of links , Invent. Math. 92 (1988), no. 3, 527–553, https://doi.org/10.1007/BF01393746. MR939474

    1988 doi

  109. [118]

    Pedro Vaz, The diagrammatic Soergel category and sl(2) and sl(3) foams, Int. J. Math. Math. Sci. (2010), Art. ID 612360, 23, https://doi.org/10.1155/2010/612360. MR2652384

    2010 doi

  110. [119]

    Knot Theory Ramifications 29 (2020), no

    Pierre Vogel, Functoriality of Khovanov homology , J. Knot Theory Ramifications 29 (2020), no. 4, 2050020, 66, https://doi.org/10.1142/S0218216520500200. MR4096813

    2020 doi

  111. [120]

    MR3591642

    Ben Webster, Tensor product algebras, Grassmannians and Khovanov homology 680 (2016), 23– 58, https://doi.org/10.1090/conm/680. MR3591642

    2016 doi

  112. [121]

    , Knot invariants and higher representation theory , Mem. Amer. Math. Soc. 250 (2017), no. 1191, v+141, https://doi.org/10.1090/memo/1191. MR3709726

    2017 doi

  113. [122]

    Paul Wedrich, Exponential growth of colored HOMFLY-PT homology , Adv. Math. 353 (2019), 471–525, https://doi.org/10.1016/j.aim.2019.06.023. MR3982970

    2019 doi

  114. [123]

    , A note on general linear link homology , arXiv preprint 2504.20745 (2025), https:// arxiv.org/abs/2504.20745

    2025 arXiv

  115. [124]

    499 (2014), 217, https: //doi.org/10.4064/dm499-0-1

    Hao Wu, A colored sl(N ) homology for links in S3, Dissertationes Math. 499 (2014), 217, https: //doi.org/10.4064/dm499-0-1. MR3234803

    2014 doi

  116. [125]

    Graph Theory 13 (1989), no

    Shuji Yamada, An invariant of spatial graphs , J. Graph Theory 13 (1989), no. 5, 537–551, https://doi.org/10.1002/jgt.3190130503. MR1016274

    1989 doi

  117. [126]

    Yasuyoshi Yonezawa, Quantum (sln, ∧Vn) link invariant and matrix factorizations, Nagoya Math. J. 204 (2011), 69–123, https://doi.org/10.1215/00277630-1431840. MR2863366

    2011 doi

  118. [127]

    86 MIKHAIL KHOV ANOV AND DMITRY SOLOVYEV M.K.: Department of Mathematics, Johns Hopkins University, 3400 N

    Melissa Zhang, Notes on Khovanov homology , arXiv preprint 2501.03115 (2025), https:// arxiv.org/abs/2501.03115. 86 MIKHAIL KHOV ANOV AND DMITRY SOLOVYEV M.K.: Department of Mathematics, Johns Hopkins University, 3400 N. Charles Street, Baltimore, MD 21218, USA Email address :...

    2025 arXiv

Pith tools

Reviewed August 6, 2026 · model on record in the stance chip above.
