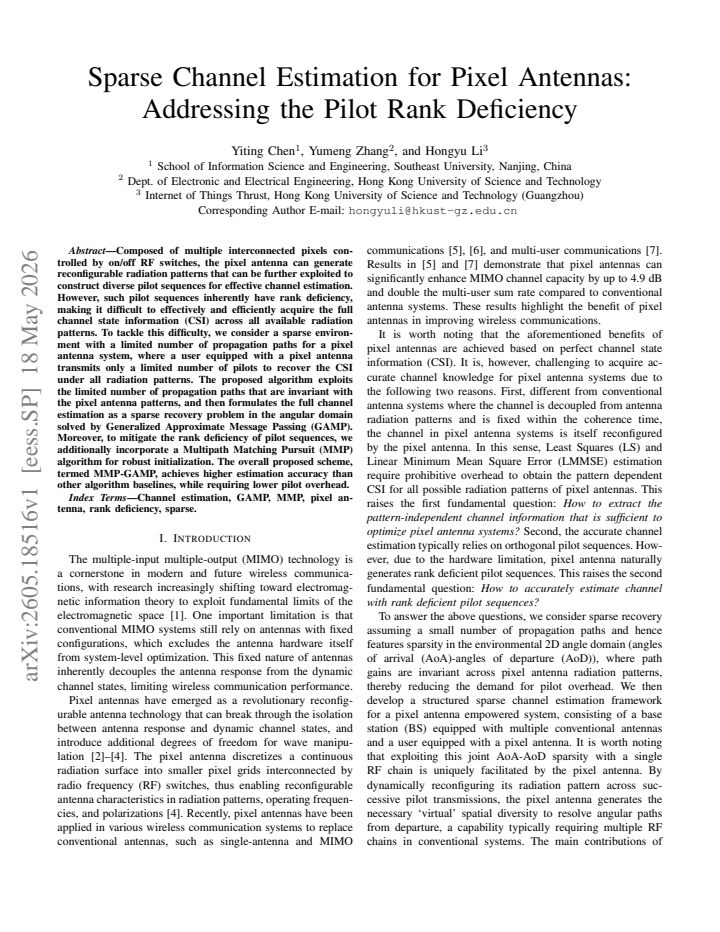

Sparse Channel Estimation for Pixel Antennas: Addressing the Pilot Rank Deficiency

Yiting Chen , Yumeng Zhang , Hongyu Li This is my paper

Pith reviewed 2026-05-20 08:28 UTC · model grok-4.3

classification 📡 eess.SP
keywords pixel antennassparse channel estimationrank deficiencyGAMPmultipath matching pursuitangular domainreconfigurable antennas
0
0 comments X

The pith

Pixel antennas recover full CSI for every radiation pattern from fewer pilots by exploiting invariant angular sparsity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Pixel antennas switch radiation patterns via on/off pixel controls, but the resulting pilot sequences lack sufficient rank to estimate the complete channel across all patterns. The authors assume a sparse environment in which a small number of propagation paths stay fixed regardless of the chosen pattern. This lets them rewrite full CSI acquisition as a single sparse recovery task in the angular domain. They solve it with MMP-GAMP, which first uses Multipath Matching Pursuit for a strong initialization and then applies Generalized Approximate Message Passing to refine the estimate. The result is higher accuracy than baseline estimators while using lower pilot overhead.

Core claim

In a sparse multipath setting the angular support of the channel is identical for every pixel pattern. Therefore a modest number of pilots, combined with MMP initialization and GAMP recovery, reconstructs the channel vector that would be observed under every available radiation pattern.

What carries the argument

MMP-GAMP, which treats the full multi-pattern channel estimation as a single angular-domain sparse recovery problem and uses Multipath Matching Pursuit to initialize the support before running Generalized Approximate Message Passing.

If this is right

  • Full CSI across all radiation patterns can be obtained with pilot overhead smaller than the number of patterns.
  • Estimation accuracy exceeds that of standard least-squares or compressed-sensing baselines in sparse channels.
  • The same angular support can be recovered once and then mapped to any desired pixel configuration without new pilots.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same invariance argument could be tested on other pattern-reconfigurable antennas whose physical paths are fixed while only the radiated field changes.
  • Lower pilot counts would shorten the time needed for channel tracking in mobile scenarios that use reconfigurable antennas.
  • Hardware experiments that sweep pixel states while logging angle estimates would directly check whether the assumed path invariance survives real propagation.

Load-bearing premise

The angles and number of propagation paths stay exactly the same no matter which radiation pattern the pixel antenna selects.

What would settle it

A set of channel measurements in which the dominant angles of arrival shift measurably when the pixel antenna changes its pattern would make the shared-support assumption false and cause the recovery to fail.

Figures

Figures reproduced from arXiv: 2605.18516 by Hongyu Li, Yiting Chen, Yumeng Zhang.

Figure 1
Figure 1. Figure 1: Diagram of a pixel antenna empowered system consisting of a base [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Factor graph of the MMP-GAMP algorithm for channel estimation. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: NMSE performance of uplink channel estimation using the pixel [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: NMSE performance of uplink sparse channel estimation using pixel [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

Composed of multiple interconnected pixels controlled by on/off RF switches, the pixel antenna can generate reconfigurable radiation patterns that can be further exploited to construct diverse pilot sequences for effective channel estimation. However, such pilot sequences inherently have rank deficiency, making it difficult to effectively and efficiently acquire the full channel state information (CSI) across all available radiation patterns. To tackle this difficulty, we consider a sparse environment with a limited number of propagation paths for a pixel antenna system, where a user equipped with a pixel antenna transmits only a limited number of pilots to recover the CSI under all radiation patterns. The proposed algorithm exploits the limited number of propagation paths that are invariant with the pixel antenna patterns, and then formulates the full channel estimation as a sparse recovery problem in the angular domain solved by Generalized Approximate Message Passing (GAMP). Moreover, to mitigate the rank deficiency of pilot sequences, we additionally incorporate a Multipath Matching Pursuit (MMP) algorithm for robust initialization. The overall proposed scheme, termed MMP-GAMP, achieves higher estimation accuracy than other algorithm baselines, while requiring lower pilot overhead.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes MMP-GAMP, a sparse recovery scheme for acquiring full CSI across all radiation patterns of a pixel antenna. It exploits the assumed invariance of a small number of propagation paths (angles and gains) with respect to pixel on/off configurations, formulates the problem as angular-domain sparse recovery, solves it via GAMP, and uses MMP for robust initialization to overcome rank-deficient pilots. The abstract claims higher estimation accuracy than baselines at lower pilot overhead.

Significance. If the path-invariance assumption is rigorously validated, the approach could meaningfully reduce pilot overhead for full CSI acquisition in reconfigurable-antenna systems operating in sparse multipath environments, which is relevant for efficient beamforming and MIMO operation.

major comments (2)
  1. [Abstract and channel-model section] Abstract and channel-model section: the central claim that 'the limited number of propagation paths that are invariant with the pixel antenna patterns' allows formulation of full CSI recovery as a single angular-domain sparse recovery problem is load-bearing, yet the manuscript provides neither an explicit channel model derivation nor any simulation that perturbs pattern-dependent gains or angles to test robustness. If even modest pattern-induced variation in effective path gains occurs, the joint sparsity exploited by GAMP+MMP disappears.
  2. [Simulation results section] Simulation results section: the reported accuracy gains and overhead reduction are presented without error bars, without ablation on the invariance assumption, and without comparison against a baseline that explicitly models pattern-dependent path variation; this makes it impossible to assess whether the performance advantage is an artifact of the simulation setup that enforces the invariance by construction.
minor comments (1)
  1. [Notation and system model] Notation for the angular-domain representation and the mapping from pixel patterns to path gains should be introduced earlier and used consistently.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major comment below and indicate the revisions we will make to the manuscript.

read point-by-point responses

  1. Referee: [Abstract and channel-model section] Abstract and channel-model section: the central claim that 'the limited number of propagation paths that are invariant with the pixel antenna patterns' allows formulation of full CSI recovery as a single angular-domain sparse recovery problem is load-bearing, yet the manuscript provides neither an explicit channel model derivation nor any simulation that perturbs pattern-dependent gains or angles to test robustness. If even modest pattern-induced variation in effective path gains occurs, the joint sparsity exploited by GAMP+MMP disappears.

    Authors: We agree that the path-invariance assumption is central and that the manuscript would benefit from greater rigor in its presentation. In the revised manuscript we will add an explicit derivation in the channel-model section that starts from the physical propagation paths (angles and complex gains) and shows how these quantities remain unchanged across pixel configurations, thereby preserving angular-domain joint sparsity. We will also add a new set of simulations that introduce controlled perturbations to path gains and angles and report the resulting degradation in estimation accuracy. These additions will make the operating regime of the method explicit. revision: yes

  2. Referee: [Simulation results section] Simulation results section: the reported accuracy gains and overhead reduction are presented without error bars, without ablation on the invariance assumption, and without comparison against a baseline that explicitly models pattern-dependent path variation; this makes it impossible to assess whether the performance advantage is an artifact of the simulation setup that enforces the invariance by construction.

    Authors: We accept that the current simulation results lack the statistical and comparative elements needed for a convincing evaluation. The revised version will include error bars obtained from 500 independent Monte-Carlo channel realizations, an ablation study that gradually relaxes the invariance assumption by adding pattern-dependent gain and angle jitter, and a new baseline that explicitly models pattern-dependent path variation. These changes will allow readers to judge whether the reported gains persist when the modeling assumptions are relaxed. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation relies on external sparse recovery methods under stated environmental assumption

full rationale

The paper states that paths are invariant with patterns and formulates full CSI recovery as angular-domain sparse recovery solved by GAMP plus MMP initialization. This is a direct application of standard compressive sensing algorithms to a channel model with the given sparsity assumption; the assumption is external to the algorithm and not derived from or fitted to the recovery outputs themselves. No equations reduce a claimed prediction to a parameter defined by the same data, no self-citation chain bears the central claim, and no renaming of known results occurs. The derivation chain is therefore self-contained against the stated model.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that propagation paths remain invariant across antenna patterns and that the environment is sparse enough for angular-domain recovery to succeed.

axioms (1)
  • domain assumption Propagation paths are invariant with pixel antenna patterns
    Invoked to allow formulation of full CSI recovery as a single sparse problem in the angular domain.

pith-pipeline@v0.9.0 · 5717 in / 1166 out tokens · 21764 ms · 2026-05-20T08:28:22.447815+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

12 extracted references · 12 canonical work pages

  1. [1]

    Electromagnetic information theory: Fundamentals and applications for 6G wireless communication systems,

    C.-X. Wang, Y . Yang, J. Huang, X. Gao, T. J. Cui, and L. Hanzo, “Electromagnetic information theory: Fundamentals and applications for 6G wireless communication systems,”IEEE Wireless Communications, vol. 31, no. 5, pp. 279–286, 2024

    work page 2024

  2. [2]

    Frequency-reconfigurable pixel slot antenna,

    C.-Y . Chiu, J. Li, S. Song, and R. D. Murch, “Frequency-reconfigurable pixel slot antenna,”IEEE Transactions on Antennas and Propagation, vol. 60, no. 10, pp. 4921–4924, 2012

    work page 2012

  3. [3]

    Compact pattern reconfigurable pixel an- tenna with diagonal pixel connections,

    L. Jing, M. Li, and R. Murch, “Compact pattern reconfigurable pixel an- tenna with diagonal pixel connections,”IEEE Transactions on Antennas and Propagation, vol. 70, no. 10, pp. 8951–8961, 2022

    work page 2022

  4. [4]

    A highly pattern-reconfigurable planar antenna with 360° single- and multi-beam steering,

    Y . Zhang, Z. Han, S. Tang, S. Shen, C.-Y . Chiu, and R. Murch, “A highly pattern-reconfigurable planar antenna with 360° single- and multi-beam steering,”IEEE Transactions on Antennas and Propagation, vol. 70, no. 8, pp. 6490–6504, 2022

    work page 2022

  5. [5]

    Antenna coding empowered by pixel antennas,

    S. Shen, K.-K. Wong, and R. Murch, “Antenna coding empowered by pixel antennas,”IEEE Transactions on Communications, vol. 74, pp. 446–460, 2026

    work page 2026

  6. [6]

    Exploiting spatial multiplexing based on pixel antennas: An antenna coding approach,

    Z. Han, S. Shen, and R. Murch, “Exploiting spatial multiplexing based on pixel antennas: An antenna coding approach,”IEEE Journal of Selected Topics in Signal Processing, 2026

    work page 2026

  7. [7]

    Antenna coding design for multi-user transmissions using pixel antennas,

    H. Li and S. Shen, “Antenna coding design for multi-user transmissions using pixel antennas,”IEEE Transactions on Cognitive Communications and Networking, 2026

    work page 2026

  8. [8]

    Vector approximate message passing for the generalized linear model,

    P. Schniter, S. Rangan, and A. K. Fletcher, “Vector approximate message passing for the generalized linear model,” in2016 50th Asilomar Conference on Signals, Systems and Computers, 2016, pp. 1525–1529

    work page 2016

  9. [9]

    A novel pilot scheme for uplink channel estimation for sub–array structured ELAA in XL–MIMO systems,

    Y . Zhang, H. Guo, and V . K. N. Lau, “A novel pilot scheme for uplink channel estimation for sub–array structured ELAA in XL–MIMO systems,”IEEE Transactions on Signal Processing, 2026

    work page 2026

  10. [10]

    Multipath matching pursuit,

    S. Kwon, J. Wang, and B. Shim, “Multipath matching pursuit,”IEEE Transactions on Information Theory, vol. 60, no. 5, pp. 2986–3001, 2014

    work page 2014

  11. [11]

    Expectation-maximization bernoulli-gaussian approximate message passing,

    J. Vila and P. Schniter, “Expectation-maximization bernoulli-gaussian approximate message passing,” in2011 Conference Record of the Forty Fifth Asilomar Conference on Signals, Systems and Computers (ASILOMAR). IEEE, 2011, pp. 799–803

    work page 2011

  12. [12]

    QuaDRiGa: A 3-D multi-cell channel model with time evolution for enabling virtual field trials,

    S. Jaeckel, L. Raschkowski, K. B ¨orner, and L. Thiele, “QuaDRiGa: A 3-D multi-cell channel model with time evolution for enabling virtual field trials,”IEEE Transactions on Antennas and Propagation, vol. 62, no. 6, pp. 3242–3256, 2014

    work page 2014
