IterSIMP-{σ}: Evaluating LLM-Assisted Spatial Interventions in Stress-Aware Topology Optimization

Shaoliang Yang , Jun Wang , Yunsheng Wang This is my paper

Pith reviewed 2026-05-20 07:25 UTC · model grok-4.3

classification 💻 cs.CE
keywords topology optimizationLLM-assisted designstress-aware optimizationspatial interventionsSIMP methodmultimodal LLMsdesign automationdensity seeding
0
0 comments X

The pith

The IterSIMP-σ system supports multimodal LLMs as inspectable spatial proposal modules inside stress-aware topology optimization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper evaluates whether multimodal LLMs can serve as spatial proposal modules for stress-aware topology optimization while leaving the core SIMP optimizer unchanged. The IterSIMP-σ loop renders density and von Mises stress fields after each solve, feeds them to a hybrid LLM/rule interpreter that ranks spatial interventions, and lets deterministic gates accept, reject, or stop the proposals. The main intervention is a soft density seed that raises the initial density of selected elements for the next optimality-criteria update but leaves them free to evolve. On a 16-problem 2D benchmark the LLM condition produces a small compliance difference that is not statistically significant, while a fixed-volume study shows 25 of 44 completed LLM runs yielding all-gate-passing feasible states. A sympathetic reader would care because the design keeps proposals reviewable and separates the AI module from the physics solver, offering a modular path for AI assistance in engineering optimization.

Core claim

The paper claims that IterSIMP-σ functions as an inspectable LLM-assisted design-automation framework for spatial interventions. The central mechanism renders density and stress fields after each SIMP solve, employs a hybrid LLM/rule interpreter to propose ranked spatial interventions as soft density seeds, and applies deterministic gates to control which proposals advance. In the fixed-volume attribution study the LLM condition completed 44 of 48 evaluations, with 25 of 44 producing all-gate-passing retained states and a mean normalized seed-to-hotspot distance of 0.221 for accepted actions. The 2D controller-policy benchmark yields a 1.9 percent lower geometric mean compliance for the soft

What carries the argument

The IterSIMP-σ loop that renders density and von Mises stress fields, uses a hybrid LLM/rule interpreter to propose ranked spatial interventions, and applies deterministic gates to accept, reject, or stop soft density seed actions.

If this is right

  • Soft density seeding lets LLM proposals influence the optimality-criteria update without locking in hard constraints.
  • Hybrid LLM and rule-based control produces ranked proposals that remain reviewable at each optimization step.
  • The separation of the compliance solver from the spatial proposal module allows direct comparison of LLM proposals against deterministic max-stress hotspot seeding and random stress-region seeding.
  • Accepted LLM actions show a mean normalized distance of 0.221 from stress hotspots, indicating targeted rather than random interventions.
  • The framework extends naturally to 3D problems with the same structure of render-interpret-gate steps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If scaled to more complex loads or manufacturing constraints, the inspectable proposals could let engineers inject domain knowledge through visual or language prompts.
  • Similar hybrid loops might apply to other physics-driven optimizations such as thermal or fluid problems where stress-like fields can be visualized.
  • A larger benchmark with statistical power could test whether the current small compliance gap becomes significant when volume is strictly fixed across all methods.

Load-bearing premise

The 16-problem 2D controller-policy benchmark and six-problem 3D extension are representative enough to evaluate whether LLM spatial proposals meaningfully advance stress-aware optimization.

What would settle it

A larger benchmark set that compares fixed-volume feasible-final compliance between LLM-proposed soft seeds and deterministic exact-hotspot seeding and finds no consistent advantage for the LLM condition.

Figures

Figures reproduced from arXiv: 2605.19110 by Jun Wang, Shaoliang Yang, Yunsheng Wang.

Figure 1
Figure 1. Figure 1: Schematic overview of the benchmark IterSIMP- [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Passive-solid seeding (left) vs. soft density seeding (right) for the cantilever-with-two-voids [PITH_FULL_IMAGE:figures/full_fig_p013_2.png] view at source ↗

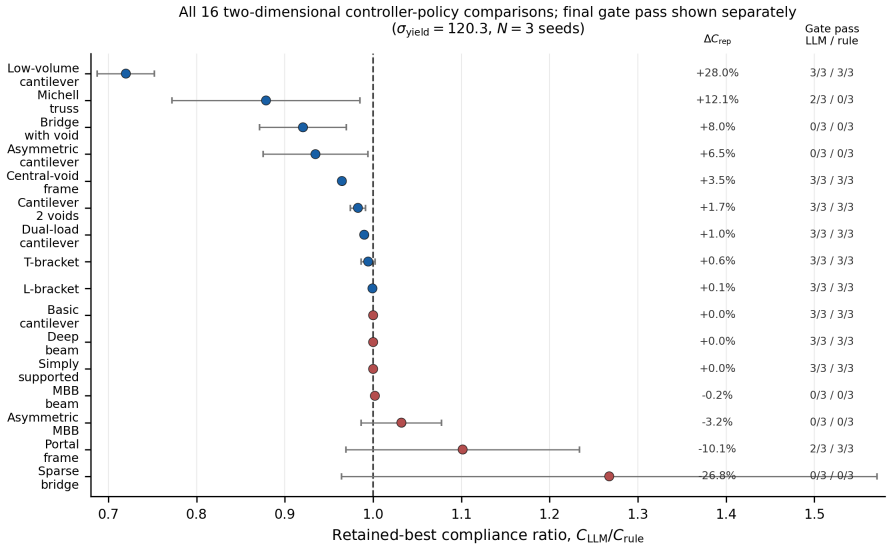

Figure 3
Figure 3. Figure 3: Retained-best compliance ratio for all 16 two-dimensional controller-policy comparisons at [PITH_FULL_IMAGE:figures/full_fig_p019_3.png] view at source ↗

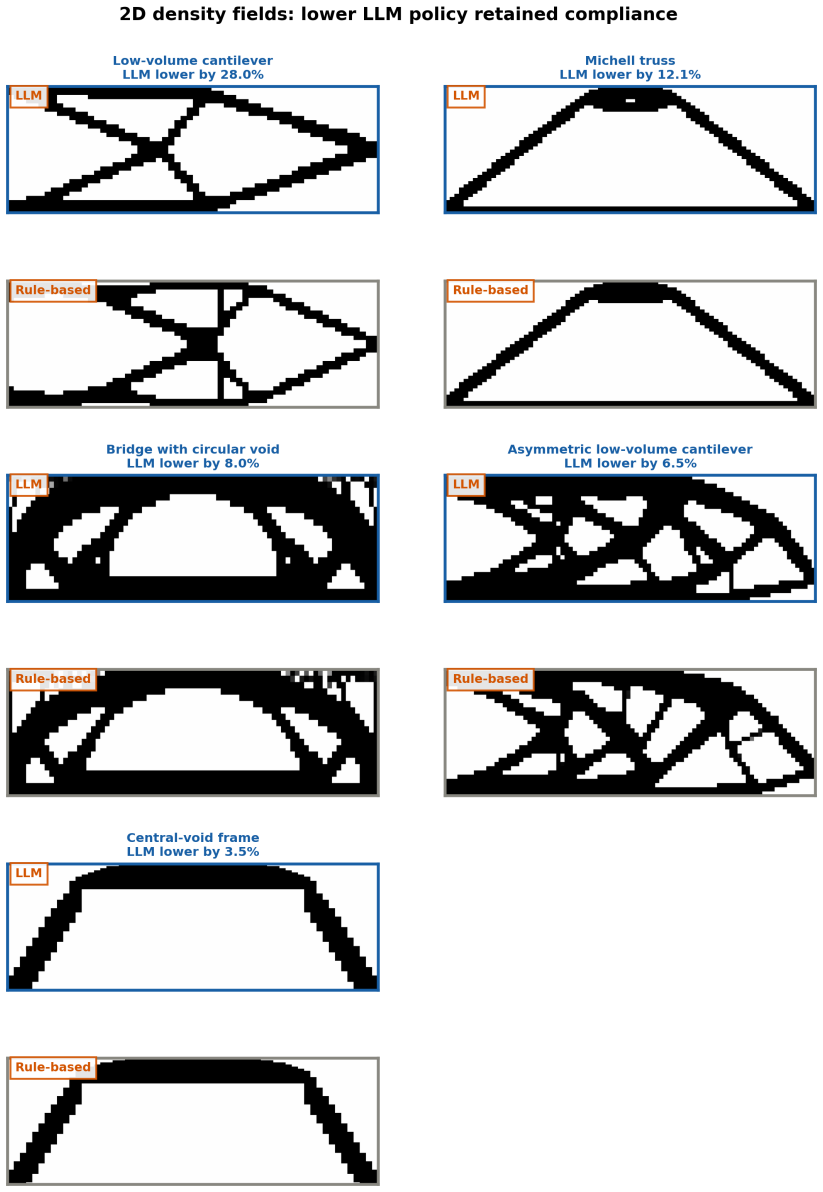

Figure 4
Figure 4. Figure 4: Representative seed-42 density fields for the five two-dimensional benchmark problems classified [PITH_FULL_IMAGE:figures/full_fig_p020_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Representative seed-42 density fields for the two-dimensional benchmark cases that are practical [PITH_FULL_IMAGE:figures/full_fig_p021_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Representative seed-42 density fields for the three cases where the rule-based run has a lower [PITH_FULL_IMAGE:figures/full_fig_p021_6.png] view at source ↗

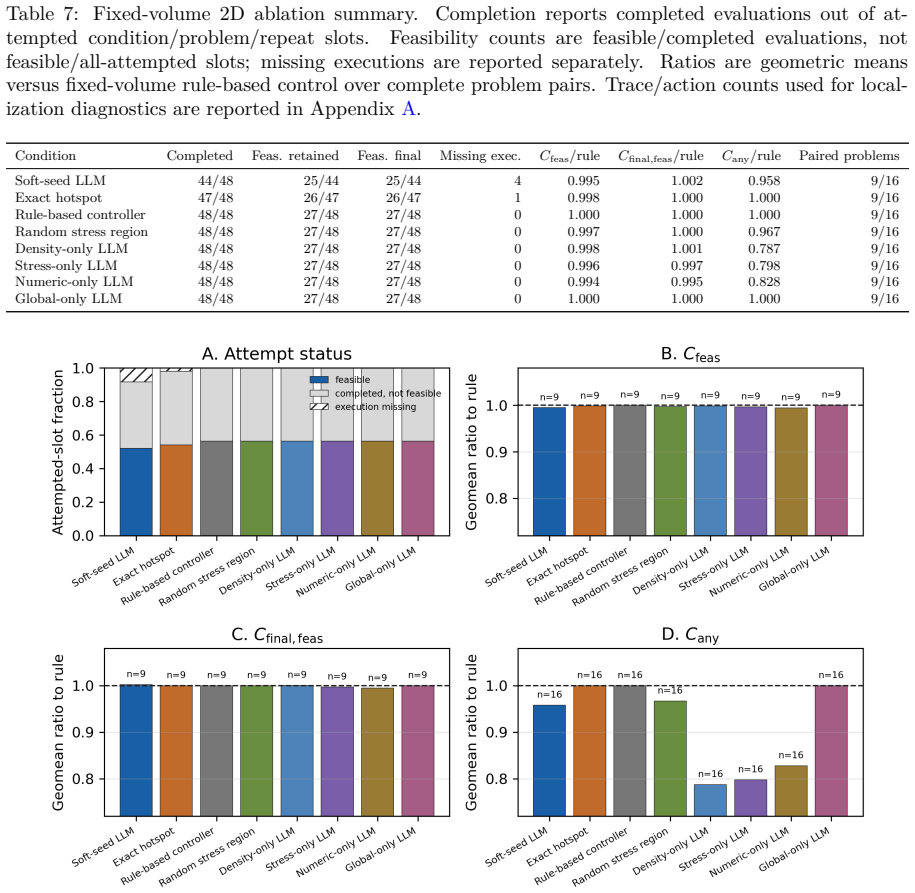

Figure 7
Figure 7. Figure 7: Fixed-volume 2D primary endpoints. Panel A decomposes attempted condi [PITH_FULL_IMAGE:figures/full_fig_p023_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Spatial-action localization analysis across fixed-volume policies. Panel A shows per-action [PITH_FULL_IMAGE:figures/full_fig_p024_8.png] view at source ↗

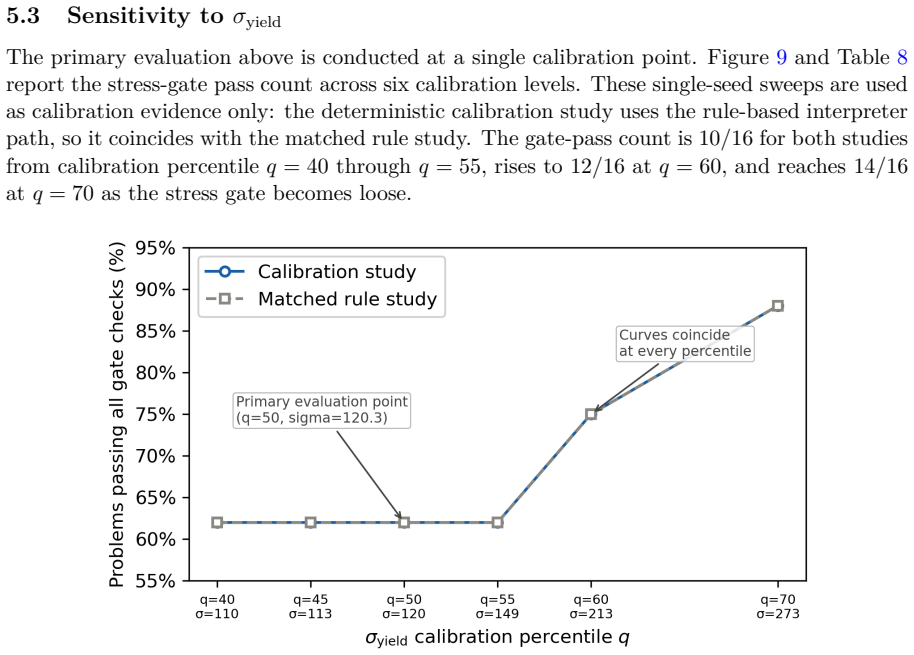

Figure 9
Figure 9. Figure 9: Stress-satisfaction rate vs. σyield calibration percentile. The deterministic calibration study uses the rule-based interpreter path and therefore coincides with the matched rule study. This figure is calibration evidence, not controller-comparison evidence [PITH_FULL_IMAGE:figures/full_fig_p025_9.png] view at source ↗

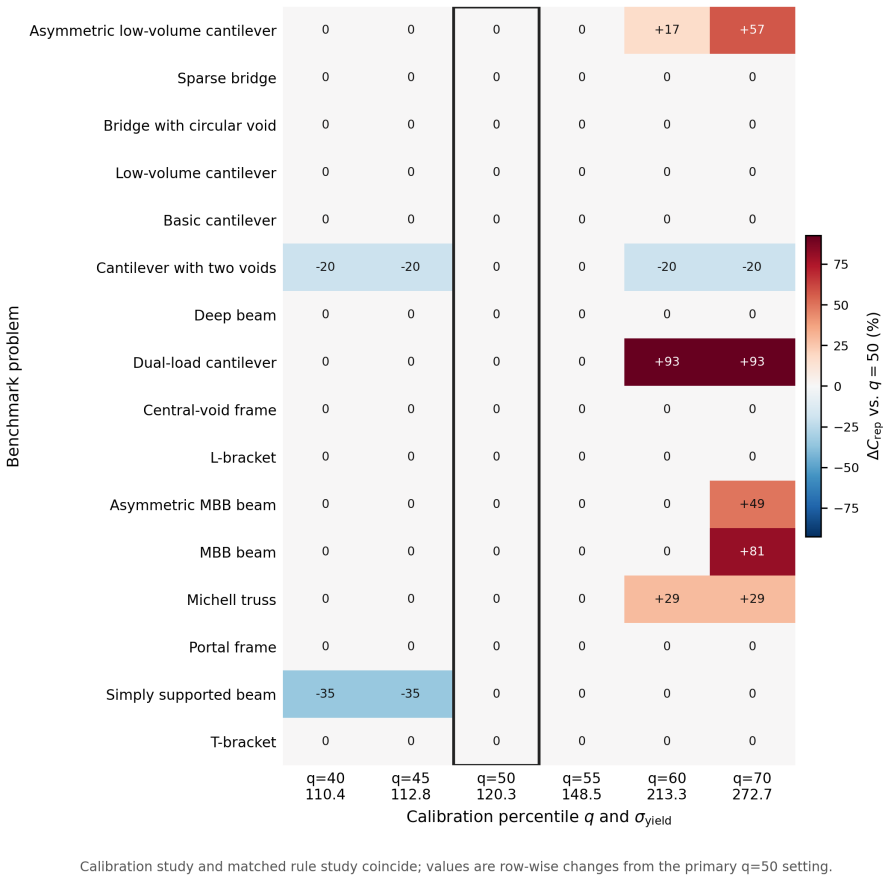

Figure 10
Figure 10. Figure 10: Per-problem retained-compliance sensitivity to the [PITH_FULL_IMAGE:figures/full_fig_p026_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Step-by-step compliance convergence for seed-42 traces ( [PITH_FULL_IMAGE:figures/full_fig_p027_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Controller sequence for the L-bracket in the primary seed-42 evaluation run ( [PITH_FULL_IMAGE:figures/full_fig_p028_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Representative seed-42 density and von Mises stress fields for the Michell truss ( [PITH_FULL_IMAGE:figures/full_fig_p029_13.png] view at source ↗

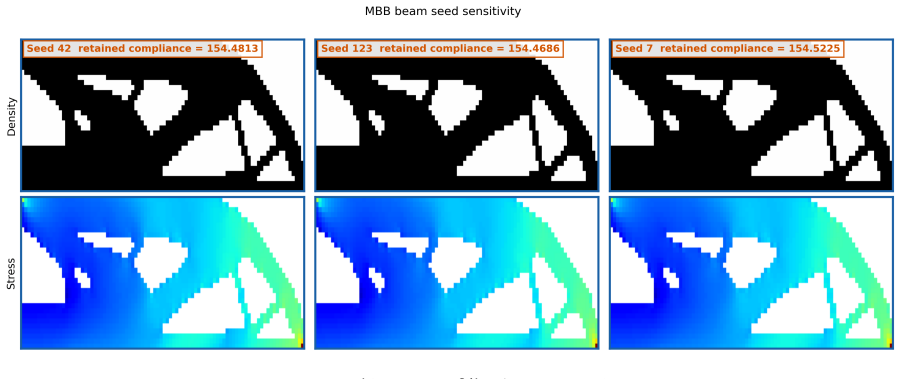

Figure 14
Figure 14. Figure 14: MBB beam seed sensitivity (CV = 0.01%). All three soft-seed repeats are nearly identical (C = 154.48, 154.47, 154.52), producing slightly lower rule-based retained compliance rather than a soft-seed advantage [PITH_FULL_IMAGE:figures/full_fig_p030_14.png] view at source ↗

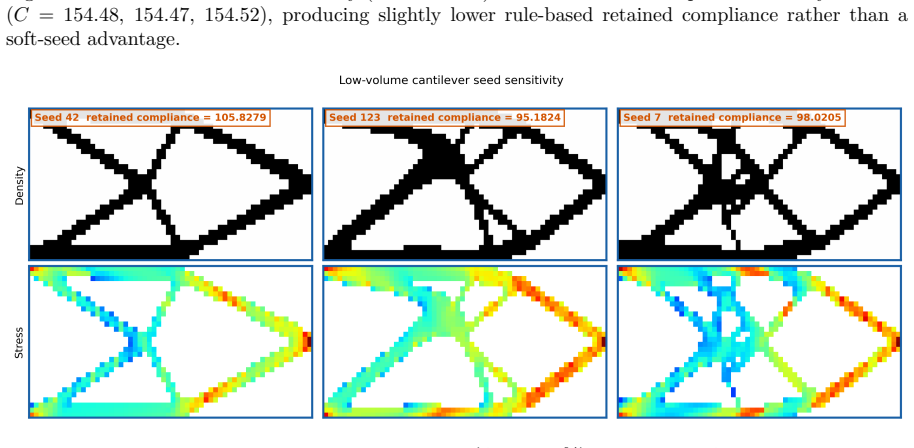

Figure 15
Figure 15. Figure 15: Low-volume cantilever seed sensitivity (CV = 4.5%). The three soft-seed repeats pass all seven gate checks with C = 105.83, 95.18, and 98.02 [PITH_FULL_IMAGE:figures/full_fig_p030_15.png] view at source ↗
Figure 16

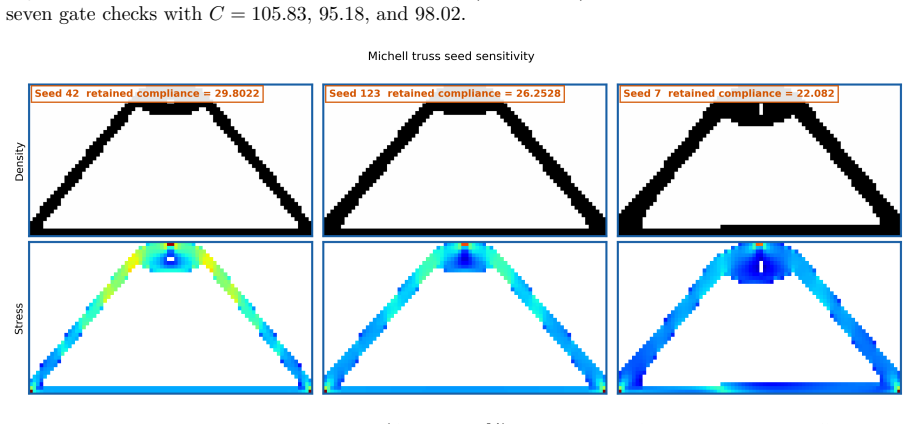

Figure 16. Figure 16: Michell truss seed sensitivity (CV = 12.1%). The three soft-seed repeats give C = 29.80, 26.25, and 22.08; the first final state fails gate checks and the latter two pass all seven gate checks. Figures 14–16 together constitute the seed sensitivity analysis (LLM condition; density top row, von Mises stress bottom row, seeds 42/123/7 left to right). 30 [PITH_FULL_IMAGE:figures/full_fig_p030_16.png] view at source ↗

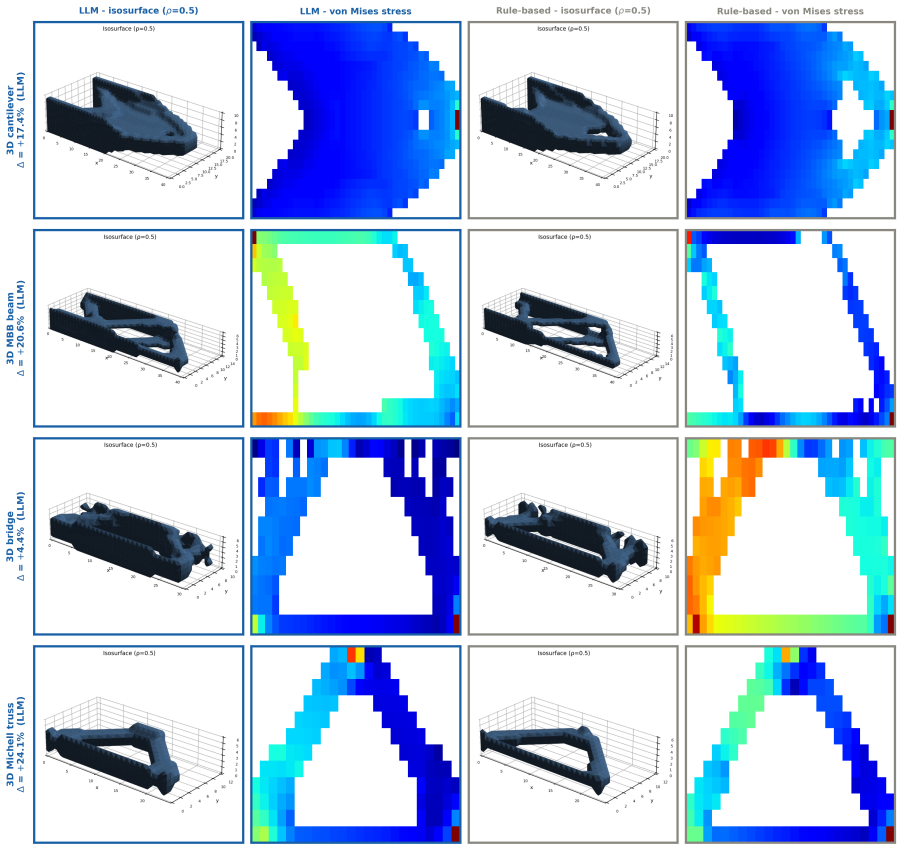

Figure 17
Figure 17. Figure 17: Isosurface renderings (ρe = 0.5 threshold) and von Mises stress fields for the four non-tie 3D benchmark problems. Images are seed-42 examples; compliance percentages use three-seed mean retained-best compliance Crep. Left two columns: LLM (blue border); right two columns: rule-based (gray border). Stress colors are normalized per panel and are qualitative within-panel visualizations only; the 3D bridge L… view at source ↗
Figure 18

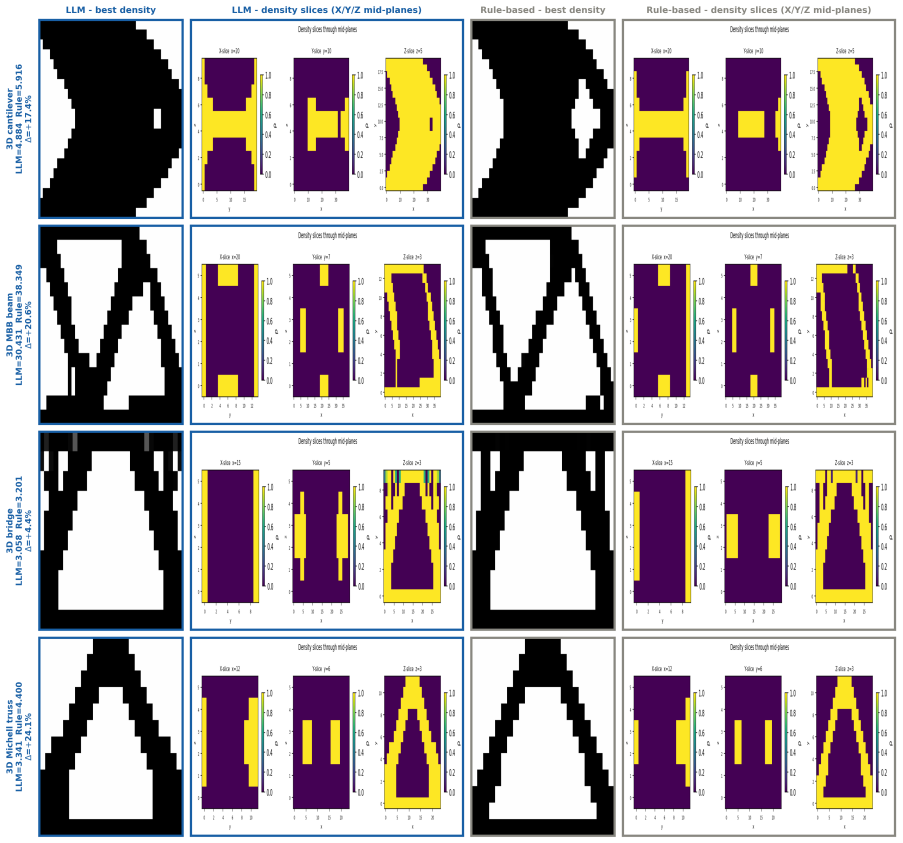

Figure 18. Figure 18: Representative seed-42 density fields and density slices through mid-planes (X, Y, Z) for the [PITH_FULL_IMAGE:figures/full_fig_p033_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Three-way ablation summarized as retained-compliance ratios for all 16 two-dimensional [PITH_FULL_IMAGE:figures/full_fig_p034_19.png] view at source ↗
read the original abstract

This paper studies whether multimodal large language models (LLMs) can serve as inspectable spatial proposal modules for stress-aware topology optimization. IterSIMP-{\sigma} keeps the SIMP optimizer as a compliance-minimizing finite-element solver and places a deterministic stress pass, gate evaluator, and hybrid LLM/rule interpreter around it. After each solve, density and von Mises stress fields are rendered; the interpreter proposes ranked spatial interventions; and deterministic safeguards accept, reject, or stop each action. The main action is a soft density seed, where selected elements are initialized at elevated density before the next solve but remain free under the optimality-criteria update. We evaluate the loop on a 16-problem 2D controller-policy benchmark, a six-problem exploratory 3D extension, passive-solid and input ablations, stress-threshold sensitivity, and a fixed-volume attribution study comparing LLM proposals with deterministic max-stress hotspot seeding, random stress-region seeding, and rule-based control. The 2D controller-policy benchmark shows a small retained-compliance difference (1.9% lower geometric mean for the soft-seed LLM), but this diagnostic is not statistically significant (W = 33, two-sided p = 0.382) and is not a fixed-volume feasible-final comparison. In the fixed-volume study, the LLM condition completed 44/48 attempted evaluations; 25/44 completed evaluations produced all-gate-passing retained states. Feasible-final scoring against rule-based control is split 4/4/1, and deterministic exact-hotspot seeding remains competitive. Accepted LLM spatial actions with per-step records have mean normalized seed-to-hotspot distance 0.221. The results support IterSIMP-{\sigma} as an inspectable LLM-assisted design-automation framework for spatial interventions, not yet as evidence that LLM visual reasoning improves stress-constrained optimization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces IterSIMP-σ, a hybrid framework that retains the deterministic SIMP optimizer for compliance minimization while wrapping it with multimodal LLM proposals for spatial interventions (e.g., soft density seeding) after rendering density and von Mises stress fields. Deterministic stress passes and gate evaluators accept, reject, or halt actions. Evaluation covers a 16-problem 2D controller-policy benchmark (1.9% geometric-mean compliance advantage, Wilcoxon W=33, p=0.382, non-significant), a 6-problem 3D extension, ablations, and a fixed-volume attribution study (44/48 completions, 25/44 all-gate-passing states, 4/4/1 split vs. rule-based control, mean normalized seed-to-hotspot distance 0.221). The abstract concludes that results support the framework as inspectable but not yet as evidence of LLM improvement over stress-constrained optimization.

Significance. If the framework claim holds, the work provides a concrete, safeguarded example of LLM integration into established topology optimization, emphasizing inspectability through per-step records and deterministic gates. Strengths include explicit baselines (rule-based control, random stress-region seeding, deterministic max-stress hotspot seeding) and statistical testing (Wilcoxon), which allow direct comparison rather than self-referential evaluation. This could inform hybrid AI-traditional design automation in computational engineering, though the modest quantitative gains position the contribution as primarily methodological and proof-of-concept.

major comments (2)
  1. Abstract and evaluation sections: The support for IterSIMP-σ as an inspectable LLM-assisted framework rests on the fixed-volume attribution study (25/44 all-gate-passing states, 4/4/1 feasible-final split vs. rule-based control), yet deterministic exact-hotspot seeding remains competitive and LLM proposals show mean normalized seed-to-hotspot distance of 0.221; this indicates limited added value beyond simple heuristics and weakens the framework-utility claim.
  2. 2D controller-policy benchmark (evaluation sections): The 16-problem benchmark reports a non-significant compliance difference (W=33, p=0.382) that is explicitly not a fixed-volume feasible-final comparison, and the six-problem 3D extension is exploratory; with these scales and outcomes, the evidence does not yet securely establish even the modest claim of framework support for spatial interventions in stress-aware optimization.
minor comments (1)
  1. Abstract: The 44/48 completion rate would benefit from explicit clarification on whether it aggregates across all conditions or applies only to the LLM condition.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. We agree that the reported performance differences are modest and non-significant, and the manuscript already qualifies its claims accordingly, positioning the work as methodological support for an inspectable hybrid framework rather than evidence of LLM superiority. We respond to each major comment below.

read point-by-point responses

  1. Referee: Abstract and evaluation sections: The support for IterSIMP-σ as an inspectable LLM-assisted framework rests on the fixed-volume attribution study (25/44 all-gate-passing states, 4/4/1 feasible-final split vs. rule-based control), yet deterministic exact-hotspot seeding remains competitive and LLM proposals show mean normalized seed-to-hotspot distance of 0.221; this indicates limited added value beyond simple heuristics and weakens the framework-utility claim.

    Authors: We thank the referee for this observation. The fixed-volume attribution study is intended to demonstrate inspectability, gate reliability, and per-step transparency of LLM proposals rather than performance gains. The mean normalized seed-to-hotspot distance of 0.221 indicates proposals informed by the full rendered stress and density fields, not merely the single maximum point. While exact-hotspot seeding is competitive, the framework's contribution is the safeguarded, recordable integration that permits analysis of accepted interventions. The 25/44 all-gate-passing rate and 4/4/1 feasible-final split provide evidence that LLM spatial actions can be incorporated reliably. We do not revise the claims, as the abstract already states the results support the framework as inspectable but not yet as improvement over stress-constrained optimization. revision: no

  2. Referee: 2D controller-policy benchmark (evaluation sections): The 16-problem benchmark reports a non-significant compliance difference (W=33, p=0.382) that is explicitly not a fixed-volume feasible-final comparison, and the six-problem 3D extension is exploratory; with these scales and outcomes, the evidence does not yet securely establish even the modest claim of framework support for spatial interventions in stress-aware optimization.

    Authors: We agree the 2D compliance difference is non-significant and is presented in the manuscript as a diagnostic metric, not a fixed-volume feasible-final comparison. The modest claim of framework support rests primarily on the attribution study, which supplies detailed per-step records and deterministic gate outcomes showing that spatial interventions can be safely integrated. The 3D extension is explicitly exploratory. With the given scales we recognize the limits on statistical strength, yet the current evidence substantiates feasibility and inspectability of the hybrid loop. We will add a clarifying sentence in the discussion reiterating the diagnostic role of the benchmarks and the exploratory status of the 3D results. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical evaluation rests on external baselines and statistical tests

full rationale

The paper describes an experimental framework IterSIMP-σ that wraps a standard SIMP optimizer with LLM spatial proposals, deterministic stress gates, and rule-based interpreters. All reported outcomes derive from direct comparisons on fixed 16-problem 2D and 6-problem 3D benchmark sets against independent deterministic controls (exact-hotspot seeding, random stress-region seeding, rule-based control) plus Wilcoxon signed-rank tests and gate-pass counts. No equations, fitted parameters, or predictions are defined in terms of the target quantities; the 1.9 % compliance difference and 25/44 all-gate-passing states are measured quantities, not self-generated by construction. Self-citations are absent from the load-bearing claims, and the evaluation is therefore self-contained against external methods.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard topology-optimization assumptions plus the new hybrid interpreter component; no new physical entities are postulated and free parameters are limited to implementation choices such as stress thresholds and prompt design.

free parameters (2)
  • stress-threshold value
    Used inside the gate evaluator to decide acceptance of LLM proposals; value chosen to balance safety and intervention rate.
  • LLM prompt wording and temperature
    Choices that control how density and stress images are described to the model and how ranked interventions are requested.
axioms (2)
  • domain assumption SIMP optimality-criteria update correctly minimizes compliance subject to volume constraint
    Invoked when the soft-seeded elements remain free under the standard update rule.
  • domain assumption Rendered density and von Mises stress fields are faithful visual inputs for LLM reasoning
    Required for the multimodal interpreter to produce spatially relevant proposals.
