arxiv: 2509.02365 · v3 · pith:4C2JN6HAnew · submitted 2025-09-02 · 🧮 math.QA · math.GT

A quantization of the operatorname{SL}₂(mathbb{C}) Chern-Simons invariant of tangle exteriors

Calvin McPhail-Snyder This is my paper

Pith reviewed 2026-05-18 19:39 UTC · model grok-4.3

classification 🧮 math.QA math.GT
keywords tangle invariantsChern-Simons invariantquantum sl_2Kashaev invarianthyperbolic structuresroot of unityholonomy R-matricestangle exteriors
0
0 comments X

The pith

Tangles with flat sl2 connections admit quantum invariants that quantize the SL2(C) Chern-Simons invariant of their exteriors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper defines a sequence of invariants Z_N^ψ for tangles equipped with flat sl_2 connections on their complements. These can be read as a geometric twist of the Kashaev invariant or as a quantization of the SL_2(C) Chern-Simons invariant of the tangle exterior. To ground the second reading the authors introduce a new expression I^ψ for the Chern-Simons invariant itself. The sequence recovers I^ψ exactly when the parameter N equals one. A sympathetic reader would care because the construction uses concrete algebraic data—modules over unrestricted quantum sl_2 at a root of unity together with holonomy R-matrices—and produces invariants free of the phase ambiguities common in earlier geometric quantizations.

Core claim

We define a sequence of invariants Z_N^ψ of tangles with flat sl_2 connections on their complements. These can be interpreted as a geometric twist of the Kashaev invariant or as a quantization of the SL_2(C) Chern-Simons invariant. To support the second interpretation we give a new description I^ψ of the Chern-Simons invariant of a tangle exterior. Z_N^ψ directly recovers I^ψ when N=1. We build Z_N^ψ using modules over unrestricted quantum sl_2 at a root of unity and the holonomy R-matrices previously constructed by the author and Reshetikhin. Unlike most previous constructions of geometric quantum invariants Z_N^ψ is defined without any phase ambiguity.

What carries the argument

Holonomy R-matrices for the unrestricted quantum sl_2 at a root of unity, assembled with associated modules to produce tangle invariants independent of auxiliary choices.

If this is right

  • For N greater than one the invariants Z_N^ψ supply a discrete quantization of the classical SL_2(C) Chern-Simons invariant.
  • The Kashaev invariant acquires a geometric twist determined by the flat sl_2 connection on the tangle complement.
  • The absence of phase ambiguity permits consistent numerical or algebraic use of the invariants without extra normalization steps.
  • The results admit an interpretation inside the quantization of Chern-Simons theory with the complex noncompact gauge group SL_2(C).

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar constructions might produce phase-free quantizations for invariants attached to other complex gauge groups.
  • Direct comparison of computed values of Z_N^ψ against independently known Chern-Simons numbers for simple tangles would test the recovery and the conjecture.
  • The phase-free character could remove normalization obstacles when these invariants are combined with other hyperbolic or quantum invariants.

Load-bearing premise

The holonomy R-matrices and modules over unrestricted quantum sl_2 at a root of unity can be assembled into a well-defined invariant of tangles that is independent of auxiliary choices and free of phase ambiguity.

What would settle it

An explicit calculation of Z_1^ψ on a concrete tangle whose SL_2(C) Chern-Simons value I^ψ is known independently, checking whether the two quantities agree exactly and whether higher-N versions remain free of phase factors.

Figures

Figures reproduced from arXiv: 2509.02365 by Calvin McPhail-Snyder.

Figure 1
Figure 1. Figure 1: Standard region and segment labels near a crossing (of either sign). In this tangle region W is below segment 1 and region N. j j ′ i [PITH_FULL_IMAGE:figures/full_fig_p014_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Positive (left) and negative (right) crossings with our standard labeling. [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: A side view of the ideal octahedron at a positive crossing. The dashed edges indicate identifications of P± with P ′ ±. [KR05] R. Kashaev and N. Reshetikhin, “Invari￾ants of tangles with flat connections in their complements”. arXiv doi u gu (g, v) [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Rule for shadow colorings 3.3. Shadow-colored diagrams and octahedral decompositions When studying hyperbolic structures on tangles one typically wants to work with an ideal triangu￾lation of the tangle complement: this is a triangulation whose 0-skeleton (which we think of as being removed) lies on the tangle. Because our method for constructing invariants depends on a choice of diagram D it is convenient… view at source ↗
Figure 6
Figure 6. Figure 6: Signs for the contributions of the log-coloring to the log-longtidue. [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
Figure 7

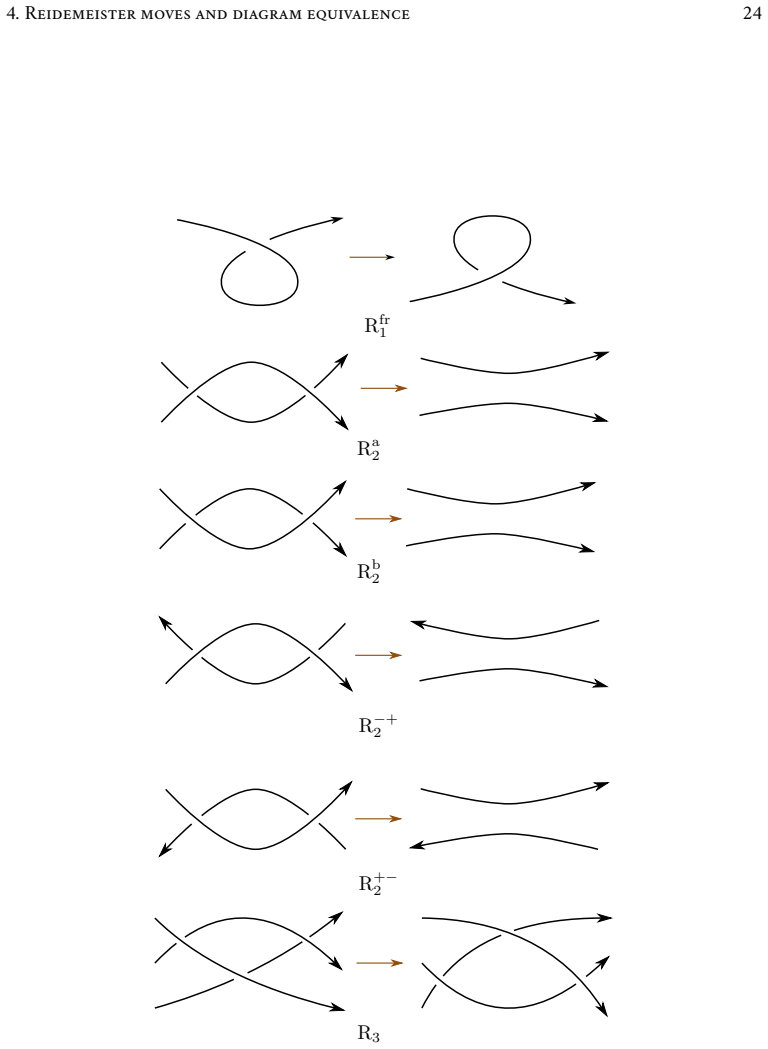

Figure 7. Figure 7: Oriented, framed Reidemeister moves, adapted from [ [PITH_FULL_IMAGE:figures/full_fig_p025_7.png] view at source ↗
Figure 8

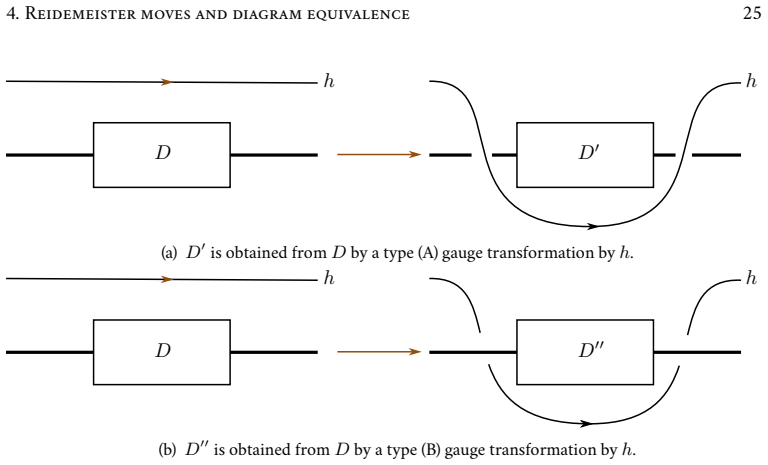

Figure 8. Figure 8: Graphical description of gauge transformations. The thick strands represent bundles of [PITH_FULL_IMAGE:figures/full_fig_p026_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Evaluation and coevaluation mor￾phisms for a segment with color χ. coev ↓ V α1 α2 χ [PITH_FULL_IMAGE:figures/full_fig_p035_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Region log-parameters near a coeval￾uation with character χ. and (0, 1, 0, N) · vb(α↑, α↓, β, µ)n = ω − 1 2 (β+µ)−n (0, 0, 0, N) · vb(α↑, α↓ + 1, β, µ)n = ω − 1 2 (β+µ)−nω 1 2 N(α↓+1)vb(α↑, α↓ + 1, β, µ + N)n Because 1 2 [Nα↓ − (µ + N)] − 1 2 [−(β + µ) + N(α↓ + 1)] = − N 2 − N 2 ≡ 0 (mod N) we see that (0, 1, 0, 0) and (0, 0, 0, N) commute as well. This computation explains why it was important to preserv… view at source ↗
Figure 11

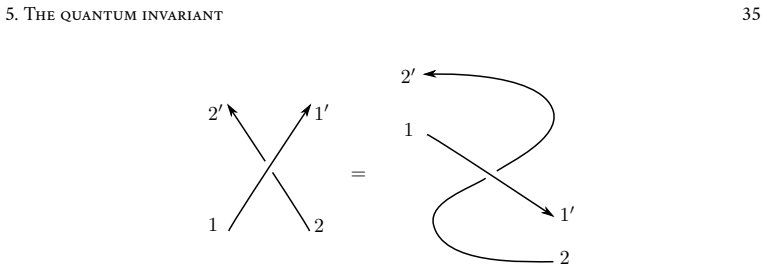

Figure 11. Figure 11: A bottom-to-top crossing can be obtained by rotating a left-to-right crossing. [PITH_FULL_IMAGE:figures/full_fig_p036_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Graphical rules for critical points on a segment with region parameter difference [PITH_FULL_IMAGE:figures/full_fig_p045_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Tensor rules for different orientations of positive crossing. [PITH_FULL_IMAGE:figures/full_fig_p045_13.png] view at source ↗
Figure 14

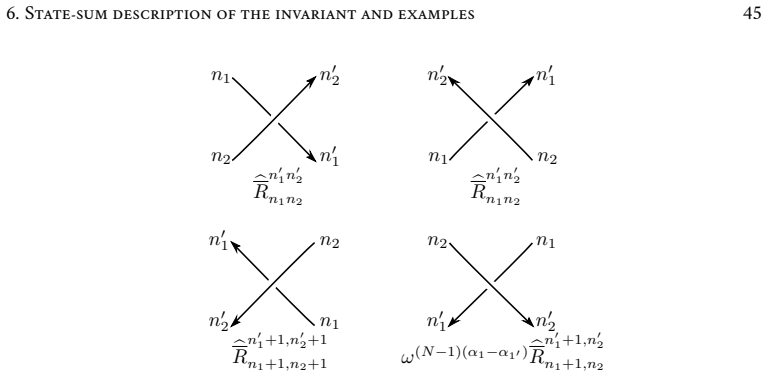

Figure 14. Figure 14: Tensor rules for different orientations of negative crossing. [PITH_FULL_IMAGE:figures/full_fig_p046_14.png] view at source ↗
Figure 15

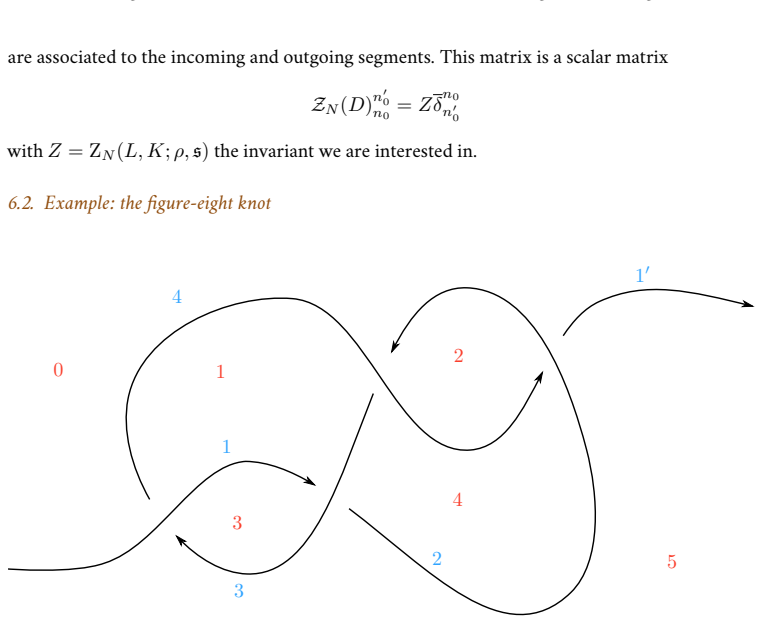

Figure 15. Figure 15: A cut presentation of the figure eight knot with arcs labeled in [PITH_FULL_IMAGE:figures/full_fig_p046_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Segments of the figure-eight diagram. N ZN  K, ρ′ hyp,(−1/2, −1/2) 1 N log ZN  K, ρ′ hyp,(−1/2, −1/2) 2 −2.94739 + 2.94739i 0.713747 + 1.17810i 3 −10.0936 + 5.82753i 0.818580 + 0.872665i 4 −23.3493 + 9.67161i 0.807435 + 0.687223i 5 −46.1284 + 14.9880i 0.776322 + 0.565487i 6 −83.9438 + 22.4927i 0.744136 + 0.479966i [PITH_FULL_IMAGE:figures/full_fig_p048_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: An open Hopf link with a decorated SL2(C) representation of its complement. The coloring is well-defined if and only if g1 and g2 commute. Thus, there is a basis v, w of C 2 and numbers m1, m2 ∈ C × so that vg1 = m−1 1 v wg1 = m1w vg2 = m−1 2 v wg2 = m1w Fixing v1 = v for the open component K1 there are two choices of decoration for the closed component K2. Definition 6.1. Setting v2 = v gives a decorated… view at source ↗
Figure 18
Figure 18. Figure 18: Tensor indices for the segments of the Hopf link. In general these are not equal. However, using the normalization Z ψ N we have Z ψ N (LHopf, K1; ρ, s) = ω 2µ2(µ1− N−1 2 ) N X−1 n=0 ω −n(1+2µ1) (6.5) Z ψ N (LHopf, K1; ˜ρ, ˜s) = ω −2˜µ2(µ1− N−1 2 )+(N−1)(2µ1+1) N X−1 n=0 ω −n(2µ1+1) (6.6) which are equal if µ˜2 = N − 1 − µ2. ⌟ Here we use the link invariant ψ of Definition 7.6 and Z ψ N := ω ψZN , i.e. Z … view at source ↗
Figure 19
Figure 19. Figure 19: A shadow coloring of the diagram D3 above is determined by three decorated matrices (gi , [vi ]) and a shadow color u for the topmost region. To prove invariance of ZN under the R3 move it suffices to show that ZN (D3) is the identity map for any admissible shadow coloring and any log-decoration with every log-longitude 0. 24 The parameters determine an octahedral coloring of D3 in the sense of [McP25]: t… view at source ↗
Figure 20
Figure 20. Figure 20: The shadow coloring in Figure [PITH_FULL_IMAGE:figures/full_fig_p064_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: A right-hand twist [PITH_FULL_IMAGE:figures/full_fig_p065_21.png] view at source ↗
read the original abstract

We define a sequence of invariants $\mathcal{Z}_{N}^{\psi}$ of tangles with flat $\mathfrak{sl}_{2}$ connections (i.e. hyperbolic structures) on their complements. These can be interpreted as a geometric twist of the Kashaev invariant or as a quantization of the $\operatorname{SL}_{2}(\mathbb{C})$ Chern-Simons invariant. To support the second interpretation we give a new description $\mathcal{I}^{\psi}$ of the Chern-Simons invariant of a tangle exterior. $\mathcal{Z}_{N}^{\psi}$ directly recovers $\mathcal{I}^{\psi}$ when $N = 1$. We build $\mathcal{Z}_{N}^{\psi}$ using modules over unrestricted quantum $\mathfrak{sl}_{2}$ at a root of unity and the holonomy $R$-matrices previously constructed by the author and Reshetikhin (arXiv:2509.02354). Unlike most previous constructions of geometric quantum invariants $\mathcal{Z}_{N}^{\psi}$ is defined without any phase ambiguity. It is natural to conjecture that $\mathcal{Z}_{N}^{\psi}$ is related to the quantization of Chern-Simons theory with complex, noncompact gauge group $\operatorname{SL}_{2}(\mathbb{C})$ and we discuss how to interpret our results in this context.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper defines a sequence of invariants Z_N^ψ of tangles equipped with flat sl_2 connections (hyperbolic structures) on their exteriors. These are constructed from modules over unrestricted quantum sl_2 at a root of unity together with holonomy R-matrices from the authors' prior work (arXiv:2509.02354). The invariants are presented as a geometric twist of the Kashaev invariant and as a quantization of the SL_2(C) Chern-Simons invariant; a new description I^ψ of the classical Chern-Simons invariant is introduced, and Z_N^ψ is shown to recover I^ψ exactly when N=1. The construction is claimed to be free of phase ambiguity and independent of auxiliary choices such as diagram or basepoint.

Significance. If the invariance and independence claims hold, the result would be significant for supplying an explicit, phase-free quantization of the SL_2(C) Chern-Simons invariant on tangle exteriors. The direct recovery of the classical invariant at N=1 provides a concrete link between the quantum and geometric sides, and the use of unrestricted quantum sl_2 modules at roots of unity offers a technically distinct route from most existing geometric quantum invariants. This could help clarify the relationship between Kashaev-type invariants and complex Chern-Simons theory.

major comments (2)
  1. [§3 (Construction of Z_N^ψ)] The central claim that Z_N^ψ is a well-defined invariant independent of diagram and free of phase ambiguity rests on the holonomy R-matrices satisfying the Yang-Baxter equation and Reidemeister-type relations when paired with the chosen unrestricted quantum sl_2 modules. The manuscript does not supply an explicit verification of these relations or of the cancellation of auxiliary choices (basepoints, crossing orderings) for the state sum; this verification is load-bearing for both the geometric interpretation and the quantization statement.
  2. [§5 (Recovery at N=1)] The recovery statement that Z_N^ψ recovers I^ψ at N=1 is asserted in the abstract and used to support the quantization interpretation, yet the manuscript provides no explicit reduction formulas, limit computation, or comparison of the two invariants at N=1. Without this step the recovery claim remains formal and does not yet substantiate the quantization link.
minor comments (2)
  1. [Introduction] The notation for the flat connection ψ and the precise definition of the tangle exterior should be introduced with a short example or diagram in the introduction to aid readability.
  2. [§1] A brief comparison table or paragraph contrasting Z_N^ψ with the Kashaev invariant and with other known quantizations of SL_2(C) Chern-Simons would help situate the result.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough reading and for identifying these two key points that require clarification. Both concerns can be addressed by expanding the manuscript with material from our prior work and explicit calculations. We outline our responses below and will incorporate the suggested additions in a revised version.

read point-by-point responses

  1. Referee: [§3 (Construction of Z_N^ψ)] The central claim that Z_N^ψ is a well-defined invariant independent of diagram and free of phase ambiguity rests on the holonomy R-matrices satisfying the Yang-Baxter equation and Reidemeister-type relations when paired with the chosen unrestricted quantum sl_2 modules. The manuscript does not supply an explicit verification of these relations or of the cancellation of auxiliary choices (basepoints, crossing orderings) for the state sum; this verification is load-bearing for both the geometric interpretation and the quantization statement.

    Authors: We agree that the invariance proof is central and that the current manuscript relies on the relations established in our earlier paper (arXiv:2509.02354). In the revised version we will add a short subsection (or appendix) that recalls the relevant Yang-Baxter and Reidemeister identities for the holonomy R-matrices when acting on the unrestricted quantum sl_2 modules at roots of unity, together with a brief argument showing how these identities imply cancellation of basepoint and crossing-ordering choices in the state sum. This will make the independence claim fully self-contained while keeping the length of the addition modest. revision: yes

  2. Referee: [§5 (Recovery at N=1)] The recovery statement that Z_N^ψ recovers I^ψ at N=1 is asserted in the abstract and used to support the quantization interpretation, yet the manuscript provides no explicit reduction formulas, limit computation, or comparison of the two invariants at N=1. Without this step the recovery claim remains formal and does not yet substantiate the quantization link.

    Authors: We accept that an explicit reduction is needed to substantiate the claim. At N=1 the quantum parameter becomes 1 and the unrestricted module degenerates to the classical adjoint representation; the state sum then reduces directly to the definition of I^ψ. In the revision we will insert a new paragraph (or short subsection) in §5 that carries out this specialization, writes the resulting formulas, and verifies that Z_1^ψ coincides with I^ψ. This will turn the recovery statement into a concrete computation. revision: yes

Circularity Check

1 steps flagged

Self-citation of holonomy R-matrices places moderate burden on prior work for well-definedness of Z_N^ψ

specific steps
  1. self citation load bearing [Abstract]
    "We build Z_N^ψ using modules over unrestricted quantum sl_2 at a root of unity and the holonomy R-matrices previously constructed by the author and Reshetikhin (arXiv:2509.02354)."

    The well-definedness of the invariant (independence of diagram, no phase ambiguity, recovery of I^ψ at N=1) is justified by properties of the R-matrices whose construction and braid/Yang-Baxter relations are established only in the overlapping-author prior work, rather than re-derived or externally verified in this manuscript.

full rationale

The paper constructs Z_N^ψ by assembling modules over unrestricted quantum sl_2 at a root of unity with holonomy R-matrices from the author's prior paper (arXiv:2509.02354). This self-citation supports the central claims of invariance under tangle moves, independence from auxiliary choices (e.g., basepoints, ordering), and absence of phase ambiguity. The new description of I^ψ and the direct recovery Z_1^ψ = I^ψ add independent content, so the result is not fully reduced to the citation. No equations reduce by construction to inputs, and no ansatz or uniqueness theorem is smuggled; the score reflects proportionate load-bearing self-citation without full circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The construction rests on standard properties of quantum groups at roots of unity and on the prior definition of holonomy R-matrices; no new free parameters or invented entities are introduced in the abstract.

axioms (2)
  • standard math Modules over unrestricted quantum sl_2 at a root of unity are well-defined and admit the required holonomy R-matrix actions.
    Invoked to build the invariants Z_N^ψ.
  • domain assumption The holonomy R-matrices from arXiv:2509.02354 satisfy the necessary braiding and flatness relations for tangle exteriors.
    Required for the geometric interpretation and phase-free property.
