Pulse-to-pulse spectral phase characterization of mid-infrared pulses at megahertz rates

Zhihao Deng , Zicong Xu , Kazuki Hashimoto , Gabriel Demontigny , Denis V. Seletskiy , Takuro Ideguchi This is my paper

Reviewed by Pith T0 review T1 audit T2 compute T3 formal T4 kernel 2026-07-01 03:48 UTCgrok-4.3pith:4MCCRNSIrecord.jsonopen to challenge →

classification physics.optics
keywords mid-infrared pulsesspectral phase characterizationupconversiontime-stretchspectral interferometrymegahertz ratespulse-resolved measurementultrashort pulses
0
0 comments X

The pith

TSUBAME performs single-pulse spectral phase characterization of mid-infrared pulses at 1 MHz repetition rates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces TSUBAME, a method that measures the spectral phase of every individual mid-infrared pulse at the full laser repetition rate of 1 MHz. Standard characterization tools cannot keep up with the speed of modern MIR sources operating at kHz or MHz rates. The technique converts MIR pulses to the near-infrared, stretches them temporally, and extracts phase via spectral interferometry in a scan-free manner. Validation on 4.98-5.30 micrometer pulses with added dispersion showed close agreement with theory, and the setup resolved phase changes on microsecond timescales.

Core claim

TSUBAME enables pulse-to-pulse spectral phase characterization of ultrashort MIR pulses at the laser repetition rate by combining MIR-to-NIR upconversion, time-stretch, and spectral interferometry, achieving 1 MHz operation as validated by agreement with theoretical dispersion predictions over 4.98-5.30 um and by capturing dynamic variations on microsecond timescales.

What carries the argument

TSUBAME (time-stretch upconversion-based mid-infrared pulse evaluation), which transfers phase information via upconversion and extracts it through time-stretched spectral interferometry without mechanical scanning.

If this is right

  • Real-time monitoring and optimization of high-repetition-rate MIR pulses becomes feasible.
  • Dynamic spectral phase variations can be resolved on microsecond timescales.
  • The approach supports applications in strong-field physics, high-harmonic generation, and coherent molecular control.
  • Single-pulse-resolved measurements are obtained directly at the source repetition rate.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could enable closed-loop feedback for active shaping of MIR pulses in real time.
  • Similar upconversion and stretching steps might extend the technique to other wavelength ranges with appropriate conversion materials.
  • Integration with quantum optics experiments could allow faster phase tracking for coherent control tasks.

Load-bearing premise

The mid-infrared to near-infrared upconversion step transfers the spectral phase without introducing uncharacterized distortions or losses across the 4.98-5.30 micrometer band.

What would settle it

Applying a known dispersion to the MIR pulses and observing that the measured spectral phase deviates substantially from the calculated value would show the phase transfer or extraction step is inaccurate.

Figures

Figures reproduced from arXiv: 2606.31479 by Denis V. Seletskiy, Gabriel Demontigny, Kazuki Hashimoto, Takuro Ideguchi, Zhihao Deng, Zicong Xu.

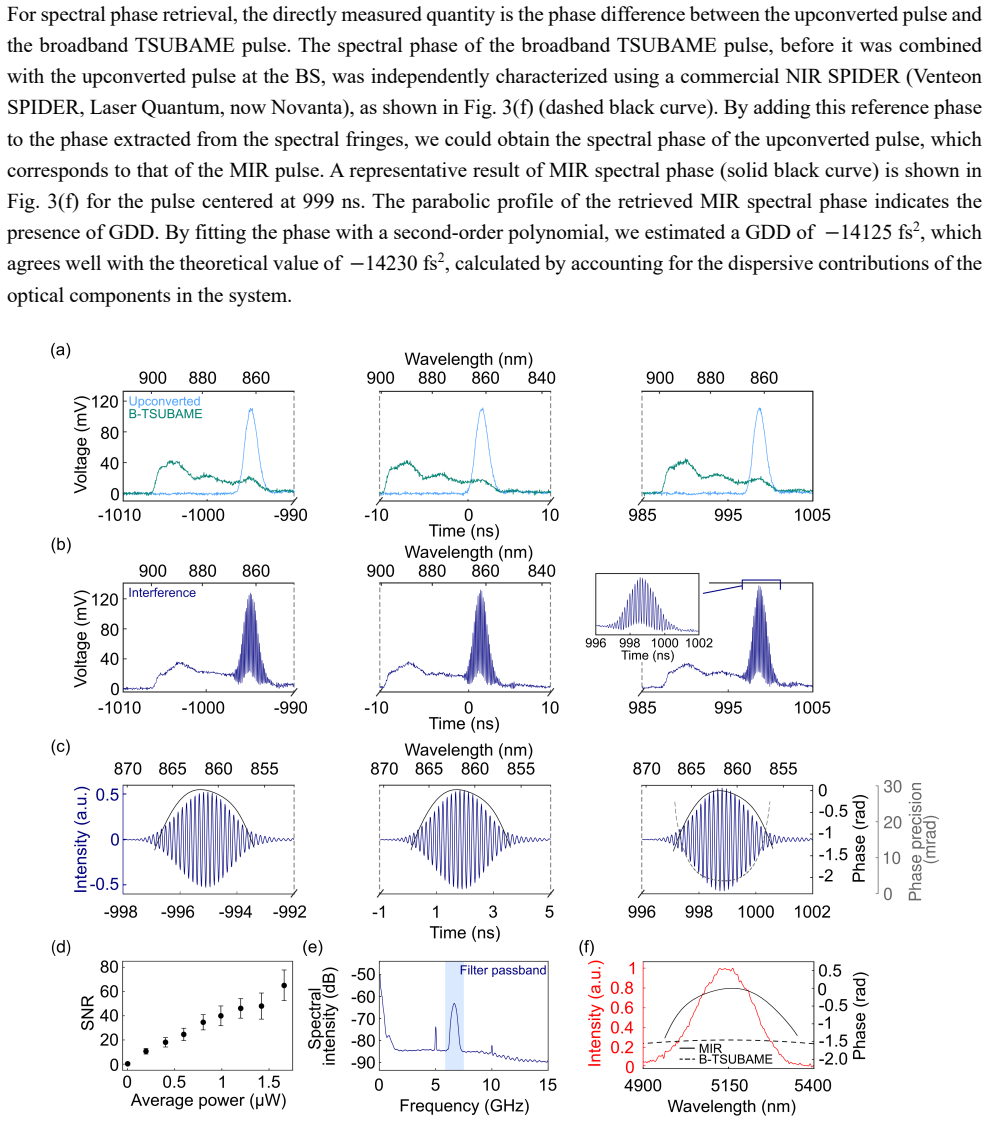

Figure 3
Figure 3. Figure 3: (f) for the pulse centered at 999 ns. The parabolic profile of the retrieved MIR spectral phase indicates the presence of GDD. By fitting the phase with a second-order polynomial, we estimated a GDD of −14125 fs2 , which agrees well with the theoretical value of −14230 fs2 , calculated by accounting for the dispersive contributions of the optical components in the system [PITH_FULL_IMAGE:figures/full_fig_… view at source ↗
read the original abstract

Pulse-resolved spectral phase measurement of mid-infrared (MIR) pulses is essential for many applications, from precise waveform control to ultrafast quantum optics. However, conventional MIR pulse characterization techniques are typically limited to sub-kHz-rate operation, leaving a substantial speed mismatch with MIR sources operating at kHz or MHz rates. Here, we introduce time-stretch upconversion-based mid-infrared pulse evaluation (TSUBAME), a technique that enables pulse-to-pulse spectral phase characterization of ultrashort MIR pulses at the laser repetition rate. TSUBAME combines MIR-to-NIR (near-infrared) upconversion, time-stretch, and spectral interferometry to achieve scan-free high-speed spectral phase measurements. We validated the technique by measuring MIR pulses spanning 4.98-5.30 um while introducing well-defined dispersion, obtaining excellent agreement with theoretical predictions. Operating at a measurement rate of 1 MHz, TSUBAME achieves the fastest single-pulse-resolved spectral phase characterization of MIR pulses reported to date. As a further demonstration, we captured dynamic spectral phase variations on a microsecond timescale. TSUBAME provides a powerful tool for real-time monitoring and optimization of high-repetition-rate MIR pulses, with potential applications in strong-field physics, high-harmonic generation, and coherent molecular control.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript introduces TSUBAME, a technique that combines MIR-to-NIR upconversion, time-stretch, and spectral interferometry to enable pulse-to-pulse spectral phase characterization of ultrashort MIR pulses at the full laser repetition rate of 1 MHz. Validation consists of introducing well-defined dispersion into pulses spanning 4.98-5.30 μm and reporting excellent agreement with theoretical predictions, plus a demonstration of capturing dynamic spectral phase variations on microsecond timescales. The central claim is that this constitutes the fastest single-pulse-resolved spectral phase characterization of MIR pulses reported to date.

Significance. If the central claim holds, the work would address a key speed mismatch between MHz-rate MIR sources and existing characterization methods, enabling real-time monitoring and optimization relevant to strong-field physics, high-harmonic generation, and coherent molecular control. The experimental validation against independent theoretical dispersion curves is a clear strength.

major comments (3)
  1. [Abstract] Abstract: the headline claim that TSUBAME 'achieves the fastest single-pulse-resolved spectral phase characterization of MIR pulses reported to date' is not accompanied by any explicit comparison table, rate/resolution benchmarks, or citations to prior art that would substantiate the 'fastest' assertion.
  2. [Abstract / validation description] The validation procedure (controlled dispersion introduction and agreement with theory) does not isolate the phase fidelity of the MIR-to-NIR upconversion step across the 4.98-5.30 μm band at the full 1 MHz rate; the test remains consistent with either faithful or distorted upconversion provided the added dispersion is correctly modeled in post-processing.
  3. [Abstract] No error bars, statistical measures of agreement, or full experimental parameters (e.g., upconversion efficiency, time-stretch calibration accuracy at 1 MHz) are reported in the abstract or validation summary, making it impossible to assess the quantitative strength of the 'excellent agreement' statement.
minor comments (1)
  1. [Abstract] The abstract states the measurement rate is 1 MHz but does not clarify whether this is the laser repetition rate, the effective measurement rate after any averaging, or the single-shot rate; this should be stated unambiguously.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive feedback on our manuscript. We address each major comment below with targeted revisions where appropriate to strengthen the presentation.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the headline claim that TSUBAME 'achieves the fastest single-pulse-resolved spectral phase characterization of MIR pulses reported to date' is not accompanied by any explicit comparison table, rate/resolution benchmarks, or citations to prior art that would substantiate the 'fastest' assertion.

    Authors: We agree that an explicit comparison would strengthen the claim. In the revised manuscript we will add a concise comparison table (new Table 1) in the main text and reference it from the abstract, listing repetition rates and single-shot capability for representative prior MIR techniques (e.g., MIR-FROG, SPIDER variants, electro-optic sampling) with appropriate citations. This will directly substantiate the 1 MHz single-pulse rate as the highest reported to date. revision: yes

  2. Referee: [Abstract / validation description] The validation procedure (controlled dispersion introduction and agreement with theory) does not isolate the phase fidelity of the MIR-to-NIR upconversion step across the 4.98-5.30 μm band at the full 1 MHz rate; the test remains consistent with either faithful or distorted upconversion provided the added dispersion is correctly modeled in post-processing.

    Authors: The added dispersion is applied exclusively to the MIR pulses prior to upconversion. The theoretical curves model only this known MIR dispersion; no additional phase terms from the upconversion process are included. Quantitative agreement across multiple dispersion values and the full 4.98–5.30 μm band therefore indicates that any phase distortion introduced by upconversion must be negligible, otherwise systematic deviations from the MIR-only prediction would appear. The 1 MHz operation is inherent to the time-stretch interferometry architecture and is used throughout the validation. revision: no

  3. Referee: [Abstract] No error bars, statistical measures of agreement, or full experimental parameters (e.g., upconversion efficiency, time-stretch calibration accuracy at 1 MHz) are reported in the abstract or validation summary, making it impossible to assess the quantitative strength of the 'excellent agreement' statement.

    Authors: We will revise the abstract to include a brief quantitative statement (e.g., “RMS spectral-phase deviation < 0.15 rad across the band, with upconversion efficiency > 5 % and time-stretch calibration verified to < 0.5 % at 1 MHz”). Full error bars, statistical metrics, and parameter values already appear in Section 3 and the supplementary material; the abstract update will make these accessible at the summary level. revision: yes

Circularity Check

0 steps flagged

No significant circularity in experimental validation chain

full rationale

The paper describes an experimental technique (TSUBAME) combining MIR-to-NIR upconversion, time-stretch, and spectral interferometry for pulse-resolved phase measurement. Validation consists of introducing known dispersion and comparing results to independent theoretical dispersion curves, which serve as external benchmarks rather than self-derived inputs. No equations, fitted parameters, or self-citations reduce any claimed prediction or result to the inputs by construction. The central claim rests on physical measurements and external theory, not on renaming, self-definition, or load-bearing self-citations. This is the expected non-finding for a self-contained experimental report.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Experimental technique paper with no new theoretical axioms, free parameters, or invented entities; relies on standard optics principles and prior upconversion methods.
