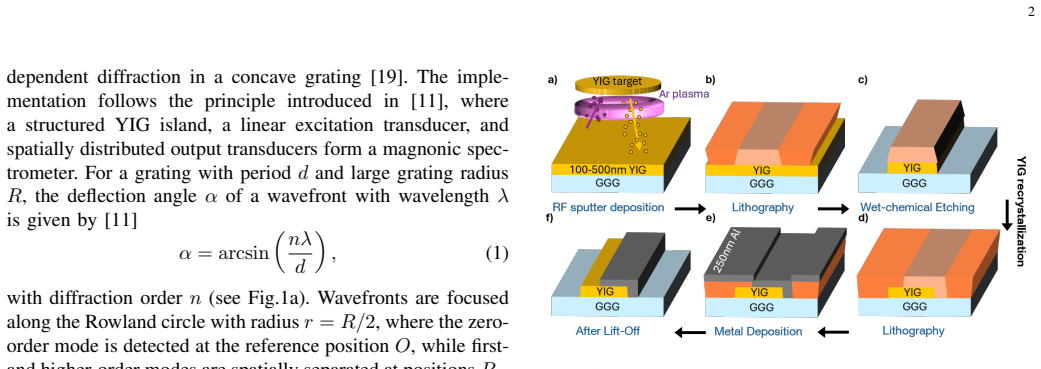

Figure 2. Figure 2: Sample Fabrication using sputtering and wet-chemical etching. a) RF magnetron sputtering of an amorphous YIG film (100 nm to 500 nm) in an Ar plasma. b) Optical lithography using a maskless aligner to define an etching mask. c) Wet-chemical etching of the amorphous YIG film using a standard solution of phosphoric, nitric, and acetic acid at 45 ◦C with an etch rate of 0.87 nm/s. d) Optical lithography using… view at source ↗
Figure 3

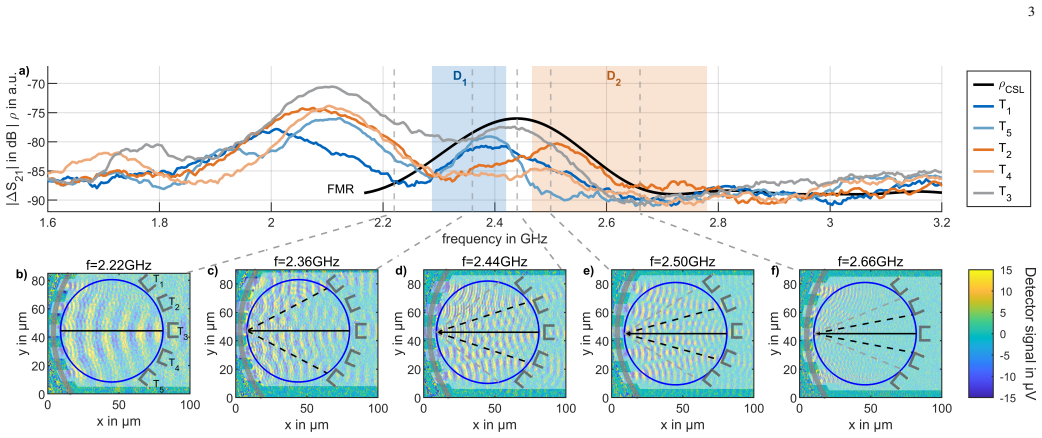

Figure 3. Figure 3: Electrical and magneto-optical characterization of a magnonic Rowland circle a) Calibrated differential transmission S-parameters |∆S21| for a concave grating with R = 75 µm and d = 16 µm at a constant bias field µ0Hx ≈ 246 mT. The measured detection peaks for the symmetrical output transducers T1/T2 and T4/T5 are located in the analytically calculated detection regions D1,2. The zero-order focusing point … view at source ↗
Figure 4

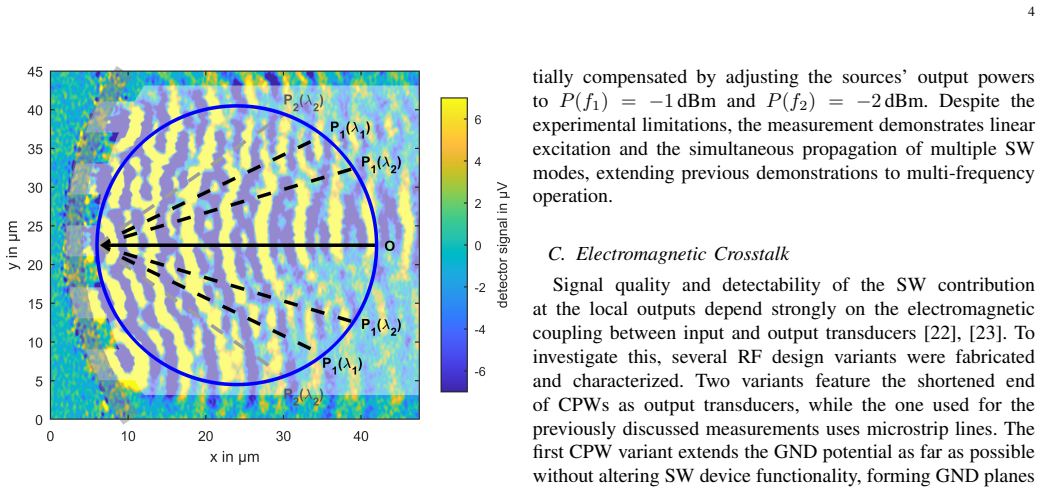

Figure 4. Figure 4: Two-tone excitation of a Rowland circle spectrometer. The measurement was conducted at a constant DC bias magnetic field of about 220 mT in out-of-plane direction. Simultaneous excitation at f1 = 2.10 GHz and f2 = 2.15 GHz results in SW with λ1 = 3.5 µm and λ2 = 2.3 µm and corresponding deflection angles α1 = 26◦ and α2 = 17◦. The analytically calculated deflection angles are indicated by the dashed lines.… view at source ↗
Figure 5

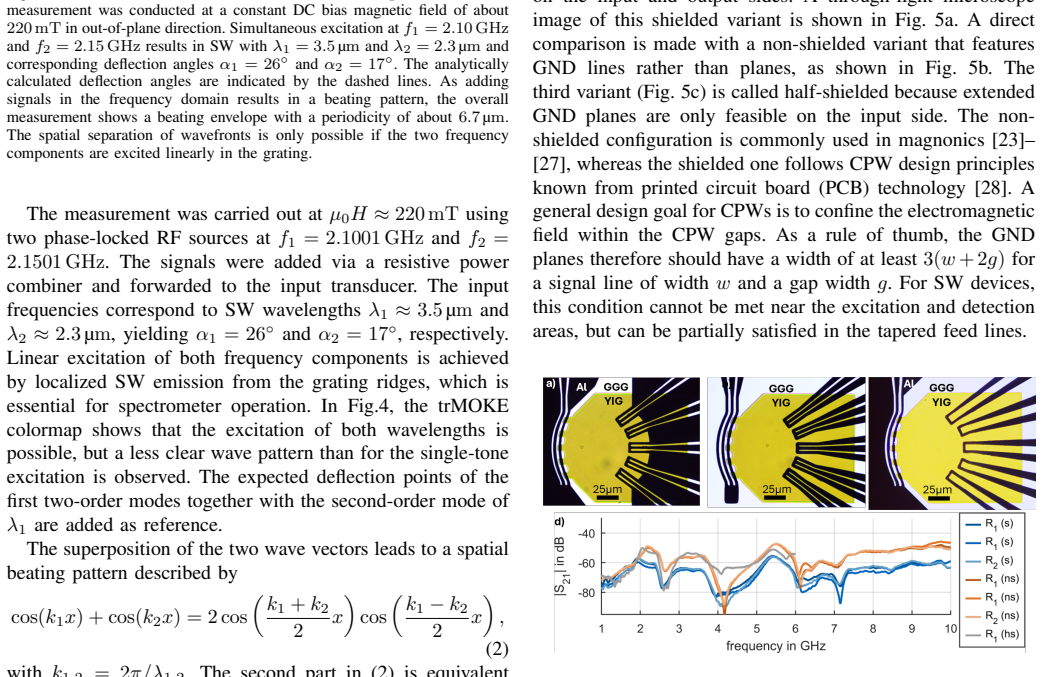

Figure 5. Figure 5: Crosstalk evaluation of different Rowland circle variants. a) The shielded (s) variant for the input/output transducers of the Rowland spectrometer with extended GND planes. b) The non-shielded (ns) variant with GND lines only. Both pictures show fabricated Rowland circles with R = 75 µm. c) Calibrated transmission S-parameter measurements for two sizes of spectrometers (R1 = 75 µm and R2 = 90 µm) with and… view at source ↗
Figure 6

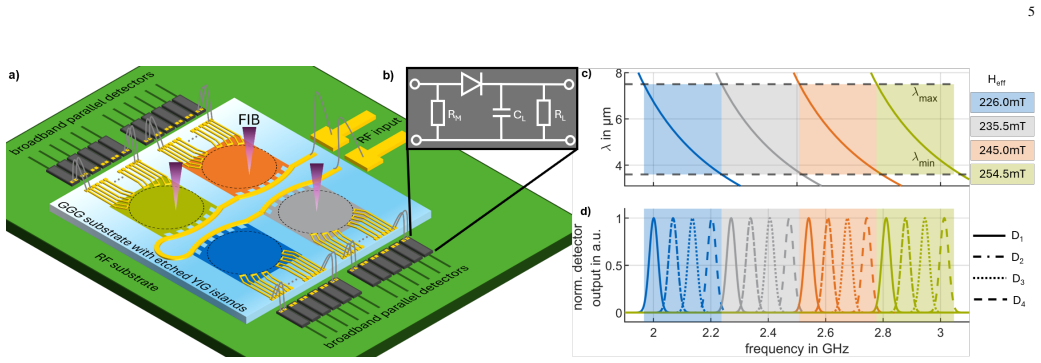

Figure 6. Figure 6: Concept for a broadband and high-resolution magnonic spectrometer. a) Conceptual visualization of a parallelized SW-based spectrometer with four Rowland circles fabricated on a magnonic chip that is embedded in an RF substrate. The operational point of each spectrometer can be set, e.g., by focused-ion-beam irradiation at different dose levels. The spectrometers share a common input transducer, while multi… view at source ↗
Figure 7

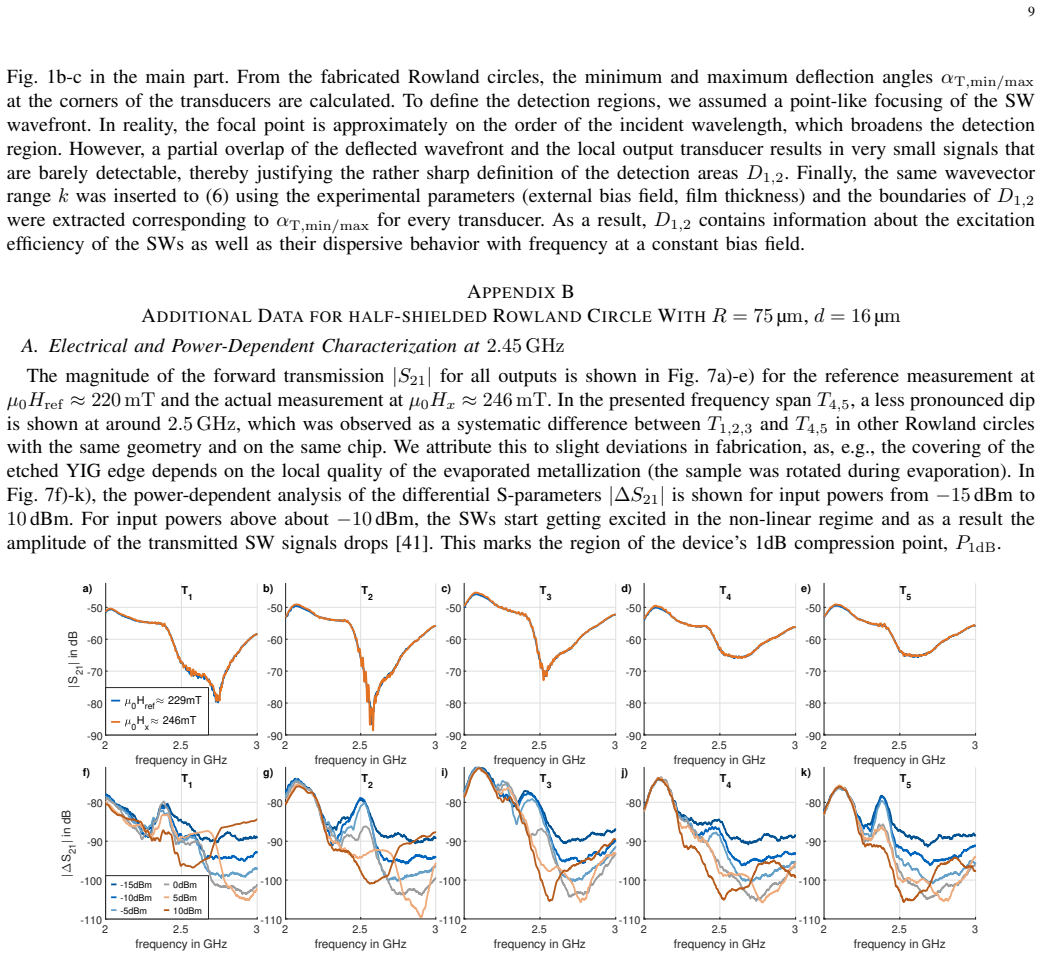

Figure 7. Figure 7: f)-k), the power-dependent analysis of the differential S-parameters |∆S21| is shown for input powers from −15 dBm to 10 dBm. For input powers above about −10 dBm, the SWs start getting excited in the non-linear regime and as a result the amplitude of the transmitted SW signals drops [41]. This marks the region of the device’s 1dB compression point, P1dB. 2 2.5 3 frequency in GHz -90 -80 -70 -60 -50 |S21| … view at source ↗
Figure 8

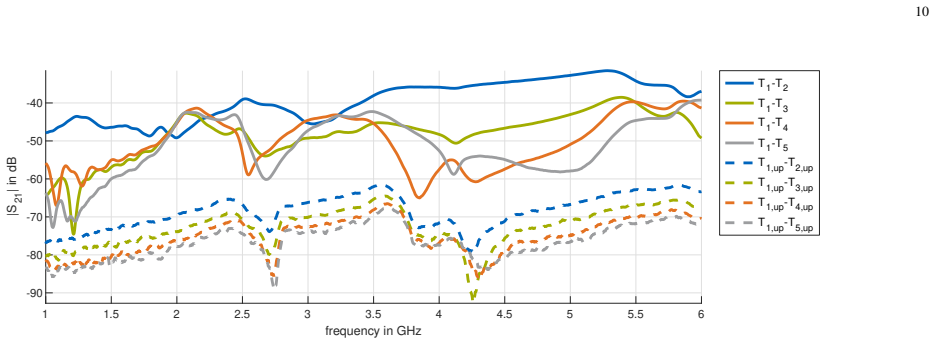

Figure 8. Figure 8: Solid lines: Electromagnetic crosstalk between the output transducers of a Rowland circle with [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9

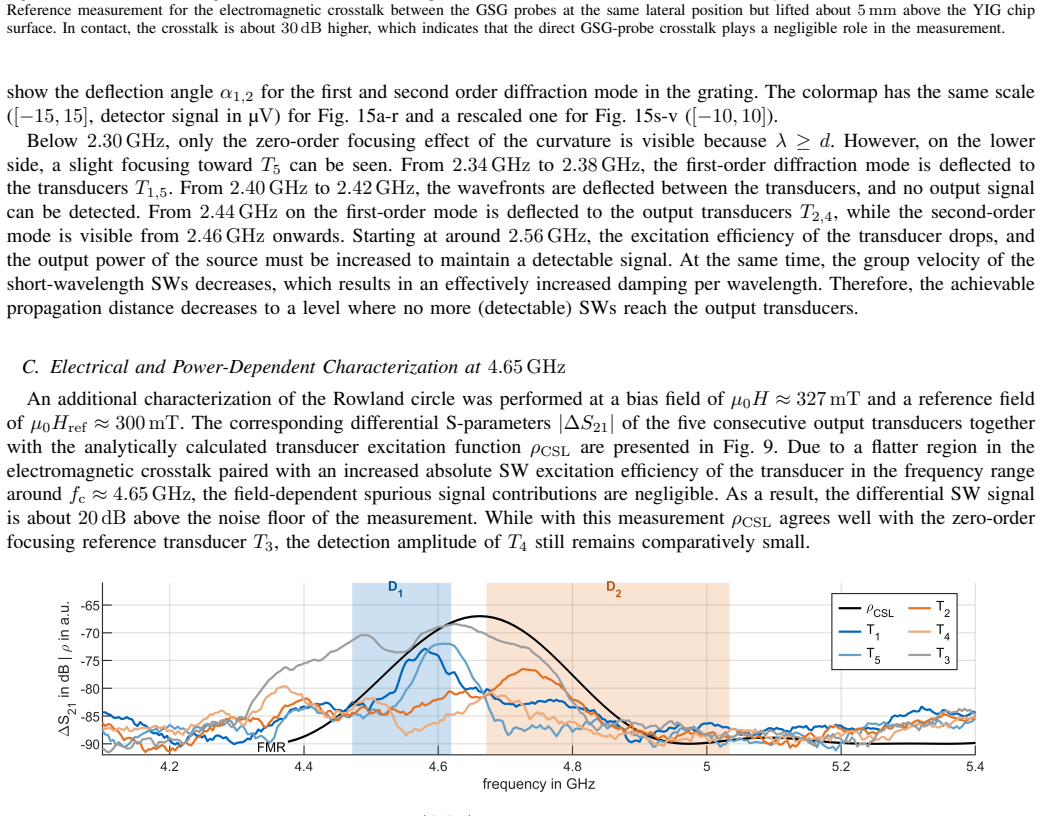

Figure 9. Figure 9: a) Calibrated differential S-parameter measurements [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10

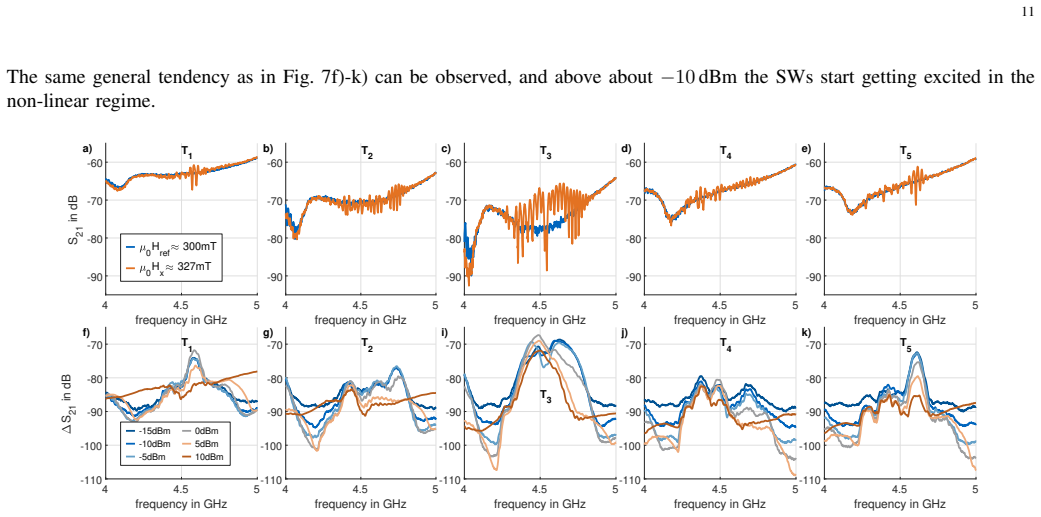

Figure 10. Figure 10: a)-e) |S21| for the five output transducers T1–T5 at µ0Href ≈ 300 mT and µ0Hx ≈ 327 mT. The flat electromagnetic crosstalk enables clearer SW signal extraction. f)-k) Differential S-parameters ∆S21 for input powers from −15 dBm to 10 dBm. Above about −10 dB, the SWs are excited non-linearly, which marks the region of the 1dB compression point P1dB. APPENDIX C ADDITIONAL DATA FOR CROSSTALK CHARACTERIZATION… view at source ↗
Figure 11

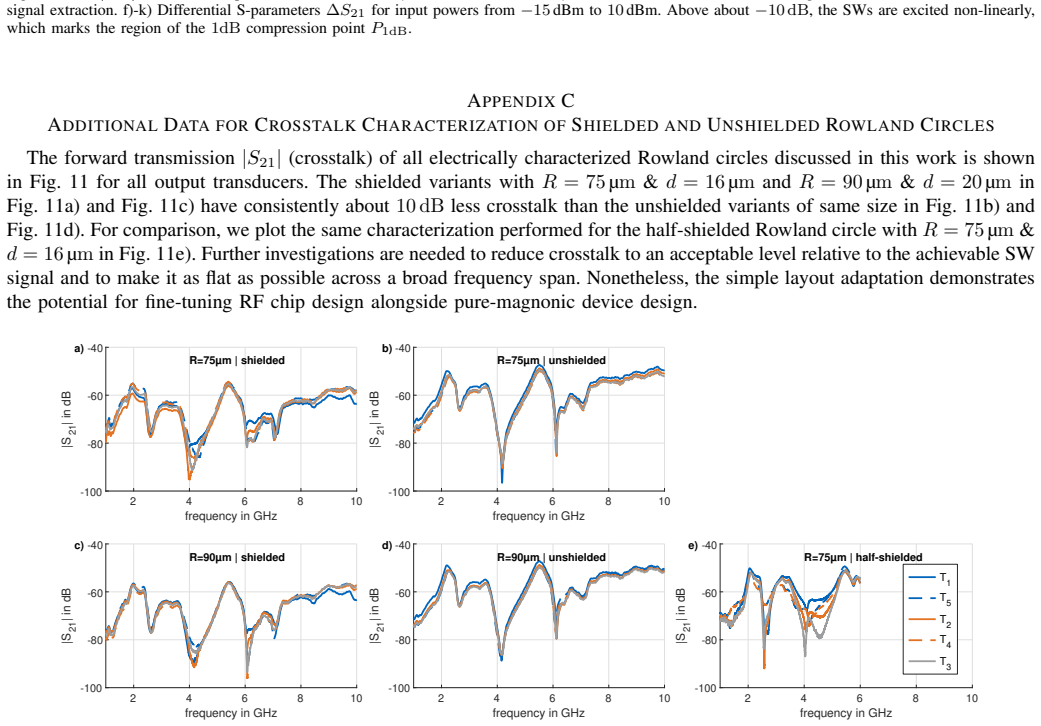

Figure 11. Figure 11: Characterization of the electromagnetic crosstalk between the output transducers for shielded variants with extended GND planes in a) and c), which [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗
Figure 12

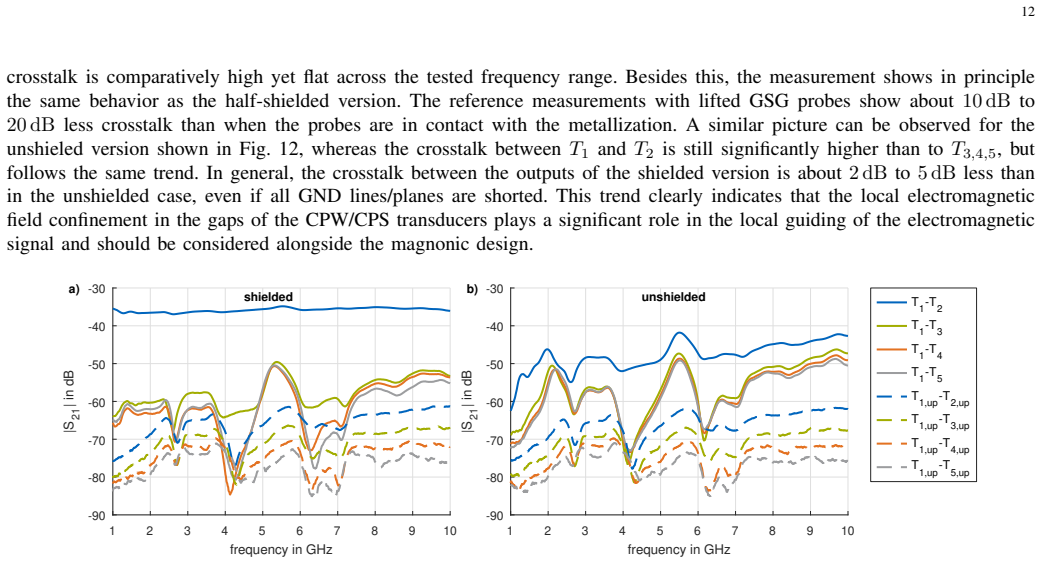

Figure 12. Figure 12: Comparison between the crosstalk of a) shielded and b) unshielded Rowland circles with [PITH_FULL_IMAGE:figures/full_fig_p012_12.png] view at source ↗
Figure 13

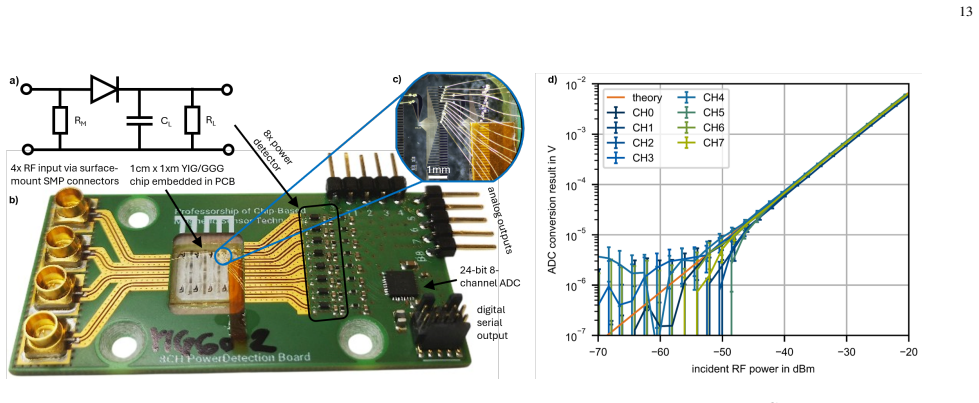

Figure 13. Figure 13: a) Schematic of an RF power detector consisting of a matching resistor [PITH_FULL_IMAGE:figures/full_fig_p013_13.png] view at source ↗
Figure 14

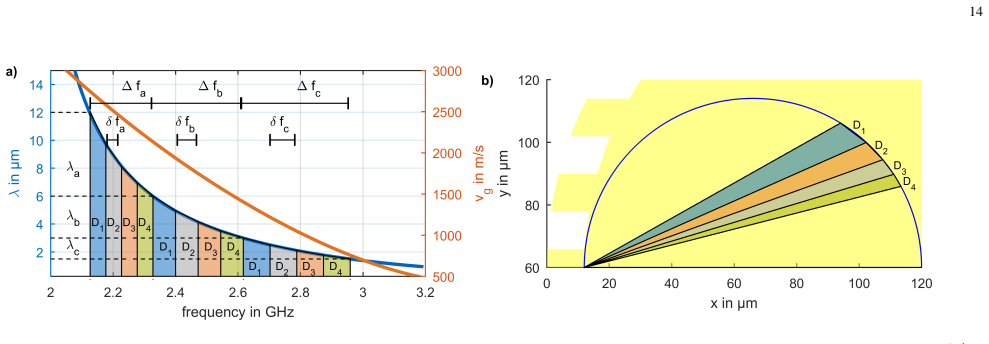

Figure 14. Figure 14: Exemplary calculation for possible working regimes of SW-based spectrometers. a) Analytically calculated dispersion relation for [PITH_FULL_IMAGE:figures/full_fig_p014_14.png] view at source ↗
Figure 15

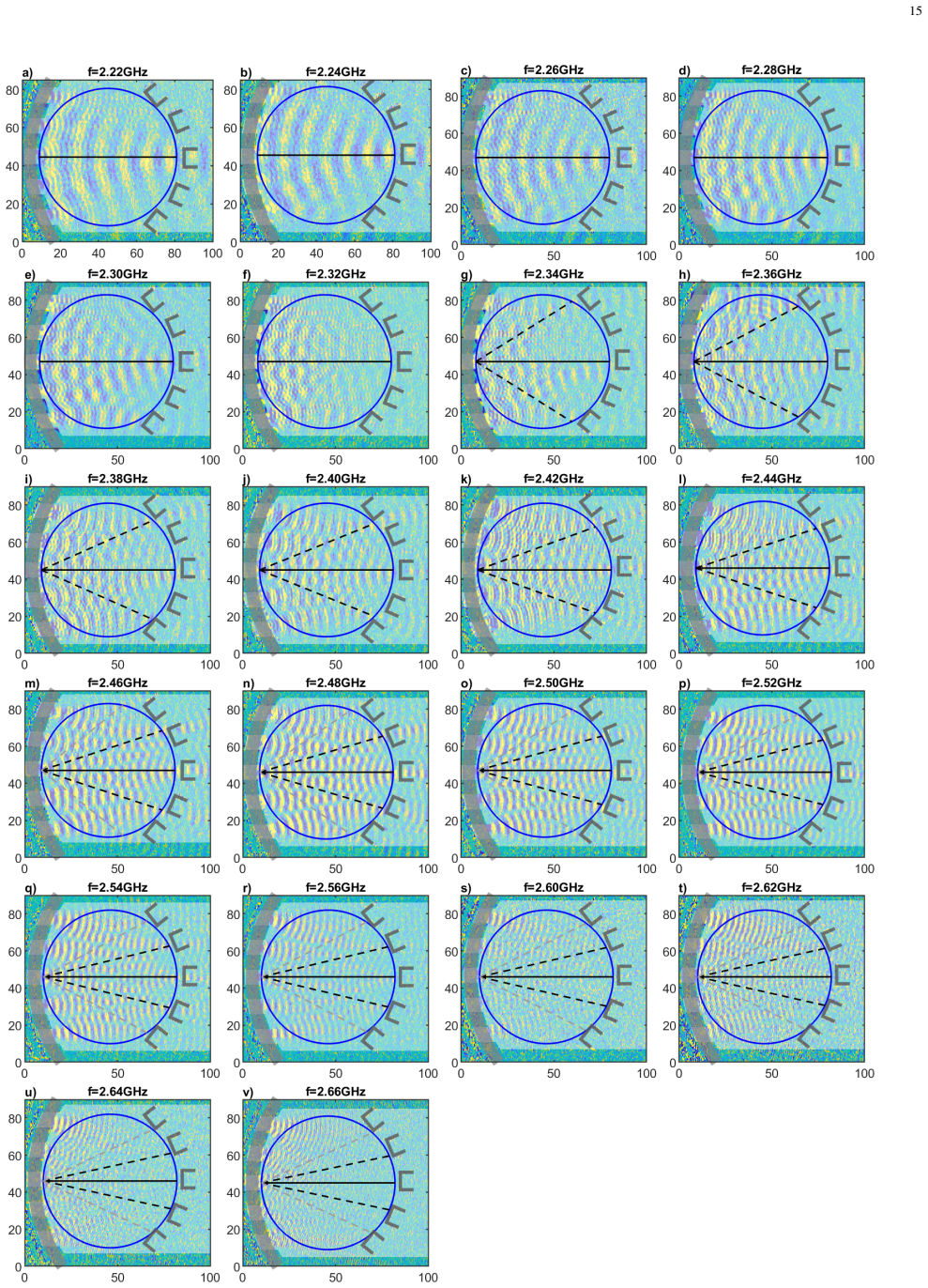

Figure 15. Figure 15: TrMOKE measurements of the Rowland circle (blue) with [PITH_FULL_IMAGE:figures/full_fig_p015_15.png] view at source ↗

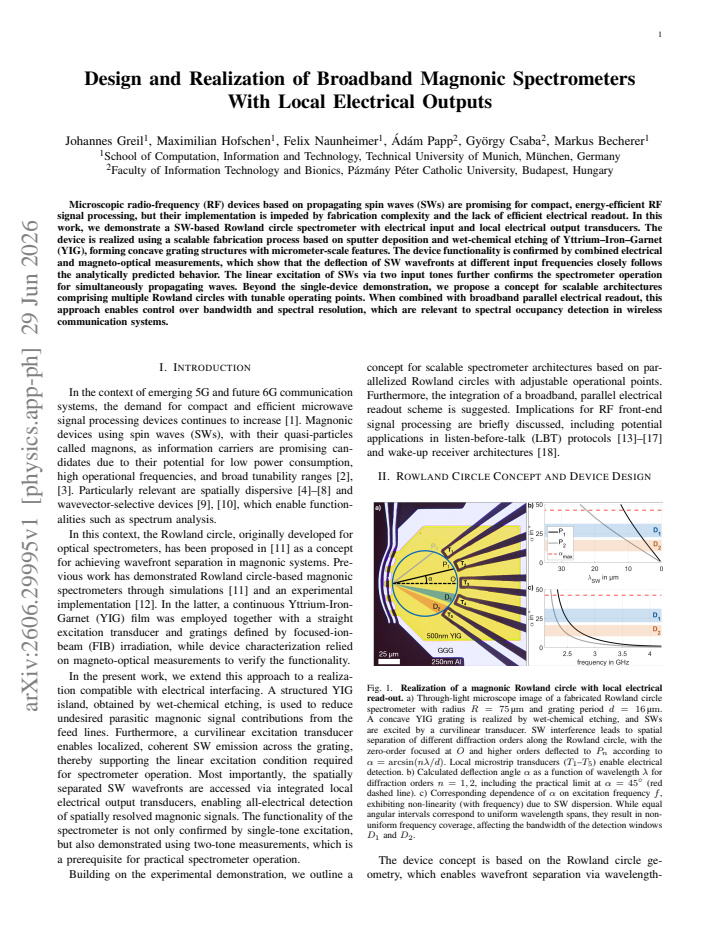

read the original abstract

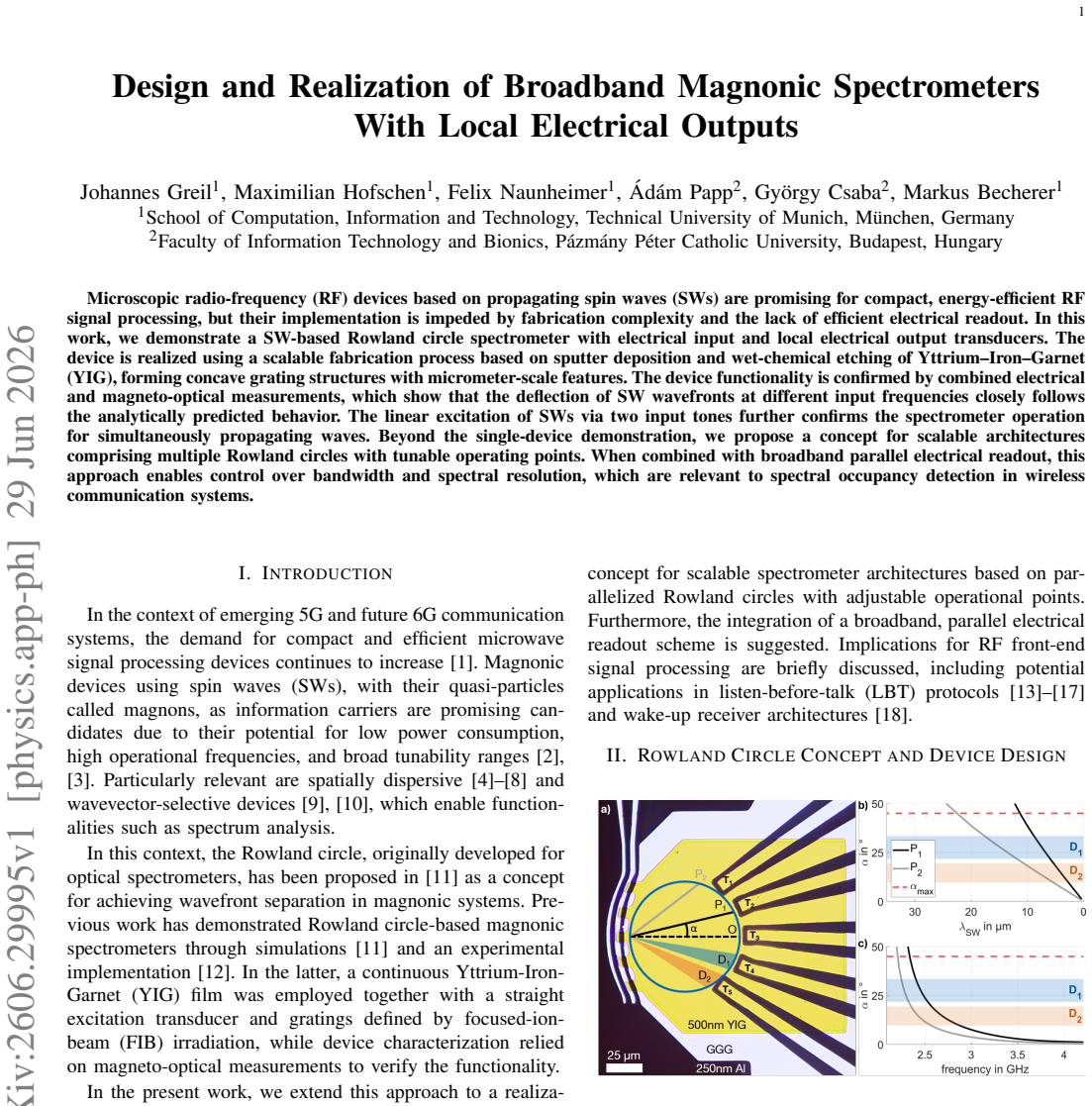

Microscopic radio-frequency (RF) devices based on propagating spin waves (SWs) are promising for compact, energy-efficient RF signal processing, but their implementation is impeded by fabrication complexity and the lack of efficient electrical readout. In this work, we demonstrate a SW-based Rowland circle spectrometer with electrical input and local electrical output transducers. The device is realized using a scalable fabrication process based on sputter deposition and wet-chemical etching of Yttrium-Iron-Garnet (YIG), forming concave grating structures with micrometer-scale features. The device functionality is confirmed by combined electrical and magneto-optical measurements, which show that the deflection of SW wavefronts at different input frequencies closely follows the analytically predicted behavior. The linear excitation of SWs via two input tones further confirms the spectrometer operation for simultaneously propagating waves. Beyond the single-device demonstration, we propose a concept for scalable architectures comprising multiple Rowland circles with tunable operating points. When combined with broadband parallel electrical readout, this approach enables control over bandwidth and spectral resolution, which are relevant to spectral occupancy detection in wireless communication systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims to demonstrate a spin-wave (SW) based Rowland-circle spectrometer fabricated in YIG via sputter deposition and wet-chemical etching, featuring electrical input and local electrical output transducers. Functionality is asserted to be confirmed by combined electrical and magneto-optical measurements showing that SW wavefront deflections at varying input frequencies match analytical predictions, with additional verification via linear excitation using two simultaneous input tones. The work also proposes scalable multi-Rowland-circle architectures with tunable bandwidth and resolution for spectral occupancy detection.

Significance. If the quantitative match between measured wavefront deflections and analytical predictions holds, the result would be significant for applied magnonics: it addresses fabrication complexity and readout limitations in propagating-SW RF devices and provides a concrete path toward compact, energy-efficient spectral processors. The emphasis on scalable YIG processing and parallel electrical readout architectures strengthens the practical relevance.

major comments (2)
  1. [Abstract / Results] Abstract and results: the central claim that 'measurements confirm analytical predictions' and that 'deflection of SW wavefronts ... closely follows the analytically predicted behavior' lacks any reported quantitative metrics (e.g., angular deviation, RMS error, or statistical comparison) or error bars. Without these, the strength of the experimental confirmation cannot be evaluated and is load-bearing for the spectrometer demonstration.
  2. [Fabrication / Methods] Fabrication section: the assertion that the sputter-deposition + wet-chemical-etch process 'reliably produces the micrometer-scale concave grating features needed for the Rowland circle geometry' is presented without supporting metrology (SEM/AFM statistics, feature-size histograms, or edge-roughness values). This directly affects whether the observed deflections can be attributed to the designed geometry.
minor comments (2)
  1. Figure captions should explicitly state the analytical model (e.g., dispersion relation or grating equation) used for the predicted deflection angles so that readers can reproduce the comparison.
  2. Clarify the frequency range, YIG thickness, and bias-field values used in both the analytical predictions and the measurements to allow direct comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive feedback. We have carefully considered the major comments and provide point-by-point responses below. Where appropriate, we have revised the manuscript to address the concerns raised.

read point-by-point responses

  1. Referee: [Abstract / Results] Abstract and results: the central claim that 'measurements confirm analytical predictions' and that 'deflection of SW wavefronts ... closely follows the analytically predicted behavior' lacks any reported quantitative metrics (e.g., angular deviation, RMS error, or statistical comparison) or error bars. Without these, the strength of the experimental confirmation cannot be evaluated and is load-bearing for the spectrometer demonstration.

    Authors: We agree with the referee that quantitative metrics are important for rigorously evaluating the agreement between experiment and theory. Although the manuscript describes the qualitative match, we will revise the Results section to include error bars on the deflection angle data points and compute the root-mean-square (RMS) error between the measured and analytically predicted deflections. These additions will be based on the existing measurement data and will strengthen the central claim. revision: yes

  2. Referee: [Fabrication / Methods] Fabrication section: the assertion that the sputter-deposition + wet-chemical-etch process 'reliably produces the micrometer-scale concave grating features needed for the Rowland circle geometry' is presented without supporting metrology (SEM/AFM statistics, feature-size histograms, or edge-roughness values). This directly affects whether the observed deflections can be attributed to the designed geometry.

    Authors: The referee correctly identifies that metrology data is not currently included. To address this, we will add representative SEM images of the fabricated gratings along with statistical analysis of feature sizes (including mean and standard deviation from multiple measurements) and edge roughness values to the Methods section. This will confirm that the process reliably achieves the required geometry. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper is an experimental demonstration of a fabricated magnonic spectrometer whose functionality is validated by direct electrical and magneto-optical measurements of spin-wave wavefront deflection. The abstract and described argument contain no equations, no fitted parameters presented as predictions, and no load-bearing self-citations or uniqueness theorems. The match to 'analytically predicted behavior' is an external benchmark comparison rather than a self-referential derivation, leaving the central claim self-contained against fabrication and measurement evidence.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No mathematical derivations, free parameters, or postulated entities appear in the abstract; the work is a fabrication and measurement report.

pith-pipeline@v0.9.1-grok · 5739 in / 941 out tokens · 41295 ms · 2026-06-30T04:06:11.871798+00:00 · methodology
