The origin of WHAM Point Source~46

T0 review · 2 major / 2 minor · reviewed 2026-06-27 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read PG 0931+691 cannot ionize WHAM Point Source 46; a shock in an intermediate-velocity cloud does.

desk verdict Keck spectra exclude PG 0931+691 as the ionizer for WPS 46 and favor shock ionization tied to an IVC instead. read the letter →

arxiv 2606.08987 v1 pith:4YBHED7V submitted 2026-06-08 astro-ph.GA

S. R. Kulkarni , Zeren Lin , Charles Beichman , Alex S. Hill , Xihan Deng , Tryston Raecke , Mateusz Matuszewski , Drew M. Miles
show 2 more authors
Marty Anderson D. Christopher Martin
This is my paper · ORCID
classification astro-ph.GA
keywords WHAMpointsourcesintermediatevelocitycloudsshockionizationH-alphaemissionsubdwarfstarsgalacticionizedgasBPTdiagramnebularlineratios
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper investigates the origin of one of the WHAM point sources that stand out in H-alpha maps of the Galactic sky. Earlier work had attributed WPS 46 to ionization by the subdwarf PG 0931+691, but new integral-field spectra show no detectable H-alpha within an arc-minute of that star. The emission-line ratios and spatial morphology instead match shock or low-ionization nuclear emission-line region excitation, and the velocity field links the source to an intermediate-velocity cloud. If this re-identification holds, it changes how we assign power sources to faint ionized structures and directs attention toward shocks as a common ionization mechanism in the Milky Way's halo gas.

What carries the argument

The non-detection of H-alpha within an arc-minute of PG 0931+691 combined with BPT-diagram and [S II]/H-alpha ratios that favor shock or LI(N)ER excitation over H II-region photoionization.

What would settle it

Detection of enough ultraviolet flux or H-alpha from PG 0931+691 to power the observed nebula, or kinematic measurements showing WPS 46 shares the star's velocity rather than the intermediate-velocity cloud's velocity.

Watch

Extended reading notes

Core claim

PG 0931+691 cannot be the dominant ionizer of WPS 46 because no H-alpha is found near the star and the observed line ratios plus morphology are inconsistent with stellar photoionization. The source is instead associated with an intermediate-velocity complex whose H-alpha and nebular lines arise from shocks within the cloud.

Load-bearing premise

The lack of detectable H-alpha near the star plus the line ratios are enough to exclude the star as the main ionizer and to favor shock ionization.

Editorial extensions

If this is right

  • Other WHAM point sources previously linked to subdwarfs may require similar re-examination.
  • H-alpha from shocks can serve as a tracer for interactions between intermediate-velocity clouds and the Galactic disk or halo.
  • Sub-degree ionized structures can be mapped by combining SDSS Local Volume Mapper spectra with deep narrow-band images.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Shocks driven by infalling or fountain gas may supply a larger fraction of the warm ionized medium than models that rely only on stellar photons have assumed.
  • The same line-ratio and morphology tests could be applied to faint emission patches found in other all-sky surveys to separate stellar and shock contributions.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 2 minor

Summary. The manuscript investigates the origin of WHAM Point Source 46 (WPS 46), previously suggested by Reynolds et al. (2005) to be ionized by the subdwarf PG 0931+691. Keck Cosmic Web Imager observations detect multiple nebular emission lines near WPS 46 but find no Hα emission within an arc-minute of PG 0931+691. Line ratios (BPT diagram and [S II]/Hα) are reported as more consistent with AGN/LI(N)ER-like ionization than with WIM or H II region photoionization. The authors argue that PG 0931+691 cannot be the ionizing source, associate WPS 46 with an intermediate-velocity cloud (IVC), and attribute the emission to shock ionization. They conclude with a proposed observing plan using SDSS Local Volume Mapper and amateur narrow-band imaging.

Significance. If the non-detection and line-ratio interpretations are robust, the work provides a concrete case study reclassifying one WHAM point source away from the subdwarf category and illustrates the utility of high-resolution spectroscopy for distinguishing shock versus photoionization in the Galactic ionized medium. It adds new Keck data to the observational record and outlines practical strategies for sub-degree-scale studies of IVCs and high-velocity complexes.

major comments (2)
  1. [Keck observations / abstract] The central claim that PG 0931+691 cannot be the ionizing source rests on the non-detection of Hα within an arc-minute, yet the manuscript provides no quantitative upper limit on Hα flux or surface brightness, nor any sensitivity or exposure-time details for the Keck Cosmic Web Imager data. This omission makes it impossible to assess the strength of the exclusion (abstract and Keck observations section).
  2. [Line-ratio analysis / discussion] The preference for shock ionization over stellar photoionization is based on BPT-diagram location and [S II]/Hα ratios, but the text does not tabulate the measured line fluxes, uncertainties, or explicit comparisons to shock-model versus photoionization-model grids. Without these, the diagnostic conclusion remains qualitative (line-ratio analysis and discussion sections).
minor comments (2)
  1. [Abstract] Abstract: 'sub dwarfs' should read 'subdwarfs'; the phrase 'source of ionizing power' is clearer than 'source of ionization' in the final sentence.
  2. [Discussion] A figure overlaying the WPS 46 position and velocity on known IVC maps would strengthen the morphological association claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help strengthen the quantitative support for our conclusions. We respond to each major comment below and have revised the manuscript to address the identified omissions.

read point-by-point responses

  1. Referee: [Keck observations / abstract] The central claim that PG 0931+691 cannot be the ionizing source rests on the non-detection of Hα within an arc-minute, yet the manuscript provides no quantitative upper limit on Hα flux or surface brightness, nor any sensitivity or exposure-time details for the Keck Cosmic Web Imager data. This omission makes it impossible to assess the strength of the exclusion (abstract and Keck observations section).

    Authors: We agree that quantitative details are required to evaluate the non-detection. In the revised manuscript we have added the KCWI observing log (total on-source integration of 7200 s under 0.8-arcsec seeing) to the observations section. We also report a 3σ upper limit of 0.04 R on Hα surface brightness within a 1-arcmin radius of PG 0931+691, derived from the rms noise in the continuum-subtracted datacube. This limit is well below the WHAM point-source threshold and is now referenced in the abstract. These additions directly address the concern. revision: yes

  2. Referee: [Line-ratio analysis / discussion] The preference for shock ionization over stellar photoionization is based on BPT-diagram location and [S II]/Hα ratios, but the text does not tabulate the measured line fluxes, uncertainties, or explicit comparisons to shock-model versus photoionization-model grids. Without these, the diagnostic conclusion remains qualitative (line-ratio analysis and discussion sections).

    Authors: We accept that the diagnostic discussion would be more rigorous with tabulated values and model comparisons. The revised manuscript now contains a new table listing all detected line fluxes with 1σ uncertainties and the derived [S II]/Hα, [N II]/Hα, and [O III]/Hβ ratios. We have added a BPT diagram figure that overlays our measurements (with error bars) on both shock-ionization grids (Allen et al. 2008) and stellar/AGN photoionization grids generated with CLOUDY. The observed ratios place WPS 46 firmly in the LINER/shock region, providing quantitative support for the shock-ionization interpretation tied to the IVC. These changes appear in the line-ratio analysis and discussion sections. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity identified

full rationale

This is a purely observational astronomy paper based on new Keck Cosmic Web Imager spectroscopy. The central claims (PG 0931+691 cannot ionize WPS 46; emission arises from IVC shocks) rest on direct non-detections, measured line ratios (BPT, [S II]/Hα), morphology, and velocities compared against standard external diagnostics. No derivations, fitted parameters, predictions, ansatzes, or self-citation chains appear; the logic is self-contained against external benchmarks and does not reduce to its own inputs by construction.

Assumptions & free parameters 0 free parameters · 1 assumptions · 0 invented entities

No free parameters or invented entities are introduced. The work relies on standard astrophysical line-ratio diagnostics whose validity is assumed from the broader literature.

assumptions (1)
  • domain assumption BPT diagram and [S II]/Hα ratios reliably distinguish between photoionization by stars, AGN/LINERs, and shocks in the Galactic context.
    Invoked to interpret the observed line ratios as inconsistent with pure WIM or H II region ionization.

how reviews work

0 comments
Cite this review

Pith. "Pith review of The origin of WHAM Point Source~46." pith.science (2026). https://pith.science/paper/4YBHED7V

@misc{pith2026260608987,
  author       = {Pith},
  title        = {Pith review of: The origin of WHAM Point Source~46},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/4YBHED7V}},
  note         = {Machine review of arXiv:2606.08987}
}
abstract

The Wisconsin H$\alpha$ Mapper (WHAM) surveyed the entire Galactic sky in H$\alpha$ ($\vert v_{\rm LSR}\vert \lesssim 100\, {\rm km\,s^{-1}}$) to approximately 0.1\,Rayleigh (R), albeit with a 1-degree beam. %The resulting WHAM Sky Survey, along with large area %imaging in [\ion{S}{2}] and [\ion{N}{2}], laid the foundation for Warm Ionized %Medium (WIM) science. \cite{rcm+05} reported ``point sources" which stood out against the Galactic background in space and velocity. Half of the sources are associated with plausible planetary nebulae and OB stars. Reynolds et al (2005) suggested sub dwarfs for one quarter of the sources. Here, we investigate one such source, WPS\,46, for which Reynolds et al (2005) suggested the sub-dwarf PG\,0931+691 to provide the source of ionization. With the Keck Cosmic Web Imager we found numerous nebular emission lines within the vicinity of WPS\,46, but we failed to find H$\alpha$ emission in the arc-minute vicinity of PG\,0931+691. The line ratios (BPT diagram and [\ion{S}{2}]/H$\alpha$) combined with the morphology are more consistent with AGN or LI(N)ER-like ionization than with pure warm ionized medium or \ion{H}{2} region-like photoionization. Separately, we offer compelling reasons to argue that PG\,0931+691 cannot be the source of ionizing power for WPS\,46. We suggest that WPS\,46 is associated with an intermediate velocity complex (IVC) and that H$\alpha$ and nebula emission may arise as a result of a shock. We conclude by outlining a plan of action of using SDSS's Local Volume Mapper along with deep narrow band imagery obtained by amateur astronomers to explore and study the ionized sky on sub-degree scales, in general, and specifically studies of IVC and high-velocity complexes.

Figures

Figures reproduced from arXiv: 2606.08987 by the authors.

Figure 1

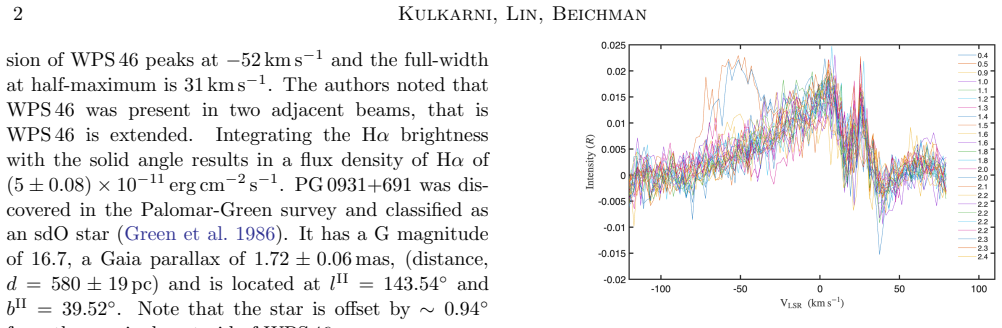

Figure 1. In the velocity range, −75 km s−1 < vLSR < −35 km s−1 , two of the beams show a stronger emis￾sion relative to the other beams. It is this excess emis￾sion that led Reynolds et al. (2005) to the discovery of WPS 46. A “map” obtained by integrating the emission over the aforementioned velocity range is displayed in Fig￾ure 2. In this map PG 0931+691 is marked by “∗”. From this map it is clear that (i) WPS 46 is offse… view at source ↗
Figure 2

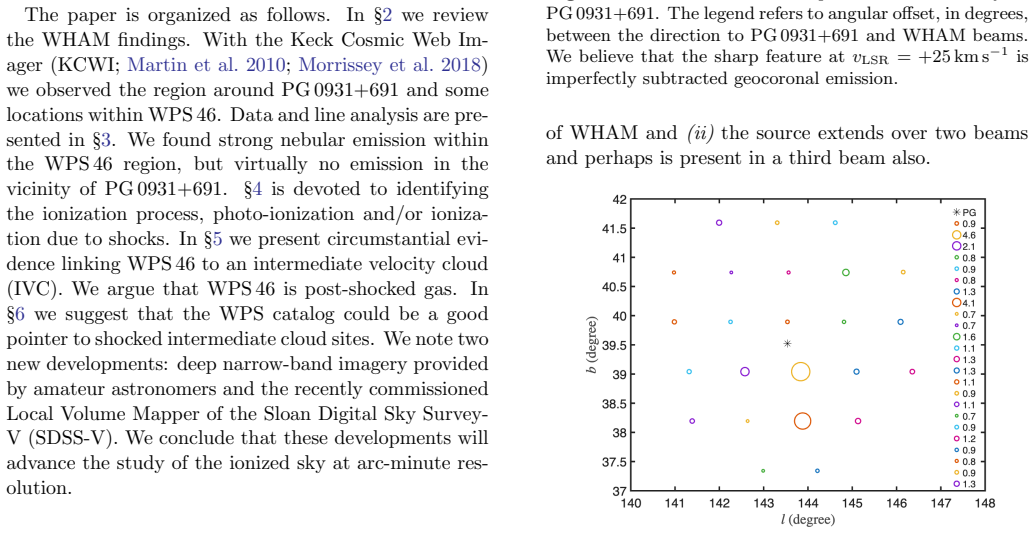

Figure 2. Hα intensity, integrated over the velocity range −75 km s−1 < vLSR < −35 km s−1 , of the region around PG 0931+691 (marked by “∗”). Each beam is represented by a circle (marker) whose size represents the ratio of the emission in the direction normalized to the median intensity (0.15 R) in this region of the sky. The three brightest points have intensity of 0.69 R, 0.61 R and 0.31 R. 3. KCWI OBSERVATIONS Observations… view at source ↗
Figure 3

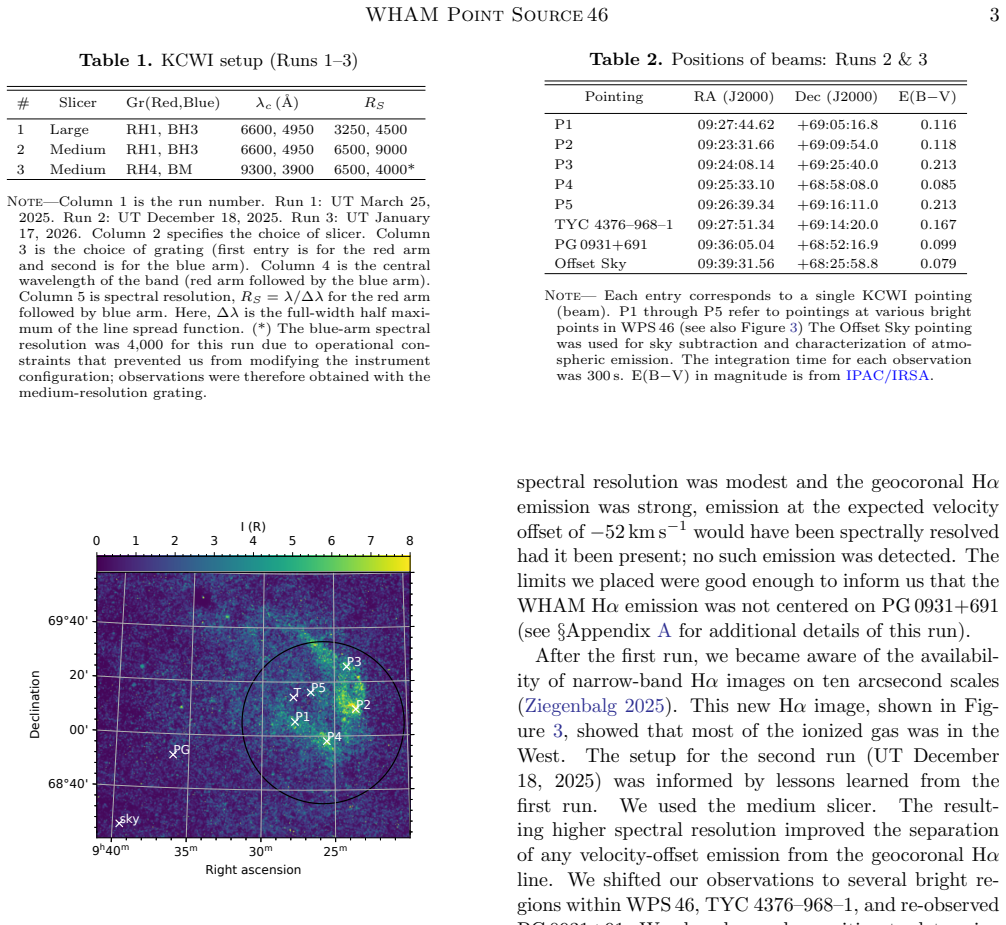

Figure 3. Hα image of the field of WPS 46. A circle with radius 0.5 ◦ is centered on the position of the WHAM pointing which contains WPS 46. “PG” marks the pointing towards PG 0931+691, “T” is that for TYC 4376–968–1 and “Sky” is the offset position to measure the sky devoid of Hα light from WPS 46. The imaging data is from Ziegenbalg (2025). sponding pixels sizes are [1.35′′ , 0.69′′ , 0.34′′]. The spec￾tral resolution is d… view at source ↗
Figures from the paper (12 more)
Figure 4

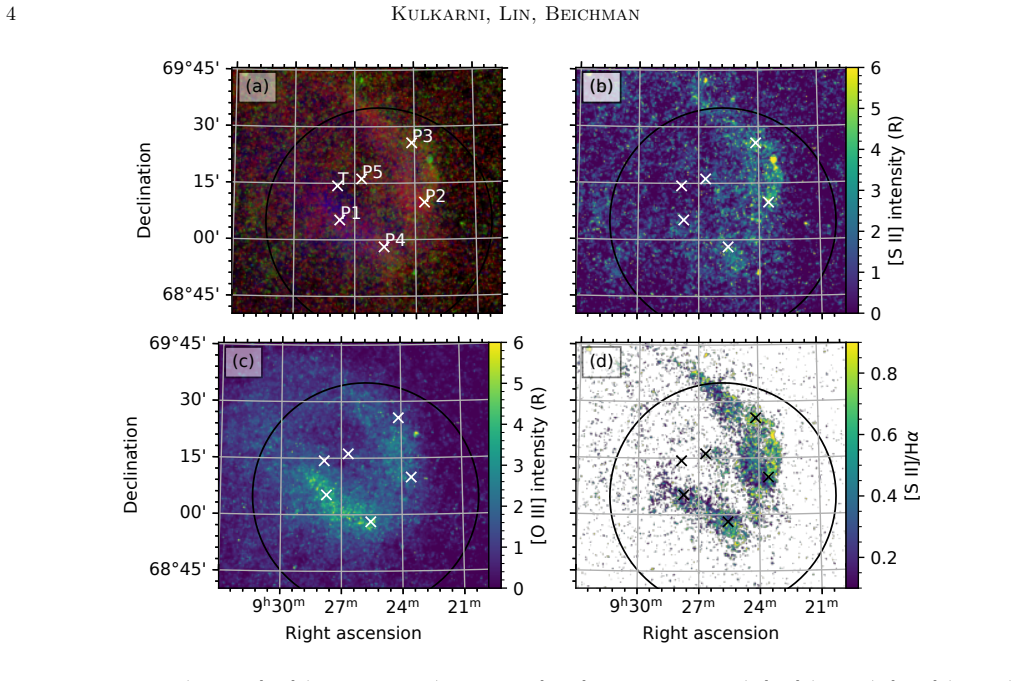

Figure 4. Figure 4: Composite (Hα red, [S II] (λ6716 and 6731) green, and [O III]λ5007 blue, panel a), [S II] (panel b), [O III] (panel c), and [S II]/Hα (in energy units, panel d) images of the region, using data from Ziegenbalg (2025) as in [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 5

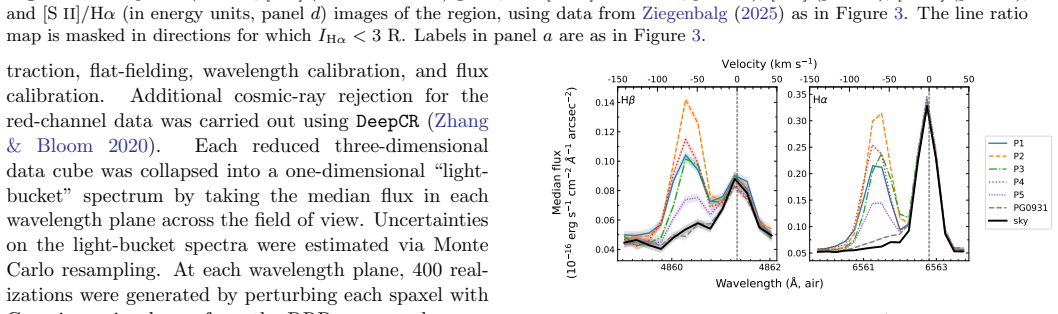

Figure 5. Figure 5: KCWI light-bucket spectra (without sky sub￾traction) around Hβ (left) and Hα (right), shown in velocity space relative to the rest-frame air wavelengths. Shaded re￾gions indicate the 1-σ uncertainties on the median spectra. Velocities are topocentric and so Hα and Hβ a…
Figure 6

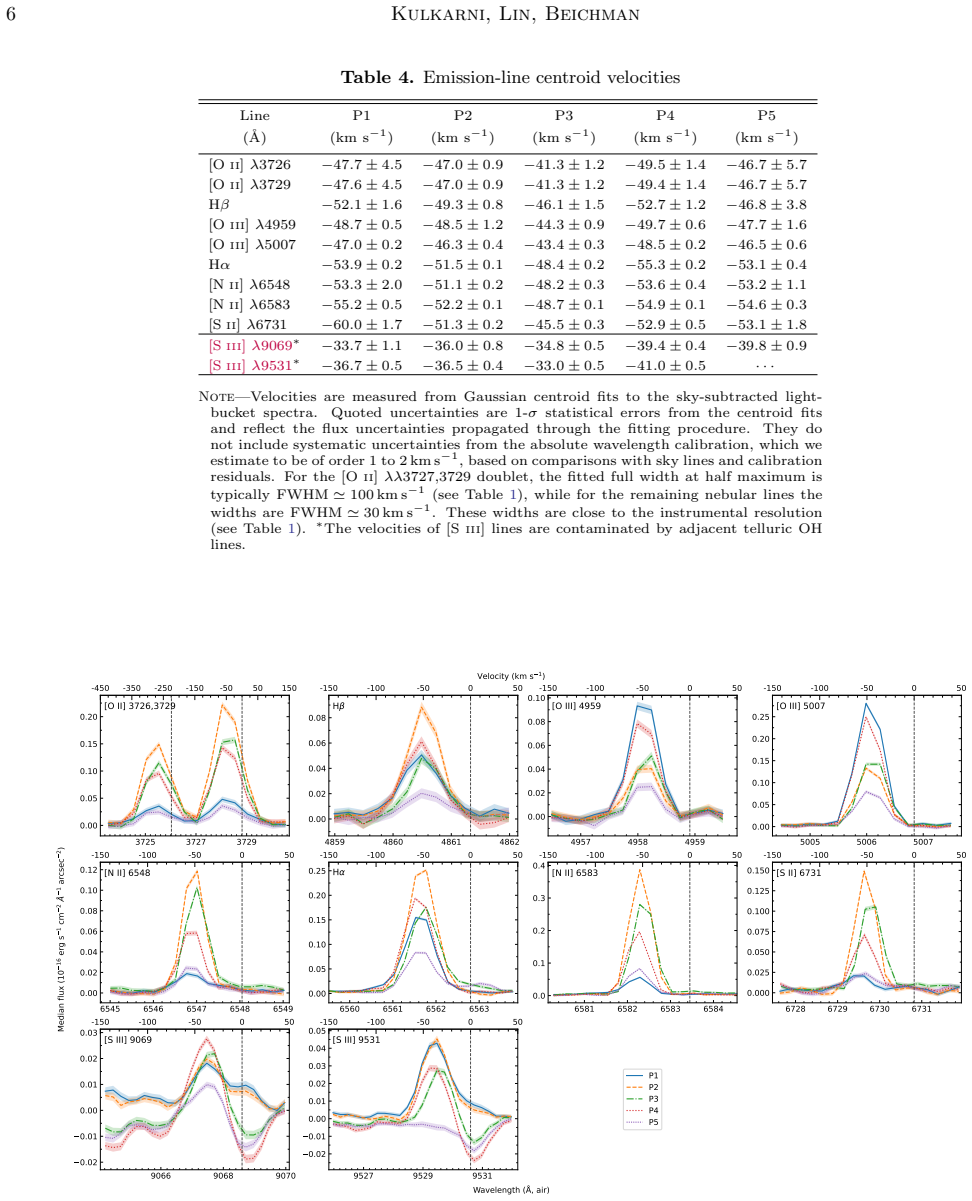

Figure 6. Figure 6: Sky-subtracted KCWI light-bucket spectra for all pointings, showing the full set of detected nebular emission lines across the blue and red channels from runs 2 and 3. Each panel displays a velocity-zoomed view of an individual emission line, with spectra from differen…
Figure 7

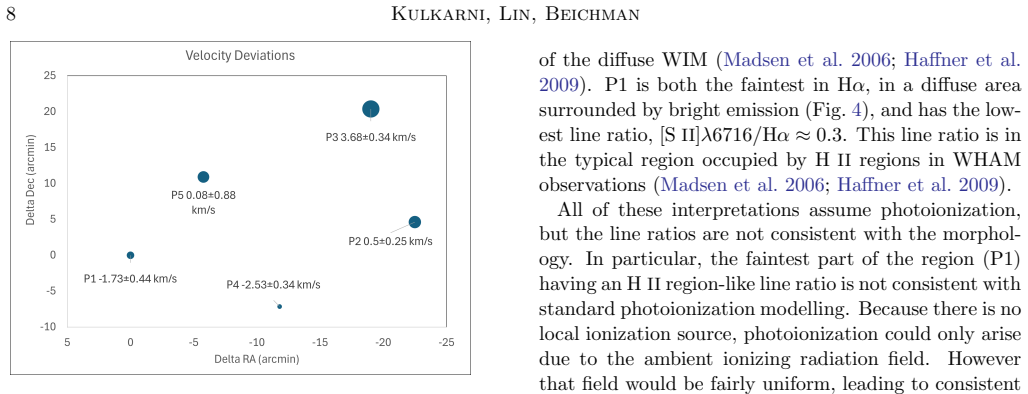

Figure 7. Figure 7: The average velocity and dispersion at each of the five positions with respect to the position P1 averaged over the four strongest lines with the most precise centroids (Hα, Hβ, [O III]λ5007 and [N II]λ6583; [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8

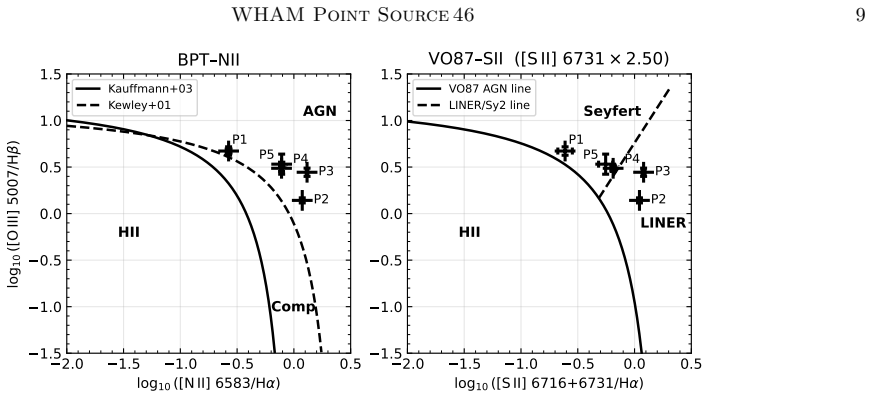

Figure 8. Figure 8: Emission-line diagnostic diagrams constructed from KCWI-blue and KCWI-red line ratios. Left: Standard BPT–N II diagram showing log([O III]λ5007/Hβ) versus log([N II]λ6583/Hα), with the empirical demarcation of Kauffmann et al. (2003) and the theoretical maximum starbur…
Figure 10

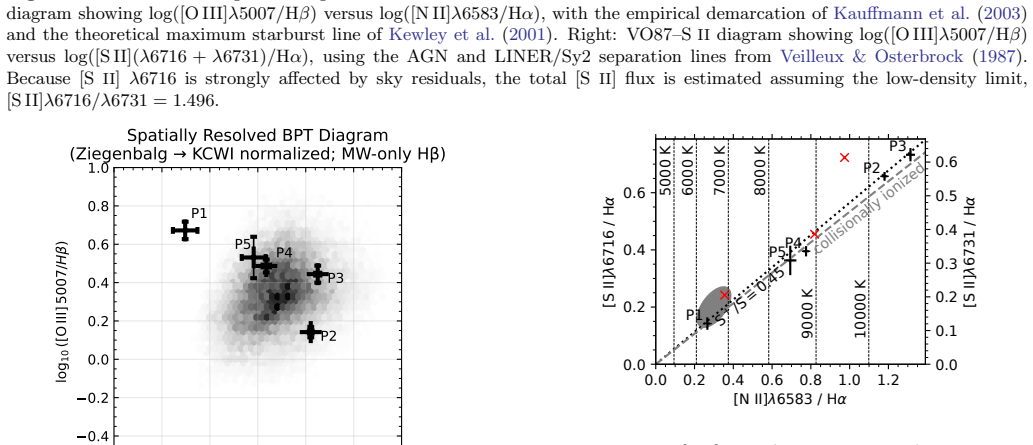

Figure 10. Figure 10: [S II]λ6716/Hα line ratio (derived from [S II]λ6731 as described in the text, with [S II]λ6731/Hα in￾dicated on the right) as a function of [N II]λ6583/Hα for the five positions observed with KWCI. Temperatures and implied sulfur ionization states derived assuming pho…
Figure 11

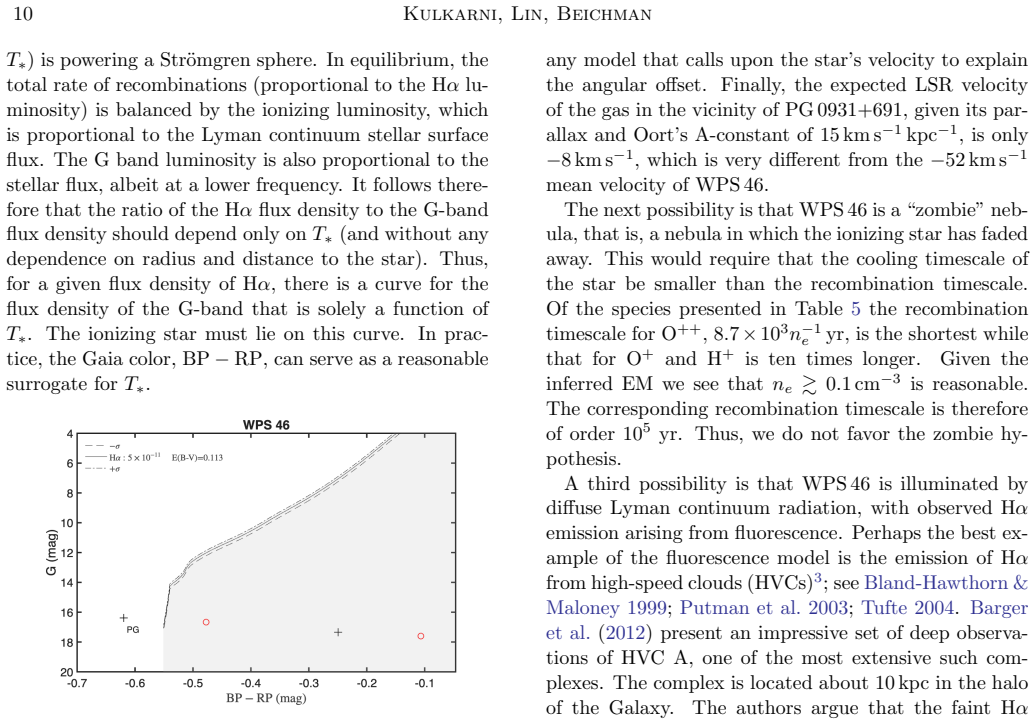

Figure 11. Figure 11: The Gaia CMD for hot stars within 1◦ of the formal position of WPS 46. The observed magnitudes is represented by red circles and the extinction corrected magnitudes by a “+”. Of the total of 12,734 stars only two stars, PG 0931+691 (marked as “PG”) and GALEX J092257.6…
Figure 12

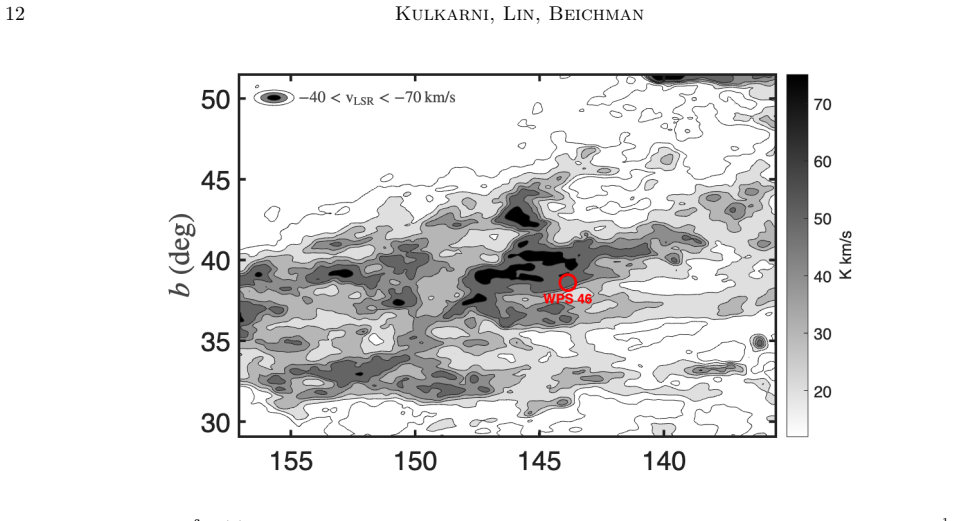

Figure 12. Figure 12: Effelsberg R Ts(v)dv in the vicinity of WPS 46 with the integration limited to −70 < vLSR < −40 km s−1 ; here Ts is the spin temperature of H I and v is the radial velocity. The position of WPS 46 is marked by a large red circle [PITH_FULL_IMAGE:figures/full_fig_p012…
Figure 13

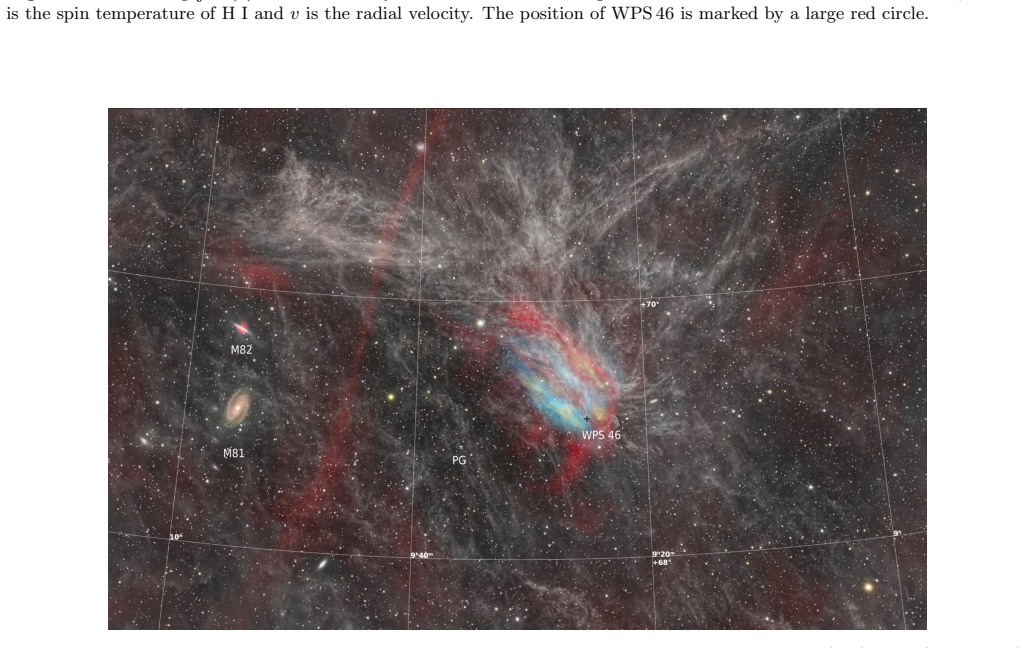

Figure 13. Figure 13: The “Vulcan” nebula. North is up and East to the left. The size of the image is about 6◦ (RA) by 4◦ (declination). The nominal position of WPS 46 is marked by a “+” sign while PG 0631+691 is marked by “*” (and annotated as PG). Color coding: red (Hα) and blue [O III].…
Figure 14

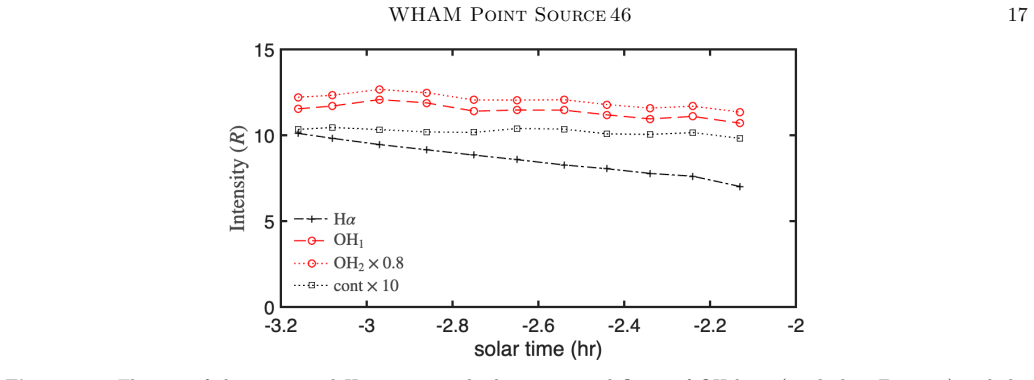

Figure 14. Figure 14: The run of the geocoronal Hα intensity, the line integrated fluxes of OH lines (marked in [PITH_FULL_IMAGE:figures/full_fig_p017_14.png]
Figure 15

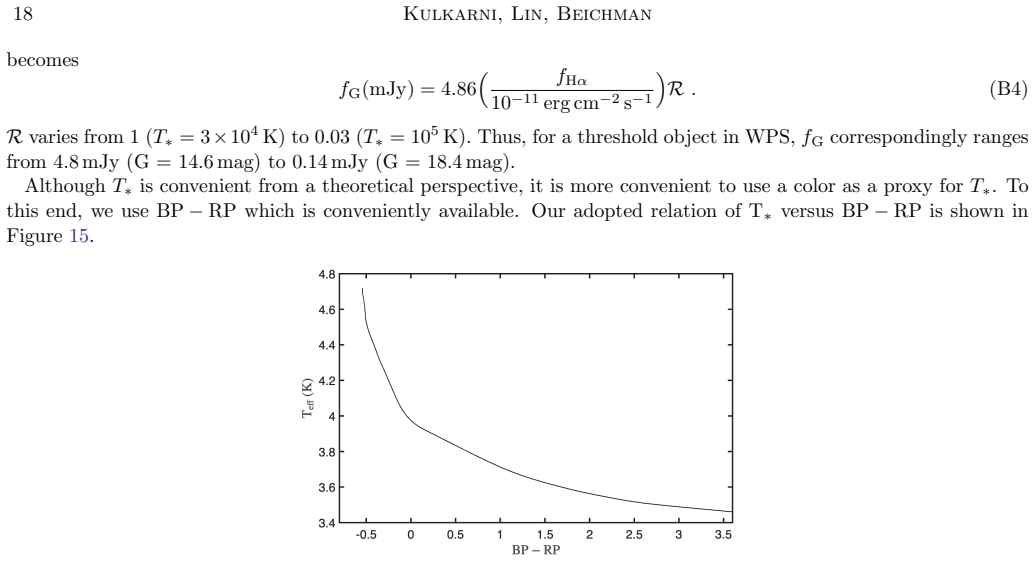

Figure 15. Figure 15: BP − RP versus effective temperature of stars. The relation was generated using MIST models for stars at the ZAMSs. C. PG 0931+691 The star was observed by GALEX and SDSS and therefore enjoys good photometric coverage ( [PITH_FULL_IMAGE:figures/full_fig_p018_15.png]
Figure 16

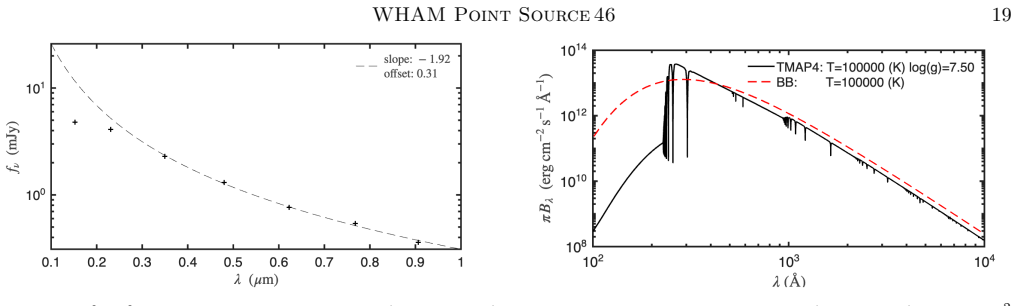

Figure 16. Figure 16: [Left]: The de-reddened photometry (“+”; in mJy) along with a Rayleigh-Jeans model fit (dashed line): fν = aλ−2 where fν is in mJy, λ in µm, a = 2kBT πθ2 and θ = (R∗/d) 2 . [Right]: The surface spectral flux, πBλ, of a hot helium white dwarf (TMAP4; black line) and a …
