ABSense: Sensing Electromagnetic Waves on Metasurfaces via Ambient Compilation of Full Absorption

C. Liaskos , G. Pirialakos , A. Pitilakis , S. Abadal , A. Tsioliaridou , A. Tasolamprou , O. Tsilipakos , N. Kantartzis
show 8 more authors
S. Ioannidis E. Alarcon A. Cabellos M. Kafesaki A. Pitsillides K. Kossifos J. Georgiou I.F. Akyildiz
This is my paper

Pith reviewed 2026-05-25 00:08 UTC · model grok-4.3

classification 📡 eess.SP
keywords metasurfaceelectromagnetic sensinghyper surfacenano networkwave absorptionembedded compilerwireless communicationsenergy harvesting
0
0 comments X

The pith

HyperSurfaces sense unknown electromagnetic waves by locating the configuration that fully absorbs them with an internal nano-network and a factory lookup table.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a method for metasurfaces to detect the direction, polarity, and other traits of incoming electromagnetic waves without any dedicated sensors. An embedded nano-network inside the HyperSurface tests successive configurations until it reaches the one that absorbs the wave completely and stores the maximum energy. A static table prepared during manufacturing then identifies the most probable wave properties from that configuration. The authors present the overall workflow as the first embedded electromagnetic compiler, turning high-level goals for wave behavior directly into the low-level settings for the surface elements. This would let metasurfaces operate more independently in wireless links, imaging, and power collection.

Core claim

The authors claim that a nano-network embedded in a HyperSurface can sense impinging electromagnetic waves by iterating over metasurface configurations to find the one achieving full absorption, then matching that configuration to the most probable wave traits via a static lookup table created at manufacturing time. This process makes the HyperSurface an autonomic system capable of translating high-level electromagnetic behavior objectives into the corresponding low-level actuation commands.

What carries the argument

The nano-network that searches metasurface configurations for full absorption and matches the result to wave traits through a static manufacturing-time lookup table.

If this is right

  • The metasurface no longer requires separate field sensors to determine incoming wave properties.
  • High-level objectives for wave manipulation can be converted automatically into the exact surface settings needed.
  • The approach applies directly to sectors such as wireless communications, medical imaging, and energy harvesting.
  • Realistic simulations indicate the workflow can operate under practical conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If wave conditions change frequently the static table would require periodic updates or replacement to stay accurate.
  • The sensing step could be combined with other metasurface functions so that a single surface both senses and manipulates waves in sequence.
  • The same absorption-search principle might transfer to acoustic or optical metasurfaces that manipulate different wave types.

Load-bearing premise

The absorption-maximizing configuration located by the network will map reliably and uniquely to the actual traits of the incoming wave through the fixed table, even under real-world conditions.

What would settle it

An experiment in which the same absorption-maximizing configuration is reached for two different sets of wave traits, or where the table's predicted traits do not match independent measurements of the actual wave.

Figures

Figures reproduced from arXiv: 1907.04811 by A. Cabellos, A. Pitilakis, A. Pitsillides, A. Tasolamprou, A. Tsioliaridou, C. Liaskos, E. Alarcon, G. Pirialakos, I.F. Akyildiz, J. Georgiou, K. Kossifos, M. Kafesaki, N. Kantartzis, O. Tsilipakos, S. Abadal, S. Ioannidis.

Figure 1
Figure 1. Figure 1: The generic HyperSurface structure comprising passive elements [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

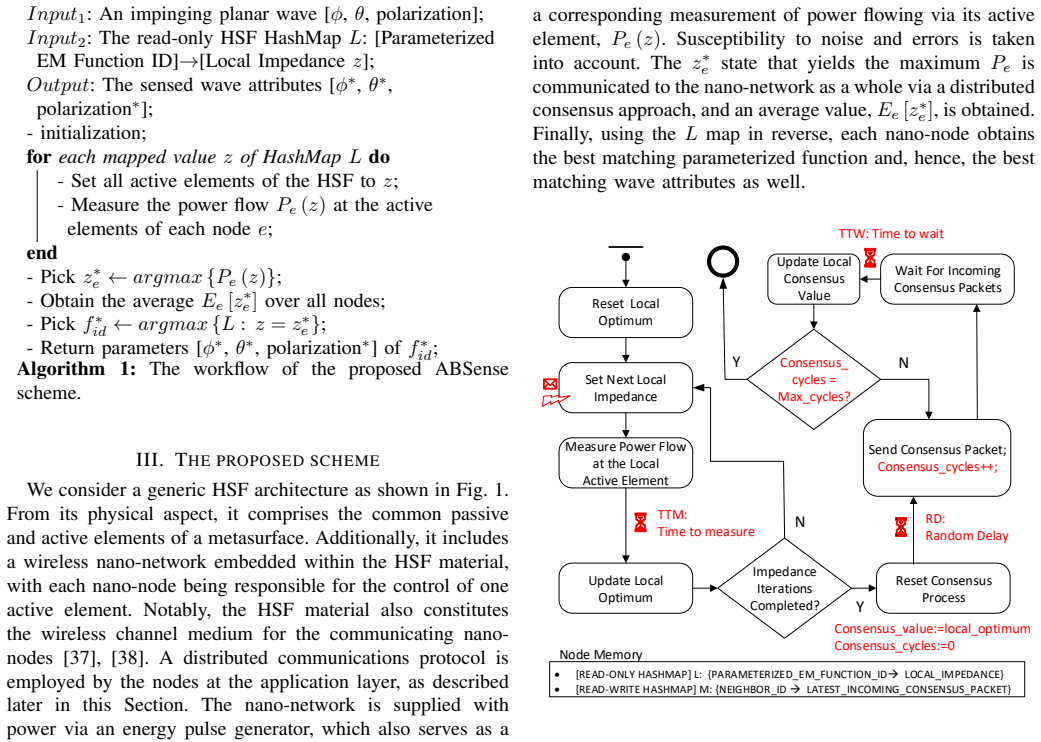

Figure 2. Figure 2: The nano-node memory structures and operation in state-chart form [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

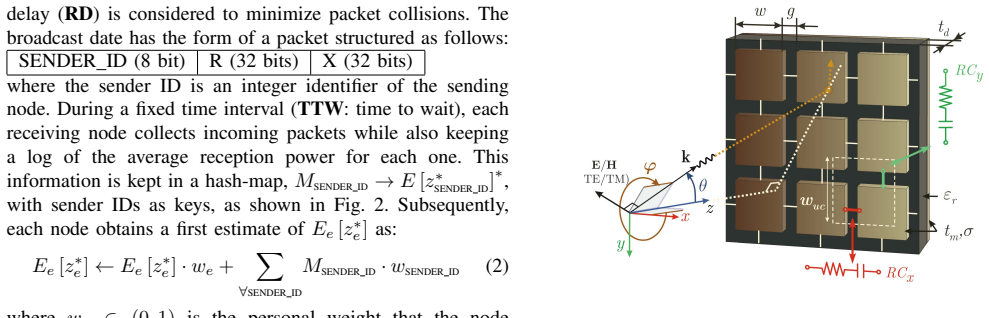

Figure 3. Figure 3: Metasurface used for ABSense in this work, with annotation of the [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5

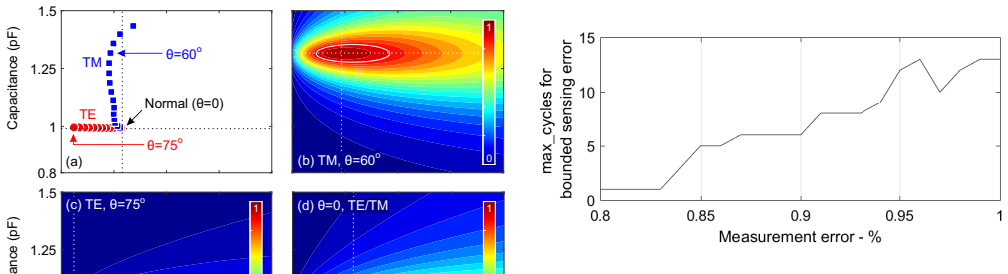

Figure 5. Figure 5: Consensus iterations required for mitigating random errors in the [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 7

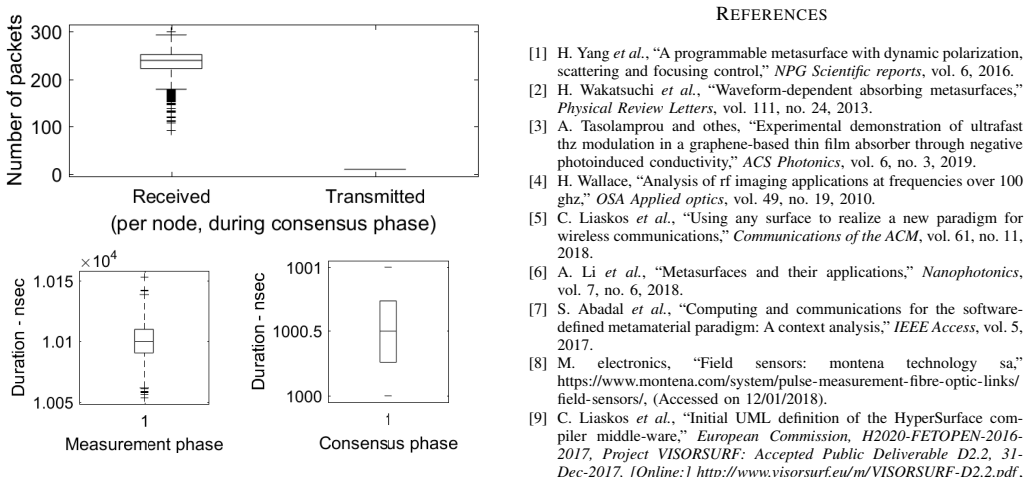

Figure 7. Figure 7: Packet transmission statistics (per nano-node) during consensus, and [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
read the original abstract

Metasurfaces constitute effective media for manipulating and transforming impinging EM waves. Related studies have explored a series of impactful MS capabilities and applications in sectors such as wireless communications, medical imaging and energy harvesting. A key-gap in the existing body of work is that the attributes of the EM waves to-be-controlled (e.g., direction, polarity, phase) are known in advance. The present work proposes a practical solution to the EM wave sensing problem using the intelligent and networked MS counterparts-the HyperSurfaces (HSFs), without requiring dedicated field sensors. An nano-network embedded within the HSF iterates over the possible MS configurations, finding the one that fully absorbs the impinging EM wave, hence maximizing the energy distribution within the HSF. Using a distributed consensus approach, the nano-network then matches the found configuration to the most probable EM wave traits, via a static lookup table that can be created during the HSF manufacturing. Realistic simulations demonstrate the potential of the proposed scheme. Moreover, we show that the proposed workflow is the first-of-its-kind embedded EM compiler, i.e., an autonomic HSF that can translate high-level EM behavior objectives to the corresponding, low-level EM actuation commands.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper proposes ABSense, a sensing scheme for electromagnetic waves impinging on HyperSurfaces (HSFs) that avoids dedicated field sensors. A nano-network embedded in the HSF iterates over metasurface configurations to identify the one that fully absorbs the wave (maximizing internal energy distribution), then employs a distributed consensus protocol to map that configuration to the most probable wave traits (direction, polarity, phase, etc.) via a static lookup table precomputed at manufacturing time. The work positions this workflow as the first embedded EM compiler capable of translating high-level EM behavior objectives into low-level actuation commands, with support claimed from realistic simulations.

Significance. If the core workflow can be shown to produce unique, stable mappings under realistic conditions, the approach would remove the need for separate sensing hardware in metasurface deployments for communications, imaging, and harvesting. The autonomic-compiler framing is conceptually distinctive and could influence the design of programmable intelligent surfaces, but its significance hinges on quantitative evidence that is not visible in the current description.

major comments (3)
  1. [Abstract] Abstract: The central claim that a static manufacturing-time lookup table can reliably map absorption-maximizing configurations to wave traits is load-bearing for the entire sensing and compiler narrative, yet the description provides no analysis of non-uniqueness (multiple wave-parameter sets producing the same optimal configuration), manufacturing variation in the HSF, or time-varying propagation effects that would invalidate a fixed table.
  2. [Abstract] Abstract: The iteration-plus-consensus procedure inside the nano-network is presented as enabling the embedded compiler, but no convergence criteria, communication overhead, energy budget, or scalability bounds are supplied; without these, it is impossible to evaluate whether the scheme can operate autonomously at the claimed level.
  3. [Abstract] Abstract: The statement that 'realistic simulations demonstrate the potential' is offered without any reported metrics, error rates, simulation parameters, or comparison baselines, leaving the feasibility claim unsupported and preventing assessment of whether the lookup-table approach meets the requirements of the sensing task.
minor comments (1)
  1. [Abstract] The abstract introduces the term 'HyperSurface (HSF)' without an explicit definition or reference to prior work on the same concept; a brief clarification would aid readers unfamiliar with the terminology.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback on the core claims. We address each major comment below and will revise the manuscript to supply the requested analyses, criteria, and metrics.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that a static manufacturing-time lookup table can reliably map absorption-maximizing configurations to wave traits is load-bearing for the entire sensing and compiler narrative, yet the description provides no analysis of non-uniqueness (multiple wave-parameter sets producing the same optimal configuration), manufacturing variation in the HSF, or time-varying propagation effects that would invalidate a fixed table.

    Authors: We agree the abstract omits this analysis. The revised manuscript will add a dedicated subsection examining uniqueness under the full-absorption criterion, bounds on manufacturing variation, and assumptions regarding static propagation. We will also note that time-varying effects fall outside the sensing timescale considered. revision: yes

  2. Referee: [Abstract] Abstract: The iteration-plus-consensus procedure inside the nano-network is presented as enabling the embedded compiler, but no convergence criteria, communication overhead, energy budget, or scalability bounds are supplied; without these, it is impossible to evaluate whether the scheme can operate autonomously at the claimed level.

    Authors: The manuscript presents the procedure at a conceptual level. We will expand the relevant section with explicit convergence criteria (energy stabilization threshold), overhead estimates derived from the consensus protocol, energy budgets per iteration, and scalability bounds for networks of up to several thousand nodes. revision: yes

  3. Referee: [Abstract] Abstract: The statement that 'realistic simulations demonstrate the potential' is offered without any reported metrics, error rates, simulation parameters, or comparison baselines, leaving the feasibility claim unsupported and preventing assessment of whether the lookup-table approach meets the requirements of the sensing task.

    Authors: We acknowledge that specific quantitative results are not reported in the abstract. The revised version will update the abstract and add a results subsection reporting key metrics (accuracy, error rates), simulation parameters (frequency, node count, etc.), and comparison baselines against conventional sensing approaches. revision: yes

Circularity Check

0 steps flagged

No circularity: workflow relies on external precomputed table with no internal reductions

full rationale

The paper proposes an autonomic HSF workflow that iterates MS configurations to maximize absorption and matches the result to wave traits via a static lookup table created externally during manufacturing. No equations, derivations, fitted parameters, or self-citations are shown that reduce any claimed prediction or compiler behavior to the paper's own inputs by construction. The central claim rests on pre-manufacturing computation treated as independent input, with simulations invoked only to demonstrate potential rather than to force the outcome. This satisfies the default expectation of a self-contained proposal against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The proposal depends on unverified feasibility of distributed nano-network consensus for configuration search and on the existence of a sufficiently accurate static mapping from configurations to wave traits; these are domain assumptions without independent evidence in the abstract.

axioms (2)
  • domain assumption A nano-network embedded within the HSF can iterate over possible MS configurations and reach consensus on the full-absorption state.
    Invoked in abstract as the core sensing mechanism without proof of feasibility or timing.
  • domain assumption A static lookup table created during manufacturing can match found configurations to the most probable EM wave traits.
    Stated directly in abstract as the inference step.
invented entities (1)
  • HyperSurface (HSF) no independent evidence
    purpose: Intelligent networked metasurface with embedded nano-network for sensing and control.
    Introduced as the platform enabling the scheme; treated as an extension of metasurfaces.
