On the fracture mechanics validity of small scale tests

T0 review · 4 major / 4 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read This paper establishes numerical validity maps that fix the maximum $J$-integral ($J_{\max}$) at which an HRR field exists in small-scale fracture specimens, and argues that for low-hardening metals tested in notched cantilever beams the…

desk verdict Useful maps, plausible qualitative conclusion, but the quantitative Jmax threshold is arbitrary and needs sensitivity testing before the maps become a design tool. read the letter →

arxiv 2506.02538 v1 pith:5MCYVPVS submitted 2025-06-03 cs.CE physics.app-ph

C. Cui , L. Cupertino-Malheiros , Z. Xiong , E. Martínez-Pañeda This is my paper
classification cs.CEphysics.app-ph
keywords small-scalefracturetestingJ-integralHRRsingularityvaliditymapsfiniteelementanalysishydrogenembrittlementsizerequirementsJ-dominance
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Small-scale fracture tests are only quantitative if a $J$-field, meaning the Hutchinson-Rice-Rosengren (HRR) singular field, exists ahead of the crack at the moment of fracture. This paper uses large-strain finite element calculations on double cantilever beam and notched cantilever beam geometries to map $J_{\max}$, the largest $J$-integral at which the HRR field still exists, as a function of yield strength, strain-hardening exponent, and crack or ligament size. The central practical claim is that for low-hardening materials in ligament-controlled notched cantilever beam tests, the ASTM E1820 $M=10$ criterion and the widely used $M=25$ underestimate the required specimen size; the authors recommend the more conservative $M=100$. The maps also show that hydrogen embrittlement, by lowering $J_{Ic}$, reduces the minimum sample size by one to two orders of magnitude, which can bring some hydrogen-embrittled metals within reach of quantitative micro-scale testing.

What carries the argument

The central object is the HRR singular field, the power-law crack-tip stress distribution of slope $N/(N+1)$ in a log-log plot of opening stress against distance ahead of the crack. The operational criterion is that the HRR field is taken to exist when the region over which the computed stress follows that theoretical slope has a $\log_{10}(r/a)$-length of at least 0.05; the contour-integral $J$ at the load where this region shrinks below the threshold is defined as $J_{\max}$. Applying this threshold to large-strain plane-strain finite element solutions of the two specimen geometries converts J-dominance into a computable number, and the semi-analytical formula $J_{Ic} \leq (a,\, W-a)\,\sigma_Y / M$ provides the comparison baseline for $M = 10$, $25$, and $100$.

What would settle it

Repeat the same double cantilever beam and notched cantilever beam simulations with the HRR-existence threshold set to 0.01 and 0.1 instead of 0.05; if the resulting $J_{\max}$ values cross the $M=25$ or $M=10$ lines for low-hardening materials, the recommendation depends on the arbitrary threshold rather than on material behaviour. A complementary experiment is to machine notched cantilever beams from a low-hardening steel with ligament sizes chosen by $M=25$ and by $M=100$ and check whether the measured toughness is geometry-independent only for the larger samples.

Watch

Extended reading notes

Core claim

The paper establishes that the maximum $J$-integral at which an HRR field exists, $J_{\max}$, is not captured by a single constant size factor. In plane-strain finite element simulations of two representative micro-scale geometries, $J_{\max}$ scales roughly linearly with yield strength and with crack or ligament size, but it depends strongly on the hardening exponent $N$ and on whether validity is controlled by the crack (double cantilever beam) or by the ligament (notched cantilever beam). For $N=0.1$ the notched cantilever beam loses its HRR field before the semi-analytical $M=25$ prediction, so both $M=25$ and the ASTM E1820 $M=10$ criterion are not conservative for that configuration, while $M=100$ is conservative for both geometries. For $N=0.3$, $M=10$ remains sufficient and the difference between specimen types nearly vanishes. Applied to published experiments, the maps classify some micro-scale tests as valid and others, including tungsten and copper cantilever tests, as falling outside J-validity; applied to hydrogen-embrittled steels, they show size requirements falling by one to two orders of magnitude as $J_{Ic}$ drops.

Load-bearing premise

The load-bearing premise is that the numerical definition of when an HRR field ceases to exist, namely the log-scaled length of the matching stress region falling below 0.05, is a trustworthy proxy for real J-dominance; this threshold is chosen for practical convenience in the paper and is neither derived nor sensitivity-tested, so shifting it would move $J_{\max}$ and could alter the case for $M=100$.

Editorial extensions

If this is right

  • For low-hardening materials ($N \approx 0.1$) tested in notched cantilever beams, specimen-size requirements should be based on $M=100$ rather than $M=10$ or $M=25$; using the smaller criteria risks reporting toughness values that depend on specimen geometry rather than being material properties.
  • For high-hardening materials ($N \approx 0.3$), the current ASTM E1820 $M=10$ criterion is conservative enough, and the specimen type has little effect on $J_{\max}$.
  • The numerical validity maps allow an experimentalist to read the minimum crack or ligament size directly from material properties, replacing a single global $M$ factor with hardening- and geometry-specific values.
  • Because hydrogen embrittlement lowers $J_{Ic}$ by factors of 5 to 50 while leaving yield strength nearly unchanged, small-scale tests in hydrogen environments are more likely to satisfy J-validity than tests in air, with minimum required sizes decreasing by one to two orders of magnitude.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper: if the threshold criterion is robust, many published micro-scale fracture toughness values for low-hardening metals obtained with notched cantilever beams and $M=25$ sizing should be treated as suspect upper bounds, since the tests may have fractured outside the HRR-dominated regime.
  • Beyond the paper: the same map-building procedure could be run for plane-stress specimens, for additional hardening exponents such as $N=0.05$ or $N=0.2$, and for constitutive models that include damage, which would test whether $M=100$ remains the right margin when a fracture process zone of finite size is present.
  • Beyond the paper: the hydrogen analysis suggests a concrete experimental programme: in-situ hydrogen-charged micro-cantilever tests on pipeline steels such as X80 or CrMo4130 should yield geometry-independent toughness values at ligament sizes of tens of microns, whereas identical air tests at those sizes should not.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 4 minor

Summary. The paper combines semi-analytical estimates and large-strain finite element calculations to map the maximum J-integral value (Jmax) at which an HRR field is judged to exist ahead of a crack, for double cantilever beam (DCB) and notched cantilever beam specimens. The central claim is that the common size criteria M=25 and, in particular, the ASTM E1820 M=10 are non-conservative for low-hardening notched cantilever tests, and that a more conservative value M=100 should be used in ligament-controlled cases. The authors generate validity maps of Jmax versus yield strength and crack/ligament size for two hardening exponents, apply the maps to re-evaluate published small-scale fracture tests, and superimpose hydrogen-embrittled steels data on the maps to identify conditions under which quantitative micro-scale hydrogen experiments are possible.

Significance. If the quantitative maps are robust, the paper provides a practically useful design tool that goes beyond the simple constant-M size criteria, and the hydrogen-embrittlement application is timely and original. The finite element methodology is standard, the qualitative finding that low-hardening notched cantilever specimens lose J-dominance earlier than DCB specimens is plausible and consistent with earlier work, and the paper gives explicit, falsifiable guidance. The novel quantitative content, however, is currently tied to an unvalidated definition of Jmax and to a small number of material/geometry cases, so the significance is conditional on those limitations being addressed.

major comments (4)
  1. [Section 4.1] The definition of Jmax rests on an untested criterion: the HRR field is considered to have ceased to exist when the log10(r/a) interval over which the opening stress follows the HRR slope falls below 0.05. This threshold is introduced 'from a practical standpoint' with no derivation, benchmark, or sensitivity analysis, and the tolerance used for 'follows the theoretical singularity' is not specified. Since all validity maps (Fig. 9) and all literature validity calls in Section 4.4 are outputs of this criterion, a modest change in the threshold could shift validity boundaries. For example, the numerical Jmax for the notched cantilever at N=0.1, sigma_Y=900 MPa, a=0.01 mm is 0.18 kJ/m2 versus the semi-analytical 0.36 kJ/m2 with M=25; a factor-of-two shift from a threshold change could move points across the boundary and alter which literature tests are called valid. The M=100 recommendation would be substantially strengthened by reporting Jmax for several threshold values (e.g., 0.02, 0.05, 0.1) and showing that the conclusions are stable.
  2. [Sections 4.2 and 4.4] The general recommendation that M=100 should replace M=10 for low-hardening, ligament-controlled materials is based on only two hardening exponents (N=0.1 and N=0.3), two controlling sizes (0.01 mm and 1 mm), and fixed specimen aspect ratios (W/H=0.3, L1/H=0.3, L2/H=0.7, and the two a_n/W values given in Section 3). No intermediate hardening exponent such as N=0.05 is tested to confirm that N=0.1 is a conservative lower bound, and no analysis is presented of how W/H or a_n/W variations affect the maps. In addition, the paper does not quantify by how much M=100 overshoots the numerically required value, so the specific recommendation in Section 4.4 is not yet supported as a general criterion even if the qualitative conclusion is correct.
  3. [Section 4.1] The HRR-existence detection uses only the opening stress component sigma_xx/sigma_Y along theta=0. The HRR field is a multi-axial angular field, and J-dominance can be lost through other stress components or through the angular variation even when sigma_xx follows the expected slope. The criterion as stated should be documented and justified against standard J-dominance checks (e.g., comparison of the full stress tensor with the HRR fields), or at least the authors should demonstrate that the sigma_xx-only criterion is not less restrictive than the full-field check for the geometries considered.
  4. [Section 4.3, Fig. 9] The validity maps are presented as smooth, quantitative predictions, but they are built from 'over 100 Jmax data points' with no uncertainty or sensitivity information. Because the threshold dependence described in the first comment is inherited directly by every contour in Fig. 9, the absence of any reported sensitivity to the threshold definition makes the quantitative use of the maps uncertain. Reporting the maps with error bars or with contours for alternative thresholds would materially improve their usefulness to experimentalists.
minor comments (4)
  1. [Section 2.2, Eq. (10)] The notation M(sigma_Y/E, N) in Eq. (10) suggests that M depends on material parameters, but the semi-analytical solutions later use constant values M=10, 25, 100; the notation should be clarified to avoid implying a functional dependence that is not actually used.
  2. [Table 1] Several rows of Table 1 appear to be missing entries for sigma_Y(C) and JIc(C) (for example, the entries '83 / 49' and '19.5 /' are not aligned with the column headings), and the formatting should be corrected so that each material has complete air and hydrogen data.
  3. [Section 5] The hydrogen validity map in Fig. 11 uses only N=0.3, justified as giving the smallest size requirements. However, several hydrogen-embrittled low-alloy steels in Table 1 are low-hardening materials, so an N=0.1 map would be more relevant for assessing whether their micromechanical tests are quantitative; this limitation should be stated explicitly where Fig. 11 is discussed.
  4. [General] There are several typographical and editorial issues: 'priciple' in Section 2.2, 'an/W = 0.5' should likely be 'a_n/W = 0.5', 'agressive' in Section 5, and the degree symbol in Fig. 3 appears as '90。'.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity found: the Jmax maps and M-value comparisons are genuine numerical outputs, and the 0.05-decade HRR-existence threshold is an unbenchmarked definition but does not reduce the derivation to its inputs.

full rationale

The derivation chain is self-contained and not circular. The semi-analytical size requirement (Eq. 11) is assembled from standard external results: the HRR singularity from Hutchinson/Rice/Rosengren, the CTOD relation and dn from Shih, the finite-strain zone condition R≥3δ from McMeeking and Needleman/Tvergaard, and Shih's R≈0.07(W−a) for bending geometries, yielding the standard M=25 (with M=10 and M=100 taken from ASTM E1820-24). No parameter in this chain is fitted to the FE results; M is fixed before comparison. The numerical Jmax maps are generated by finite-element simulations over yield strengths of 100-1500 MPa, crack/ligament sizes of 0.001-100 mm, and hardening exponents N=0.1 and N=0.3, with Jmax extracted from the length of the region in log(r/a) space where the crack-tip opening stress follows the HRR slope N/(N+1). The comparisons in Figs. 6-10 are therefore genuine comparisons of independent numerical outputs with standard criteria, not fits renamed as predictions. The only definitional element is the 0.05-decade threshold in Section 4.1, which the paper itself labels a 'practical standpoint'; changing that threshold would move the maps. That is an arbitrariness/robustness limitation and a potential correctness risk, but not a circular reduction: the maps do not rely on the quantity they predict, and the M recommendations are not wired in by construction. Self-citations (e.g., Ref. 35) are used for standard energy-balance support and are not load-bearing; no uniqueness theorem is imported from the authors' prior work. Hence no circularity is established and the score is 0.

Assumptions & free parameters 2 free parameters · 5 assumptions · 0 invented entities

No new physical entities or conserved quantities are introduced; the analysis uses standard continuum fracture mechanics and existing material data. The main burden falls on the HRR-existence threshold and the material/geometry assumptions.

free parameters (2)
  • HRR-existence log-length threshold = 0.05
    Hand-selected in Section 4.1 to define when the HRR field is considered lost; Jmax and all validity maps depend directly on it, and no sensitivity analysis is provided.
  • Specimen geometry ratios = DCB: L/W=0.25, a/W=0.125, e/L=0.2; cantilever: an/W=0.5 and 0.6, W/H=0.3, L1/H=0.3, L2/H=0.7
    Chosen to represent typical micro-scale experiments; the maps are specific to these ratios and would change for other geometries.
assumptions (5)
  • domain assumption Plane strain conditions are assumed for both specimen geometries.
    Section 3 states 'Plane strain conditions are assumed'; small-scale tests may have three-dimensional or plane stress effects.
  • domain assumption The material is homogeneous, isotropic, and described by the power-law hardening relation in Eq. (3).
    Section 3 defines material properties; Section 4.4 acknowledges crystal anisotropy can break the homogeneous assumption.
  • ad hoc to paper J-dominance is equivalent to the opening stress ahead of the crack following the HRR slope over a log-distance interval of length at least 0.05.
    This criterion is introduced in Section 4.1 without derivation or validation against constraint-based measures such as Q.
  • domain assumption HRR fields from deformation theory remain the appropriate benchmark for incremental elastic-plastic FE results with finite strains.
    The paper compares FE stress fields to the HRR singularity, which is derived under deformation theory; this is standard practice but still an assumption.
  • domain assumption The literature data in Table 1 for yield strength and fracture toughness in air and hydrogen are accurate and representative.
    Section 5 relies on these external measurements; several rows have missing values or mixed references.

how reviews work

0 comments
Cite this review

Pith. "Pith review of On the fracture mechanics validity of small scale tests." pith.science (2026). https://pith.science/paper/5MCYVPVS

@misc{pith2026250602538,
  author       = {Pith},
  title        = {Pith review of: On the fracture mechanics validity of small scale tests},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/5MCYVPVS}},
  note         = {Machine review of arXiv:2506.02538}
}
abstract

There is growing interest in conducting small-scale tests to gain additional insight into the fracture behaviour of components across a wide range of materials. For example, micro-scale mechanical tests inside of a microscope (\emph{in situ}) enable direct, high-resolution observation of the interplay between crack growth and microstructural phenomena (e.g., dislocation behaviour or the fracture resistance of a particular interface), and sub-size samples are increasingly used when only a limited amount of material is available. However, to obtain quantitative insight and extract relevant fracture parameters, the sample must be sufficiently large for a $J$- (HRR) or a $K$-field to exist. We conduct numerical and semi-analytical studies to map the conditions (sample geometry, material) that result in a valid, quantitative fracture experiment. Specifically, for a wide range of material properties, crack lengths and sample dimensions, we establish the maximum value of the $J$-integral where an HRR field ceases to exist (i.e., the maximum $J$ value at which fracture must occur for the test to be valid, $J_\mathrm{max}$). Maps are generated to establish the maximum valid $J$ value ($J_\mathrm{max}$) as a function of yield strength, strain hardening and minimum sample size. These maps are then used to discuss the existing experimental literature and provide guidance on how to conduct quantitative experiments. Finally, our study is particularised to the analysis of metals that have been embrittled due to hydrogen exposure. The response of relevant materials under hydrogen-containing environments are superimposed on the aforementioned maps, determining the conditions that will enable quantitative insight.

Figures

Figures reproduced from arXiv: 2506.02538 by the authors.

Figure 1

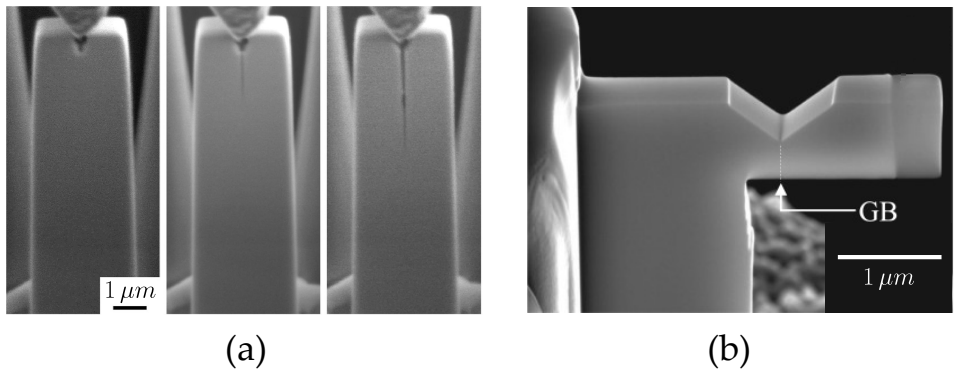

Figure 1. SEM images of two typical small scale testing specimens: (a) double cantilever beam (DCB), and (b) [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. ‘Validity map’ based on the simple semi-analytical equation ( [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Geometric setup of the micro-scale samples considered in the finite element calculations: (a) double [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figures from the paper (8 more)
Figure 4
Figure 4. Figure 4: Finite element mesh of (a) a double cantilever beam (DCB) and (b) a notched cantilever beam specimen, [PITH_FULL_IMAGE:figures/full_fig_p013_4.png]
Figure 5

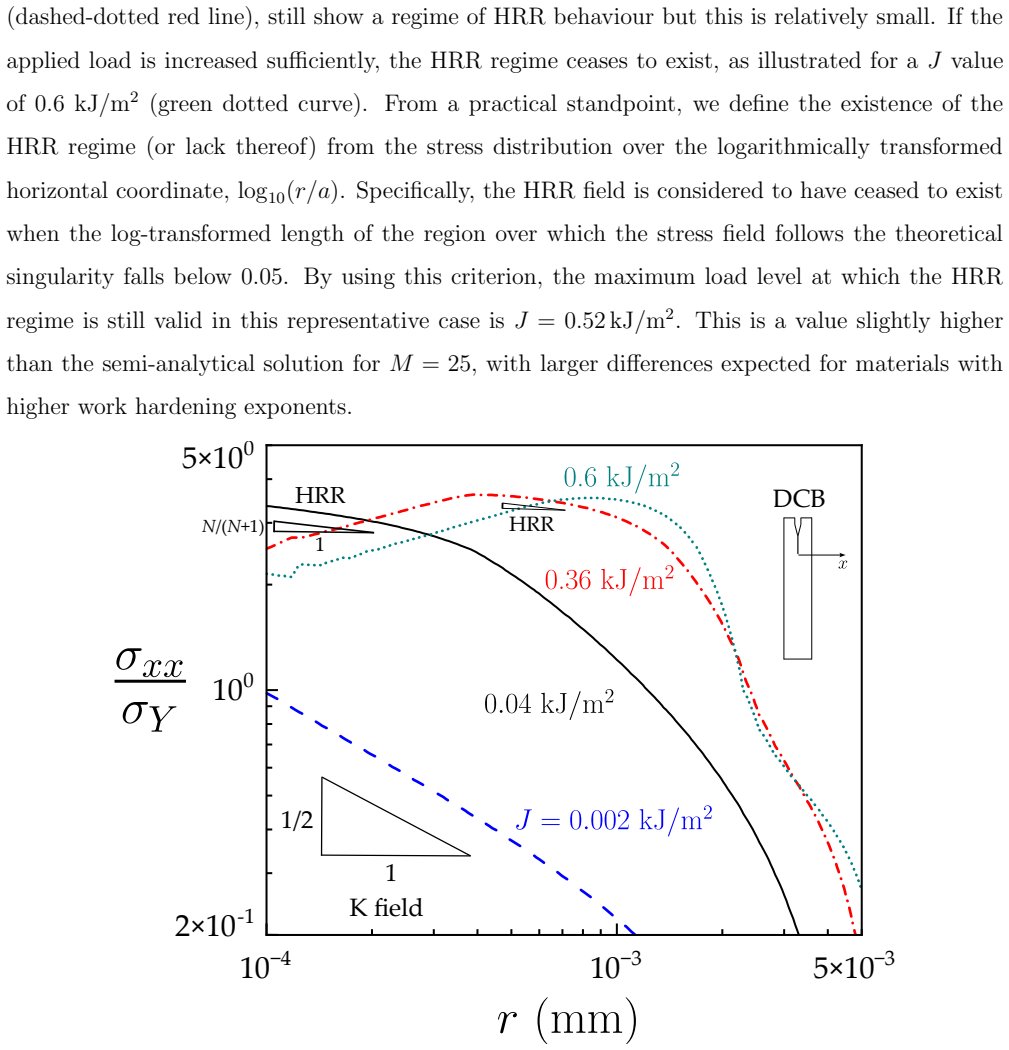

Figure 5. Figure 5: Crack tip stress distributions for various levels of the applied load. The results are computed for the [PITH_FULL_IMAGE:figures/full_fig_p015_5.png]
Figure 6
Figure 6. Figure 6: Finite element simulations of Jmax as a function of yield strength for a hardening exponent of N = 0.1 and ligament (crack) sizes of (a) 0.01 mm and (b) 1 mm. Results are compared with semi-analytical solutions for three representative values: M = 10, M = 25, and M = 1…
Figure 7
Figure 7. Figure 7: Contours of the effective plastic strain [PITH_FULL_IMAGE:figures/full_fig_p018_7.png]
Figure 8
Figure 8. Figure 8: Finite element simulations of Jmax as a function of yield strength for a hardening exponent of N = 0.3 and ligament (crack) sizes of (a) 0.01 mm and (b) 1 mm. Results are compared with semi-analytical solutions for three representative values: M = 10, M = 25, and M = 1…
Figure 9
Figure 9. Figure 9: Maps showing finite element predictions of the maximum valid [PITH_FULL_IMAGE:figures/full_fig_p020_9.png]
Figure 10

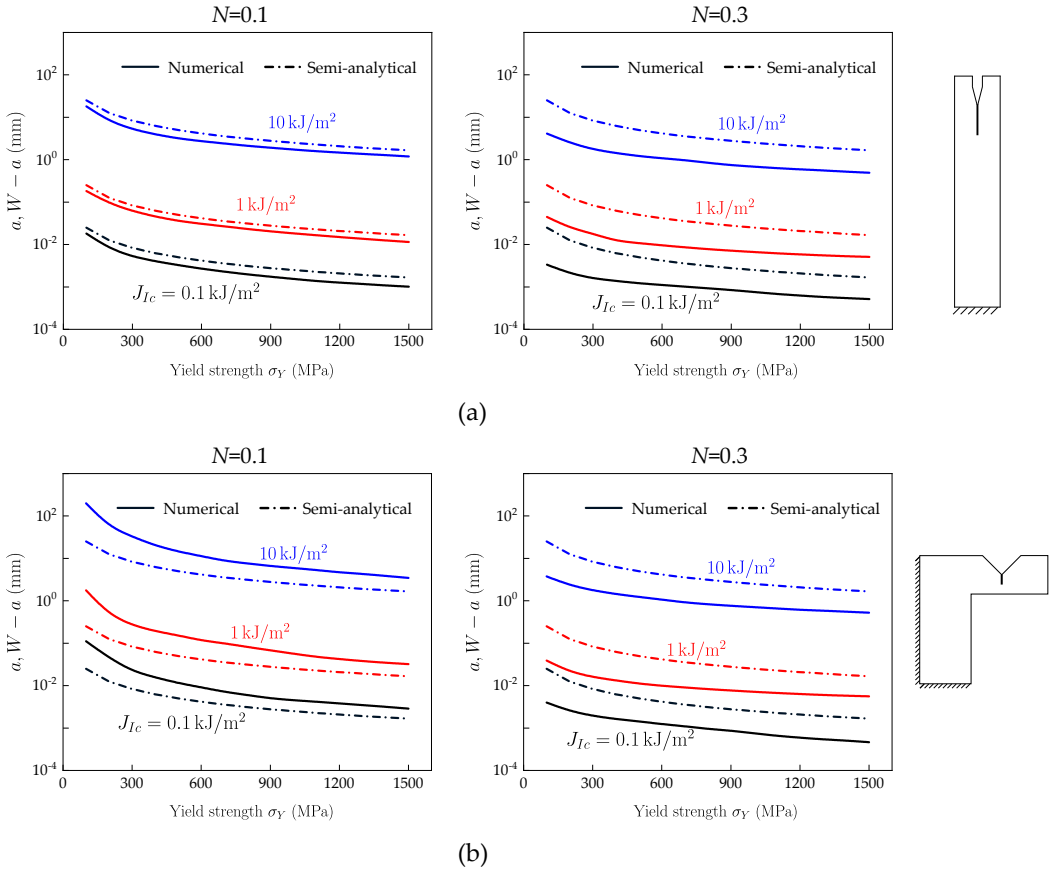

Figure 10. Figure 10: Comparison of the minimum size requirements for (a) DCB and (b) notched cantilever beam specimens, [PITH_FULL_IMAGE:figures/full_fig_p022_10.png]
