arxiv: 2606.00565 · v1 · pith:5VFQV5NRnew · submitted 2026-05-30 · ⚛️ physics.optics

Robust Radiative Cooling in Functionalizable Silica Microsphere Paints

Jorge Burgos , Jos\'e Rodrigo Magana , Ares Llad\'os , Javier Pascualena Ferr\'e , Sara N\'u\~nez-S\'anchez , Juliana Jaramillo Fern\'andez , Cefe L\'opez , Pedro David Garc\'ia This is my paper

Pith reviewed 2026-06-28 18:34 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords radiative coolingsilica microspheresphotonic glassdiffusive scatteringpassive daytime coolingparticle size independencemultiple scattering
0
0 comments X

The pith

Silica microsphere coatings for radiative cooling show performance independent of particle diameter in the diffusive regime.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that disordered silica microsphere coatings maintain consistent spectral radiative response and net cooling performance across microsphere diameters from 2 to 8 micrometers, provided the coatings are optically thick and operate in the multiple-scattering diffusive regime. This robustness arises because cooling is governed by collective light transport rather than individual particle properties. A sympathetic reader would care because it removes the need for precise size optimization, allowing particle diameter to be chosen based on manufacturing or chemical compatibility instead. Outdoor measurements confirm nearly identical steady-state temperature reductions for all sizes tested.

Core claim

Disordered coatings based on silica microspheres provide a scalable and robust platform for passive daytime radiative cooling. Both the spectral radiative response and the net cooling performance are robust to variations in particle diameter when the system operates deep in the diffusive regime. Outdoor thermal measurements reveal nearly identical steady-state temperature reductions across the full size range from 2 to 8 micrometers.

What carries the argument

The diffusive multiple-scattering regime in optically thick photonic glass coatings, where collective light transport determines the radiative properties independent of individual microsphere scattering details.

If this is right

  • Microsphere size can be selected based on surface chemistry or processing constraints without compromising cooling performance.
  • Radiative cooling in these coatings is governed by collective light transport rather than single-particle optimization.
  • Scalable manufacturing is facilitated by tolerance to diameter variations in the 2-8 micrometer range.
  • The approach enables robust passive daytime cooling platforms using disordered silica microspheres.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Production processes could prioritize larger particles for better flow or coating uniformity while retaining cooling efficacy.
  • Similar robustness might hold for other disordered particle systems in optics if they reach the diffusive limit.
  • Design of radiative coolers could shift focus from particle size tuning to optimizing optical thickness and material properties.

Load-bearing premise

The coatings are optically thick and operate deep in the diffusive multiple-scattering regime for the entire 2-8 micrometer diameter range, with outdoor measurements isolating particle-size effects without major confounding variables.

What would settle it

Observing significantly different steady-state temperature reductions for coatings with different microsphere diameters under identical outdoor conditions would falsify the claim of robustness.

Figures

Figures reproduced from arXiv: 2606.00565 by Ares Llad\'os, Cefe L\'opez, Javier Pascualena Ferr\'e, Jorge Burgos, Jos\'e Rodrigo Magana, Juliana Jaramillo Fern\'andez, Pedro David Garc\'ia, Sara N\'u\~nez-S\'anchez.

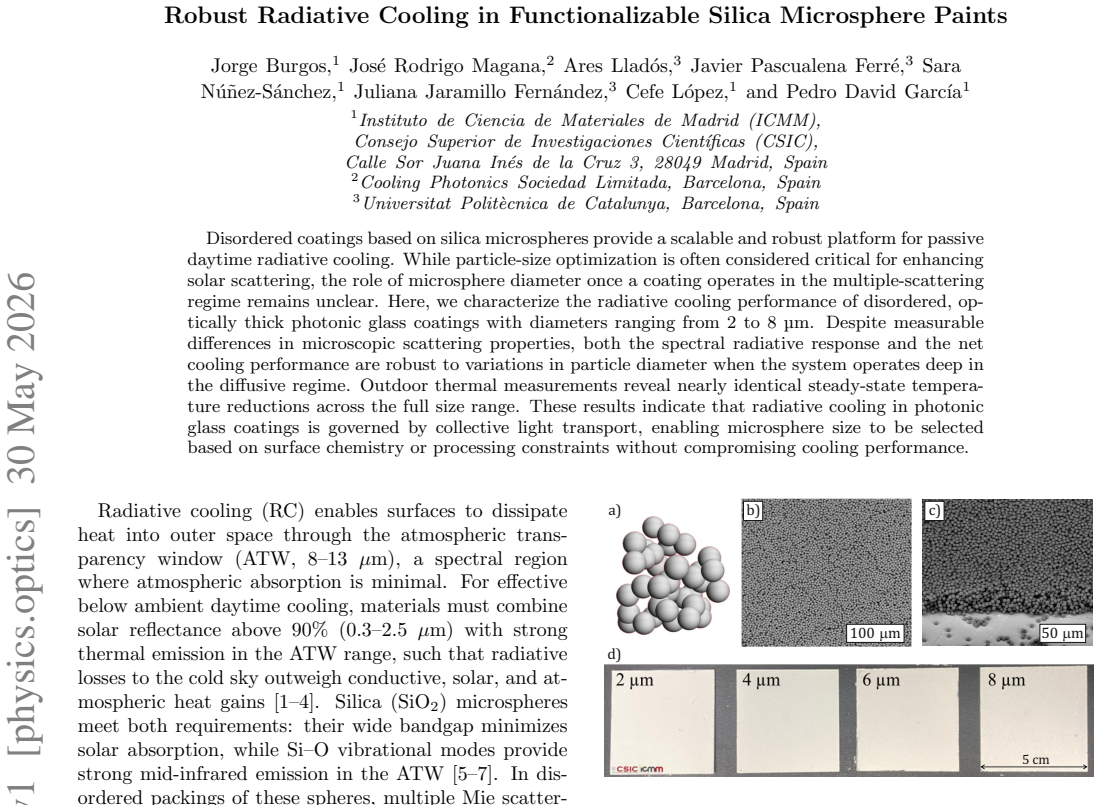

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

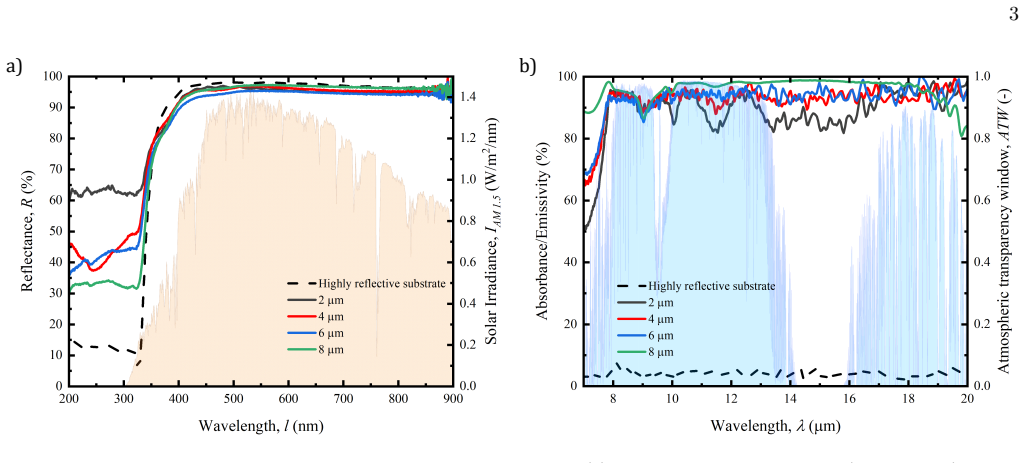

Figure 2
Figure 2. Figure 2: Solar reflectance spectra [Figure 2(a)] show [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

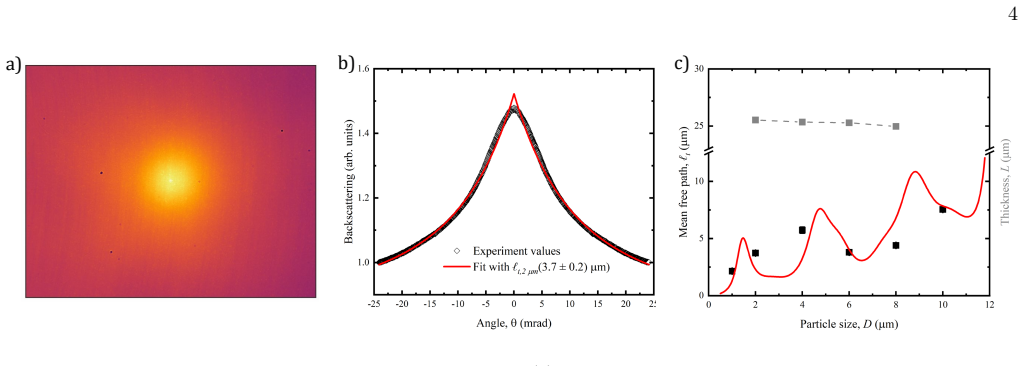

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

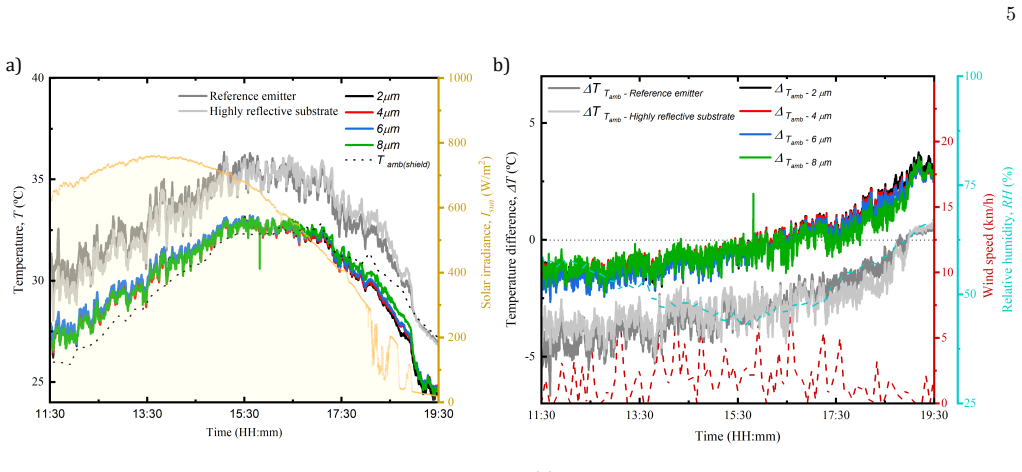

Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

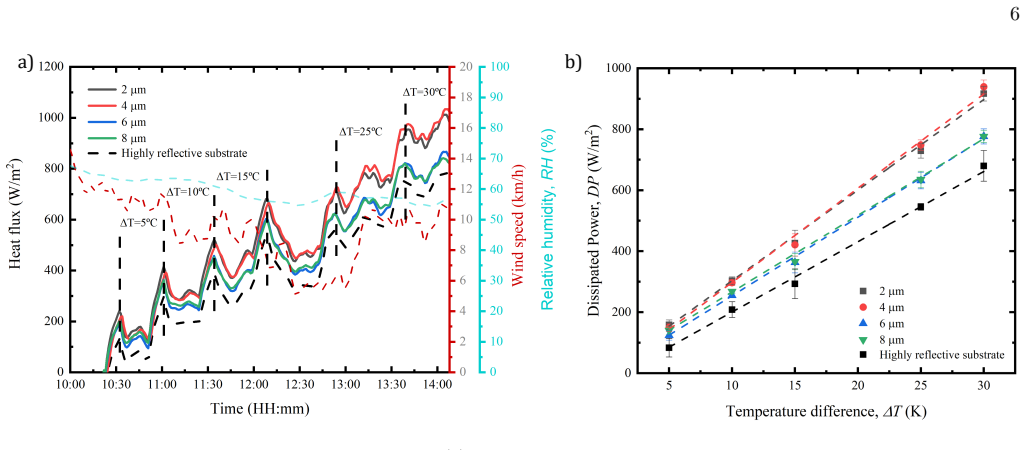

Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

Disordered coatings based on silica microspheres provide a scalable and robust platform for passive daytime radiative cooling. While particle-size optimization is often considered critical for enhancing solar scattering, the role of microsphere diameter once a coating operates in the multiple-scattering regime remains unclear. Here, we characterize the radiative cooling performance of disordered, optically thick photonic glass coatings with diameters ranging from 2 to 8 um. Despite measurable differences in microscopic scattering properties, both the spectral radiative response and the net cooling performance are robust to variations in particle diameter when the system operates deep in the diffusive regime. Outdoor thermal measurements reveal nearly identical steady-state temperature reductions across the full size range. These results indicate that radiative cooling in photonic glass coatings is governed by collective light transport, enabling microsphere size to be selected based on surface chemistry or processing constraints without compromising cooling performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript reports that disordered, optically thick silica microsphere coatings (diameters 2–8 μm) for passive daytime radiative cooling exhibit robustness in both spectral radiative response and net cooling performance once operating deep in the diffusive multiple-scattering regime. Outdoor thermal measurements show nearly identical steady-state temperature reductions across the full size range, indicating that cooling is governed by collective light transport rather than individual particle scattering details. This allows microsphere size to be chosen based on surface chemistry or processing needs without compromising performance.

Significance. If the reported robustness holds, the result is significant for scalable radiative cooling applications because it relaxes the need for precise particle-size optimization, enabling functionalizable coatings. The work provides concrete experimental support (spectral data plus outdoor steady-state measurements) for collective transport in photonic glasses and demonstrates practical invariance over a technologically relevant diameter window.

minor comments (3)
  1. [§3] §3 (Experimental Methods): The optical-thickness verification and transport-mean-free-path estimates should be presented with explicit numerical values or a supplementary table for each diameter to allow readers to confirm the 'deep diffusive regime' condition independently.
  2. [Figure 4] Figure 4 and associated text: The outdoor temperature-reduction data would benefit from an explicit statement of how substrate and humidity variations were controlled or shown to be negligible across the sample set.
  3. The manuscript would be strengthened by adding a brief comparison (even qualitative) to existing literature on size-dependent scattering in the diffusive limit of photonic glasses.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary and significance assessment of our work on robust radiative cooling performance in disordered silica microsphere coatings. The recommendation for minor revision is noted. No major comments were provided in the report, so we have no specific points requiring rebuttal or revision at this stage.

Circularity Check

0 steps flagged

No significant circularity; claims rest on direct experimental observations

full rationale

The paper reports experimental characterization of silica microsphere coatings, with the central claim of robustness to particle diameter (2-8 um) in the diffusive regime supported by measured spectral responses and outdoor steady-state temperature reductions that are nearly identical across sizes. No equations, fitted parameters, or theoretical derivations are presented that reduce any prediction to its inputs by construction. The work contains no load-bearing self-citations, ansatzes, or uniqueness theorems; it is an empirical study whose results are falsifiable via the reported measurements rather than tautological.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the central claim rests on the unstated premise that the tested coatings are uniformly optically thick and in the diffusive regime.
