A Metalens-based Bicycle Safety Reflector for Autonomous Vehicle Radars

Sepideh Ghasemi , Jimmy Hester , Aline Eid This is my paper

Pith reviewed 2026-05-22 03:11 UTC · model grok-4.3

classification 📡 eess.SP
keywords metalensretrodirective tagautomotive radarbicycle safetymillimeter-waveradar cross sectionautonomous vehiclespassive reflector
0
0 comments X

The pith

A two-layer metalens tag lets autonomous vehicle radars detect bicycles beyond 70 meters with stable wide-angle response.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents the first retrodirective planar metalens-based tag for millimeter-wave automotive radars to improve cyclist safety. The compact design uses a metalens layer to focus incoming waves from different angles onto patch antenna pixels that re-radiate the signal back through the lens. Evaluations confirm reliable detection past 70 m, a peak monostatic RCS of 3.54 dBsm, stable retrodirectivity over plus or minus 40 degrees, and average gains of 7.58 dB plus RCS boosts of 15.16 dB over a lens-less reference. On a real metallic bicycle the tag yields up to 110 times better detectability at broadside.

Core claim

The central claim is that a passive two-layer metalens-plus-patch-antenna tag operating at automotive millimeter-wave frequencies achieves retrodirective reflection, delivering reliable radar detection beyond 70 m, a peak RCS of 3.54 dBsm, and up to 110 times improved bicycle detectability when mounted on a metallic frame.

What carries the argument

The metalens layer focuses incoming plane waves from varying incidence angles onto corresponding patch antenna pixels on the second layer, which re-radiate the signal back through the metalens to produce retrodirective behavior.

If this is right

  • Automotive radars can acquire equipped bicycles at distances and angles where current passive reflectors fail.
  • The 15 dB RCS boost and 7.5 dB gain improvement translate directly to higher probability of detection in poor weather.
  • The 0.61 g weight and planar form allow easy integration onto bicycle frames without changing handling.
  • Retrodirective operation over plus or minus 40 degrees reduces the chance that a turning cyclist disappears from the radar view.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same focusing-plus-re-radiation principle could be scaled to pedestrian tags or motorcycle accessories.
  • Field trials on moving bicycles would test whether vibration and tilt preserve the reported RCS values.
  • Pairing the tag with existing corner-reflector bicycle lights might create hybrid optical-plus-radar safety systems.

Load-bearing premise

The metalens focuses incoming waves from different angles onto the patch antennas without large losses or phase errors that would degrade retrodirectivity under real mounting and multipath conditions.

What would settle it

Mount the tag on a bicycle and measure its monostatic RCS and detection range in an outdoor test with actual automotive radar in the presence of traffic and ground reflections; a failure to exceed 50 m reliable range or to maintain RCS above 0 dBsm over plus or minus 30 degrees would refute the central performance claims.

Figures

Figures reproduced from arXiv: 2605.22659 by Aline Eid, Jimmy Hester, Sepideh Ghasemi.

Figure 1
Figure 1. Figure 1: Concept of the proposed two-layer retrodirective metalens structure. To bridge this gap, we propose the first retrodirective radar marker based on a planar metalens operating in the mmWave automotive radar band. The design introduces a two-layer retrodirective structure that combines and extends the advantages of24 and25, as illustrated in [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a) Top and (b) side views of the unit cell. First Layer: Planar Metalens Design Choice of Unit Cell The first layer of the tag consists of a single-layer phase-gradient metalens based on a complementary double-ring resonator unit cell, designed to operate at a central frequency of 78.5 GHz with a subwavelength thickness of h = 0.065λ = 0.25 mm, as illustrated in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

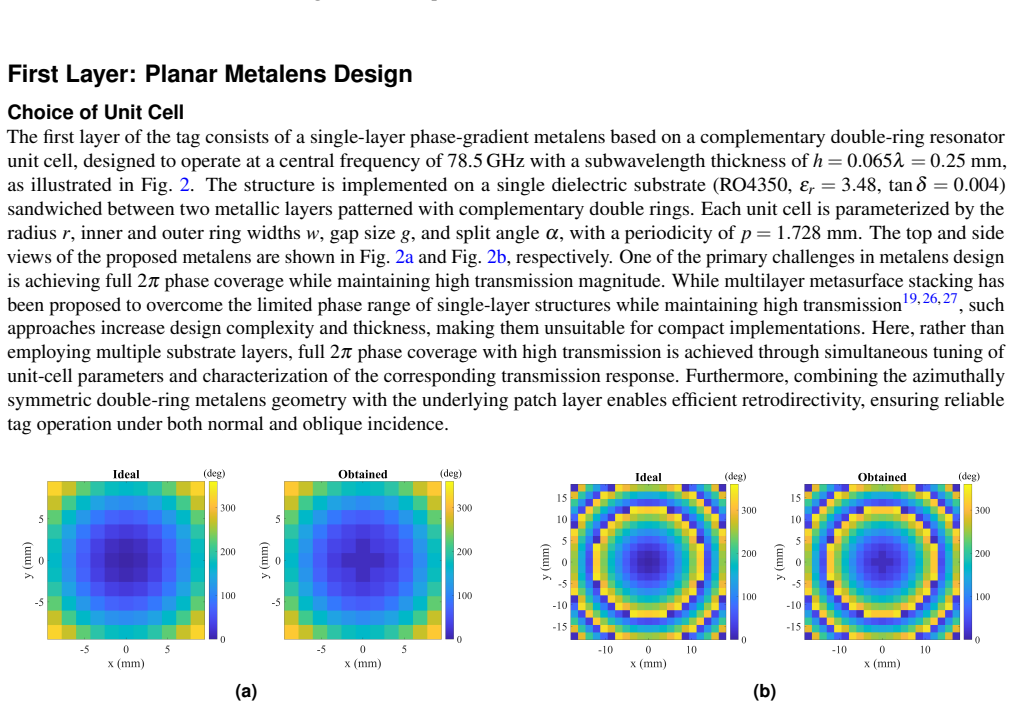

Figure 3. Figure 3: Required and simulated transmission phases of the 2D metalens for (a) 11 and (b) 21 unit cells. Design Principles and Results To focus an incoming plane wave on a focal point at a distance f , the phase distribution ϕ across the metalens should satisfy the parabolic phase profile equation: ϕ(x,y) = 2π λ p x 2 +y 2 + f 2 − f  , (1) Here, λ denotes the operating wavelength, with x and y defining the plane … view at source ↗
Figure 4
Figure 4. Figure 4: Simulated transmission magnitude of the 2D metalens as a function of azimuth angle at 78.5 GHz (blue) and as a function of frequency at normal incidence (red). To extract the transmission magnitude of the 2D metalens under plane-wave excitation in HFSS, the electric and magnetic fields are first calculated on the incident and transmitted surfaces, each placed at a distance of λ/2 from the unit cell. The Po… view at source ↗
Figure 5
Figure 5. Figure 5: Simulated electric-field distribution on the x-z plane, showing focusing near the designed focal point at 20 mm. (a) (b) [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Patch-layer reflection characterization: (a) experimental measurement setup. (b) Measured transmission coefficient magnitude |S21| for the five fabricated patch variants with inter-patch spacings of 0.4, 0.6, 0.8, 1.0, and 1.2 mm, respectively. boundaries to emulate free-space conditions. The magnitude of the simulated electric field is plotted on an x–z observation plane on the transmission side of the me… view at source ↗
Figure 7
Figure 7. Figure 7: Metalens gain characterization: (a) measurement setup with the horn antenna (Port 1), the patch antenna (Port 2), and the metalens; (b) measured gain as a function of focal distance, showing peak gain at 20 mm; and (c) measured |S21| across the 60–90 GHz band with and without the metalens at a fixed focal length of 20 mm. RCS Measurements of Patch layer and Metalens-based tag Both the patch antenna and met… view at source ↗
Figure 8
Figure 8. Figure 8: (a) Front view of the assembled tag. (b) Fabricated metalens and patch layer with 20 mm spacing. (c) RCS measurement setup. (d) Comparison of measured RCS for the patch layer alone and for the complete metalens-based tag. (e) Corresponding gain comparison. 7/11 [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Outdoor SNR measurement of the proposed metalens-based tag: (a) experimental setup, and (b) measured SNR as a function of distance. Detection Range of the Metalens-based Tag Measurements were performed using the AWR2944EVM automotive radar from Texas Instruments29. The radar was configured to chirp from 76.81 GHz to 81 GHz, resulting in a bandwidth of 4.19 GHz and a corresponding range resolution of 3.58 c… view at source ↗
Figure 10
Figure 10. Figure 10: Outdoor imaging setup for evaluating the metalens-based marker’s performance on a bicycle. (a) The bicycle is placed in front of the TI mmWave radar approximately 20 m away. (b) Close-up of the metalens-based marker mounted on the back seat of the bicycle. (c) Radar mounted on a tripod at the same height as a typical automotive radar installation, placed in front of a car to emulate a vehicle-mounted sens… view at source ↗
Figure 11
Figure 11. Figure 11: Range–azimuth maps obtained from the 2D FFT for the bicycle at four azimuthal angles (0◦ , 5◦ , 10◦ , 15◦ ). Top row: bicycle without the metalens-based marker. Bottom row: bicycle with the marker. The bare bicycle produces a weak return that further degrades at oblique angles, whereas the metalens-based marker provides a strong, well-localized response across all tested angles up to 15◦ . markers in next… view at source ↗
read the original abstract

With the rising number of interactions between autonomous or sensor-assisted vehicles -- especially in poor weather conditions -- come the need and opportunity for a new class of bicycle safety reflectors designed to enhance cyclist visibility to radars. To this effect, the first retrodirective planar metalens-based tag operating in the millimeter-wave automotive frequency range is proposed. The compact, lightweight ($0.61~\mathrm{g}$) design consists of two layers: a metalens layer and a patch antenna pixel layer. The metalens focuses incoming plane waves from different incidence angles onto corresponding patch antenna pixels on the second layer, which re-radiate the signal back through the metalens, enabling retrodirective operation. The proposed tag was thoroughly evaluated, demonstrating reliable detection beyond 70 m and a peak monostatic radar cross section (RCS) of $3.54~\mathrm{dBsm}$ with stable retrodirectivity over $\pm 40^\circ$, providing an average gain improvement of $7.58~\mathrm{dB}$ and an RCS enhancement of $15.16~\mathrm{dB}$ relative to a lens-less reference. A realistic deployment scenario on a metallic bicycle demonstrated up to a 110x improvement in its detectability at broadside. These results highlight the potential of the proposed passive tag to operate as a low-cost, lightweight, and easily integrable bicycle safety reflector for next-generation autonomous vehicle radar systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript proposes the first retrodirective planar metalens-based tag for millimeter-wave automotive radars to improve bicycle safety. The compact two-layer design (metalens layer plus patch antenna pixel layer) focuses incoming plane waves from different incidence angles onto corresponding patches, which re-radiate the signal back through the metalens. Experimental results report reliable detection beyond 70 m, peak monostatic RCS of 3.54 dBsm with stable retrodirectivity over ±40°, average gain improvement of 7.58 dB, RCS enhancement of 15.16 dB relative to a lens-less reference, and up to 110× detectability improvement when mounted on a metallic bicycle.

Significance. If the measured RCS, range, and enhancement figures hold under realistic conditions, the work offers a practical, low-cost (0.61 g), passive solution for enhancing cyclist visibility to AV radars in poor weather where optical systems fail. The experimental demonstration of metalens-enabled retrodirectivity at automotive frequencies provides concrete performance data that could inform future metasurface-based radar tags.

major comments (1)
  1. [Abstract / two-layer operation description] Abstract / two-layer operation description: the central claims (3.54 dBsm peak RCS, 70 m detection range, 110× detectability gain, 15.16 dB RCS enhancement) rest on the metalens focusing plane waves onto patch pixels with sufficient phase accuracy and low loss to produce strong monostatic returns over ±40°. No explicit angle-dependent phase-error, insertion-loss, or metallic-surface interaction measurements are supplied, leaving open the possibility that real-world mounting or multipath could reduce effective RCS below the reported values.
minor comments (2)
  1. Add error bars, number of trials, and post-processing details to the RCS and range data to allow independent assessment of measurement uncertainty.
  2. [Abstract] Clarify whether the 0.61 g weight includes any mounting hardware or refers only to the bare tag.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and for acknowledging the practical potential of the proposed metalens-based tag. We address the major comment below with additional context from our experimental campaign and proposed revisions.

read point-by-point responses

  1. Referee: the central claims (3.54 dBsm peak RCS, 70 m detection range, 110× detectability gain, 15.16 dB RCS enhancement) rest on the metalens focusing plane waves onto patch pixels with sufficient phase accuracy and low loss to produce strong monostatic returns over ±40°. No explicit angle-dependent phase-error, insertion-loss, or metallic-surface interaction measurements are supplied, leaving open the possibility that real-world mounting or multipath could reduce effective RCS below the reported values.

    Authors: We appreciate the referee’s emphasis on detailed characterization of the retrodirective mechanism. The reported RCS, gain improvement, and detection-range figures were obtained from direct monostatic measurements of the fabricated two-layer prototype over the full ±40° range; these end-to-end results therefore already incorporate the cumulative effects of phase accuracy, dielectric and conductor losses, and any surface interactions present in the physical device. To make these contributions more transparent, we will add (i) full-wave simulations of the angle-dependent phase error at the patch plane and (ii) a breakdown of estimated insertion loss through the metalens in the revised manuscript. Regarding metallic-surface interaction, the 110× detectability improvement was measured with the tag mounted on an actual metallic bicycle frame, so real-world mounting effects are already reflected in that data set. We agree that uncontrolled multipath in traffic could further modulate the observed RCS; however, the controlled measurements establish the tag’s intrinsic performance baseline, which is the primary contribution of the work. revision: partial

Circularity Check

0 steps flagged

Experimental measurement paper with no derivation chain that reduces to inputs by construction

full rationale

The manuscript describes the fabrication and experimental characterization of a two-layer metalens-plus-patch-antenna tag. Reported quantities (peak RCS of 3.54 dBsm, detection beyond 70 m, 7.58 dB gain improvement, 15.16 dB RCS enhancement, 110× detectability gain) are obtained directly from laboratory and field measurements on the physical device. No equations, fitted parameters, or first-principles derivations are invoked whose outputs are then re-labeled as predictions; the performance numbers are independent empirical results rather than algebraic consequences of the design description. The work therefore contains no load-bearing step that collapses to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The design rests on standard electromagnetic assumptions about metalens focusing and patch re-radiation; no free parameters or invented entities are explicitly introduced in the abstract, though implicit design choices such as pixel placement and metalens phase profile are required to achieve the reported retrodirectivity.

axioms (1)
  • domain assumption Incoming plane waves from different incidence angles can be focused by the metalens onto distinct patch antenna pixels without significant phase or amplitude distortion
    Invoked in the abstract description of the two-layer operation that enables retrodirective behavior.
