Synchronizing Geospatial Information for Personalized Health Monitoring

Nitish Nag , Vaibhav Pandey , Likhita Navali , Prateek Mohan , Ramesh Jain This is my paper

Pith reviewed 2026-05-25 09:34 UTC · model grok-4.3

classification 💻 cs.HC physics.med-ph
keywords air pollution monitoringpersonalized healthGPS trackingheart rategeospatial synchronizationoutdoor exerciserespiratory healthpublic sensor data
0
0 comments X

The pith

Synchronizing GPS-tracked activities with public pollution sensors and heart rate data enables personalized monitoring of pollutant exposure during outdoor exercise.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a method to monitor pollution parameters such as CO, NO2, O3, PM2.5, PM10, and SO2 for personalized respiratory and cardiovascular health during outdoor exercise. It does this by synchronizing location-tracked activities to public sensor datasets using constant GPS tracking and mapping heart rate data to breathing volume. A sympathetic reader would care because individuals currently lack accessible ways to track their personal exposure to air pollution, which is linked to increased morbidity and mortality from respiratory and cardiovascular diseases. This approach leverages existing public data to provide more accurate, location-specific estimates without requiring personal pollution sensors.

Core claim

The central claim is that pollution parameters can be monitored for personalized health by synchronizing location tracked activities to public data sets of pollution sensors, with heart rate data used to understand breathing volume mapped with the local air quality sensors via constant GPS tracking.

What carries the argument

Synchronization of location-tracked activities to public pollution datasets via constant GPS tracking, combined with heart rate mapping to breathing volume.

Load-bearing premise

Public air quality sensors provide sufficiently accurate and spatially representative measurements that can be reliably mapped to an individual's breathing volume estimated from heart rate.

What would settle it

A side-by-side comparison during outdoor exercise where personal air quality sensor readings are contrasted with the synchronized public sensor estimates adjusted by heart rate-derived breathing volume.

Figures

Figures reproduced from arXiv: 1907.10594 by Likhita Navali, Nitish Nag, Prateek Mohan, Ramesh Jain, Vaibhav Pandey.

Figure 1
Figure 1. Figure 1: Flowchart of the two main components [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

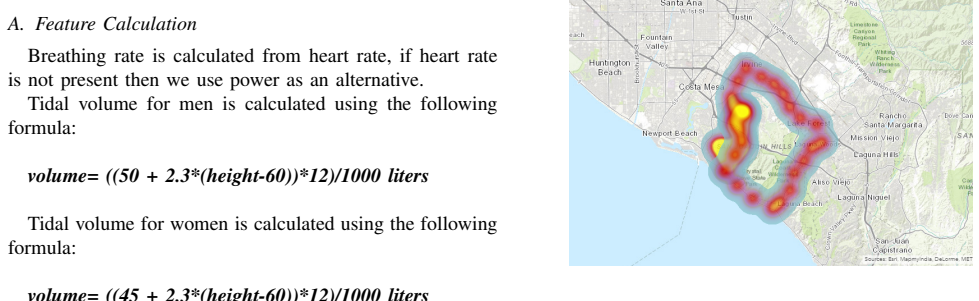

Figure 4
Figure 4. Figure 4: CO level for an activity [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: and [PITH_FULL_IMAGE:figures/full_fig_p003_5.png] view at source ↗

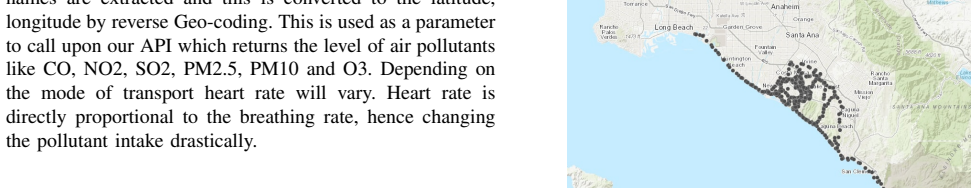

Figure 2
Figure 2. Figure 2: Heart rate (blue) and breathing rate (orange) variation over time. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 8
Figure 8. Figure 8: PM10 level for an activity 2.5, 4 passively smoked cigarettes per day respectively [1] [2]. 80 activities of an individual user were processed and it is observed that was the equivalent of smoking 3 cigarettes. These activities are bulk plotted in Figures 5 and 6. VII. CONCLUSIONS This paper proposes mechanisms for personal health mon￾itoring by using location data, health parameters, and public sensor dat… view at source ↗
read the original abstract

The health effects of air pollution have been subject to intense study in recent decades. Exposure to pollutants such as airborne particulate matter and ozone has been associated with increases in morbidity and mortality, especially with regards to respiratory and cardiovascular diseases. Unfortunately, individuals do not have readily accessible methods by which to track their exposure to pollution. This paper proposes how pollution parameters like CO, NO2, O3, PM2.5, PM10 and SO2 can be monitored for respiratory and cardiovascular personalized health during outdoor exercise events. Using location tracked activities, we synchronize them to public data sets of pollution sensors. For improved accuracy in estimation, we use heart rate data to understand breathing volume mapped with the local air quality sensors via constant GPS tracking.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper proposes synchronizing GPS-tracked outdoor exercise activities with public air quality sensor datasets (for CO, NO2, O3, PM2.5, PM10, SO2) and mapping heart rate data to breathing volume via constant GPS tracking to enable personalized monitoring of pollution exposure for respiratory and cardiovascular health.

Significance. If the proposed synchronization and heart-rate mapping could be empirically validated to yield accurate individual exposure estimates, the approach would provide a low-cost method for personalized health monitoring by leveraging existing public sensor networks and consumer wearables, with potential applications in HCI for environmental health tracking.

major comments (3)
  1. [Abstract] Abstract: The central claim that this synchronization 'can be monitored for respiratory and cardiovascular personalized health' and provides 'improved accuracy in estimation' is presented without any data, validation experiments, error analysis, comparison to reference monitors, or derivation; no evidence supports that the method produces usable exposure estimates.
  2. [Abstract] Abstract (proposal description): The assumption that public sensor readings at GPS locations represent the concentration actually inhaled is load-bearing but unaddressed, despite typical station spacing of several km and known pollutant gradients at 10-100 m scales near roads or during exercise.
  3. [Abstract] Abstract: The heart-rate-to-breathing-volume mapping is described as constant without citation, individual calibration, or error propagation, yet is presented as key to improved accuracy; this lacks justification for treating it as reliable for personalized estimates.
minor comments (1)
  1. [Abstract] The abstract would benefit from explicit statements on the current status (proposal vs. implemented and tested system) to clarify scope.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive comments on our proposal manuscript. This work outlines a conceptual approach to data synchronization rather than presenting empirical results or validated estimates. We address each point below and will revise the manuscript accordingly to better reflect its scope as a proposal and to acknowledge key limitations.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that this synchronization 'can be monitored for respiratory and cardiovascular personalized health' and provides 'improved accuracy in estimation' is presented without any data, validation experiments, error analysis, comparison to reference monitors, or derivation; no evidence supports that the method produces usable exposure estimates.

    Authors: We agree that the abstract overstates the contribution by implying usable estimates and improved accuracy without supporting evidence or experiments. As this is a proposal paper, no validation data exists in the manuscript. We will revise the abstract and introduction to frame the work explicitly as a proposed synchronization method whose accuracy remains to be validated in future studies, removing unsubstantiated claims of improved accuracy or direct health monitoring capability. revision: yes

  2. Referee: [Abstract] Abstract (proposal description): The assumption that public sensor readings at GPS locations represent the concentration actually inhaled is load-bearing but unaddressed, despite typical station spacing of several km and known pollutant gradients at 10-100 m scales near roads or during exercise.

    Authors: The referee is correct that spatial mismatch between public sensors and personal exposure is a significant unaddressed limitation. We will add a dedicated limitations section (or expand the discussion) to explicitly note the coarse resolution of public sensor networks, cite typical station spacing and micro-scale gradients, and clarify that the proposed method yields an approximation rather than a precise inhaled concentration. revision: yes

  3. Referee: [Abstract] Abstract: The heart-rate-to-breathing-volume mapping is described as constant without citation, individual calibration, or error propagation, yet is presented as key to improved accuracy; this lacks justification for treating it as reliable for personalized estimates.

    Authors: We acknowledge that the mapping is presented without supporting references or discussion of variability. We will revise the relevant sections to either include citations to established heart-rate-to-ventilation relationships from the literature or reframe the mapping as a simplifying assumption that would require individual calibration and error analysis in any practical implementation. We will also remove linkage of this step to 'improved accuracy' without evidence. revision: yes

Circularity Check

0 steps flagged

No circularity; proposal contains no derivations or fitted quantities

full rationale

The manuscript is a methodological proposal describing synchronization of GPS-tracked activities with public pollution sensor datasets and heart-rate-based breathing volume estimation. No equations, parameters, or predictive steps are present in the provided text. The central claim is an engineering workflow rather than a derivation that reduces to its own inputs by construction. No self-citations, ansatzes, or uniqueness theorems are invoked in a load-bearing manner. This is a standard non-finding for descriptive system papers lacking quantitative modeling chains.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no technical details; no free parameters, axioms, or invented entities are identifiable.

pith-pipeline@v0.9.0 · 5658 in / 1062 out tokens · 27935 ms · 2026-05-25T09:34:57.771581+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

20 extracted references · 20 canonical work pages

  1. [1]

    C., Fischer, P

    van der Zee, S. C., Fischer, P. H., and Hoek, G. (2016). Air pollution in perspective: Health risks of air pollution expressed in equivalent numbers of passively smoked cigarettes. Environmental Research, 148, 475483

    work page 2016

  2. [2]

    A., Yim, S

    Caiazzo, F., Ashok, A., Waitz, I. A., Yim, S. H. L., and Barrett, S. R. H. (2013). Air pollution and early deaths in the United States. Part I: Quantifying the impact of major sectors in 2005. Atmospheric Environment, 79, 198208

    work page 2013

  3. [3]

    R., Jain, A., Sharma, A., Agarwal, A., Gupta, P., Nagpure, A

    Gurjar, B. R., Jain, A., Sharma, A., Agarwal, A., Gupta, P., Nagpure, A. S., and Lelieveld, J. (2010). Human health risks in megacities due to air pollution. Atmospheric Environment, 44(36), 46064613. https://doi.org/10.1016/J.ATMOSENV .2010.08.011

    work page doi:10.1016/j.atmosenv 2010

  4. [4]

    Cardiovas- cular effects of carbon monoxide and cigarette smoking

    Zevin S, Saunders S, Gourlay SG, Jacob P, Benowitz NL. Cardiovas- cular effects of carbon monoxide and cigarette smoking. J Am Coll Cardiol. 2001;38(6):1633-1638. doi:10.1016/S0735-1097(01)01616-3

    work page doi:10.1016/s0735-1097(01)01616-3 2001

  5. [5]

    J., Koyl, S

    Wasserman, K., Whipp, B. J., Koyl, S. N., and Beaver, W. L. (1973). Anaerobic threshold and respiratory gas exchange during exercise. Journal of Applied Physiology, 35(2), 236243. https://doi.org/10.1152/jappl.1973.35.2.236

    work page doi:10.1152/jappl.1973.35.2.236 1973

  6. [6]

    [Online]

    ”Strava — Run and Cycling Tracking on the Social Network for Ath- letes”, Strava.com, 2018. [Online]. Available: https://www.strava.com/. [Accessed: 16- Aug- 2018]

    work page 2018

  7. [7]

    Cottin, F., Papelier, Y ., and Escourrou, P. (1999). Effects of Exercise Load and Breathing Frequency on Heart Rate and Blood Pressure Variability During Dynamic Exercise. International Journal of Sports Medicine, 20(04), 232238. https://doi.org/10.1055/s-2007-971123

    work page doi:10.1055/s-2007-971123 1999

  8. [8]

    A., Costa, D

    Bascom, R., Bromberg, P. A., Costa, D. L., Devlin, R., Dockery, D. W., Frampton, M. W., Utell, M. (1996). Health effects of outdoor air pollution. Part 2. Committee of the Environmental and Occupa- tional Health Assembly of the American Thoracic Society. American Journal of Respiratory and Critical Care Medicine, 153(2), 477498. https://doi.org/10.1164/aj...

    work page doi:10.1164/ajrccm.153.2.8564086 1996

  9. [9]

    [Online]

    ”OpenAQ”, OpenAQ, 2018. [Online]. Available: https://openaq.org/. [Accessed: 16- Aug- 2018]

    work page 2018

  10. [10]

    [Online]

    ”Ambient air pollution: Health impacts”, World Health Organization, 2018. [Online]. Available: http://www.who.int/airpollution/ambient/health-impacts/en/. [Accessed: 21- Aug- 2018]

    work page 2018

  11. [11]

    Drost, and R

    Yuan, George, Nicole A. Drost, and R. Andrew McIvor. ”Respiratory rate and breathing pattern.” McMaster University Medical Journal 10, no. 1 (2013): 23-25

    work page 2013

  12. [12]

    Effect of tidal volume and respiratory rate on the power of breathing calculation

    Natalini G, Marchesini M, Tessadrelli A, Rosano A, Candiani A, Bernardini A. Effect of tidal volume and respiratory rate on the power of breathing calculation. Acta Anaesthesiol Scand. 2005;49(5):643-

    work page 2005

  13. [13]

    doi:10.1111/j.1399-6576.2005.00664.x

    work page doi:10.1111/j.1399-6576.2005.00664.x 2005

  14. [14]

    Air pollu- tion and early deaths in the United States

    Caiazzo F, Ashok A, Waitz IA, Yim SHL, Barrett SRH. Air pollu- tion and early deaths in the United States. Part I: Quantifying the impact of major sectors in 2005. Atmos Environ. 2013;79:198-208. doi:10.1016/j.atmosenv.2013.05.081

    work page doi:10.1016/j.atmosenv.2013.05.081 2005

  15. [15]

    Air pollution in perspec- tive: Health risks of air pollution expressed in equivalent num- bers of passively smoked cigarettes

    van der Zee SC, Fischer PH, Hoek G. Air pollution in perspec- tive: Health risks of air pollution expressed in equivalent num- bers of passively smoked cigarettes. Environ Res. 2016;148:475-483. doi:10.1016/J.ENVRES.2016.04.001

    work page doi:10.1016/j.envres.2016.04.001 2016

  16. [16]

    Ventilation with lower tidal volumes as compared with traditional tidal volumes for acute lung injury and the acute respiratory distress syndrome

    Brower RG, Matthay MA, Morris A, Schoenfeld D, Thompson BT, Wheeler A. Ventilation with lower tidal volumes as compared with traditional tidal volumes for acute lung injury and the acute respiratory distress syndrome. Acute Respiratory Distress Syndrome Network, N Engl J Med. 2000 May 4;342(18):1301-8

    work page 2000

  17. [17]

    The Relationship Between Tidal V olume and Respira- tory Frequency During Muscular Exercise

    Watson AWS. The Relationship Between Tidal V olume and Respira- tory Frequency During Muscular Exercise. Br J Sports Med. 2008;8(2- 3):87-90. doi:10.1136/bjsm.8.2-3.87

    work page doi:10.1136/bjsm.8.2-3.87 2008

  18. [18]

    Cross-Modal Health State Estimation

    Nitish N, Pandey V , Bhimaraju H, et al. Cross-Modal Health State Estimation. ACM Multimed. August 2018:1993-2002. doi:10.1145/3240508.3241913

    work page doi:10.1145/3240508.3241913 2018

  19. [19]

    A Navigational Approach to Health

    Nag N, Jain R. A Navigational Approach to Health. IEEE Comput. December 2018. doi:10.1109/MC.2018.2883280

    work page doi:10.1109/mc.2018.2883280 2018

  20. [20]

    Dynamic Human Environmen- tal Exposome Revealed by Longitudinal Personal Monitoring

    Jiang C, Wang X, Li X, et al. Dynamic Human Environmen- tal Exposome Revealed by Longitudinal Personal Monitoring. Cell. 2018;175(1):277-291.e31. doi:10.1016/j.cell.2018.08.060

    work page doi:10.1016/j.cell.2018.08.060 2018
