When one protocol fits none: Self-organized network routing through evolutionary game dynamics

Francesca Dilisante , Pablo Gallarta-S\'aenz , Luciano Stucchi , Sandro Meloni , Jes\'us G\'omez-Garde\~nes This is my paper

Pith reviewed 2026-07-01 02:51 UTC · model grok-4.3

classification ⚛️ physics.soc-ph
keywords packet routingscale-free networksevolutionary gamesjamming transitionadaptive routingself-organizationcongestion control
0
0 comments X

The pith

Evolutionary competition among routing strategies spontaneously balances efficiency and robustness on scale-free networks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper starts from the observation that shortest-path routing jams early on scale-free networks while congestion-aware routing collapses sharply at higher loads. It recasts the choice of routing rule as an evolutionary game in which strategies compete according to the traffic performance they produce. Across packet-anchored and node-anchored implementations, global and local update rules, and two payoff definitions, the same outcome appears: the jamming transition shifts to higher loads than shortest-path routing yet avoids the abrupt failure of fixed congestion-aware routing. The adaptation requires no central planner and, under local updates, produces a detectable spike in local strategy switching that flags the transition.

Core claim

When adaptive packet routing on scale-free networks is recast as an evolutionary game, heterogeneous strategies compete under selection generated by their own performance; the resulting dynamics delay the jamming transition relative to shortest-path routing and avoid the violent collapse of fixed congestion-aware routing, with the improvement arising spontaneously without centralized coordination or global information.

What carries the argument

Evolutionary game dynamics in which routing strategies compete for prevalence under selection pressure set by their measured performance on the network.

If this is right

  • Under local update rules the node-level volatility of strategy choices reaches a sharp peak precisely at the jamming transition, providing a local early-warning signal.
  • The same delay of jamming and avoidance of collapse appear under both packet-level and node-level strategy anchoring and under both payoff metrics tested.
  • The balance between low-load efficiency and high-load robustness emerges without any node needing global knowledge of the network state.
  • The improvement holds for the full range of traffic loads rather than optimizing only one regime.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The volatility peak could be monitored locally in deployed networks to anticipate congestion before global metrics degrade.
  • The same evolutionary framing might be applied to other load-dependent network tasks such as load balancing or resource allocation.
  • Allowing strategies to mutate or recombine could further extend the range of loads handled without external intervention.

Load-bearing premise

Modeling the competition among routing strategies as an evolutionary process driven by performance payoffs produces dynamics representative of real adaptive routing.

What would settle it

A simulation run under the evolutionary model that shows the onset of jamming at exactly the same load as shortest-path routing, or that exhibits the same sharp collapse as fixed congestion-aware routing.

Figures

Figures reproduced from arXiv: 2606.31414 by Francesca Dilisante, Jes\'us G\'omez-Garde\~nes, Luciano Stucchi, Pablo Gallarta-S\'aenz, Sandro Meloni.

Figure 1

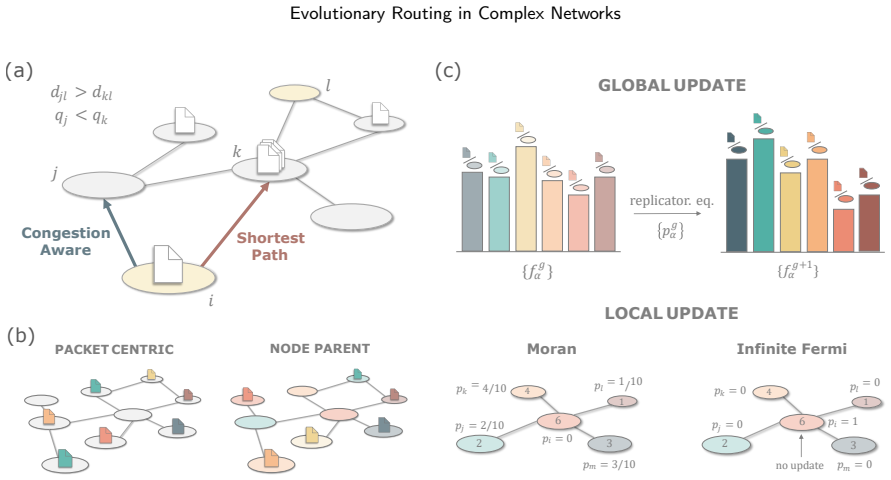

Figure 1. Figure 1: Schematic representation of the main elements of the framework. Panel (a) illustrates the SP (red) versus CA (blue) routing paradigms. Under SP routing, the packet at the highlighted node, 𝑖, is forwarded to the neighbor that minimizes topological distance to the destination, 𝑙, regardless of queue lengths. Under CA routing, heavily loaded neighbors are avoided in favor of less congested ones, even at the … view at source ↗
Figure 2

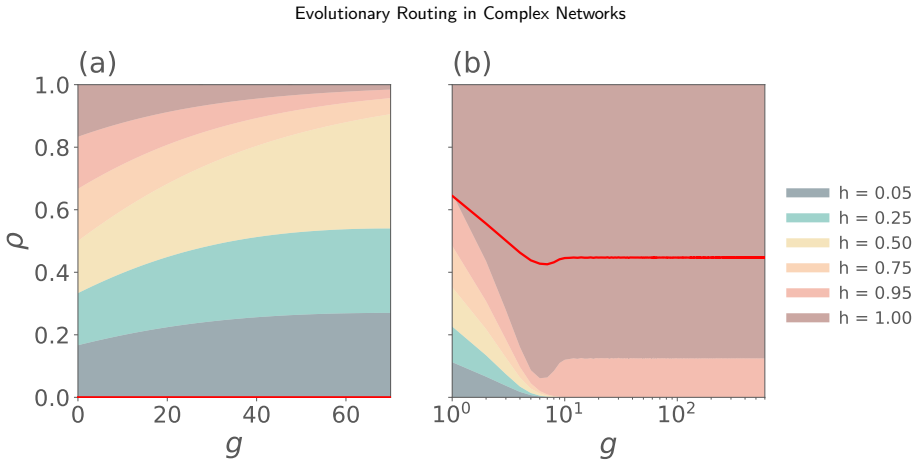

Figure 2. Figure 2: Strategy distribution evolutionary dynamics in the packet-centric formalism. The panels illustrate the strategy distribution 𝑓𝛼 (color map) as a function of the generation for two different values of packet injection probability 𝑝 using the global-efficiency payoff: (a) 𝑝=0.004, and (b) 𝑝=0.016. The red solid line indicates the evolutionarily determined order parameter 𝜌, representing the global network co… view at source ↗
Figure 3

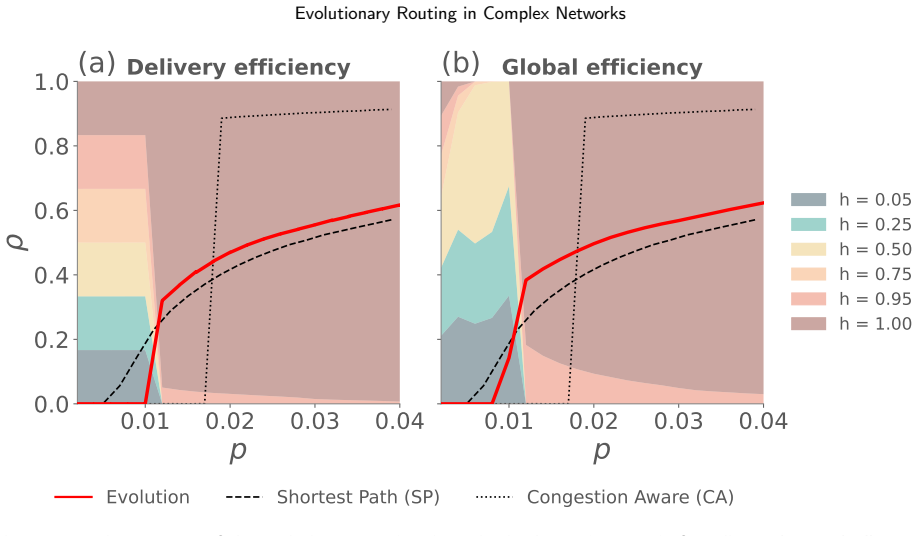

Figure 3. Figure 3: Stationary state of the evolutionary routing dynamics in the packet-centric formalism. The panels illustrate the steady-state strategy distribution 𝑓𝛼 (color map) as a function of the packet injection probability 𝑝 for two distinct fitness landscapes: delivery-efficiency payoff (left), and global-efficiency payoff (right). The red solid line indicates the evolutionarily determined order parameter 𝜌, repres… view at source ↗
Figure 4

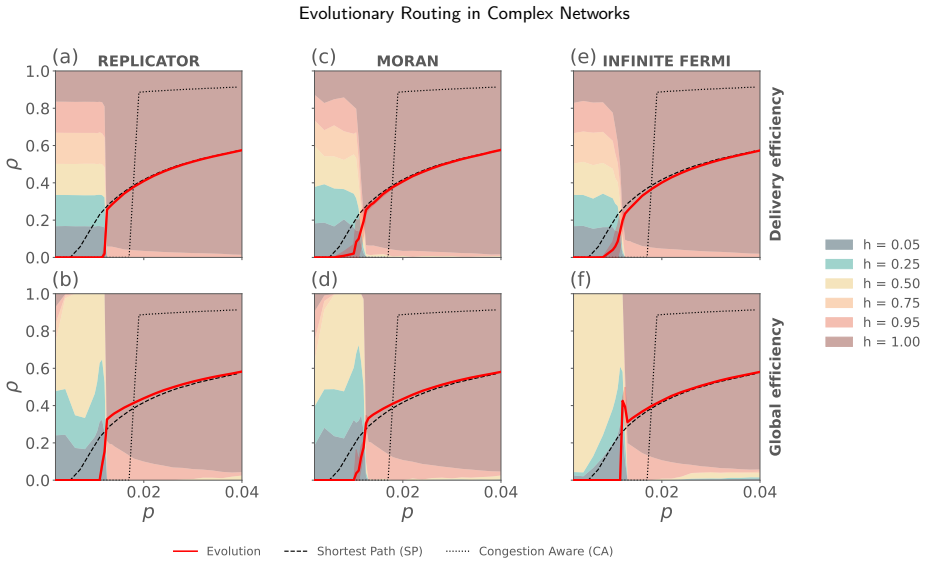

Figure 4. Figure 4: Stationary state of the evolutionary routing dynamics in the node-parent formalism. The panels illustrate the steady-state strategy distribution 𝑓𝛼 (color map) as a function of the packet injection probability 𝑝 for 6 distinct combinations of payoffs and update rules: (a) delivery-efficiency payoff under Replicator update rule, (b) global-efficiency payoff under Replicator update rule, (c) delivery-efficie… view at source ↗
Figure 5

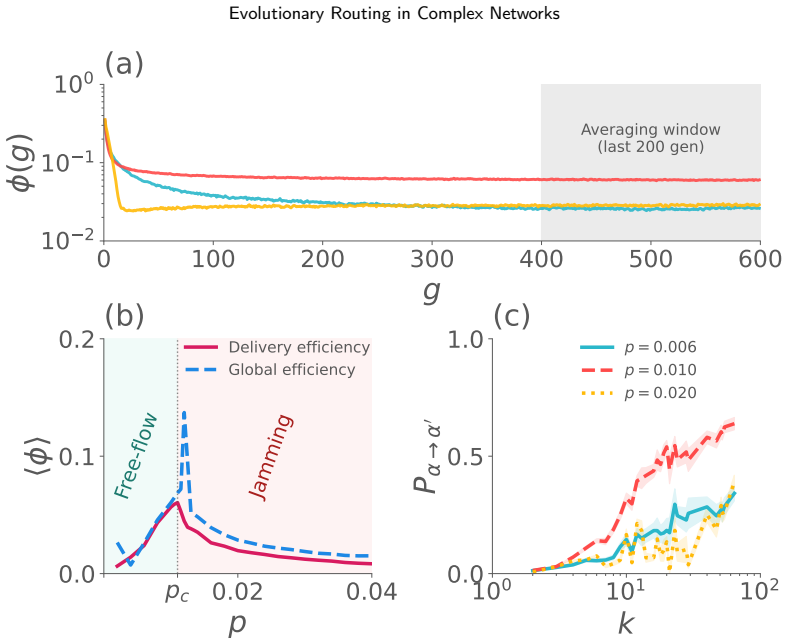

Figure 5. Figure 5: Locality measurements under Infinite Fermi update rule. (a) Generational evolution of the mean switching fraction 𝜙(𝑔), defined as the fraction of nodes that change their assigned routing strategy between consecutive generations 𝑔 and 𝑔 + 1, shown on a semi-logarithmic scale for three representative values of the packet injection probability: 𝑝 = 0.006 (solid blue, sub-critical), 𝑝 = 0.01 (dashed red, near… view at source ↗
Figure 6

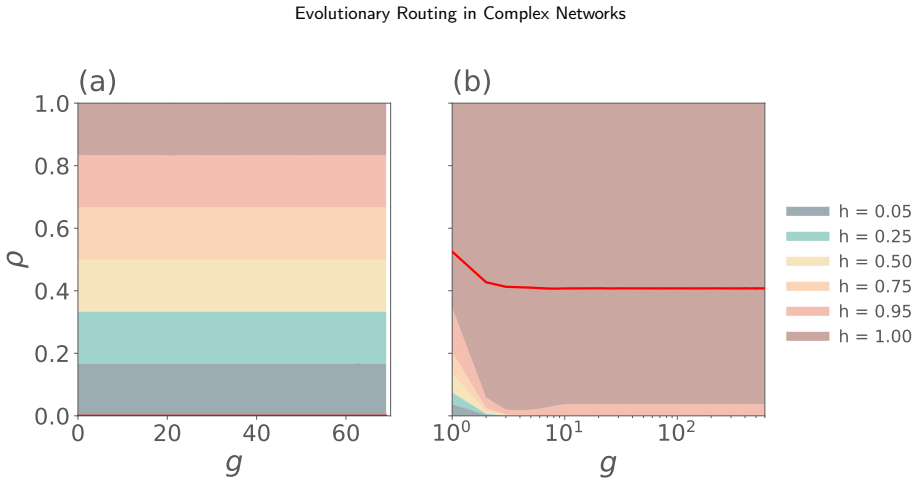

Figure 6. Figure 6: Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and 𝜌 under packet-centric formalism and delivery￾efficiency payoff 𝑃 DE . Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and the corresponding network congestion level 𝜌(𝑔) with delivery-efficiency payoff 𝑃 DE, for two representative values of the packet injection probability: (a) 𝑝 = 𝑝1 < 𝑝𝑐 (free-flow regime) and (b) 𝑝 = 𝑝2 > 𝑝𝑐 … view at source ↗

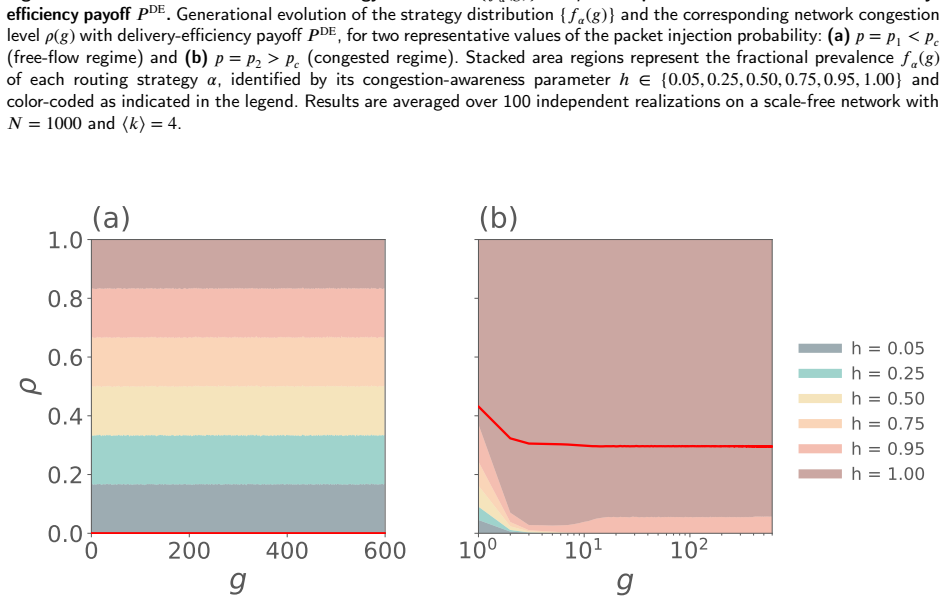

Figure 7
Figure 7. Figure 7: Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and 𝜌 under Replicator update rule and delivery￾efficiency payoff 𝑃 DE . Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and the corresponding network congestion level 𝜌(𝑔) under the Replicator update rule (𝛽 → ∞) with delivery-efficiency payoff 𝑃 DE, for two representative values of the packet injection probability: (a) 𝑝 = 𝑝1 < 𝑝𝑐 … view at source ↗

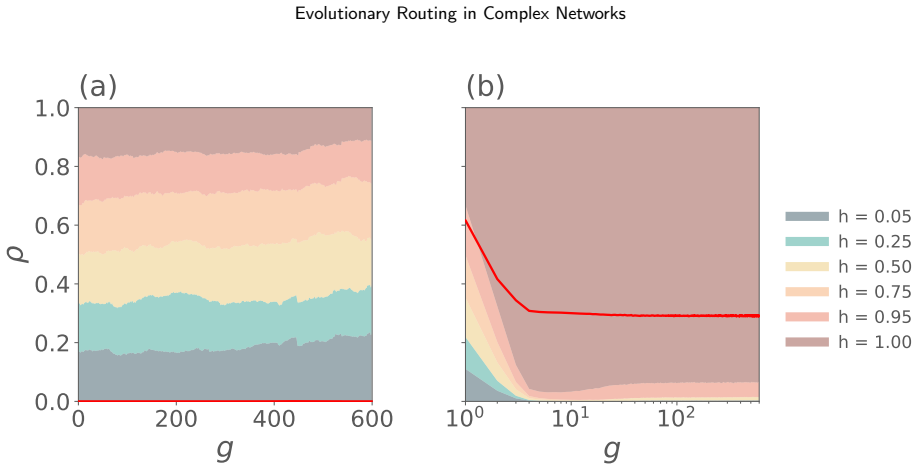

Figure 8
Figure 8. Figure 8: Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and 𝜌 under Moran update rule and delivery-efficiency payoff 𝑃 DE . Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and the corresponding network congestion level 𝜌(𝑔) under the Moran update rule (𝛽 → ∞) with delivery-efficiency payoff 𝑃 DE, for two representative values of the packet injection probability: (a) 𝑝 = 𝑝1 < 𝑝𝑐 (free-flow… view at source ↗
Figure 9

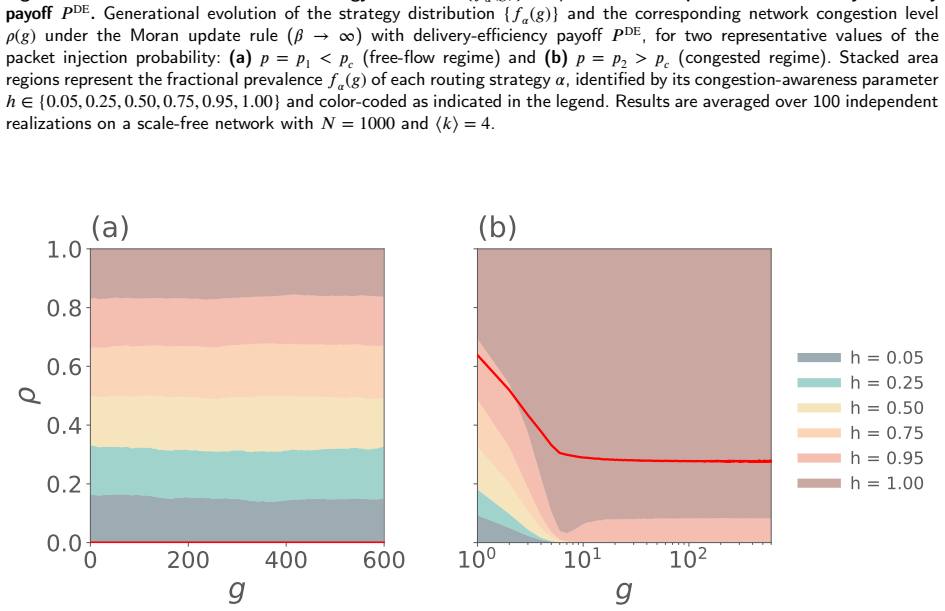

Figure 9. Figure 9: Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and 𝜌 under Infinite Fermi update rule and delivery￾efficiency payoff 𝑃 DE . Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and the corresponding network congestion level 𝜌(𝑔) under the Infinite Fermi update rule (𝛽 → ∞) with delivery-efficiency payoff 𝑃 DE, for two representative values of the packet injection probability: (a) 𝑝 = … view at source ↗
Figure 10

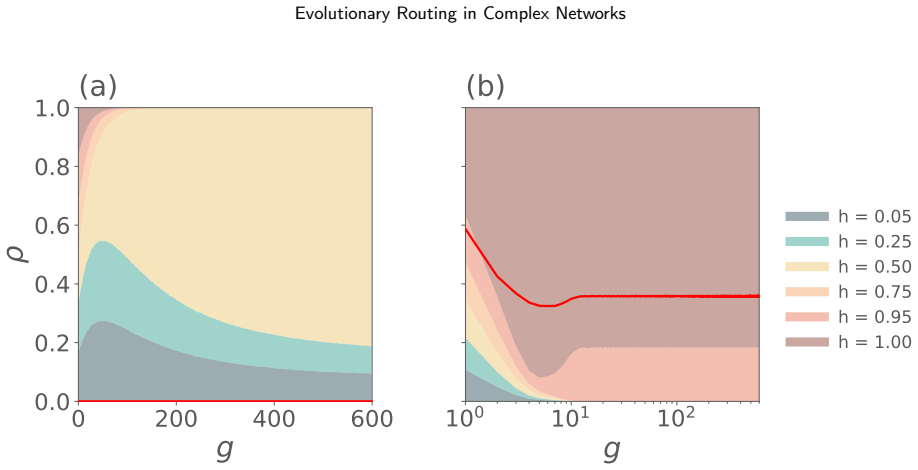

Figure 10. Figure 10: Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and 𝜌 under Replicator update rule and global￾efficiency payoff 𝑃 GE . Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and the corresponding network congestion level 𝜌(𝑔) under the Replicator update rule (𝛽 → ∞) with global-efficiency payoff 𝑃 DE, for two representative values of the packet injection probability: (a) 𝑝 = 𝑝1 < 𝑝𝑐 (fr… view at source ↗

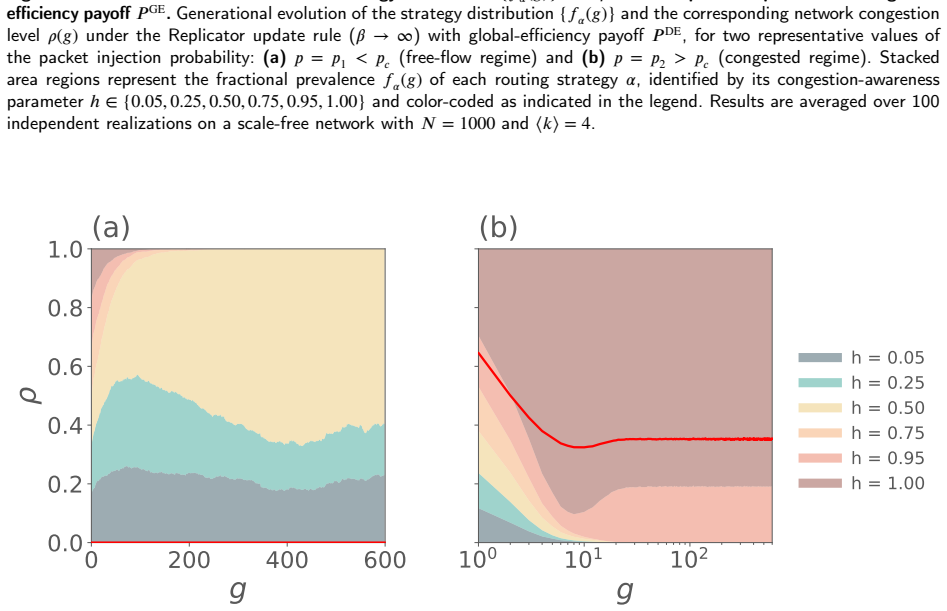

Figure 11
Figure 11. Figure 11: Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and 𝜌 under Moran update rule and global-efficiency payoff 𝑃 GE . Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and the corresponding network congestion level 𝜌(𝑔) under the Moran update rule (𝛽 → ∞) with global-efficiency payoff 𝑃 DE, for two representative values of the packet injection probability: (a) 𝑝 = 𝑝1 < 𝑝𝑐 (free-flow re… view at source ↗

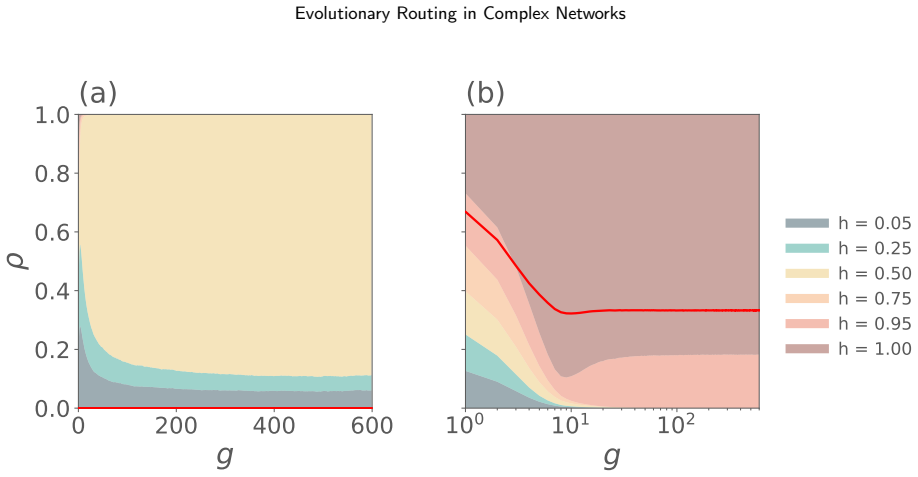

Figure 12
Figure 12. Figure 12: Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and 𝜌 under Infinite Fermi update rule and global￾efficiency payoff 𝑃 GE . Generational evolution of the strategy distribution {𝑓𝛼 (𝑔)} and the corresponding network congestion level 𝜌(𝑔) under the Infinite Fermi update rule (𝛽 → ∞) with global-efficiency payoff 𝑃 DE, for two representative values of the packet injection probability: (a) 𝑝 = 𝑝1 … view at source ↗
Figure 13
Figure 13. Figure 13: Mean number of active strategies ⟨𝛼act⟩. Mean number of active strategies ⟨𝛼act⟩ as a function of the injection probability 𝑝, for the packet-centric formalism under three distinct evolutionary update mechanisms, (Replicator (solid cyan), Moran (dashed red), and Infinite Fermi (dotted yellow)) and two payoff metrics: (a) delivery-efficiency payoff 𝑃 DE and (b) global-efficiency payoff 𝑃 GE. A strategy 𝛼 i… view at source ↗
Figure 14

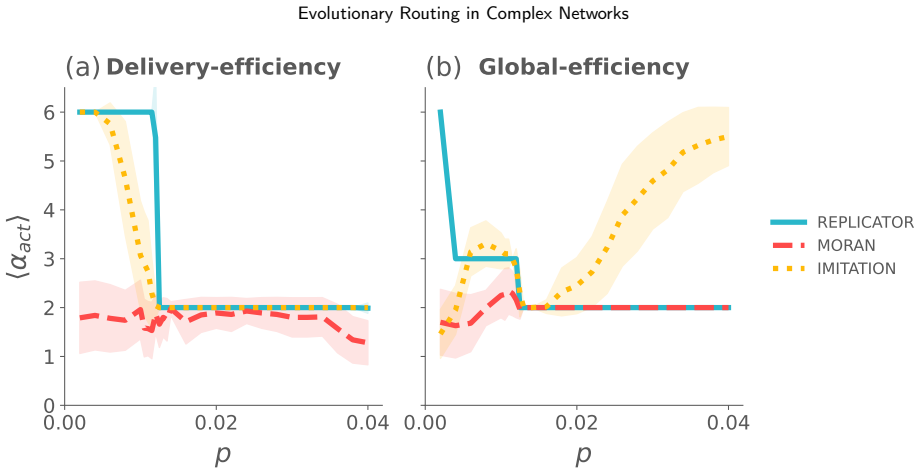

Figure 14. Figure 14: Mean number of active strategies ⟨𝛼act⟩ for delivery-efficiency and global-efficiency payoffs. Mean number of active strategies ⟨𝛼act⟩ as a function of the injection probability 𝑝, for the node-parent formalism under three distinct evolutionary update mechanisms, (Replicator (solid cyan), Moran (dashed red), and Infinite Fermi (dotted yellow)) and two payoff metrics: (a) delivery-efficiency payoff 𝑃 DE an… view at source ↗
Figure 15

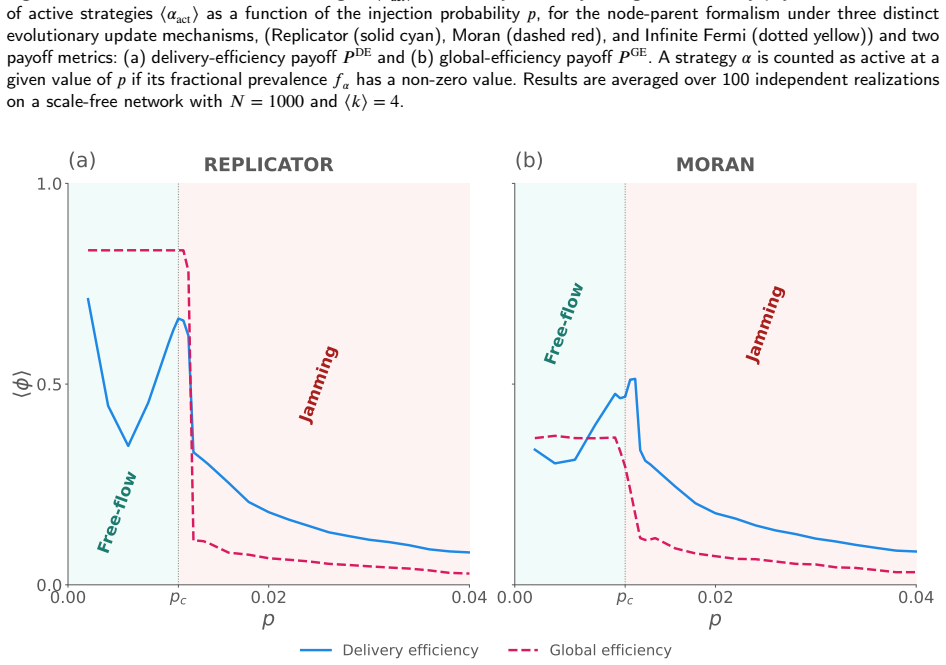

Figure 15. Figure 15: Stationary mean switching fraction ⟨𝜙⟩ under Replicator and Moran update rules. Stationary mean switching fraction ⟨𝜙⟩〉, obtained by averaging 𝜙(𝑔) over the stationary regime (∼ 100 generations), plotted as a function of 𝑝 for the two distinct payoff metrics: delivery-efficiency payoff (solid pink) and global-efficiency payoff (dashed blue) and under two update rules: (a) Replicator and (b) Moran. Results… view at source ↗
read the original abstract

Packet routing on scale-free networks faces a fundamental trade-off: shortest-path routing is efficient at low demand but funnels traffic through hubs and jams early, whereas congestion-aware routing postpones jamming at the price of a sharper collapse. Since neither paradigm dominates across the full range of traffic load, here we ask whether the appropriate balance can emerge endogenously rather than being imposed by design. To answer this, we recast adaptive packet routing on networks as an evolutionary game letting a heterogeneous population of strategies compete for prevalence under selection pressure generated by their own performance. We study this competition under two formalisms (strategy anchored to the packet or to the generating node), global and local update rules, and two payoff metrics. Across every implementation the evolutionary dynamics yield the same outcome: the jamming transition is delayed relative to shortest-path routing while the violent collapse of fixed congestion-aware routing is avoided. This improvement emerges spontaneously, without centralized coordination or global information. Crucially, under local update rules, the node-level volatility of strategy choices peaks sharply at the transition, furnishing a purely local early-warning signal of imminent jamming that requires no global monitoring.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper models adaptive packet routing on scale-free networks as an evolutionary game in which heterogeneous routing strategies compete under selection driven by their own performance. It examines this setup under two strategy-anchoring formalisms (packet-level vs. node-level), global and local update rules, and two payoff metrics. The central claim is that the evolutionary dynamics produce the same qualitative outcome in all cases: the jamming transition is delayed relative to pure shortest-path routing while the abrupt collapse seen in fixed congestion-aware routing is avoided. The improvement arises spontaneously without centralized control or global information. Under local updates, node-level strategy volatility peaks sharply at the transition, providing a purely local early-warning signal.

Significance. If the reported consistency across implementations holds, the work provides a concrete demonstration that evolutionary-game dynamics can generate adaptive routing protocols that balance low-load efficiency and high-load robustness. The spontaneous emergence of a local early-warning signal from node-level volatility is a notable byproduct with potential monitoring applications. The parameter-free character of the evolutionary selection (no external tuning of strategy prevalences) and the cross-implementation robustness are strengths that would elevate the result above typical simulation studies in network science.

major comments (2)
  1. [§4] §4 (or equivalent results section), the paragraph reporting cross-implementation consistency: the claim that 'the same outcome' appears 'across every implementation' requires explicit quantitative comparison (e.g., critical load values or collapse slopes with error bars) rather than qualitative description; without these numbers it is impossible to judge whether the improvement is uniform or merely directionally similar.
  2. [§3] The definition of the two payoff metrics and the local-update rule (likely Eqs. in §3): the manuscript must show that the reported avoidance of violent collapse is not an artifact of the particular functional form chosen for congestion cost; a brief sensitivity check replacing the metric with a monotonic alternative would strengthen the claim that the outcome is driven by the evolutionary mechanism rather than the payoff definition.
minor comments (2)
  1. Figure captions should explicitly state the network size, degree exponent, and number of independent realizations used for each curve; several panels appear to omit these details.
  2. The abstract states results for 'two formalisms... global and local update rules, and two payoff metrics' but the main text should include a compact table (perhaps Table 1) listing the exact parameter settings for each of the eight combinations so readers can reproduce the consistency test.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation and the recommendation of minor revision. The comments identify opportunities to strengthen the presentation of robustness across implementations and the sensitivity of results to payoff definitions. We address each point below.

read point-by-point responses

  1. Referee: [§4] §4 (or equivalent results section), the paragraph reporting cross-implementation consistency: the claim that 'the same outcome' appears 'across every implementation' requires explicit quantitative comparison (e.g., critical load values or collapse slopes with error bars) rather than qualitative description; without these numbers it is impossible to judge whether the improvement is uniform or merely directionally similar.

    Authors: We agree that quantitative metrics are needed to substantiate the uniformity claim. In the revised manuscript we will add a table in §4 (or a new supplementary table) reporting the critical load values at the jamming transition together with their standard deviations across independent runs, as well as the average slope of the throughput collapse, for every combination of strategy anchoring, update rule, and payoff metric. These numbers will replace the purely qualitative statement. revision: yes

  2. Referee: [§3] The definition of the two payoff metrics and the local-update rule (likely Eqs. in §3): the manuscript must show that the reported avoidance of violent collapse is not an artifact of the particular functional form chosen for congestion cost; a brief sensitivity check replacing the metric with a monotonic alternative would strengthen the claim that the outcome is driven by the evolutionary mechanism rather than the payoff definition.

    Authors: We accept that an explicit sensitivity check is warranted. We will include a short additional analysis (as a paragraph in §3 or a brief appendix) that replaces the original congestion-cost function with a monotonic alternative (a simple linear form) while keeping all other elements fixed, and we will demonstrate that the evolutionary dynamics continue to delay the transition and avoid abrupt collapse. This will confirm that the reported behavior is driven by the selection mechanism rather than the specific functional form. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper recasts routing as an evolutionary game and reports that the same qualitative outcome (delayed jamming transition, avoided collapse) emerges across multiple independent implementations (strategy anchoring, global/local updates, payoff metrics). This is presented as a simulation result of the dynamics under selection pressure, with no equations, fitted parameters, or self-citations shown to reduce the claimed consistency to the model inputs by construction. The derivation chain is self-contained as an exploration of emergent behavior in the stated game-theoretic setup.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard assumptions of evolutionary game theory applied to routing; no free parameters, invented entities, or ad-hoc axioms are mentioned in the abstract.

axioms (2)
  • domain assumption Evolutionary selection pressure generated by strategy performance drives strategy prevalence in the population.
    Invoked when recasting routing as an evolutionary game (abstract).
  • domain assumption Scale-free networks and packet routing dynamics can be modeled via the described formalisms without additional external constraints.
    Underlying the simulation of competition under global and local update rules.
