Decompiling for Constant-Time Analysis

T0 review · 3 major / 4 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Standard decompilers erase the secret leaks that constant-time checks are meant to find, so the paper defines and enforces a transparency condition for safe decompilation.

desk verdict Solid formal core and a real warning about decompiler unsoundness, but the practical claim of reliable detection is partly in-sample and needs an out-of-sample evaluation. read the letter →

arxiv 2501.04183 v4 pith:6DTCLJ6J submitted 2025-01-07 cs.PL

Santiago Arranz-Olmos , Gilles Barthe , Lionel Blatter , Youcef Bouzid , Sören van der Wall , Zhiyuan Zhang This is my paper · ORCID
classification cs.PL
keywords constant-timedecompilationCTtransparencyside-channelanalysisRetDecLLVMIRsecurecompilationstatic
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper establishes a soundness problem at the heart of the Decompile-then-Analyze approach to binary constant-time verification: off-the-shelf decompilers routinely simplify away the secret-dependent branches and memory accesses that a constant-time analyzer is supposed to detect, so non-CT binaries are certified as secure. It introduces CT transparency, the requirement that a program transformation neither removes nor introduces CT violations, and gives a proof technique for transparency based on simulations whose observation transformer is injective at each program point. With that technique it proves seven standard decompilation passes transparent and isolates three that are not: if conversion, branch coalescing, and memory-access elimination. It then builds CT-RetDec, an LLVM-based decompiler variant with non-transparent passes disabled, paired with CT-LLVM; on a benchmark of 160 binaries spanning four Clang versions, two optimization levels, and two architectures, it finds every ground-truth CT violation without false positives, where unmodified RetDec misses most of them.

What carries the argument

The load-bearing object is the program transformation between a source language and a target language, each equipped with a leakage semantics in which memory accesses leak their address and branches leak their condition. CT transparency is reflection plus preservation, and the proof method is a relaxed simulation diagram: every output step is mimicked by one or more input steps whose observation sequence is mapped to the output observation by a partial transformer $T$. The added condition is PC-injectivity: for a fixed program point, $T$ never maps two different input observation sequences to the same output observation, allowing a preservation proof to be flipped into a reflection proof. For the seven transparent passes, the paper provides explicit $T$, step-count, and suffix functions.

What would settle it

Run CT-RetDec on a fresh collection of non-CT binaries whose leaks come from patterns absent from the examples in Figures 1 and 9a-9d, and compare its verdicts with manual inspection of the assembly; if any secret-dependent branch or memory access survives decompilation yet CT-RetDec reports constant-time, the retained pass configuration is not transparent. The opposite direction, a CT binary flagged as violating, would refute preservation.

Watch

Extended reading notes

Core claim

The central claim is that the Decompile-then-Analyze approach is unsound unless every transformation applied before constant-time analysis is CT transparent: a transformation is transparent when it reflects CT (if the output is $\phi$-CT then the input is $\phi$-CT) and preserves CT (if the input is $\phi$-CT then the output is $\phi$-CT). The paper shows concretely that five decompilers violate reflection: RetDec turns Clangover's secret-dependent branch in ML-KEM into a conditional move, and Angr, BinaryNinja, Ghidra, Hex-Rays, and RetDec each remove at least one type of crafted violation. It also shows that CT-Verif and BinSec accept constructed non-CT programs because their internal converters erase the violation. The constructive result is CT-RetDec, a decompilation toolchain whose retained passes are proven or empirically transparent, which correctly detects all 160 test binaries' CT status while unmodified RetDec misses most violations.

Load-bearing premise

The practical claim about CT-RetDec rests on the assumption that the hand-picked set of leak snippets and the 160 benchmark binaries are representative enough that the ten disabled passes are the right ones for all other binaries; the paper states that the empirical tests do not guarantee the retained passes are transparent.

Editorial extensions

If this is right

  • Off-the-shelf decompilers and lifters should not be used as front-ends for constant-time analysis without auditing their passes for transparency.
  • CT analysis tools that convert programs before analysis, for example to Boogie or DBA IR, must document and prove the transparency of those converters, since even sound analyses can be made unsound by the conversion.
  • The proof technique gives decompiler developers a concrete recipe: prove a pass transparent by giving a simulation with a PC-injective observation transformer, and the pass can be safely retained in a CT-focused toolchain.
  • A binary-level CT tool built on transparent decompilation can detect compiler-induced vulnerabilities in shipped binaries, including cases where the source code is CT but the compiled code is not.
  • The same transparency framework extends to speculative constant-time, letting tools also check Spectre-style leakage after decompilation.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper, the PC-injectivity simulation pattern is likely portable to other security properties defined as indistinguishability of observation sequences, such as memory-safety or data-only side channels; the paper itself only gestures at hardware-software contracts as future work.
  • The evaluation is partly in-sample: the pass selection for CT-RetDec was guided by the same Clangover example that also appears in the 160-binary benchmark, so a stronger test would run the fixed configuration on a fresh corpus of compiler-induced leaks that played no role in choosing the disabled passes.
  • Transparent decompilation could be combined with analyzers other than CT-LLVM, because transparency protects the transformation itself and does not depend on the downstream analysis.
  • A testable extension is to reuse the paper's minimal leak snippets (constant branch, dead load, dead store) as a regression suite for any CT tool that performs internal program conversion, checking whether the tool still reports the leak.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper studies the Decompile-then-Analyze (DtA) approach to constant-time verification, in which a decompiler is used as the front-end of a source/IR-level CT analysis. It defines CT transparency as the conjunction of CT reflection and CT preservation, introduces PC-injective observation transformers as a sufficient condition for proving transparency (Theorem 2), and reports a Rocq mechanization of the general theorem. The paper proves or sketches transparency for seven abstract transformations, gives counterexamples for if conversion, branch coalescing, and memory-access elimination, and shows empirically that five decompilers remove CT violations. As independent findings, it constructs non-CT programs accepted by CT-Verif and BinSec. Finally, it builds CT-RetDec by disabling ten RetDec passes and evaluates the tool on a benchmark of 160 binaries compiled from known CT-relevant vulnerabilities.

Significance. The formal framework is a clean and useful contribution: separating reflection from preservation and isolating PC-injectivity makes prior CT-preservation simulation proofs reusable for transparency, and the machine-checked proof of the general simulation theorem is a concrete strength. The negative results on current decompilers and on the internal converters of CT-Verif and BinSec are specific, reproducible in principle, and important for tool developers. The practical RQ3 claim is plausible but is currently supported only by an evaluation whose tuning and benchmark sets overlap, so the generalizability of CT-RetDec to unseen binaries is not yet demonstrated.

major comments (3)
  1. [§6.2–6.3, Table 3] The pass configuration of CT-RetDec is selected in §6.2 by empirically testing reflection on the patterns of Figures 1 and 9a–9d and preservation on Figure 10, yet the §6.3 benchmark on which Table 3 claims that CT-RetDec correctly finds all CT violations includes ct_clangover, the same Clangover pattern from Figure 1, and the paper itself states in §6 that the empirical tests do not guarantee that passes are transparent. The benchmark therefore is not an independent test of the fixed configuration, and the RQ3 conclusion that CT-RetDec is suitable for real-world binaries is stronger than the evidence. Please separate the tuning set from a held-out validation set, or at minimum report in-sample and out-of-sample results separately, and soften the Section 9 claim that CT-RetDec transparently decompiles the benchmark.
  2. [§5.2, Theorem 5 and Appendix A.3, Proposition 3] The proof of Dead Assignment Elimination transparency assumes a correctness guarantee for the dead-variable annotations D. The main text says "we omit the correctness guarantee," and Appendix A.3 states the needed property as Proposition 3 without proving it; the subsequent proof uses Proposition 3 to derive the inequality (D\{x})∪vars(e)⊆D', which is essential for showing that the simulation relation is preserved after deleting the assignment. Thus Theorem 5 is not established as stated. Please add a proof of Proposition 3, or of the underlying liveness-analysis correctness, or make explicit that the theorem is conditional on an unproved side condition.
  3. [§6 and §9] The paper oscillates between calling CT-RetDec transparent and acknowledging that transparency is not guaranteed for the actual pipeline. Definition 3 and Theorem 2 concern abstract transformations, while §6.2's "empirically transparent" is defined relative to CT-LLVM's reports on a few hand-crafted test cases, and §6 explicitly lists two residual reasons why the modified RetDec may still not be transparent: untested passes and implementation bugs. The conclusion in §9 that "CT-RetDec, which transparently decompiles our benchmark set" should be replaced by a claim about empirical detection on the evaluated binaries, and the abstract should be checked for the same overstatement.
minor comments (4)
  1. [Table 3] The caption contains the typo "CT-RetDEc" instead of "CT-RetDec."
  2. [Appendix B] The RetDec Utility Passes list contains retdec-value-protect twice, which makes the table of passes harder to read.
  3. [§6.2] The statement that the empirical test set "checks for both reflection and preservation" is slightly overstated: there is only one preservation test case, shown in Figure 10, while the reflection cases cover five patterns.
  4. [Appendix A] The appendix says it provides detailed proofs for a selection of transformations, but the main text refers to Appendix A as containing the detailed proofs for the transformations in Section 5.2; the paper should state explicitly which proofs are fully formal, which are sketched, and which are not mechanized.

Circularity Check

1 steps flagged · score 4.0 of 10

The formal transparency framework is non-circular and machine-checked, but the practical benchmark partly reuses the Clangover example that guided CT-RetDec's pass selection, making that detection result in-sample.

  1. fitted input called prediction [Section 6.2 (Empirical Transparency) and Section 6.3 (Benchmark Set)]
    "For reflection, we use our test cases from Figures 1 and 9a to 9d. ... Specifically, we include the Clangover vulnerability [44], five vulnerabilities in selection algorithms [51], two vulnerabilities in sorting algorithms [22], the check scalar vulnerability in BearSSL [47] and the CMOVNZ vulnerability in HACL* [47]."

    The CT-RetDec pass configuration is the fitted parameter: Section 6.2 disables every RetDec pass that fails the reflection tests in Figures 1 and 9a-9d. Figure 1 is the Clangover binary, and Section 6.3 then evaluates CT-RetDec on a benchmark that includes ct_clangover, the same vulnerability. Reporting ct_clangover as correctly detected is therefore a restatement of the tuning criterion for that case, not an independent prediction. The other nine vulnerability families in the benchmark were not part of the pass-selection tests, so the circularity is partial; the formal Theorem 2 (mechanized in Rocq) and the negative findings about stock decompilers, CT-Verif, and BinSec do not depend on this in-sample evaluation.

full rationale

The core derivation is not circular. Definition 3 (transparency) is a conjunction of reflection and preservation, and Theorem 2 is a soundness theorem proved in the Rocq artifact; PC-injectivity is a genuinely new condition rather than a restatement of transparency. The per-pass transparency results in Section 5 are proved with explicit simulation relations and observation transformers, and the counterexamples in Section 5.3 are constructed independently. The unsoundness demonstrations for CT-Verif and BinSec are concrete programs whose violations are removed by specific converters, not consequences of the paper's own definitions. The main circularity-adjacent issue is empirical: the pass choices in CT-RetDec were selected using Figures 1 and 9a-9d, and the benchmark in Section 6.3 contains ct_clangover, which is Figure 1. Thus the benchmark's success on that case is partly in-sample and should not be presented as a fully independent confirmation; the paper itself concedes in Section 6 that the empirical tests do not guarantee transparency. Self-citation overlaps (CT-LLVM by two of the authors, CT simulations from [12]) are real but not load-bearing circularity: CT-LLVM is used as an executable analysis backend and [12] supplies prior simulation definitions that this paper extends and mechanizes. Overall, the formal and negative-contribution claims are self-contained; only the practical evaluation has a partial in-sample component, so a moderate score is appropriate.

Assumptions & free parameters 0 free parameters · 6 assumptions · 0 invented entities

No fitted numeric parameters appear in the paper; the design choices are pass selections governed by the empirical test suite. The formal results rely on a standard CT leakage model and on several assumed or unproved correctness conditions, including the dead-variable analysis guarantee and well-nested CFG regions for structural analysis.

assumptions (6)
  • domain assumption Observations reveal the program point, memory accesses leak their address, and branches leak their condition (standard CT leakage model).
    Section 3, Leakage and Figure 3; all transparency proofs and counterexamples are relative to this model.
  • standard math Program semantics is deterministic and safe, meaning every non-final state has a successor.
    Section 3, Program Behavior; required for the behavior and simulation definitions.
  • domain assumption Conditional move instructions do not leak their condition (Intel DOIT).
    Used in the If Conversion counterexample (Section 5.3 and Figure 1), where removing a branch is claimed to remove the leak; relies on reference [34].
  • ad hoc to paper Dead-variable annotations D used by Dead Assignment Elimination are correct (Proposition 3), but the paper omits the proof.
    Section 5.2 and Appendix A.3: 'We assume that a previous analysis annotated assignment instructions with a set D of dead variables at that point (we omit the correctness guarantee).' Transparency of this pass depends on it.
  • domain assumption Structural Analysis receives CFGs whose control regions are well-nested and match simple loop and conditional patterns.
    Appendix A.4 imposes well-nestedness and single-entry and single-exit conditions; decompiled binaries may not satisfy these, limiting the theorem's coverage.
  • domain assumption Unspilling assumes no function calls, so the stack pointer is constant, and spills occur at constant offsets.
    Section 5.2, Unspilling: 'recall that we do not consider function calls in our language'.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Decompiling for Constant-Time Analysis." pith.science (2026). https://pith.science/paper/6DTCLJ6J

@misc{pith2026250104183,
  author       = {Pith},
  title        = {Pith review of: Decompiling for Constant-Time Analysis},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/6DTCLJ6J}},
  note         = {Machine review of arXiv:2501.04183}
}
read the original abstract

The CT programming discipline is commonly used to protect cryptographic libraries against side-channel attacks. However, it is hard to write CT code; moreover, compilers can introduce CT violations. Therefore, it is important to ensure that assembly code is CT. One approach is to show that source programs are CT, and that CT is preserved by compilation. In this paper, we explore the methodological soundness and scalability of the Decompile-then-Analyze (DtA) approach, a less conventional alternative that has been suggested in the broader setting of static analysis. Informally, the DtA approach uses decompilers a front-end for static analysis tools. As a motivation for our study, we show that current decompilers eliminate CT vulnerabilities before CT analysis, leading to non-CT programs being accepted as CT. Independently, we provide *constructed* examples of non-CT, exploitable, programs that are accepted by two popular CT analysis tools; in both cases the culprit are program transformations that are used internally prior to CT analysis and eliminate CT violations. While our examples do not invalidate the general approach of these tools, they emphasize the need for studying the DtA approach. On the methodological side, we define the notion of *CT transparency*. Informally, a program transformation is CT transparent if does not eliminate nor introduce CT violations. We also provide general methods for proving that a transformation is CT transparent, and show that several transformations of interest are transparent. We also sketch an extension of CT transparency to speculative CT, which is used by cryptographic software as a protection against Spectre attacks. On the practical side, we build a CT-transparent version of the popular LLVM-based decompiler RETDEC, and combine it with CT-LLVM, an existing CT verification...

Figures

Figures reproduced from arXiv: 2501.04183 by the authors.

Figure 1
Figure 1. Decompiling Clangover removes the CT vulnerability. [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

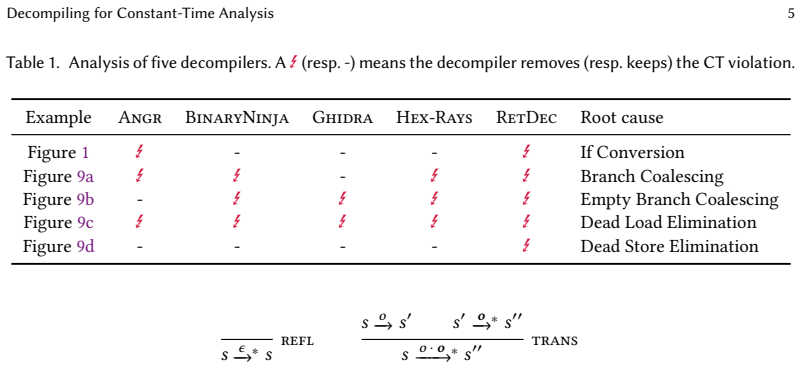

Figure 2. Multi-step execution semantics. or keeps the CT violation. The result is that each of the five decompilers removes CT violations. Therefore, the issue is indeed systematic throughout practical decompilers. 3 Transparency This section reviews the constant-time property using an abstract model of computation and introduces the notion of transparent transformations. We keep the programming language abstract and say tha… view at source ↗
Figure 3
Figure 3. Single-step execution semantics. 5 Transparent and Nontransparent Transformations In this section, we consider the CT transparency of ten common transformations. We prove that seven of them are transparent and provide counterexamples to transparency for the remaining three. We summarize our findings in [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figures from the paper (9 more)
Figure 4
Figure 4. Figure 4: Relaxed simulation instantiations of 𝑇 , ns, and sf for Dead Branch Elimination. (i) Since the evaluated expressions produce the same value (Proposition 1), every step in the output program matches exactly one step in the input program, and they produce the same regist…
Figure 5
Figure 5. Figure 5: Relaxed simulation instantiations of 𝑇 , ns, and sf for Dead Assignment Elimination. Dead Assignment Elimination. This transformation removes assignments to dead variables, i.e., when the assignments have no impact on the execution of the program. For example, it repla…
Figure 6
Figure 6. Figure 6: Semantics of the CFG language. variables introduced by the transformation; the memories 𝜇 and 𝜇 ′ coincide except on spilled stack offsets; and each spilled offset 𝑛 holds the value of its fresh variable 𝑦, i.e., 𝜇(sp + 𝑛) = 𝜌 ′ (𝑦). Since each output program step is s…
Figure 7
Figure 7. Figure 7: Example CFG patterns. The left pattern corresponds to a while loop, the right one to a conditional. [PITH_FULL_IMAGE:figures/full_fig_p014_7.png]
Figure 8
Figure 8. Figure 8: Loop Rotation duplicates the loop entry and then moves the entry point of the loop by one instruction. [PITH_FULL_IMAGE:figures/full_fig_p015_8.png]
Figure 9
Figure 9. Figure 9: Counterexamples for nontransparent passes. [PITH_FULL_IMAGE:figures/full_fig_p015_9.png]
Figure 10
Figure 10. Figure 10: Inverse If Conversion. Expression Substitution. This category contains four passes that perform various expression substitution optimizations. Specifically, RetDec invokes constprop, correlated-propagation and scp to propagate constants, and constmerge to merge duplic…
Figure 11
Figure 11. Figure 11: Non-CT program accepted by CT-Verif. 7.1 CT-Verif CT-Verif [6] is a state-of-the-art CT analysis tool for LLVM-IR programs. CT-Verif is based on a product program construction, which is sound (non-CT programs are never deemed CT) and relatively complete (under certain…
Figure 12
Figure 12. Figure 12: Non-CT program accepted by BinSec. Conversion. BinSec lifts a binary program to an IR called DBA (for Dynamic Bitvector Automata) before it performs relational symbolic execution on the DBA program. When lifting a binary program to DBA IR, BinSec converts conditional …
