Cross-field chaotic transport of electrons by $\vec E \times \vec B$ electron drift instability in Hall thrusters

Debraj Mandal (PIIM); Fabrice Doveil (PIIM); Nicolas Lemoine (IJL); Yves Elskens (PIIM)

arxiv: 1907.08407 · v1 · pith:6E6P4IFVnew · submitted 2019-07-19 · ⚛️ physics.plasm-ph · nlin.CD

Cross-field chaotic transport of electrons by vec E times vec B electron drift instability in Hall thrusters

Debraj Mandal (PIIM) , Yves Elskens (PIIM) , Nicolas Lemoine (IJL) , Fabrice Doveil (PIIM) This is my paper

Pith reviewed 2026-05-24 19:06 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph nlin.CD

keywords Hall thrustersE x B drift instabilitychaotic transportcross-field electron transportelectron heatinganomalous transportcollisionless plasmaelectrostatic waves

0 comments

The pith

Electrostatic modes from E×B drift instability render electron motion chaotic and drive anomalous cross-field transport in Hall thrusters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the source of electron flux across magnetic fields after the Hall thruster channel exit, where neutral density is low and collisions predict transport 100 times smaller than observed. It shows that the E×B electron drift instability produces electrostatic waves that turn electron trajectories chaotic. Electrons then extract energy from the waves, raising perpendicular temperature to roughly four times the parallel value and enabling substantial axial transport. This collisionless process supplies the missing flux in a region where ionization exceeds 90 percent.

Core claim

In the presence of these electrostatic modes electron dynamics become chaotic. They gain energy from the background waves which increases electron temperature along perpendicular direction by a significant amount, T_perp/T_parallel∼4, and a significant amount of crossfield electron transport is observed along the axial direction.

What carries the argument

Chaotic electron orbits in the electrostatic waves generated by the E×B electron drift instability, which permit net energy gain and cross-field displacement.

If this is right

Electron temperature becomes anisotropic with T_perp/T_parallel approximately 4.
The resulting transport is collisionless and reaches levels 100 times above classical collisional predictions.
The mechanism operates in the low-neutral-density region downstream of the thruster channel exit.
The instability is sustained by the large velocity difference between magnetized electrons and unmagnetized ions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same chaotic transport may appear in other devices that combine crossed E and B fields with low collision rates.
Design changes that damp the instability could reduce unwanted electron losses without adding mass or power.
Test-particle or kinetic simulations with controlled wave amplitudes could map the onset threshold for chaos.

Load-bearing premise

That collisions cannot account for the observed flux and that the E×B instability modes are the main driver of the reported chaos and heating.

What would settle it

Observation of undiminished electron transport in a setup where the E×B instability modes are suppressed or absent would falsify the link between the modes and the chaotic transport.

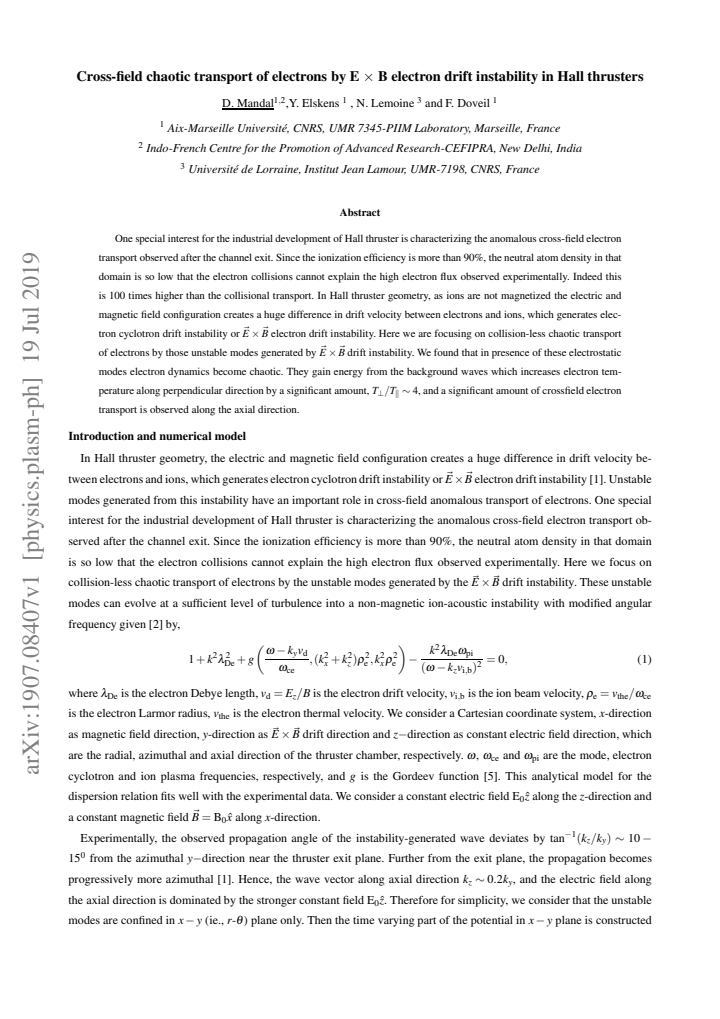

read the original abstract

One special interest for the industrial development of Hall thruster is characterizing the anomalous cross-field electron transport observed after the channel exit. Since the ionization efficiency is more than 90%, the neutral atom density in that domain is so low that the electron collisions cannot explain the high electron flux observed experimentally. Indeed this is 100 times higher than the collisional transport. In Hall thruster geometry, as ions are not magnetized the electric and magnetic field configuration creates a huge difference in drift velocity between electrons and ions, which generates electron cyclotron drift instability or $\vec E \times \vec B$ electron drift instability. Here we are focusing on collision-less chaotic transport of electrons by those unstable modes generated by $\vec E \times \vec B$ drift instability. We found that in presence of these electrostatic modes electron dynamics become chaotic. They gain energy from the background waves which increases electron temperature along perpendicular direction by a significant amount, $T_{\rm perp}/T_{\rm parallel}\sim 4$, and a significant amount of crossfield electron transport is observed along the axial direction.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper reports that E×B drift instability drives chaotic electron motion yielding T_perp/T_parallel ~4 and 100× anomalous axial transport in the low-neutral post-exit region, but the abstract supplies no derivation, controls, or error bars so the attribution stays unverified.

read the letter

The core claim is that electrostatic modes from the E×B drift instability make electron orbits chaotic, letting them pick up energy that raises perpendicular temperature by a factor of roughly four while producing cross-field flux far above what collisions can give. That matches the long-standing gap between measured electron current and classical predictions in the plume region of Hall thrusters. The work is useful because it takes a known instability, applies it to the specific geometry after the channel exit, and extracts concrete numbers (the temperature ratio and the transport multiplier) that could be dropped into engineering codes. The authors correctly note that neutral density is too low for collisions to explain the flux, so some wave-driven mechanism is needed. That framing is straightforward and on target for the application. The quantitative statements appear new relative to the cited literature on the same instability. The soft spot is exactly the one flagged in the stress-test note: nothing in the supplied text shows a control run with the instability suppressed, altered parameters, or smoothed fields. Without that, it is impossible to rule out numerical diffusion, boundary artifacts, or residual collisions as the source of the reported heating and transport. The abstract states the outcome but gives no derivation of the temperature ratio, no description of how chaos was quantified, and no error analysis, so the central numbers cannot be checked from what is visible. If the full manuscript contains the simulation details, particle diagnostics, and at least one baseline comparison, the claim becomes testable; right now it rests on assertion. This paper is aimed at modelers who need a concrete anomalous-transport term for post-channel electrons and at experimental groups who measure plume fluxes. A reader already working on crossed-field instabilities or electric propulsion will get value from the specific numbers even if the mechanism needs tighter proof. It is coherent on its own terms and engages the right literature, so it clears the bar for serious refereeing. I would send it out for review with a request for the control runs and the analysis pipeline that produced the factor-of-four ratio.

Referee Report

2 major / 2 minor

Summary. The manuscript examines anomalous cross-field electron transport in Hall thrusters after the channel exit, where neutral density is low enough that collisions cannot account for the observed flux (claimed to be ~100× higher than collisional transport). It focuses on the collisionless regime and attributes the transport to chaotic electron dynamics driven by electrostatic modes from the E×B electron drift instability, reporting perpendicular heating with T_perp/T_parallel ∼4 and significant axial cross-field flux.

Significance. If the attribution to the instability holds after verification, the result would help explain a key performance-limiting mechanism in Hall thrusters. The reported temperature anisotropy and transport enhancement, if quantitatively tied to the modes via controlled simulations, could inform both modeling and design adjustments for reduced anomalous transport.

major comments (2)

[Simulation results] Simulation methods/results: No control runs are described in which the E×B instability is suppressed (e.g., via field smoothing, altered k-spectrum, or parameter variation that stabilizes the modes while keeping other fields and boundaries fixed). Without such a baseline, the central claim that the observed chaos, T_perp/T_parallel∼4 heating, and 100× transport enhancement are produced by the instability rather than numerics, boundaries, or residual collisions cannot be verified.
[Results] Results/quantification: The factor-of-4 temperature ratio and 100× transport enhancement are stated without reported error bars, convergence tests, or explicit formulas for how T_perp, T_parallel, and the axial flux are extracted from the particle data. The abstract asserts collisions cannot explain the flux, yet no quantitative comparison (e.g., collisional vs. collisionless runs with identical instability) is referenced.

minor comments (2)

[Abstract] Notation: The abstract uses both “electron cyclotron drift instability” and “E×B electron drift instability” interchangeably; a single consistent term and brief distinction would improve clarity.
[Methods] The manuscript would benefit from a short methods paragraph specifying grid resolution, particle count per cell, time step relative to plasma frequency, and boundary conditions before presenting the chaos/heating results.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments highlight important aspects for strengthening the attribution of the observed transport to the E×B instability. We respond point by point below and will incorporate revisions accordingly.

read point-by-point responses

Referee: [Simulation results] Simulation methods/results: No control runs are described in which the E×B instability is suppressed (e.g., via field smoothing, altered k-spectrum, or parameter variation that stabilizes the modes while keeping other fields and boundaries fixed). Without such a baseline, the central claim that the observed chaos, T_perp/T_parallel∼4 heating, and 100× transport enhancement are produced by the instability rather than numerics, boundaries, or residual collisions cannot be verified.

Authors: We agree that control simulations isolating the instability would provide stronger evidence for causality. Our current results show chaotic electron dynamics and enhanced transport emerging self-consistently with the growth of the electrostatic modes driven by the E×B drift. To address the concern directly, we will add a new subsection with control runs (e.g., field smoothing to suppress high-k modes or parameter scans that stabilize the instability while holding geometry and mean fields fixed) and compare the resulting transport levels. These will be included in the revised manuscript. revision: yes
Referee: [Results] Results/quantification: The factor-of-4 temperature ratio and 100× transport enhancement are stated without reported error bars, convergence tests, or explicit formulas for how T_perp, T_parallel, and the axial flux are extracted from the particle data. The abstract asserts collisions cannot explain the flux, yet no quantitative comparison (e.g., collisional vs. collisionless runs with identical instability) is referenced.

Authors: We will revise the methods and results sections to include explicit formulas: T_perp and T_parallel are computed from the second velocity moments of the electron distribution function sampled at the channel exit, while the axial flux is the first moment integral of v_z f(v). Statistical uncertainties will be reported from multiple independent runs, along with basic convergence checks on particle number and grid resolution. The factor of 100 is derived from experimental neutral densities and collision rates rather than direct simulation; however, we will add a quantitative comparison by including a collisional test case with the same instability to demonstrate the enhancement. revision: yes

Circularity Check

0 steps flagged

No circularity; results are direct simulation outputs

full rationale

The paper reports numerical observations of chaotic electron dynamics, perpendicular heating (T_perp/T_parallel ~4), and axial transport arising from E×B drift instability modes in a collisionless regime. These quantities are generated outputs of the simulation rather than parameters fitted to the same data and then re-labeled as predictions. No equations reduce the reported effects to self-defined inputs, and no self-citations are invoked as load-bearing uniqueness theorems or ansatzes. The motivation cites external experimental flux levels, but the central claims rest on independent simulation evidence and are therefore self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review performed on abstract alone; no equations or sections available to enumerate parameters or axioms.

axioms (1)

domain assumption Neutral density after channel exit is low enough that binary collisions cannot account for observed electron flux
Stated directly in abstract as premise for invoking instability-driven transport
