Supporting Dynamic Control-Flow Execution for Runtime Reconfigurable Processors

Hassan Nassar , Rafik Youssef , Lars Bauer , J\"org Henkel This is my paper

Pith reviewed 2026-05-21 01:18 UTC · model grok-4.3

classification 💻 cs.AR
keywords runtime reconfigurable processorsdynamic control-flowmicrocode executionaccelerator slotsperformance speedupcompute-intensive applications
0
0 comments X

The pith

Dynamic control-flow in microcode enables speedups for applications on runtime reconfigurable processors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper adds support for loops, conditional jumps, and exception handling to the microcode programs run on accelerator slots of reconfigurable processors. This allows the accelerators to execute more complex control structures without constant intervention from the main core. Four compute-intensive applications from object detection, ocean simulation, artificial intelligence, and security domains are used to evaluate the approach. Results indicate that these applications achieve notable performance gains compared to execution on general-purpose processors when the dynamic control-flow feature is available.

Core claim

Introducing dynamic control-flow execution for microcode lets runtime reconfigurable processors handle loops, conditional jumps, and exception handling directly in accelerator programs. This removes the restriction to straight-line code sequences and permits flexible runtime switching between accelerators for different applications. Benchmarks across the four domains confirm significant speedups relative to general-purpose processor execution.

What carries the argument

Dynamic control-flow execution for microcode, which adds loops, conditional jumps, and exception handling to programs running on reconfigurable accelerator slots.

If this is right

  • Accelerator slots can be reconfigured and controlled with full branching and looping logic during application runtime.
  • Applications no longer need to offload all control decisions to the main core while accelerators run.
  • Reconfigurable hardware becomes practical for workloads that mix compute kernels with decision logic.
  • Switching between applications such as camera processing and audio playback can preserve complex execution flows.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar microcode extensions might reduce the number of idle accelerator slots in mobile and embedded systems.
  • The technique could be combined with power-management strategies to lower energy use during reconfiguration.
  • Future designs might test whether the same control-flow support scales to larger numbers of accelerator slots.

Load-bearing premise

The four chosen applications genuinely need dynamic control-flow support to benefit from reconfigurable processors rather than running efficiently with simpler straight-line microcode.

What would settle it

Measuring execution time of one of the four applications on the reconfigurable processor without dynamic control-flow support and finding no speedup or even slowdown compared to a general-purpose processor.

Figures

Figures reproduced from arXiv: 2605.21203 by Hassan Nassar, J\"org Henkel, Lars Bauer, Rafik Youssef.

Figure 1
Figure 1. Figure 1: Target Reconfigurable Processor Architecture. A main CPU core [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

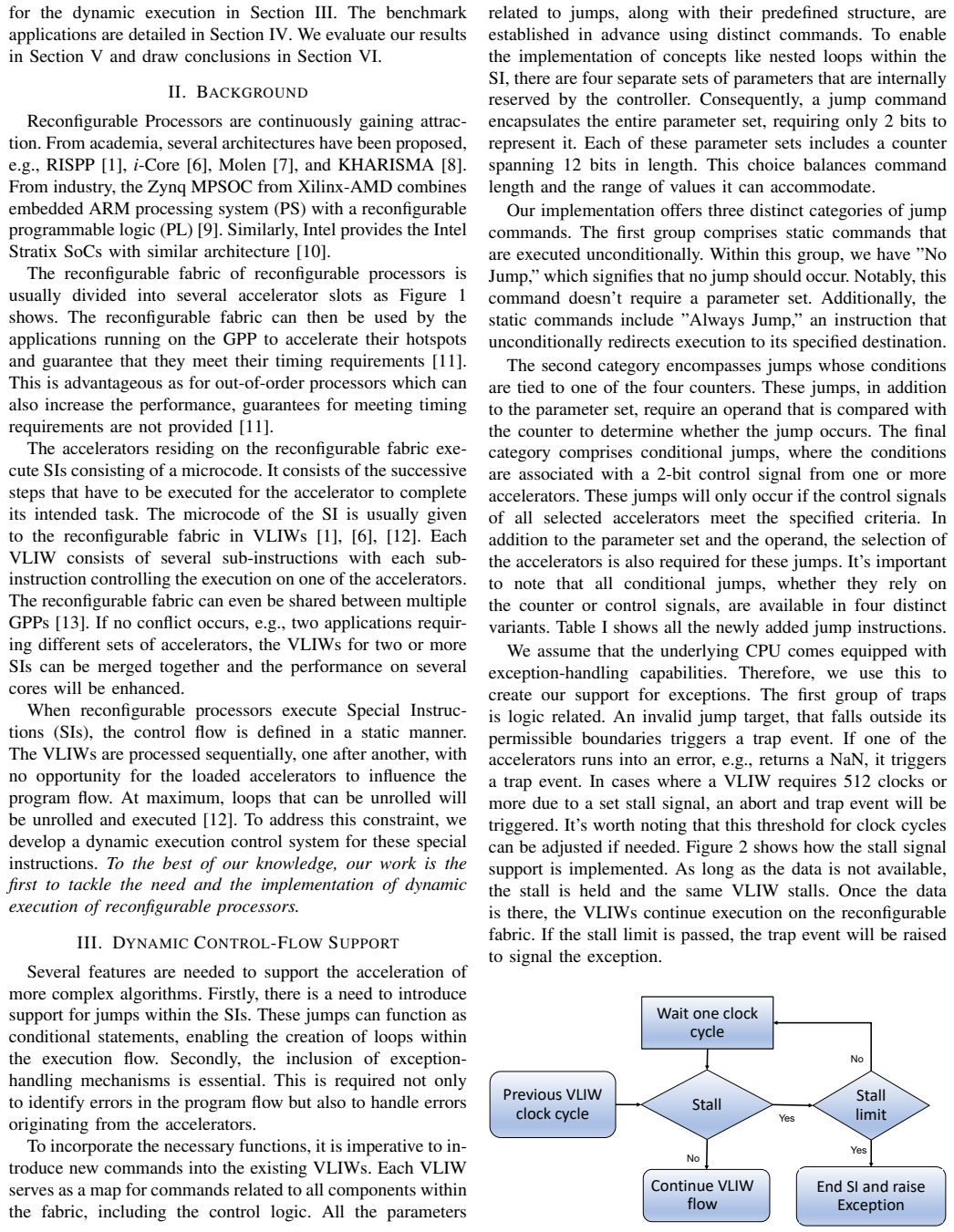

Figure 2
Figure 2. Figure 2: Exception Support for the Dynamic Control-Flow [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Accelerators design executing the SIFT-match SI [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Line buffers used for the CNN-MAC accelerator. Streaming data to [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: Accelerator designed for utility acceleration for the SWE-SI. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 7
Figure 7. Figure 7: The internal structure of the SHA-Comp accelerator [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗

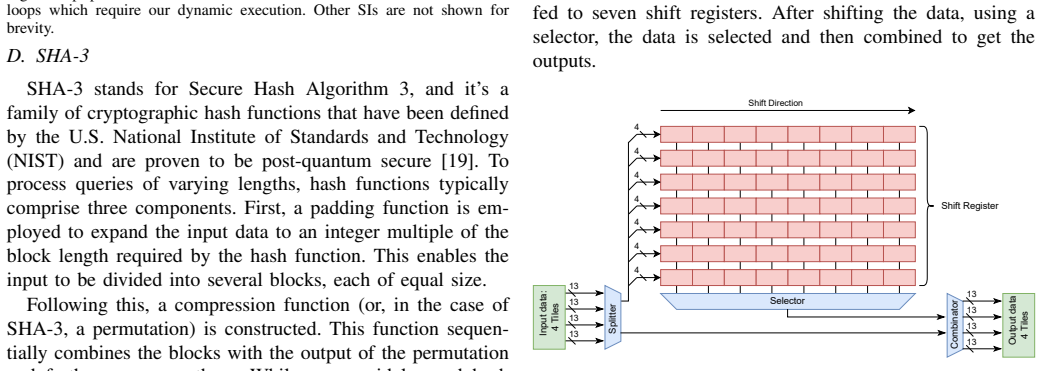

Figure 8
Figure 8. Figure 8: Structure of the Rho buffer The final structure of the reconfigurable fabric uses two SHA-Buff accelerators and two SHA-Comp accelerators. The data streamed from each SHA-Buff accelerator is then fed directly to one of the SHA-Comp accelerators. Then each of the SHA-Comp accelerators performs the post-quantum-secure algorithm on part of the data in parallel to have maximum acceleration. Benefit to SHA from… view at source ↗
Figure 9
Figure 9. Figure 9: Execution time improvement of the benchmarking applications. The [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
read the original abstract

As the need for more computing power grows, traditional methods are hitting limits. To boost performance, we're expanding Central Processing Unit (CPU) capabilities and using specialized hardware accelerators. For example, mobile devices usually have cameras, video encoding, and audio accelerators. To perform the different tasks, these accelerators execute microcode programs. These accelerators, however, take up space and often sit idle. Reconfigurable processors offer a solution. They have a normal core connected to several accelerator slots. These accelerator slots can be filled during runtime to accommodate the application running. Once one application finishes and another application is running, the accelerators can be switched. For example, playing music after using the camera. In this work, we introduce dynamic control-flow execution for the microcode of runtime reconfigurable processors, i.e., support for loops, conditional jumps, and exception handling. We benchmark using four different applications from four domains (object detection, ocean movement simulation, artificial intelligence and security) that all are compute-intensive and would require the dynamic control-flow when executed on reconfigurable processors. We show that the dynamic control-flow allows different applications to be executed with significant speedup in comparison with execution on general-purpose processors.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes adding dynamic control-flow support (loops, conditional jumps, and exception handling) to microcode execution on accelerators within runtime reconfigurable processors, which consist of a general-purpose core plus multiple runtime-swappable accelerator slots. It evaluates the extension on four compute-intensive applications drawn from object detection, ocean movement simulation, artificial intelligence, and security, asserting that these applications require dynamic control-flow and that the feature yields significant speedups relative to general-purpose processors.

Significance. If the claimed speedups can be shown to stem specifically from the dynamic control-flow primitives rather than from accelerator usage alone, the work would address a practical limitation in reconfigurable architectures by enabling more complex control structures without frequent slot switching or idle time. This could improve accelerator utilization in embedded and mobile systems.

major comments (2)
  1. [Abstract and Evaluation] Abstract and Evaluation section: the central claim that the four applications 'would require the dynamic control-flow' is stated without any supporting analysis, microcode examples, control-flow graphs, or ablation comparing performance under dynamic versus static (straight-line or unrolled) microcode control for the same accelerators. This is load-bearing for attributing any observed speedup to the new dynamic features rather than to the accelerators themselves.
  2. [Abstract] Abstract: the statement that benchmarks 'demonstrate significant speedup' supplies no quantitative results, error bars, baseline processor details, or overhead measurements, so the data-to-claim link cannot be verified.
minor comments (1)
  1. [Abstract] Abstract: the phrase 'these accelerators, however, take up space and often sit idle' could be expanded with a brief reference to prior measurements of utilization in reconfigurable systems.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and have updated the manuscript to strengthen the supporting evidence and quantitative presentation.

read point-by-point responses

  1. Referee: [Abstract and Evaluation] Abstract and Evaluation section: the central claim that the four applications 'would require the dynamic control-flow' is stated without any supporting analysis, microcode examples, control-flow graphs, or ablation comparing performance under dynamic versus static (straight-line or unrolled) microcode control for the same accelerators. This is load-bearing for attributing any observed speedup to the new dynamic features rather than to the accelerators themselves.

    Authors: We agree that additional supporting material is needed to substantiate the claim. The revised manuscript will include microcode snippets for each of the four applications, control-flow graphs highlighting loops and conditional branches, and an ablation study that isolates the contribution of dynamic control-flow primitives versus static or unrolled execution on identical accelerator configurations. These additions will allow readers to verify that the reported speedups arise specifically from the new dynamic features. revision: yes

  2. Referee: [Abstract] Abstract: the statement that benchmarks 'demonstrate significant speedup' supplies no quantitative results, error bars, baseline processor details, or overhead measurements, so the data-to-claim link cannot be verified.

    Authors: We accept this criticism. The abstract will be revised to report the concrete speedup factors achieved for each application, the exact general-purpose processor baseline used, standard deviation or error bars from repeated measurements, and the measured overhead of the dynamic control-flow mechanisms. revision: yes

Circularity Check

0 steps flagged

No circularity in empirical implementation and benchmark

full rationale

The paper describes an architectural extension for dynamic control-flow (loops, jumps, exceptions) in runtime-reconfigurable processors and reports direct wall-clock speedups measured on four chosen applications versus general-purpose processors. No equations, fitted parameters, or first-principles derivations are presented whose outputs are shown to equal their inputs by construction. The statement that the applications “would require the dynamic control-flow” functions as a selection criterion for the benchmark suite rather than a result derived from the measured speedups; the speedups themselves are independent empirical observations and do not feed back into that premise. No self-citations or uniqueness theorems are invoked to justify the central claim. The derivation chain is therefore self-contained and non-circular.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on the domain assumption that runtime reconfiguration of accelerator slots remains feasible once control-flow is added to microcode and that the selected applications truly require those control-flow features. No free parameters, additional axioms, or invented entities are introduced.
