arxiv: 2606.26974 · v1 · pith:6MIVFVPCnew · submitted 2026-06-25 · 🧬 q-bio.PE

Hyperiax and Phylogenetic Inference from Shape Data

Gefan Yang , Marcus Teller , Christy Hipsley , Rasmus Nielsen , Stefan Sommer This is my paper

Pith reviewed 2026-06-26 01:48 UTC · model grok-4.3

classification 🧬 q-bio.PE
keywords phylogenetic inferenceshape datalandmarksBFFGJAXancestral reconstructionmorphological traitstree traversal
0
0 comments X

The pith

Hyperiax library enables BFFG-based inference of parameters and ancestral states from shape landmarks on phylogenetic trees with hundreds of nodes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents Hyperiax as an open-source JAX library for tree traversal and message passing that supports the Backward Filtering Forward Guiding framework. This framework performs smoothing on nonlinear stochastic processes defined on trees, which in turn permits parameter inference and reconstruction of ancestral shapes from high-dimensional landmark data. The library achieves this on trees containing 850 and 696 nodes using 118 two-dimensional and 79 three-dimensional landmarks, respectively, exceeding the scale of earlier applications. A reader would care because the approach removes a computational barrier that had restricted such analyses to smaller trees and lower-resolution shapes.

Core claim

Hyperiax is an open-source library that implements tree traversal algorithms and message passing using JAX to support the Backward Filtering Forward Guiding (BFFG) framework. The framework supplies smoothing for nonlinear stochastic processes on trees and thereby enables inference of parameters and ancestral states. The library is shown to perform efficient inference in both discrete-time and stochastic differential equation models on two substantially larger phylogenetic trees than previously feasible, using butterfly wing shapes represented by 118 two-dimensional landmarks on an 850-node tree and avian beak shapes represented by 79 three-dimensional landmarks on a 696-node tree.

What carries the argument

The Backward Filtering Forward Guiding (BFFG) framework, which supplies smoothing for nonlinear stochastic processes on trees to enable parameter inference and ancestral-state reconstruction.

If this is right

  • Parameter inference and ancestral reconstruction become feasible for 2D butterfly wing shapes on an 850-node tree with 118 landmarks.
  • Analyses of 3D avian beak shapes become feasible on a 696-node tree with 79 landmarks.
  • The same operations apply to both discrete-time models and stochastic differential equation models.
  • Higher-resolution shape data can be handled on larger trees than in prior work.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same JAX-based tree operations could support other nonlinear diffusion models on phylogenies beyond the two demonstrated cases.
  • Scaling the library to trees with several thousand nodes would require only additional memory and parallel hardware rather than new algorithmic ideas.
  • The message-passing design makes it straightforward to replace the landmark representation with other shape descriptors such as outline curves or surface meshes.

Load-bearing premise

The Backward Filtering Forward Guiding framework correctly supplies smoothing for nonlinear stochastic processes on trees and thereby enables reliable inference of parameters and ancestral states.

What would settle it

Re-running the butterfly-wing and avian-beak analyses with Hyperiax and checking whether the resulting parameter estimates and ancestral reconstructions match those obtained from an independent implementation of BFFG or from simulated data generated under the same model.

Figures

Figures reproduced from arXiv: 2606.26974 by Christy Hipsley, Gefan Yang, Marcus Teller, Rasmus Nielsen, Stefan Sommer.

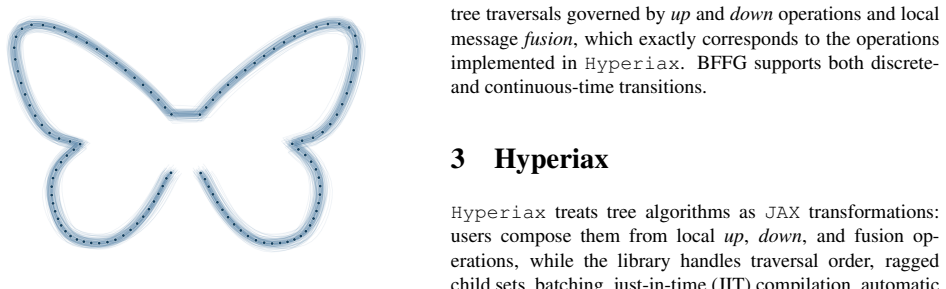

Figure 1
Figure 1. Figure 1: Bayesian inference of the phylogenetic root shape for the butterfly dataset described in the Experiments section. The tree has 425 shape observations at the leaves, each represented by 118 land￾marks in 2D. Pale blue curves show posterior MCMC samples of the ancestral root shape, while dark points show the posterior mean land￾mark positions. Inference is performed by repeated Hyperiax tree traversals imple… view at source ↗

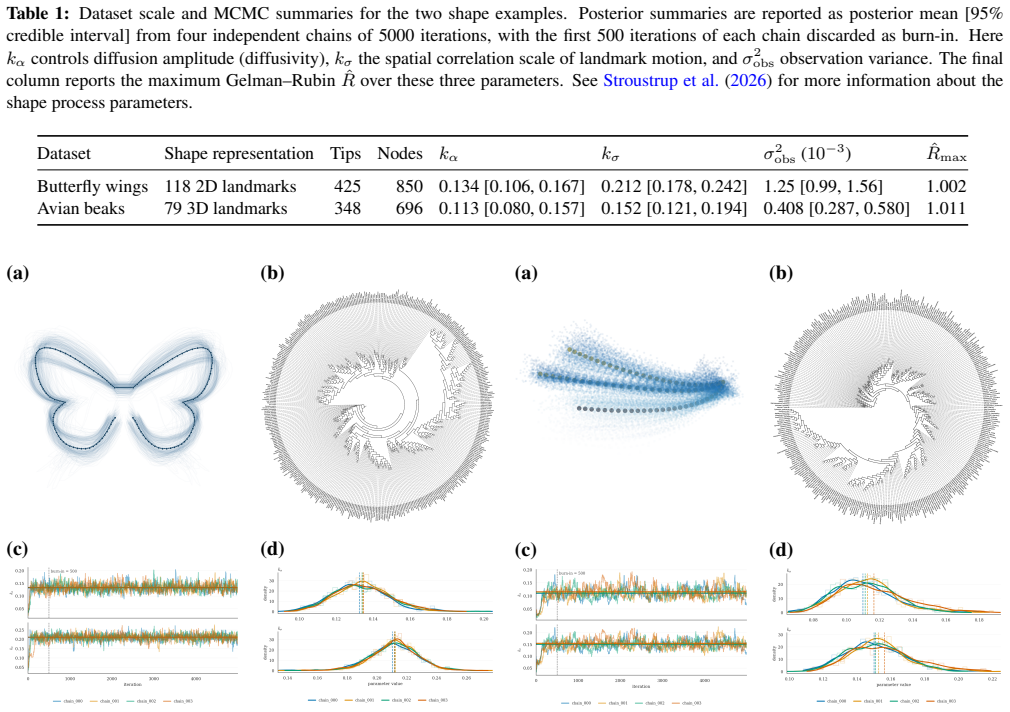

Figure 2
Figure 2. Figure 2: Inference of parameters and ancestral states for butterfly shapes. (a) Observed leaf-shape ensemble across all 425 leaves; pale curves show individual leaf shapes and dark landmarks summarize the mean observed configuration. (b) Phylogenetic tree. (c) MCMC traces for the parameters of the shape process - diffusivity kα and spatial correlation kσ. (d) Marginal posterior densities for the same parameters. Da… view at source ↗
read the original abstract

Phylogenetic inference on high-dimensional morphological traits requires algorithms that account for both the nonlinear geometry of the shape data and the phylogenetic tree structure. The Backward Filtering Forward Guiding (BFFG) framework provides smoothing for nonlinear stochastic processes on trees and enables inference of parameters and ancestral states. As practical adoption has been limited by a lack of efficient implementations, we present Hyperiax, an open-source library for tree traversal algorithms and message passing using JAX, designed particularly to support operations needed for BFFG. Hyperiax enables efficient execution of operations on trees with large numbers of nodes and, coupled with the BFFG-specific operations, this allows efficient inference in both discrete-time and stochastic differential equation models. Concretely, we demonstrate that Hyperiax enables parameter inference and ancestral reconstruction for butterfly wing shapes represented by landmarks in two dimensions, and analyses of avian beaks from landmarks in three dimensions. Both cases demonstrate application of BFFG on two substantially larger phylogenetic trees with 850 and 696 nodes with higher resolution shape data (118 two-dimensional landmarks and 79 three-dimensional landmarks, specifically) than previously possible.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript presents Hyperiax, an open-source JAX library implementing tree traversal and message-passing operations to support the Backward Filtering Forward Guiding (BFFG) framework for smoothing nonlinear stochastic processes on phylogenetic trees. It claims this enables parameter inference and ancestral reconstruction for high-dimensional shape data, demonstrated on butterfly wing landmarks (118 2D points) and avian beak landmarks (79 3D points) using trees of 850 and 696 nodes.

Significance. If the efficiency and correctness claims hold, the library would allow scaling of BFFG-based morphological inference to larger phylogenies and denser landmark configurations than previously reported, with the open-source JAX implementation providing a reproducible foundation for further work in phylogenetic shape analysis.

major comments (1)
  1. [Abstract] Abstract: the central claim that Hyperiax 'enables ... analyses ... on two substantially larger phylogenetic trees with 850 and 696 nodes with higher resolution shape data ... than previously possible' is unsupported by any quantitative metrics, runtime benchmarks, error analysis, or explicit comparison to prior implementations or baselines.
minor comments (2)
  1. The manuscript should include explicit statements of the BFFG update equations implemented in Hyperiax (with section or equation numbers) to allow readers to verify that the library faithfully realizes the cited framework.
  2. No information is given on numerical stability, convergence criteria, or handling of missing landmarks; adding a short methods subsection on these implementation choices would improve clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the review and the specific comment on the abstract. We address it directly below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that Hyperiax 'enables ... analyses ... on two substantially larger phylogenetic trees with 850 and 696 nodes with higher resolution shape data ... than previously possible' is unsupported by any quantitative metrics, runtime benchmarks, error analysis, or explicit comparison to prior implementations or baselines.

    Authors: We agree that the comparative phrasing in the abstract is not backed by explicit quantitative metrics, runtime benchmarks, error analysis, or side-by-side comparisons to earlier BFFG implementations. The manuscript demonstrates successful application of the library on the stated tree sizes and landmark counts, but does not quantify improvement relative to prior work. We will revise the abstract to remove or qualify the unsupported claim of being 'substantially larger ... than previously possible.' In the revised manuscript we will also add a results subsection with available runtime figures and any error metrics from the reported experiments. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper introduces the Hyperiax library as an implementation of the existing BFFG framework for tree-based smoothing and inference on shape landmarks. No derivation, equation, or parameter fit is presented that reduces by construction to its own inputs; the work consists of software demonstrations on external phylogenetic datasets (850- and 696-node trees) rather than any self-referential prediction or ansatz. BFFG is treated as a prior framework whose correctness is not re-derived here. No self-citation chain, uniqueness theorem, or renaming of known results is load-bearing for the central claim. The contribution is therefore self-contained as an engineering artifact whose value is measured by external applicability.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is a software contribution; it introduces no new mathematical free parameters, axioms, or postulated entities beyond standard assumptions of the cited BFFG framework and JAX primitives.
