arxiv: 2606.07328 · v1 · pith:6XQ5RHLAnew · submitted 2026-06-05 · 📡 eess.SP

Implementation and Calibration of 3GPP-Compliant ISAC Channel Simulator

Chien-Han Wu , Ming-Chun Lee , Ta-Sung Lee This is my paper

Pith reviewed 2026-06-27 21:09 UTC · model grok-4.3

classification 📡 eess.SP
keywords ISACchannel modeling3GPPsimulatorcalibration6Gintegrated sensing and communicationTR 38.901
0
0 comments X

The pith

The implemented 3GPP ISAC channel simulator produces results consistent with company reference calibrations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper implements the ISAC channel model from 3GPP TR 38.901 and performs calibration against reference results supplied by participating companies. The work identifies implementation details that can cause inconsistent outputs across simulators due to ambiguities in the standard. By releasing the simulator, datasets, and calibration results as open source, the authors enable reproducible evaluations for integrated sensing and communication systems. A sympathetic reader would care because accurate channel simulation is required to assess 6G ISAC performance before hardware deployment.

Core claim

The simulator, after following the 3GPP calibration procedure, generates channel realizations whose statistics align with the reference results reported by companies in 3GPP.

What carries the argument

The 3GPP ISAC channel model simulator specified in TR 38.901 together with its calibration procedure against company reference results.

If this is right

  • Developers obtain a verified baseline for consistent ISAC performance evaluation.
  • Clarified implementation details reduce divergence among future simulators.
  • Open-source release supports direct reproducibility checks by other groups.
  • The calibrated tool can be used to benchmark new ISAC algorithms against the standard model.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Widespread adoption of this reference implementation could reduce the need for repeated inter-company calibration rounds.
  • The same methodology might be applied to future extensions of the ISAC model beyond the current TR 38.901 scenarios.
  • Community contributions to the open-source code could surface additional edge cases not covered in the original calibration.
  • The work implies that standards with complex geometry-based modeling benefit from public reference code rather than text alone.

Load-bearing premise

The 3GPP TR 38.901 report plus the company reference results together define a unique, unambiguous implementation target that any correct simulator must match.

What would settle it

Running an independent implementation that strictly follows the same TR 38.901 rules and calibration steps yet produces outputs outside the tolerance bands of the company reference results.

Figures

Figures reproduced from arXiv: 2606.07328 by Chien-Han Wu, Ming-Chun Lee, Ta-Sung Lee.

Figure 1

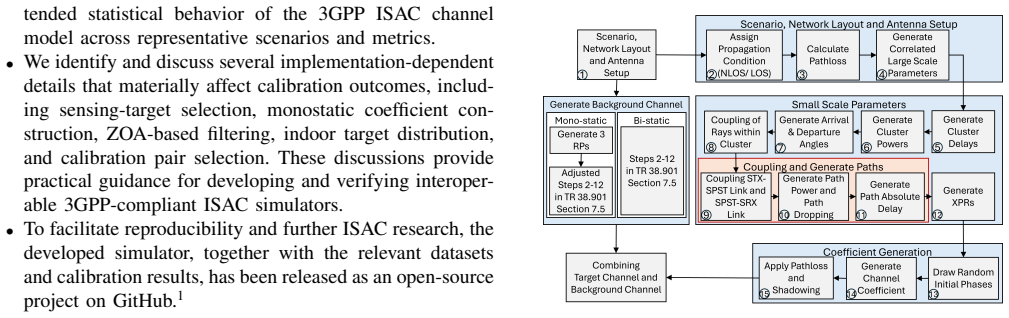

Figure 1. Figure 1: ISAC channel coefficient generation procedure. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

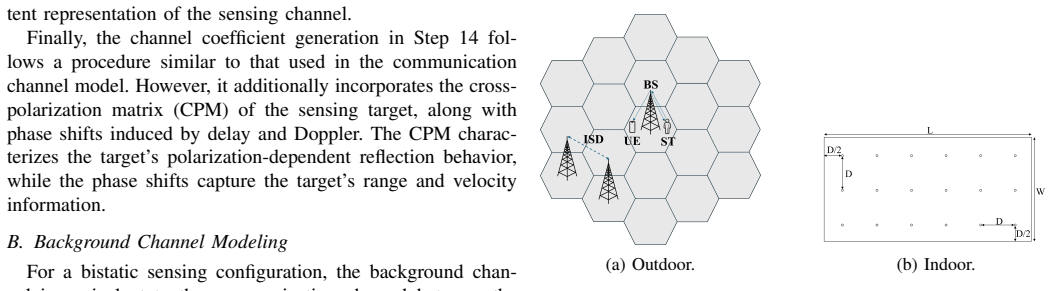

Figure 2. Figure 2: Illustration of the network layout for different scenarios. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

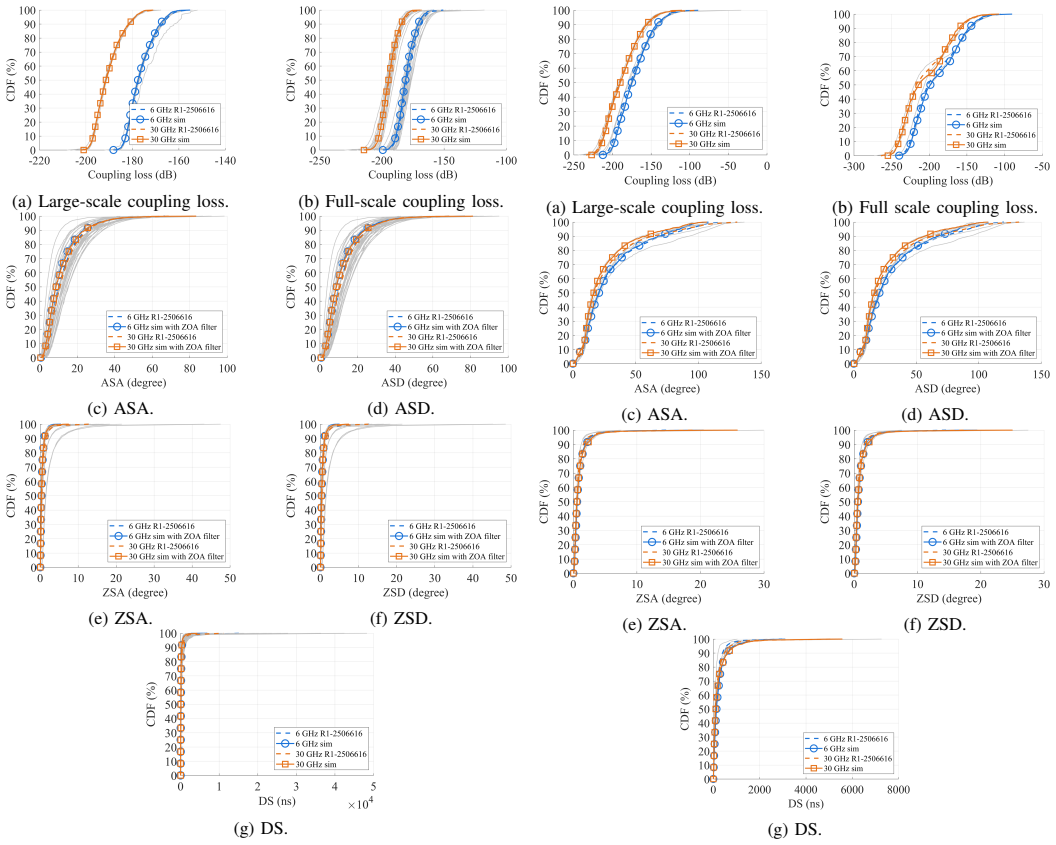

Figure 3. Figure 3: Target channel calibrations for UMa-AV scenario with [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 5

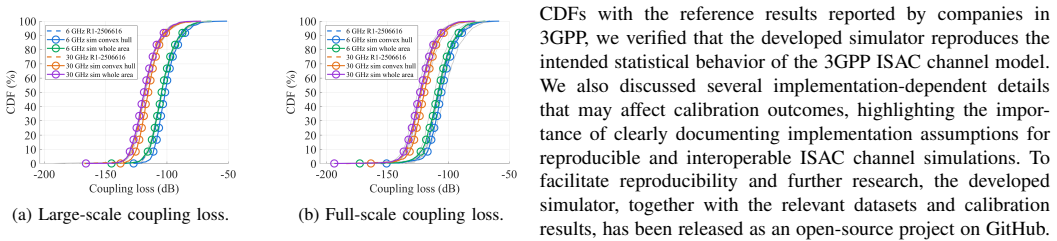

Figure 5. Figure 5: Target channel calibrations for InH Human scenario with [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

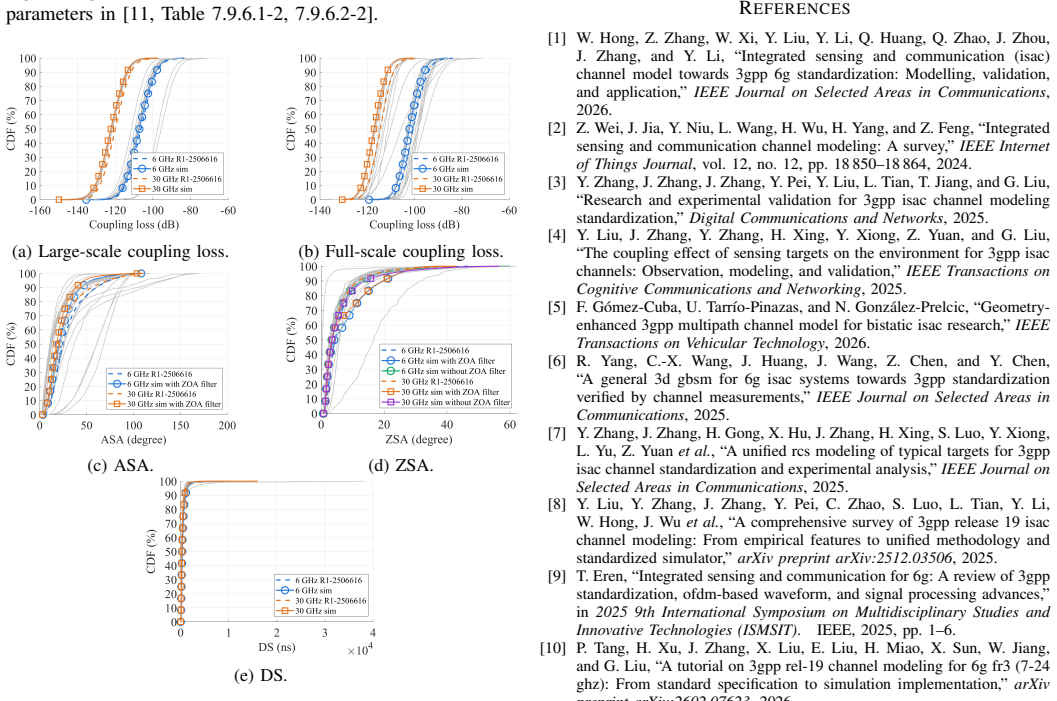

Figure 6. Figure 6: Background channel calibrations for UMa-AV with [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
read the original abstract

Integrated sensing and communication (ISAC) has emerged as a key technology for 6G systems. To support the development of ISAC systems, accurate channel modeling and simulation for performance evaluation is essential. Recently, 3GPP introduced a standardized ISAC channel model and its associated calibration procedure for this purpose. However, due to the complexity of the modeling methodology and the lack of fully explicit implementation details in the 3GPP reports, different implementations may lead to inconsistent or unsynchronized simulation results. To address this issue, in this work, we implement the 3GPP ISAC channel model simulator specified in TR 38.901 and conduct a comprehensive calibration analysis. We compare the simulation results with the reference results reported by companies in 3GPP and discuss several key implementation details to provide insights into the implementation and calibration of the simulator. To facilitate reproducibility and further research, the developed simulator, together with the relevant datasets and calibration results, has been released as an open-source project on GitHub.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 1 minor

Summary. The paper implements the 3GPP ISAC channel model from TR 38.901, performs calibration against reference results reported by companies participating in 3GPP, discusses key implementation details to address ambiguities in the standard, and releases the simulator, datasets, and calibration scripts as open-source on GitHub.

Significance. If the reported calibration holds, the work supplies a reproducible, open-source ISAC channel simulator that directly supports 6G system evaluation. The explicit treatment of implementation choices and the multi-company matching, together with the public release of code and data, constitute a concrete contribution to standardization and reproducibility in the field.

minor comments (1)
  1. The manuscript would benefit from a short table or appendix listing the exact parameter settings (e.g., carrier frequency, bandwidth, antenna configurations) used for each calibration scenario referenced in the comparison with company results.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript, the recognition of its contribution to reproducibility in ISAC channel modeling, and the recommendation to accept.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper's central claim is that an open-source implementation of the 3GPP TR 38.901 ISAC channel model produces outputs matching independent reference results reported by multiple companies. This rests on an external specification plus externally generated calibration targets, with released code and datasets enabling direct reproduction; no derivation step reduces by construction to the paper's own fitted values, self-citations, or ansatzes.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Paper implements an external standard; abstract mentions no new free parameters, axioms beyond the 3GPP report, or invented entities.
