arxiv: 2605.16934 · v1 · pith:7B5J7GDBnew · submitted 2026-05-16 · 📡 eess.SP · cs.ET

Estimating Target Doppler in Unsynchronized Multistatic ISAC Deployments with Mobile Nodes

Zaman Bhalli , Michele Rossi , Joerg Widmer , Marco Canil This is my paper

Pith reviewed 2026-05-19 19:44 UTC · model grok-4.3

classification 📡 eess.SP cs.ET
keywords ISACDoppler estimationmultistaticasynchronous nodesmobile transmittertarget sensing6Gphase offset invariance
0
0 comments X

The pith

A mobile transmitter and at least four asynchronous static receivers can estimate target Doppler shifts in multistatic ISAC without external reflectors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a method to measure the frequency shift a moving target imparts on ISAC signals when the transmitter itself is moving and the receivers run on independent clocks. In typical 6G scenarios these extra frequency contributions from mobility and asynchrony mask the target signature, and prior solutions required either perfect synchronization or an external reference surface. The new approach uses the fact that certain phase offsets stay the same across different signal paths, then applies geometric relations among the known node positions to cancel the unwanted terms. The resulting system of equations becomes solvable once four or more static receivers are present. Numerical tests across several geometries show that the extracted Doppler values track the true target motion.

Core claim

In a multistatic ISAC deployment with one mobile transmitter and multiple static but unsynchronized receivers, the target-induced Doppler frequency can be recovered by exploiting the invariance of phase offsets across multipath components together with geometrical relationships among the nodes; the problem admits a solution when at least four receivers are available and no external reflector is used.

What carries the argument

Invariance of phase offsets across multipath components, combined with geometrical relationships to isolate target Doppler from mobility and clock-offset contributions.

If this is right

  • Target Doppler can be recovered even though the transmitter is moving and the receivers are not synchronized with it.
  • No external reference reflector is required to cancel the extra frequency terms.
  • The estimation equations become determined once the number of static receivers reaches four.
  • Numerical simulations confirm usable accuracy across varied node placements and target velocities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same phase-invariance principle might allow extension to velocity tracking or range estimation in the same unsynchronized setting.
  • Deployments could trade extra low-cost receivers for the cost of synchronization hardware.
  • The four-receiver minimum suggests a practical rule of thumb for planning multistatic ISAC layouts in dynamic environments.

Load-bearing premise

Phase offsets remain the same for every multipath component, so geometry alone can separate the target Doppler from the other frequency shifts.

What would settle it

A controlled experiment with exactly four receivers in which the estimated Doppler equals the known target velocity only when phase offsets are forced to be identical across paths, but diverges measurably when those offsets are allowed to differ.

Figures

Figures reproduced from arXiv: 2605.16934 by Joerg Widmer, Marco Canil, Michele Rossi, Zaman Bhalli.

Figure 1
Figure 1. Figure 1: Geometric representation of the considered scenario [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: , where Nrx = 4 and the RXs are placed along a vertical line, and let us take the RX with n = 1 as a reference RX for the subsequent derivations. The computations can be easily extended to arbitrary geometries. By combining the known locations of the RXs and the AoAs of the received paths, we use the n LoS paths to localize the TX, and the n target paths to localize the target. For each pair of RXs, an est… view at source ↗
Figure 3
Figure 3. Figure 3: Target Doppler MAE versus (a) AoA noise and (b) [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

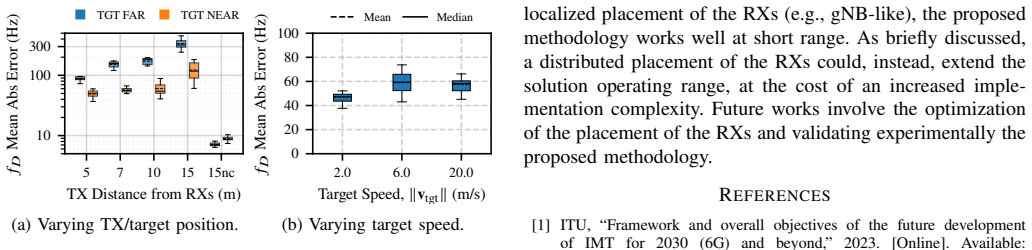

Figure 4. Figure 4: MAE of the target Doppler as a function of (a) [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

Integrated Sensing And Communication (ISAC) is recognized as a key enabler for future 6th Generation (6G) networks, combining communication capabilities with pervasive sensing. In such systems, the estimation of the Doppler shift plays a crucial role for target characterization. However, typical real-world ISAC scenarios largely involve bistatic or multistatic configurations and mobile ISAC nodes. Under these conditions, Doppler estimation becomes particularly challenging, as clock asynchrony between the Transmitter (TX) and the Receivers (RXs), combined with their mobility, introduces additional Doppler components and phase offsets that distort or disrupt the target-induced frequency shift. Existing works have considered these challenges separately or relied on external reference reflectors. In this paper, we present the first method to estimate the Doppler frequency of a target with mobile and asynchronous ISAC nodes in a multistatic configuration, considering the case of a mobile TX and multiple static RXs, and without leveraging any external reflector. By leveraging the invariance of the phase offsets across multipath components and exploiting geometrical relationships, we show that the problem is solvable if at least 4 RXs are present. We evaluate the proposed solution through numerical simulations in various scenarios, showing that it is a valid approach for estimating target Doppler shifts in unsynchronized multistatic ISAC deployments with mobile nodes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes the first method to estimate target Doppler frequency in unsynchronized multistatic ISAC deployments with a mobile transmitter and multiple static receivers, without external reflectors. It claims solvability with at least four receivers by exploiting invariance of phase offsets across multipath components sharing the same TX-RX link together with geometrical relationships to isolate the target-induced Doppler from mobility and asynchrony effects. The approach is evaluated via numerical simulations in various scenarios.

Significance. If the central claim holds, the work would be a meaningful contribution to practical 6G ISAC sensing, addressing the combined effects of mobility and clock asynchrony that have previously been treated separately. The numerical simulations provide initial validation across scenarios, which is a positive aspect of the manuscript.

major comments (2)
  1. [§3] §3 (Proposed Method) and the solvability argument: the claim that the problem becomes solvable with ≥4 static RXs rests on subtracting a single scalar phase offset per TX-RX link. The manuscript asserts but does not derive that this offset remains identical for every multipath component once the TX moves; mobility-induced differential delays can produce distinct hardware and propagation phases, making the resulting linear system inconsistent and preventing recovery of the target Doppler from range-rate measurements alone. This assumption is load-bearing for the central claim.
  2. [§5] §5 (Numerical Results): the simulations demonstrate performance under selected scenarios but contain no explicit stress test of the phase-invariance premise (e.g., varying TX velocity, number of multipath components, or differential delay spread). Without such a test, it is not possible to confirm that the reported estimation accuracy survives the conditions that would violate the key modeling assumption.
minor comments (2)
  1. [Abstract] The abstract states that the method is 'a valid approach' but does not quantify the estimation error or the conditions under which the four-RX threshold is tight; adding a short statement of the achieved RMSE or CRLB comparison would improve clarity.
  2. [§2] Notation for the per-link phase offset and the geometry-derived correction term is introduced without an explicit equation reference in the early sections; a single consolidated definition table or equation block would reduce ambiguity when reading the linear-system derivation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment below and will revise the manuscript accordingly to strengthen the presentation.

read point-by-point responses

  1. Referee: [§3] §3 (Proposed Method) and the solvability argument: the claim that the problem becomes solvable with ≥4 static RXs rests on subtracting a single scalar phase offset per TX-RX link. The manuscript asserts but does not derive that this offset remains identical for every multipath component once the TX moves; mobility-induced differential delays can produce distinct hardware and propagation phases, making the resulting linear system inconsistent and preventing recovery of the target Doppler from range-rate measurements alone. This assumption is load-bearing for the central claim.

    Authors: We appreciate the referee highlighting the need for an explicit derivation. In the model, the scalar phase offset per TX-RX link consists of hardware phases (TX and RX) and common propagation/asynchrony terms that are identical for all multipath components sharing the same link. TX mobility changes individual path lengths, but these affect only the differential delays and range-rates; the common phase offset remains link-specific and invariant across paths. We will add a step-by-step derivation in the revised Section 3 that separates common and differential phase components to show why the offset is identical and the linear system for isolating target Doppler remains consistent. revision: yes

  2. Referee: [§5] §5 (Numerical Results): the simulations demonstrate performance under selected scenarios but contain no explicit stress test of the phase-invariance premise (e.g., varying TX velocity, number of multipath components, or differential delay spread). Without such a test, it is not possible to confirm that the reported estimation accuracy survives the conditions that would violate the key modeling assumption.

    Authors: We agree that additional stress testing would provide stronger validation. In the revised Section 5 we will include new simulation results that systematically vary TX velocity, the number of multipath components, and differential delay spread. These experiments will quantify estimation accuracy under conditions that approach or test the boundaries of the phase-invariance assumption, thereby confirming the robustness of the reported performance. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation rests on independent geometric and invariance assumptions

full rationale

The paper presents a method to estimate target Doppler using phase-offset invariance across multipath components together with geometrical relationships in a multistatic setup with a mobile TX and ≥4 static RXs. These elements are introduced as external premises that enable solvability; the target Doppler is recovered from them rather than used to define or fit them. No equations in the provided abstract reduce the claimed result to a fitted parameter or self-citation chain, and the derivation is therefore self-contained against external geometric and propagation facts.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption of phase offset invariance across multipath components and the availability of sufficient geometric information from multiple receivers. No free parameters or invented entities are mentioned in the abstract.

axioms (1)
  • domain assumption Phase offsets are invariant across multipath components
    This invariance is used to isolate the target Doppler shift from distortions due to mobility and asynchrony.

pith-pipeline@v0.9.0 · 5772 in / 1319 out tokens · 61465 ms · 2026-05-19T19:44:37.045778+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

16 extracted references · 16 canonical work pages

  1. [1]

    Framework and overall objectives of the future development of IMT for 2030 (6G) and beyond,

    ITU, “Framework and overall objectives of the future development of IMT for 2030 (6G) and beyond,” 2023. [Online]. Available: https://www.itu.int/rec/R-REC-M.2160-0-202311-I/en

    work page 2030

  2. [2]

    millitrace-ir: Contact tracing and temperature screening via mmwave and infrared sensing,

    M. Canil, J. Pegoraro, and M. Rossi, “millitrace-ir: Contact tracing and temperature screening via mmwave and infrared sensing,”IEEE Journal of Selected Topics in Signal Processing, vol. 16, no. 2, pp. 208–223, 2022

    work page 2022

  3. [3]

    Jump: Joint communication and sensing with unsynchronized transceivers made practical,

    J. Pegoraro, J. O. Lacruz, T. Azzino, M. Mezzavilla, M. Rossi, J. Wid- mer, and S. Rangan, “Jump: Joint communication and sensing with unsynchronized transceivers made practical,”IEEE Transactions on Wireless Communications, 2024

    work page 2024

  4. [4]

    K. Wu, J. Pegoraro, F. Meneghello, J. A. Zhang, J. O. Lacruz, J. Widmer, F. Restuccia, M. Rossi, X. Huang, D. Zhanget al., “Sensing in bistatic isac systems with clock asynchronism: A signal processing perspective [special issue on signal processing for the integrated sensing and communications revolution],”IEEE Signal Processing Magazine, vol. 41, no. 5,...

    work page 2024

  5. [5]

    Multiple-target doppler frequency estimation in isac with clock asynchronism,

    J. Zhao, Z. Lu, J. A. Zhang, S. Dong, and S. Zhou, “Multiple-target doppler frequency estimation in isac with clock asynchronism,”IEEE Transactions on Vehicular Technology, vol. 73, no. 1, pp. 1382–1387, 2024

    work page 2024

  6. [6]

    An experimental prototype for multistatic asynchronous isac,

    M. Canil, J. Pegoraro, J. O. Lacruz, M. Mezzavilla, M. Rossi, J. Widmer, and S. Rangan, “An experimental prototype for multistatic asynchronous isac,” inProceedings of the First ACM Workshop on MmWave Sensing Systems and Applications, ser. mmWave ’23. New York, NY , USA: Association for Computing Machinery, 2023, p. 16–17. [Online]. Available: https://doi...

    work page doi:10.1145/3628357.3629710 2023

  7. [7]

    Bistatic doppler frequency estimation with asynchronous moving devices for integrated sensing and communications,

    G. Ventura, Z. Bhalli, M. Rossi, and J. Pegoraro, “Bistatic doppler frequency estimation with asynchronous moving devices for integrated sensing and communications,”IEEE Wireless Communications Letters, 2024

    work page 2024

  8. [8]

    Asymov: Integrated sensing and communications with asynchronous moving devices,

    G. Ventura, M. Rossi, and J. Pegoraro, “Asymov: Integrated sensing and communications with asynchronous moving devices,” 2025. [Online]. Available: https://arxiv.org/abs/2412.10387

    work page arXiv 2025

  9. [9]

    Phase and Time Synchronization for 5G C-RAN: Requirements, Design Challenges and Recent Advances in Standardization,

    D. Philip Venmani, Y . Lagadec, O. Lemoult, and F. Deletre, “Phase and Time Synchronization for 5G C-RAN: Requirements, Design Challenges and Recent Advances in Standardization,”EAI Endorsed Transactions on Industrial Networks and Intelligent Systems, vol. 5, no. 15, p. e3, Aug. 2018. [Online]. Available: https: //publications.eai.eu/index.php/inis/articl...

    work page 2018

  10. [10]

    Ericsson Cloud RAN,

    Ericsson, “Ericsson Cloud RAN,” Stockholm, Sweden, 2025, accessed: 2026-01-20. [Online]. Available: https://www.ericsson.com/en/ran/cloud

    work page 2025

  11. [11]

    3GPP TR 38.901 version 16.1.0 Release 16,

    3rd Generation Partnership Project, “3GPP TR 38.901 version 16.1.0 Release 16,” 2020. [Online]. Available: https://www.etsi.org/deliver/ etsi tr/138900 138999/138901/16.01.00 60/tr 138901v160100p.pdf

    work page 2020

  12. [12]

    J. G. Proakis and D. G. Manolakis,Digital signal processing (3rd ed.): principles, algorithms, and applications. USA: Prentice-Hall, Inc., 1996

    work page 1996

  13. [13]

    Li and P

    J. Li and P. Stoica,MIMO radar signal processing. John Wiley & Sons, 2008

    work page 2008

  14. [14]

    5G Toolbox (R2023b),

    The MathWorks, Inc., “5G Toolbox (R2023b),” [Computer software], Natick, Massachusetts, United States, 2023. [Online]. Available: https://www.mathworks.com/products/5g.html

    work page 2023

  15. [15]

    3GPP TS 38.101-1 version 18.6.0 Release 17,

    3rd Generation Partnership Project, “3GPP TS 38.101-1 version 18.6.0 Release 17,” 2024. [Online]. Available: https://www.etsi.org/deliver/etsi ts/138100 138199/13810101/18.06.00 60/ts 13810101v180600p.pdf

    work page 2024

  16. [16]

    On channel estimation in ofdm systems,

    J.-J. van de Beek, O. Edfors, M. Sandell, S. Wilson, and P. Borjesson, “On channel estimation in ofdm systems,” in1995 IEEE 45th Vehic- ular Technology Conference. Countdown to the Wireless Twenty-First Century, vol. 2, 1995, pp. 815–819 vol.2

    work page 1995
