Solar Wind Dependence on Source Distance from the Open-Closed Boundary

T0 review · 2 major / 2 minor · reviewed 2026-06-26 · grok-4.3

Pith's one-line read Solar wind composition depends strongly on distance from the open-closed magnetic boundary.

desk verdict The paper reports a clear 25 Mm scale for enhanced solar wind composition near the OCB from Ulysses mapping with two models, but the accuracy of those extrapolations is the load-bearing uncertainty. read the letter →

arxiv 2606.20204 v1 pith:7UNE2QEP submitted 2026-06-18 astro-ph.SR

classification astro-ph.SR
keywords solarwindopen-closedboundaryinterchangereconnectionUlyssescoronalmagneticfieldslowchargestateratioselementalabundances
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper connects ten years of Ulysses in-situ solar wind data to photospheric source regions using two coronal magnetic field models. It reports that ion charge-state ratios, elemental abundances, and compositional variability peak within roughly 25 Mm of the open-closed boundary and fall off with greater distance. This spatial scale aligns with interchange reconnection, while wind from deeper coronal-hole regions shows more uniform fast-wind signatures. The composition near the boundary also correlates with the strength of adjacent closed flux.

What carries the argument

Distance of the source magnetic flux from the open-closed boundary (OCB), mapped via potential-field source-surface and magnetofrictional models applied to Ulysses measurements.

What would settle it

New solar wind data sets showing no systematic change in composition when plotted against modeled distance from the OCB, or source locations that differ markedly between the two models yet yield identical compositions.

Watch

Extended reading notes

Core claim

Solar wind emerging from magnetic flux within a supergranular-scale region surrounding the open-closed boundary carries enhanced charge-state ratios, elemental abundances, and variability that decrease systematically with increasing distance from the boundary; stronger neighboring closed fields preferentially produce slow-wind compositional signatures.

Load-bearing premise

The two coronal magnetic field models correctly trace Ulysses-measured solar wind parcels back to their photospheric source locations.

Editorial extensions

If this is right

  • Slow solar wind is released by interchange reconnection concentrated at the OCB.
  • Compositional variability drops systematically beyond ~25 Mm from the boundary.
  • Wind from coronal holes far from the OCB exhibits uniform fast-wind properties.
  • Solar wind near the OCB is modulated by the strength of adjacent closed magnetic fields.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Solar wind acceleration models could be tested by adding explicit dependence on OCB proximity.
  • In-situ measurements from future missions at varying heliocentric distances might isolate the boundary effect more cleanly.
  • The same distance dependence might organize the observed stream structure in the inner heliosphere.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 2 minor

Summary. The manuscript maps 10 years of Ulysses in situ solar wind measurements to photospheric source locations using PFSS and magnetofrictional coronal models. It reports that charge-state ratios, elemental abundances, and compositional variability are enhanced within a ~25 Mm supergranular-scale region around the open-closed boundary (OCB), decrease systematically with distance from the OCB, and show additional dependence on the strength of neighboring closed flux; this is interpreted as evidence that interchange reconnection at the OCB governs slow-wind composition.

Significance. If the magnetic mapping is reliable, the result would supply a clear observational scale linking solar wind composition directly to OCB topology, strengthening the case for interchange reconnection in slow-wind release. The decade-long baseline and use of two independent models are strengths that could elevate the work's impact within solar-wind origin studies.

major comments (2)
  1. [§3] §3 (source mapping and OCB identification): The central claim that compositional enhancements are confined to ~25 Mm of the OCB rests on the accuracy of footpoint tracing and boundary location in both the PFSS (fixed source-surface) and magnetofrictional models. The manuscript reports internal consistency between the two models, but this does not test absolute correctness against observed coronal topology; systematic offsets of 10–15 Mm (known to arise from source-surface height choice or non-potential effects near active regions) would move parcels across the reported bin and could generate or erase the claimed radial decay.
  2. [Results] Results (distance-binned statistics): The reported concentration of variability and the systematic decrease with distance are presented without quantitative uncertainties on the assigned distances arising from model assumptions, nor are bootstrap or Monte-Carlo error estimates on the binned means shown; this leaves open whether the 25 Mm scale is robust or sensitive to small shifts in OCB position.
minor comments (2)
  1. [Figures] Figure captions and axis labels should explicitly state the number of Ulysses parcels per distance bin to allow readers to judge small-number effects near the OCB.
  2. [Abstract / §3] The abstract states the 25 Mm scale but does not define how the OCB distance is measured (e.g., great-circle or along-field); this definition should appear in the first paragraph of §3.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive review and for highlighting the potential impact of our results. We agree that additional discussion of mapping uncertainties and statistical error estimates will strengthen the manuscript. We respond to each major comment below.

read point-by-point responses
  1. Referee: §3 (source mapping and OCB identification): The central claim that compositional enhancements are confined to ~25 Mm of the OCB rests on the accuracy of footpoint tracing and boundary location in both the PFSS (fixed source-surface) and magnetofrictional models. The manuscript reports internal consistency between the two models, but this does not test absolute correctness against observed coronal topology; systematic offsets of 10–15 Mm (known to arise from source-surface height choice or non-potential effects near active regions) would move parcels across the reported bin and could generate or erase the claimed radial decay.

    Authors: We agree that consistency between the two models does not constitute absolute validation against observed coronal topology, and that systematic offsets remain a concern. In revision we will expand §3 with an explicit discussion of these limitations, including the effects of source-surface height choice and non-potential fields. We will also add sensitivity tests that artificially shift the identified OCB by ±10–15 Mm and recompute the distance-binned statistics to quantify how robust the reported ~25 Mm scale is to such offsets. revision: partial

  2. Referee: Results (distance-binned statistics): The reported concentration of variability and the systematic decrease with distance are presented without quantitative uncertainties on the assigned distances arising from model assumptions, nor are bootstrap or Monte-Carlo error estimates on the binned means shown; this leaves open whether the 25 Mm scale is robust or sensitive to small shifts in OCB position.

    Authors: We accept that the absence of quantitative uncertainties weakens the statistical presentation. In the revised manuscript we will include bootstrap resampling of the distance-binned means together with Monte-Carlo perturbations of the assigned source distances (drawn from the range of model uncertainties). These will be shown as error bars on the binned statistics and used to test the robustness of the 25 Mm scale. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; empirical binning against independent model outputs

full rationale

The paper maps Ulysses in-situ composition data to photospheric footpoints and OCB locations using two external coronal field models (PFSS and magnetofrictional). Composition metrics are then binned by model-computed distance to the OCB. This produces an observed correlation; the distance coordinate is not defined from the composition data itself, no parameters are fitted to force the reported radial decay, and no self-citation chain supplies the central result. The models are treated as independent tools whose internal consistency is noted but does not tautologically generate the dependence. The derivation therefore remains self-contained against external benchmarks.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

Abstract-only review supplies no explicit free parameters, axioms, or invented entities; models are referenced but their internal assumptions are not stated.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Solar Wind Dependence on Source Distance from the Open-Closed Boundary." pith.science (2026). https://pith.science/paper/7UNE2QEP

@misc{pith2026260620204,
  author       = {Pith},
  title        = {Pith review of: Solar Wind Dependence on Source Distance from the Open-Closed Boundary},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/7UNE2QEP}},
  note         = {Machine review of arXiv:2606.20204}
}
read the original abstract

The origin and variability of the slow solar wind remains an open question in solar physics, but is thought to be closely linked to dynamics at the Sun's open-closed magnetic flux boundary (OCB). Interchange magnetic reconnection at the OCB has been proposed as a mechanism for releasing closed-field plasma into the heliosphere, but observational evidence linking solar wind composition to OCB topology remains limited. We relate in situ solar wind measurements by Ulysses over a 10-year period to the magnetic topology of their source regions using two coronal magnetic field models: a potential field source surface model and a magnetofrictional model. We find a strong dependence of solar wind composition on the distance of the source magnetic flux from the OCB. Enhanced ion charge-state ratios, elemental abundances, and compositional variability are found to be concentrated within a supergranular-scale region (around 25 Mm) surrounding the OCB, consistent with the spatial scales of interchange magnetic reconnection. This variability decreases systematically with increasing distance from the boundary, with coronal hole wind exhibiting more uniform fast-wind signatures. We also find that the composition of solar wind emerging from regions close to the OCB is influenced by the strength of neighbouring closed magnetic fields, with stronger fields preferentially associated with slow-wind properties. These results indicate that the composition of the slow wind is strongly governed by the magnetic topology of the OCB, providing compelling evidence that interchange reconnection plays a crucial role in slow solar wind release and structure.

Figures

Figures reproduced from arXiv: 2606.20204 by the authors.

Figure 1

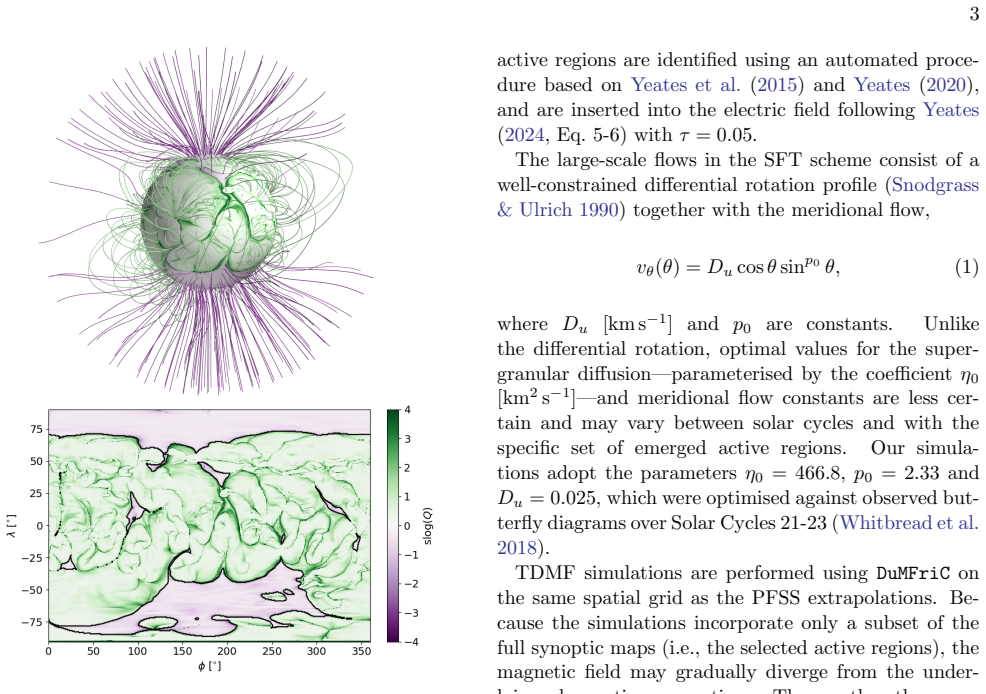

Figure 1. Top: a subset of field lines for the CR1863 PFSS extrapolation, with purple and green representing open and closed magnetic field connectivity, respectively. The signed logarithm of the squashing factor (defined by Titov et al. 2002), slog(Q), is shown on the photosphere. This is defined to be positive (negative) when the field is closed (open). The slog(Q) computations and field line tracing are performed using the… view at source ↗
Figure 2

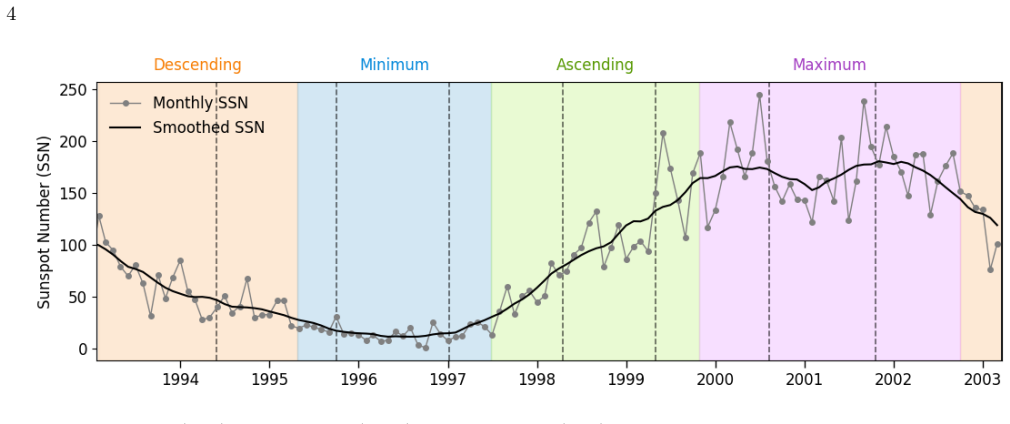

Figure 2. Monthly (grey) and smoothed (black) sunspot number (SSN) from 31 January 1993 to 19 March 2003, with the periods we define as descending, minimum, ascending, and maximum highlighted in orange, blue, green, and purple, respectively. Dashed black lines mark the transition times between the eight TDMF simulations. Sunspot number data provided by the U.S. Department of Commerce, NOAA Space Weather Prediction Center. sen… view at source ↗
Figure 3

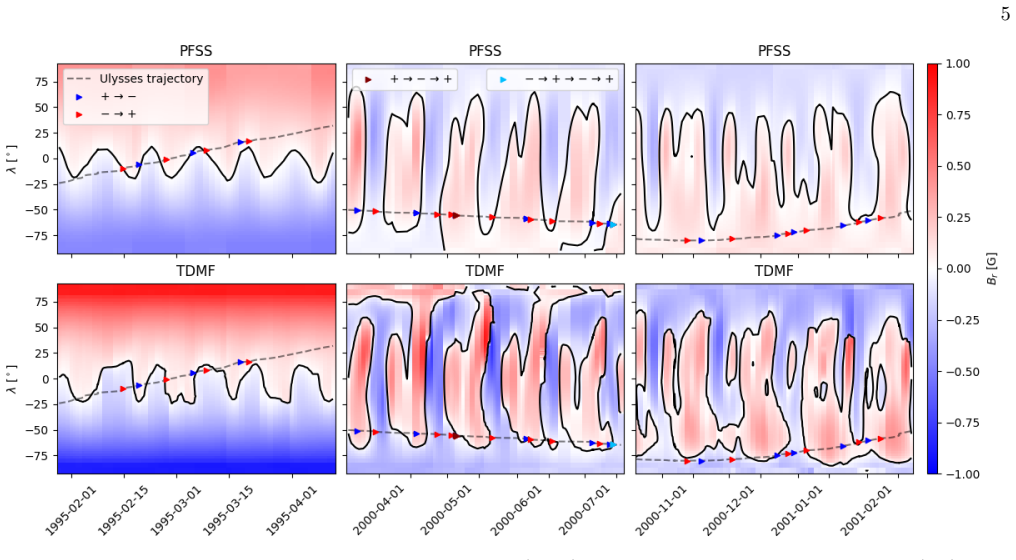

Figure 3. Latitude-time maps of the radial magnetic field and (black) polarity inversion line at 2.5R⊙ for the (top) PFSS model and (bottom) TDMF simulations. Ulysses’ in situ position is back-mapped to 2.5R⊙; crossings from (red) negative to positive Br and (blue) positive to negative Br are overlaid along its trajectory (dashed grey line). Panels from left to right correspond to February-April 1995, April-July 2000, and Nov… view at source ↗
Figures from the paper (8 more)
Figure 4

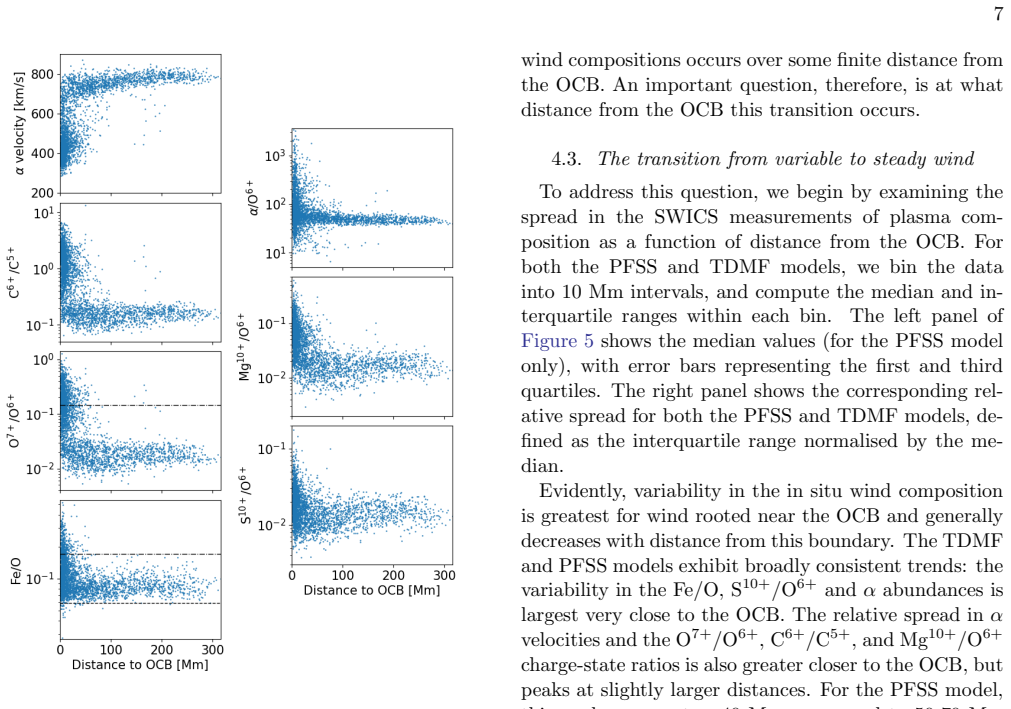

Figure 4. Figure 4: Distribution of SWICS diagnostics as a function of the distance of the source magnetic field from the OCB on the photosphere for the PFSS model. Coronal reference values (dash-dot lines) for O7+/O 6+ and Fe/O, as well as the photospheric reference value (dashed line) f…

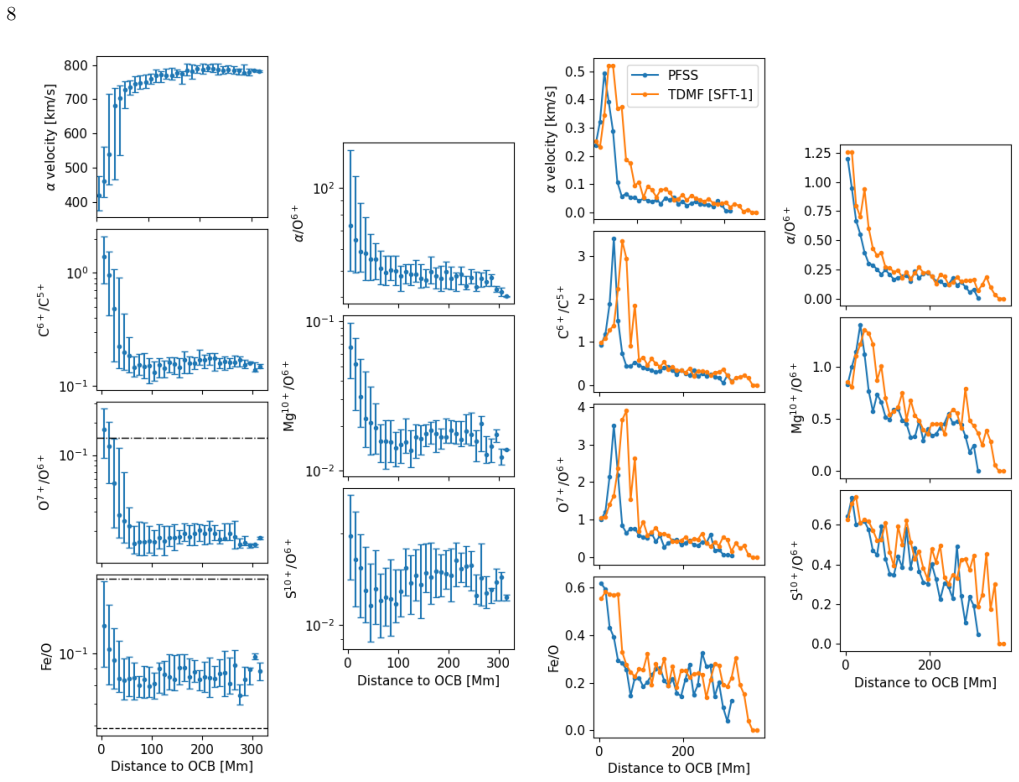

Figure 5
Figure 5. Figure 5: Distribution of SWICS diagnostics binned in 10 Mm intervals of distance from the OCB. Left: the median value in each bin, with error bars given by the first and third quartiles (for PFSS only). Right: the interquartile range normalised by the median value in each bin, …
Figure 6

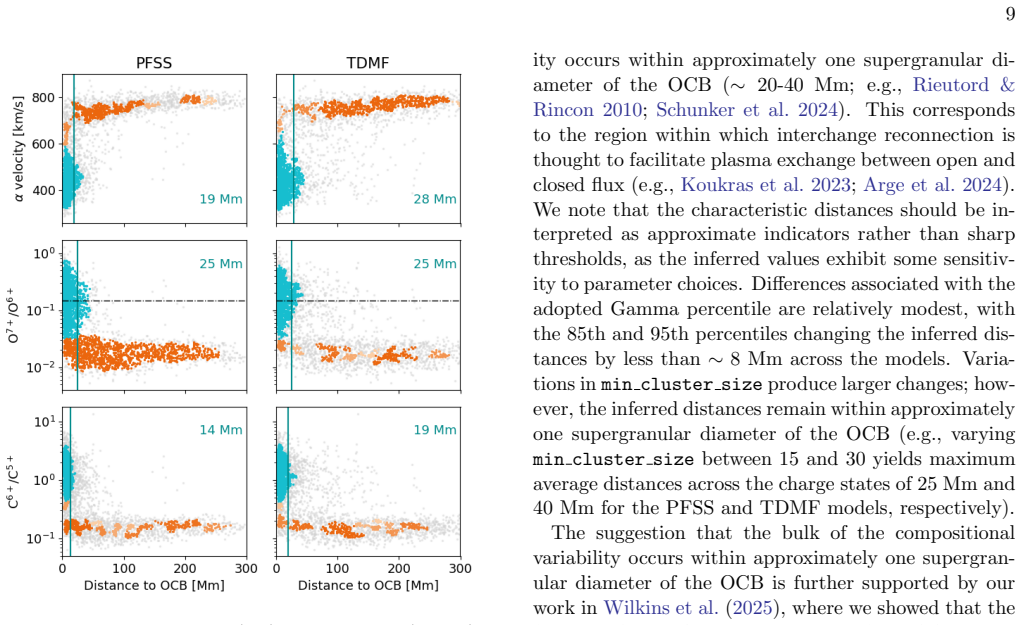

Figure 6. Figure 6: Clustering of (top) α velocities, (middle) O 7+/O 6+, and (bottom) C6+/C 5+ as a function of distance from the OCB (x ≤ 300 Mm). The left and right panels show results from the PFSS model and TDMF simulations, respectively. The cyan cluster identifies the variable wind…
Figure 7

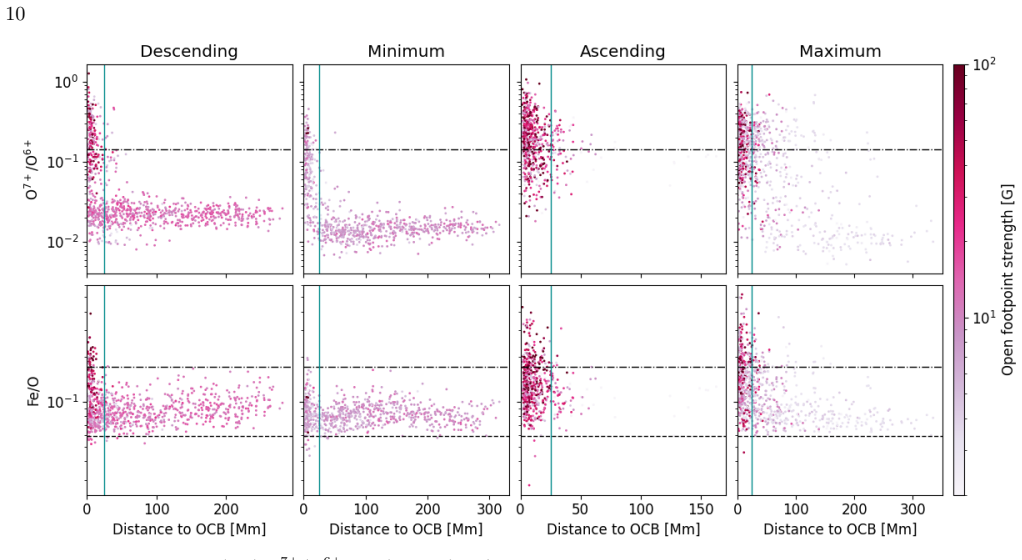

Figure 7. Figure 7: Distribution of (top) O7+/O 6+ and (bottom) Fe/O in each solar cycle phase as a function of distance from the OCB, coloured by the photospheric footpoint strength of the corresponding back-mapped open field line. The blue line marks 25 Mm from the OCB. The results for …

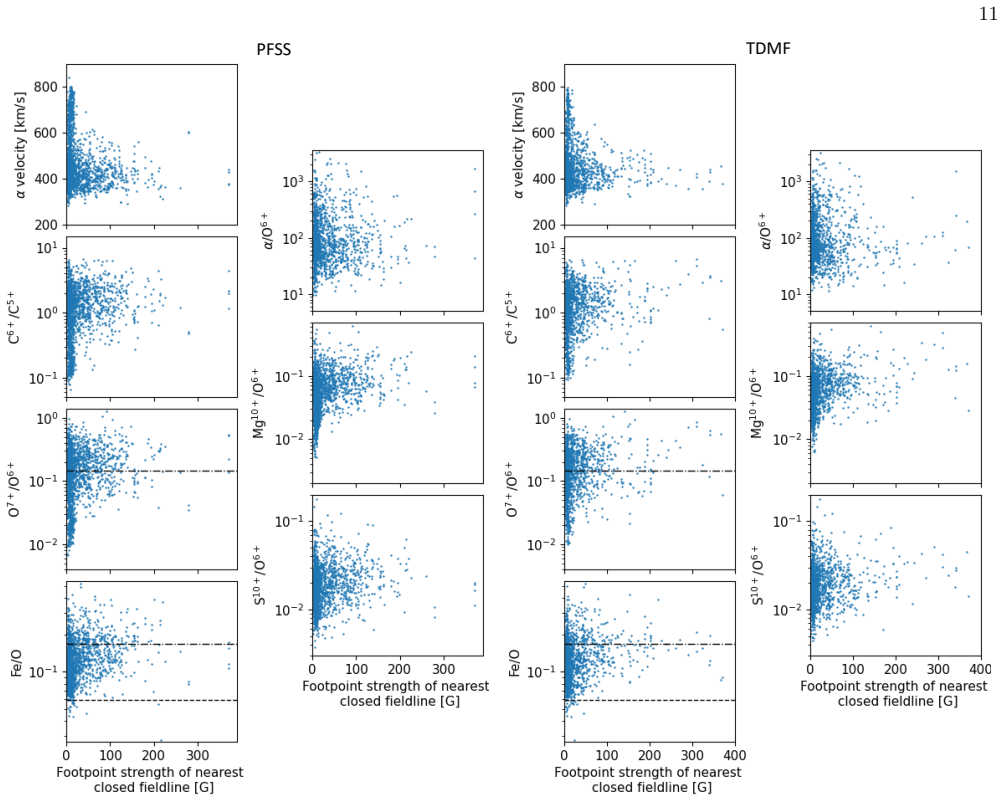

Figure 8
Figure 8. Figure 8: Distribution of SWICS diagnostics as a function of the photospheric footpoint strength of the nearest closed field line, restricted to wind that originates within 25 Mm of the OCB. The left and right panels show results for the PFSS model and TDMF simulations, respecti…
Figure 9

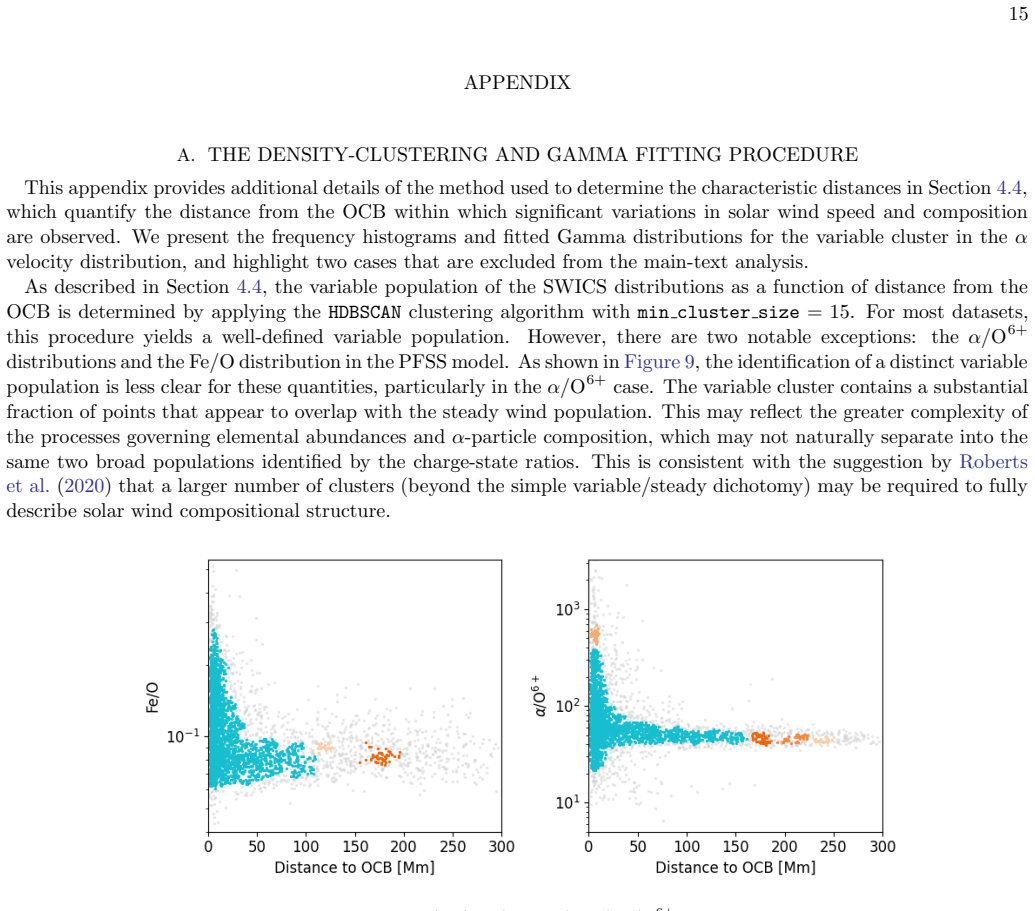

Figure 9. Figure 9: Results of the HDBSCAN clustering for the (left) Fe/O and (right) α/O 6+ distributions as a function of distance from the OCB for the PFSS model (restricted to x ≤ 300 Mm). Excluding the results for the α/O 6+ and Fe/O (PFSS), the variable clusters for the remaining co…
Figure 10

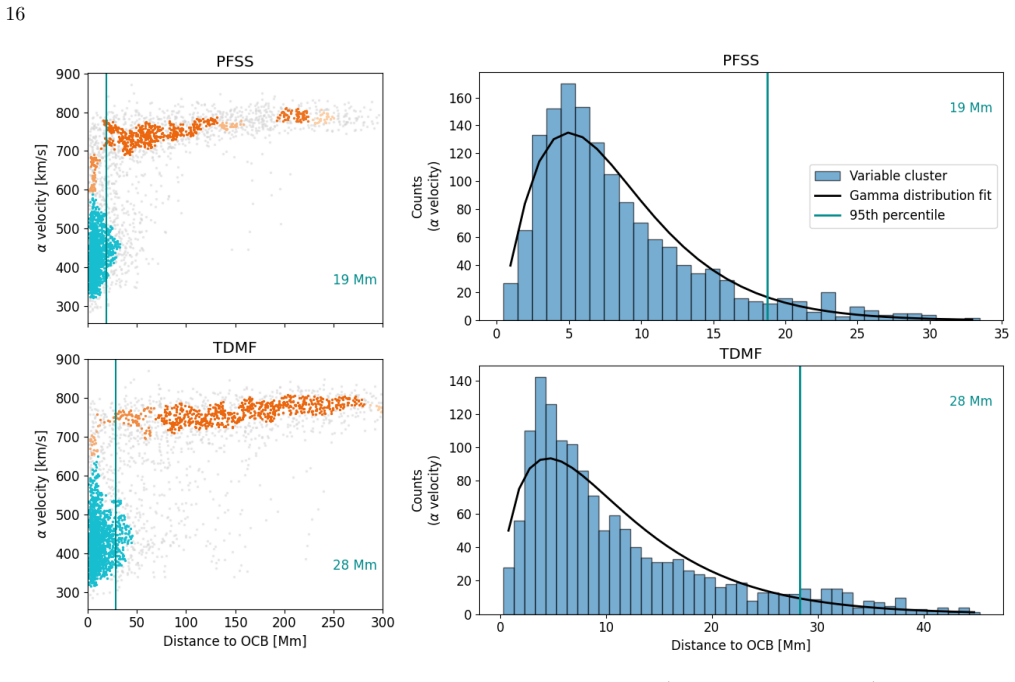

Figure 10. Figure 10: Left: clustering of α velocities as a function of distance from the OCB (restricted to x ≤ 300 Mm). Right: frequency histograms of the variable (cyan) cluster in 1 Mm bins, with the 95th percentiles (blue) of the fitted Gamma distributions (black) indicated. The top a…

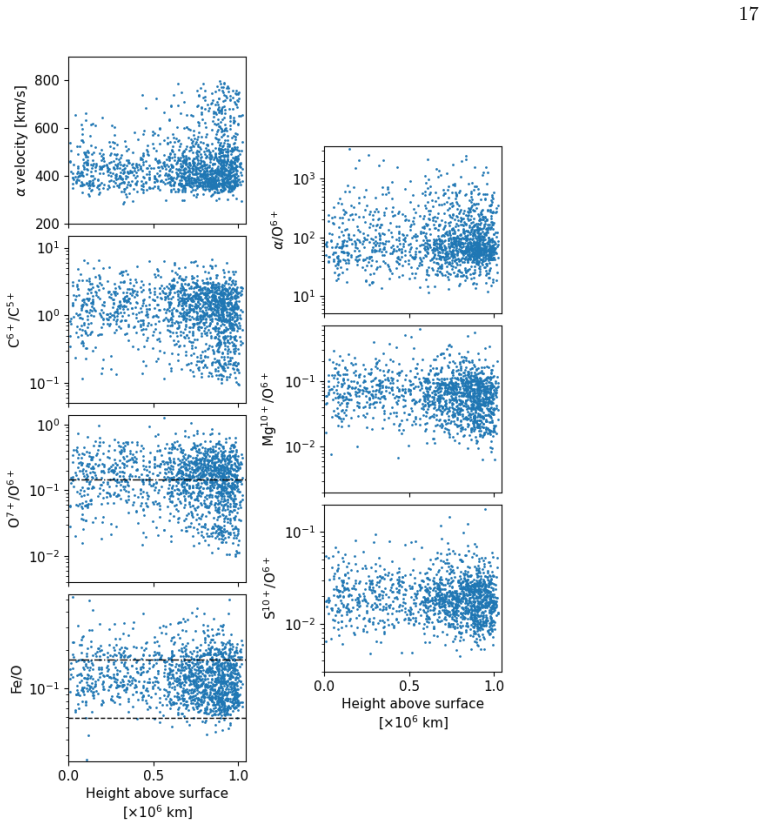

Figure 11
Figure 11. Figure 11: Distribution of SWICS diagnostics as a function of the apex height of the nearest closed field line above the photosphere for wind parcels that map to within 25 Mm of the OCB for the TDMF simulations. Reference values for coronal (dash-dot lines) and photospheric (das…
