Project RAINBOW: An all-integrated all-optical ultrafast dual-comb chip

Tushar Malica

arxiv: 2605.17092 · v2 · pith:7WULQ3AYnew · submitted 2026-05-16 · ⚛️ physics.optics

Project RAINBOW: An all-integrated all-optical ultrafast dual-comb chip

Tushar Malica This is my paper

Pith reviewed 2026-05-22 09:41 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords integrated photonicsdual-combmode-lockingoptical frequency combultrafast laserphotonic integrated circuitall-optical

0 comments

The pith

A single integrated chip generates two broadband optical frequency combs from one control parameter.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to create an all-integrated photonic chip that produces modelocked pulses at two separate central frequencies using the same laser. These pulses form two broadband combs that share properties and couple through a single gain medium, yielding an ultra-broadband comb with strong phase correlation between the parts. This approach aims to make such precise light rulers far more compact, affordable, and efficient than existing laboratory setups, narrowing the divide between research and real-world uses in timing and communication.

Core claim

By developing a novel turn-key device on a fingertip-sized chip using generic foundry processes, the work seeks to demonstrate modelocked pulses at two separate central frequencies from one laser. The chip emits two broadband combs controlled by one parameter, with synergetic properties coupled via one gain medium, forming a new ultra-broadband comb that delivers unprecedented phase correlation between the two sub-combs.

What carries the argument

Dual central-frequency mode-locking in a single integrated gain medium, enabling one-parameter control of two coupled broadband combs with synergetic properties.

If this is right

The device will be significantly smaller, lighter, cheaper, and more power-efficient than free-space systems.
It will reduce the gap between lab demonstrations and market applications for optical frequency combs.
It pioneers the demonstration of modelocked pulses at two separate frequencies on an integrated chip.
High phase correlation will support more precise measurements in applications like atomic clocks and secure communication.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Such a chip could enable portable versions of dual-comb spectroscopy for field use.
Understanding gained from the light-material interactions could inform designs for even wider bandwidth combs.
Combining this with other on-chip components might create complete metrology systems without external optics.

Load-bearing premise

Sustained modelocked pulses can be generated at two separate central frequencies from the same laser on an integrated chip despite limited knowledge of light-material interactions at this scale.

What would settle it

Observation of sustained dual-frequency modelocked operation on the chip with a single control parameter and measurable high phase correlation between the resulting combs.

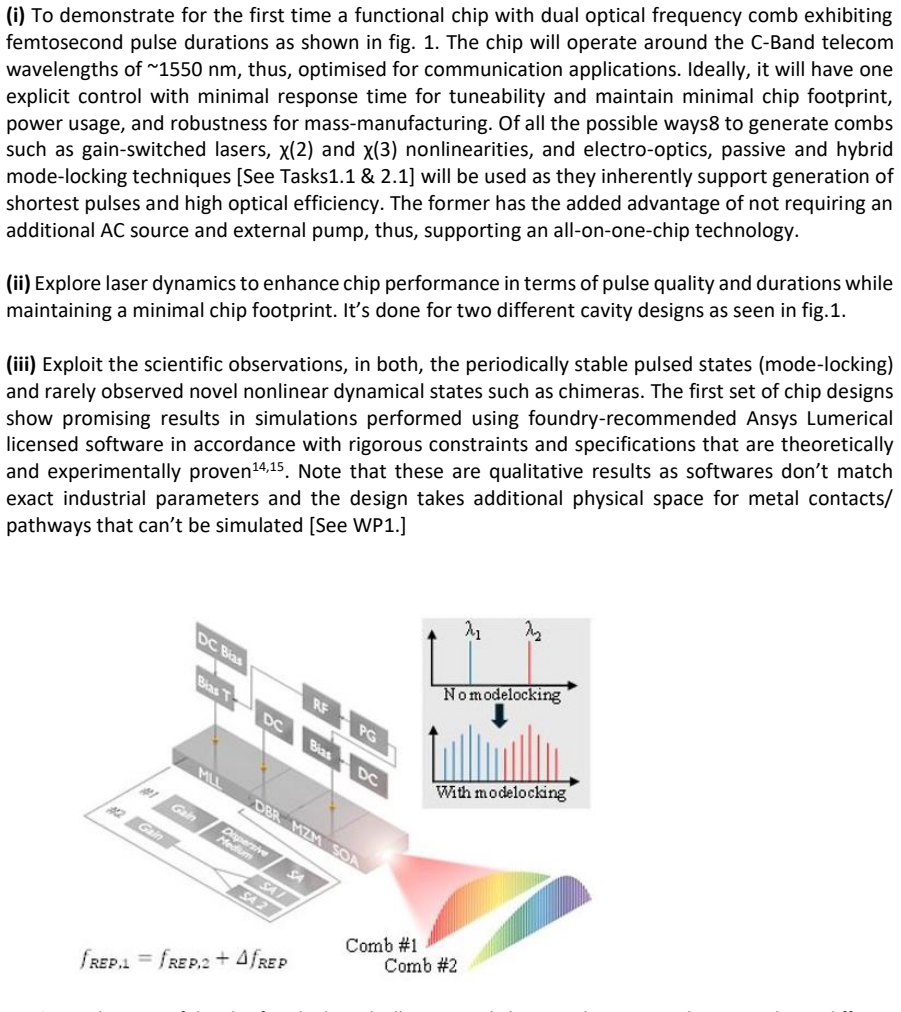

Figures

Figures reproduced from arXiv: 2605.17092 by Tushar Malica.

read the original abstract

A train of periodic optical pulses gives an optical frequency "comb" that acts as a precise ruler for light measurement due to its equally spaced frequencies. Today, such pulses last millionths of a billionth of a second (Femtoseconds/fs) and associated comb spans billions of frequencies (Terahertz), similar to a discretized rainbow ranging from ultraviolet to infrared light. This is the core technology in many optic-based applications like atomic clocks and secure communication. Despite its obvious value, these remain mostly confined to research labs for being complex, expensive, and power-hungry. One promising solution is to use laser mode-locking: a technique that forces a laser to emit short coherent pulses. While chip-size systems have already been demonstrated, this approach still lacks flexibility and performance in repetition rate and bandwidth simultaneously. This research proposal leverages the industrialization of integrated photonic chips to develop a first-ever all-integrated two-coloured pulsed source with durations of a few hundred fs. It will engineer a novel turn-key device that will 1) pioneer the demonstration of modelocked pulses at two separate central frequencies originating from the same laser, 2) fit on a fingertip, and 3) be compatible with generic foundry processes, and thus, mass-manufacturable. Sustained generation of such pulses is intricate with little knowledge about light-material interaction at this scale. The chip will emit two broadband combs using one control parameter. These combs will have synergetic comb properties and coupled through one gain medium. Thus, we will create a new ultra-broadband comb resulting in unprecedented phase correlation between the two sub-combs. Simultaneously, the device will be significantly smaller, lighter, cheaper, and more power-efficient than its free-space rivals, reducing the gap between lab and market.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a research proposal for a dual-comb photonic chip that sketches an ambitious integration goal but supplies no design details, simulations, or data to assess whether dual-frequency mode-locking can actually work.

read the letter

This is a research proposal for an all-integrated dual-comb chip, not a paper with completed experiments or derivations. The main point is the plan to generate two broadband combs from the same laser cavity on one photonic chip, tuned by a single control parameter, to produce synergetic properties and strong phase correlation between the sub-combs. If realized, that could shrink dual-comb sources and make them more practical for metrology or communications outside labs. The text does a reasonable job stating the motivation and the practical upsides of foundry compatibility and lower power use compared with free-space systems. It also notes the difficulty of sustained dual-color mode-locking at this scale, which is honest. The central weakness is the absence of anything that would let a reader judge feasibility. There is no cavity design, dispersion map, gain engineering approach, or even basic simulation showing how two separate central frequencies would be stabilized without mode competition or how one parameter would deliver the claimed phase correlation. The proposal itself flags the limited knowledge of light-material interactions at chip scale, so the lack of supporting analysis leaves the key claims untestable. This kind of document is mainly useful to groups already working on integrated photonics who might want to explore similar directions or look for collaborators. Readers looking for new data, validated methods, or reproducible steps will not find them. I would not bring it to a reading group focused on technical results. It does not seem ready for peer review in its present form because the feasibility questions cannot be evaluated without more concrete technical grounding. The authors would need to add modeling or initial design work first.

Referee Report

1 major / 1 minor

Summary. The manuscript is a research proposal for Project RAINBOW, an all-integrated photonic chip that generates modelocked pulses at two separate central frequencies from a single laser cavity. It claims the device will emit two broadband combs controlled by one parameter, coupled through a shared gain medium to produce an ultra-broadband comb with synergetic properties and unprecedented phase correlation between the sub-combs, while being fingertip-sized and compatible with generic foundry processes for mass manufacturing.

Significance. If successfully demonstrated, the proposed dual-comb chip could advance integrated photonics by delivering a compact, power-efficient, and mass-manufacturable source that narrows the gap between laboratory dual-comb systems and practical applications in metrology and communications. The concept of achieving high phase correlation and synergetic comb properties via a single control parameter and shared gain medium is novel in principle and addresses real barriers of complexity and cost in existing free-space setups. Credit is given for stressing foundry compatibility as a route to scalability.

major comments (1)

[Abstract] Abstract: The central claim that sustained modelocked pulses at two separate central frequencies can be generated from the same laser on an integrated chip, coupled through one gain medium, and controlled by a single parameter to yield synergetic comb properties and unprecedented phase correlation is presented without any cavity design, dispersion map, gain spectrum engineering, or preliminary simulations. This is a load-bearing assumption for the entire proposal, yet the text itself notes that sustained generation is intricate with little knowledge of light-material interactions at this scale.

minor comments (1)

The proposal would be strengthened by adding quantitative targets for pulse duration, comb bandwidth, and repetition rate, along with references to prior demonstrations of integrated mode-locked lasers and dual-comb sources.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback on our research proposal. We address the major comment below and describe the revisions we intend to implement.

read point-by-point responses

Referee: [Abstract] Abstract: The central claim that sustained modelocked pulses at two separate central frequencies can be generated from the same laser on an integrated chip, coupled through one gain medium, and controlled by a single parameter to yield synergetic comb properties and unprecedented phase correlation is presented without any cavity design, dispersion map, gain spectrum engineering, or preliminary simulations. This is a load-bearing assumption for the entire proposal, yet the text itself notes that sustained generation is intricate with little knowledge of light-material interactions at this scale.

Authors: We agree that the abstract, as currently written, presents the core claims at a high level without accompanying design specifics or simulations. Because the manuscript is a forward-looking research proposal rather than a completed experimental study, the emphasis is on the scientific motivation, novelty, and manufacturability pathway. Nevertheless, the full text contains a dedicated section outlining the proposed dual-cavity architecture, target dispersion profile, and gain-medium engineering approach based on standard foundry-compatible platforms. We will revise the abstract to explicitly state the proposal character of the work and add a concise summary of the preliminary rate-equation and dispersion modeling already performed. We will also expand the main text with a schematic cavity design, estimated dispersion map, and initial simulation results showing stable dual-wavelength mode-locking under a single control parameter. The acknowledged intricacy of light-material interactions at chip scale is precisely the knowledge gap the project is designed to close through systematic experimental iteration; the proposal therefore frames the work as an investigation rather than an assertion of guaranteed success. revision: yes

Circularity Check

0 steps flagged

No circularity: forward-looking proposal with no derivations or fitted inputs

full rationale

This document is a research proposal outlining planned development of an integrated dual-comb source. It contains no equations, no derivations, no fitted parameters, and no self-citations that support a load-bearing claim. The text describes intended device properties and acknowledges experimental challenges without presenting any chain that reduces a result to its own inputs by construction. All central statements are framed as future demonstrations rather than derived conclusions, rendering the document self-contained as a proposal with zero circularity under the defined criteria.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The document is a research proposal and contains no mathematical derivations, fitted parameters, or postulated entities.

pith-pipeline@v0.9.0 · 5853 in / 1088 out tokens · 32578 ms · 2026-05-22T09:41:20.082000+00:00 · methodology

Review history (2 revisions) →
