Fault Tolerant Metric Dimensions of Leafless Cacti Graphs with Application in Supply Chain Management
Pith reviewed 2026-05-23 21:20 UTC · model grok-4.3
The pith
The fault tolerant metric dimension of bicyclic graphs of type I and II is always 4, and leafless cacti graphs have this dimension expressed in terms of their inner and outer cycles.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Bicyclic graphs of type I and type II have fault tolerant metric dimension 4. Leafless cacti graphs admit a calculation of their fault tolerant metric dimension directly from the counts of inner cycles and outer cycles, obtained by extending the bicyclic case analysis.
What carries the argument

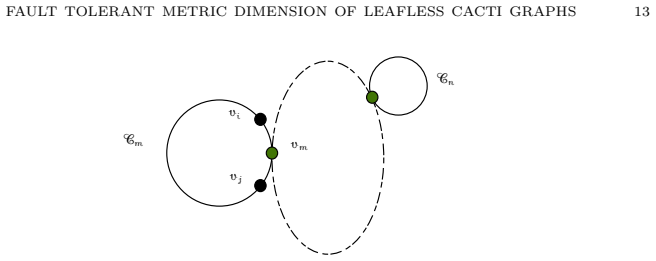

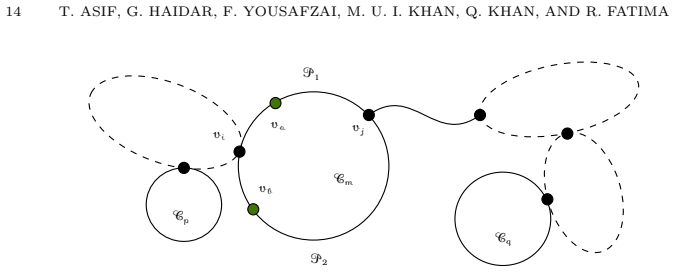

Decomposition of leafless cacti graphs into inner and outer cycles that supports construction of minimal fault-tolerant resolving sets by case analysis on those cycles.
If this is right
- Bicyclic graphs of type I always have fault tolerant metric dimension 4.
- Bicyclic graphs of type II always have fault tolerant metric dimension 4.
- The fault tolerant metric dimension of any leafless cacti graph is determined by its inner cycle count and outer cycle count.

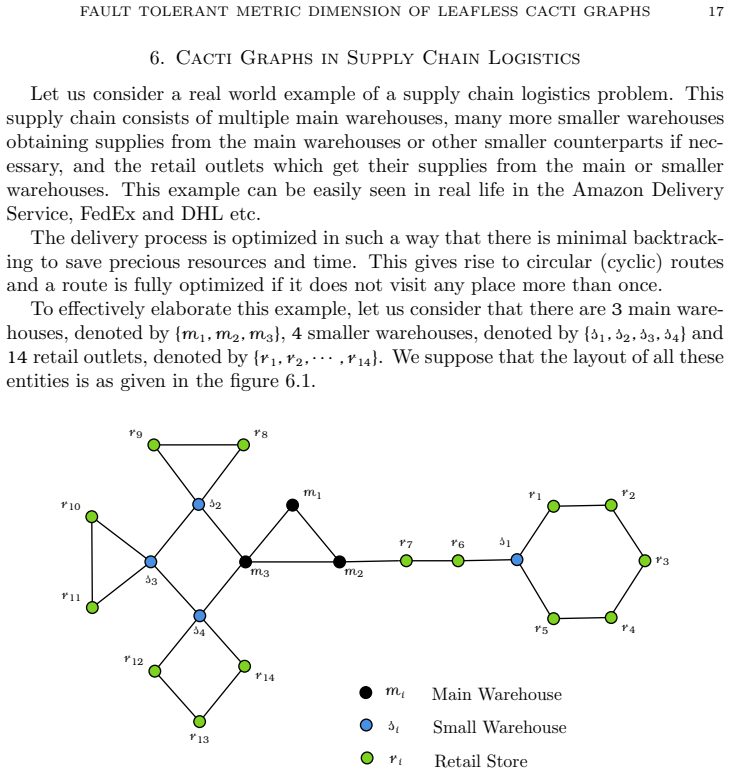

- In supply chain models represented by leafless cacti graphs, the minimal number of centers needed for fault-tolerant location equals the fault tolerant metric dimension of the graph.
Where Pith is reading between the lines
- The cycle-count formula may support polynomial-time computation of the dimension for any leafless cacti graph once the cycles are identified.
- Similar decompositions could be tested on other cactus families or graphs with bounded treewidth to see if fault tolerant dimension remains expressible by local cycle features.
- In network design problems, the result suggests that adding redundant location points scales predictably with the number of cycles rather than total vertices.
Load-bearing premise
Leafless cacti graphs admit a canonical decomposition into inner and outer cycles such that minimal fault-tolerant resolving sets can be constructed and verified by exhaustive case analysis on those cycles without additional vertices required in any configuration.
What would settle it
A leafless cacti graph whose fault tolerant metric dimension cannot be expressed solely as a function of its inner cycle count and outer cycle count, or that deviates from the value obtained by extending the bicyclic results.
Figures

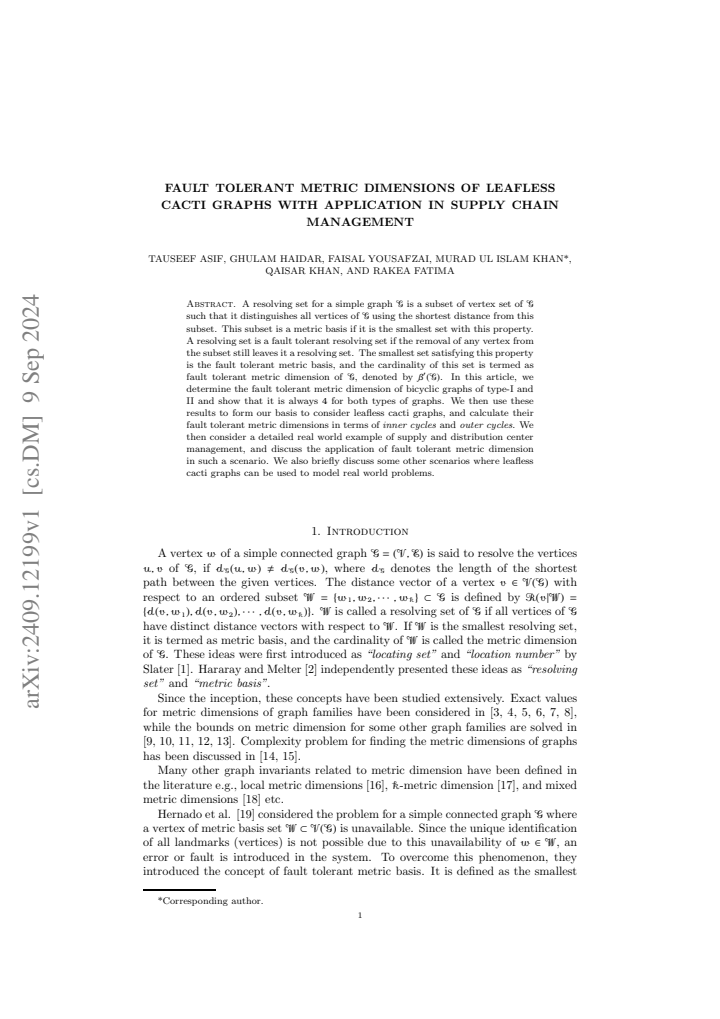

read the original abstract
A resolving set for a simple graph $G$ is a subset of vertex set of $G$ such that it distinguishes all vertices of $G$ using the shortest distance from this subset. This subset is a metric basis if it is the smallest set with this property. A resolving set is a fault tolerant resolving set if the removal of any vertex from the subset still leaves it a resolving set. The smallest set satisfying this property is the fault tolerant metric basis, and the cardinality of this set is termed as fault tolerant metric dimension of $G$, denoted by $\beta'(G)$. In this article, we determine the fault tolerant metric dimension of bicyclic graphs of type-I and II and show that it is always $4$ for both types of graphs. We then use these results to form our basis to consider leafless cacti graphs, and calculate their fault tolerant metric dimensions in terms of \textit{inner cycles} and \textit{outer cycles}. We then consider a detailed real world example of supply and distribution center management, and discuss the application of fault tolerant metric dimension in such a scenario. We also briefly discuss some other scenarios where leafless cacti graphs can be used to model real world problems.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims that the fault-tolerant metric dimension β'(G) equals 4 for all bicyclic graphs of type I and type II. It then extends the result to leafless cacti graphs by expressing β' in terms of the numbers of inner and outer cycles, and illustrates the concept with a supply-chain example modeled by such graphs.
Significance. If the claimed closed-form values hold, the work would supply explicit, easily computable fault-tolerant resolving sets for two infinite families of graphs that arise in network modeling. The supply-chain application shows a concrete setting in which distance-based location under single-vertex failure is relevant.
major comments (2)
- [Abstract] Abstract: the central claim that β'(G)=4 for every bicyclic graph of type I and II is asserted without any proof, case analysis, or verification that candidate sets remain resolving after the removal of any single vertex. Because the subsequent leafless-cactus formulas rest on these bicyclic results, the absence of supporting derivations is load-bearing for the entire contribution.
- [leafless cacti section] The extension to leafless cacti (described after the bicyclic case) presupposes that every such graph admits a decomposition into type-I/II bicyclic blocks plus inner/outer cycles such that a fault-tolerant resolving set of size determined solely by the cycle counts can always be assembled. The manuscript provides no argument that this decomposition covers arbitrary attachment patterns (multiple cycles at one vertex, chains of blocks, etc.) or that no extra vertices are required to resolve distance ties once a resolver fails.
Simulated Author's Rebuttal
We thank the referee for their thorough review and valuable comments. We address each major comment below and will incorporate revisions to strengthen the manuscript.
read point-by-point responses
-
Referee: [Abstract] Abstract: the central claim that β'(G)=4 for every bicyclic graph of type I and II is asserted without any proof, case analysis, or verification that candidate sets remain resolving after the removal of any single vertex. Because the subsequent leafless-cactus formulas rest on these bicyclic results, the absence of supporting derivations is load-bearing for the entire contribution.
Authors: We agree that the abstract presents the result concisely. The full manuscript includes sections dedicated to proving that β'(G) = 4 for bicyclic graphs of type I and II, with case analyses based on the structure of these graphs. However, to make the supporting derivations more explicit and to verify the fault-tolerance property in detail, we will expand the case analysis in the revised version, including explicit checks that the proposed sets remain resolving after any single vertex removal. This will ensure the bicyclic results are self-contained before extending to leafless cacti. revision: yes
-
Referee: [leafless cacti section] The extension to leafless cacti (described after the bicyclic case) presupposes that every such graph admits a decomposition into type-I/II bicyclic blocks plus inner/outer cycles such that a fault-tolerant resolving set of size determined solely by the cycle counts can always be assembled. The manuscript provides no argument that this decomposition covers arbitrary attachment patterns (multiple cycles at one vertex, chains of blocks, etc.) or that no extra vertices are required to resolve distance ties once a resolver fails.
Authors: We acknowledge the need for a more rigorous justification of the decomposition for leafless cacti graphs. In the revised manuscript, we will add a dedicated subsection that formally describes the decomposition into bicyclic blocks and cycles, proves that it covers arbitrary attachment patterns including multiple cycles at vertices and chains of blocks, and demonstrates that the fault-tolerant resolving set size, determined by the numbers of inner and outer cycles, suffices without requiring additional vertices. This will include arguments showing that distance ties are resolved even after a resolver failure. revision: yes
Circularity Check
No significant circularity in derivation chain
full rationale
The paper determines fault-tolerant metric dimension for bicyclic graphs (always 4) via direct combinatorial arguments, then extends the result to leafless cacti by expressing it in terms of inner/outer cycle counts. No equations, parameters, or quantities are defined in terms of the quantities they are claimed to predict. No self-citations are invoked as load-bearing premises for uniqueness or ansatz choices. The central claims rest on case analysis of cycle structures rather than any self-referential reduction or fitted-input renaming. This is the expected non-finding for a purely combinatorial graph-theory paper whose results are stated as explicit determinations.
Axiom & Free-Parameter Ledger
axioms (2)
- standard math Shortest-path distance in an undirected graph forms a metric that distinguishes vertices via unique distance vectors.
- domain assumption Bicyclic graphs of type I and II and leafless cacti graphs possess the cycle decompositions described in the paper.
