Planar constant piecewise smooth vector fields with large hysteresis

Tiago Carvalho , Leonardo Serantola , Bruno de Souza Rangel This is my paper

Pith reviewed 2026-06-26 15:18 UTC · model grok-4.3

classification 🧮 math.DS
keywords piecewise smooth vector fieldshysteresislimit setsplanar systemsswitching boundarieslinear vector fieldscontrol systemsdynamical systems
0
0 comments X

The pith

Planar systems with two linear vector fields and hysteresis switching between two boundaries begin classification of their limit sets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper addresses the lack of mathematical classification for limit sets in control systems that switch between vector fields based on thresholds, such as disease treatment protocols that pause when cell levels drop below one value and resume above another. It initiates this classification effort by restricting attention to the planar case using exactly two linear vector fields separated by two switching boundaries. A sympathetic reader would care because these switched models appear in applications yet have no established theory for what long-term behaviors, such as convergence to equilibria or periodic orbits, can occur. If the planar analysis succeeds, it supplies the starting point for determining the possible attractors under the hysteresis rule.

Core claim

The authors establish that the planar case with two linear vector fields active across two switching boundaries under large hysteresis provides a tractable setting in which the limit sets of the resulting dynamics can be determined rigorously, serving as the foundation for a broader classification of such models.

What carries the argument

The planar hysteresis switching system consisting of two linear vector fields separated by two boundaries that trigger the switch when trajectories cross the thresholds.

Load-bearing premise

Analysis of the restricted planar case with two linear vector fields and two switching boundaries yields a classification whose structure extends to more general hysteresis models without fundamental alteration.

What would settle it

A specific planar example with two linear vector fields and two hysteresis thresholds whose observed long-term behavior falls outside the limit-set categories obtained from the planar analysis.

Figures

Figures reproduced from arXiv: 2606.20509 by Bruno de Souza Rangel, Leonardo Serantola, Tiago Carvalho.

Figure 1

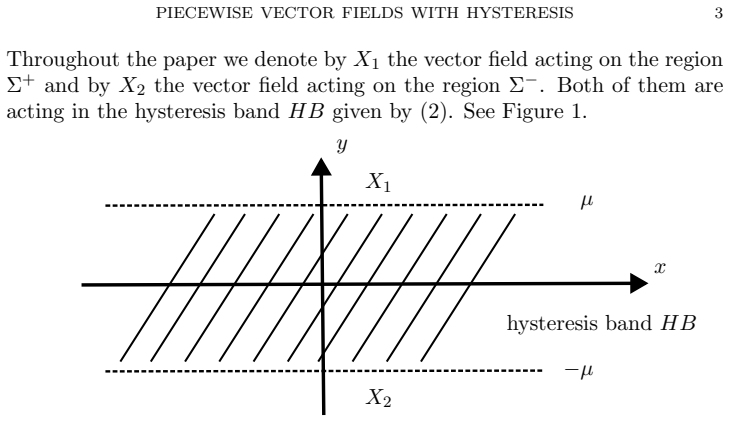

Figure 1. Figure 1: The configuration studied with an hysteresis band HB between y = −µ and y = µ. The vector field X1 acts on the region Σ+ and the vector field X2 acts on the region Σ−. Remark 1. IMPORTANT CONVENTION: In this paper we will con￾sider that when an initial condition of a solution belongs to HB, then the vector field to be considered is X2. Physically, we are thinking that in HB the ”treatment” X1 is not applie… view at source ↗
Figure 2

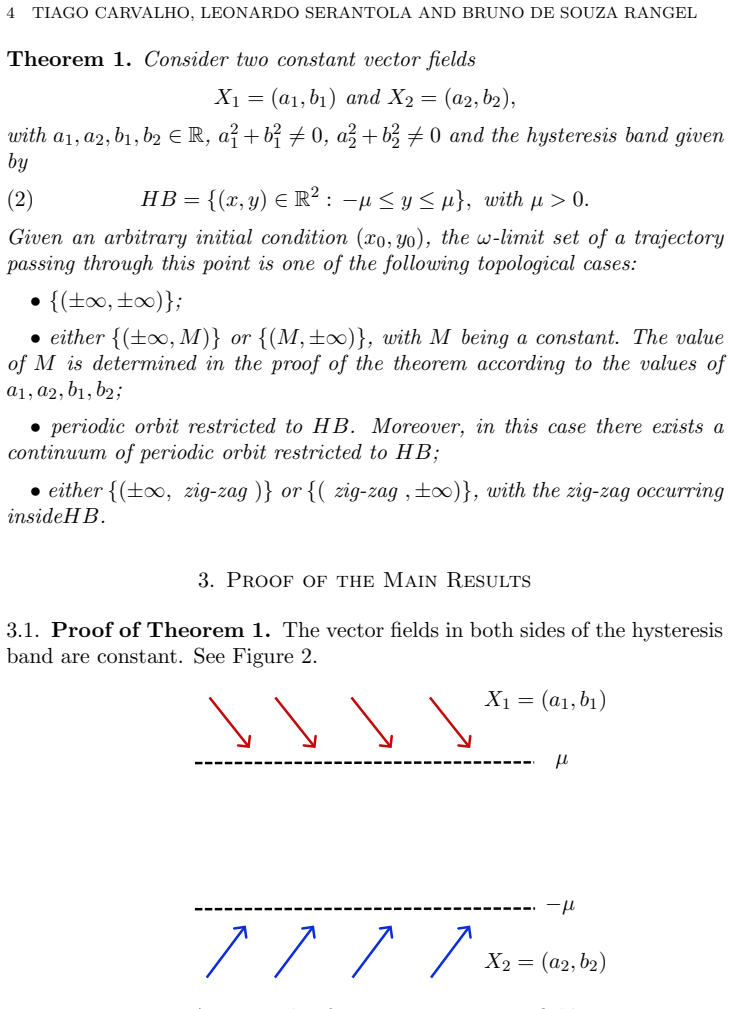

Figure 2. Figure 2: An example of two constant vector fields acting in the upper region and the down region of the hysteresis band with b1 < 0 and a1, a2, b2 > 0. Here we will analyze the dynamics for all cases where a1 > 0 and b1 = 0. See [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

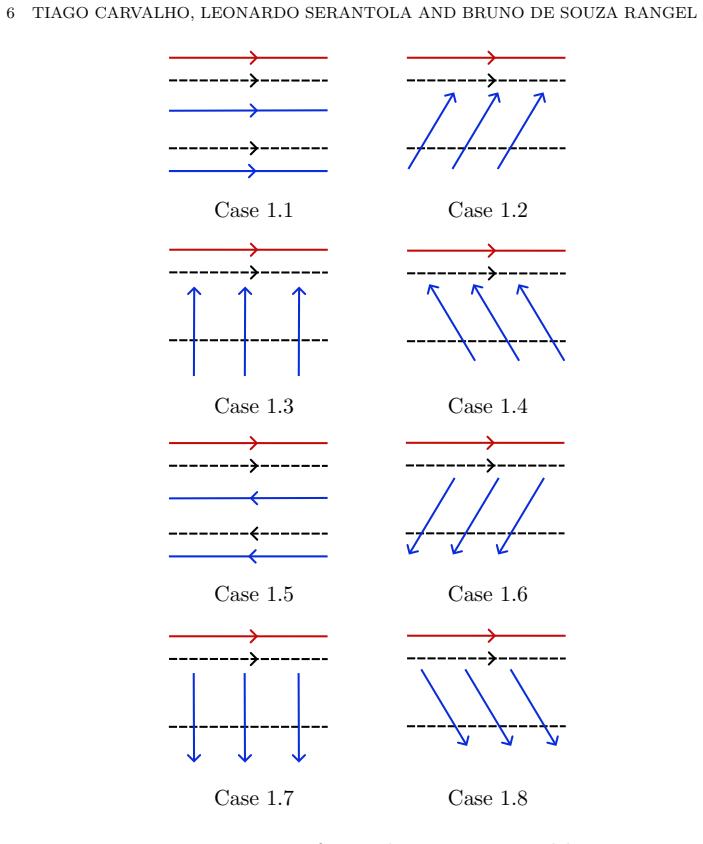

Figure 3. Figure 3: Dynamics for conditions a1 > 0 and b1 = 0. • Case 1.12: a1 < 0, b1 = 0, a2 < 0, b2 > 0. Given an arbitrary initial condition (x0, y0), the trajectory has ω-limit set {(−∞, y0)} when y0 > µ and has ω-limit set {(−∞, µ)} when y0 ≤ µ. • Case 1.13: a1 < 0, b1 = 0, a2 < 0, b2 = 0. Given an arbitrary initial condition (x0, y0), the trajectory has ω-limit set {(−∞, y0)}. • Case 1.14: a1 < 0, b1 = 0, a2 < 0, b2 < … view at source ↗
Figure 4

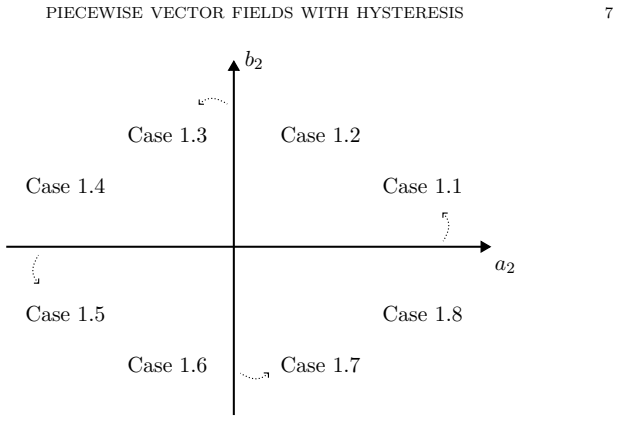

Figure 4. Figure 4: Bifurcation diagram in the variables a2 and b2, for a1 > 0 and b1 = 0. • Case 1.16: a1 < 0, b1 = 0, a2 > 0, b2 < 0. Given an arbitrary initial condition (x0, y0), the trajectory has ω-limit set {(−∞, y0)} when y0 > µ and has ω-limit set {(+∞, −∞)} when y0 ≤ µ. Here we will analyze the dynamics for all cases where a1 = 0 and b1 > 0. See [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

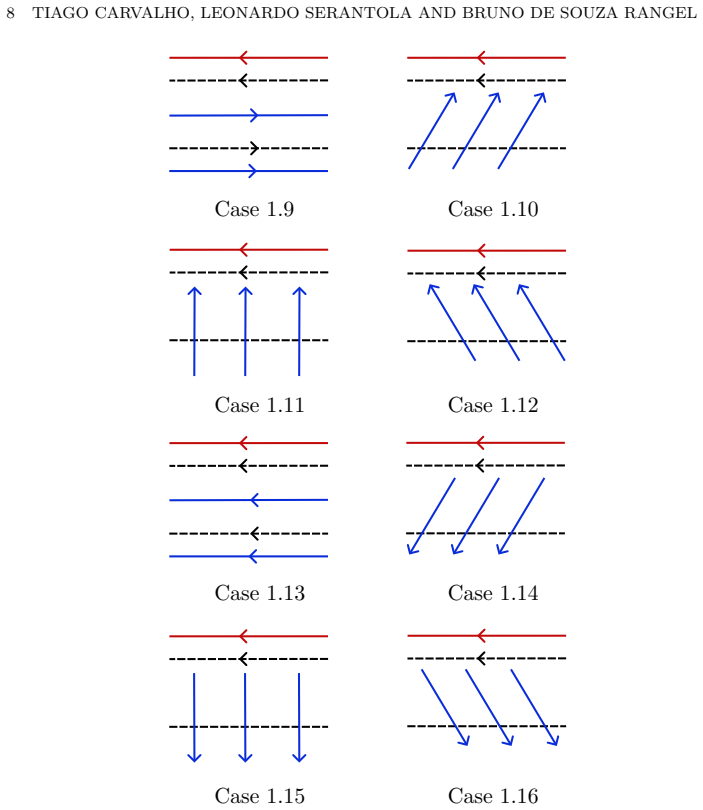

Figure 5. Figure 5: Dynamics for conditions a1 < 0 and b1 = 0. when y0 > µ and has ω-limit set x0 + a2(−y0 + µ) b2 , +∞  , when y0 ≤ µ • Case 1.21: a1 = 0, b1 > 0, a2 < 0, b2 = 0. In this case, taking an arbitrary initial condition (x0, y0), the trajectory has ω-limit set {(x0, +∞)} when y0 > µ and has ω-limit set {(−∞, y0)} when y0 ≤ µ. • Case 1.22: a1 = 0, b1 > 0, a2 < 0, b2 < 0. In this case, taking an arbitrary initia… view at source ↗
Figure 6
Figure 6. Figure 6: Bifurcation diagram in the variables a2 and b2, for a1 < 0 and b1 = 0. • Case 1.23: a1 = 0, b1 > 0, a2 = 0, b2 < 0. In this case, taking an arbitrary initial condition (x0, y0), the trajectory has ω-limit set {(x0, +∞)} when y0 > µ and has ω-limit set {(x0, −∞)} when y0 ≤ µ. • Case 1.24: a1 = 0, b1 > 0, a2 > 0, b2 < 0. In this case, taking an arbitrary initial condition (x0, y0), the trajectory has ω-limit… view at source ↗
Figure 7
Figure 7. Figure 7: Dynamics for conditions a1 = 0 and b1 > 0. • Case 1.30: a1 = 0, b1 < 0, a2 < 0, b2 < 0. In this case, taking an arbi￾trary initial condition (x0, y0), the trajectory has ω-limit set {(−∞, −∞)}. • Case 1.31: a1 = 0, b1 < 0, a2 = 0, b2 < 0. In this case, taking an arbitrary initial condition (x0, y0), the trajectory has ω-limit set {(x0, −∞)} [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 8

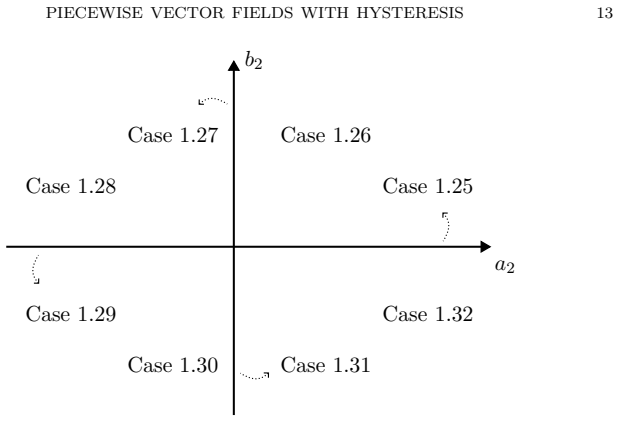

Figure 8. Figure 8: Bifurcation diagram in the variables a2 and b2, for a1 = 0 and b1 > 0. • Case 1.32: a1 = 0, b1 < 0, a2 > 0, b2 < 0. In this case, taking an arbi￾trary initial condition (x0, y0), the trajectory has ω-limit set {(+∞, −∞)}. Here we will analyze the dynamics for all cases where a1 > 0 and b1 > 0. See [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9

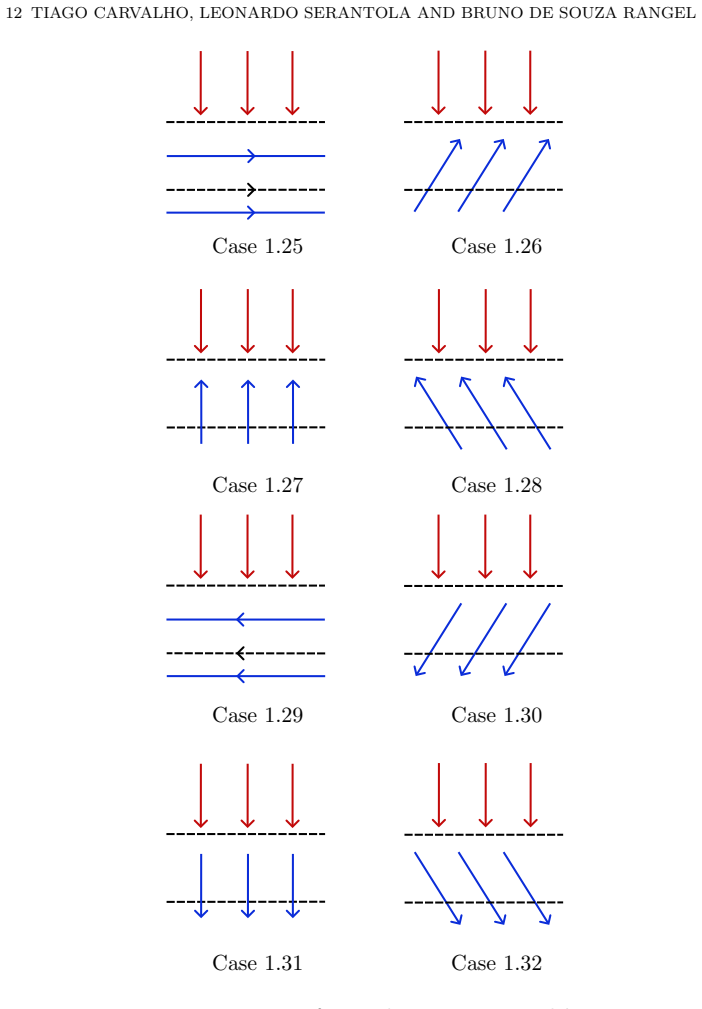

Figure 9. Figure 9: Dynamics for conditions a1 = 0 and b1 < 0. • Case 1.39: a1 > 0, b1 > 0, a2 = 0, b2 < 0. In this case, taking an arbi￾trary initial condition (x0, y0), the trajectory has ω-limit set {(+∞, +∞)} when y0 > µ and has ω-limit set {(x0, −∞)} when y0 ≤ µ [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Bifurcation diagram in the variables a2 and b2, for a1 = 0 and b1 < 0. • Case 1.40: a1 > 0, b1 > 0, a2 > 0, b2 < 0. In this case, taking an arbi￾trary initial condition (x0, y0), the trajectory has ω-limit set {(+∞, +∞)} when y0 > µ and has ω-limit set {(+∞, −∞)} when y0 ≤ µ. Here we will analyze the dynamics for all cases where a1 > 0 and b1 < 0. See [PITH_FULL_IMAGE:figures/full_fig_p013_10.png] view at source ↗
Figure 11

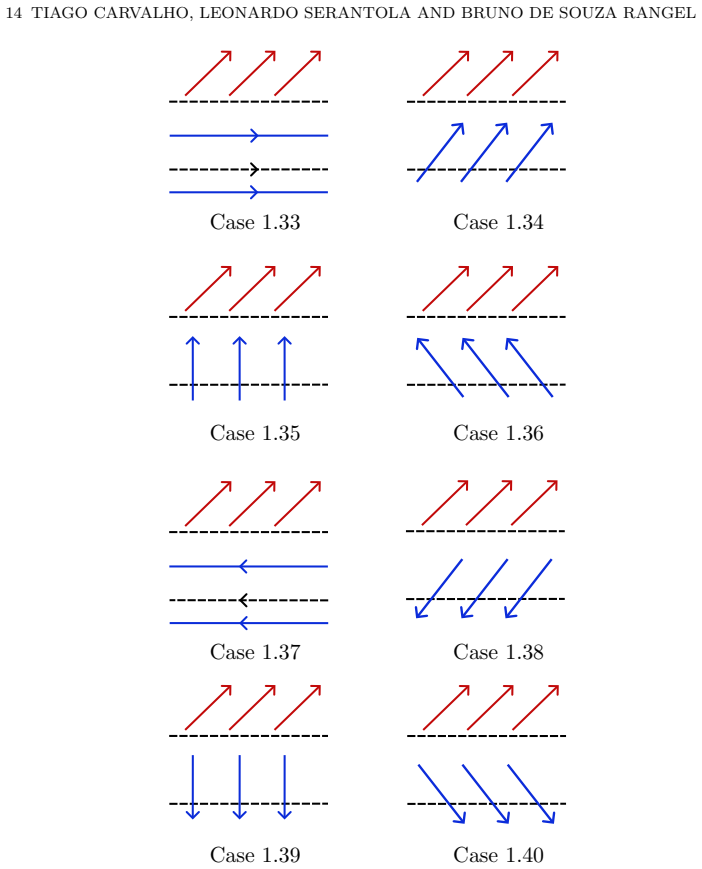

Figure 11. Figure 11: Dynamics for conditions a1 > 0 and b1 > 0. • Case 1.47: a1 > 0, b1 < 0, a2 = 0, b2 < 0. In this case, taking an arbitrary initial condition (x0, y0), the trajectory has ω-limit set x0 + a1(−y0 + µ) b1 , −∞ , when y0 > µ and has ω-limit set {(x0, −∞)} when y0 ≤ µ. • Case 1.48: a1 > 0, b1 < 0, a2 > 0, b2 < 0. In this case, taking an arbi￾trary initial condition (x0, y0), the trajectory has ω-limit set {… view at source ↗
Figure 12

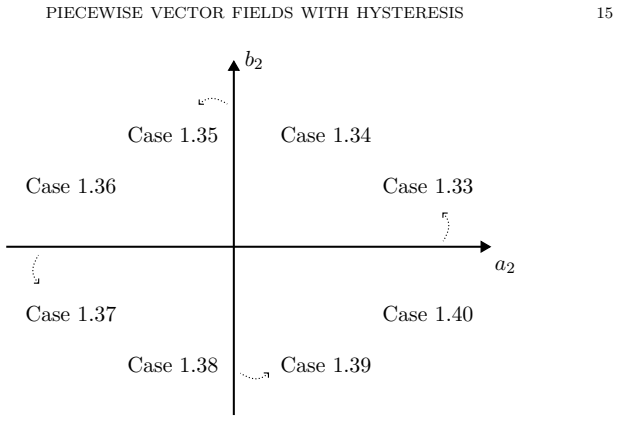

Figure 12. Figure 12: Bifurcation diagram in the variables a2 and b2, for a1 > 0 and b1 > 0. Here we will analyze the dynamics for all cases where a1 < 0 and b1 > 0. See [PITH_FULL_IMAGE:figures/full_fig_p015_12.png] view at source ↗
Figure 13

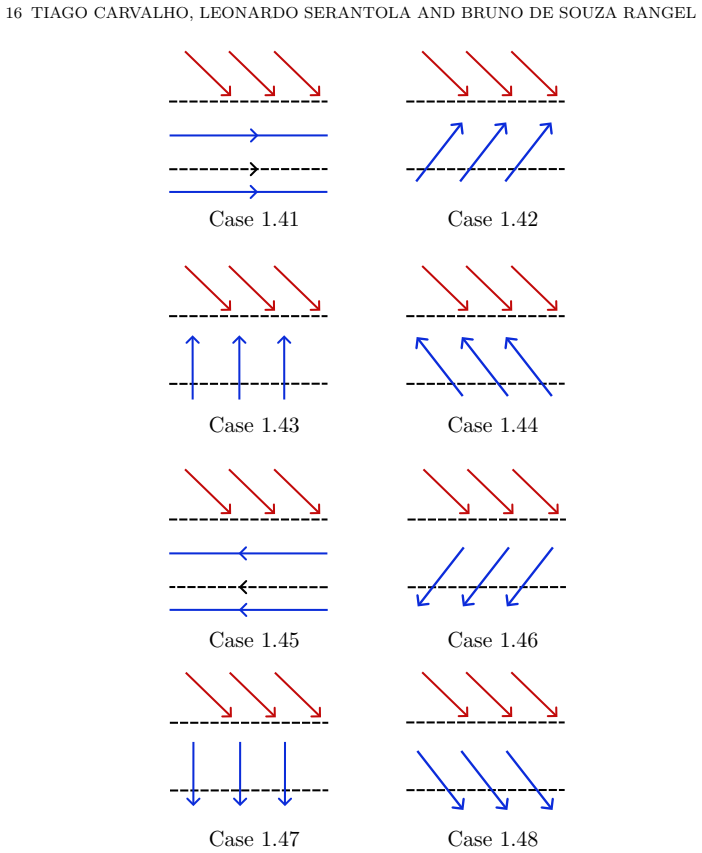

Figure 13. Figure 13: Dynamics for conditions a1 > 0 and b1 < 0. • Case 1.56: a1 < 0, b1 > 0, a2 > 0, b2 < 0. In this case, taking an arbi￾trary initial condition (x0, y0), the trajectory has ω-limit set {(−∞, +∞)} when y0 > µ and has ω-limit set {(+∞, −∞)} when y0 ≤ µ. Here we will analyze the dynamics for all cases where a1 < 0 and b1 < 0. See [PITH_FULL_IMAGE:figures/full_fig_p016_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Bifurcation diagram in the variables a2 and b2, for a1 > 0 and b1 < 0. • Case 1.57: a1 < 0, b1 < 0, a2 > 0, b2 = 0. In this case, taking an arbitrary initial condition (x0, y0), the trajectory has ω-limit set {(+∞, µ)} when y0 > µ and has ω-limit set {(+∞, y0)} when y0 ≤ µ. • Case 1.58: a1 < 0, b1 < 0, a2 > 0, b2 > 0. To analyze the dynamics of the trajectories, we will use Poincar´e first return map. See… view at source ↗
Figure 15

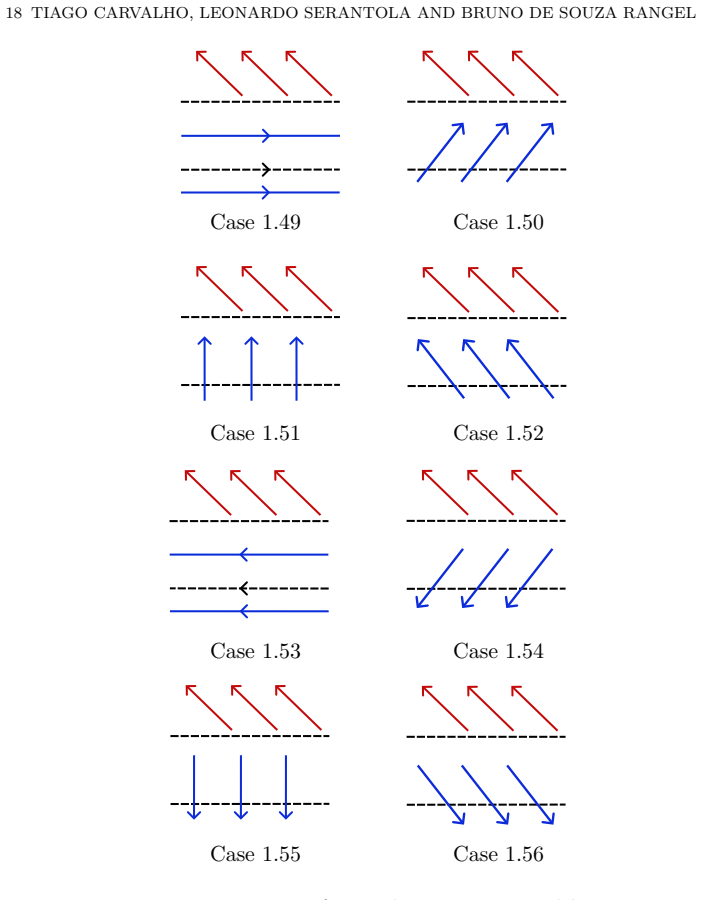

Figure 15. Figure 15: Dynamics for conditions a1 < 0 and b1 > 0. 3.1.1. Poincar´e first return map. In this section, via the Poincar´e first return map, let us describe the dynamics of the trajectories of X1 and X2 in the cases 1.26, 1.27, 1.28, 1.42, 1.43, 1.44, 1.58, 1.59, 1.60. Note that b1b2 ̸= 0. Let us suppose an initial point p1 = [PITH_FULL_IMAGE:figures/full_fig_p018_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Bifurcation diagram in the variables a2 and b2, for a1 < 0 and b1 > 0. The time which the flow takes to reach the another boundary of the hys￾teresis band y = −µ is given by (3) t = − 2µ b1 . Substituting (3) in the component solution x1 gives us x1  − 2µ b1  := x 2 0 = x 1 0 − 2a1µ b1 . From this moment, the flow is governed by the vector field X2 located under the hysteresis region and the solutions f… view at source ↗
Figure 17

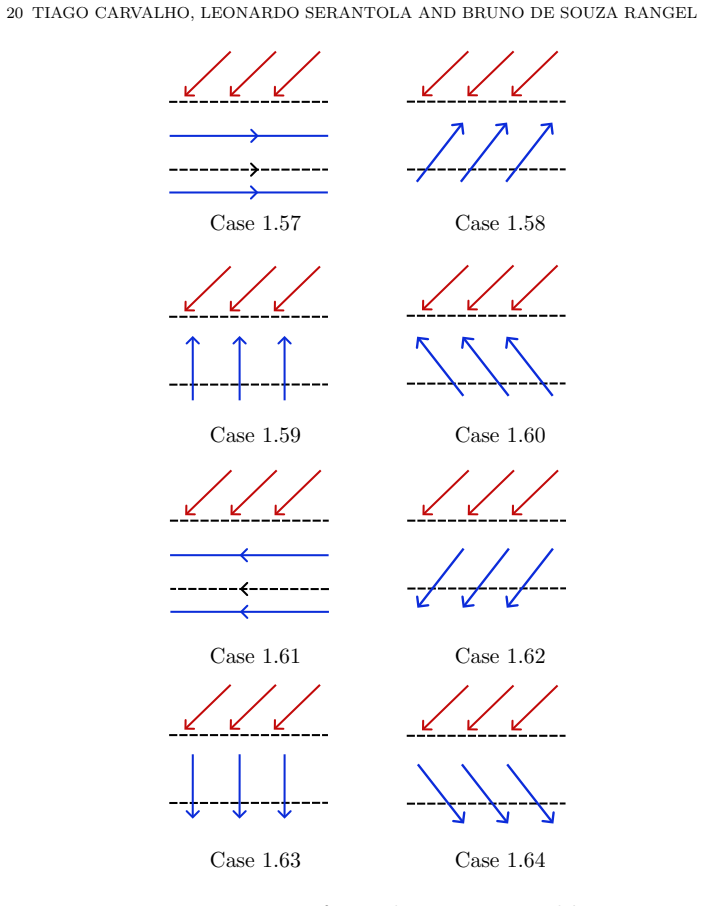

Figure 17. Figure 17: Dynamics for conditions a1 < 0 and b1 < 0. with b1b2 ̸= 0. Therefore, if α = 0, the Poincar´e first return map presents infinite fixed points located at the line [PITH_FULL_IMAGE:figures/full_fig_p020_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Bifurcation diagram in the variables a2 and b2, for a1 < 0 and b1 < 0. x-coordinate going to −∞. The cases that represent α < 0 are the cases 1.44, 1.58 when a2/b2 < a1/b1 and the cases 1.28, 1.59, 1.60. See [PITH_FULL_IMAGE:figures/full_fig_p021_18.png] view at source ↗
Figure 19

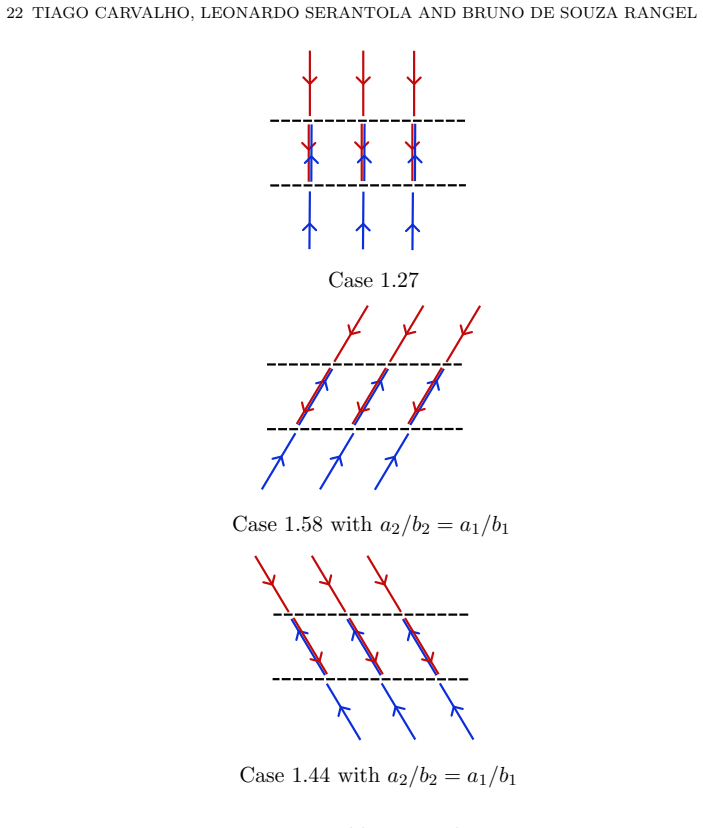

Figure 19. Figure 19: Possible cases when α = 0. A particularly interesting result is that the existence of periodic orbits and monotone zig-zag dynamics can be determined by a simple parameter involving the slopes of the two vector fields. This provides a clear geometric interpretation of the mechanisms responsible for the long-term behavior of the system. The present work should be regarded as a first step toward a broader t… view at source ↗
