Executable formal semantics for the POSIX shell

Michael Greenberg , Austin J. Blatt This is my paper

Pith reviewed 2026-05-24 22:45 UTC · model grok-4.3

classification 💻 cs.PL cs.OS
keywords POSIX shellformal semanticsexecutable semanticssmall-step semanticsshell conformancemechanized semanticssymbolic execution
0
0 comments X

The pith

Smoosh supplies an executable small-step semantics for the POSIX shell that passes more conformance tests than seven other shells.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors built Smoosh, a mechanized executable semantics for the POSIX shell, then ran it against the POSIX test suite, the Modernish suite, and their own tests. Smoosh matched the standard more closely than bash, dash, zsh, OSH, mksh, ksh93, and yash, with Modernish reporting only one bug and no quirks. The shell is critical infrastructure for system configuration and deployment, yet its subtleties often produce unexpected behavior. An executable model lets researchers and tool builders work directly with the standard's rules instead of relying on any particular implementation. The work also includes a symbolic stepper that exposes otherwise opaque execution paths.

Core claim

We define Smoosh as a formal, mechanized, executable small-step semantics for the POSIX shell. Direct comparison on three test suites shows it to be the most conformant of the eight shells examined, with Modernish identifying only a single bug inherited from its parser and no quirks.

What carries the argument

Smoosh, an executable small-step semantics for the POSIX shell implemented in mechanized form.

If this is right

  • Smoosh can serve as a reference implementation for checking other shells or scripts.
  • The semantics supports development of new shell tooling and formal analyses.
  • A symbolic stepper built on the semantics can reveal subtle execution behavior in existing scripts.
  • The model provides a stable foundation for designing or verifying future shell variants.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Developers writing portable shell scripts could use Smoosh as an oracle to catch non-standard assumptions earlier.
  • The semantics could be extended to model common extensions or environment-specific behaviors seen in real deployments.
  • Formal verification of system-administration tasks that rely on shell commands becomes feasible once the model is trusted.

Load-bearing premise

The three test suites together adequately represent the full POSIX shell specification rather than only a tested subset.

What would settle it

Execution of a new test suite that covers previously untested POSIX rules and produces more failures or quirks for Smoosh than for one of the other shells.

Figures

Figures reproduced from arXiv: 1907.05308 by Austin J. Blatt, Michael Greenberg.

Figure 1
Figure 1. Figure 1: Expansion examples specification [Austin Group 2018] §2.6. The examples in Figures 1b and 1d take place in a directory with three files (a, b, and c); the example in Figure 1e takes place in a different directory, where the result of the first echo indicates which files begin with the letter a. 2.2 Smoosh: a foundational, formal interpretation of the POSIX specification Our work aims to offer (a) a formal … view at source ↗
Figure 2

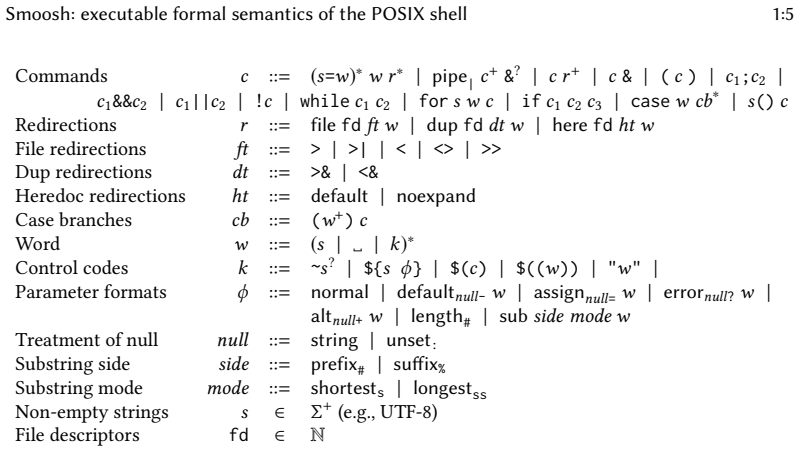

Figure 2. Figure 2: The shell’s source syntax syntax (e.g., prefix# ). We write x ? for optional nonterminals. We use Kleene star x ∗ to represent lists and x + to represent non-empty lists. We use n to refer to natural numbers and b to refer to booleans, tagging such variables with a descriptive name. For example, n$? is a number representing an exit status and b$() is a boolean that indicates whether a command substitution … view at source ↗
Figure 3

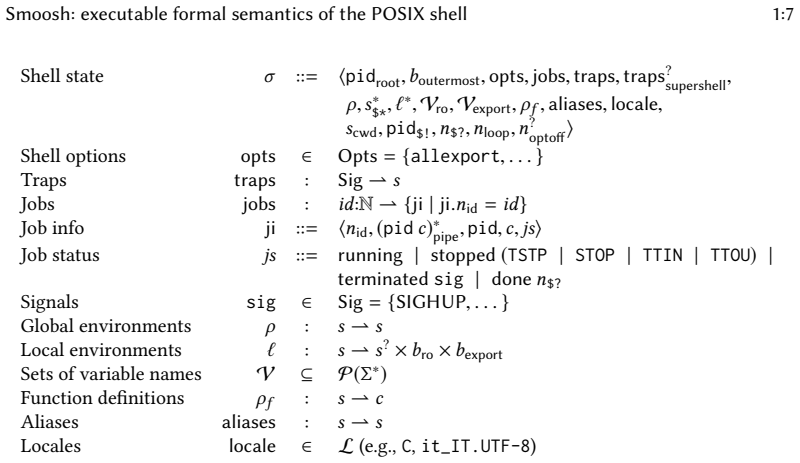

Figure 3. Figure 3: The shell’s state 4.1 State The POSIX shell has to track a significant amount of state ( [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

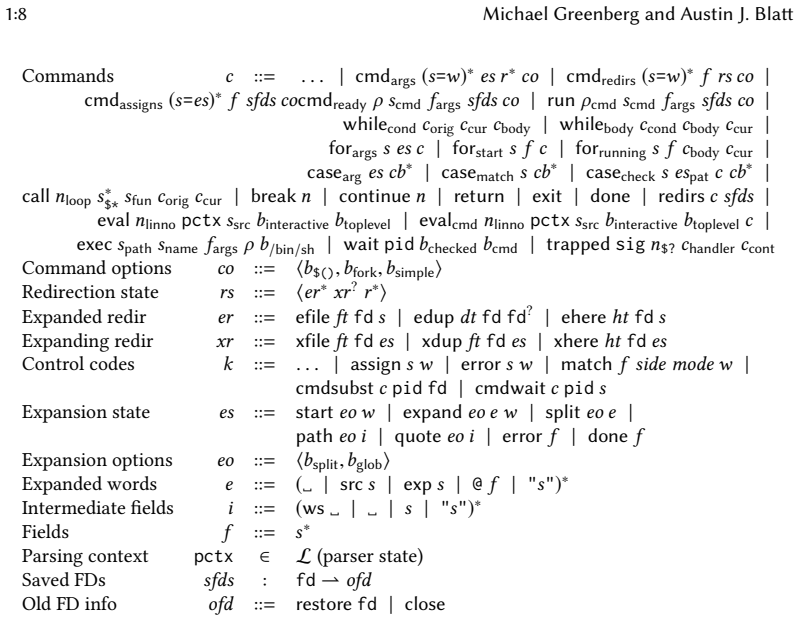

Figure 4. Figure 4: Smoosh’s runtime extensions for use in the small-step semantics [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

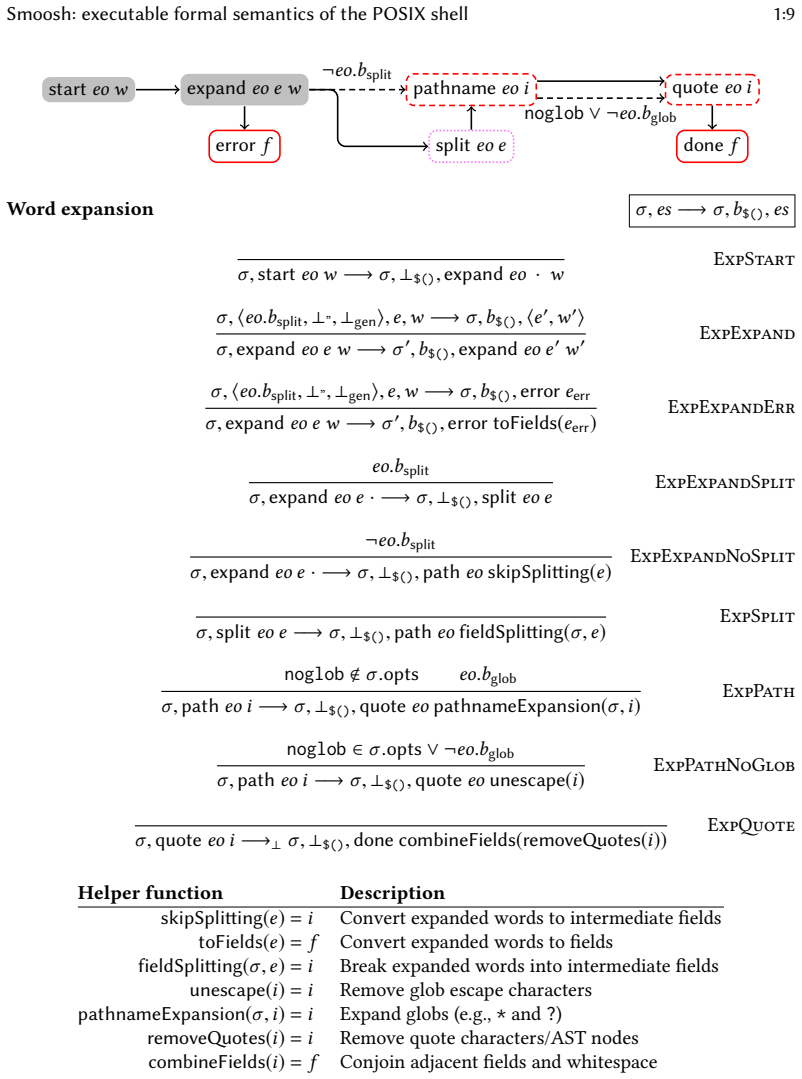

Figure 5. Figure 5: Small-step semantics for word expansion [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

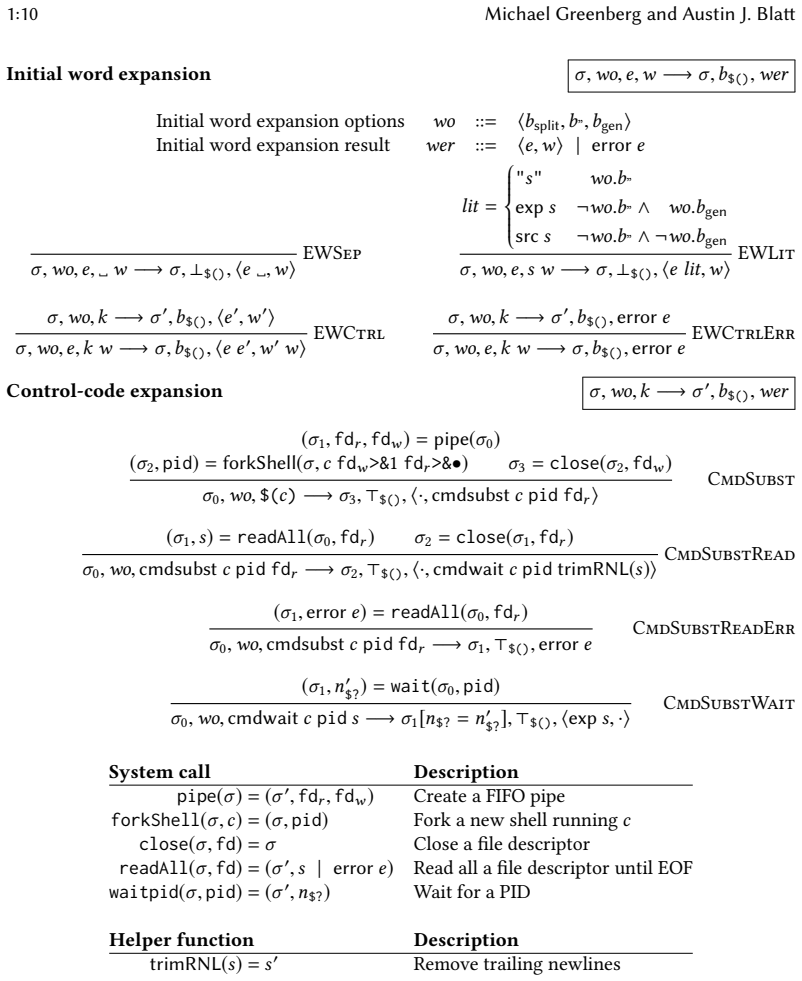

Figure 6. Figure 6: Small-step semantics for initial word expansion (expand) and command substitution [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7

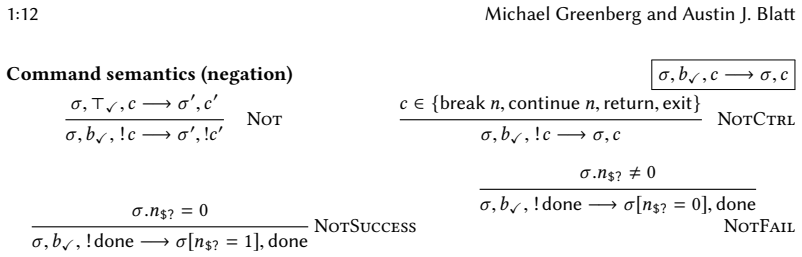

Figure 7. Figure 7: Small-step semantics for evaluation of negation [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
Figure 8

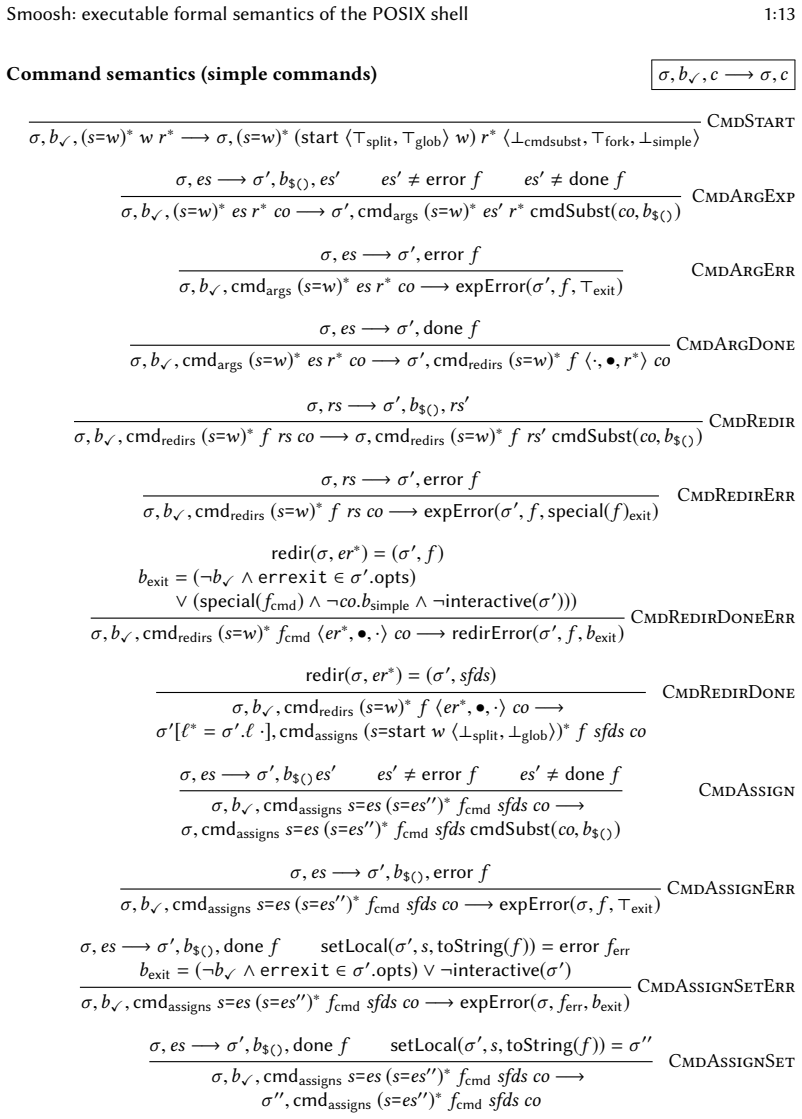

Figure 8. Figure 8: Small-step semantics for simple commands (part 1: expansion) [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 9

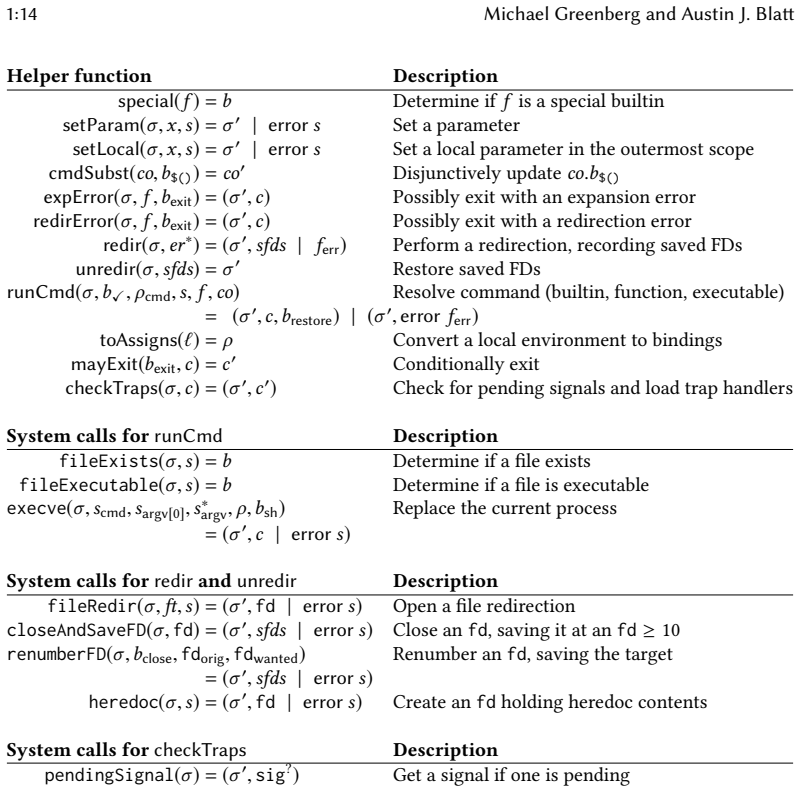

Figure 9. Figure 9: Helpers for simple command execution and applied (CmdRedirDone), saving file descriptor information sfds for later unwinding. Then we expand the words in the assignments (CmdAssign, CmdAssignErr) and store the results in a fresh local environment (CmdAssignSet). At thus point, we are already in dangerous territory: the POSIX specification allows assignments to be expanded before redirections when there are… view at source ↗
Figure 10

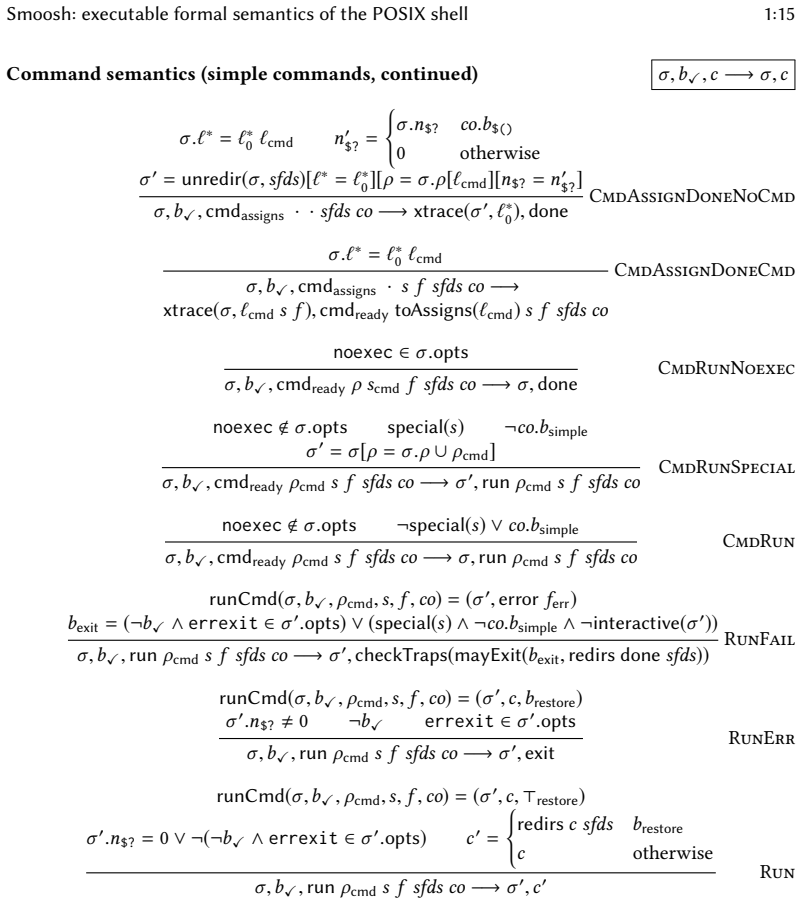

Figure 10. Figure 10: Small-step semantics for simple commands (part 2: evaluation) [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
read the original abstract

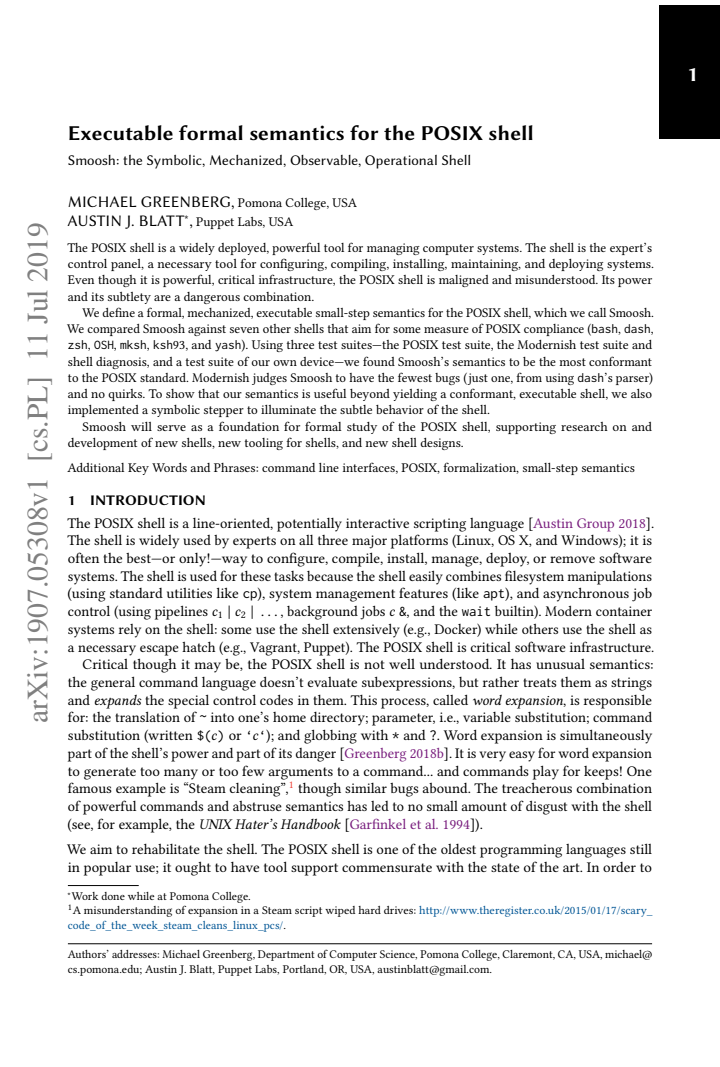

The POSIX shell is a widely deployed, powerful tool for managing computer systems. The shell is the expert's control panel, a necessary tool for configuring, compiling, installing, maintaining, and deploying systems. Even though it is powerful, critical infrastructure, the POSIX shell is maligned and misunderstood. Its power and its subtlety are a dangerous combination. We define a formal, mechanized, executable small-step semantics for the POSIX shell, which we call Smoosh. We compared Smoosh against seven other shells that aim for some measure of POSIX compliance (bash, dash, zsh, OSH, mksh, ksh93, and yash). Using three test suites---the POSIX test suite, the Modernish test suite and shell diagnosis, and a test suite of our own device---we found Smoosh's semantics to be the most conformant to the POSIX standard. Modernish judges Smoosh to have the fewest bugs (just one, from using dash's parser) and no quirks. To show that our semantics is useful beyond yielding a conformant, executable shell, we also implemented a symbolic stepper to illuminate the subtle behavior of the shell. Smoosh will serve as a foundation for formal study of the POSIX shell, supporting research on and development of new shells, new tooling for shells, and new shell designs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper defines Smoosh, a formal mechanized executable small-step semantics for the POSIX shell. It evaluates Smoosh against seven other shells (bash, dash, zsh, OSH, mksh, ksh93, yash) on the POSIX test suite, the Modernish test suite, and an author-provided suite, concluding that Smoosh is the most conformant (fewest bugs per Modernish, just one, and no quirks). The work also includes a symbolic stepper to explore shell behavior.

Significance. An executable, mechanized semantics for the POSIX shell would be a useful foundation for formal study, tooling, and new shell designs, given the shell's role in critical infrastructure. The comparison across multiple suites and the symbolic stepper are concrete strengths if the conformance results are shown to be robust.

major comments (1)
  1. [Abstract / Evaluation] The headline claim (abstract) that Smoosh's semantics is the most conformant to the POSIX standard rests on results from three test suites. No coverage argument, mapping of tests to IEEE 1003.1 sections, or enumeration of covered grammar productions, redirection rules, parameter expansions, or special builtins is referenced, so it is unclear whether the suites establish conformance to the full specification or only to the tested subset.
minor comments (1)
  1. [Abstract] The abstract refers to 'a test suite of our own device' without indicating its size, structure, or relation to the other suites.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the thoughtful review and the opportunity to clarify the scope of our evaluation. We address the major comment below and will make targeted revisions to improve the presentation of our conformance claims.

read point-by-point responses

  1. Referee: [Abstract / Evaluation] The headline claim (abstract) that Smoosh's semantics is the most conformant to the POSIX standard rests on results from three test suites. No coverage argument, mapping of tests to IEEE 1003.1 sections, or enumeration of covered grammar productions, redirection rules, parameter expansions, or special builtins is referenced, so it is unclear whether the suites establish conformance to the full specification or only to the tested subset.

    Authors: We agree that the abstract's phrasing could be read as claiming absolute conformance to the entire IEEE 1003.1 specification, which the test suites do not establish. Our claim is strictly relative: among the seven shells evaluated on the same three suites (the official POSIX conformance tests, the Modernish suite used by shell implementers, and our own diagnostic suite), Smoosh exhibits the fewest deviations. These suites are the accepted practical measures of POSIX shell behavior in the community. A exhaustive mapping of every test to grammar productions, redirections, expansions, and builtins would be valuable but is outside the paper's scope and would require a separate, lengthy appendix. We will revise the abstract and add a short subsection in the evaluation (Section 5) that enumerates the major language features exercised by the suites (e.g., simple and compound commands, all redirection operators, parameter and command substitutions, special builtins) and notes the absence of coverage for certain edge cases such as job control and certain locale-specific behaviors. This will make the limits of the claim explicit while preserving the relative comparison. revision: partial

Circularity Check

0 steps flagged

No significant circularity; conformance established via external test suites

full rationale

The paper defines an executable small-step semantics for the POSIX shell and evaluates conformance by running three external test suites (POSIX, Modernish, and authors' own) against Smoosh and other shells. The central claim—that Smoosh is most conformant—rests on comparative test outcomes rather than any self-referential definition, fitted parameter renamed as prediction, or load-bearing self-citation. No derivation chain reduces a result to its own inputs by construction; the semantics is mechanized independently and then validated against independent benchmarks. This is the normal non-circular case for an executable semantics paper.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only; main domain assumption is that POSIX behavior admits a small-step executable formalization. No free parameters or invented entities are mentioned.

axioms (1)
  • domain assumption The POSIX shell specification can be captured by a small-step executable semantics.
    Invoked to justify defining Smoosh as the semantics.
