arxiv: 1907.09977 · v1 · pith:APPIYVFBnew · submitted 2019-07-23 · 💻 cs.NI

Performance Analysis of C-V2X Mode 4 Communication Introducing an Open-Source C-V2X Simulator

Fabian Eckermann , Moritz Kahlert , Christian Wietfeld This is my paper

Pith reviewed 2026-05-24 16:52 UTC · model grok-4.3

classification 💻 cs.NI
keywords C-V2XMode 4ns-3simulatorperformance analysisvehicular communicationpacket reception ratioManhattan grid
0
0 comments X

The pith

An open-source ns-3 simulator shows C-V2X Mode 4 scales to 250 vehicles in a 100 m by 100 m area while meeting LTE Rel. 14 requirements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces an open-source simulator for C-V2X Mode 4 built on ns-3, incorporating the WINNER+ B1 channel model and SUMO-generated mobility traces. It evaluates the protocol in a dense worst-case scenario and the 3GPP Manhattan grid reference. Results indicate the system remains scalable at 250 vehicles in the dense case, with packet inter-reception times below 100 ms for over 99 percent of transmissions. The work also examines how the resource reservation period and resource reselection probability affect packet reception ratio.

Core claim

The simulator demonstrates that C-V2X Mode 4 is scalable to 250 vehicles within a worst case scenario on a playground of 100 m x 100 m, with respect to the LTE rel. 14 V2X requirements. Performance improves in the more realistic Manhattan grid scenario. Packet inter-reception time remains at a maximum of 100 ms for more than 99 percent of all transmissions. The resource reservation period and resource reselection probability influence the system's packet reception ratio.

What carries the argument

The ns-3 implementation of C-V2X Mode 4 with the added WINNER+ B1 channel model and SUMO mobility traces, used to measure packet reception ratio and packet inter-reception time under varying densities and parameters.

If this is right

  • C-V2X Mode 4 meets LTE Rel. 14 requirements at densities up to 250 vehicles in a 100 m by 100 m worst-case area.
  • Packet inter-reception stays under 100 ms for more than 99 percent of transmissions.
  • Performance is higher in the 3GPP Manhattan grid layout than in the uniform dense worst-case layout.
  • Changes to the resource reservation period and resource reselection probability directly alter packet reception ratio.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The released simulator code removes a practical barrier for independent researchers studying dense V2X deployments.
  • Parameter sensitivity results point to a possible optimization path for tuning reservation settings to local traffic density.
  • Extending the same framework to include pedestrian or cyclist nodes would test whether the scalability claim holds in mixed traffic.
  • Integration with higher-layer autonomy simulators could reveal end-to-end latency effects not captured in the current PHY/MAC focus.

Load-bearing premise

The ns-3 implementation of C-V2X Mode 4, combined with the added WINNER+ B1 channel model and SUMO-generated mobility traces, produces results that accurately reflect real-world protocol behavior and radio propagation for the purpose of meeting LTE Rel. 14 requirements.

What would settle it

Side-by-side comparison of the simulator's packet reception ratio and inter-reception time statistics against measurements collected from a physical C-V2X testbed operating at 250 vehicles in a 100 m by 100 m area.

Figures

Figures reproduced from arXiv: 1907.09977 by Christian Wietfeld, Fabian Eckermann, Moritz Kahlert.

Figure 1
Figure 1. Figure 1: C-V2X use cases: Vehicle-to-Vehicle (V2V), Vehicle-to-Pedestrian [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

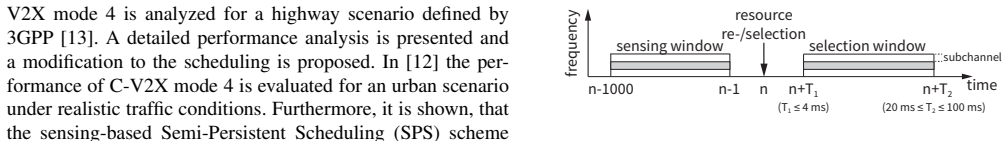

Figure 2. Figure 2: A V-UEs resource selection (or reselection) at time [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

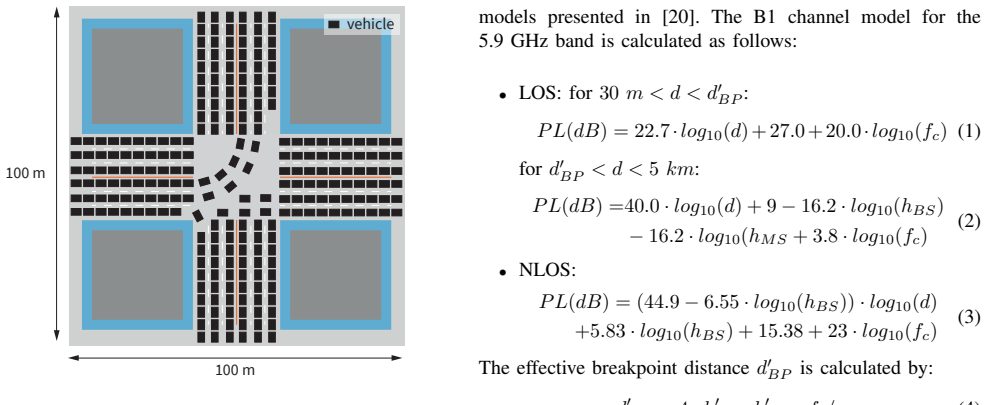

Figure 3. Figure 3: Static intersection scenario with 250 V-UEs. [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

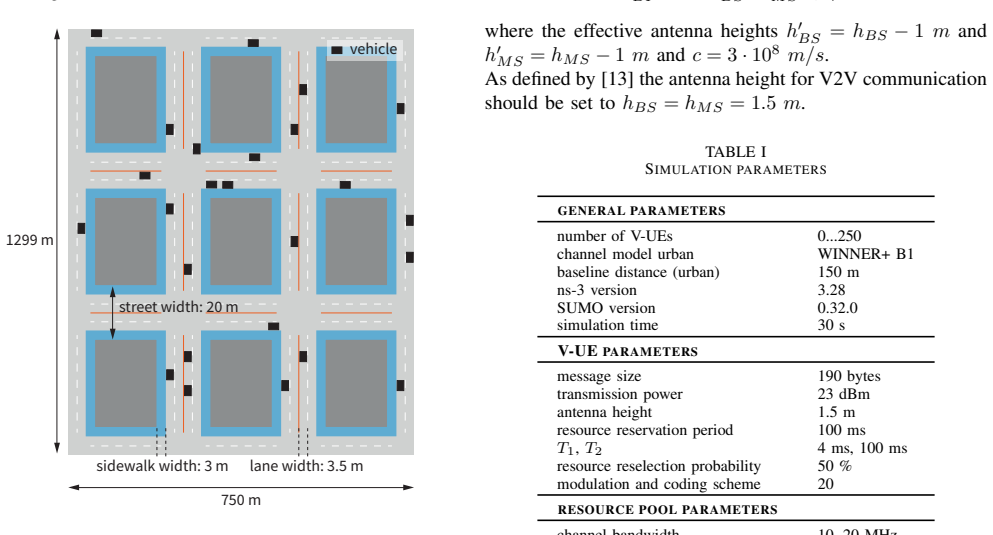

Figure 4. Figure 4: Manhattan grid for the urban simulation use cases as used by 3GPP. [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5

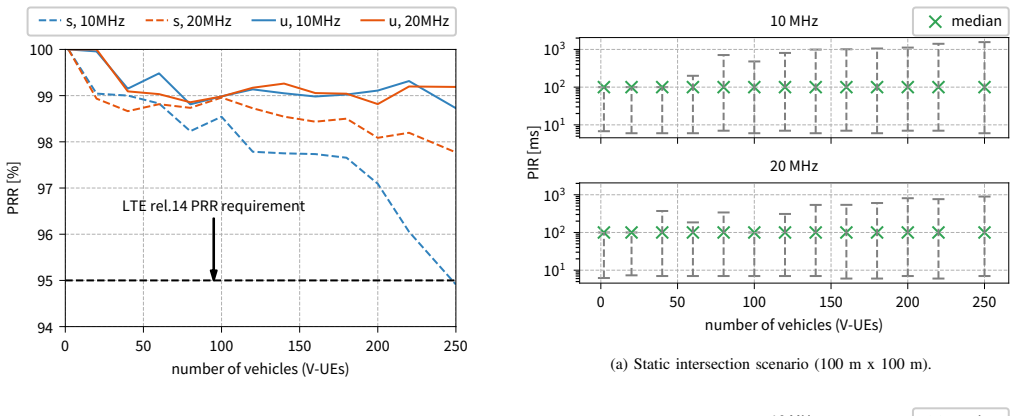

Figure 5. Figure 5: Packet Reception Ratio for an increasing number of V-UEs and cellular [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6

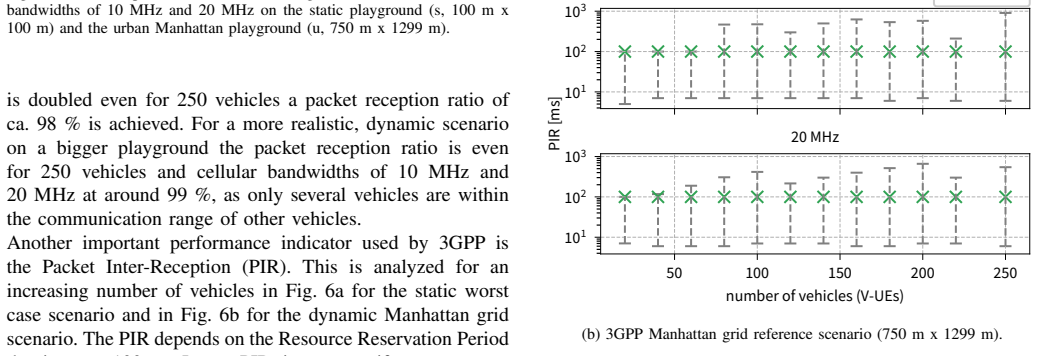

Figure 6. Figure 6: Packet Inter-Reception for an increasing number of V-UEs and cellular [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
Figure 7

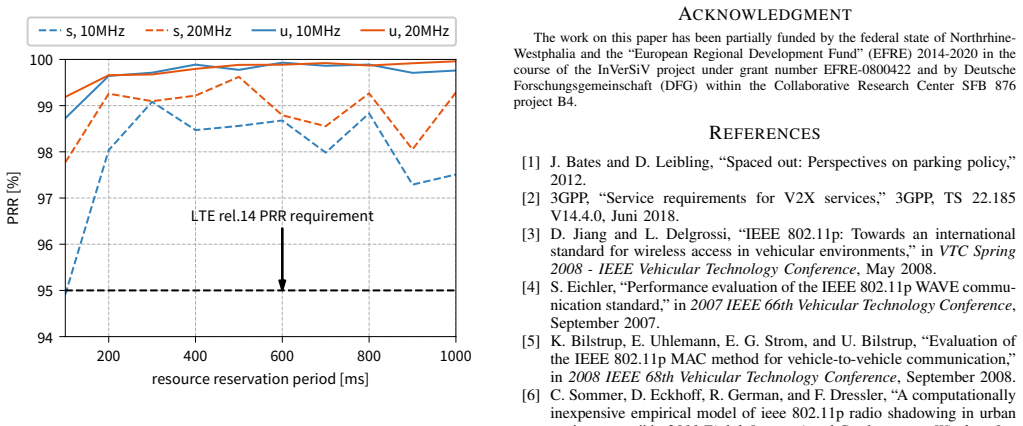

Figure 7. Figure 7: Packet Reception Ratio (PRR) for increasing Resource Reservation [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 8

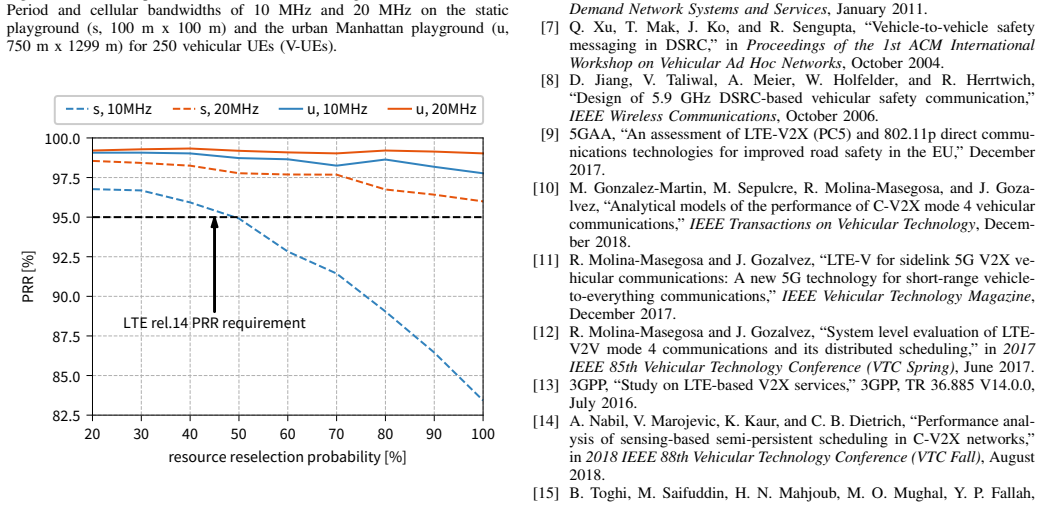

Figure 8. Figure 8: Packet Reception Ratio (PRR) for increasing Resource Reselection [PITH_FULL_IMAGE:figures/full_fig_p005_8.png] view at source ↗
read the original abstract

Autonomous vehicles, on the ground and in the air, are the next big evolution in human mobility. While autonomous driving in highway scenarios is already possible using only the vehicles sensors, the complex scenarios of big cities with all its different traffic participants is still a vision. Cellular Vehicle-to-Everything (C-V2X) communication is a necessary enabler of this vision and and an emerging field of interest in today's research. However, to the best of our knowledge open source simulators essential for open research do not exist yet. In this work we present our open source C-V2X mode 4 simulator based on the discrete-event network simulator ns-3. To analyze the performance of C-V2X mode 4 using our simulator, we created a worst case scenario and the 3GPP reference Manhattan grid scenario using the microscopic traffic simulator SUMO. We also added the WINNER+ B1 channel model to ns-3, as this is also used by 3GPP. Our results show, that C-V2X is scalable to 250 vehicles within a worst case scenario on a playground of 100 m x 100 m, with respect to the LTE rel. 14 V2X requirements. For the more realistic Manhattan grid scenario, the performance is better, as to be expected. We also analyzed the Packet Inter-Reception time with an outcome of max. 100 ms for more than 99 % of all transmissions. In addition, we investigated the impact of the Resource Reservation Period and the Resource Reselection Probability on the system's Packet Reception Ratio.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents an open-source ns-3 simulator for C-V2X Mode 4 that incorporates the WINNER+ B1 channel model and SUMO mobility traces. It evaluates performance in a worst-case 100 m × 100 m scenario (up to 250 vehicles) and the 3GPP Manhattan grid, claiming that Mode 4 meets LTE Rel. 14 V2X requirements on packet reception ratio, with packet inter-reception time ≤ 100 ms for >99 % of packets, and reports sensitivity to resource reservation period and reselection probability.

Significance. An open-source, publicly available C-V2X Mode 4 simulator constitutes a useful community resource for reproducible research in vehicular networks. If the implementation were shown to be faithful, the reported scalability results would provide concrete evidence supporting Mode 4 deployment in dense urban settings.

major comments (2)
  1. [Performance analysis / abstract] Performance analysis section / abstract: no validation of the custom ns-3 Mode 4 implementation (sensing-based SPS, resource reselection, or the added WINNER+ B1 model) against hardware measurements, 3GPP reference curves, or independent simulators is provided. Because all quantitative claims (scalability to 250 vehicles, PIR statistics) are direct simulation outputs, this absence is load-bearing for the central performance conclusions.
  2. [Implementation description] Implementation description: the manuscript supplies no pseudocode, state-machine diagram, or parameter settings for the Mode 4 sensing window, resource reservation interval selection, or collision avoidance logic, preventing independent assessment of whether the reported PRR and PIR figures correctly reflect the LTE Rel. 14 specification.
minor comments (2)
  1. [Abstract] Abstract contains the duplicated word 'and and'.
  2. [Performance analysis] Simulation results are presented without error bars, confidence intervals, or the number of independent runs, which reduces the ability to judge statistical significance of the reported thresholds.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and indicate planned revisions.

read point-by-point responses

  1. Referee: [Performance analysis / abstract] Performance analysis section / abstract: no validation of the custom ns-3 Mode 4 implementation (sensing-based SPS, resource reselection, or the added WINNER+ B1 model) against hardware measurements, 3GPP reference curves, or independent simulators is provided. Because all quantitative claims (scalability to 250 vehicles, PIR statistics) are direct simulation outputs, this absence is load-bearing for the central performance conclusions.

    Authors: We acknowledge that the manuscript does not contain direct validation of the Mode 4 implementation against hardware measurements or published 3GPP reference curves. The simulator strictly follows the LTE Rel. 14 sensing-based SPS procedures defined in 3GPP TS 36.321 and TS 36.213, using the standard 100 ms sensing window and the resource reservation intervals permitted by the specification; the WINNER+ B1 model is the exact channel model mandated by 3GPP for the Manhattan-grid evaluation. Because the source code is released publicly, independent verification is possible. In the revision we will add an explicit subsection comparing our PRR/PIR results with the closest available published curves from other C-V2X simulators and will state the limitations regarding hardware validation. revision: partial

  2. Referee: [Implementation description] Implementation description: the manuscript supplies no pseudocode, state-machine diagram, or parameter settings for the Mode 4 sensing window, resource reservation interval selection, or collision avoidance logic, preventing independent assessment of whether the reported PRR and PIR figures correctly reflect the LTE Rel. 14 specification.

    Authors: We agree that the current description is insufficient for independent assessment. The revised manuscript will include (i) pseudocode for the sensing-window update, resource-reservation-interval selection, and collision-avoidance reselection logic, and (ii) a table listing all Mode 4 parameters used (sensing window size, resource reservation period values, reselection probability, etc.). revision: yes

Circularity Check

0 steps flagged

No circularity: performance metrics are direct simulation outputs

full rationale

The paper reports simulation results for C-V2X Mode 4 scalability using a new ns-3 implementation with SUMO mobility and WINNER+ B1 channel. There are no equations, fitted parameters, or self-referential derivations; Packet Reception Ratio and Packet Inter-Reception times are computed directly as statistical outputs from the simulation runs. No self-citation chains, ansatzes, or uniqueness theorems are invoked to force the results. The central claims do not reduce to inputs by construction. Lack of external validation is a model-fidelity issue, not circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The scalability and PIR claims rest entirely on the assumption that the discrete-event models in ns-3 faithfully reproduce 3GPP Mode 4 behavior and the WINNER+ B1 propagation; no independent empirical calibration is described.

axioms (2)
  • domain assumption The ns-3 C-V2X Mode 4 implementation correctly realizes sensing-based semi-persistent scheduling and resource reservation as specified in LTE Rel. 14.
    All reported PRR and PIR statistics depend on this protocol fidelity.
  • domain assumption The WINNER+ B1 channel model added to ns-3 produces realistic path loss and shadowing for the Manhattan and dense playground scenarios.
    The abstract states this model was added because it is used by 3GPP; results use it directly.

pith-pipeline@v0.9.0 · 5827 in / 1614 out tokens · 29936 ms · 2026-05-24T16:52:26.886419+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

21 extracted references · 21 canonical work pages

  1. [1]

    Spaced out: Perspectives on parking policy,

    J. Bates and D. Leibling, “Spaced out: Perspectives on parking policy,” 2012

    work page 2012

  2. [2]

    Service requirements for V2X services,

    3GPP, “Service requirements for V2X services,” 3GPP, TS 22.185 V14.4.0, Juni 2018

    work page 2018

  3. [3]

    IEEE 802.11p: Towards an international standard for wireless access in vehicular environments,

    D. Jiang and L. Delgrossi, “IEEE 802.11p: Towards an international standard for wireless access in vehicular environments,” in VTC Spring 2008 - IEEE V ehicular Technology Conference , May 2008

    work page 2008

  4. [4]

    Performance evaluation of the IEEE 802.11p W A VE commu- nication standard,

    S. Eichler, “Performance evaluation of the IEEE 802.11p W A VE commu- nication standard,” in 2007 IEEE 66th V ehicular Technology Conference, September 2007

    work page 2007

  5. [5]

    Evaluation of the IEEE 802.11p MAC method for vehicle-to-vehicle communication,

    K. Bilstrup, E. Uhlemann, E. G. Strom, and U. Bilstrup, “Evaluation of the IEEE 802.11p MAC method for vehicle-to-vehicle communication,” in 2008 IEEE 68th V ehicular Technology Conference , September 2008

    work page 2008

  6. [6]

    A computationally inexpensive empirical model of ieee 802.11p radio shadowing in urban environments,

    C. Sommer, D. Eckhoff, R. German, and F. Dressler, “A computationally inexpensive empirical model of ieee 802.11p radio shadowing in urban environments,” in 2011 Eighth International Conference on Wireless On- Demand Network Systems and Services , January 2011

    work page 2011

  7. [7]

    Vehicle-to-vehicle safety messaging in DSRC,

    Q. Xu, T. Mak, J. Ko, and R. Sengupta, “Vehicle-to-vehicle safety messaging in DSRC,” in Proceedings of the 1st ACM International Workshop on V ehicular Ad Hoc Networks , October 2004

    work page 2004

  8. [8]

    Design of 5.9 GHz DSRC-based vehicular safety communication,

    D. Jiang, V . Taliwal, A. Meier, W. Holfelder, and R. Herrtwich, “Design of 5.9 GHz DSRC-based vehicular safety communication,” IEEE Wireless Communications , October 2006

    work page 2006

  9. [9]

    An assessment of LTE-V2X (PC5) and 802.11p direct commu- nications technologies for improved road safety in the EU,

    5GAA, “An assessment of LTE-V2X (PC5) and 802.11p direct commu- nications technologies for improved road safety in the EU,” December 2017

    work page 2017

  10. [10]

    Analytical models of the performance of C-V2X mode 4 vehicular communications,

    M. Gonzalez-Martin, M. Sepulcre, R. Molina-Masegosa, and J. Goza- lvez, “Analytical models of the performance of C-V2X mode 4 vehicular communications,” IEEE Transactions on V ehicular Technology, Decem- ber 2018

    work page 2018

  11. [11]

    LTE-V for sidelink 5G V2X ve- hicular communications: A new 5G technology for short-range vehicle- to-everything communications,

    R. Molina-Masegosa and J. Gozalvez, “LTE-V for sidelink 5G V2X ve- hicular communications: A new 5G technology for short-range vehicle- to-everything communications,” IEEE V ehicular Technology Magazine, December 2017

    work page 2017

  12. [12]

    System level evaluation of LTE- V2V mode 4 communications and its distributed scheduling,

    R. Molina-Masegosa and J. Gozalvez, “System level evaluation of LTE- V2V mode 4 communications and its distributed scheduling,” in 2017 IEEE 85th V ehicular Technology Conference (VTC Spring) , June 2017

    work page 2017

  13. [13]

    Study on LTE-based V2X services,

    3GPP, “Study on LTE-based V2X services,” 3GPP, TR 36.885 V14.0.0, July 2016

    work page 2016

  14. [14]

    Performance anal- ysis of sensing-based semi-persistent scheduling in C-V2X networks,

    A. Nabil, V . Marojevic, K. Kaur, and C. B. Dietrich, “Performance anal- ysis of sensing-based semi-persistent scheduling in C-V2X networks,” in 2018 IEEE 88th V ehicular Technology Conference (VTC Fall), August 2018

    work page 2018

  15. [15]

    Multiple access in cellular V2X: Performance anal- ysis in highly congested vehicular networks,

    B. Toghi, M. Saifuddin, H. N. Mahjoub, M. O. Mughal, Y . P. Fallah, J. Rao, and S. Das, “Multiple access in cellular V2X: Performance anal- ysis in highly congested vehicular networks,” in 2018 IEEE V ehicular Networking Conference (VNC) , Dec 2018

    work page 2018

  16. [16]

    Lightweight simulation of hybrid aerial- and ground-based vehicular communication networks,

    B. Sliwa, M. Patchou, and C. Wietfeld, “Lightweight simulation of hybrid aerial- and ground-based vehicular communication networks,” in 2019 IEEE 90th V ehicular Technology Conference (VTC Fall) (accepted for presentation), September 2019

    work page 2019

  17. [17]

    Study on LTE support for vehicle-to-everything (V2X) services,

    3GPP, “Study on LTE support for vehicle-to-everything (V2X) services,” 3GPP, TR 22.885 V14.0.0, December 2015

    work page 2015

  18. [18]

    Implementa- tion and validation of an LTE D2D model for ns-3,

    R. Rouil, F. J. Cintrón, A. Ben Mosbah, and S. Gamboa, “Implementa- tion and validation of an LTE D2D model for ns-3,” in Proceedings of the Workshop on Ns-3 , 2017

    work page 2017

  19. [19]

    Microscopic traffic simulation using SUMO,

    P. A. Lopez, M. Behrisch, L. Bieker-Walz, J. Erdmann, Y .-P. Flötteröd, R. Hilbrich, L. Lücken, J. Rummel, P. Wagner, and E. Wießner, “Microscopic traffic simulation using SUMO,” in The 21st IEEE International Conference on Intelligent Transportation Systems . IEEE,

    work page

  20. [20]

    Available: https://elib.dlr.de/124092/

    [Online]. Available: https://elib.dlr.de/124092/

    work page

  21. [21]

    WINNER II channel models,

    P. Kyösti, J. Meinilä, L. Hentilä, X. Zhao, T. Jämsä, C. Schnei- der, M. Narandži ´c, M. Milojevi ´c, A. Hong, J. Ylitalo, V . Holappa, M. Alatossava, Y . d. J. R. Bultitude, and T. Rautiainen, “WINNER II channel models,” IST-WINNER2, TR, February 2008

    work page 2008
