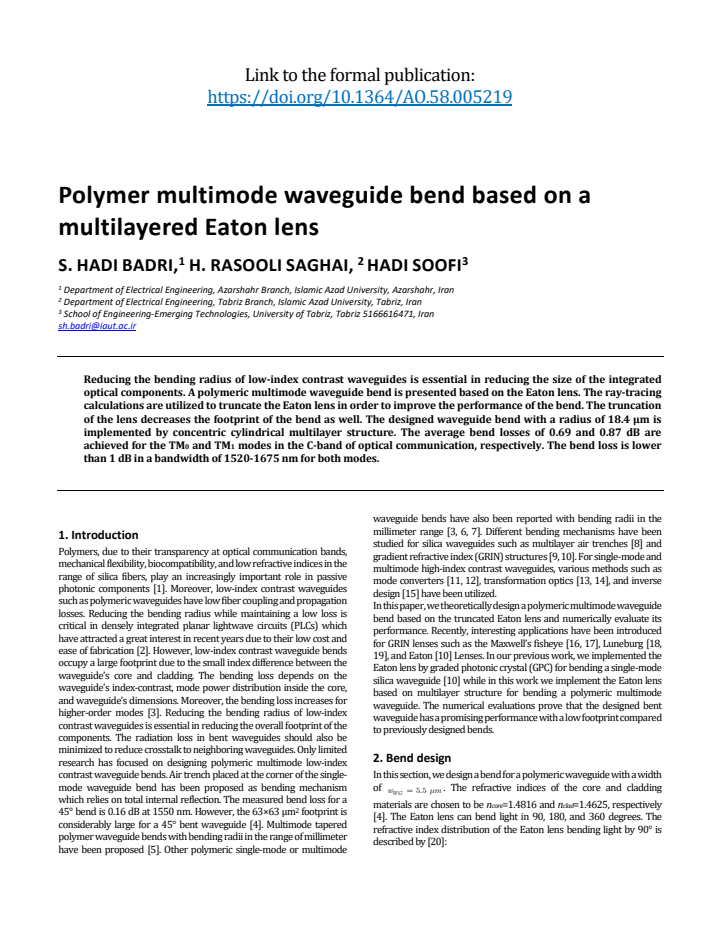

Polymer multimode waveguide bend based on a multilayered Eaton lens

S. Hadi Badri , H. Rasooli Saghai , Hadi Soofi This is my paper

Pith reviewed 2026-05-25 14:57 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph
keywords polymer waveguidewaveguide bendEaton lensmultilayer structuremultimode waveguidebend lossoptical communication
0
0 comments X

The pith

A truncated Eaton lens approximated by cylindrical multilayers creates a polymer waveguide bend of 18.4 micrometers radius with sub-decibel losses for two modes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper designs a multimode waveguide bend in polymer by truncating an Eaton lens through ray-tracing calculations and realizing the resulting index profile with concentric cylindrical layers. This truncation shrinks the bend radius while directing light along curved paths that match the lens properties. The resulting structure delivers average bend losses of 0.69 dB for the TM0 mode and 0.87 dB for the TM1 mode across the C-band. Losses stay below 1 dB over the 1520-1675 nm wavelength range for both modes, which supports tighter integration of optical components that use low-index-contrast polymer waveguides.

Core claim

The designed waveguide bend with a radius of 18.4 μm is implemented by concentric cylindrical multilayer structure. The average bend losses of 0.69 and 0.87 dB are achieved for the TM0 and TM1 modes in the C-band of optical communication, respectively. The bend loss is lower than 1 dB in a bandwidth of 1520-1675 nm for both modes.

What carries the argument

Concentric cylindrical multilayer structure that approximates the refractive-index profile of a ray-tracing truncated Eaton lens and bends guided modes along tight curves.

If this is right

  • The bend maintains losses below 1 dB over a 155 nm bandwidth for both modes.
  • Ray-tracing truncation both shrinks the device footprint and lowers the losses compared with an untruncated lens.
  • Multimode operation becomes feasible in low-index-contrast polymer waveguides at telecom wavelengths.
  • The same cylindrical-layer construction can be scaled to other bend radii while preserving the loss targets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may extend to bends that support additional higher-order modes if more layers are added.
  • Similar layer discretization could be tested on other gradient-index profiles used for routing light in planar circuits.
  • Fabrication tolerances on layer thickness and index contrast would determine how far the design can be miniaturized before losses rise.

Load-bearing premise

The refractive-index profile obtained by truncating the Eaton lens via ray tracing can be discretized into cylindrical layers that guide the TM0 and TM1 modes with the reported losses and without extra radiation or mode conversion from wave effects.

What would settle it

A full-wave simulation or fabricated-device measurement that records bend losses above 1 dB for the TM0 or TM1 mode anywhere inside the 1520-1675 nm interval would show the multilayer approximation fails to capture the actual wave behavior.

Figures

Figures reproduced from arXiv: 1906.11287 by Hadi Soofi, H. Rasooli Saghai, S. Hadi Badri.

Figure 1

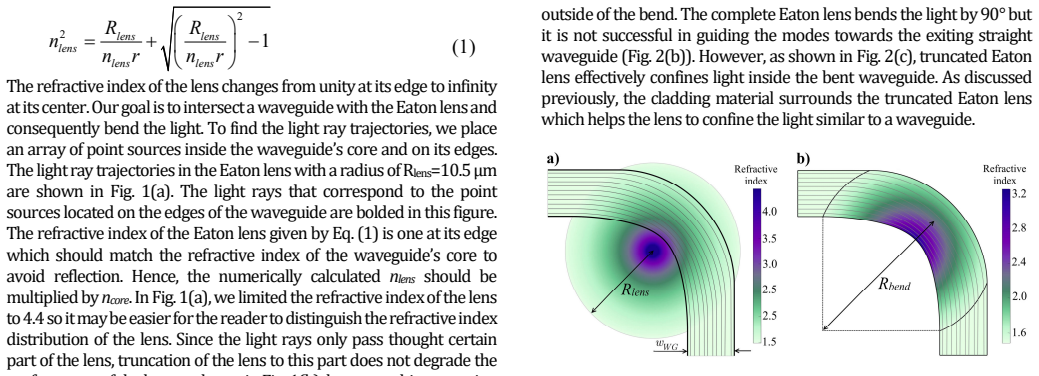

Figure 1. Figure 1: a) Intersection of a waveguide with the Eaton lens. The rays, [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

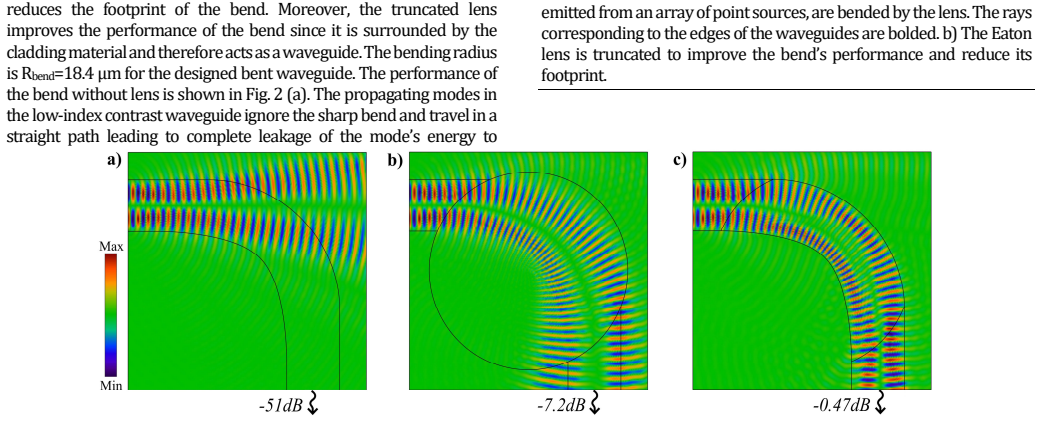

Figure 2. Figure 2: The TM1mode’s propagation through the polymeric waveguide bend a) without Eaton lens, b) with complete Eaton lens,andc) with truncated Eaton lens at 1550 nm. Truncation of the Eaton lens reduces the bending loss considerably. 3. Multilayered Eaton lens Multilayered structures based on their interference effects have many applications such as antireflection coatings, Bragg mirrors, and filters [21-24]. In t… view at source ↗
Figure 3

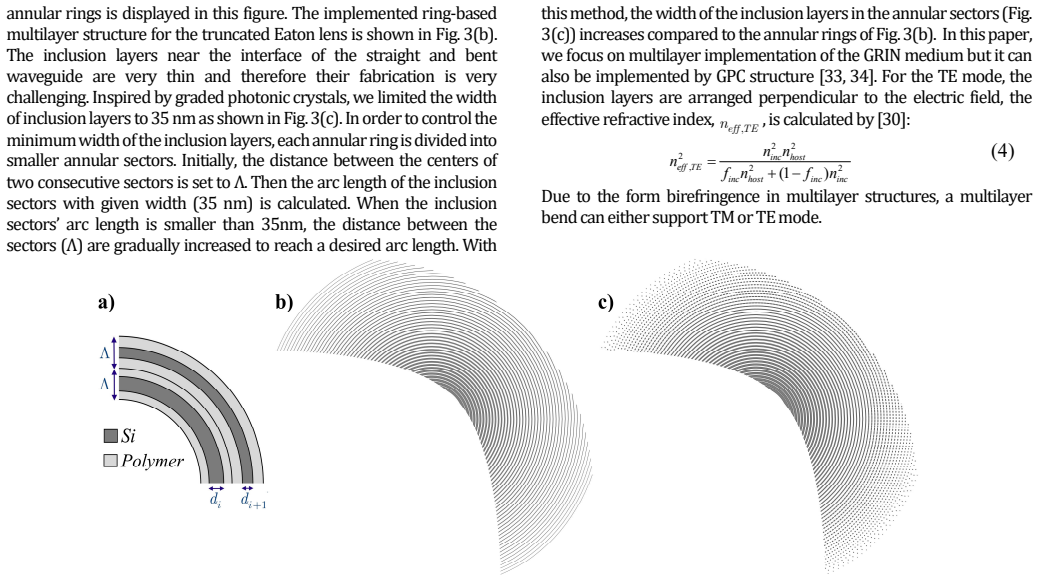

Figure 3. Figure 3: a) Part of the annular rings with a period of Λ and inclusion layers with widths of [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

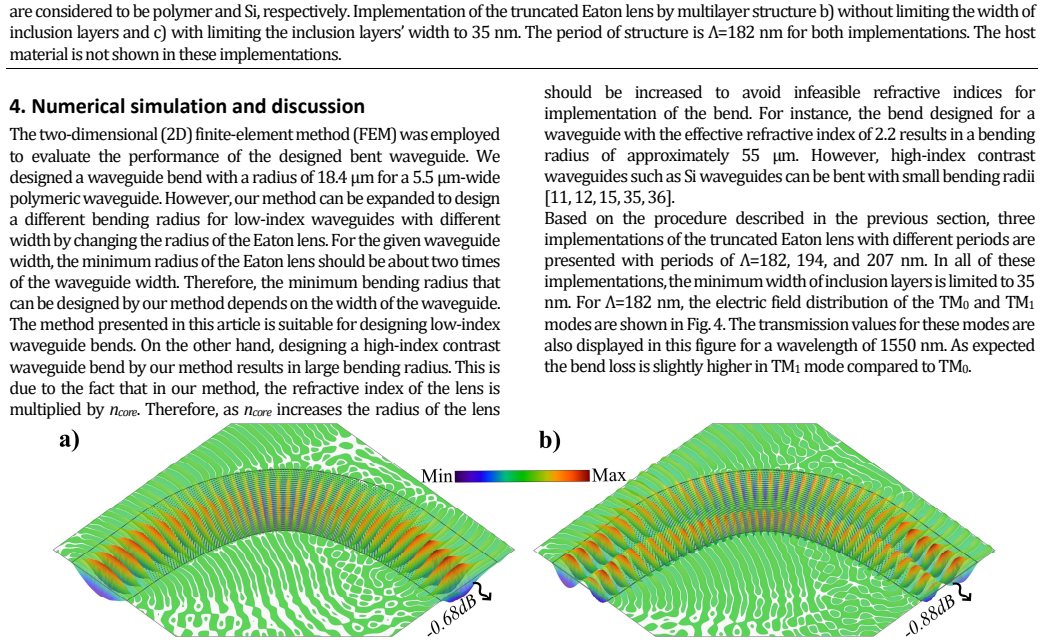

Figure 4. Figure 4: Propagation of a) TM0 and b) TM1 modes at 1550nm through the waveguide bend implemented by multilayer Eaton lens (Λ=182 nm). The bend loss of TM0 mode for the ideal lens and multilayered lenses with different periods are displayed in [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5

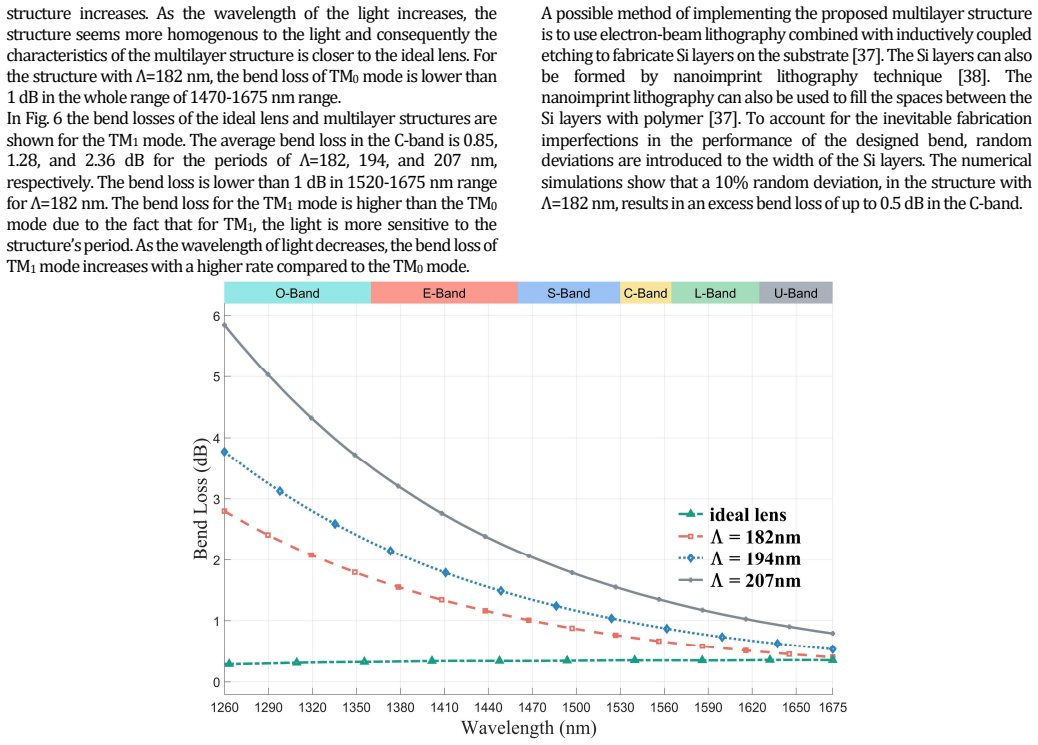

Figure 5. Figure 5: The bend loss of TM0 mode for the ideal and multilayered Eaton lenses with different periods [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6

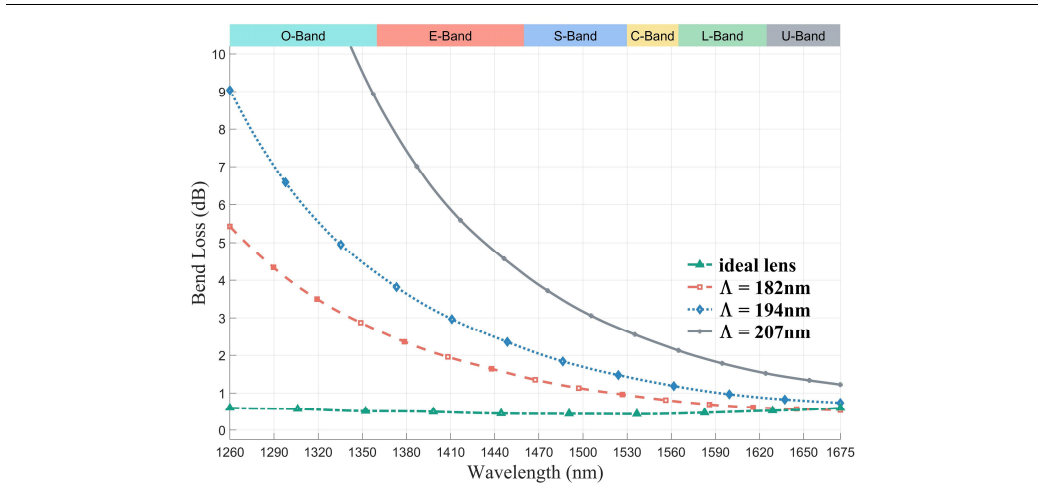

Figure 6. Figure 6: The bend loss of TM1 mode for the ideal and multilayered Eaton lenses with different periods [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
read the original abstract

Reducing the bending radius of low-index contrast waveguides is essential in reducing the size of the integrated optical components. A polymeric multimode waveguide bend is presented based on the Eaton lens. The ray-tracing calculations are utilized to truncate the Eaton lens in order to improve the performance of the bend. The truncation of the lens decreases the footprint of the bend as well. The designed waveguide bend with a radius of 18.4 $\mu m$ is implemented by concentric cylindrical multilayer structure. The average bend losses of 0.69 and 0.87 dB are achieved for the $TM_0$ and $TM_1$ modes in the C-band of optical communication, respectively. The bend loss is lower than 1 dB in a bandwidth of 1520-1675 nm for both modes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a polymeric multimode waveguide bend design based on a ray-tracing truncation of an Eaton lens, realized as a concentric cylindrical multilayer structure with a bend radius of 18.4 μm. It claims average bend losses of 0.69 dB (TM0) and 0.87 dB (TM1) in the C-band, with losses remaining below 1 dB over the 1520-1675 nm bandwidth for both modes.

Significance. If the performance claims hold under full-wave validation, the work would provide a practical route to tighter bends in low-index-contrast polymer waveguides, directly addressing size reduction in integrated optics. The combination of geometric-optics truncation with a multilayer cylindrical implementation is a concrete engineering approach that could be reproducible if the discretization and simulation details are fully specified.

major comments (2)
  1. [Abstract] Abstract: The reported average losses (0.69 dB TM0, 0.87 dB TM1) and bandwidth claim rest on ray-tracing truncation followed by multilayer approximation, yet no wave-optics (FDTD or similar) validation of the final cylindrical-layer structure is described; this leaves the central performance numbers unsupported against possible interface reflections, cylindrical scattering, or TM0-TM1 conversion that ray tracing cannot capture.
  2. [Abstract] Abstract and design description: No quantitative comparison is supplied to the untruncated Eaton lens or to a conventional circular bend of the same radius, and no error bars or discretization-error estimates for the concentric-layer approximation are given; without these, the improvement attributed to truncation cannot be assessed.
minor comments (1)
  1. The manuscript should include a table or figure explicitly listing the layer thicknesses, refractive indices, and number of layers used in the final multilayer realization.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address the major points below and will revise the manuscript to strengthen the validation and comparisons as suggested.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The reported average losses (0.69 dB TM0, 0.87 dB TM1) and bandwidth claim rest on ray-tracing truncation followed by multilayer approximation, yet no wave-optics (FDTD or similar) validation of the final cylindrical-layer structure is described; this leaves the central performance numbers unsupported against possible interface reflections, cylindrical scattering, or TM0-TM1 conversion that ray tracing cannot capture.

    Authors: The referee is correct that the manuscript relies on ray-tracing for the truncation design and does not describe full-wave (FDTD) validation of the discretized cylindrical multilayer structure. Ray tracing is appropriate for the initial geometric design of this multimode device, but it cannot capture the wave effects noted. We will add FDTD simulations of the final multilayer bend in the revised manuscript to quantify losses, interface reflections, scattering, and any TM0-TM1 conversion, thereby supporting the reported performance numbers. revision: yes

  2. Referee: [Abstract] Abstract and design description: No quantitative comparison is supplied to the untruncated Eaton lens or to a conventional circular bend of the same radius, and no error bars or discretization-error estimates for the concentric-layer approximation are given; without these, the improvement attributed to truncation cannot be assessed.

    Authors: We agree that quantitative benchmarks are needed. In the revision we will include direct comparisons of bend loss versus the untruncated Eaton lens and versus a standard circular bend of identical 18.4 μm radius. We will also report discretization-error estimates for the concentric-layer approximation, including error bars derived from varying the number of layers. revision: yes

Circularity Check

0 steps flagged

No circularity in derivation chain

full rationale

The paper's central design flow starts from the known Eaton lens index profile, applies ray-tracing truncation to reduce footprint, realizes the result as a discrete concentric multilayer cylinder, and then reports FDTD-computed bend losses for TM0/TM1. None of these steps reduces to a fitted parameter taken from the final loss numbers, nor does any load-bearing premise rest on a self-citation whose content is itself unverified. The reported losses (0.69 dB / 0.87 dB) are downstream simulation outputs, not inputs that define the truncation or layer count. The derivation therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract alone supplies insufficient detail to enumerate free parameters, axioms, or invented entities; the approach appears to rest on the standard Eaton-lens index profile and ray optics.
