arxiv: 2606.09332 · v1 · pith:BP65OWLGnew · submitted 2026-06-08 · 📡 eess.SP

Wearable Single-Lead ECG Detects Fine-Grained Structural Heart Disease Through Echo-Report Supervision

Chenyang He , Qinghao Zhao , Shun Huang , Jun Li , Gongzheng Tang , Hao Zhang , Tong Liu , Zhengkai Xue
show 4 more authors
Jian Liu Kangyin Chen Cheng Ding Shenda Hong
This is my paper

Pith reviewed 2026-06-27 15:41 UTC · model grok-4.3

classification 📡 eess.SP
keywords structural heart diseasesingle-lead ECGwearable devicesechocardiography supervisionmachine learning screeningdigital biomarkersinterpretability
0
0 comments X

The pith

Single-lead ECGs from wearables detect 13 fine-grained structural heart disease subtypes when trained with echocardiography report supervision.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a model called AnyECG-Echo can classify 13 specific structural heart disease subtypes, including reduced left ventricular systolic function, global heart enlargement, and mitral stenosis, using only single-lead ECG inputs. Performance reaches AUROC values between 0.836 and 0.931 on both internal data and a geographically separate external cohort of 16,621 patients. The authors add dual interpretability through Shapley values grounded in electrophysiology and direct correlations to quantitative echo measurements such as LVEF and wall thickness. A reader would care because the results point to a route for population-scale screening that avoids the access barriers of echocardiography while still covering myocardial, chamber, valvular, and great-vessel conditions.

Core claim

AnyECG-Echo advances single-lead ECG to echo-report supervision by demonstrating high AUROC across 13 SHD subtypes in a total of 25,222 patients, successful transfer to an external cohort, and model outputs that function as physiologically grounded digital biomarkers tracking objective metrics such as LVEF and myocardial wall thickness.

What carries the argument

AnyECG-Echo framework that trains single-lead ECG models under supervision from echocardiography reports to classify 13 SHD subtypes, paired with dual-axis interpretability that combines electrophysiology-grounded Shapley attribution and emergent correlations to quantitative echo measurements.

If this is right

  • The model achieves AUROC 0.866-0.924 for reduced left ventricular systolic function and 0.877-0.931 for global heart enlargement across validation cohorts.
  • Diagnostic coverage spans 13 subtypes across myocardial, chamber, valvular, and great-vessel pathologies.
  • Model outputs align with established physiological traits and track quantitative measurements including LVEF and myocardial wall thickness.
  • External cohort validation supports generalization beyond the training health system.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Wearable single-lead ECG could support continuous rather than snapshot screening, allowing earlier detection before overt heart failure symptoms appear.
  • The same supervision approach might transfer to other ECG-derived tasks if comparable report labels become available at scale.
  • Population-level deployment would shift initial cardiac evaluation away from imaging centers toward consumer devices.

Load-bearing premise

Echo reports supply accurate fine-grained labels for the 13 SHD subtypes that transfer to a new geographic cohort without major domain shift or label noise.

What would settle it

Direct comparison of AnyECG-Echo predictions against independent echocardiography labels in a fresh external population that yields AUROC below 0.75 for several high-impact subtypes such as reduced LV systolic function or mitral stenosis.

Figures

Figures reproduced from arXiv: 2606.09332 by Cheng Ding, Chenyang He, Gongzheng Tang, Hao Zhang, Jian Liu, Jun Li, Kangyin Chen, Qinghao Zhao, Shenda Hong, Shun Huang, Tong Liu, Zhengkai Xue.

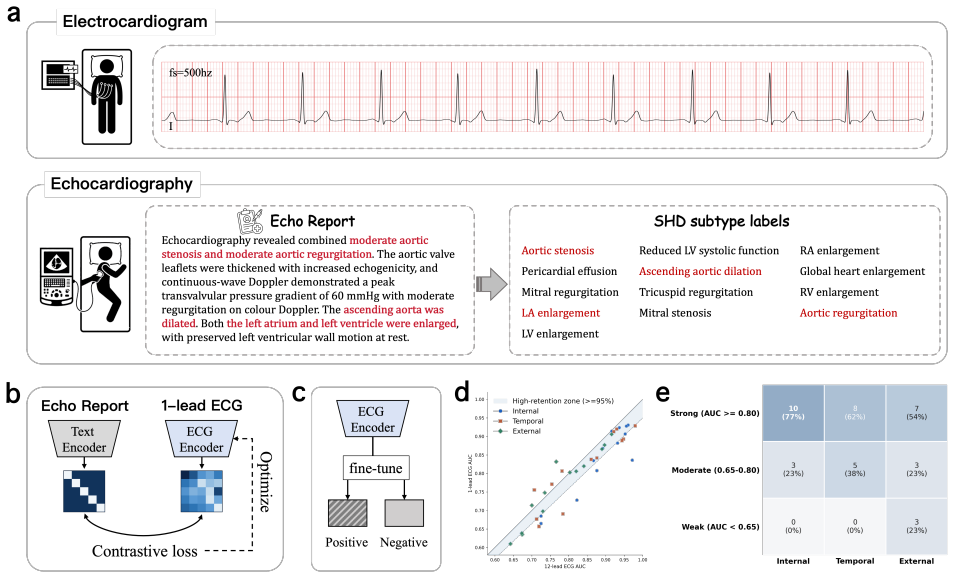

Figure 1
Figure 1. Figure 1: Overview of the AnyECG-Echo framework and its performance across hetero￾geneous evaluation cohorts. (a) Schematic of the multimodal input pipeline. A single-lead ECG recording (Lead I, sampled at 500 Hz) is paired with its corresponding physician￾authored echocardiography report, from which SHD subtype labels are extracted. (b) Multi￾modal contrastive pre-training stage. An ECG encoder and a text encoder p… view at source ↗

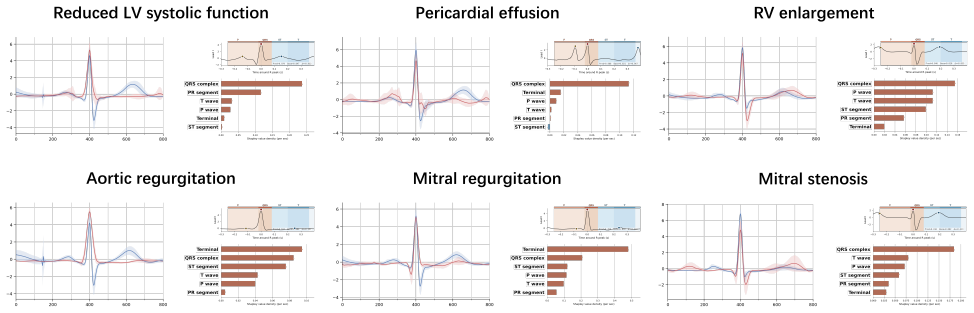

Figure 2
Figure 2. Figure 2: Electrophysiological interpretation of learned ECG features across SHD phenotypes. Each cardiac condition is visualized as a two-panel vertical composite de￾signed to bridge population-level trends and individual-level evidence. The left panels display population-level median beats for high-risk (red) versus low-risk (blue) groups, illustrating macroscopic morphological shifts. The right panels present ind… view at source ↗

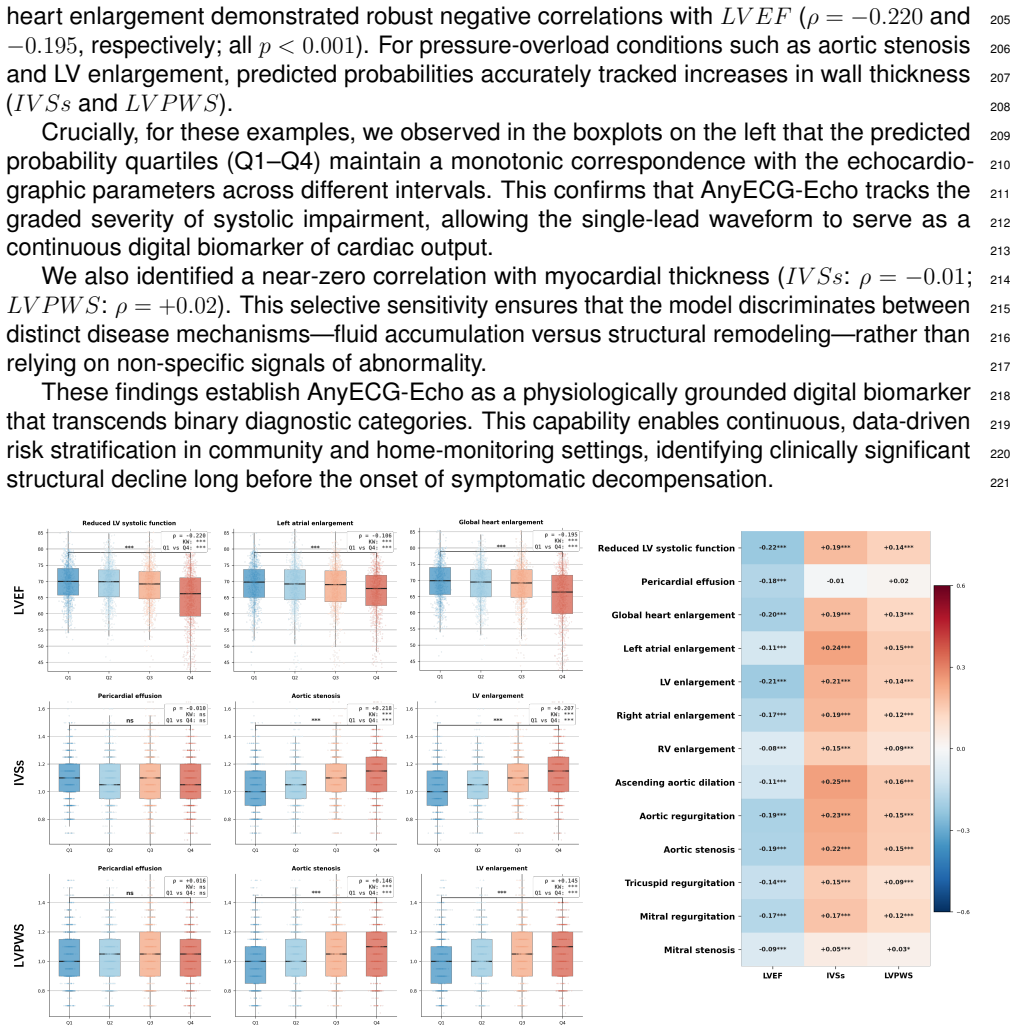

Figure 3
Figure 3. Figure 3: Spearman correlations between AnyECG-Echo predictions and quantitative echocardiographic parameters. Left: representative boxplots showing echo parameter values stratified by predicted probability quartile (Q1–Q4). Right: heatmap of Spearman ρ across all subtypes and parameters. Data efficiency and asymptotic performance in downstream SHD detec- 222 tion 223 To evaluate the scaling laws of AnyECG-Echo, we … view at source ↗

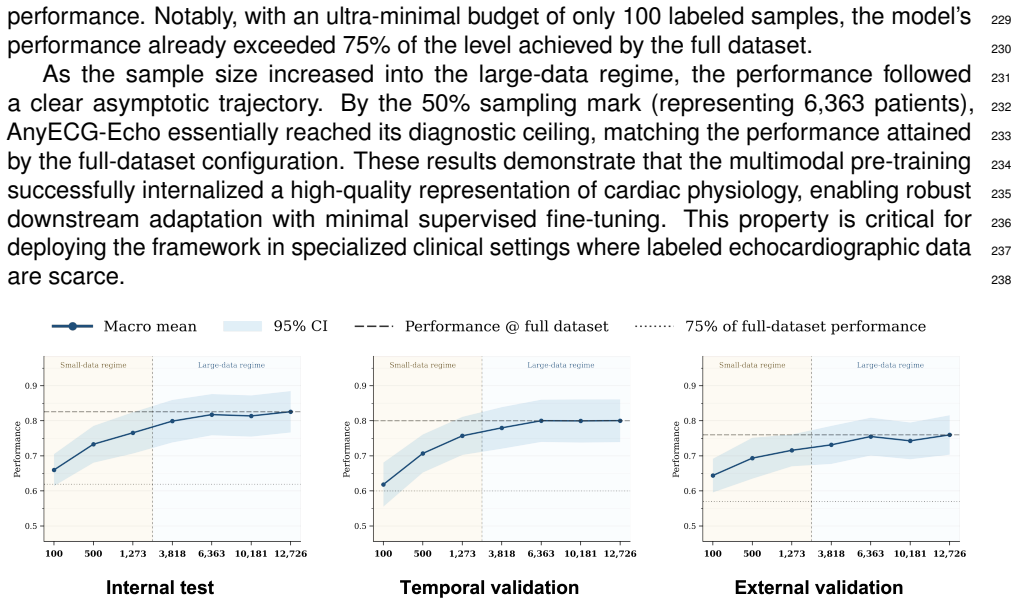

Figure 4
Figure 4. Figure 4: Data efficiency and scaling laws for downstream SHD detection. Scaling of model performance (Macro mean AUROC) across the internal test, temporal validation, and external validation cohorts as a function of training sample size. In the small-data regime (yellow), AnyECG-Echo exhibits a rapid gain in discriminative ability, with only 100 labeled samples exceeding 75% of the full-dataset benchmark (dotted li… view at source ↗

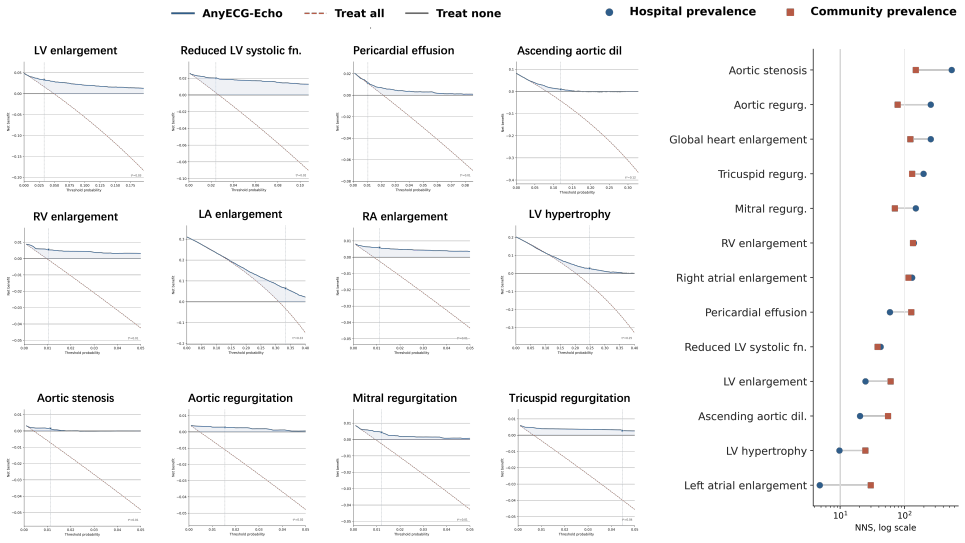

Figure 5
Figure 5. Figure 5: Clinical utility of AnyECG-Echo for SHD screening. Left panels show decision curve analyses (net benefit versus threshold probability) for each of the 13 SHD subtypes evaluated on the internal test cohort. The blue line represents AnyECG-Echo, the red dashed line represents the strategy of referring all patients for echocardiography (treat all), and the grey line represents the strategy of referring none (… view at source ↗

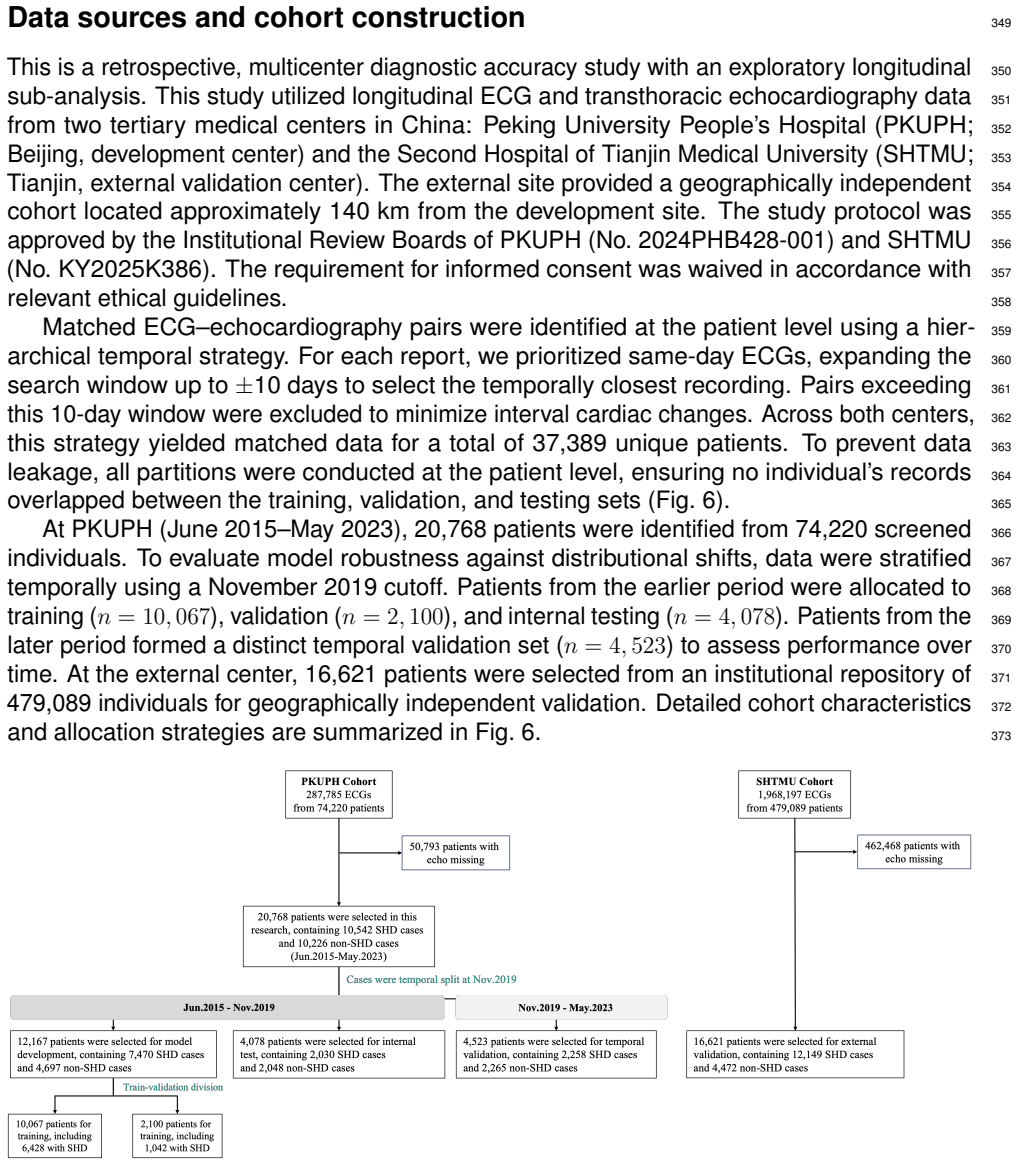

Figure 6
Figure 6. Figure 6: Overview of the data selection procedure and cohort partitioning. ECG–echo [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗

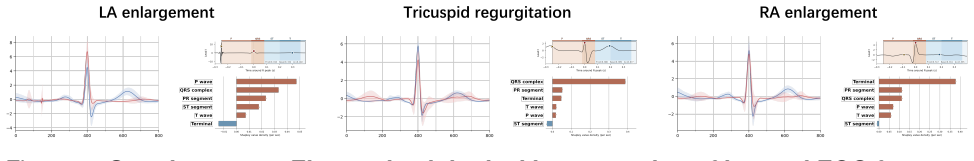

Figure 7
Figure 7. Figure 7: Supplementary Electrophysiological interpretation of learned ECG features across SHD phenotypes. through combined P-wave and QRS complex attribution, its capture of isolated P-wave 613 morphology remains incomplete. For conditions such as tricuspid regurgitation or right atrial 614 enlargement, the P-wave broadening and amplitude shifts in Lead I are often too subtle 615 for robust single-beat encoding. Th… view at source ↗
read the original abstract

Structural heart disease (SHD) is a primary driver of heart failure and cardiovascular mortality, yet early detection remains constrained by the limited accessibility of echocardiography. While single-lead electrocardiogram (ECG) is ubiquitous through wearables, existing AI screening models often depend on 12-lead inputs, generalize poorly across institutions, or require massive, condition-specific labeled datasets. Recent work has demonstrated the feasibility of contrastive pre-training between single-lead ECGs and echocardiography reports within a single health system. Here, we present AnyECG-Echo, a framework that advance this paradigm toward clinical translation through three key developments: (1) evaluation in a geographically independent external cohort (n = 16,621); (2) diagnostic coverage of 13 fine-grained SHD subtypes spanning myocardial, chamber, valvular, and great-vessel pathologies; and (3) dual-axis mechanistic interpretability combining electrophysiology-grounded Shapley attribution with emergent correlations to quantitative measurements. Across validation cohorts totaling n = 25,222, the model demonstrated high AUROC for high-impact subtypes, including reduced left ventricular systolic function (AUROC 0.866-0.924), global heart enlargement (0.877-0.931), and mitral stenosis (0.836-0.906). Furthermore, we successfully validated the alignment of model outputs with established medical physiological traits, thereby enhancing interpretability. Notably, we discovered that AnyECG-Echo's outputs function as physiologically grounded digital biomarkers that accurately track objective metrics such as LVEF and myocardial wall thickness. These findings prove that wearable single-lead ECGs can effectively detect fine-grained structural heart disease, offering a practical solution for population-scale screening.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces AnyECG-Echo, a framework that uses contrastive pre-training on single-lead ECGs paired with echocardiography reports to detect 13 fine-grained structural heart disease (SHD) subtypes (myocardial, chamber, valvular, great-vessel). It evaluates performance on internal and geographically independent external cohorts (total n=25,222), reporting AUROCs of 0.866-0.924 for reduced LV systolic function, 0.877-0.931 for global enlargement, and 0.836-0.906 for mitral stenosis, plus correlations between model outputs and quantitative echo metrics such as LVEF and wall thickness.

Significance. If the central results hold after addressing label validation, the work would be significant for demonstrating that ubiquitous wearable single-lead ECGs can screen for multiple SHD subtypes at population scale, extending prior single-institution contrastive work via external validation and dual-axis interpretability (Shapley attribution plus physiological correlations). External cohort testing and coverage of 13 subtypes are clear strengths.

major comments (2)
  1. [Abstract/Methods] Abstract and Methods: The central claim that echo-report supervision yields reliable fine-grained labels for 13 SHD subtypes (and transfers to the external cohort of n=16,621) is load-bearing for all reported AUROCs, yet the manuscript supplies no quantitative validation of label fidelity such as NLP extraction accuracy, inter-annotator agreement on report parsing, or comparison against re-read echocardiograms.
  2. [Abstract] Abstract: No information is provided on model architecture, training loss, data filtering rules, or class-imbalance handling; without these details it is impossible to determine whether the AUROCs reflect true ECG–pathology signal or post-hoc choices.
minor comments (1)
  1. [Abstract] Abstract: The phrasing 'These findings prove that wearable single-lead ECGs can effectively detect...' overstates an empirical result; 'support the feasibility of' would be more proportionate.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback. The comments highlight important areas for improving transparency and rigor. We respond point-by-point below and have revised the manuscript accordingly where feasible.

read point-by-point responses

  1. Referee: [Abstract/Methods] Abstract and Methods: The central claim that echo-report supervision yields reliable fine-grained labels for 13 SHD subtypes (and transfers to the external cohort of n=16,621) is load-bearing for all reported AUROCs, yet the manuscript supplies no quantitative validation of label fidelity such as NLP extraction accuracy, inter-annotator agreement on report parsing, or comparison against re-read echocardiograms.

    Authors: We agree this is a substantive point. The manuscript describes the NLP-based label extraction from echo reports in Methods but does not include quantitative fidelity metrics. In revision we will add a new Methods subsection reporting NLP validation on a held-out set of reports (including extraction accuracy and inter-annotator agreement) together with a supplementary table correlating extracted labels against quantitative echo measurements. This directly addresses label reliability for both internal and external cohorts. revision: yes

  2. Referee: [Abstract] Abstract: No information is provided on model architecture, training loss, data filtering rules, or class-imbalance handling; without these details it is impossible to determine whether the AUROCs reflect true ECG–pathology signal or post-hoc choices.

    Authors: We accept that the abstract should supply sufficient methodological context. Although full details appear in Methods, we will revise the abstract to include a concise description of the dual-encoder contrastive architecture, InfoNCE loss, ECG quality filtering criteria, and class-balanced sampling. This change improves immediate assessability of the reported AUROCs without altering the abstract's length constraints. revision: yes

Circularity Check

0 steps flagged

No circularity; external validation independent of training labels

full rationale

The derivation chain consists of standard supervised/contrastive training on echo-report labels followed by AUROC evaluation on a geographically independent held-out cohort (n=16,621). No equations, fitted parameters, or self-citations reduce the reported performance metrics to the training inputs by construction. The framework cites prior feasibility work but does not rely on author-overlapping uniqueness theorems or ansatzes for its central claims. Performance is measured against external labels rather than being defined in terms of the model's own outputs or fitted values.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the quality of echo-report labels as supervision and the assumption that single-lead ECG contains learnable structural information that generalizes externally; the model itself contains many fitted parameters whose values are not reported.

free parameters (1)
  • neural network parameters
    Weights and biases of the AnyECG-Echo model are fitted to the paired ECG-echo dataset.
axioms (1)
  • domain assumption Echocardiography reports constitute accurate fine-grained labels for 13 SHD subtypes
    All supervision and evaluation depend on echo reports being reliable ground truth.
