arxiv: 2604.01089 · v2 · pith:BZ7DUMEVnew · submitted 2026-04-01 · 🌌 astro-ph.GA

ALMA Band 2 line survey of a z = 3.44 clumpy strongly-lensed submillimetre galaxy

Tom J. L. C. Bakx This is my paper

Pith reviewed 2026-05-19 17:52 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords submillimetre galaxyALMA Band 2molecular line surveyCO spectral line energy distributiondense gas fractionstrongly lensed galaxyhigh-redshift star formation
0
0 comments X

The pith

ALMA Band 2 observations of a lensed galaxy at z=3.44 detect multiple molecular lines that trace highly excited dense gas bathed in intense far-ultraviolet radiation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports the first molecular line survey of the strongly lensed submillimetre galaxy SPT-S J002706-5007.4 at redshift 3.44 using ALMA's new Band 2 receivers. It presents novel detections of CO(3-2) and HNC(4-3) alongside previously seen lines, and uses the resulting CO spectral line energy distribution together with carbon and dense-gas tracer ratios to characterise the interstellar medium. A sympathetic reader would care because these measurements give a direct view of the physical conditions that power star formation in one of the most actively star-forming galaxies known at Cosmic Noon. The work also shows that Band 2 can deliver robust spectroscopic redshifts across a wide redshift range with a single tuning.

Core claim

The CO spectral line energy distribution and the [CI]/CO line ratios indicate highly excited, dense molecular gas with a strong far-ultraviolet radiation field. The dense gas fraction is estimated at 17 ± 9 per cent, consistent with other dusty star-forming galaxies selected from wide-area surveys.

What carries the argument

The CO spectral line energy distribution (SLED) constructed from multiple CO transitions and the [CI]/CO and dense-gas tracer line ratios, which serve as diagnostics of gas excitation, density and radiation-field strength.

If this is right

  • The galaxy contains a dense gas fraction of 17 ± 9 per cent.
  • The interstellar medium is subject to a strong far-ultraviolet radiation field consistent with intense star formation.
  • ALMA Band 2 enables simultaneous access to multiple CO and dense-gas lines over a broad redshift range, supporting efficient spectroscopic redshift measurements at z ~ 1-6.
  • High-resolution Band 7 imaging shows star-forming clumps that contribute 30-50 per cent of the total continuum emission.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the same line-ratio diagnostics hold in unlensed systems, they could be used to calibrate star-formation efficiency models for the broader population of dusty star-forming galaxies.
  • Repeated Band 2 surveys of lensed targets could map how dense-gas fractions evolve with redshift and luminosity without requiring many separate tunings.
  • The clumpy morphology seen in continuum imaging raises the possibility that individual clumps have different excitation conditions that future resolved spectroscopy could test.

Load-bearing premise

The observed line ratios across the 76-111 GHz band directly reflect the intrinsic excitation and density of the molecular gas without being significantly changed by differential lensing or frequency-dependent beam-filling factors.

What would settle it

High-resolution observations that spatially separate the individual molecular lines and show that their flux ratios change by more than the quoted uncertainties after correcting for magnification differences.

Figures

Figures reproduced from arXiv: 2604.01089 by Tom J. L. C. Bakx.

Figure 1
Figure 1. Figure 1: The Band 2 and 3 spectra. Extending beyond the Band 3 regime, the Band 2 data provide a deep view of spectral lines previously not available to ALMA, including the CO(3–2), HCN(4–3), HCO(4–3) and HNC(4–3) lines. The top part of the figure indicates bright emission lines (from Spilker et al. 2014; Hagimoto et al. 2023) in the range of ALMA Band 2, with smaller fonts indicating undetected lines, while the la… view at source ↗
Figure 2
Figure 2. Figure 2: Deep HST imaging on SPT 0027 (background) with both the ALMA Band 2 continuum imaging (red thick contours) and higher-resolution Band 7 continuum imaging (thin white contours). The beams of each of the ALMA observations are shown in the bottom left. The lensing morphology of SPT 0027 is suggested in the Band 2 imaging (as well as previous lower￾resolution Band 7 analysis; Spilker et al. 2016), with the clu… view at source ↗
Figure 3
Figure 3. Figure 3: The spectral lines extracted from the Band 2 data. Per line, the left-hand side panel indicates the moment-0 map of the line (background and black thick contours), while the thin white contours indicate the continuum, and the yellow contours indicate the aperture used for the flux extraction. The right-hand side spectrum is shown as a function of velocity relative to the rest-frame, with the top 𝑥-axis ind… view at source ↗
Figure 4
Figure 4. Figure 4: Redshift identification probability as a function of redshift (0 ≤ 𝑧 ≤ 8) for three ALMA frequency configurations, evaluated against smoothed redshift distributions from the HerBS (Bakx et al. 2018, 2020a) and SPT (Reuter et al. 2020) samples. Orange bars indicate the fraction of sources yielding a single detected spectral line, while blue bars indicate two or more detections. Hatched blue regions denote c… view at source ↗
Figure 5

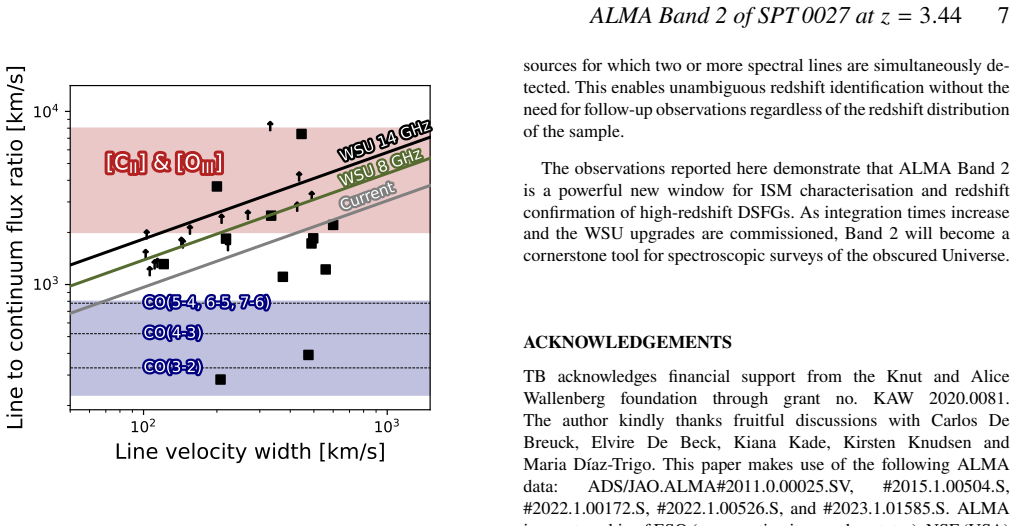

Figure 5. Figure 5: The equivalent width of an ALMA-detected spectral line can serve as a diagnostic, particularly in the WSU era. The velocity-integrated line flux compared to the adjacent dust continuum is much larger for [C ii] 158 𝜇m and [O iii] 88 𝜇m emission (Bakx et al. 2024a), and thus blindly-found emission lines without associated dust continuum are likely from atomic fine-structure lines. Detections and upper-limit… view at source ↗
read the original abstract

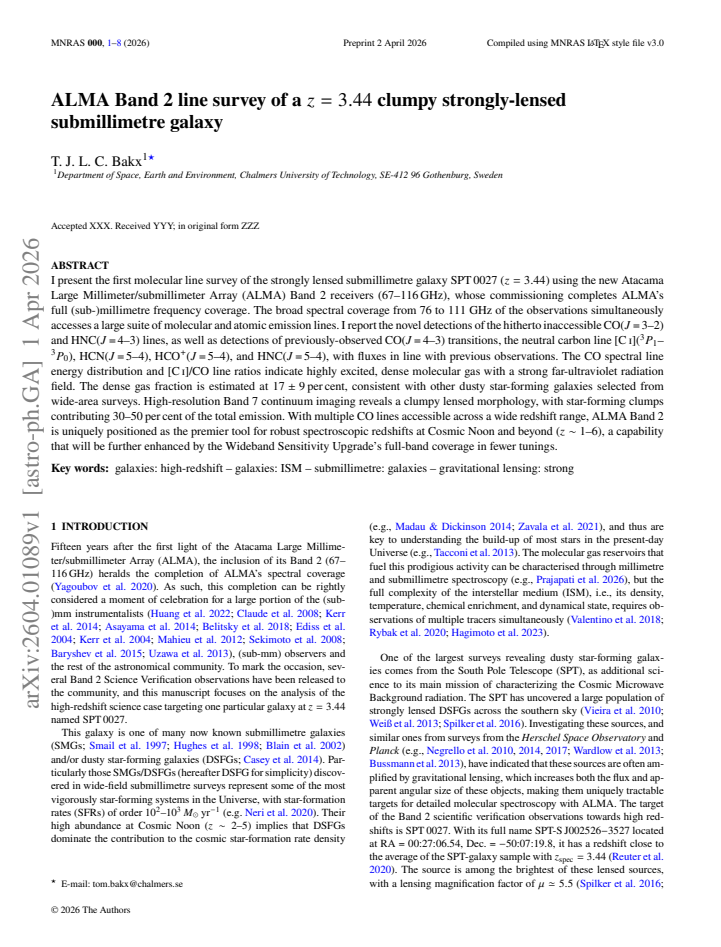

I present the first molecular line survey of the strongly lensed submillimetre galaxy SPT-S J002706-5007.4 ($z = 3.44$) using the new Atacama Large Millimeter/submillimeter Array (ALMA) Band~2 receivers (67 - 116 GHz), whose commissioning completes ALMA's full (sub-)millimetre frequency coverage. The broad spectral coverage from 76 to 111 GHz of the observations simultaneously accesses a large suite of molecular and atomic emission lines. I report the novel detections of the lines that were hitherto inaccessible at $z = 3.44$, CO (3-2) and HNC (4-3), as well as detections of previously-observed CO (4-3) transitions, the neutral carbon line [CI], HCN (5-4), HCO$^{+}$ (5-4), and HNC (5-4), with fluxes in line with previous observations. The CO spectral line energy distribution and [CI]/CO line ratios indicate highly excited, dense molecular gas with a strong far-ultraviolet radiation field. The dense gas fraction is estimated at $17 \pm 9$ per cent, consistent with other dusty star-forming galaxies selected from wide-area surveys. High-resolution Band 7 continuum imaging reveals a clumpy lensed morphology, with star-forming clumps contributing 30-50 per cent of the total emission. With multiple CO lines accessible across a wide redshift range, ALMA Band 2 is uniquely positioned as the premier tool for robust spectroscopic redshifts at Cosmic Noon and beyond ($z \sim 1$-$6$), a capability that will be further enhanced by the Wideband Sensitivity Upgrade's full-band coverage in fewer tunings.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents the first ALMA Band 2 molecular line survey (76-111 GHz) of the strongly lensed SMG SPT-S J002706-5007.4 at z=3.44. It reports novel detections of CO(3-2) and HNC(4-3) along with previously observed lines (CO(4-3), [CI], HCN(5-4), HCO+(5-4), HNC(5-4)), with fluxes consistent with prior data. The CO SLED shape and [CI]/CO ratios are interpreted as evidence for highly excited, dense molecular gas under a strong FUV field. A dense-gas fraction of 17 ± 9% is derived, stated to be consistent with other DSFGs. High-resolution Band 7 continuum imaging shows a clumpy lensed morphology with clumps contributing 30-50% of the emission. The work also highlights ALMA Band 2 for robust spectroscopic redshifts at z~1-6.

Significance. If the line-ratio interpretations hold after accounting for observational biases, the survey provides new constraints on ISM conditions in a high-redshift DSFG and demonstrates the scientific value of the newly available ALMA Band 2 receivers for accessing multiple transitions in a single setup. The novel line detections and the consistency of the dense-gas fraction with wider surveys are positive contributions to the field.

major comments (2)
  1. [Abstract and §4 (line-ratio analysis)] Abstract and discussion of line ratios: the central claim that the observed CO SLED and [CI]/CO ratios directly indicate highly excited dense gas with strong FUV field assumes that differential lensing and beam-filling factors do not alter the ratios across the 76-111 GHz band. The Band 7 imaging (described in the results section) shows clumps contributing 30-50% of emission, and the synthesized beam changes by ~30% over the Band 2 range; without per-transition lens modeling or resolved maps, the ratios may be biased rather than reflecting intrinsic conditions. This directly affects the dense-gas-fraction estimate.
  2. [Abstract] Dense gas fraction estimate (17 ± 9 per cent, abstract): the quoted uncertainty is large, yet the manuscript does not detail how the value is derived from the line ratios or conversion factors, nor whether systematic uncertainties from lensing, excitation assumptions, or beam effects are included. This makes it difficult to assess whether the result is robust or consistent with other DSFGs.
minor comments (2)
  1. [Abstract] The abstract states fluxes are 'in line with previous observations' but provides no quantitative comparison table or reference to specific prior measurements; adding this would improve clarity.
  2. [Throughout] Notation for transitions (e.g., CO (3-2) vs. CO(3-2)) is inconsistent in places; standardize throughout.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough and constructive review of our manuscript. We address each major comment in turn below, providing clarifications and noting revisions made to improve the presentation and transparency of our analysis.

read point-by-point responses

  1. Referee: [Abstract and §4 (line-ratio analysis)] Abstract and discussion of line ratios: the central claim that the observed CO SLED and [CI]/CO ratios directly indicate highly excited dense gas with strong FUV field assumes that differential lensing and beam-filling factors do not alter the ratios across the 76-111 GHz band. The Band 7 imaging (described in the results section) shows clumps contributing 30-50% of emission, and the synthesized beam changes by ~30% over the Band 2 range; without per-transition lens modeling or resolved maps, the ratios may be biased rather than reflecting intrinsic conditions. This directly affects the dense-gas-fraction estimate.

    Authors: We acknowledge the validity of this concern. The clumpy structure revealed by the Band 7 continuum imaging and the ~30% variation in synthesized beam size across Band 2 mean that differential lensing or excitation variations across clumps could in principle bias the observed line ratios. Our analysis assumes that the magnification factor is comparable for the transitions observed in Band 2, an assumption commonly adopted for integrated spectra of lensed high-redshift sources when spatially resolved spectroscopy per transition is unavailable. In the revised manuscript we have added an explicit discussion of this limitation in Section 4, including its possible impact on the CO SLED shape and the derived dense-gas fraction. We have also revised the abstract to qualify the interpretation as indicating highly excited dense gas under the stated assumptions regarding lensing and beam effects. revision: partial

  2. Referee: [Abstract] Dense gas fraction estimate (17 ± 9 per cent, abstract): the quoted uncertainty is large, yet the manuscript does not detail how the value is derived from the line ratios or conversion factors, nor whether systematic uncertainties from lensing, excitation assumptions, or beam effects are included. This makes it difficult to assess whether the result is robust or consistent with other DSFGs.

    Authors: We appreciate the referee noting the need for greater transparency. The 17 ± 9% dense-gas fraction is obtained by comparing the luminosity of the dense-gas tracer HCN(5-4) to the total molecular gas mass inferred from the CO(3-2) line using a standard CO-to-H2 conversion factor appropriate for starburst conditions. The quoted uncertainty reflects the statistical errors on the measured line fluxes. In the revised manuscript we have expanded the relevant paragraph in Section 4 to provide the explicit calculation, the adopted conversion factors, and a discussion of the main systematic uncertainties, including those associated with lensing assumptions, excitation corrections, and beam-filling effects. This addition should facilitate assessment of robustness and comparison with other DSFG samples. revision: yes

Circularity Check

0 steps flagged

No circularity: direct observational line ratios interpreted via standard models

full rationale

The paper reports new ALMA Band 2 detections of CO, [CI], HCN, HCO+, and HNC lines in SPT-S J002706-5007.4 and interprets the resulting CO SLED shape plus [CI]/CO ratios using established excitation and density diagnostics from the literature. The dense-gas fraction (17 ± 9 %) is obtained by comparing the observed ratios to typical values for other dusty star-forming galaxies, without any reduction to a fitted parameter from the present dataset, self-definition of the target quantity, or load-bearing self-citation. The analysis chain consists of empirical flux measurements followed by application of external, independently calibrated tracers; no equation or step collapses to its own input by construction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central results rest on standard astrophysical assumptions about molecular line excitation and the effects of gravitational lensing on line ratios; no new free parameters are introduced beyond the reported dense-gas-fraction estimate.

free parameters (1)
  • dense gas fraction
    Derived from observed line ratios and stated as 17 ± 9 per cent; the value is fitted to the data rather than predicted from first principles.
axioms (1)
  • domain assumption Line ratios reliably trace excitation conditions and dense gas fraction in high-redshift star-forming galaxies
    Invoked when interpreting the CO SLED and [CI]/CO ratios as evidence for highly excited dense gas.
