Deep Learned Optical Multiplexing for Multi-Focal Plane Microscopy

Yi Fei Cheng , Ziad Sabry , Megan Strachan , Skyler Cornell , Jake Chanenson , Eva-Maria S. Collins , Vidya Ganapati This is my paper

Pith reviewed 2026-05-25 10:41 UTC · model grok-4.3

classification ⚛️ physics.optics eess.IV
keywords deep learningLED array microscopemulti-focal plane microscopyoptical multiplexingdigital refocusinglive imagingplanarianneural network post-processing
0
0 comments X

The pith

A jointly optimized LED pattern and neural network extracts five focal planes from one image.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to capture information from multiple focal planes by illuminating the sample with one carefully chosen LED pattern and then feeding the resulting single image into a trained neural network that separates the planes. Training occurs on image stacks from fixed planarians, after which the same pattern and network are used on live, moving samples. This removes both mechanical scanning and the need to acquire many sequential images, raising the speed of multi-plane live microscopy to the rate of a single camera exposure. A sympathetic reader would care because the method promises to make it practical to watch dynamic processes across depth without trading off temporal resolution.

Core claim

By jointly optimizing a single LED illumination pattern with the parameters of a post-processing deep neural network using training sets of LED image stacks from fixed planarians, the authors establish that multiple focal planes can be multiplexed into one image and recovered by inputting that image into the trained network, enabling live imaging at five focal planes.

What carries the argument

The single multiplexed LED illumination pattern jointly optimized with the post-processing deep neural network that encodes and decodes focal-plane information.

If this is right

  • Live multi-focal imaging becomes possible at the temporal resolution of a single camera frame.
  • Mechanical movement of the objective is eliminated for acquiring images at different axial depths.
  • Five focal planes are recovered in live D. japonica planarians after training exclusively on fixed samples.
  • Digital refocusing requires only one exposure instead of a full LED stack.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The single-exposure approach could lower total light dose and thereby reduce phototoxicity during extended live observations.
  • The same joint-optimization procedure might be tested on other transparent organisms whose scattering properties resemble those of planarians.
  • Increasing the number of target planes or adapting the pattern for different microscope objectives would be direct next experiments.

Load-bearing premise

The illumination pattern and network weights optimized on fixed-sample LED stacks will successfully separate focal planes when applied to live, moving samples whose optical properties may differ.

What would settle it

Acquire one multiplexed image of a live moving planarian with the optimized pattern and verify that the network produces five distinct sharp images at the target focal planes with no visible mixing or defocus.

Figures

Figures reproduced from arXiv: 1907.01528 by Eva-Maria S. Collins, Jake Chanenson, Megan Strachan, Skyler Cornell, Vidya Ganapati, Yi Fei Cheng, Ziad Sabry.

Figure 1

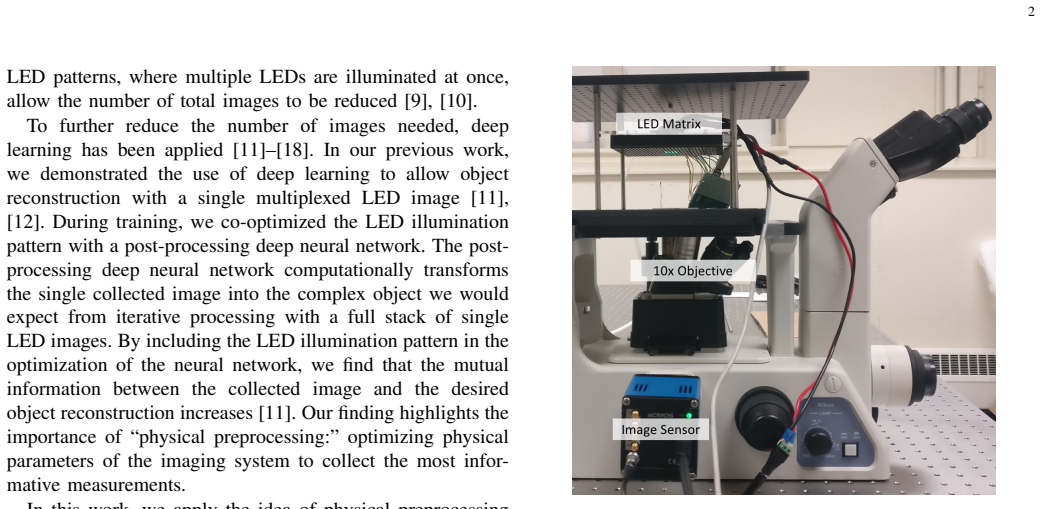

Figure 1. Figure 1: In our optical setup, we replace a conventional micro [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: shows an example of the results of the shift-add algorithm [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Diagram of training and evaluation of our deep learning framework. (a) In the training step, 69 images are collected for [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: This figure illustrates an evaluation example, a field [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Comparisons between the actual digitally refocused [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Approximately 300,000 image patches of 16 [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Our deep learning approach allows us to obtain a 5-plane focal stack with single-shot imaging. This allows for live [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
read the original abstract

To obtain microscope images at multiple focal planes, the distance between the objective and sample can be mechanically adjusted. Images are acquired sequentially at each axial distance. Digital refocusing with a light-emitting diode (LED) array microscope allows elimination of this mechanical movement. In an LED array microscope, the light source of a conventional widefield microscope is replaced with a 2-dimensional LED matrix. A stack of images is acquired from the LED array microscope by sequentially illuminating each LED and capturing an image. Previous work has shown that we can achieve digital refocusing by post-processing this LED image stack. Though mechanical scanning is eliminated, digital refocusing with an LED array microscope has low temporal resolution due to the acquisition of multiple images. In this work, we propose a new paradigm for multi-focal plane microscopy for live imaging, utilizing an LED array microscope and deep learning. In our deep learning approach, we look for a single LED illumination pattern that allows the information from multiple focal planes to be multiplexed into a single image. We jointly optimize this LED illumination pattern with the parameters of a post-processing deep neural network, using a training set of LED image stacks from fixed, not live, Dugesia japonica planarians. Once training is complete, we obtain multiple focal planes by inputting a single multiplexed LED image into the trained post-processing deep neural network. We demonstrate live imaging of a D. japonica planarian at 5 focal planes with our method.
