arxiv: 2606.30089 · v1 · pith:CKOKAZ2Nnew · submitted 2026-06-29 · 🌌 astro-ph.GA

Projection Is All You Need: Interpreting Polarization Measurements in the Orion Clouds with Sub-Alfv\'enic MHD Simulations

Feiyu Quan , Yitao Xu , Keping Qiu , Xiaodan Fan , Hua-bai Li This is my paper

Pith reviewed 2026-06-30 05:03 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords dust polarizationMHD simulationsOrion ISFAlfven Mach numberprojection effectsmagnetic fieldsmolecular cloudsstar formation
0
0 comments X

The pith

Observed polarization statistics from the Orion ISF match those from projected sub-Alfvénic MHD simulations over many angles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a statistical comparison between dust polarization mean direction μ and dispersion σ measured in the Orion Integral-Shaped Filament and the same quantities extracted from projections of three-dimensional MHD simulations. It shows that globally sub-Alfvénic simulations, which naturally produce slightly super-Alfvénic dense cores, reproduce the observed range of (μ, σ) values across a broad set of viewing angles once projection effects are included. This matters because it indicates that these two summary statistics alone cannot determine the three-dimensional Alfvén Mach number of the cloud. The result follows from explicit hypothesis testing that accounts for how line-of-sight integration mixes core-scale field deviations with the parent cloud field.

Core claim

Using globally sub-Alfvénic MHD simulations that naturally produce slightly super-Alfvénic dense cores, the authors show through hypothesis testing that the observed (μ, σ) values in the Orion ISF are statistically consistent with these models over a broad range of viewing angles. Modest deviations of core-scale magnetic fields from the parent cloud field, when combined with projection, can generate a wide range of plane-of-sky polarization dispersions. This broad degeneracy implies that μ and σ alone cannot provide precise information about the three-dimensional magnetic-field distribution, and hence the Alfvén Mach number, of an individual cloud. Polarization statistics based solely on (μ,

What carries the argument

Hypothesis testing on the polarization mean μ and dispersion σ extracted from projections of globally sub-Alfvénic MHD simulations at varying viewing angles.

If this is right

  • Diversity in polarization morphology among dense cores arises from modest core-scale field deviations combined with projection.
  • Observations can exclude specific viewing angles but cannot exclude sub-Alfvénic conditions on the basis of (μ, σ) alone.
  • Additional polarization metrics beyond mean direction and dispersion are required to constrain the three-dimensional Alfvén Mach number.
  • Explicit inclusion of projection effects is necessary when using polarization data to diagnose magnetic field importance in molecular clouds.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same projection-induced degeneracy may affect polarization interpretations in other star-forming regions.
  • Combining polarization data with line-of-sight velocity information or multi-scale field measurements could reduce the viewing-angle ambiguity.
  • Simulations with varied initial conditions or higher resolution could test whether the consistency holds only for the chosen sub-Alfvénic setups.

Load-bearing premise

The specific globally sub-Alfvénic MHD simulations used, which produce slightly super-Alfvénic dense cores, are representative of the physical conditions in the Orion ISF.

What would settle it

A set of observed (μ, σ) values in the Orion ISF that lies outside the distribution produced by any viewing angle of the sub-Alfvénic simulations, or a direct measurement of the line-of-sight field strength that contradicts the sub-Alfvénic regime.

Figures

Figures reproduced from arXiv: 2606.30089 by Feiyu Quan, Hua-bai Li, Keping Qiu, Xiaodan Fan, Yitao Xu.

Figure 1

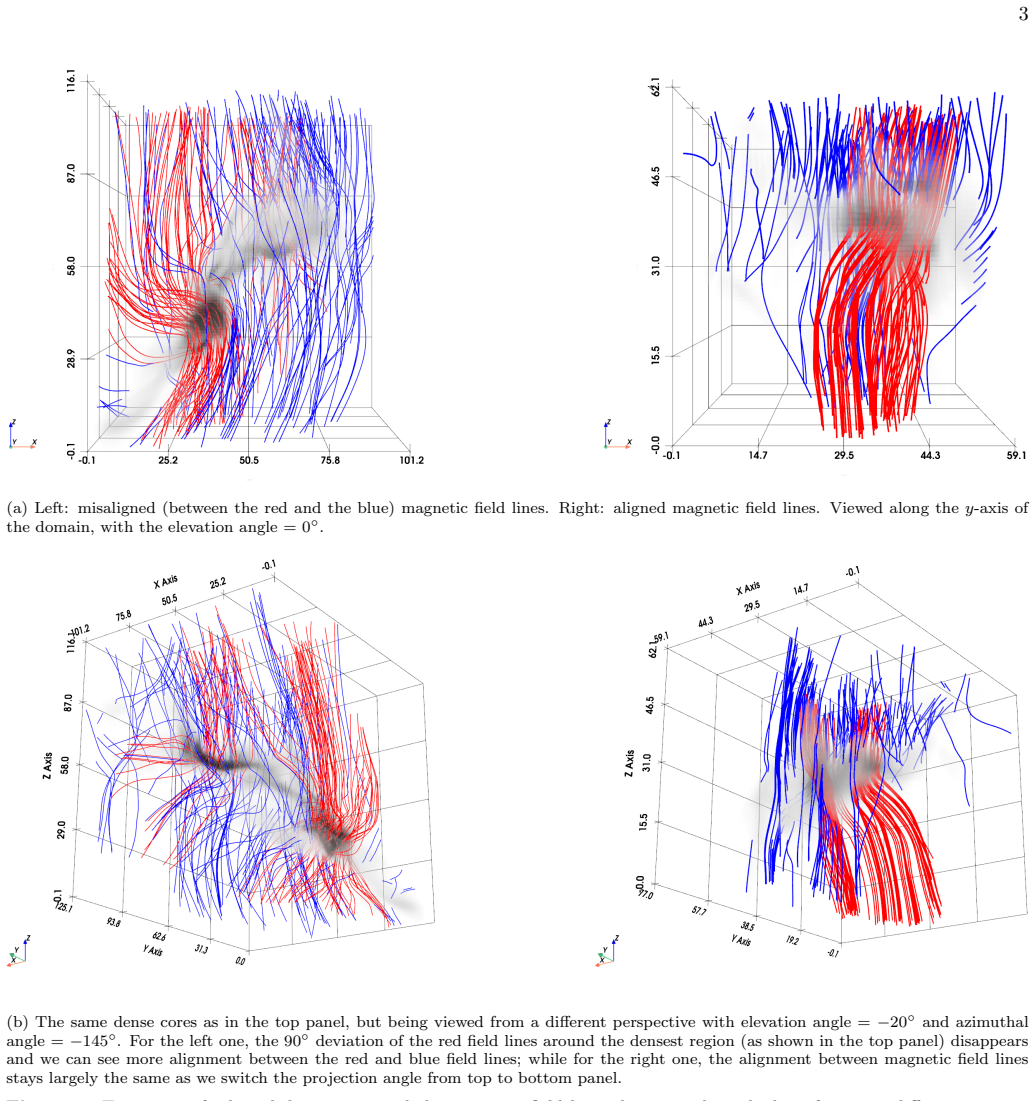

Figure 1. Figure 1: Two cases of selected dense cores and the magnetic field lines that pass through them from two different viewing angles, cut from two different sub-regions in one of our simulations towards the end of Phase II (the collapsing phase). Red field lines indicate that they pass through dense regions with volume density > 5 × 104 H2 cm−3 , while the blue field lines pass through diffuse gas with volume density <… view at source ↗
Figure 2

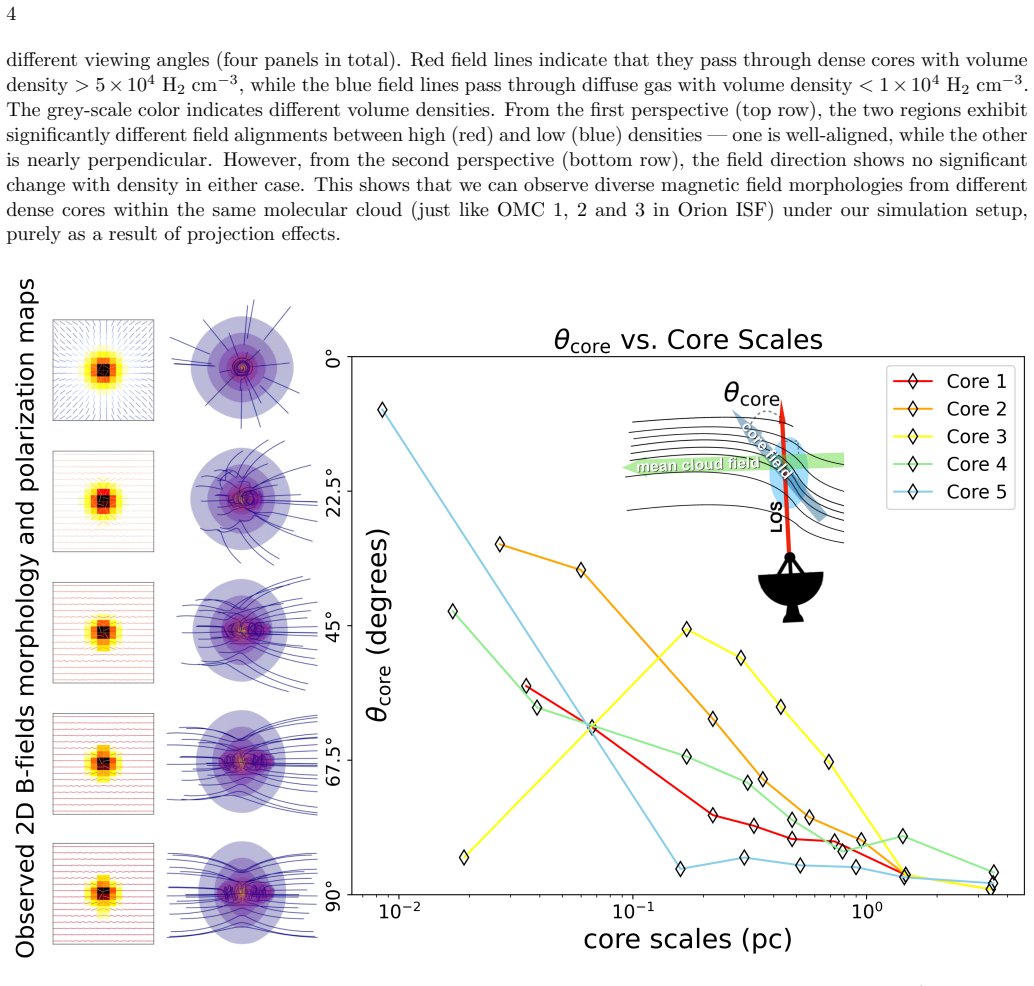

Figure 2. Figure 2: An illustration showing the diversity of observed 2D plane-of-sky dispersion of B-field orientations (left panel, L. Wang et al. 2024), made possible by the various 3D angle θcore on small scales for different cores in a simulated molecular cloud (right panel, Y. Zhang et al. 2019). On the right panel, the five cores are identified from a simulation at increasing levels of volume density thresholds and cor… view at source ↗
Figure 3

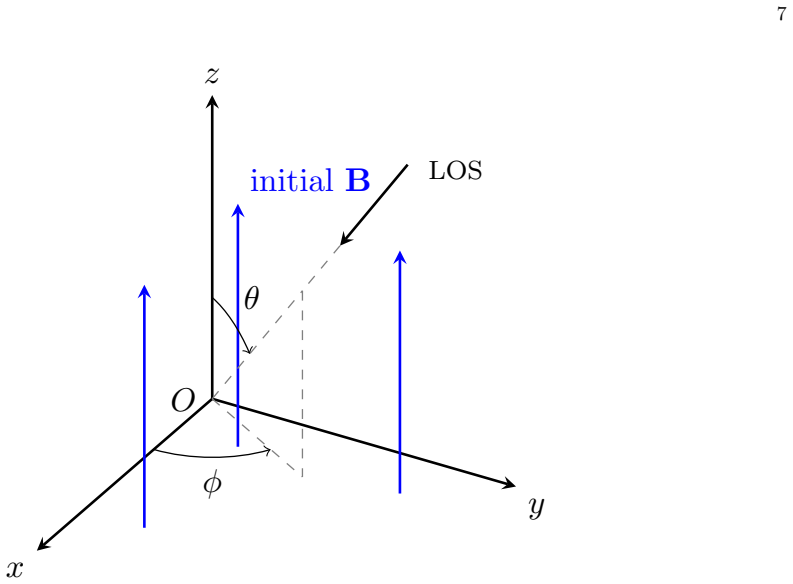

Figure 3. Figure 3: The spherical coordinate system used in this work [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

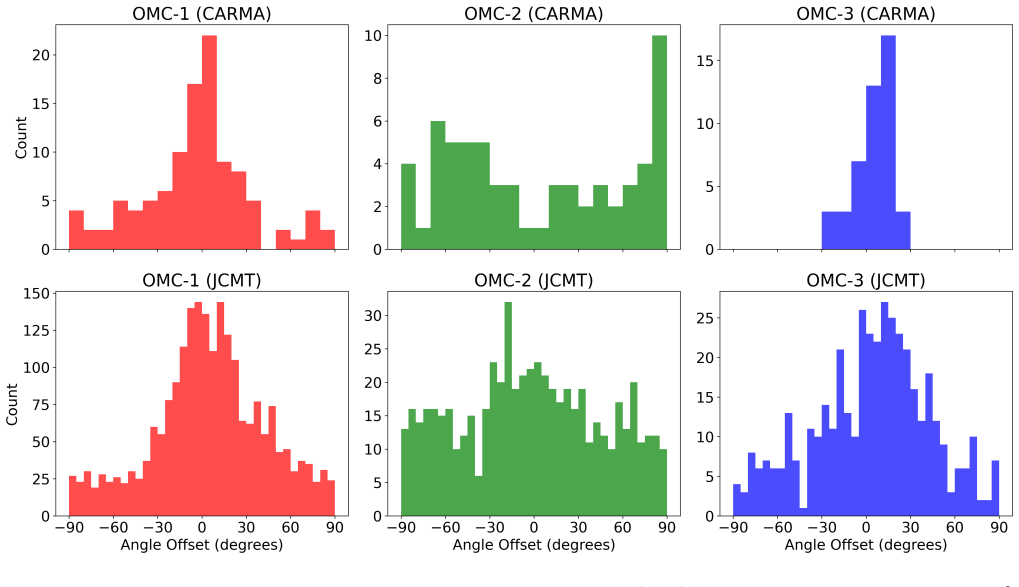

Figure 4. Figure 4: The six observed sets of offset angles from [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

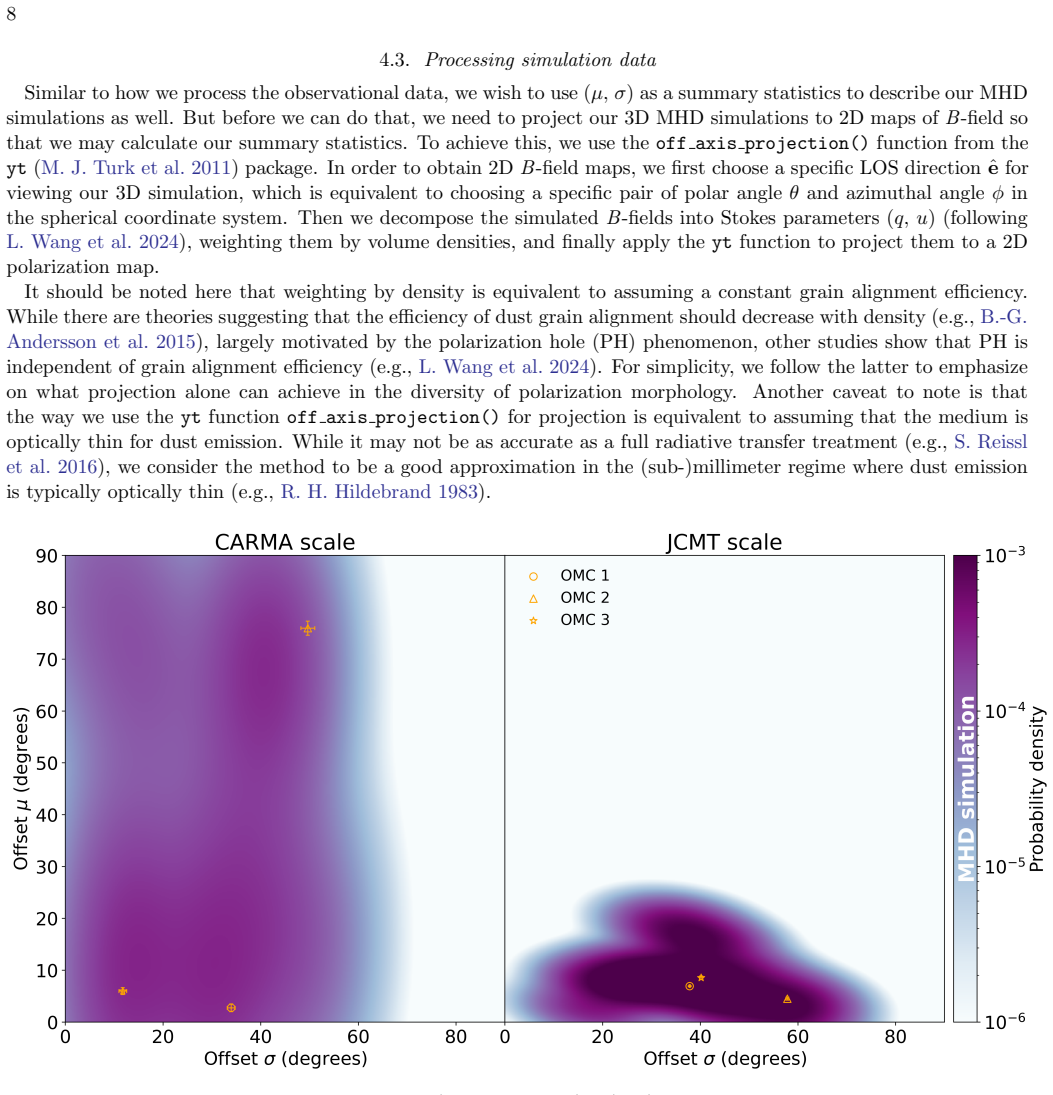

Figure 5. Figure 5: The six observed data-points of Orion ISF (J. Wu et al. 2024) in (µ, σ) space and the best fit probability distributions (at two different scale ranges) generated from a MHD simulation at θ = 35◦ , ϕ = −18◦ . The lower limit of the colorbar is set at 10−6 to allow more contrast between regions with high and low probability densities. The errorbars of the CARMA and JCMT data-points are calculated by error p… view at source ↗
Figure 6

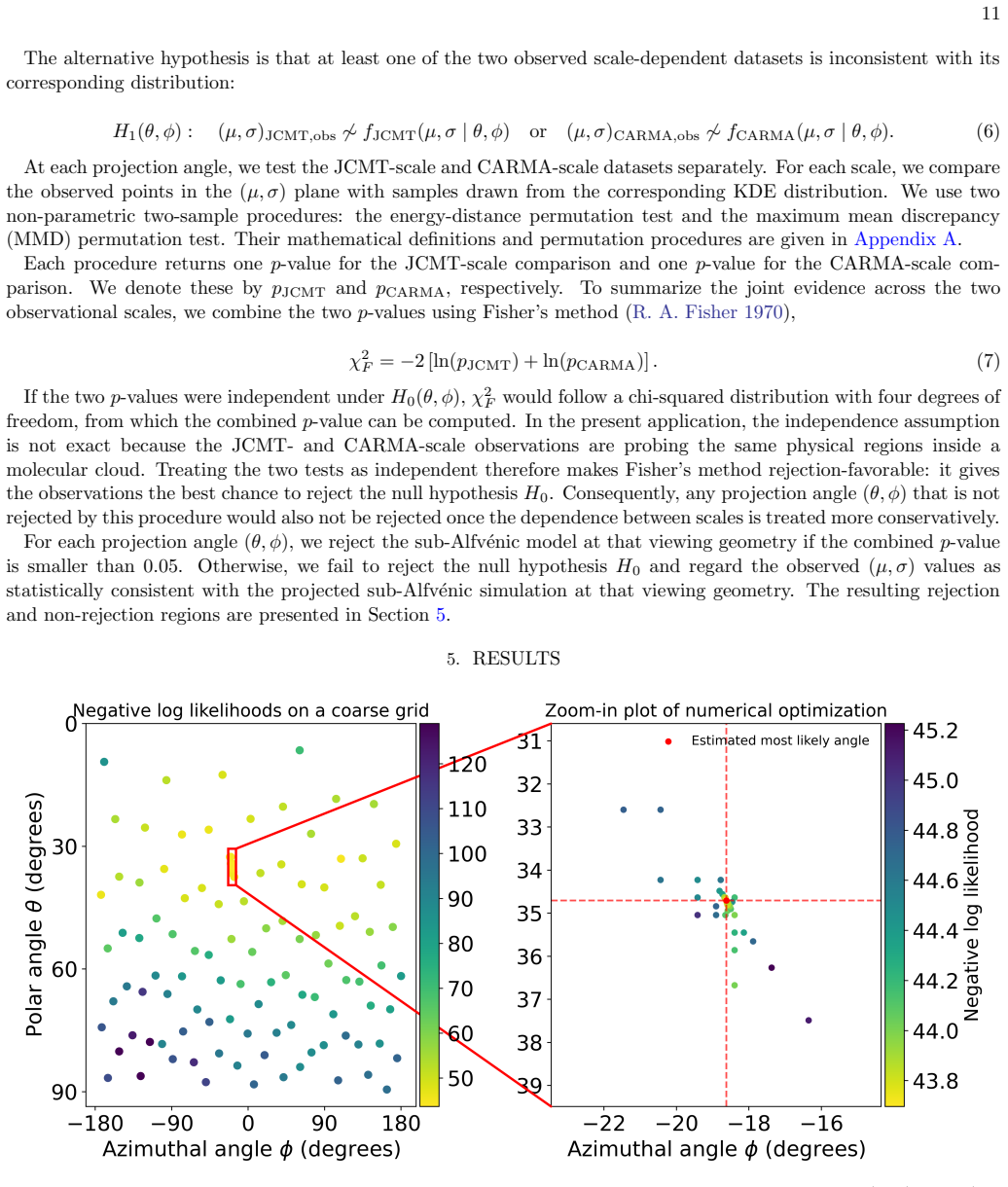

Figure 6. Figure 6: Likelihoods for the different projections angles of the observed polarization maps over the whole (θ, ϕ) space (left panel), and in a small zoom-in region where we execute our numerical optimizations (right panel). Lower NLL value (larger likelihood) means that the observed polarization maps from Orion ISF are more likely to have those projection angles. To enhance visual contrast, in the left panel all th… view at source ↗
Figure 7

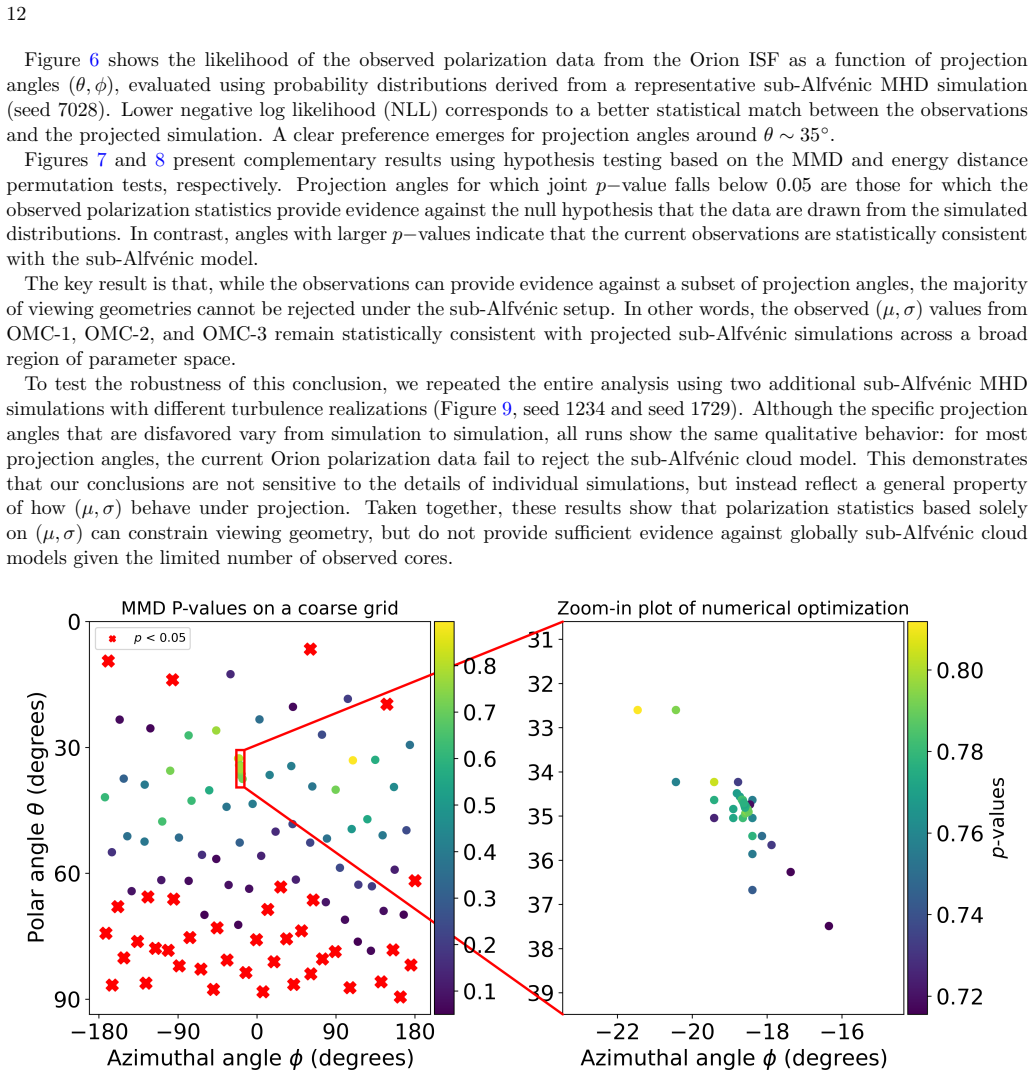

Figure 7. Figure 7: Similar to [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
Figure 8

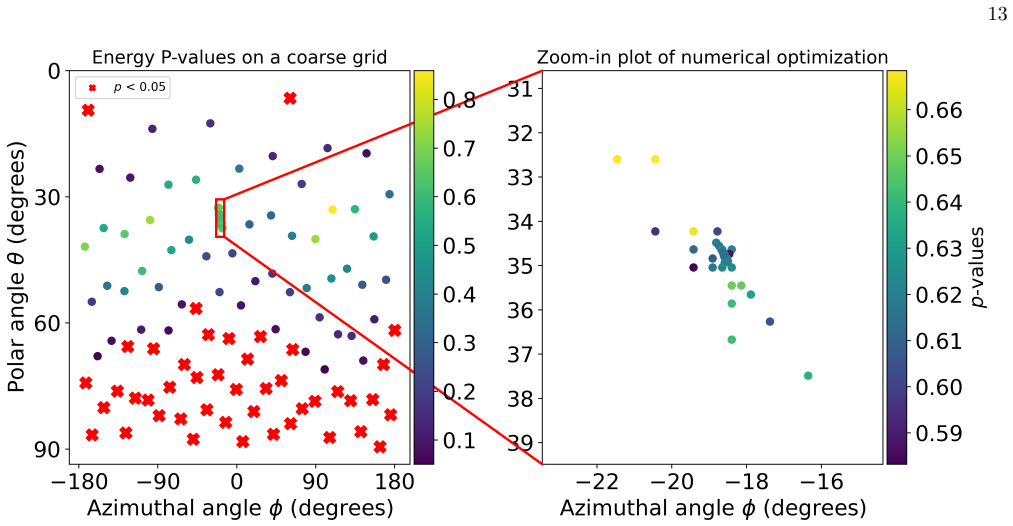

Figure 8. Figure 8: Similar to [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 9

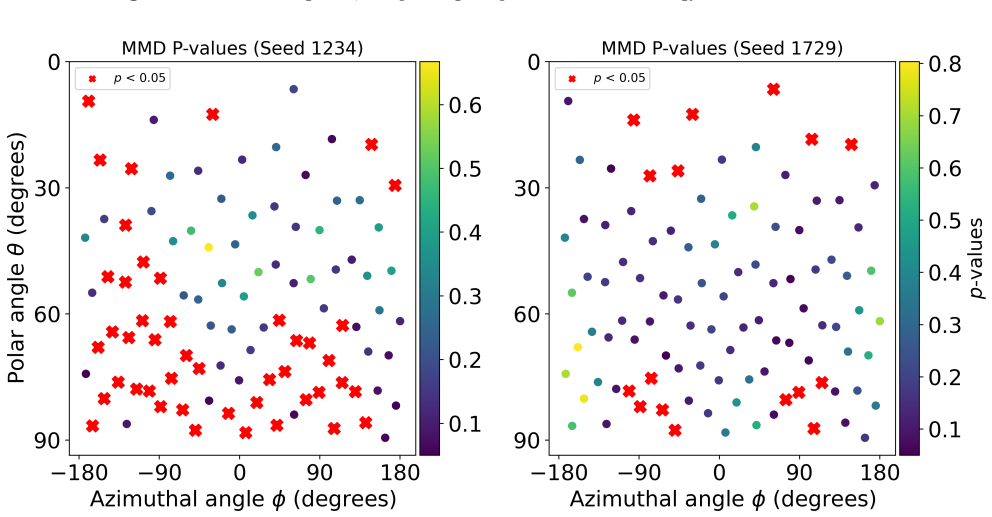

Figure 9. Figure 9: Additional hypothesis testing results from two more simulation seeds, illustrating the MMD p-values for different projection angles. of magnetic field in molecular clouds. With that said, at the scale of observed dense cores probed by JCMT and CARMA, non-ideal MHD effects such as turbulence-driven ambipolar diffusion (AD) (H.-b. Li & M. Houde 2008; K. S. Tang et al. 2018) could already start to play an imp… view at source ↗
Figure 10

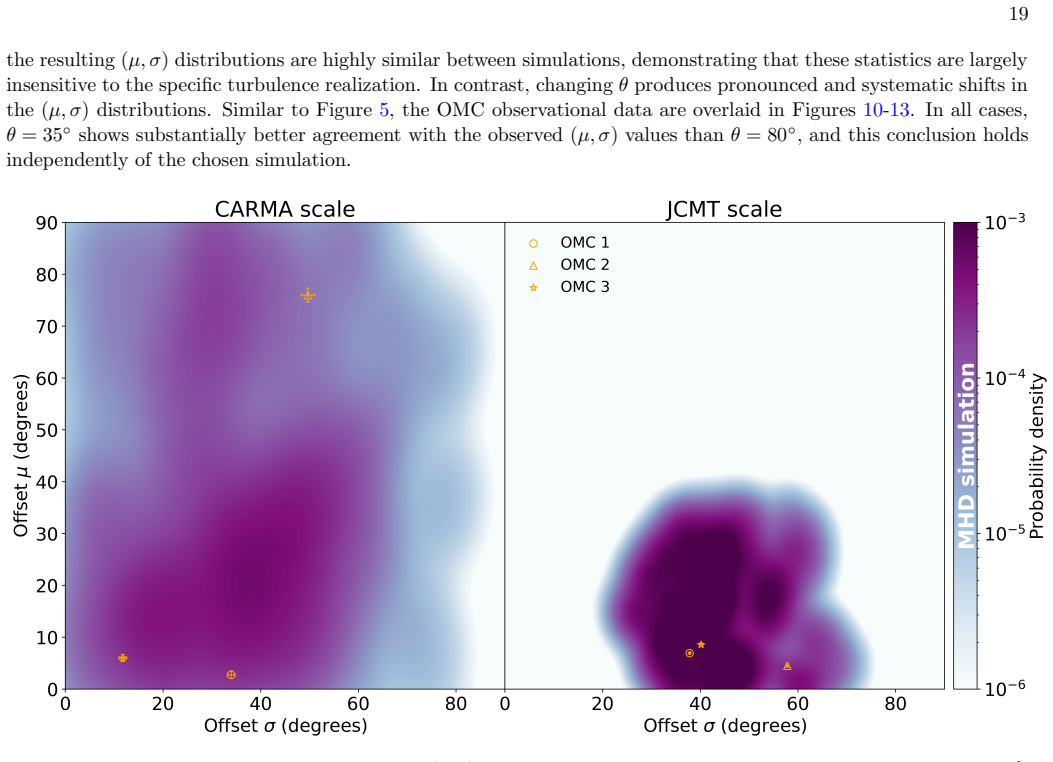

Figure 10. Figure 10: An example of simulated distribution in (µ, σ) space created by aggregating many different samples in ϕ at θ = 35◦ . Made from simulation seed 1234 [PITH_FULL_IMAGE:figures/full_fig_p019_10.png] view at source ↗
Figure 11

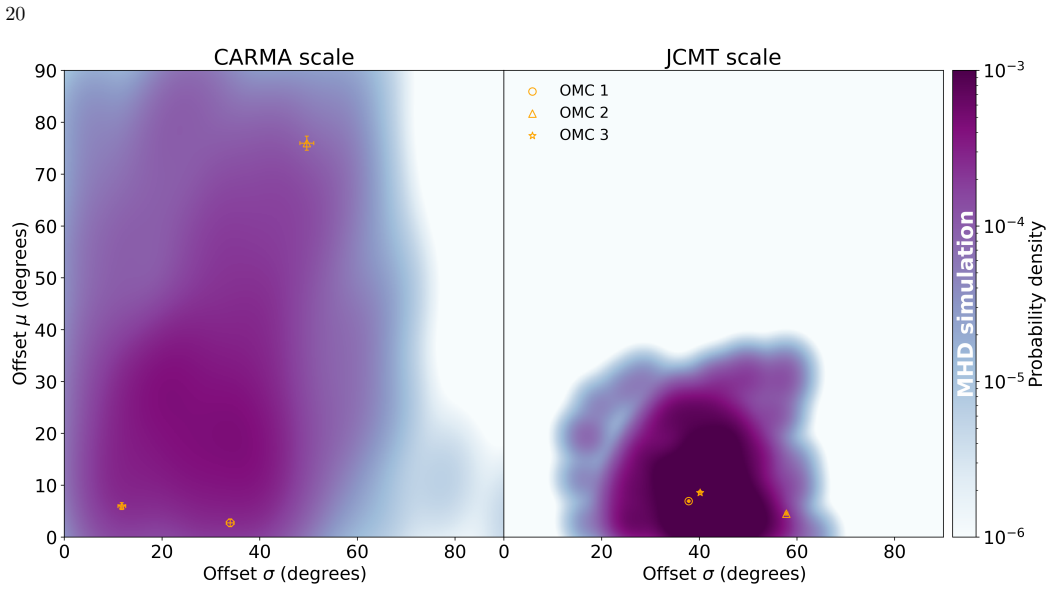

Figure 11. Figure 11: Similar to [PITH_FULL_IMAGE:figures/full_fig_p020_11.png] view at source ↗
Figure 12

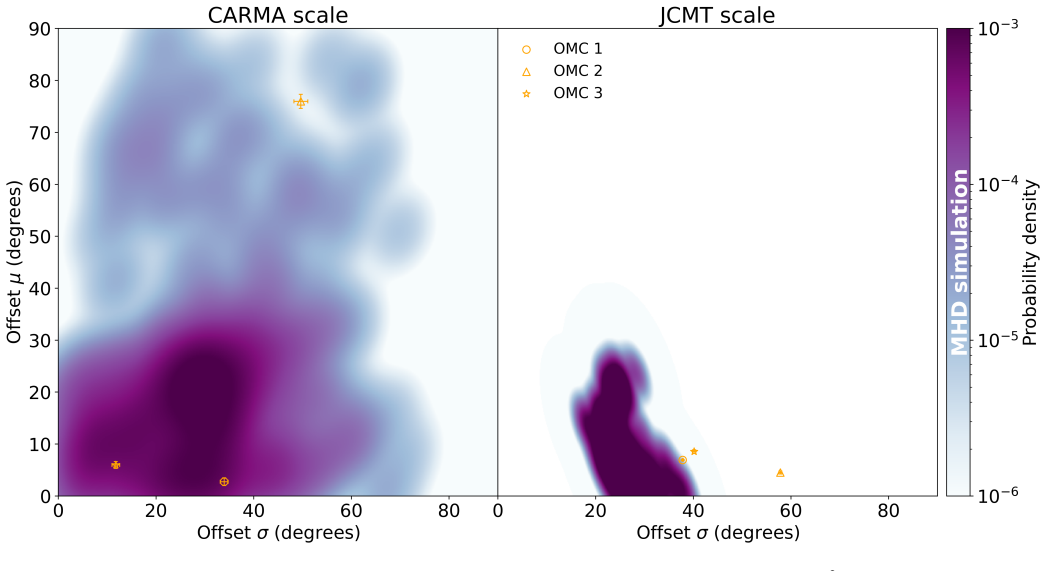

Figure 12. Figure 12: Similar to [PITH_FULL_IMAGE:figures/full_fig_p020_12.png] view at source ↗
Figure 13

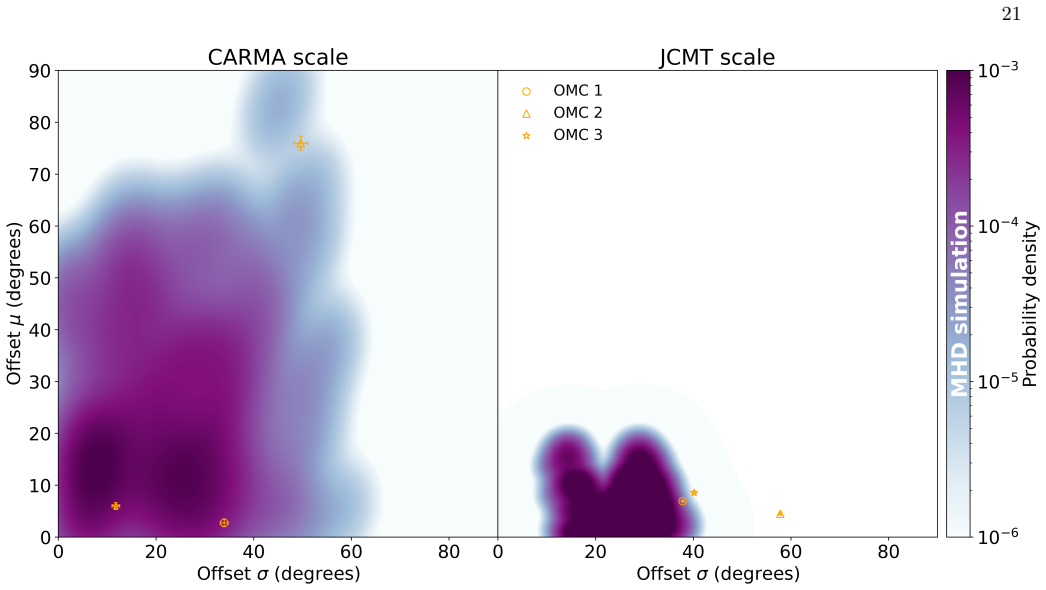

Figure 13. Figure 13: Similar to [PITH_FULL_IMAGE:figures/full_fig_p021_13.png] view at source ↗
read the original abstract

Dust polarization observations are widely used to diagnose the relative importance of magnetic fields and turbulence in star forming molecular clouds, often through summary statistics such as the mean polarization direction $\mu$ and dispersion $\sigma$. Recent multi-scale polarization observations of the Orion Integral-Shaped Filament (ISF) reveal substantial diversity in polarization morphology among its dense cores, raising questions about the underlying Alfv\'enic nature of the cloud. In this work, we develop a statistical framework to compare polarization-based summary statistics from observations with those derived from projected three dimensional MHD simulations, explicitly accounting for projection effects. Using globally sub-Alfv\'enic simulations that naturally produce slightly super-Alfv\'enic dense cores, we show that modest deviations of core-scale magnetic fields from the parent cloud field, when combined with projection, can generate a wide range of plane-of-sky polarization dispersions. Applying hypothesis testing, we find that the observed $(\mu, \sigma)$ values in the Orion ISF are statistically consistent with sub-Alfv\'enic cloud models over a broad range of viewing angles. This broad degeneracy implies that $\mu$ and $\sigma$ alone cannot provide precise information about the three-dimensional magnetic-field distribution, and hence the Alfv\'en Mach number, of an individual cloud. While the observations can provide evidence against certain projection geometries, we demonstrate that polarization statistics based solely on $(\mu, \sigma)$ are insufficient to provide evidence against sub-Alfv\'enic cloud models. Our results highlight the necessity of explicitly incorporating projection effects when interpreting polarization observations of molecular clouds.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper develops a statistical framework comparing observed polarization summary statistics (mean direction μ and dispersion σ) in the Orion Integral-Shaped Filament with those obtained by projecting globally sub-Alfvénic MHD simulations that naturally yield slightly super-Alfvénic dense cores. It applies hypothesis testing across a range of viewing angles and concludes that the Orion ISF (μ, σ) values are statistically consistent with these sub-Alfvénic models, implying that μ and σ alone cannot rule out sub-Alfvénic conditions because of projection-induced degeneracy in the plane-of-sky field orientation.

Significance. If the central consistency result holds, the work provides a clear demonstration that projection effects must be explicitly modeled before using simple polarization statistics to diagnose the Alfvén Mach number of a cloud. The hypothesis-testing approach on projected simulation outputs is a methodological strength that moves beyond qualitative visual comparison. The finding that modest core-scale field deviations combined with viewing angle can reproduce the observed diversity in core polarizations is a useful caution for the field.

major comments (2)
  1. [§3] §3 (hypothesis-testing framework): the claim that the observed (μ, σ) values are statistically consistent with sub-Alfvénic models rests on the specific globally sub-Alfvénic runs being representative of Orion ISF conditions. The paper should include explicit sensitivity tests (varying turbulence driving mechanism, sonic Mach number distribution, or initial B-field geometry) to show that the projected (μ, σ) range and the resulting degeneracy are robust; without this, the generalization that (μ, σ) alone cannot provide evidence against sub-Alfvénic models is not yet load-bearing.
  2. [§3] §3 (viewing-angle sampling): the breadth of the degeneracy is quantified by sampling viewing angles, but the manuscript does not report the precise prior or grid used for the angle distribution nor the number of independent lines of sight per angle. This directly affects the p-value thresholds in the hypothesis test and therefore the strength of the consistency statement.
minor comments (1)
  1. The notation for the polarization dispersion σ should be clarified in the methods section to distinguish between the dispersion of polarization angles versus the dispersion of polarization vectors; the current usage is consistent within the paper but could be ambiguous to readers.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive assessment of the work's significance. We address each major comment below. We agree that the viewing-angle sampling details must be reported explicitly and will revise the manuscript to include them. For the hypothesis-testing robustness, we provide justification for our simulation choices and will incorporate limited additional discussion and tests.

read point-by-point responses

  1. Referee: [§3] §3 (hypothesis-testing framework): the claim that the observed (μ, σ) values are statistically consistent with sub-Alfvénic models rests on the specific globally sub-Alfvénic runs being representative of Orion ISF conditions. The paper should include explicit sensitivity tests (varying turbulence driving mechanism, sonic Mach number distribution, or initial B-field geometry) to show that the projected (μ, σ) range and the resulting degeneracy are robust; without this, the generalization that (μ, σ) alone cannot provide evidence against sub-Alfvénic models is not yet load-bearing.

    Authors: The simulations used are globally sub-Alfvénic MHD runs that self-consistently produce slightly super-Alfvénic dense cores while matching key observed properties of the Orion ISF (column density and velocity dispersion ranges). The central result demonstrates that projection effects combined with modest core-scale field deviations can reproduce the observed (μ, σ) diversity even under globally sub-Alfvénic conditions, establishing the existence of a degeneracy. We acknowledge that broader sensitivity tests across driving mechanisms and sonic Mach numbers would increase robustness. In revision we will add a dedicated paragraph justifying the representativeness of the chosen runs (citing prior validation against Orion-like conditions) and will include one additional projection test with altered initial B-field geometry. This is a partial revision. revision: partial

  2. Referee: [§3] §3 (viewing-angle sampling): the breadth of the degeneracy is quantified by sampling viewing angles, but the manuscript does not report the precise prior or grid used for the angle distribution nor the number of independent lines of sight per angle. This directly affects the p-value thresholds in the hypothesis test and therefore the strength of the consistency statement.

    Authors: We agree that these procedural details are required for full reproducibility and proper interpretation of the hypothesis tests. In the revised manuscript we will explicitly state the prior distribution over viewing angles, the angular grid employed, and the number of independent lines of sight generated per angle, together with the method used to compute the projected polarization statistics and p-values. revision: yes

Circularity Check

0 steps flagged

No circularity: external simulations and independent statistical test

full rationale

The paper selects globally sub-Alfvénic MHD simulations (external to the Orion observations), projects them over viewing angles to produce (μ, σ) distributions, and applies hypothesis testing to check consistency with the observed Orion ISF values. No equations reduce by construction to fitted parameters from the target data, no self-definitional loops exist, and no load-bearing self-citations or imported uniqueness theorems are invoked in the provided text. The central claim of statistical consistency and degeneracy is a direct output of the simulation-to-observation comparison, not a renaming or ansatz smuggling. This is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard MHD assumptions plus the representativeness of the chosen simulation suite; no new entities are postulated.

free parameters (2)
  • global Alfvén Mach number
    Chosen sub-Alfvénic for the parent cloud in the simulations
  • viewing angle range
    Varied across possible orientations to test statistical consistency
axioms (2)
  • standard math MHD equations accurately describe the dynamics of molecular clouds
    Invoked when running the simulations
  • domain assumption Dust polarization traces the plane-of-sky component of the magnetic field
    Standard assumption when deriving μ and σ from observations
