TurboFFT: Co-Designed High-Performance and Fault-Tolerant Fast Fourier Transform on GPUs

T0 review · 3 major / 7 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read TurboFFT claims GPU FFT performance on par with cuFFT while correcting soft errors online.

desk verdict A well-evidenced, reproducible GPU FFT with fused online ABFT; the fault-injection evaluation needs to enforce and report the single-error-per-period assumption. read the letter →

arxiv 2412.05824 v1 pith:CRZ4LHC4 submitted 2024-12-08 cs.DC

Shixun Wu , Yujia Zhai , Jinyang Liu , Jiajun Huang , Zizhe Jian , Huangliang Dai , Sheng Di , Franck Cappello
show 1 more author
Zizhong Chen
This is my paper · ORCID
classification cs.DC
keywords fastFouriertransformGPUfaulttolerancealgorithm-based(ABFT)softerrorsonlineerrorcorrectioncuFFTCUDA
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

TurboFFT is a from-scratch GPU fast Fourier transform implementation that aims to show that high performance and online fault tolerance can be achieved together rather than traded off. On the performance side, the paper claims that its architecture-aware, padding-free, template-generated kernels are comparable to the leading closed-source GPU FFT library and up to 300% faster for some sizes, while beating a popular open-source implementation. On the reliability side, it introduces a fused two-side algorithm-based fault tolerance (ABFT) scheme with location encoding that detects, locates, and corrects a single soft compute error without extra global memory traffic or immediate recomputation. The experimental claim is that on A100 and T4 GPUs the fault-tolerant version stays within 7–15% overhead even under tens of injected errors per minute, for both single and double precision. A sympathetic reader would care because FFT is a dominant cost in many scientific codes and soft errors are now a practical concern on large GPU systems.

What carries the argument

The load-bearing object is a fused two-side ABFT scheme: algorithm-based fault tolerance uses checksums of a linear transform, and the linearity of the DFT matrix $W$ is what lets a checksum discrepancy equal the error's contribution. The left-side checksum $e^T W X$ detects that an error occurred, while the right-side checksum $W X e$ with location encoding $e_3=(1,2,\dots,N)$ locates which signal in a batch is corrupted, allowing delayed batched correction without recomputation. On the performance side, the key mechanisms are a padding-free register-to-shared-memory swizzling scheme that avoids bank conflicts without wasting shared memory, and a template-based code generator that selects kernel parameters for each input size and datatype. The multi-transaction threadblock design changes the FFT from one global-memory read–compute–write round trip per threadblock to several, so the threadblock-level checksum reduction is shared across more work with no inter-transaction communication.

What would settle it

Inject two bit flips into two different signals covered by the same checksum within one detection–correction period on an A100, then compare the post-correction output to a golden FFT; any remaining difference shows the single-error assumption is load-bearing. A second test is to rerun the error-injection benchmark without hand-picking $\delta$, selecting the threshold automatically from the ROC curve and reporting the resulting false-alarm rate.

Watch

Extended reading notes

Core claim

The paper's central discovery is that the exponential error propagation inside an FFT butterfly network does not force a time-redundant recompute: because the corrupted output values remain proportional to the initial error, one can record the error's location with a column encoding vector and later add back the correction value. Concretely, TurboFFT computes a left-side checksum $e^T W X$ to detect that an error occurred and a right-side checksum $W X e$ with location encoding $e_3=(1,2,\dots,N)$ to identify which signal in a batch was corrupted. Correction is then $ΔX = W X e_2 - (W X) e_2$, added back to the flagged signal. The scheme is fused into the thread-level and threadblock-level FFT kernels so no extra global-memory transaction is needed, and by giving each threadblock several global-memory transactions the threadblock-level reduction cost is amortized. The paper's own summary of the result is that TurboFFT without fault tolerance is comparable to or up to 300% faster than cuFFT, and with fault tolerance maintains 7–15% overhead under tens of error injections per minute.

Load-bearing premise

The scheme corrects only the first soft compute error in each detection–correction window; two errors in one window, or a mis-set detection threshold, breaks the guarantee and inflates overhead.

Editorial extensions

If this is right

  • If the performance claim holds, applications that spend large fractions of runtime in FFT can get soft-error protection without paying a kernel-launch or memory-footprint penalty.
  • The two-side ABFT removes the need to recompute on error: a corrupted output can be fixed by adding back the divergence, so fail-continue errors become correctable online.
  • Multi-transaction threadblocks amortize the threadblock-level reduction, keeping fault tolerance overhead low for FP64 and for problem sizes where cuFFT underutilizes the GPU.
  • The same prototype beats a popular open-source FFT library across many sizes, suggesting the closed-source library's performance is not an intrinsic ceiling.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The two-side checksum idea should transfer to other linear transforms with butterfly-like data flow, where a single input error fans out to many outputs; the same detect-locate-add-back pattern would apply without recomputation.
  • Because the reported overhead is measured under tens of injected errors per minute, the relevant stress test is two errors inside one detection–correction window; a fault-injection study with correlated bursts would reveal the actual protection envelope.
  • Publishing the ROC-selected threshold $\delta$ and the false-alarm rate as a table would make the 7–15% overhead reproducible across GPUs and problem sizes.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 7 minor

Summary. This paper presents TurboFFT, a GPU FFT implementation co-designed for high performance and online fault tolerance. The authors first build a high-performance FFT kernel using architecture-aware, padding-free, and template-based optimizations, then add a two-side ABFT scheme with location encoding at thread and threadblock levels, plus a multi-transaction design that amortizes the threadblock-level reduction. Experiments on an NVIDIA A100 and a T4 GPU claim performance comparable to or faster than cuFFT (up to 300% faster for some sizes) and a 7% to 15% overhead under error injection for both FP32 and FP64.

Significance. If the claims are substantiated, this is a valuable contribution: an open, competitive GPU FFT baseline together with online soft-error correction at low overhead is practically useful for scientific computing. The paper provides a reproducible artifact with one-command scripts for all main figures, which is a notable strength. However, the fault-tolerance guarantee is explicitly limited by the single-event upset (SEU) assumption, and the evaluation leaves the detection threshold and injection protocol unspecified; the online-correction claim is therefore narrower than the abstract implies.

major comments (3)
  1. [§2.2.4, §4.1.2] The SEU fault model limits the number of errors per detection-correction period but does not restrict where the error occurs, while the two-side ABFT decoding (using location vector e3 = (1,2,...,N) and the correction value ΔX = WXe2 - (WX)e2) assumes the error corrupts the main data path. If a single soft error strikes the computation of the checksum vectors (e.g., Xe2 or the left-side checksum), the scheme will produce a nonzero ΔX for correct data, and the subsequent 'correction' will actively corrupt otherwise valid output. The paper must either state and justify the additional assumption that the checksum computations are error-free, or extend the scheme to cover checksum-path errors; as written, the online-correction guarantee in the abstract is not established for the stated fault model.
  2. [§5.3.1, §5.3.2] The detection threshold δ is chosen via ROC analysis but its numerical value is never reported in the overhead experiments, and the ROC test injects exactly one bit flip per test signal rather than a time-ordered injection stream. The 7% to 15% overhead figures are therefore tied to an unspecified δ, and the experiments do not demonstrate that the injection schedule enforces at most one error per detection-correction period. The period length is not given, and the abstract's 'tens' versus the conclusion's 'hundreds' of injections per minute are unreconciled; please report δ, the period definition, and the injection protocol, or the overhead-versus-correctness trade-off cannot be assessed.
  3. [§5.2, §5.3.2] Overhead and speedup numbers are reported as single-point values (e.g., 3%, 2%, 13%, and the 7% to 15% range) without repetition counts, standard deviations, or confidence intervals. Given the central claim is low overhead, the authors should report the number of runs and the variance; otherwise it is unclear whether the differences between configurations (e.g., 1-transaction versus 4-transaction ABFT) are statistically meaningful.
minor comments (7)
  1. [Abstract vs. Conclusion] The abstract states 'tens of error injections per minute' while the conclusion states 'hundreds of error injections per minute'; please reconcile these numbers.
  2. [Abstract, §5.1.1] The abstract and introduction claim 'up to 300% faster' than cuFFT, but Section 5.1.1 reports a 40% to 200% improvement at N=214; please align the claim with the data.
  3. [Abstract, §4.3] The abstract says the multi-transaction design has 'zero additional operations', but Section 4.3 states 'A minimal thread-level accumulation is introduced'; please correct the wording.
  4. [Figures 16-22] The figure captions and axis labels in the provided text contain garbled Unicode sequences (e.g., '/uni0000004f/uni00000052/...'); please ensure the final PDF renders all figure text correctly.
  5. [§5.1.5] The heading 'Optimiations Impact Overview' contains a typo; it should be 'Optimizations Impact Overview'.
  6. [References] References [1] (TensorFlow) and [37] (PyTorch) do not appear to be cited anywhere in the text; please either cite them appropriately or remove them.
  7. [Table 1] Table 1 lists kernel parameters for the T4 only, yet most experiments are run on the A100; the A100 parameter settings should be reported as well.

Circularity Check

1 steps flagged · score 1.0 of 10

No significant circularity; the performance and overhead figures are direct measurements against external baselines, and the ABFT math is self-contained, with only one minor in-sample threshold calibration in the ROC analysis.

  1. fitted input called prediction [Section 5.3.1 (Error Injection Analysis) and Section 5.3.2 (Error Injection Evaluation).]
    "by selecting an appropriate fault detection threshold δ, the proposed detection scheme is capable of identifying injected faults with a high degree of reliability and a negligible false alarm rate. Faults are injected in half of these runs (1000 of 2000) by first choosing a signal to affect, and then flipping exactly one bit of its 32-bit representation for float-precision and 64-bit representation for double-precision. A checksum test with threshold δ is used to attempt to identify the affected computations."

    The detection threshold δ is selected via ROC analysis on exactly the fault-injection protocol (one random bit flip per test signal) that is then reused in the error-injection overhead evaluation, so the claimed 'high degree of reliability' is an in-sample characterization of a detector fitted to its own test distribution rather than a parameter-free prediction, and the fitted value of δ is never reported, which also impedes reproducibility. The step is non-load-bearing for the paper's headline numbers: the 7-15% fault-tolerance overhead and the 13% vs. cuFFT injection overhead are direct wall-clock measurements under the chosen configuration, not outputs of the ROC fit, so the central quantitative claims are not forced by the calibration.

full rationale

The paper's two central claims are empirically grounded rather than derived from fitted inputs. The performance claims (comparable to or up to 300% faster than cuFFT, faster than VkFFT) are benchmark measurements on A100 and T4 against closed-source and open-source external baselines, so they are self-contained and externally falsifiable. The fault-tolerance claims likewise rest on measurements: the overhead figures are timings, and the two-side ABFT mathematics (Eqns. 3-5; location encoding e3 = (1,2,...,N)) is self-contained linear algebra whose correction property holds by construction under the explicitly adopted single-event upset assumption stated in Section 2.2.4; choosing an encoding so that decoding works is legitimate design, not circularity. The SEU assumption is justified in part by the authors' own prior ABFT works [9, 48, 53], but the assumption is presented as an adopted modeling choice and the correction scheme's derivation does not reduce to those citations, so this self-citation is not load-bearing. Two non-circular concerns are flagged: the ROC-calibrated threshold δ described above is an in-sample fit whose value is omitted, and the abstract says 'tens of error injections per minute' while the conclusion says 'hundreds,' with the detection-correction period length never reported, so the SEU regime's applicability to the injection experiments cannot be verified from the text. These are scope and reproducibility limitations, not reductions of any prediction to its own inputs.

Assumptions & free parameters 2 free parameters · 3 assumptions · 0 invented entities

The central claims depend on DFT linearity, the SEU fault model, and the scoping of memory/communication faults to ECC and FT-MPI. The detection threshold delta and kernel tile parameters are tuned empirically; the encoding vectors are explicit design choices.

free parameters (2)
  • detection threshold delta = not reported
    Chosen from ROC curve in Section 5.3.1 (Figure 19); directly controls false alarm rate and thus the measured 7-15% fault tolerance overhead in Section 5.3.2.
  • kernel tile parameters (N1,N2,N3,n1,n2,n3,bs) = e.g., Table 1 (2^10: N1=2^10; 2^23: N1=2^8,N2=2^7,N3=2^8,n1=16,n2=16,n3=16,bs=16)
    Manually searched using template-based code generation (Section 3.3.2); maximize FFT performance for each input shape and hardware.
assumptions (3)
  • standard math FFT computes the DFT exactly up to floating-point round-off, and its factors share the linearity of the DFT.
    Used throughout Sections 3 and 4; the checksum formulas (1)-(3) assume exact linearity W(x+e)=Wx+We and e^T W x = (e^T W)x.
  • domain assumption At most one soft error occurs in each detection and correction period (SEU).
    Stated in Section 2.2.4; the two-side ABFT detects and localizes a single error; a second error within the period would violate the location decoding.
  • domain assumption Memory errors are handled by ECC and communication errors by FT-MPI, so only compute-unit errors need protection.
    Stated in Section 2.2.4; defines the fault model and justifies why the checksum only targets arithmetic unit bit flips.

how reviews work

0 comments
Cite this review

Pith. "Pith review of TurboFFT: Co-Designed High-Performance and Fault-Tolerant Fast Fourier Transform on GPUs." pith.science (2026). https://pith.science/paper/CRZ4LHC4

@misc{pith2026241205824,
  author       = {Pith},
  title        = {Pith review of: TurboFFT: Co-Designed High-Performance and Fault-Tolerant Fast Fourier Transform on GPUs},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CRZ4LHC4}},
  note         = {Machine review of arXiv:2412.05824}
}
read the original abstract

GPU-based fast Fourier transform (FFT) is extremely important for scientific computing and signal processing. However, we find the inefficiency of existing FFT libraries and the absence of fault tolerance against soft error. To address these issues, we introduce TurboFFT, a new FFT prototype co-designed for high performance and online fault tolerance. For FFT, we propose an architecture-aware, padding-free, and template-based prototype to maximize hardware resource utilization, achieving a competitive or superior performance compared to the state-of-the-art closed-source library, cuFFT. For fault tolerance, we 1) explore algorithm-based fault tolerance (ABFT) at the thread and threadblock levels to reduce additional memory footprint, 2) address the error propagation by introducing a two-side ABFT with location encoding, and 3) further modify the threadblock-level FFT from 1-transaction to multi-transaction in order to bring more parallelism for ABFT. Our two-side strategy enables online correction without additional global memory while our multi-transaction design averages the expensive threadblock-level reduction in ABFT with zero additional operations. Experimental results on an NVIDIA A100 server GPU and a Tesla Turing T4 GPU demonstrate that TurboFFT without fault tolerance is comparable to or up to 300\% faster than cuFFT and outperforms VkFFT. TurboFFT with fault tolerance maintains an overhead of 7\% to 15\%, even under tens of error injections per minute for both FP32 and FP64.

Figures

Figures reproduced from arXiv: 2412.05824 by the authors.

Figure 1
Figure 1. FFT performance comparison with cuFFT on an NVIDIA [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. , one corrupted data in a 64-point FFT will spread to all other data in 6 iterations. Existing ABFT schemes detect errors by utilizing a perspective of GEMV in DFT, namely (e 𝑇𝑊 )x = e 𝑇 (𝑊 x), as shown in Eqn. (1) and (2). … … … …… … Iteration 1 Iteration 6 Input X All data are corrupted Error Propagation Normal Corrupted 𝒚 = 𝜔𝑁 0 𝜔𝑁 0 𝜔𝑁 0 𝜔𝑁 0 𝜔𝑁 1 𝜔𝑁 2 ⋯ 𝜔𝑁 0 𝜔𝑁 𝑛−1 𝜔𝑁 2(𝑛−1) ⋮ ⋮ ⋱ ⋮ 𝜔𝑁 0 , 𝜔𝑁 𝑛−1 ⋯ 𝜔𝑁 𝑛−1 2 𝒙 … view at source ↗
Figure 4
Figure 4. Our padding-free design achieves 100% shared memory [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figures from the paper (14 more)
Figure 5
Figure 5. Figure 5: Benefit of two-sided ABFT: Delayed Batched Correction [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 7
Figure 7. Figure 7: Thread-level Two-sided ABFT. 4.2.1 Thread-level Two-sided ABFT. In [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 6

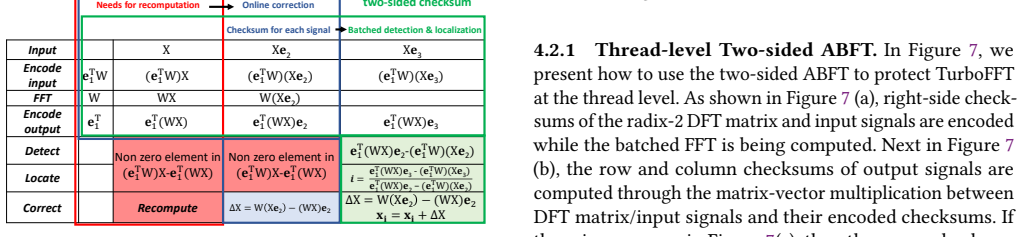

Figure 6. Figure 6: Motivation: Red area incurs high overhead. Blue region [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 8
Figure 8. Figure 8: Checksum encoding at Threadblock Level. and loaded into the threadblock from global memory into the shared memory, as shown in 8 (a). The input signal encoding is performed through register reuse, which is in conjunction with loading input signals from global memory. A…
Figure 10

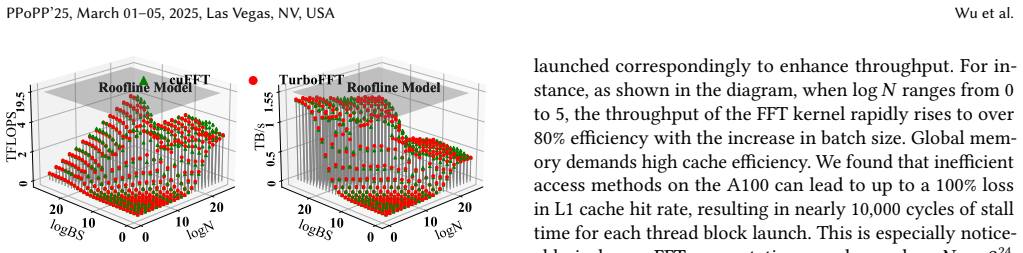

Figure 10. Figure 10: Performance of generated FP32 FFT kernels on A100 blidiidd biiThbdidh [PITH_FULL_IMAGE:figures/full_fig_p008_10.png]
Figure 11
Figure 11. Figure 11: Performance of generated FP64 FFT kernels on A100 [PITH_FULL_IMAGE:figures/full_fig_p008_11.png]
Figure 12
Figure 12. Figure 12: A100 FP32. smaller FFT sizes, each thread block only needs to launch a small number of threads, when the batch size increases, each thread block should also increase the number of threads launched correspondingly to enhance throughput. For in￾stance, as shown in the d…
Figure 14

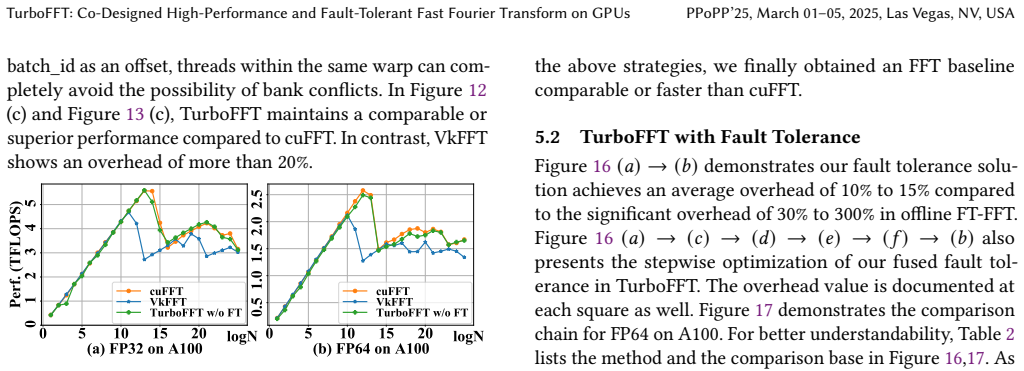

Figure 14. Figure 14: Comparison of batched FFT performance without fault [PITH_FULL_IMAGE:figures/full_fig_p009_14.png]
Figure 15
Figure 15. Figure 15: TurboFFT w/o FT stepwise optimizations on T4, FP32 [PITH_FULL_IMAGE:figures/full_fig_p009_15.png]
Figure 17
Figure 17. Figure 17: ABFT stepwise optimization for FP64 FFT on A100. [PITH_FULL_IMAGE:figures/full_fig_p010_17.png]
Figure 19
Figure 19. Figure 19: Error Analysis 5.3.2 Error Injection Evaluation. Figures 20 extends the analysis to include the performance of TurboFFT under error [PITH_FULL_IMAGE:figures/full_fig_p010_19.png]
Figure 20
Figure 20. Figure 20: Error injection experiments on A100 GPU 5.4 Performance Evaluation on T4 TurboFFT shows competitive performance for both with or without fault tolerance, as shown in [PITH_FULL_IMAGE:figures/full_fig_p011_20.png]
Figure 21
Figure 21. Figure 21: TurboFFT w/o FT for FP32 on T4. 0 5 10 15 20 (a) Compute Performance 0.0 0.2 0.4 0.6 0.8 TFLOPS logN cuFFT VkFFT TurboFFT w/o FT TurboFFT w/ FT TurboFFT: err. inj. Offline FT-FFT: err. inj. 0 5 10 15 20 (b) Memory Throughput 100 200 GB/s logN [PITH_FULL_IMAGE:figures…
Figure 22

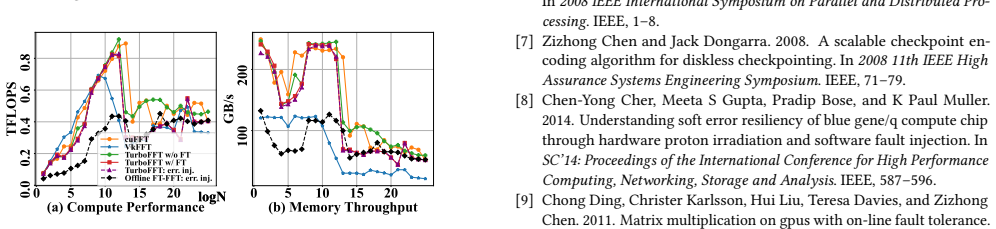

Figure 22. Figure 22: details the comparison of TurboFFT under error injection on T4, and Offline FT-FFT is included. TurboFFT under error injection incurs a negligible overhead of 3% for FP32 compared to TurboFFT without error injection. 0 logN 10 20 logBS 0 10 20 TFLOPS 0 0.5 8.1 Rooflin…

Discussion (0). Continue with ORCID to comment.
