Computational aspects of the Volterra Signature
Pith reviewed 2026-05-19 23:55 UTC · model grok-4.3
pith:CZ23SYPM Add to your LaTeX paper
What is a Pith Number?\usepackage{pith}
\pithnumber{CZ23SYPM}
Prints a linked pith:CZ23SYPM badge after your title and writes the identifier into PDF metadata. Compiles on arXiv with no extra files. Learn more
The pith
The Volterra signature with matrix-valued kernels admits efficient computation via quadratic approximation, FFT acceleration, and low-dimensional recursion.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By decomposing the Chen-type convolution relation for the Volterra signature into an analytic kernel-integration part and an arithmetic signature part, the components can be obtained through a general quadratic-time scheme, an FFT-based O(J log J) scheme for convolution kernels on uniform grids, an exact O(J R squared) recursion for state-space kernels of dimension R, and a finite-difference predictor-corrector method, while the number of matrix factors in kernels of the form sum k_p(t-s) A_p leaves the asymptotic cost in J and N unchanged.
What carries the argument
Decomposition of the Chen-type convolution relation into analytic and arithmetic parts, which isolates the kernel integration from the combinatorial operations that build the signature components.
If this is right
- The Volterra signature becomes practical for long time series because its cost grows only quadratically in the number of steps rather than exponentially in truncation level.
- Convolution kernels on uniform time grids can be handled in near-linear time, making the method suitable for large uniform datasets.
- Kernels that admit a low-dimensional state-space realization allow exact computation whose cost scales only with the state dimension squared.
- Kernels expressed as finite sums of scalar functions times fixed matrices incur no extra asymptotic cost in the number of summands.
- The signature kernel itself can be approximated by a predictor-corrector finite-difference scheme that inherits the same efficiency gains.
Where Pith is reading between the lines
- These algorithms could be combined with existing signature-based machine-learning pipelines to add memory effects without a prohibitive increase in runtime.
- The same decomposition strategy might apply to other iterated-integral objects, such as those arising in rough-path theory or controlled differential equations.
- Numerical tests on real high-frequency financial or physiological data could quantify how much additional predictive power the kernel introduces relative to the classical signature.
Load-bearing premise
The decomposition of the Chen-type convolution relation into analytic and arithmetic parts can be performed without introducing errors that propagate into the final signature components for general matrix-valued kernels.
What would settle it
Compute the Volterra signature up to level 3 for a simple two-dimensional path and a rank-one kernel using both the proposed quadratic scheme and direct numerical quadrature of the defining iterated integrals; the two results must agree to within the expected truncation and quadrature tolerance.
Figures
read the original abstract

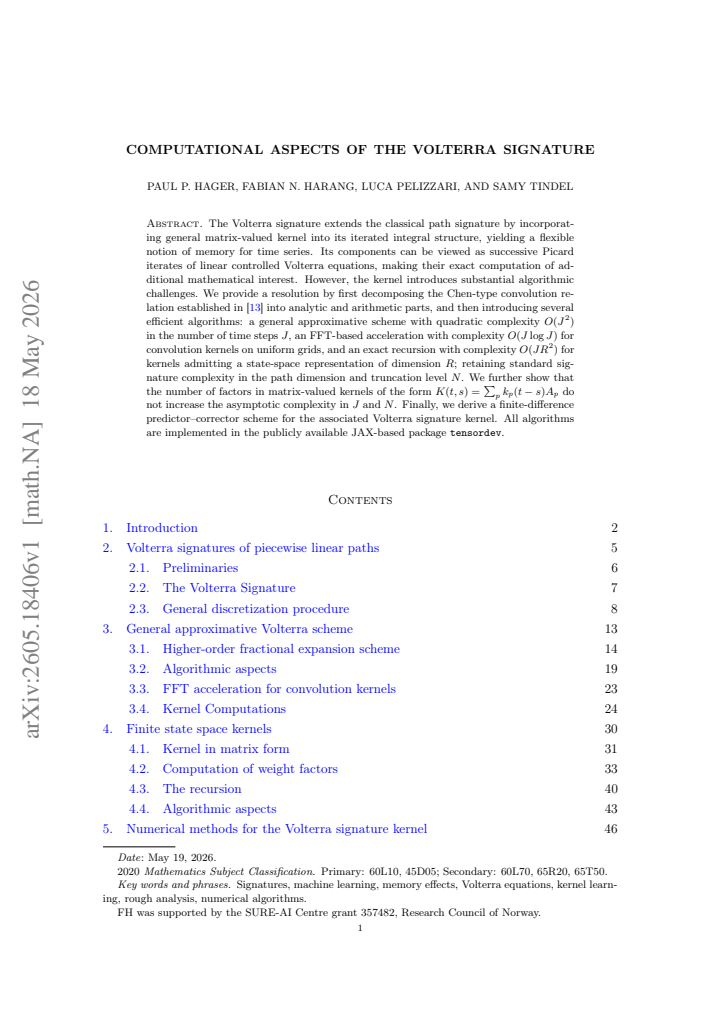

The Volterra signature extends the classical path signature by incorporating general matrix-valued kernel into its iterated integral structure, yielding a flexible notion of memory for time series. Its components can be viewed as successive Picard iterates of linear controlled Volterra equations, making their exact computation of additional mathematical interest. However, the kernel introduces substantial algorithmic challenges. We provide a resolution by first decomposing the Chen-type convolution relation established in [arXiv:2603.04525] into analytic and arithmetic parts, and then introducing several efficient algorithms: a general approximative scheme with quadratic complexity $O(J^2)$ in the number of time steps $J$, an FFT-based acceleration with complexity $O(J\log J)$ for convolution kernels on uniform grids, and an exact recursion with complexity $O(JR^2)$ for kernels admitting a state-space representation of dimension $R$; retaining standard signature complexity in the path dimension and truncation level $N$. We further show that the number of factors in matrix-valued kernels of the form $K(t,s)=\sum_p k_p(t-s)A_p$ do not increase the asymptotic complexity in $J$ and $N$. Finally, we derive a finite-difference predictor--corrector scheme for the associated Volterra signature kernel. All algorithms are implemented in the publicly available JAX-based package "tensordev".
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript develops computational methods for the Volterra signature, which augments the classical path signature with general matrix-valued kernels. By decomposing the Chen-type convolution relation from arXiv:2603.04525 into analytic and arithmetic parts, the authors derive a general approximative scheme of complexity O(J²), an FFT acceleration of complexity O(J log J) for convolution kernels on uniform grids, an exact recursion of complexity O(J R²) for kernels with state-space dimension R, and a finite-difference predictor-corrector scheme. They further show that kernels of the form K(t,s)=∑_p k_p(t-s)A_p do not increase asymptotic complexity in J or N, and release a public JAX package implementing all methods.
Significance. If the decomposition preserves the algebraic structure of the iterated integrals without uncontrolled error accumulation, the algorithms would provide a substantial advance in the numerical treatment of Volterra signatures for time-series and rough-path applications. The public JAX implementation and the retention of standard signature complexity in path dimension and truncation level N are concrete strengths that support reproducibility and practical use.
major comments (2)
- [Abstract and the section introducing the decomposition] The decomposition of the Chen-type convolution relation (referenced from arXiv:2603.04525) into separate analytic and arithmetic parts underpins every complexity claim in the abstract. The manuscript provides no explicit error bound or algebraic verification that this split preserves the Picard-iterate relations for arbitrary (non-scalar, non-convolution) matrix-valued kernels K(t,s); without such a bound, the O(J²), O(J log J) and O(J R²) statements rest on an unverified assumption that could affect faithfulness of the computed signature components.
- [Section describing the exact recursion] The exact recursion of complexity O(J R²) is stated to apply to kernels admitting a state-space representation of dimension R. The manuscript should clarify, with a concrete example or inductive argument, how the state-space matrices are propagated through the Volterra signature levels without reintroducing the full matrix-valued kernel at each step.
minor comments (2)
- [Abstract] The abstract mentions a finite-difference predictor-corrector scheme; a brief statement of its stability or consistency order would help readers assess its relation to the other three algorithms.
- Notation for the truncation level N and the number of time steps J is used throughout; a short table summarizing the complexity of each method in terms of J, N, R and path dimension would improve readability.
Simulated Author's Rebuttal
We thank the referee for the thorough review and constructive feedback on our manuscript. The comments raise important points about the rigor of the decomposition and the clarity of the recursion. We address each major comment below and will incorporate revisions to strengthen the presentation.
read point-by-point responses
-
Referee: [Abstract and the section introducing the decomposition] The decomposition of the Chen-type convolution relation (referenced from arXiv:2603.04525) into separate analytic and arithmetic parts underpins every complexity claim in the abstract. The manuscript provides no explicit error bound or algebraic verification that this split preserves the Picard-iterate relations for arbitrary (non-scalar, non-convolution) matrix-valued kernels K(t,s); without such a bound, the O(J²), O(J log J) and O(J R²) statements rest on an unverified assumption that could affect faithfulness of the computed signature components.
Authors: We thank the referee for this observation. The decomposition follows directly from the Chen-type relation in the referenced work by separating the kernel-dependent analytic integration from the subsequent tensor arithmetic. This split is exact with respect to the defining Picard-iterate structure for general matrix-valued kernels; approximation errors arise only from the numerical treatment of the analytic part (e.g., quadrature). In the revised manuscript we will add an explicit algebraic verification together with a short error-propagation argument showing that the iterated-integral relations are preserved up to the controlled approximation error of the chosen scheme. This will make the complexity statements fully rigorous without altering the reported asymptotics. revision: yes
-
Referee: [Section describing the exact recursion] The exact recursion of complexity O(J R²) is stated to apply to kernels admitting a state-space representation of dimension R. The manuscript should clarify, with a concrete example or inductive argument, how the state-space matrices are propagated through the Volterra signature levels without reintroducing the full matrix-valued kernel at each step.
Authors: We agree that additional clarification is helpful. The state-space representation allows the kernel action to be replaced by a linear dynamical system whose state is updated at each time step. In the revision we will insert an inductive argument: assuming the signature up to level k is expressed via auxiliary state vectors of dimension R, the update to level k+1 is obtained by integrating the state-space dynamics against the previous signature component, without ever reconstructing the full kernel matrix. A concrete low-dimensional example (scalar exponential kernel realized by a 1-dimensional state space) will be included to illustrate the propagation explicitly. revision: yes
Circularity Check
No circularity: algorithms derived from cited relation without reduction to inputs
full rationale
The paper cites the Chen-type convolution relation from prior work [arXiv:2603.04525] and performs a decomposition into analytic and arithmetic parts to derive new algorithms with stated complexities O(J^2), O(J log J), and O(J R^2). No equation or claim in the abstract reduces any 'prediction' or result to a fitted parameter, self-definition, or tautological renaming within this paper's own equations. The complexities follow from standard analysis of the decomposed convolution on the Volterra signature components, which remain defined via Picard iterates independently of the computational schemes. This is a self-contained derivation building on an external mathematical relation without circular equivalence to its inputs.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption The Chen-type convolution relation for Volterra signatures holds and can be decomposed into independent analytic and arithmetic components.
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We provide a resolution by first decomposing the Chen-type convolution relation established in [13] into analytic and arithmetic parts, and then introducing several efficient algorithms: a general approximative scheme with quadratic complexity O(J²) ... an exact recursion with complexity O(J R²) for kernels admitting a state-space representation of dimension R
-
IndisputableMonolith/Foundation/AlphaCoordinateFixation.leanalpha_pin_under_high_calibration unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
For kernels of exponential-polynomial and periodic type ... we can make use of a state space lift to provide an exact scheme ... costs are proportional to J × R²
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Dover Publications, Inc., USA, 1974
Milton Abramowitz.Handbook of Mathematical Functions, With Formulas, Graphs, and Mathematical Tables. Dover Publications, Inc., USA, 1974. 55
work page 1974
-
[2]
Awad H. Al-Mohy and Bahar Arslan. The complex step approximation to the higher order Fréchet derivatives of a matrix function.Numer. Algorithms, 87(3):1061–1074, 2021. 37
work page 2021
-
[3]
Christian Bayer, Gonçalo dos Reis, Blanka Horvath, and Harald Oberhauser, editors.Signature Meth- ods in Finance: An Introduction with Computational Applications. Springer Finance. Springer, Cham,
-
[4]
2 COMPUTATIONAL ASPECTS OF THE VOLTERRA SIGNATURE 58
eBook published 07 Nov 2025;©2026 Springer Nature. 2 COMPUTATIONAL ASPECTS OF THE VOLTERRA SIGNATURE 58
work page 2025
-
[5]
Cohen, Terry Lyons, Joël Mouterde, and Benjamin Walker
Alexandre Bloch, Samuel N. Cohen, Terry Lyons, Joël Mouterde, and Benjamin Walker. The expo- nentially weighted signature, 2026. 3
work page 2026
-
[6]
JAX: composable transformations of Python+NumPy programs, 2018
James Bradbury, Roy Frostig, Peter Hawkins, Matthew James Johnson, Yash Katariya, Chris Leary, Dougal Maclaurin, George Necula, Adam Paszke, Jake VanderPlas, Skye Wanderman-Milne, and Qiao Zhang. JAX: composable transformations of Python+NumPy programs, 2018. 5
work page 2018
-
[7]
Numerical schemes for signature kernels.SIAM Journal on Numerical Analysis, 63(6), 2025
Thomas Cass, Francesco Piatti, and Jeffrey Pei. Numerical schemes for signature kernels.SIAM Journal on Numerical Analysis, 63(6), 2025. 4
work page 2025
-
[8]
Integration of paths, geometric invariants and a Generalized Baker–Hausdorff formula
Kuo-Tsai Chen. Integration of paths, geometric invariants and a Generalized Baker–Hausdorff formula. Annals of Mathematics, 65(1):163–178, 1957. 2
work page 1957
-
[9]
A primer on the signature method in machine learning, 2016
Ilya Chevyrev and Andrey Kormilitzin. A primer on the signature method in machine learning, 2016. 2
work page 2016
-
[10]
James W. Cooley and John W. Tukey. An algorithm for the machine calculation of complex fourier series.Mathematics of Computation, 19(90):297–301, 1965. 24, 54
work page 1965
-
[11]
Time warping invariants of multidimen- sional time series.Acta Appl
Joscha Diehl, Kurusch Ebrahimi-Fard, and Nikolas Tapia. Time warping invariants of multidimen- sional time series.Acta Appl. Math., 170:265–290, 2020. 4
work page 2020
-
[12]
Joscha Diehl and Richard Krieg. Fruits: feature extraction using iterated sums for time series classi- fication.Data Mining and Knowledge Discovery, 38:4122–4156, 2024. 11
work page 2024
-
[13]
Kai Diethelm, Neville J. Ford, and Alan D. Freed. Detailed error analysis for a fractional Adams method.Numer. Algorithms, 36(1):31–52, 2004. 60
work page 2004
-
[14]
The Volterra signature.arXiv preprint arXiv:2603.04525, 2026
Paul P Hager, Fabian N Harang, Luca Pelizzari, and Samy Tindel. The Volterra signature.arXiv preprint arXiv:2603.04525, 2026. 1, 3, 5, 6, 7, 8, 30, 46, 47, 63
-
[15]
E. Hairer, Ch Lubich, and M. Schlichte. Fast numerical solution of nonlinear volterra convolution equations.SIAM journal on scientific and statistical computing, 6(3):532–541, 1985. 5
work page 1985
-
[16]
Uniqueness for the signature of a path of bounded variation and the reduced path group.Ann
Ben Hambly and Terry Lyons. Uniqueness for the signature of a path of bounded variation and the reduced path group.Ann. of Math. (2), 171(1):109–167, 2010. 2
work page 2010
-
[17]
Fabian A. Harang and Samy Tindel. Volterra equations driven by rough signals.Stochastic Process. Appl., 142:34–78, 2021. 3, 7
work page 2021
-
[18]
Nicholas J. Higham.Functions of matrices. Theory and computation. Philadelphia, PA: Society for Industrial and Applied Mathematics (SIAM), 2008. 12
work page 2008
-
[19]
Nicholas J. Higham and Samuel D. Relton. Higher order Fréchet derivatives of matrix functions and the level-2 condition number.SIAM J. Matrix Anal. Appl., 35(3):1019–1037, 2014. 37
work page 2014
-
[20]
Roger A. Horn and Charles R. Johnson.Matrix analysis.Cambridge: Cambridge University Press, 2nd ed. edition, 2013. 31
work page 2013
-
[21]
Exponentially fading memory signature.arXiv preprint arXiv:2507.03700, 2025
Eduardo Abi Jaber and Dimitri Sotnikov. Exponentially fading memory signature.arXiv preprint arXiv:2507.03700, 2025. 3
-
[22]
Patrick Kidger and Terry Lyons. Signatory: differentiable computations of the signature and logsig- nature transforms, on both CPU and GPU. InInternational Conference on Learning Representations,
-
[23]
Kernels for sequentially ordered data
Franz J Király and Harald Oberhauser. Kernels for sequentially ordered data.arXiv preprint arXiv:1601.08169, 2016. 47
work page internal anchor Pith review Pith/arXiv arXiv 2016
-
[24]
Franz J. Király and Harald Oberhauser. Kernels for sequentially ordered data.Journal of Machine Learning Research, 20(31):1–45, 2019. 4
work page 2019
-
[25]
Log-pde methods for rough signature kernels,
Maud Lemercier, Terry Lyons, and Cristopher Salvi. Log-pde methods for rough signature kernels,
-
[26]
Terry J. Lyons. Differential equations driven by rough signals.Rev. Mat. Iberoam., 14(2):215–310,
-
[27]
Signature methods in machine learning.EMS Surv
Andrew McLeod and Terry Lyons. Signature methods in machine learning.EMS Surv. Math. Sci., February 2025. Published online first (19 February 2025). 2
work page 2025
-
[28]
Cleve Moler and Charles Van Loan. Nineteen dubious ways to compute the exponential of a matrix, twenty-five years later.SIAM Rev., 45(1):3–49, 2003. 32, 55
work page 2003
-
[29]
Igor Najfeld and Timothy F. Havel. Derivatives of the matrix exponential and their computation. Adv. Appl. Math., 16(3):321–375, 1995. 36
work page 1995
-
[30]
J. M. Peña. On the multivariate Horner scheme.SIAM J. Numer. Anal., 37(4):1186–1197, 2000. 23
work page 2000
- [31]
-
[32]
Cristopher Salvi, Thomas Cass, James Foster, Terry Lyons, and Weixin Yang. The signature kernel is the solution of a Goursat PDE.SIAM Journal on Mathematics of Data Science, 3(3):873–899, 2021. 4, 47 COMPUTATIONAL ASPECTS OF THE VOLTERRA SIGNATURE 59
work page 2021
-
[33]
St. G. Samko, A. A. Kilbas, and O. I. Marichev.Fractional integrals and derivatives: theory and applications. Transl. from the Russian. New York, NY: Gordon and Breach, 1993. 27
work page 1993
-
[34]
Schiff.The Laplace transform: Theory and applications
Joel L. Schiff.The Laplace transform: Theory and applications. Undergraduate Texts Math. New York, NY: Springer, 1999. 37, 38
work page 1999
- [35]
-
[36]
Marcel Schweitzer. Integral representations for higher-order Fréchet derivatives of matrix functions: quadraturealgorithms andnewresultsonthe level-2condition number.Linear Algebra Appl., 656:247– 276, 2023. 37, 39
work page 2023
-
[37]
Matthew Tamayo-Rios, Alexander Schell, and Rima Alaifari. Scalable signature kernel computations for long time series via local neumann series expansions, 2025. 4
work page 2025
-
[38]
Gerald Teschl.Ordinary differential equations and dynamical systems, volume 140 ofGrad. Stud. Math.Providence, RI: American Mathematical Society (AMS), 2012. 32
work page 2012
-
[39]
L. N. Trefethen, J. A. C. Weideman, and T. Schmelzer. Talbot quadratures and rational approxima- tions.BIT, 46(3):653–670, 2006. 39
work page 2006
-
[40]
Sulle equazioni integro-differenziali della theoria dell’elasticita.Atti Reale Accad
Vito Volterra. Sulle equazioni integro-differenziali della theoria dell’elasticita.Atti Reale Accad. naz. Lincei. Rend. Cl. sci. fis., mat. e natur., 18:295–300, 1909. 2
work page 1909
-
[41]
Vito Volterra.Leçons sur les équations intégrales et les équations intégro-différentielles: Leçons pro- fessées à la Faculté des sciences de Rome en 1910. Gauthier-Villars, 1913. 2
work page 1910
-
[42]
J. A. C. Weideman. Optimizing Talbot’s contours for the inversion of the Laplace transform.SIAM J. Numer. Anal., 44(6):2342–2362, 2006. 39
work page 2006
-
[43]
J. A. C. Weideman and L. N. Trefethen. Parabolic and hyperbolic contours for computing the Bromwich integral.Math. Comput., 76(259):1341–1356, 2007. 39 AppendixA.Numerical V alidation The purpose of this section is to provide numerical validation of the algorithms derived in this paper, both in terms of accuracy and computational cost. We structure the di...
work page 2007
