Toward Efficient In-memory Data Analytics on NUMA Systems

Puya Memarzia; Suprio Ray; Virendra C Bhavsar

REVIEW 3 major objections 5 minor 92 references

Toward Efficient In-memory Data Analytics on NUMA Systems

T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper reports that four application-agnostic configuration changes—memory allocator, thread affinity, memory placement, and two OS settings—can yield large speedups for in-memory analytics on NUMA machines.

desk verdict A useful, mostly honest NUMA tuning study whose headline cross-machine claim is only actually demonstrated for two of the four workloads. read the letter →

arxiv 1908.01860 v3 pith:DDNT7XJH submitted 2019-08-05 cs.DB

Puya Memarzia , Suprio Ray , Virendra C Bhavsar This is my paper · ORCID

classification cs.DB

keywords NUMAin-memoryanalyticsmemoryallocatorstbbmallocthreadaffinityplacementpoliciesTransparentHugepagesAuto

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that substantial speedups for in-memory data analytics on NUMA machines are available without rewriting application code: swap the memory allocator, pin threads sparsely, interleave memory pages, and disable the kernel's automatic NUMA balancing and transparent huge pages. The authors report up to a 20x speedup for a hash join on one machine, and up to 43% lower query latency for MonetDB on a TPC-H workload, with gains repeated on three different hardware topologies. They position these as an application-agnostic strategic plan that practitioners can apply with minimal code changes.

What carries the argument

The carrying mechanism is a stack of four application-agnostic configuration choices: (1) overriding the default ptmalloc allocator with a scalable alternative such as tbbmalloc, which gives each thread private memory pools and reduces allocation contention; (2) sparse thread affinity, which prevents the OS from migrating threads and cuts cache misses; (3) memory page interleaving across NUMA nodes, which avoids overloading particular memory controllers; and (4) disabling AutoNUMA load balancing and Transparent Hugepages, which the paper finds are costly for these workloads. The experiments vary each knob while holding the workload fixed, using hardware counters to explain the wins through reduced remote memory access, fewer migrations, and better memory bandwidth utilization.

What would settle it

Re-run the W3 hash join on a current two-socket server with a kernel newer than 5.x, comparing the system-default configuration against the paper's recommended stack; if tbbmalloc plus interleaved memory plus AutoNUMA/THP disabled produces only a modest speedup, or if a newer kernel's improved AutoNUMA and a THP-aware allocator make the default configuration faster, then the paper's general claim about disabling these settings fails for modern systems.

Watch

Extended reading notes

Core claim

The paper's central claim is that the default Linux configuration is systematically suboptimal for memory-intensive analytical workloads, and that a small set of black-box tweaks can recover much of the lost performance. The authors demonstrate this on holistic and distributive aggregations, hash joins, indexed nested-loop joins, and TPC-H queries running on MonetDB and PostgreSQL, across three machines with different NUMA topologies. Their headline results are a 3x speedup for a hash join from switching to the tbbmalloc allocator alone, growing to 20x when combined with memory interleaving and disabled AutoNUMA and THP, plus average MonetDB TPC-H latency improvements of 14.5% from disabling AutoNUMA and THP.

Load-bearing premise

The load-bearing premise is that the three tested machines—with kernels 3.10, 4.4, and 4.15 and glibc versions 2.24 to 2.27—adequately represent modern NUMA behavior well enough that the conclusion to disable AutoNUMA and THP holds regardless of hardware generation.

Editorial extensions

If this is right

A hash join workload can run up to 20x faster on an eight-node machine simply by changing allocator, memory placement, and OS settings, without touching the join code.
MonetDB TPC-H query latency improves by up to 43% when AutoNUMA and THP are disabled, and by up to 20% for join-heavy queries when tbbmalloc replaces the default allocator.
Workloads that frequently allocate memory concurrently benefit most from allocator replacement, while lightweight workloads such as simple count-based aggregation see little gain.
The paper's recommended configuration is to disable AutoNUMA and THP, use interleaved memory placement, and choose a scalable allocator, generalizing across the three tested architectures.
Thread affinity stabilizes run-to-run performance, reducing migration-induced cache invalidation and increasing the ratio of local memory accesses.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

If these results generalize, database administrators could adopt a simple default tuning recipe for NUMA servers that contradicts the common practice of relying on kernel heuristics; a testable extension is a sweep over recent kernels where AutoNUMA behavior has changed.
The paper's finding that allocators handle THP poorly suggests allocator-aware huge-page support is an under-explored design space; future allocators could detect THP and adjust their page-size strategies.
The current evidence is restricted to Linux kernels 3.10, 4.4, and 4.15, so an editorial extension would be to validate the same stack on newer kernels and on AMD EPYC or ARM-based NUMA systems, where the relative costs of local and remote access differ.
A further inference is that the same black-box recipe may help other memory-intensive but non-database systems, such as graph analytics and scientific computing, because the mechanisms are application-agnostic.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Two things to know. First, this is a broad, practical empirical study of config-only NUMA tuning: memory allocator, thread affinity, memory placement, and AutoNUMA/THP settings. The individual tricks are known, but the combined evaluation across two DBMSes and three genuinely different NUMA machines is a useful data point. The reported speedups are real and sometimes dramatic: 20x on a hash join from tbbmalloc plus interleaving plus OS setting changes, and 43% latency reduction on MonetDB. Second, the paper overclaims its own evidence. I checked the figures and the stress-test note is right: only W1 (holistic aggregation) and W3 (hash join) are actually shown on all three machines. W2 is only shown on Machine A, and W4 is only shown on Machine A. So the abstract's "four workloads on three hardware architectures" is not supported as published, and Section 6's "regardless of the hardware generation" is definitely too strong. The substance of the paper comes mostly from W1 and W3, so this is a fixable overclaim rather than a broken core.

What is genuinely new: I don't know of another paper that sweeps allocator x placement x OS features across three architectures and two database engines with perf-counter analysis. The allocator microbenchmark that justifies dropping supermalloc and mcmalloc gives a reasoned basis for later experimental choices. The self-cited aggregation workload [51] is used as a benchmark, not as evidence for the tuning conclusions, so there is no circularity problem.

Soft spots, in proportion. The most important is the missing cross-machine panels for W2 and W4; the text should either add them or explicitly limit the multi-machine claim. Second, most figures show single point values without error bars or significance tests; only Figure 3 shows repeated runs. Third, a few choices are made after seeing results (selecting ART, picking TPC-H queries 5 and 18), which is common in this kind of work but should be flagged as exploratory. Fourth, no artifact is shipped, so the numbers cannot be independently reproduced. Fifth, the hardware is old (K8, Nehalem, Broadwell; kernels 3.10-4.15), and Machine B's improvement is only 7%, which cuts against any "regardless of hardware generation" conclusion.

Who this is for: systems practitioners who want a black-box checklist of NUMA settings, and anyone benchmarking database workloads on multi-socket machines. It deserves serious peer review. I would ask the authors to either fill in the missing cross-machine runs or soften the claims, and to report variance on the key numbers. With that revision, I would support acceptance.

Referee Report

3 major / 5 minor

Summary. The paper investigates application-agnostic strategies for improving in-memory data analytics on NUMA systems, specifically memory allocator choice, thread affinity, memory placement policies, and OS-level settings (AutoNUMA and Transparent Hugepages). It presents microbenchmarks and workload experiments covering holistic and distributive aggregation, hash join, index nested-loop join, and TPC-H on MonetDB and PostgreSQL, on three machines with different NUMA topologies. The paper reports large speedups, e.g., up to 20x for a hash join and up to 43% latency reduction for MonetDB, and concludes that default OS configuration is often detrimental and that interleaving, disabling AutoNUMA/THP, and replacing ptmalloc with tbbmalloc are broadly beneficial.

Significance. If the results are reliable, the paper provides a useful, low-effort optimization playbook for practitioners and complements application-level NUMA-aware research. The cross-architecture scope (K8, Nehalem, Broadwell), the inclusion of two real database systems, the profiling data, and the microbenchmark basis for allocator choices are genuine strengths. The speedups are direct measurements, not outputs of a fitted model, so the core empirical direction is credible. However, the strength of the headline generalization is not matched by the displayed evidence: cross-machine data are shown for only two of the four synthetic workloads, and some key assertions about other workloads and machines are made without accompanying figures.

major comments (3)

[§4.4.1, Figures 6–7] The abstract claims significant speedups in "four commonplace in-memory data analytics workloads, on three different hardware architectures," but the displayed evidence covers only W1 and W3 on all three machines. W2 appears in a single panel labeled "Machine A" (Figure 6h), and W4 appears only in Figure 7, captioned "Machine A." The sentence in §4.4.1 that Figure 6 shows W2 "running on each of our three machines" is contradicted by the figure. Since Section 6 then generalizes "regardless of the hardware generation," the cross-machine basis for that generalization is two workloads, not four. Please either add the missing Machine B/C results for W2 and W4 or explicitly qualify the claims in the abstract, Section 4.4.1, and Section 6.
[§4.3.1] The paper states that the AutoNUMA results "were obtained using W1 on Machine A, but we observed very similar results on the other workloads and machines." No supporting figure or table is provided for the other workloads or machines. This is load-bearing because the conclusion to disable AutoNUMA and THP "regardless of the hardware generation" depends on this generalization. Please provide the supporting measurements or narrow the claim to the configurations actually shown.
[Figures 5–9] The main performance figures report single point values with no error bars, no repeated-run statistics, and no significance tests. Figure 3 itself demonstrates that the default OS scheduler can produce run-to-run variation of roughly an order of magnitude, so point estimates are not self-justifying for a benchmark paper whose central claim is about "significant speedups." Report at least the median and range (or interquartile range) over multiple runs for the headline configurations, or otherwise justify that the reported differences exceed run-to-run noise.

minor comments (5)

[§4.1 and Table 3] The text says each Machine C processor has "768MB of memory," while Table 3 says "768GB/node" and the total is 3TB; one of these is a typo.
[§4.4.2] This section refers to the "Heavy Hitter dataset" as the default for W1, but Section 4.2 defines the aggregation datasets as Moving Cluster, Sequential, and Zipfian; please define or rename "Heavy Hitter" for consistency.
[Figure 3] The y-axis is relative runtime on a log scale, and the text says the affinitized case is "several orders of magnitude faster" in the best case; the caption should state the normalization and the log scale explicitly.
[§5, reference [37]] The citation for Kiefer et al. lists "BTW 2025," but the paper is from 2013; please verify and correct the venue/year.
[Throughout] There are several typographical issues: "PostGreSQL" (Section 4.5), "Univeristy" in the author affiliations, and "Diﬀ" in Table 2; a final proofreading pass would be helpful.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the paper's speedup claims are direct measurements of workloads under different system configurations, not outputs of a fitted model or a self-referential derivation.

full rationale

This is an empirical benchmarking paper. Every central claim—e.g., that tbbmalloc, memory interleaving, thread affinity, and disabling AutoNUMA/THP yield speedups—is supported by measured execution times or latencies reported in Figures 5-9. There is no fitted parameter that is later renamed as a prediction, and no equation in which the output is defined in terms of the input. The only notable self-citation is reference [51] (Memarzia, Ray, and Bhavsar), which is cited as the source of the aggregation workload implementation and its dataset distributions; this is a benchmark provenance citation, not load-bearing evidence for the paper's conclusions. The paper does not invoke a uniqueness theorem, does not import a contested premise from the authors' prior work, and does not rename a known result as an organizing principle. Consequently, the derivation chain is self-contained with respect to the measured claims, and the score is 0. Whether the cross-machine evidence actually covers all four synthetic workloads (the published figures show W1 and W3 on all three machines, while W2 and W4 appear only on Machine A) is a correctness/completeness concern, not a circularity concern.

Assumptions & free parameters 0 free parameters · 3 assumptions · 0 invented entities

No model parameters are fitted to data; the paper reports direct measurements. Its assumptions are about representativeness of benchmarks, machines, and baselines. No new entities are postulated.

assumptions (3)

domain assumption The five workloads and synthetic datasets are representative of in-memory data analytics.
Section 4.2 introduces the workloads, but no external validation shows they predict production query performance; the generality claim depends on this.
domain assumption The measured performance differences reflect the manipulated configuration rather than unmeasured environmental factors.
Section 4.1 describes the machines and software, but no statistical controls or error bars are reported, so this assumption is unverified.
domain assumption The default Linux configuration (ptmalloc, First Touch, AutoNUMA and THP enabled) is the appropriate baseline for evaluating default behavior.
Sections 3.4 and 4.3 treat these defaults as the baseline; deployments that already disable THP or AutoNUMA would see smaller gains.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Toward Efficient In-memory Data Analytics on NUMA Systems." pith.science (2026). https://pith.science/paper/DDNT7XJH

@misc{pith2026190801860,
  author       = {Pith},
  title        = {Pith review of: Toward Efficient In-memory Data Analytics on NUMA Systems},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/DDNT7XJH}},
  note         = {Machine review of arXiv:1908.01860}
}

read the original abstract

Data analytics systems commonly utilize in-memory query processing techniques to achieve better throughput and lower latency. Modern computers increasingly rely on Non-Uniform Memory Access (NUMA) architectures in order to achieve scalability. A key drawback of NUMA architectures is that many existing software solutions are not aware of the underlying NUMA topology and thus do not take full advantage of the hardware. Modern operating systems are designed to provide basic support for NUMA systems. However, default system configurations are typically sub-optimal for large data analytics applications. Additionally, achieving NUMA-awareness by rewriting the application from the ground up is not always feasible. In this work, we evaluate a variety of strategies that aim to accelerate memory-intensive data analytics workloads on NUMA systems. We analyze the impact of different memory allocators, memory placement strategies, thread placement, and kernel-level load balancing and memory management mechanisms. With extensive experimental evaluation we demonstrate that methodical application of these techniques can be used to obtain significant speedups in four commonplace in-memory data analytics workloads, on three different hardware architectures. Furthermore, we show that these strategies can speed up two popular database systems running a TPC-H workload.

Figures

Figures reproduced from arXiv: 1908.01860 by the authors.

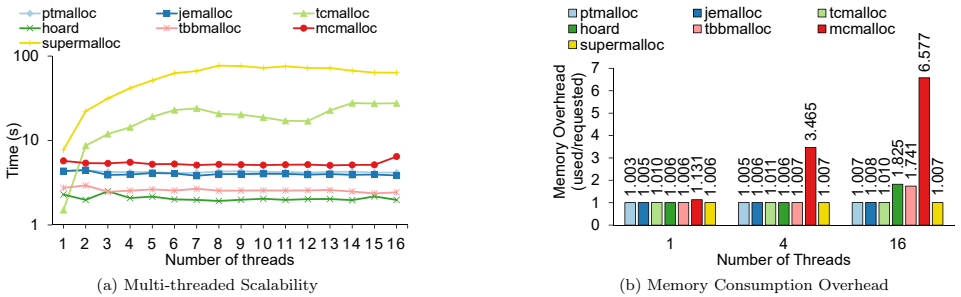

**Figure 2.** Memory Allocator Microbenchmark - Machine A [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 4.** Comparison of two thread affinitization strategies - Holistic Aggregation Workload (W1) - Machine A [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

Figures from the paper (5 more)

**Figure 5.** Figure 5: Impact of operating system configuration (AutoNUMA and THP) on memory placement policies and memory [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]

**Figure 6.** Figure 6: Comparison of memory allocators - variable memory placement policy [PITH_FULL_IMAGE:figures/full_fig_p010_6.png]

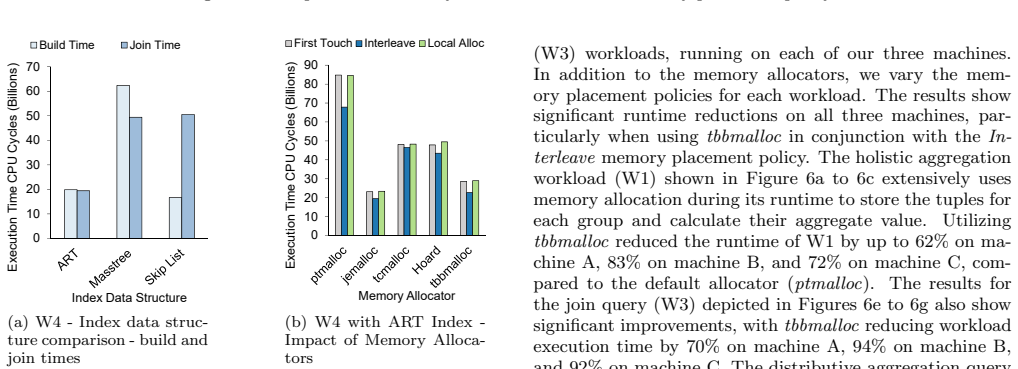

**Figure 7.** Figure 7: Index nested loop join experiments - Machine A [PITH_FULL_IMAGE:figures/full_fig_p010_7.png]

**Figure 8.** Figure 8: Query latency improvement gained from disabling [PITH_FULL_IMAGE:figures/full_fig_p011_8.png]

**Figure 9.** Figure 9: Effect of memory allocator on TPC-H query la [PITH_FULL_IMAGE:figures/full_fig_p011_9.png]
