The Radcliffe Wave is not alone in the Local System

A. T. Bajkova; V. V. Bobylev

The Radcliffe Wave is not alone in the Local System

T0 review · 4 major / 5 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper reports that open star clusters younger than 30 million years in the Vela Ridge supercloud trace a vertical wave with amplitude 47 pc and wavelength 1.13 kpc, making Vela Ridge the second wavy structure of its kind in the Local…

desk verdict A plausible but not yet quantitative claim of a second wavy cluster chain: the Vela Ridge OSC wave is genuinely new, but the 1.13 kpc wavelength needs significance and membership tests before I'd trust Eq. 4. read the letter →

arxiv 2608.10884 v2 pith:DQNKVSYD submitted 2026-08-11 astro-ph.GA

V. V. Bobylev , A. T. Bajkova This is my paper · ORCID

classification astro-ph.GA

keywords openstarclustersVelaRidgeRadcliffeWaveLocalSystemverticaloscillationsgalacticplaneFourieranalysissuperclouds

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to establish that Vela Ridge, a recently mapped gas-and-dust supercloud, also shows itself as a chain of young open star clusters whose vertical positions oscillate about the Galactic plane. From 136 clusters younger than 30 million years selected in a hand-set strip, Fourier analysis yields a maximum vertical deviation of $47.0\pm 0.2$ pc and a wavelength of $\lambda=1.13\pm 0.01$ kpc. That makes Vela Ridge the second known wavy cluster structure in the Local System, after the Radcliffe Wave, but with a smaller amplitude, a shorter wavelength, and clusters about 2 million years older on average. A sympathetic reader would see the result as evidence that the two neighboring waves belong to a single, time-extended wave process in the disk, even though the underlying mechanism is not yet known.

What carries the argument

The central machinery is the Fourier transform of the cluster vertical coordinate $z$ as a function of the rotated coordinate $y'=y\cos\beta+x\sin\beta$ along the ridge, with $\beta=30^\circ$ for Vela Ridge. Equation (2) computes the complex spectrum $U(\lambda)+jV(\lambda)$, and Equation (3) reconstructs the best-fitting curve from the main spectral lobe over a chosen wavelength range rather than forcing a monochromatic sine. This is what turns a scatter of 136 cluster positions into the quantitative statement $z_{\max}=47.0\pm 0.2$ pc and $\lambda=1.13\pm 0.01$ kpc. The selection strip itself, 0.53 kpc wide at $30^\circ$ inclination, is what defines the cluster sample and is therefore the part of the machinery that most shapes the result.

What would settle it

A reader could repeat the Fourier analysis after moving or widening the Vela Ridge selection strip, for example by $\pm 0.2$ kpc in width and $\pm 5^\circ$ in inclination, and also compare the reported $\lambda=1.13$ kpc peak against peaks appearing in bootstrap resamplings of the same 136 clusters; if the peak does not stay dominant, the periodicity is not robust.

Watch

Extended reading notes

Core claim

On the paper's own terms, the discovery is that the Vela Ridge supercloud has a stellar counterpart: a chain of 136 open clusters younger than 30 Myr whose $z$-coordinates oscillate as a function of position along the ridge. The quoted parameters are $z_{\max}=47.0\pm 0.2$ pc and $\lambda=1.13\pm 0.01$ kpc from the Fourier transform of $z(y')$, with uncertainties from 1000 Monte Carlo simulations. The paper notes that the youngest subsample alone (54 clusters, younger than 10 Myr) is too sparse to fix the wave parameters, so the quantitative result rests on the full $<30$ Myr sample. The same Fourier method had previously given a periodic curve for the Radcliffe Wave, and here it produces a similar but milder wave for Vela Ridge: lower amplitude, shorter wavelength, and an average cluster age about 2 Myr older. The paper argues the two structures are spatially close, do not intersect, and were probably formed by a single mechanism, whose nature remains unknown.

Load-bearing premise

Everything hangs on whether the hand-set $0.53$ kpc strip at $30^\circ$ inclination actually collects the clusters of Vela Ridge; if the strip is misplaced or too narrow, the measured waviness is an artifact of the cut rather than a physical wave.

Editorial extensions

If this is right

Vela Ridge becomes the second independently traced wavy chain of young clusters in the Local System, so the Radcliffe Wave is not a unique or isolated feature.
The cluster-based wavelength of $1.13$ kpc differs from dust-based estimates of $3.08$ kpc and $1.84$ kpc, so tracer choice matters: the paper reports the OSC estimate and notes the discrepancy.
Because the Vela Ridge clusters are on average about 2 million years older than Radcliffe Wave clusters and lie slightly closer to the Galactic center, the two structures can be read as consecutive stages of one long-lived wave process in the disk.
The vertical perturbation is damped rather than monochromatic, matching the behavior of the Radcliffe Wave, so any future formation model has to explain non-sinusoidal, decaying vertical waves in more than one structure.
The $<10$ Myr Vela Ridge subsample is too small to define the wave alone, so follow-up work with richer cluster samples in the same strip should sharpen or revise the quoted parameters.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

If the wave is real, the mismatch between the $1.13$ kpc cluster wavelength and the $1.84$ or $3.08$ kpc dust wavelengths hints that the vertical pattern evolves as clusters age, meaning cluster ages along the strip could be used to map the wave's pattern speed or damping rate.
A formation mechanism for the Radcliffe Wave must now account for a second, nearby, older and smaller wave; an external impactor, Parker-type magnetic instability, or shear instability would all need to produce a wave packet rather than a single standing wave.
The same Fourier selection-strip method could be applied to the other superclouds in the Local System, such as Malpolon and Natrix, to see whether the apparent wave family has more members; the paper does not attempt that.
A direct test of the selection effect is to re-run the analysis on synthetic cluster populations drawn from the same catalog with randomized $z$-coordinates but the same $y'$ sampling, to see how often a $1.13$ kpc peak appears by chance.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Colleague—

The thing to know: this is the first paper to tie open clusters to the Vela Ridge supercloud and to pull a vertical wave out of them. That is a real step beyond the dust-only detections by Kormann et al. and Sorokina et al. If it holds, the Radcliffe Wave is no longer a one-off. I think it probably holds at the level of "there is vertical undulation in the cluster distribution," but the specific numbers in Eq. 4—zmax = 47.0±0.2 pc and λ = 1.13±0.01 kpc—are over-fit to a hand-set selection.

What is good: the data are public (Hunt & Reffert 2024), the selection zones are stated explicitly, the Fourier method is standard, and the authors openly compare their result to two independent dust-based wavelengths. They do not hide the fact that λ differs by a factor of 1.6–2.7 from the dust values. That honesty is worth crediting. The association of 136 young clusters with the Vela Ridge strip is visible in the figures and is probably real.

The soft spots are the usual ones for this kind of positional cross-match. Membership is defined purely as falling inside a 0.53-kpc strip at β = 30°. For clusters older than 10 Myr, which have had time to drift from their natal gas, the strip will contain a mixture of true Vela Ridge clusters and field clusters. That contamination can produce or shift a Fourier peak. No significance level is given for the power-spectrum peak in Fig. 6b. The Monte Carlo errors only propagate z and y' measurement errors; they ignore membership, strip geometry, and spectral leakage. And the factor-of-two wavelength mismatch with the two dust measurements is left unexplained. These are real weaknesses, but they are not fatal. The existence of some vertical wave in Vela Ridge is independently supported by the dust maps, and the cluster data are consistent with that—just not at a well-determined wavelength.

Who is this for? Anyone working on the Radcliffe Wave, local spiral structure, or vertical disk oscillations. It deserves a serious referee, not a desk reject. A good referee would ask for a significance test of the peak, a robustness scan over strip width/angle, a membership check (proper-motion/photometric consistency), and a proper discussion of why the OSC wavelength differs from the dust wavelengths. With those, this could be a solid contribution.

Referee Report

4 major / 5 minor

Summary. The paper analyzes the spatial distribution of open star clusters (OSCs) younger than 30 Myr from the Hunt and Reffert (2024) catalog, focusing on two selection zones in the Local System: the Radcliffe Wave and the Vela Ridge. It reports, for the first time, a sample of OSCs associated with the Vela Ridge supercloud and claims a periodic vertical perturbation in this sample, with maximum vertical coordinate zmax = 47.0 +/- 0.2 pc and wavelength lambda = 1.13 +/- 0.01 kpc (Eq. 4). The authors argue that this OSC chain is analogous to the Radcliffe Wave but with smaller amplitude, shorter wavelength, and older average age. The analysis uses a standard Fourier transform of z(y') after rotating coordinates by an angle beta (Eq. 1), with selection strips defined geometrically for each structure.

Significance. If the claimed detection is robust, the paper would establish a second, older, lower-amplitude vertical wave in the Local System traced by young open clusters, strengthening the case for a common physical mechanism behind such waves. The paper builds on publicly available catalog data and uses a standard Fourier method, which are commendable. It also benefits from independent dust-based evidence that Vela Ridge exhibits vertical oscillations (Kormann et al. 2026; Sorokina et al. 2026). However, as presented, the central claim is not fully supported: the spectral peak lacks a significance test, the membership selection is purely geometric and may be contaminated, and the wavelength disagrees with the dust-based wavelengths by factors of 2-3. These issues must be addressed before the result can be accepted as a detection rather than a selection artifact.

major comments (4)

[Section 3.3, Eq. (4), Fig. 6b] The central claim of a detected periodicity at lambda = 1.13 +/- 0.01 kpc is not accompanied by any significance threshold for the power-spectrum peak shown in Fig. 6b. With 136 clusters sparsely and non-uniformly distributed over a 0.53-kpc-wide strip, a peak of this kind can arise from sampling noise. Please provide a quantitative significance estimate, for example a false-alarm probability from Monte Carlo shuffling of the z coordinates, or a comparison with the power spectrum of a null distribution of positions in the same strip.
[Sections 3.1 and 3.3] Membership in the Vela Ridge sample is defined purely by position inside a fixed 0.53-kpc strip at beta = 30 degrees, and this same strip is applied to clusters aged 10-30 Myr. By these ages, clusters have had time to drift from their natal gas, so the sample is likely a mixture of genuine Vela Ridge clusters and unrelated field clusters that happen to lie in the strip. The robustness of Eq. (4) to the choice of strip width and inclination should be demonstrated, and a control sample (e.g., off-strip clusters or older clusters in the same region) should be used to estimate the level of contamination.
[Section 4] The wavelength reported in Eq. (4), lambda = 1.13 kpc, is inconsistent with the dust-based wavelengths for the Vela Ridge supercloud: lambda = 3.079 kpc in Kormann et al. (2026) and lambda = 1.84 kpc in Sorokina et al. (2026). The paper states that these values 'differ significantly' but does not explain whether the OSC chain is the same physical structure or a different one. Without reconciliation, or at least a clear argument for why the tracers should give different wavelengths, the association of the detected OSC wave with the Vela Ridge supercloud is not established.
[Section 3.3, Eq. (3)] The quoted Monte Carlo uncertainties (0.2 pc and 0.01 kpc) propagate only the measurement errors in z and y'. They do not include systematic uncertainties from membership misclassification, strip geometry, age cutoff, or the choice of the Fourier integration range [lambda_min, lambda_max]. The integration range used to construct the red curve in Fig. 6a is never stated, making the fit non-reproducible. Please report uncertainties that reflect these choices and specify the integration range.

minor comments (5)

[Keywords] The keyword 'ocal system' is missing the letter 'L' and should be 'Local System'.
[Section 2] The phrase 'average values of the the OSCs trigonometric parallaxes' contains a duplicated 'the'.
[Section 1 and Bibliography] The citation 'Marshal, Martin 2023' should be 'Marchal, Martin 2023' to match the bibliography entry (A. Marchal, P.G. Martin).
[Equation (2)] The Fourier transform is defined as an integral over the continuous coordinate y', but the data are a discrete, irregularly sampled set of clusters. The numerical implementation (e.g., binning, interpolation, or a Lomb-Scargle periodogram) should be described so that the spectral calculation is reproducible.
[Figure captions] In the caption to Fig. 5, the text refers to 'selection zones are not shown in Figs. 3 and 5'; since the caption appears under Fig. 5, this wording is confusing and should be clarified.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: Eq. 4 is a measured Fourier parameter from external OSC data, not a fitted input or a self-citation-derived result.

full rationale

The paper's central result, zmax = 47.0 ± 0.2 pc and λ = 1.13 ± 0.01 kpc (Eq. 4), is obtained by applying a standard Fourier transform (Eq. 2) to the vertical coordinates z(y') of 136 OSCs selected from the external Hunt and Reffert (2024) catalog within a Vela Ridge selection strip (Section 3.1). The wave parameters are descriptive measurements of the cluster sample, not predictions deduced from a model that already contains those parameters. The selection strip is defined in the XY plane (via Eq. 1) using the known spatial orientation of the Vela Ridge dust supercloud; it does not select on z or on the fitted wavelength, so the measured vertical periodicity is not introduced by construction. The paper explicitly compares its OSC-derived wavelength with independent dust-based values of 3.079 kpc (Kormann et al. 2026) and 1.84 kpc (Sorokina et al. 2026) and acknowledges that the wavelengths differ significantly; this transparent discrepancy shows that the OSC measurement is not being presented as forced agreement with prior results. Self-citations occur for the adopted R0 = 8.1 kpc, the spiral-arm pattern, and earlier Radcliffe Wave OSC curves, but none of these are load-bearing for the Vela Ridge Fourier detection: the detection rests on the external catalog data and the paper's own Fourier calculation. Concerns about sample contamination, strip-width choices, and sparse sampling are validity or robustness issues, not circularity: they do not make Eq. 4 equal to an input by definition. Therefore the paper is self-contained with respect to its central derivation and no circular step can be exhibited.

Assumptions & free parameters 6 free parameters · 5 assumptions · 0 invented entities

The paper introduces no new physical entities. Its central claim rests on hand-set selection parameters, the reliability of external catalogs, and the validity of interpreting a Fourier peak in sparse data without a significance test.

free parameters (6)

Vela Ridge selection zone angle beta = 30 degrees
The rotated coordinate y' = y cos(beta) + x sin(beta) uses beta = 30 degrees; changing the strip orientation changes which clusters are included and can alter the apparent wave.
Vela Ridge selection zone width = 0.53 kpc
Cluster membership is defined by this hand-set strip width around the supercloud axis, not by a probabilistic membership model.
Radcliffe Wave selection zone angle beta = 25 degrees
The comparison structure uses beta = 25 degrees and is also hand-set from the dust supercloud orientation.
Radcliffe Wave selection zone width = 0.63 kpc
The comparison sample for the Radcliffe Wave is defined by this hand-set strip width.
Fourier integration wavelength range [lambda_min, lambda_max] = not stated
The reported wavelength and amplitude depend on which spectral lobe is selected as the main peak; the numerical bounds of the lobe are not given in the text.
Maximum cluster age cutoff = 30 Myr
The final sample uses OSCs younger than 30 Myr; the paper notes that the <10 Myr subsample is too small for confident parameter estimates, so the age cutoff affects the result.

assumptions (5)

domain assumption The Hunt and Reffert (2024) catalog provides unbiased distances, ages, and membership for open clusters.
All coordinates and ages come from this catalog; catalog systematics propagate directly into z and y'.
domain assumption The Kormann et al. (2026) supercloud outlines correctly delineate Vela Ridge and Radcliffe Wave.
The selection zones are copied from these dust maps; if the outlines are wrong, the cluster sample is contaminated or incomplete.
standard math The Fourier transform of irregularly sampled z(y') over a selected wavelength band is a valid estimator of periodic vertical structure.
The power spectrum is interpreted as a detection without a stated significance threshold or windowing treatment for sparse data.
domain assumption The adopted Sun to Galactic center distance R0 = 8.1 kpc is correct.
This value from Bobylev and Bajkova (2021) is used to construct the galactocentric coordinate frame and to compare with spiral arm positions.
domain assumption The Gaia parallax zero-point correction of -0.017 mas used in the catalog is correct.
The catalog distances, and hence all cluster coordinates, depend on this adopted correction.

how reviews work

0 comments

Cite this review

Pith. "Pith review of The Radcliffe Wave is not alone in the Local System." pith.science (2026). https://pith.science/paper/DQNKVSYD

@misc{pith2026260810884,
  author       = {Pith},
  title        = {Pith review of: The Radcliffe Wave is not alone in the Local System},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/DQNKVSYD}},
  note         = {Machine review of arXiv:2608.10884}
}

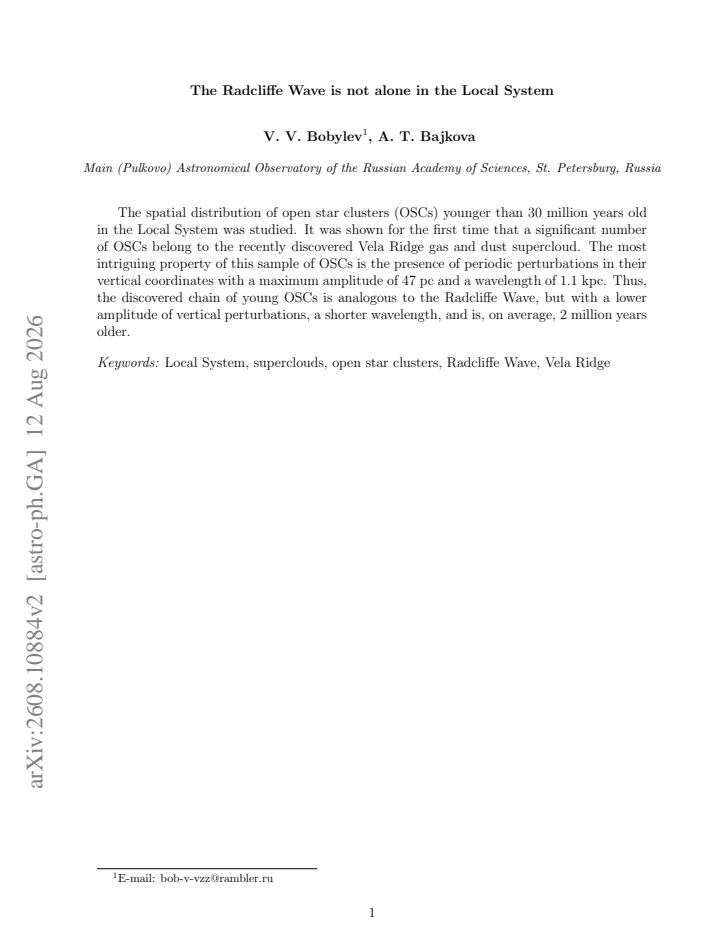

read the original abstract

The spatial distribution of open star clusters (OSCs) younger than 30 million years old in the Local System was studied. It was shown for the first time that a significant number of OSCs belong to the recently discovered Vela Ridge gas and dust supercloud. The most intriguing property of this sample of OSCs is the presence of periodic perturbations in their vertical coordinates with a maximum amplitude of 47 pc and a wavelength of 1.1 kpc. Thus, the discovered chain of young OSCs is analogous to the Radcliffe Wave, but with a lower amplitude of vertical perturbations, a shorter wavelength, and is, on average, 2 million years older.
