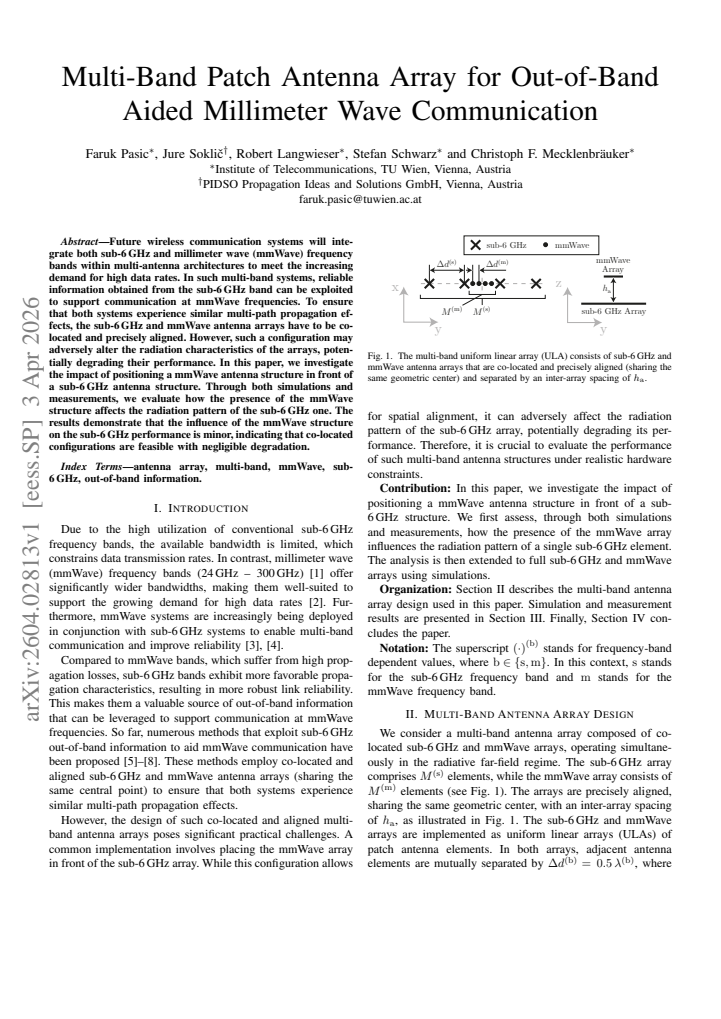

Multi-Band Patch Antenna Array for Out-of-Band Aided Millimeter Wave Communication
T0 review · 3 major / 4 minor · reviewed 2026-07-13 · grok-4.5
Pith's one-line read Putting a millimeter-wave antenna structure in front of a sub-6 GHz array changes the lower-band radiation pattern only slightly, so co-located multi-band designs remain practical.
desk verdict Incremental but useful co-location feasibility claim; the supplied full text is corrupted, so the result cannot be audited from this copy. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument

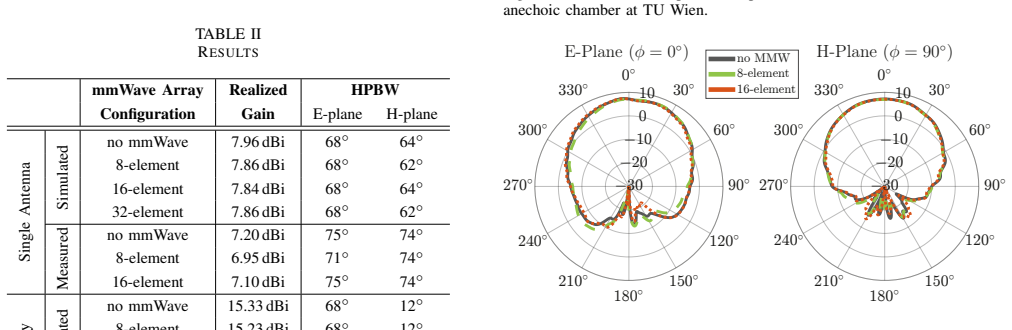

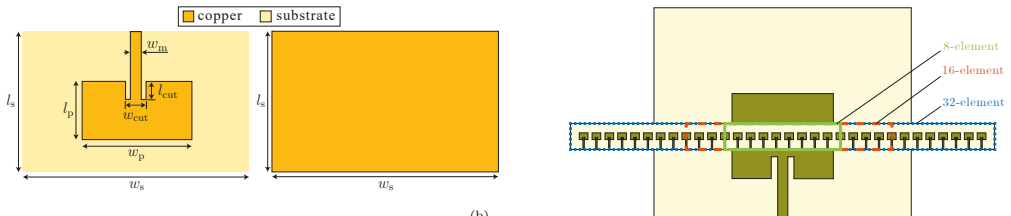

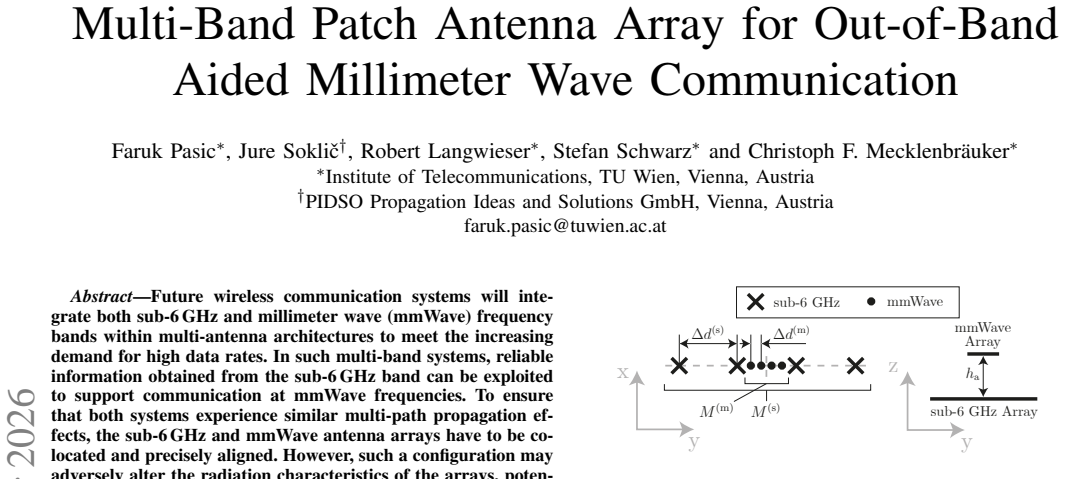

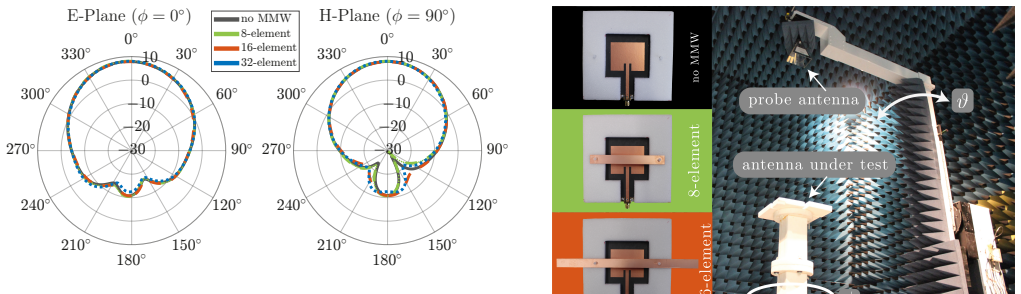

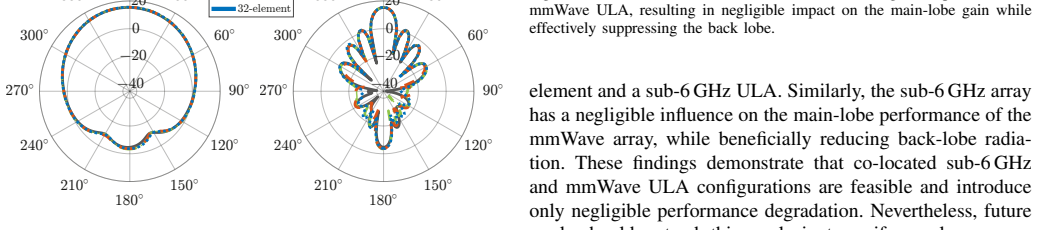

Co-located multi-band patch antenna stack: a mmWave structure placed in front of a sub-6 GHz array, evaluated by comparing simulated and measured radiation patterns of the lower-band array alone versus with the mmWave structure present.
What would settle it
Fabricate or simulate a different co-located stack (different patch geometry, dielectric, or frequency spacing) and show a large, performance-killing distortion of the sub-6 GHz radiation pattern that the paper’s configuration did not exhibit.
Extended reading notes
Core claim
When a millimeter-wave patch antenna structure is positioned in front of a sub-6 GHz patch array, the resulting change in the sub-6 GHz radiation pattern is minor; simulations and measurements both confirm that co-located multi-band configurations are therefore feasible with only negligible degradation of lower-band performance.
Load-bearing premise
The particular patch sizes, spacings, materials and frequency pair used in the tests are representative enough that the observed minor pattern change will still hold for other practical multi-band products.
Editorial extensions
If this is right
- Out-of-band-aided mmWave systems can place the two arrays in the same physical aperture without first redesigning the sub-6 GHz radiator for the stack.
- Antenna designers can treat the mmWave front layer as electromagnetically nearly transparent at sub-6 GHz for the geometries examined.
- Shared multipath statistics between the two bands become practically achievable in a single multi-band panel.
- Future multi-band base-station or terminal prototypes can adopt co-location as a default packaging choice rather than a risky afterthought.
Reading between the lines
- If the same minor interaction holds for other array topologies (slot, dipole, or phased-array tiles), a single multi-band panel could become the standard form factor for 5G-Advanced and 6G base stations.
- The result suggests that out-of-band channel estimation or beam-tracking algorithms can safely assume nearly identical array factors once the mechanical alignment is fixed.
- A natural next measurement would be mutual coupling and active impedance of the lower-band ports under simultaneous mmWave excitation, which the pattern study leaves open.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper studies co-location of a mmWave antenna structure placed in front of a sub-6 GHz patch antenna array, motivated by out-of-band-aided mmWave systems that require similar multipath environments and thus precise spatial alignment of the two arrays. The central empirical claim is that the mmWave structure only weakly perturbs the sub-6 GHz radiation pattern. The authors report that both electromagnetic simulations and prototype measurements support this conclusion and therefore that co-located multi-band arrays are feasible with negligible degradation of the lower-band performance.
Significance. If the quantitative result holds for representative geometries, the work is useful for multi-band 5G/6G array design: it would reduce a practical barrier to tightly integrated sub-6 GHz / mmWave front-ends used for out-of-band channel assistance, beam prediction, and alignment. The contribution is primarily experimental/engineering (pattern comparison with and without the mmWave overlay) rather than a new theoretical framework. Strengths claimed in the abstract—paired simulation and measurement—are the right form of evidence for this class of antenna-integration question, provided the geometry, metrics, and error bars are fully reported and reproducible.
major comments (3)
- The supplied full-text body is largely unreadable (severe encoding corruption, mixed/unrelated arXiv physics.ao-ph fragments, and loss of equations, figures, and tables). The central claim rests entirely on those simulations and measurements. Without inspectable geometry (patch dimensions, substrate stack-up, element spacing, mmWave fill factor, separation), frequency points, and quantitative pattern deltas (gain drop, beamwidth change, sidelobe level, pattern correlation), the claim that the influence is “minor” cannot be audited. A readable manuscript with complete methods and results is required before the feasibility conclusion can be accepted.
- Abstract / results claim: “minor” influence and “negligible degradation” are not defined by a stated metric or threshold. Even once the body is restored, the paper must report explicit numbers (e.g., peak gain change in dB, half-power beamwidth change, sidelobe rise, and a pattern-similarity measure such as correlation or envelope correlation) for the with/without-mmWave cases, with simulation–measurement agreement quantified. Without that, “minor” remains subjective and the transferability argument is weak.
- Representativeness (load-bearing for the feasibility claim): the abstract generalizes from one co-located stack to practical multi-band products. The manuscript must show that the tested mmWave structure is not an atypical low-perturbation case (e.g., sparse fill, large standoff, low-contrast materials). Sensitivity to spacing, substrate permittivity, and mmWave array density—or at least a clear statement of the design parameters and why they are typical—should be provided; otherwise the “co-located configurations are feasible” conclusion does not transfer.
minor comments (4)
- Title and abstract use both “sub-6 GHz” and “sub-6GHz”; standardize hyphenation and capitalization throughout.
- Abstract should name the approximate operating frequencies (or bands) of both arrays so readers can judge electrical size of the mmWave structure relative to the sub-6 GHz wavelength.
- Once figures are restored, ensure radiation-pattern cuts are labeled (E-/H-plane, co-/cross-pol) and that simulation and measurement overlays share the same scale and normalization.
- Clarify whether the mmWave structure is terminated, matched, or left open during sub-6 GHz pattern measurements, as termination can affect scattering.
Circularity Check
No circularity: empirical with/without pattern comparison, not a derivation that reduces to its inputs by construction.
full rationale
The paper's central claim is that placing a mmWave antenna structure in front of a sub-6 GHz structure produces only minor change in the sub-6 GHz radiation pattern, so co-located multi-band arrays are feasible. That claim is supported by simulations and measurements comparing the sub-6 GHz pattern with and without the mmWave structure present. There is no mathematical derivation chain, no fitted parameter re-labeled as a prediction of a closely related quantity, no self-definitional identity, and no load-bearing uniqueness theorem imported from the authors' prior work. The result is an empirical before/after comparison against the paper's own simulated and measured patterns; it does not reduce to its inputs by construction. The corrupted manuscript body prevents fine-grained audit of geometry or quantitative deltas, but that is a transparency/reproducibility issue, not circularity under the stated criteria. Score 0; steps empty.
Assumptions & free parameters
assumptions (3)
- domain assumption Colocated and precisely aligned sub-6 GHz and mmWave arrays experience sufficiently similar multipath that out-of-band information is useful for mmWave support.
- domain assumption Radiation-pattern comparison (sim and meas) is an adequate proxy for 'performance' degradation of the sub-6 GHz array in the co-located stack.
- domain assumption Standard full-wave EM simulation and antenna-chamber measurement practices apply and are correctly executed.
Cite this review
Pith. "Pith review of Multi-Band Patch Antenna Array for Out-of-Band Aided Millimeter Wave Communication." pith.science (2026). https://pith.science/paper/DUHCWDCM
@misc{pith2026260402813,
author = {Pith},
title = {Pith review of: Multi-Band Patch Antenna Array for Out-of-Band Aided Millimeter Wave Communication},
year = {2026},
howpublished = {\url{https://pith.science/paper/DUHCWDCM}},
note = {Machine review of arXiv:2604.02813}
}
read the original abstract
Future wireless communication systems will integrate both sub-6 GHz and millimeter wave (mmWave) frequency bands within multi-antenna architectures to meet the increasing demand for high data rates. In such multi-band systems, reliable information obtained from the sub-6 GHz band can be exploited to support communication at mmWave frequencies. To ensure that both systems experience similar multi-path propagation effects, the sub-6GHz and mmWave antenna arrays have to be colocated and precisely aligned. However, such a configuration may adversely alter the radiation characteristics of the arrays, potentially degrading their performance. In this paper, we investigate the impact of positioning a mmWave antenna structure in front of a sub-6 GHz antenna structure. Through both simulations and measurements, we evaluate how the presence of the mmWave structure affects the radiation pattern of the sub-6 GHz one. The results demonstrate that the influence of the mmWave structure on the sub-6 GHz performance is minor, indicating that co-located configurations are feasible with negligible degradation.
