Delayed current sheet formation due to an external field in pulsed-power-driven reconnection experiments

T. W. O. Varnish , G. V. Dowhan , M. Chen , D. M. Johnson , N. M. Jordan , J. Lee , A. P. Shah , R. Shapovalov
show 3 more authors
B. J. Sporer R. D. McBride J. D. Hare
This is my paper

Pith reviewed 2026-05-19 14:47 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords magnetic reconnectionpulsed powerplasma flowsexternal magnetic fieldcurrent sheet formationexploding wire arraysmagnetohydrodynamic simulations
0
0 comments X

The pith

A strong external magnetic field delays current sheet formation by creating a void between colliding plasma flows instead of a dense reconnection layer.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines magnetic reconnection created by driving two exploding wire arrays in parallel, producing plasma flows with anti-parallel magnetic fields of about 1.2 tesla. Without an external field or with a weak one of 0.5 tesla, a dense reconnection layer forms between the arrays as expected from prior work. When a strong external field of 2 tesla is applied parallel to the reconnecting electric field, experiments instead show a void in that region. The authors hypothesize that this external field becomes trapped in the plasma and exerts a sustained back-pressure that slows the incoming flows. Three-dimensional magnetohydrodynamic simulations reproduce the observations and illustrate how this effect postpones the appearance of the reconnection layer.

Core claim

When a strong external magnetic field is applied parallel to the reconnecting electric field, the colliding plasma flows from the wire arrays do not form a dense reconnection layer as they do without the field; instead a void appears, which the authors attribute to the external field being frozen into the plasma and exerting a back-pressure that decelerates the flows, as confirmed by magnetohydrodynamic simulations that demonstrate the resulting delay in current sheet formation.

What carries the argument

The external magnetic field that remains frozen into the plasma and exerts back-pressure on the incoming flows from the wire arrays.

If this is right

  • The reconnection layer forms later when a strong external field is present.
  • Pressure balance between the plasma flows and the external field determines whether a dense layer or a void appears.
  • The aspect ratio and dynamics of the current sheet change because of the delayed formation.
  • Simulations of the experiment allow quantitative study of how external fields alter reconnection timing in pulsed-power setups.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar back-pressure effects from ambient fields could influence reconnection timing in natural plasmas such as the solar wind or magnetospheres.
  • Varying the external field strength in follow-up experiments could map the threshold between void formation and dense layer formation.
  • The approach offers a way to control reconnection onset timing in other laboratory plasma configurations.

Load-bearing premise

The external magnetic field remains frozen into the plasma on the short experimental timescale and therefore keeps exerting back-pressure on the flows.

What would settle it

A measurement showing the external field diffuses rapidly out of the plasma or an observation of a dense reconnection layer forming promptly even with the 2 tesla external field applied would falsify the proposed mechanism.

Figures

Figures reproduced from arXiv: 2605.15427 by A. P. Shah, B. J. Sporer, D. M. Johnson, G. V. Dowhan, J. D. Hare, J. Lee, M. Chen, N. M. Jordan, R. D. McBride, R. Shapovalov, T. W. O. Varnish.

Figure 1
Figure 1. Figure 1: FIG. 1. A reconnection layer is formed from the interaction of [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

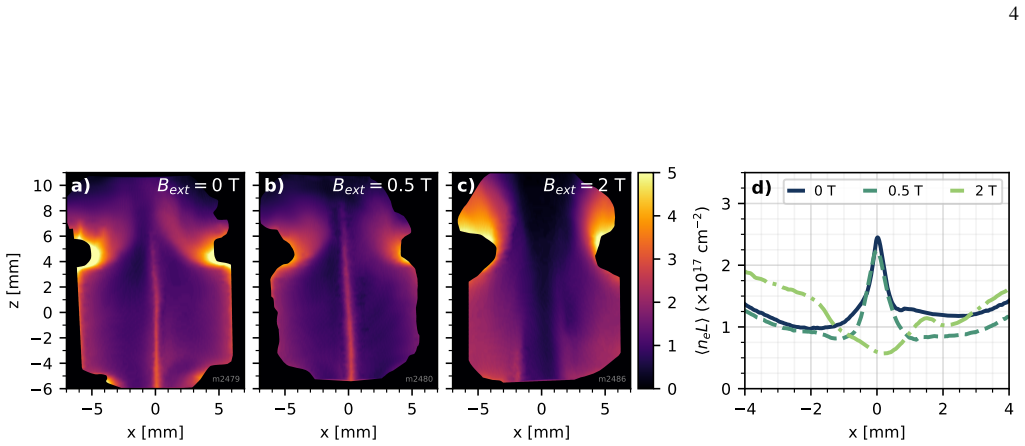

Figure 2. Figure 2: FIG. 2. (a–c) Line-integrated electron density maps produced using laser interferometry for a) the zero external field case ( [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

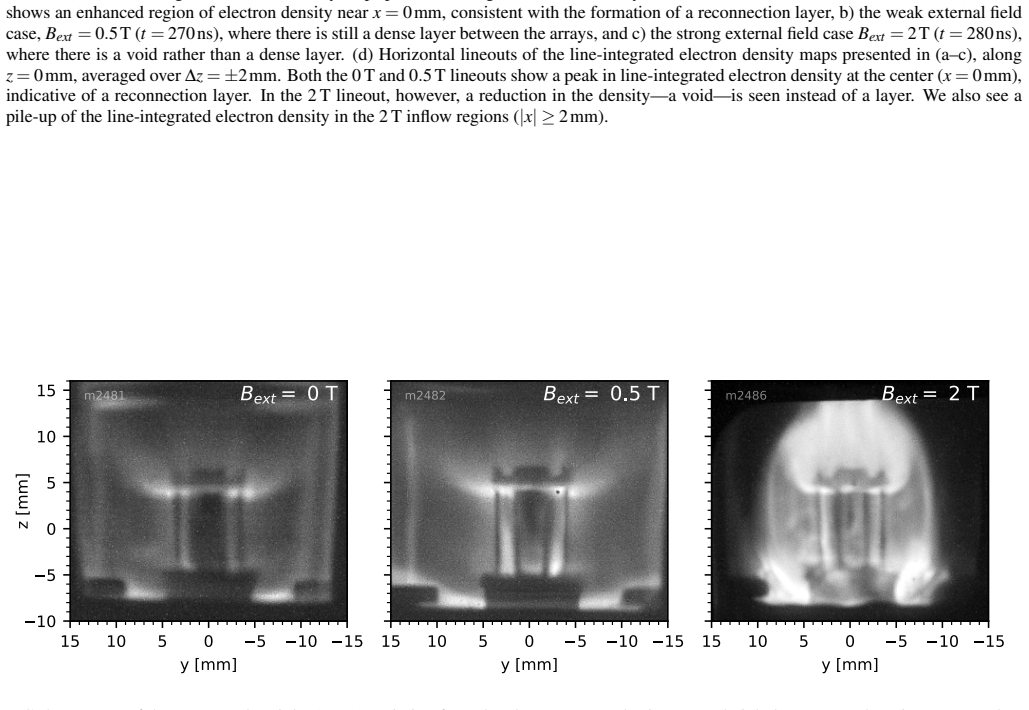

Figure 3. Figure 3: FIG. 3. Images of the extreme ultraviolet (XUV) emission from the plasma, captured using a gated pinhole camera. These images are taken [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

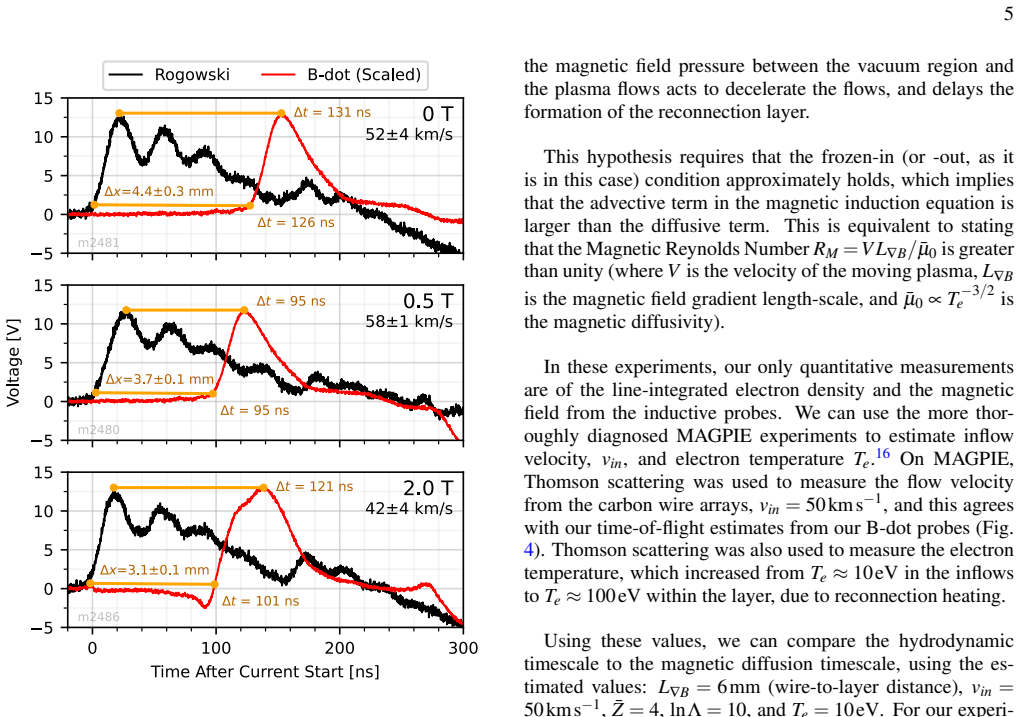

Figure 4. Figure 4: FIG. 4. Comparisons between voltage measurements from the load [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

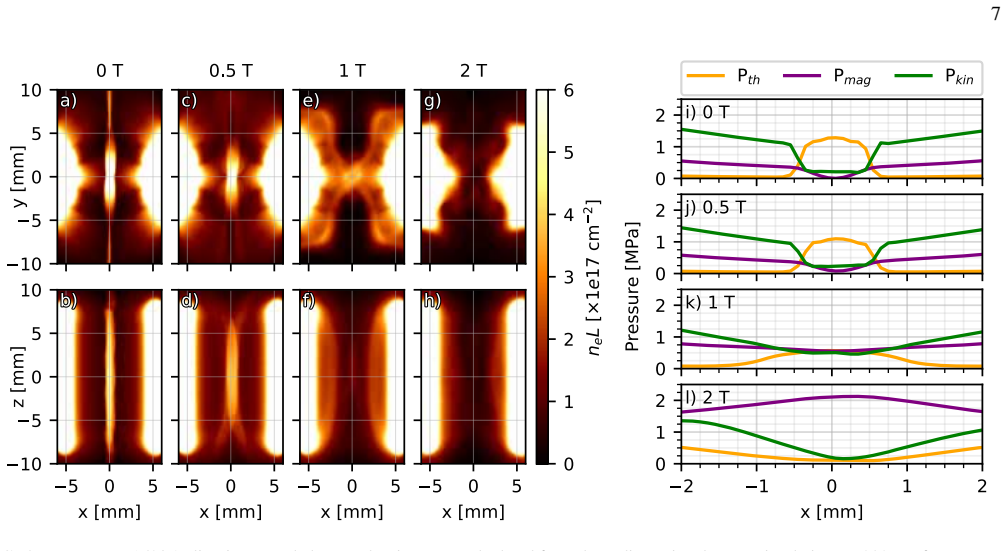

Figure 5. Figure 5: FIG. 5. For [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

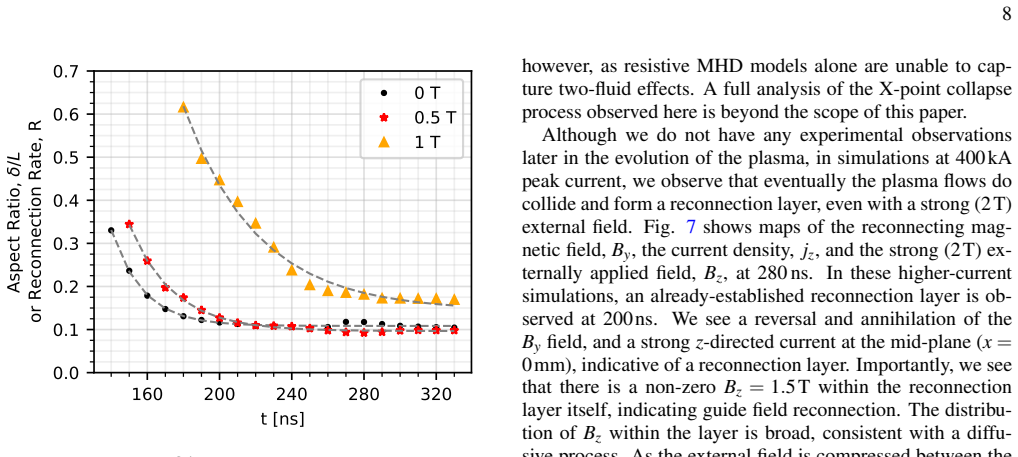

Figure 6. Figure 6: FIG. 6. Aspect ratio ( [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

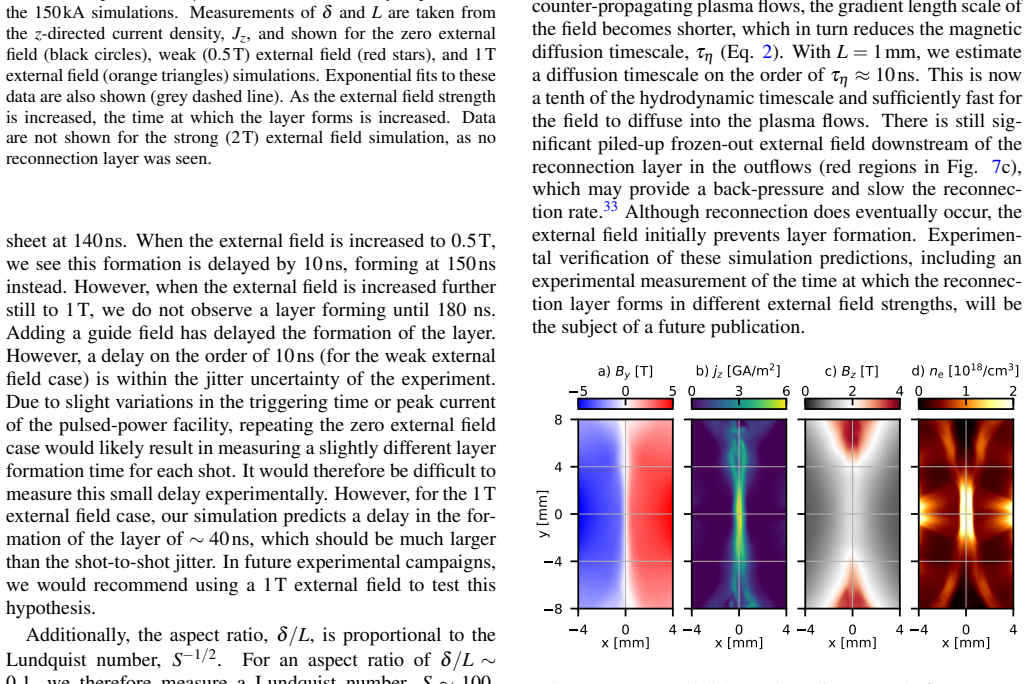

Figure 7. Figure 7: FIG. 7. For [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
read the original abstract

We present results from pulsed-power-driven magnetic reconnection experiments, in which we drove two exploding wire arrays in parallel to produce colliding plasma flows with anti-parallel magnetic fields of 1.2$\pm$0.2 T. The experimental volume was surrounded by a Helmholtz coil pair capable of externally applying a field of up to 2 T, parallel to the reconnecting electric field. We diagnosed these experiments using laser interferometric imaging in the direction of the anti-parallel magnetic fields, gated extreme ultraviolet pinhole imaging, and in situ inductive probes. For zero and weak (0.5 T) external fields, we reproduce previous observations in which a dense reconnection layer forms between the two wire arrays. However, when we apply a strong external field (2 T), we observe a void between the arrays rather than a dense layer, and we hypothesise that the external field is frozen out of the plasma and provides a back-pressure which decelerates the flows. Our experimental results are compared with three-dimensional magnetohydrodynamic simulations of the experiment, which qualitatively support this hypothesis. These simulations allow us to study the pressure balance and dynamics of the current sheet aspect ratio, demonstrating the delayed formation of the reconnection layer due to the external field.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper reports pulsed-power-driven magnetic reconnection experiments in which two exploding wire arrays generate colliding plasma flows with anti-parallel magnetic fields of 1.2 ± 0.2 T. A Helmholtz coil pair applies an external field (up to 2 T) parallel to the reconnecting electric field. Diagnostics comprise laser interferometric imaging, gated EUV pinhole imaging, and in-situ inductive probes. For zero and 0.5 T external fields a dense reconnection layer forms between the arrays, but at 2 T a void is observed instead. The authors hypothesize that the external field is frozen into the plasma and exerts back-pressure that decelerates the flows, delaying current-sheet formation. Three-dimensional MHD simulations are presented that qualitatively support this interpretation and allow study of pressure balance and current-sheet aspect ratio.

Significance. If the back-pressure interpretation holds, the work demonstrates experimental control of reconnection-layer formation via an imposed external field in a high-energy-density plasma setting. The direct imaging and probe evidence for the transition from dense layer to void constitutes a clear observational result. The qualitative match to 3D MHD simulations adds interpretive support, and the ability to vary external-field strength systematically is a useful experimental capability with potential relevance to astrophysical and laboratory reconnection studies.

major comments (2)
  1. [Abstract] Abstract (hypothesis paragraph): the claim that the external field remains frozen into the plasma on the ~100 ns dynamical timescale and therefore exerts sustained back-pressure is not supported by a quantitative estimate of the magnetic diffusion time τ_d = μ₀ σ L² (using interferometrically diagnosed density and an estimate of conductivity) compared with the flow transit time across the array gap. Without this comparison the frozen-in assumption remains untested and the back-pressure mechanism is not yet secured.
  2. [Results] Results section (in-situ inductive probes): although the probes are listed among the diagnostics, no data or analysis is shown that confirms magnetic-field exclusion from the observed void region (as opposed to penetration or reconnection on the experimental timescale). Such confirmation would directly test the central hypothesis.
minor comments (2)
  1. [Abstract] Abstract: the phrasing 'frozen out of the plasma' is non-standard and potentially ambiguous; conventional terminology is 'frozen into the plasma' to indicate advection with the flow.
  2. Figure captions and text should explicitly state the external-field values corresponding to each panel or data set to avoid reader confusion when comparing the zero-field, 0.5 T, and 2 T cases.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and positive review of our manuscript. We address each major comment in turn below, indicating where revisions will be made to strengthen the presentation of our results and the support for our hypothesis.

read point-by-point responses

  1. Referee: [Abstract] Abstract (hypothesis paragraph): the claim that the external field remains frozen into the plasma on the ~100 ns dynamical timescale and therefore exerts sustained back-pressure is not supported by a quantitative estimate of the magnetic diffusion time τ_d = μ₀ σ L² (using interferometrically diagnosed density and an estimate of conductivity) compared with the flow transit time across the array gap. Without this comparison the frozen-in assumption remains untested and the back-pressure mechanism is not yet secured.

    Authors: We agree that a quantitative comparison of the magnetic diffusion timescale to the experimental dynamical timescale would provide stronger support for the frozen-in assumption underlying our back-pressure interpretation. Although this estimate was not included in the original manuscript, we will add it in revision. Using the plasma densities diagnosed from interferometry together with a conductivity estimate derived from the plasma temperatures in our MHD simulations, we find a diffusion time substantially longer than the ~100 ns flow transit time. This calculation and the resulting comparison will be incorporated into a revised abstract and a short supporting paragraph in the Results or Discussion section. revision: yes

  2. Referee: [Results] Results section (in-situ inductive probes): although the probes are listed among the diagnostics, no data or analysis is shown that confirms magnetic-field exclusion from the observed void region (as opposed to penetration or reconnection on the experimental timescale). Such confirmation would directly test the central hypothesis.

    Authors: The in-situ inductive probes were positioned to record the evolution of the magnetic field in the colliding flows and near the midplane. While the current manuscript lists the probes among the diagnostics and uses them to characterize the anti-parallel field, we did not present a dedicated analysis of field exclusion specifically within the void. We will revise the Results section to include the available probe traces for the 2 T case, together with a brief discussion of what the signals imply (or do not imply) regarding penetration into the low-density region. If the probe geometry limits direct confirmation of exclusion, we will state this limitation explicitly and note that the primary evidence for the back-pressure mechanism remains the imaging data and the MHD simulations. revision: partial

Circularity Check

0 steps flagged

No significant circularity; experimental observations and qualitative simulations are self-contained

full rationale

The paper reports direct experimental measurements from pulsed-power wire-array collisions under applied external fields, using laser interferometry, EUV imaging, and inductive probes to observe the transition from dense reconnection layer (zero/weak field) to void (strong 2 T field). The hypothesis that the external field remains frozen-in and exerts back-pressure is explicitly labeled as such and is compared only qualitatively against 3D MHD simulations; no fitted parameter from a data subset is renamed as a prediction, no self-citation chain supplies a uniqueness theorem or ansatz, and no equation reduces the observed void or delay to the input assumptions by construction. The central claim therefore rests on independent empirical data rather than a closed derivation loop.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard ideal-MHD frozen-in flux and pressure-balance assumptions plus the experimental geometry; no new free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Ideal MHD frozen-in flux theorem applies on the experimental timescale
    Invoked in the hypothesis that the external field is frozen out of the plasma
