Backward Reachability for Polynomial Systems on A Finite Horizon

He Yin , Murat Arcak , Andrew Packard , Peter Seiler This is my paper

Pith reviewed 2026-05-25 01:49 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords backward reachable setpolynomial systemssum-of-squaresS-procedureinner approximationcontroller synthesisfinite horizonuncertain systems
0
0 comments X

The pith

The paper presents an optimization method to compute inner approximations of backward reachable sets for polynomial systems over a finite horizon, along with a controller that keeps trajectories inside a target tube.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a method to find guaranteed inner approximations to the backward reachable set of a target tube for polynomial dynamical systems. This matters to a sympathetic reader because such approximations let engineers certify safe starting regions from which a controller can steer the system into a desired set without violating tube constraints. The approach formulates the problem as nonlinear optimizations that are broken into smaller subproblems and solved iteratively with sum-of-squares programming and the polynomial S-procedure. The same framework produces an admissible controller and extends to systems with L2 disturbances and L-infinity uncertainties.

Core claim

A method is presented to obtain an inner-approximation of the backward reachable set (BRS) of a given target tube, along with an admissible controller that maintains trajectories inside this tube. The proposed optimization algorithms are formulated as nonlinear optimization problems, which are decoupled into tractable subproblems and solved by an iterative algorithm using the polynomial S-procedure and sum-of-squares techniques. This framework is also extended to uncertain nonlinear systems with L_2 disturbances and L_∞ parametric uncertainties.

What carries the argument

The iterative algorithm that decouples the reachability optimization into tractable subproblems solved via the polynomial S-procedure and sum-of-squares techniques.

If this is right

  • The method produces both an inner-approximated safe set and a controller that keeps trajectories inside the target tube.
  • The same decoupled optimization extends directly to uncertain systems that include L2 disturbances and L-infinity parametric uncertainties.
  • The approach applies to finite-horizon problems and has been tested on robotics and aircraft models that include control saturation.
  • Inner approximations guarantee that every initial state inside the computed set can reach the target tube under the synthesized controller.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The iterative decoupling may allow the method to scale to moderate state dimensions if the sum-of-squares solvers remain tractable.
  • Combining these inner sets with outer approximations from other reachability tools could produce tighter certified regions.
  • Polynomial relaxations mentioned for non-polynomial dynamics suggest a route to broader classes of nonlinear systems.
  • The controller output could be used to construct real-time safety filters that override nominal commands when the state approaches the boundary of the approximated set.

Load-bearing premise

The dynamical systems are polynomial or can be handled via polynomial relaxations so that sum-of-squares and S-procedure techniques apply directly to the subproblems.

What would settle it

For a low-dimensional polynomial system whose exact backward reachable set is known by other means, run the algorithm and verify that every state in the computed inner approximation can be driven into the target tube by the returned controller while staying inside the tube at every step.

Figures

Figures reproduced from arXiv: 1907.03225 by Andrew Packard, He Yin, Murat Arcak, Peter Seiler.

Figure 1

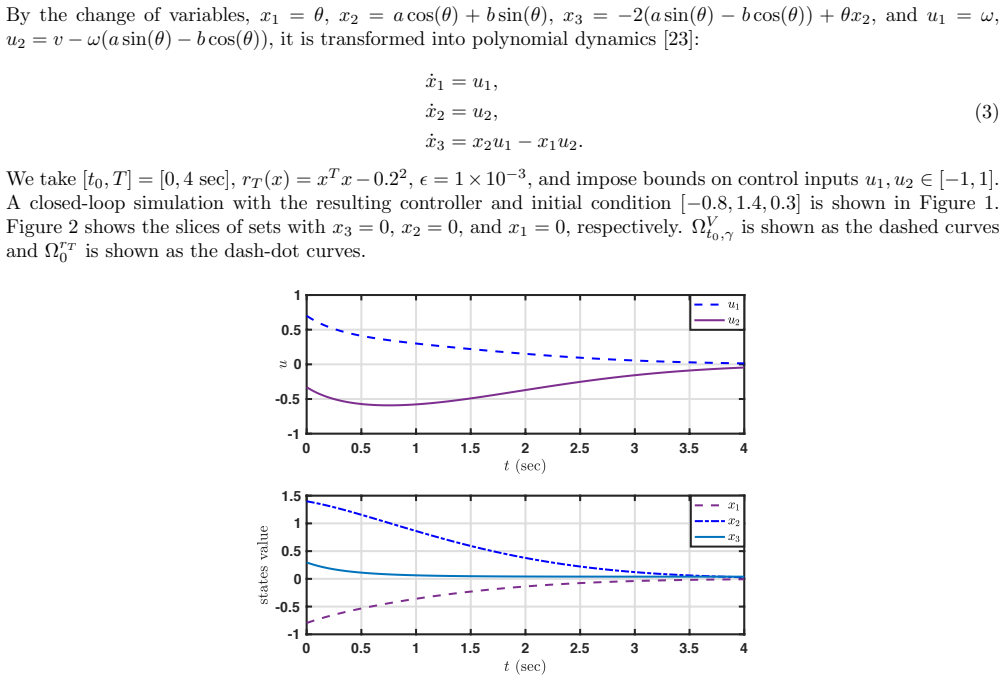

Figure 1. Figure 1: Dubin’s car Simulations 5.1.1 Dubin’s Car with Obstacle In addition to the terminal target set ΩrT 0 , suppose there is an unsafe region Ωobs 0 := {x ∈ R 3 |obs(x) := (x1−1.5)2+ x 2 2 + x 2 3 − 0.5 2 ≤ 0}. Thus the target tube is the intersection of the terminal target set ΩrT 0 and the complement of Ω obs 0 . Slices of the resulting ΩV t0,γ with the obstacle are shown as solid black curves in [PITH_FULL_… view at source ↗
Figure 2
Figure 2. Figure 2: Inner-approximated BRS for Dubin’s car example [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Inner-approximated BRS for the pendubot example [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Pendubot simulation results 5.3 NASA’s Generic Transport Model (GTM) around straight and level flight con￾dition with L2 Disturbance The GTM is a remote-controlled 5.5% scale commercial aircraft [24]. From [25], its longitudinal dynamical model is x˙ 1 = 1 m (−D − mg sin(x4 − x2) + Tx cos(x2) + Tz sin(x2)), x˙ 2 = 1 mx1 (−L + mg cos(x4 − x2) − Tx sin(x2) + Tz cos(x2) + x3), x˙ 3 = M + Tm Iyy , x˙4 =x3, (4)… view at source ↗
Figure 5

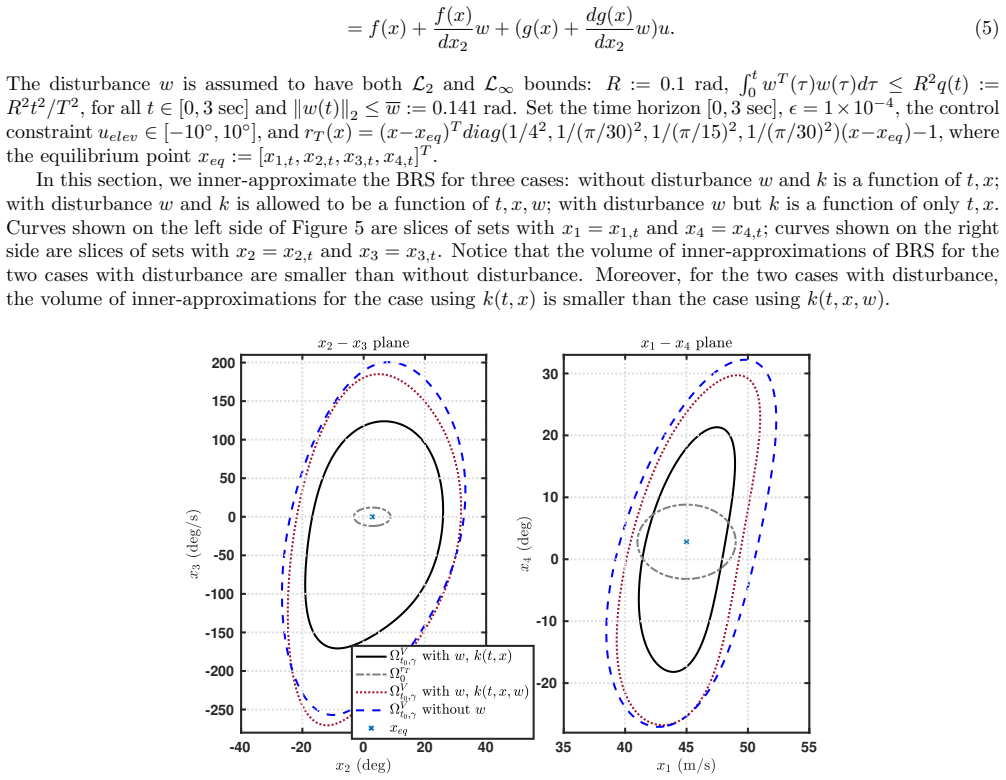

Figure 5. Figure 5: Inner-approximated BRS for GTM The simulation results of the polynomial model of GTM with the initial condition [47 m/s; 20 rad; 70 rad/s; 20 rad] and a disturbance signal w(t) = √ 2tR T η(t), using both k(t, x) and k(t, x, w) are shown in [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
