Transverse forces in planar symmetric dielectric laser-driven accelerators

R. Joel England , Alexander Ody , Zhirong Huang This is my paper

Pith reviewed 2026-05-25 19:31 UTC · model grok-4.3

classification ⚛️ physics.acc-ph
keywords dielectric laser acceleratorsplanar symmetrytransverse forcesTE and TM modesparticle beam focusinglaser-driven accelerationelectromagnetic modes
0
0 comments X

The pith

Planar symmetric dielectric laser accelerators support TE and TM modes whose transverse forces can focus or deflect beams.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs a general theoretical framework for the electromagnetic fields inside planar dielectric structures with sub-micron beam apertures driven by lasers. It derives the TE and TM modes that propagate in this geometry and calculates the transverse force components these modes exert on charged particles. A reader would care because the forces offer a built-in way to steer or focus the beam during acceleration. The framework supplies explicit expressions that link mode amplitudes to the resulting particle trajectories.

Core claim

In planar symmetric geometries with sub-micron apertures, the electromagnetic fields decompose into TE and TM modes whose transverse force components can be derived directly from the mode structure and used for particle focusing or deflection.

What carries the argument

Derivation of TE and TM modes supported by planar symmetric dielectric geometry together with the resulting transverse force expressions on the beam.

If this is right

  • Transverse forces derived from the modes can focus the beam in one transverse plane while permitting controlled deflection in the orthogonal plane.
  • Mode amplitudes determine the balance between accelerating and deflecting forces along a particle trajectory.
  • The same mode analysis applies to both acceleration and dedicated deflection structures in the same geometry class.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Design iterations could scan aperture width and dielectric index to tune the ratio of longitudinal to transverse forces for minimal emittance growth.
  • The mode framework may extend to time-varying or pulsed laser drives by superposing the steady-state solutions.
  • Coupling the force expressions to particle-in-cell simulations would test stability over many periods of the structure.

Load-bearing premise

The ideal planar symmetric geometry with lossless materials supports the exact derived TE and TM modes without distortion from real material properties or fabrication imperfections.

What would settle it

An experiment that measures transverse beam deflection or focusing strength in a fabricated planar dielectric structure and finds values that differ substantially from those predicted by the TE and TM force formulas.

Figures

Figures reproduced from arXiv: 1906.08316 by Alexander Ody, R. Joel England, Zhirong Huang.

Figure 1

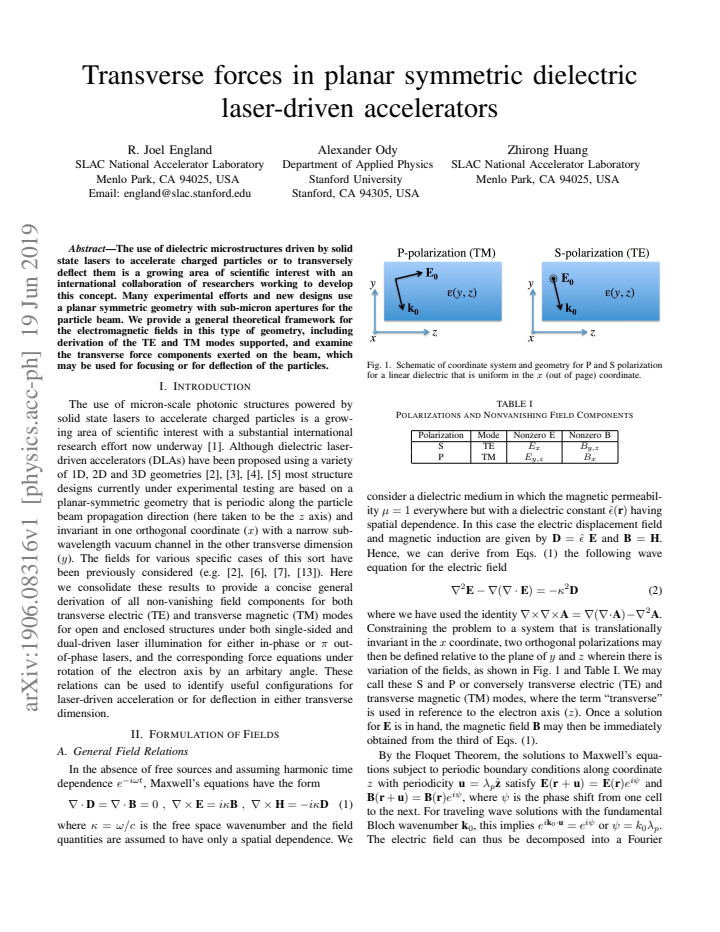

Figure 1. Figure 1: Schematic of coordinate system and geometry for P and S polarization [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

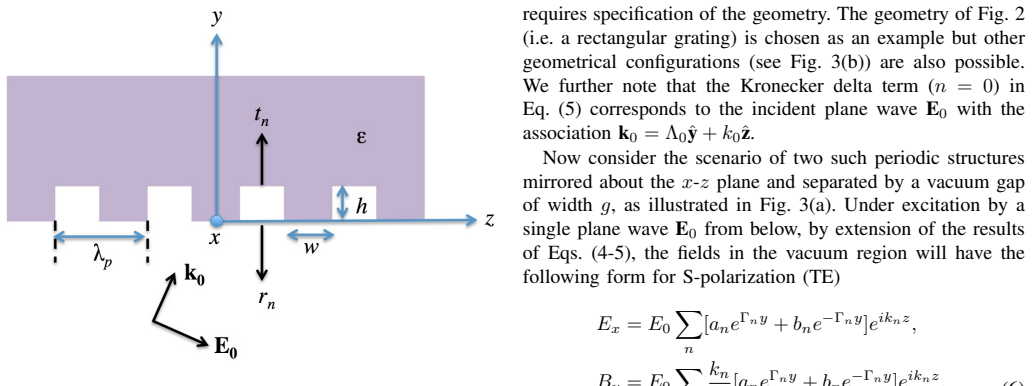

Figure 2. Figure 2: Case of a periodic open structure occupying the upper half-plane [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

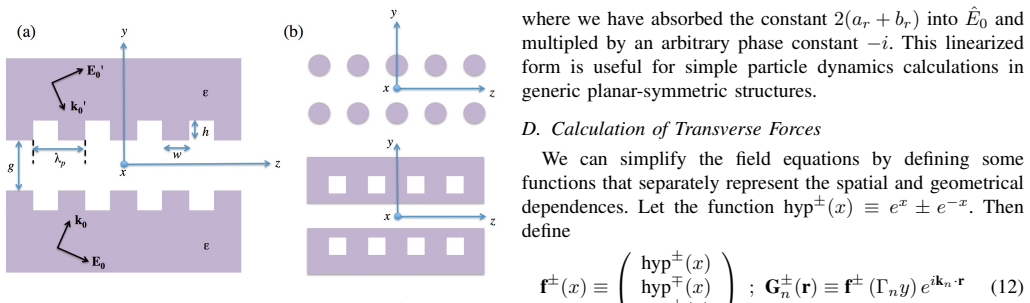

Figure 3. Figure 3: (a) Case of a dual-sided periodic structure (periodicity [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

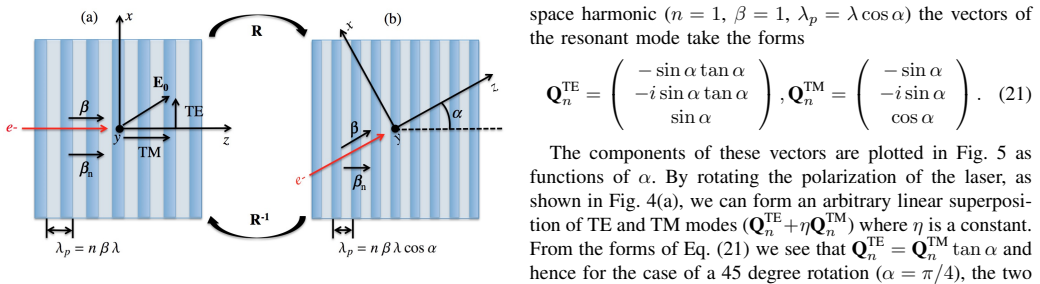

Figure 4. Figure 4: Illustration showing (a) original unrotated geometry with beam axis [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 3
Figure 3. Figure 3: The symmetric axial deflecting modes represented in [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5

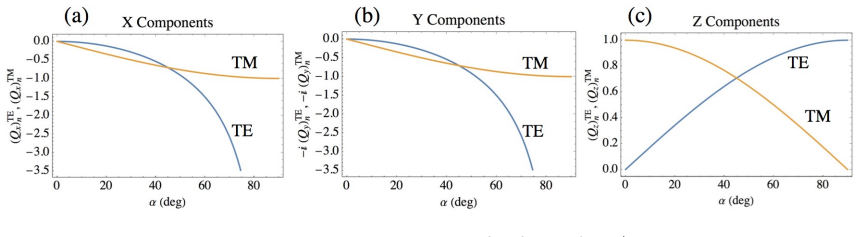

Figure 5. Figure 5: Plots of Qn coordinates in (a) x, (b) y, and (c) z for the case β = βn = 1, θ = π/2 as functions of rotation angle α. a particle sitting at the phase corresponding to maximum deflection. Bunches prepared by a previous DLA section or by an optical microbunching scheme such as that in Ref. [12] will be bunched at the optical period of the laser and can therefore in principle be matched to the deflector in th… view at source ↗
