arxiv: 2604.27123 · v2 · pith:EA2HHCVInew · submitted 2026-04-29 · 🌌 astro-ph.GA

uGMRT and MeerKAT observation of RXCJ0232-4420: a quiet cluster with a giant radio halo

Pralay Biswas , Ramananda Santra , Ruta Kale , Viral Parekh This is my paper

Pith reviewed 2026-05-07 09:16 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords radio haloscool core clustersgalaxy clustersintracluster mediummerger turbulencespectral indexradio-X-ray correlationMpc-scale emission
0
0 comments X

The pith

A cool-core galaxy cluster hosts an Mpc-scale giant radio halo sustained by minor-merger turbulence.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports uGMRT and MeerKAT observations that detect radio emission extending beyond 1 Mpc in RXCJ0232-4420, a cluster with a surviving cool core. Multi-frequency data at 400, 650, and 1283 MHz show a uniform spectral index across the halo and a sublinear correlation between radio and X-ray brightness. These properties indicate that low-level turbulence from minor disturbances can re-accelerate particles on cluster-wide scales. The result matters because it shows giant halos are not restricted to major-merger systems and can coexist with cool cores.

Core claim

The central claim is that RXCJ0232-4420 hosts a giant radio halo with an extent beyond 1 Mpc at all observed frequencies, a mostly uniform spectral index between -1.0 and -1.3, and an exponential surface brightness profile whose e-folding radius stays constant with frequency. The halo emission correlates morphologically and point-to-point with the thermal X-ray gas, yielding a sublinear slope of roughly 0.8 with no frequency dependence. A candidate 300-kpc relic to the east shows a flatter spectrum. These observations establish that merger-driven turbulence from minor disturbances can maintain cluster-wide particle re-acceleration while preserving the cool core.

What carries the argument

The multi-frequency spectral imaging and radio-X-ray point-to-point correlation analysis that quantifies the spatial extent, spectral uniformity, and brightness scaling of the Mpc-scale emission.

If this is right

  • Mpc-scale radio halos can form in dynamically intermediate clusters that retain cool cores.
  • Merger-driven turbulence need not be violent to sustain cluster-wide particle re-acceleration.
  • The traditional separation between giant halos in merging clusters and mini-halos in cool cores becomes less sharp.
  • The radio surface brightness follows a single exponential profile whose scale length does not change with frequency.
  • The candidate east relic is a separate structure with a flatter spectrum than the halo.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Cluster dynamical states may form a continuum rather than two discrete categories.
  • Low-frequency surveys could uncover faint giant halos in other apparently relaxed cool-core systems.
  • Particle acceleration models may need to incorporate sustained low-level turbulence as a viable driver for large-scale emission.

Load-bearing premise

The Mpc-scale radio emission is powered by turbulence from minor merger disturbances rather than another process, and the cluster is in a truly intermediate dynamical state.

What would settle it

X-ray or optical imaging that reveals a recent major merger capable of destroying the cool core, or spectral and morphological data showing the radio emission originates from AGN activity instead of distributed turbulence.

Figures

Figures reproduced from arXiv: 2604.27123 by Pralay Biswas, Ramananda Santra, Ruta Kale, Viral Parekh.

Figure 1

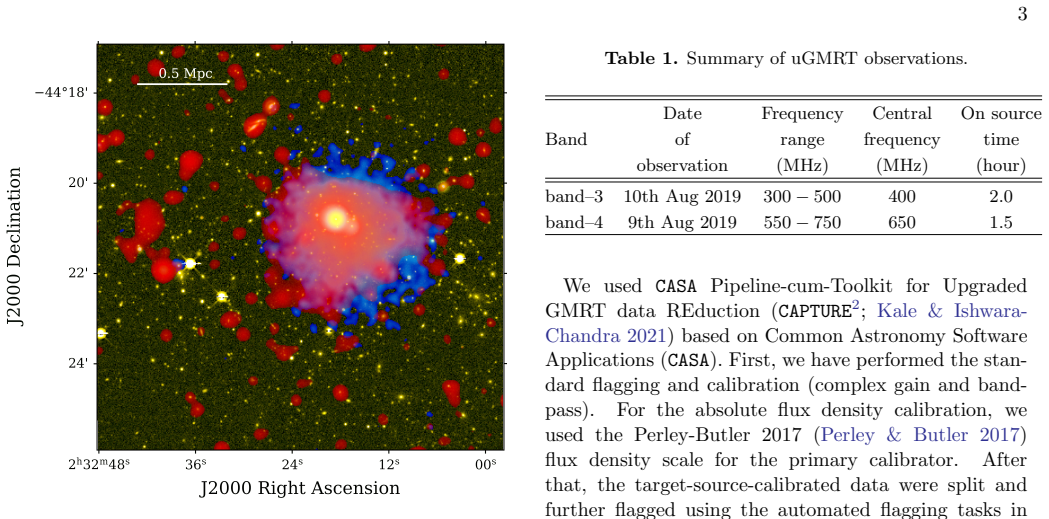

Figure 1. Figure 1: Multiwavelength composite image of the clus￾ter RXCJ0232. Optical emission (yellow) shows the r-band data from the Dark Energy Spectroscopic Instrument (DESI) Legacy Imaging Survey (Dey et al. 2019). X-ray emission (blue) displays the background-subtracted and exposure￾corrected Chandra observation, smoothed with a 3-pixel Gaussian kernel, from Parekh et al. (2021). The MeerKAT 1283 MHz radio continuum emi… view at source ↗
Figure 2
Figure 2. Figure 2: Left: The uGMRT 400 MHz full-resolution image of the cluster RXCJ0232 is shown in colour and contours. The beam size of the image is 14.7′′× 6.6′′ with a position angle (PA) of 27.83◦ . The contour levels are [1, 2, 4, 8, . . . ] × 3σrms with σrms = 43 µJy beam−1 . The position of the halo and the candidate east relic are marked with yellow arrows. Right: The uGMRT 650 MHz full-resolution image with a beam… view at source ↗
Figure 3
Figure 3. Figure 3: Top−Left: uGMRT 400 MHz point source subtracted low-resolution (20′′× 20′′, PA = 0◦ ) image of the central region of cluster RXCJ0232 is shown in colour and contours. The contour levels are [1, 2, 4, 8, . . . ] × 3σrms with σrms = 79 µJy beam−1 . The central radio loud BCG (BCG−A) is marked with a black cross. The position of the halo and the candidate east relic are also marked with yellow arrows. Top−Rig… view at source ↗
Figure 4
Figure 4. Figure 4: The integrated spectrum of the halo and the candidate east relic is shown, where the radio halo measure￾ments from uGMRT at 400 and 650 MHz and MeerKAT at 1283 MHz are shown as blue triangles, with the 606 MHz point from Kale et al. (2019) shown as a dark blue square. The best-fit power law is shown in a blue dotted line. Flux densities of the east relic candidate at 400, 650, 1283, and 606 MHz are shown a… view at source ↗
Figure 6
Figure 6. Figure 6: The resolved spectral index map (left) at 20′′, between the uGMRT 400 MHz and MeerKAT 1283 MHz, of the central region of cluster RXCJ0232, with the corresponding error map (right), is shown in colour. The contour levels in black are [1, 2, 4, 8, . . . ] ×3σrms (σrms = 79 µJy beam−1 ) from the 400 MHz image of uGMRT. See appendix B view at source ↗
Figure 7
Figure 7. Figure 7: Left: Chandra X-ray image (background-subtracted and exposure-corrected) of RXCJ0232 in the 0.5–7 keV band, smoothed with a 3-pixel Gaussian. Overlaid are low-resolution (20′′) uGMRT 400 MHz radio contours (yellow) at [1, 2, 4, 8, . . . ] × 3σrms, with σrms = 79 µJy beam−1 . Right: Radio vs X-ray surface brightness relation for RXCJ0232 shown. Data points above 3σrms at 400, 650, and 1283 MHz are shown as … view at source ↗
Figure 8
Figure 8. Figure 8: Calibrated amplitude versus uv-distance (UVwave) for the flux calibrator 3C48 in band-4 of the uGMRT is shown. The plot shows a systematic flux-density offset between the shorter and longer baselines of the GWB uGMRT backend data during the 2019 period. This issue necessitated heavy flagging of the short-baseline data, leading to the reduced flux recovery for the diffuse emission at 650 MHz. 2 h32m40 s 30 … view at source ↗
Figure 9
Figure 9. Figure 9: Spatially resolved spectral index map (left) of the central region of cluster RXCJ0232 at 20′′ resolution, calculated between uGMRT 400 MHz and 650 MHz, with the corresponding error map shown on the right. Black contours represent the uGMRT 650 MHz emission with levels at [1, 2, 4, 8, . . .] × 3σrms, where σrms = 56 µJy beam−1 . Bagchi, J., Sirothia, S. K., Werner, N., et al. 2011, ApJL, 736, L8, doi: 10.1… view at source ↗
read the original abstract

Giant radio halos are the Mpc-scale extended sources associated with the merging clusters, while the mini-halos are preferentially associated with cool-core clusters. Both trace the ICM plasma physical process, and recent low-frequency observations increasingly blur the distinction between the two classes. We present the first multi-frequency spectral analysis of the galaxy cluster RXCJ0232--4420, hosting a cool core, using uGMRT (400 and 650 MHz) and MeerKAT (1283 MHz) observations. The central radio emission extends beyond $\sim 1$ Mpc at all frequencies, confirming it as a giant radio halo. One candidate relic (in the east) has also been detected, with an extent of $\sim 300$ kpc. The integrated spectral indices of halo and candidate east relic are $\alpha = -1.17 \pm 0.17$, and $\alpha = -0.85 \pm 0.17$, respectively. The resolved spectral map of the halo is mostly uniform ($-1.0$ to $-1.3$) and does not show any radial steepening. The radio surface brightness profile is well modelled by a single exponential law, with the e-folding radius constant across frequencies. The radio halo emission is morphologically well correlated with the thermal emission. Point-to-point radio-X-ray correlation analysis gives a sublinear relationship (slope $\sim 0.80$), with no frequency evolution. The presence of Mpc-scale emission in the cool-core cluster shows that such emission can arise in dynamically intermediate systems. Our results demonstrate that merger-driven turbulence, even from minor disturbances, can sustain cluster-wide particle re-acceleration without destroying the cool core.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports uGMRT (400 and 650 MHz) and MeerKAT (1283 MHz) observations of the cool-core galaxy cluster RXCJ0232-4420. It detects Mpc-scale radio emission identified as a giant radio halo (with integrated spectral index α = -1.17 ± 0.17), a candidate eastern relic (α = -0.85 ± 0.17), a uniform spectral-index map without radial steepening, a single-exponential surface-brightness profile whose e-folding radius is frequency-independent, and a sub-linear, frequency-independent radio-X-ray correlation (slope ~0.80). The authors conclude that giant halos can arise in dynamically intermediate systems via minor-merger turbulence without destroying the cool core.

Significance. If the detection and analysis are robust, the result would be significant for cluster radio-source taxonomy and re-acceleration physics. It supplies a concrete example of Mpc-scale emission coexisting with a cool core, supporting turbulence models in which even modest dynamical activity can sustain cluster-wide particle acceleration. The multi-frequency consistency, lack of spectral steepening, and sub-linear correlation provide testable constraints on the underlying electron population and magnetic-field structure.

major comments (2)
  1. [Abstract and dynamical-state discussion] Abstract and dynamical-state discussion: the classification of RXCJ0232-4420 as dynamically intermediate (and therefore the inference that minor-merger turbulence powers the halo) rests on cool-core survival plus halo presence. No quantitative X-ray morphological metrics (power ratio, centroid shift) or galaxy velocity-dispersion data are supplied to place the system on the minor-merger side of published thresholds or to exclude residual major-merger or sloshing scenarios; this is load-bearing for the headline claim.
  2. [Methods / data-reduction section] Methods / data-reduction section: the central claim of a genuine Mpc-scale halo depends on reliable extended-emission recovery after point-source subtraction. Without explicit documentation of the subtraction procedure, uv-coverage matching across bands, flux-density error budgets, and tests for residual artifacts, the single-exponential fit and frequency-independent correlation slope cannot yet be fully evaluated.
minor comments (2)
  1. [Abstract] Abstract: the title calls the system a 'quiet cluster' while the text describes it as dynamically intermediate; a short clarifying sentence would remove potential confusion.
  2. [Spectral-index map description] Spectral-index map description: the quoted range (-1.0 to -1.3) is given without stating the common-resolution beam size or the uv-range used to construct the map; this affects interpretation of the reported uniformity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and positive review, which highlights the potential significance of our results for understanding radio halos in cool-core systems. We address each major comment below and will revise the manuscript to improve clarity and documentation where needed.

read point-by-point responses

  1. Referee: [Abstract and dynamical-state discussion] Abstract and dynamical-state discussion: the classification of RXCJ0232-4420 as dynamically intermediate (and therefore the inference that minor-merger turbulence powers the halo) rests on cool-core survival plus halo presence. No quantitative X-ray morphological metrics (power ratio, centroid shift) or galaxy velocity-dispersion data are supplied to place the system on the minor-merger side of published thresholds or to exclude residual major-merger or sloshing scenarios; this is load-bearing for the headline claim.

    Authors: We agree that quantitative morphological metrics would provide additional support for the dynamical classification. The manuscript bases the 'dynamically intermediate' assessment on the well-established fact that major mergers disrupt cool cores on timescales comparable to or shorter than the lifetime of giant halos, while the Mpc-scale halo requires some merger-driven turbulence. In the revised manuscript we will expand the dynamical-state discussion to include references to existing X-ray analyses of RXCJ0232-4420 (e.g., from Chandra/XMM data in the literature) and will explicitly compare the cool-core properties to published thresholds for relaxed versus merging systems. Public velocity-dispersion catalogs do not contain measurements for this cluster, but the intact cool core already excludes a recent major merger; we will note this limitation and strengthen the minor-merger interpretation with supporting arguments from similar systems. revision: partial

  2. Referee: [Methods / data-reduction section] Methods / data-reduction section: the central claim of a genuine Mpc-scale halo depends on reliable extended-emission recovery after point-source subtraction. Without explicit documentation of the subtraction procedure, uv-coverage matching across bands, flux-density error budgets, and tests for residual artifacts, the single-exponential fit and frequency-independent correlation slope cannot yet be fully evaluated.

    Authors: We appreciate the referee's emphasis on methodological transparency. The submitted manuscript outlines the data reduction (SPAM pipeline for uGMRT and standard MeerKAT processing) and point-source subtraction, but we acknowledge that more explicit detail is warranted. In the revised version we will expand the Methods section to describe: (i) the exact modeling and subtraction steps for compact sources, (ii) the tapering and weighting schemes used to match uv-coverage across the three frequency bands, (iii) the full flux-density error budget (including calibration, thermal noise, and subtraction residuals), and (iv) validation tests such as residual-image inspection and jackknife tests confirming that no significant artifacts affect the extended emission. These additions will allow readers to fully assess the reliability of the exponential fits and radio-X-ray correlation results. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results are direct observational measurements

full rationale

The paper reports new uGMRT and MeerKAT imaging data on RXCJ0232-4420. All reported quantities (integrated spectral indices, resolved spectral maps, exponential surface-brightness fits, radio-X-ray point-to-point slopes) are extracted directly from the images via standard reduction and fitting procedures. The interpretive statement that the system is dynamically intermediate follows from the observed coexistence of a cool core and Mpc-scale halo; this is an inference from the data rather than a derivation that reduces to its own inputs by construction. No equations, fitted parameters, or self-citations are presented as independent predictions, and the central claims do not rely on a load-bearing self-citation chain or ansatz smuggling.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claim rests on direct radio and X-ray imaging data rather than theoretical derivation; measured quantities such as spectral index and correlation slope are obtained by fitting observed fluxes and surface-brightness profiles.

free parameters (2)
  • integrated spectral index of halo = -1.17
    Obtained by fitting flux densities measured at 400, 650, and 1283 MHz.
  • radio-X-ray correlation slope = 0.80
    Fitted from point-to-point comparison of radio and X-ray surface brightness.
axioms (1)
  • domain assumption Extended radio emission traces relativistic electrons in the intracluster medium re-accelerated by turbulence
    Standard assumption in the radio-halo literature invoked to interpret the Mpc-scale emission as a halo rather than other sources.
