Community Detection on Networks with Ricci Flow

Pith reviewed 2026-05-25 00:06 UTC · model grok-4.3

classification 💻 cs.SI physics.soc-ph
keywords community detectionRicci flownetwork geometrycurvaturegraph decompositioncomplex networksgeometric methods
0
0 comments X

The pith

Discrete Ricci flow decomposes networks into communities by evolving edge curvatures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that networks can be treated as geometric objects whose communities correspond to a geometric decomposition. It applies discrete Ricci flow, a process that evolves the graph metric according to curvature, to separate densely connected groups. This draws on the success of Ricci flow in decomposing smooth manifolds and tests the resulting partitions against networks with known community structures. A sympathetic reader would care because it supplies a deterministic geometric procedure for community detection instead of relying only on statistical or combinatorial rules.

Core claim

By viewing networks as geometric objects and communities as geometric decompositions, discrete Ricci flow applied to the graph produces components that correspond to the functional communities, as confirmed experimentally on networks with ground-truth structures.

What carries the argument

Discrete Ricci flow on graphs, which adjusts edge lengths according to their curvature to drive the network toward a decomposition.

If this is right

  • The same flow process can be run on any network once edge weights or distances are defined, yielding a community partition without additional statistical modeling.
  • Curvature evolution isolates groups whose internal connectivity is stronger than their external links, mirroring manifold decomposition.
  • The method inherits stability properties from the continuous Ricci flow when the graph discretization is sufficiently fine.
  • It supplies a deterministic stopping criterion based on curvature thresholds rather than modularity optimization.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The geometric framing could extend to time-varying networks by allowing the flow to run continuously as edges appear or disappear.
  • Curvature-based decompositions might reveal hierarchical community structure if the flow is stopped at multiple intermediate times.
  • The approach may connect to other curvature notions on graphs, such as Forman curvature, for comparative community detection.

Load-bearing premise

The components isolated by the discrete Ricci flow on the graph match the functionally meaningful communities rather than other geometric features of the embedding or weighting.

What would settle it

Running the flow on a network whose ground-truth communities are known and obtaining partitions that systematically fail to recover those communities would disprove the claim.

Figures

Figures reproduced from arXiv: 1907.03993 by Chien-Chun Ni, Feng Luo, Jie Gao, Yu-Yao Lin.

Figure 1

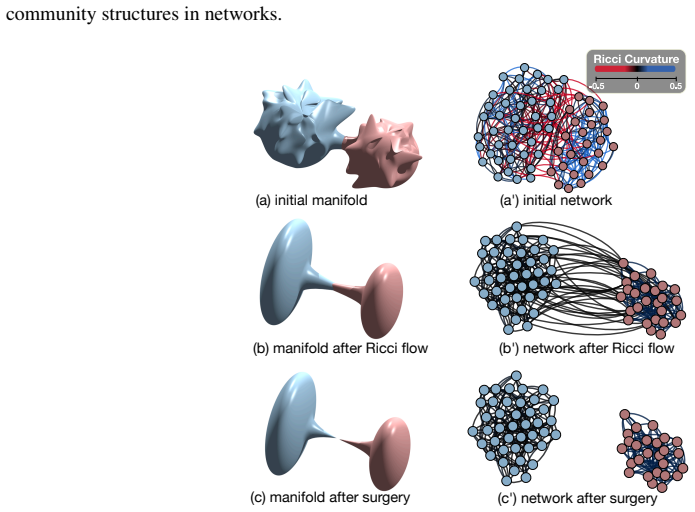

Figure 1. Figure 1: An illustration of Ricci flow on a manifold and a network. Ricci flow captures the large positive curvature regions in the manifold as well as communities in the network. The formation of singularities in the Ricci flow is illustrated by (b, c). The analog in (b’, c’) in the discrete Ricci flow decomposes the network into communities [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

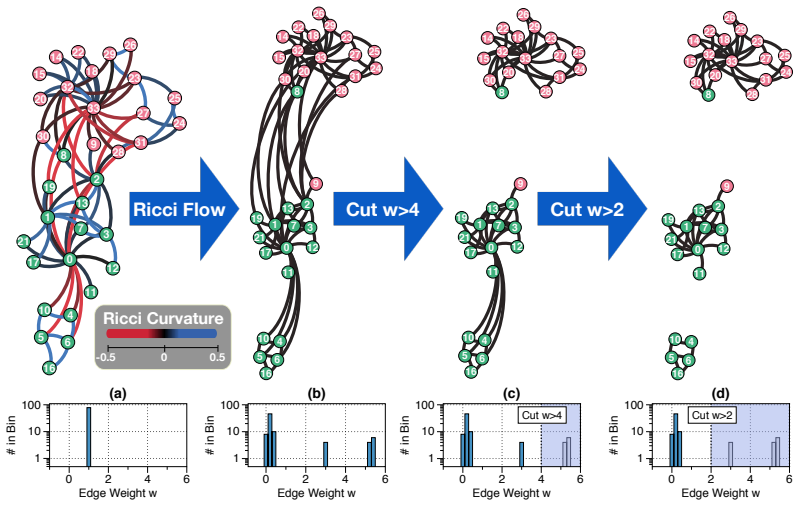

Figure 2
Figure 2. Figure 2: Ricci flow for community detection on the Karate club graph generated by Gephi’s ForceAtlas2 layout[31]. (a): The Karate club graph with edge weight 1 on all edges. Different colors of vertices represent different communities. The colors of edges represent the Ricci curvature on the edges. Notice that most edges between communities are negatively curved. (b): The same graph after 100 Ricci flow iterations.… view at source ↗
Figure 3

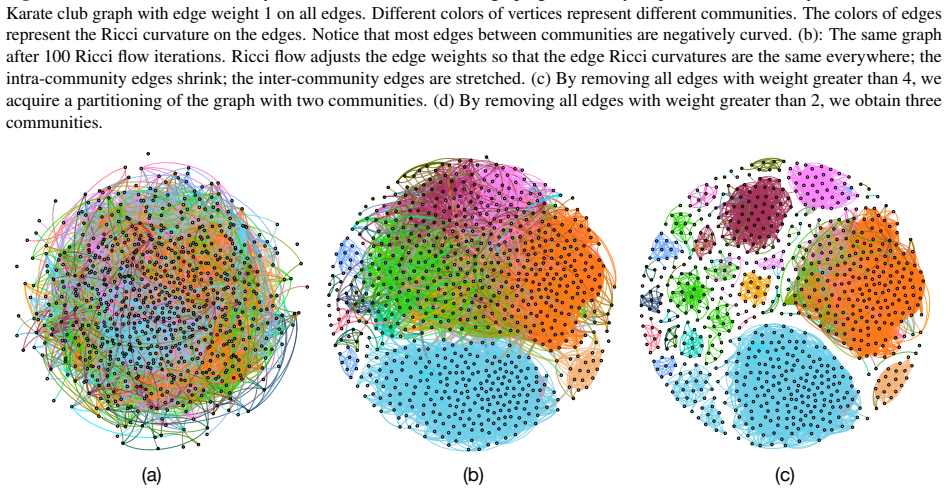

Figure 3. Figure 3: (a) A Facebook ego network of one user with 792 friends and 14025 edges generated by Gephi’s Fruchterman Reingold layout[31]. The colors represent 24 different friend circles (communities) hand labeled by the user. (b) By the Ricci flow process of 20 iterations, the weights of inter-community edges are increased (thick edges in the figure) while the weights of intra-community edges gradually shrink to 0 (t… view at source ↗
Figure 4

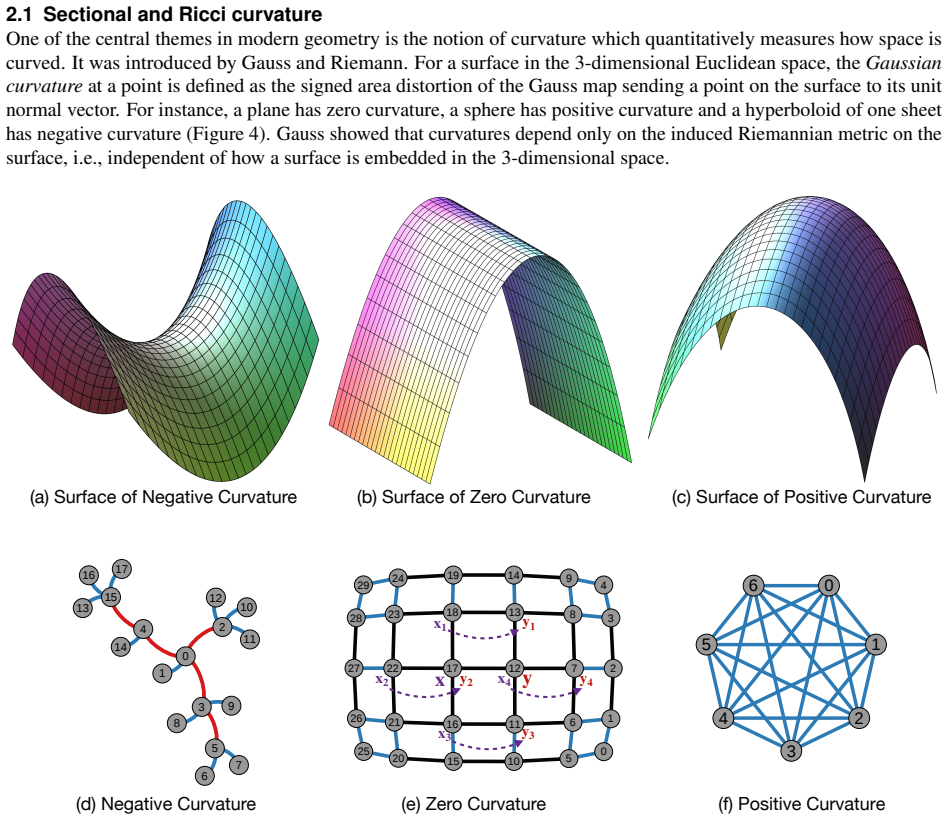

Figure 4. Figure 4: Examples of Ricci curvature on manifolds and graphs. In (a)-(c), manifolds with negative, zero, and positive curvatures are shown. In (d)-(f), all edges have weight of 1. (d) A tree graph with negative curvature everywhere, except the edges of the leaf nodes. (e) A (infinitely sized) grid graph with all edges of zero curvature. The cost of moving mx = {x, x1, x2, x3, x4} to my = {y, y1, y2, y3, y4} is equa… view at source ↗
Figure 5
Figure 5. Figure 5: In Figure 5(a) and Figure 5(b), the parameters [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 5

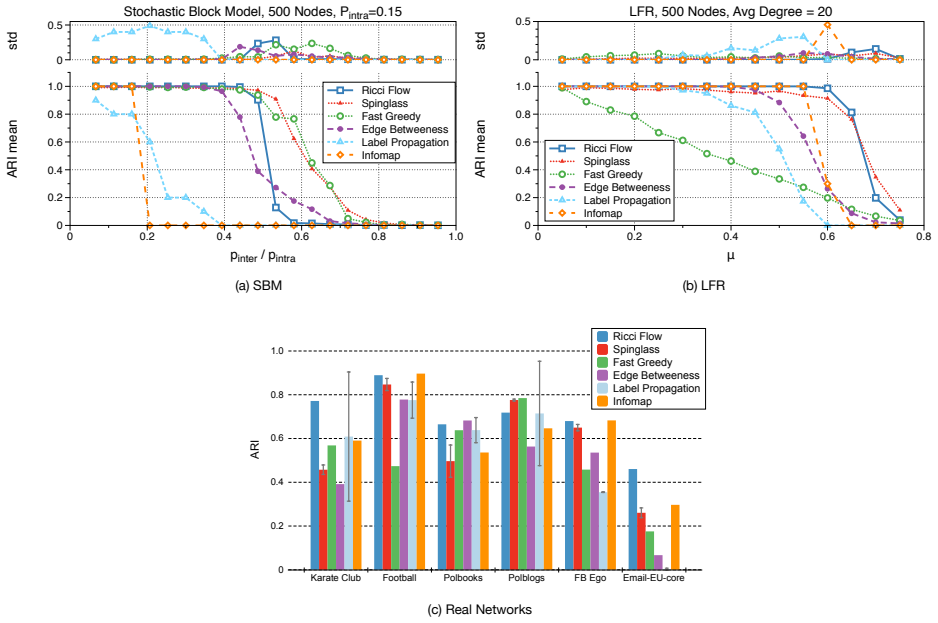

Figure 5. Figure 5: The accuracy of the Ricci flow method for community detection on model networks. The accuracy is measured by the adjust Rand index (ARI) and each data point is the average of 10 model graphs. In (a), we tested on the stochastic block model (SBM) with 500 nodes and two communities of the same size. A graph with low pinter/pintra ratio has more distinctive communities. Our method is shown to have perfect acc… view at source ↗

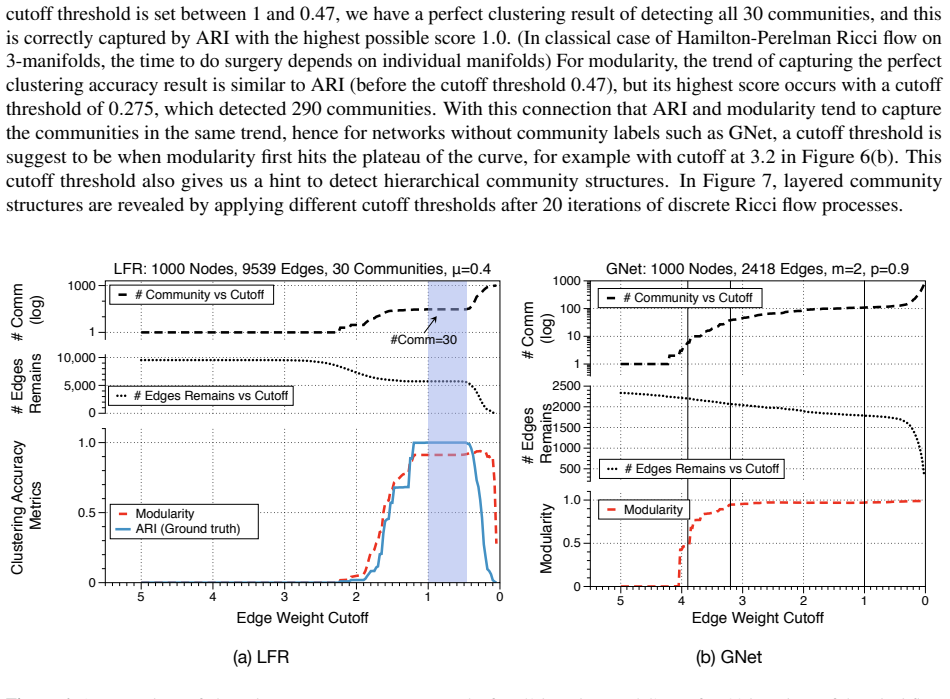

Figure 6
Figure 6. Figure 6: A comparison of clustering accuracy on an LFR graph after 50 iterations and GNet after 20 iterations of the Ricci flow with different final edge weight cutoff thresholds. In (a), with cutoff threshold set between 1 and 0.47 as the range highlighted in blue, we detected all communities correctly. In (b), we chose the cutoff threshold to be the turning point of modularity at w = 3.2 as the middle vertical li… view at source ↗
Figure 7

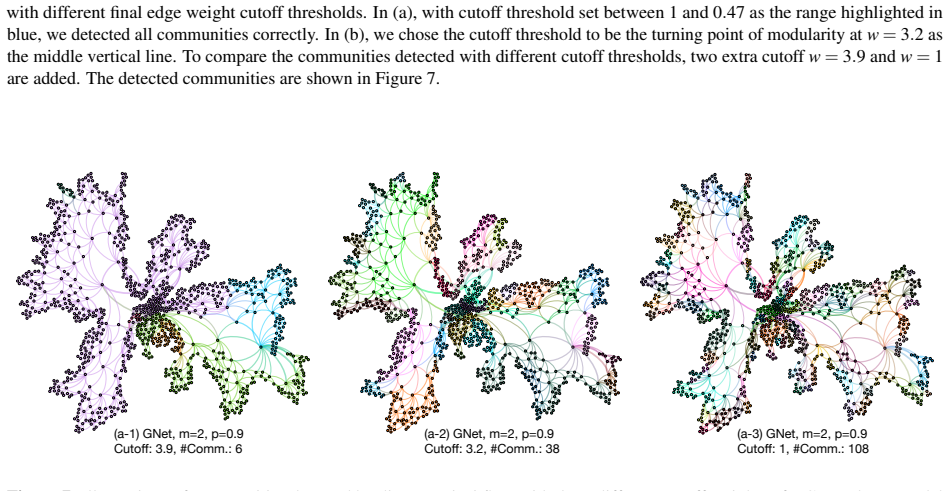

Figure 7. Figure 7: Illustrations of communities detected by discrete Ricci flow with three different cutoff weights of a GNet planar model with 1000 nodes, m = 2, and p = 0.9. With different cutoff thresholds (labeled as vertical lines in [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗

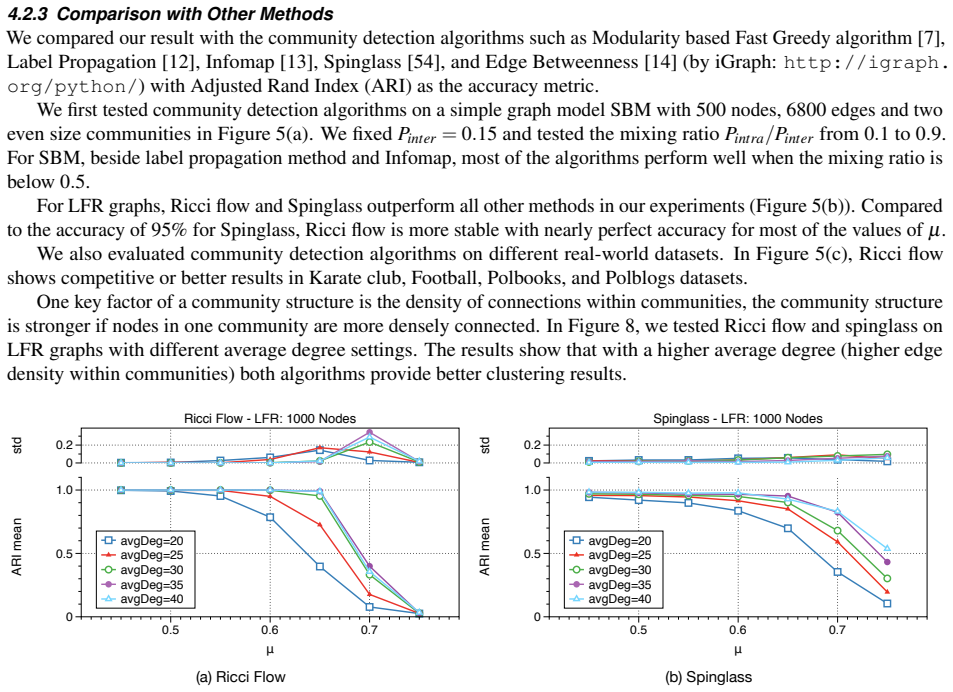

Figure 8
Figure 8. Figure 8: Ricci flow and spinglass algorithms on LFR graphs with different average node degrees. With a higher average degree which implies higher edge density within communities, both algorithms provide better clustering results. 5 Conclusion In this paper, we have introduced geometric tools to investigate the community structures on complex networks. The basic idea is to consider networks as geometric objects and … view at source ↗
Figure 16
Figure 16. Figure 16: E Proof of Theorem 4.1 We remark that we are not able to prove the similar result for other Ollivier-Ricci curvatures when p > 0 though numerical results indicate it should be true. We start by computing the Wasserstein distance of a metric on G(a,b). In each community Ci there is a specific node ui which connects to other communities. We call this node the gateway node and the rest of the nodes in Ci the… view at source ↗
read the original abstract

Many complex networks in the real world have community structures -- groups of well-connected nodes with important functional roles. It has been well recognized that the identification of communities bears numerous practical applications. While existing approaches mainly apply statistical or graph theoretical/combinatorial methods for community detection, in this paper, we present a novel geometric approach which enables us to borrow powerful classical geometric methods and properties. By considering networks as geometric objects and communities in a network as a geometric decomposition, we apply curvature and discrete Ricci flow, which have been used to decompose smooth manifolds with astonishing successes in mathematics, to break down communities in networks. We tested our method on networks with ground-truth community structures, and experimentally confirmed the effectiveness of this geometric approach.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript proposes a geometric method for community detection on networks by treating them as geometric objects and applying discrete Ricci curvature and Ricci flow (imported from smooth manifold theory) to obtain a decomposition into communities. It reports experimental validation on networks possessing ground-truth community labels, asserting competitive effectiveness relative to existing approaches.

Significance. If the empirical link between the evolved metric and ground-truth communities holds under broader testing, the work supplies a novel geometric heuristic that could import tools and invariants from differential geometry into network science; the absence of free parameters in the core flow and the direct use of an external geometric process are strengths that distinguish it from purely statistical or combinatorial baselines.

minor comments (3)
  1. The abstract and introduction would benefit from a concise statement of the precise discrete curvature (Ollivier or Forman) and the exact flow equation employed, including how edge weights are updated and how the final partition is extracted from the evolved metric.
  2. Figure captions and experimental tables should explicitly list the benchmark networks, the ground-truth community counts, and the quantitative metrics (e.g., NMI, ARI) together with the competing methods used for comparison.
  3. Notation for the discrete Ricci curvature and the flow step should be introduced once in a dedicated preliminary section and used consistently thereafter to avoid ambiguity between continuous and discrete versions.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our work and the recommendation of minor revision. The referee's summary accurately captures the core contribution of applying discrete Ricci curvature and flow to networks for community detection.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper imports discrete Ricci flow (an established geometric process from differential geometry) as an external analogy for decomposing networks into communities, then validates the resulting partitions directly against ground-truth labels on benchmark graphs. No load-bearing step in the described derivation chain reduces by construction to a fitted parameter, self-referential definition, or self-citation chain; the geometric mapping is presented as a heuristic whose effectiveness is measured empirically rather than asserted tautologically.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based solely on the abstract, the central claim rests on the domain assumption that networks admit a meaningful discrete curvature whose Ricci flow yields community structure. No free parameters or invented entities are mentioned.

axioms (1)
  • domain assumption Networks can be equipped with a discrete curvature such that Ricci flow decomposes them into communities.
    This premise is invoked when the paper equates geometric decomposition with community detection.

pith-pipeline@v0.9.0 · 5646 in / 1200 out tokens · 23593 ms · 2026-05-25T00:06:36.990555+00:00 · methodology
