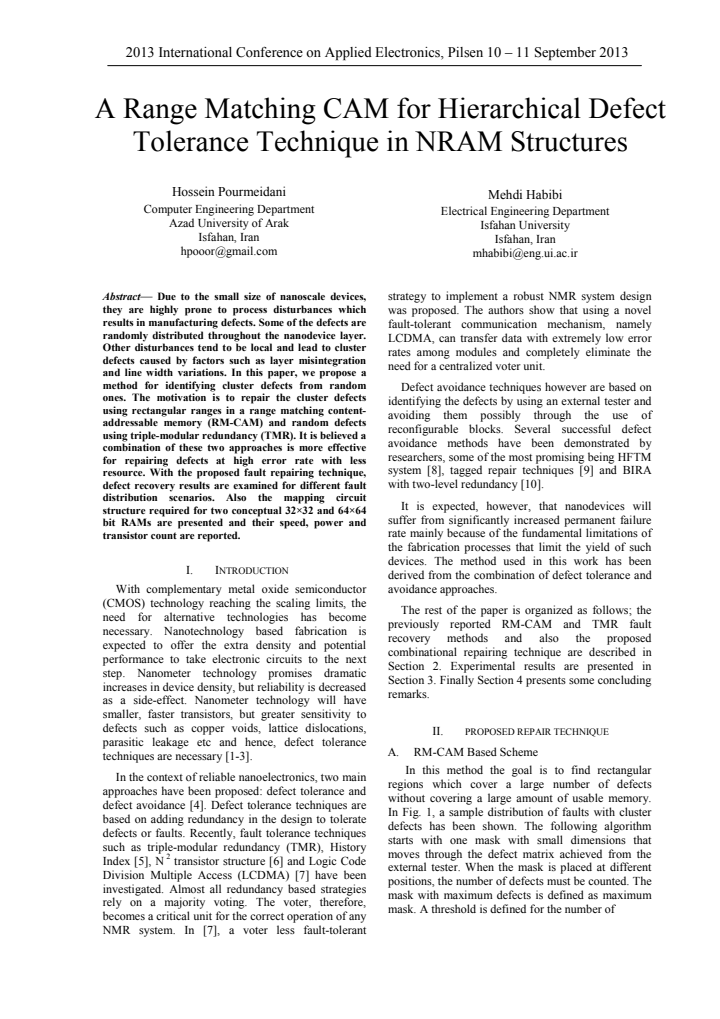

A Range Matching CAM for Hierarchical Defect Tolerance Technique in NRAM Structures
Pith reviewed 2026-05-24 23:43 UTC · model grok-4.3
The pith
Separating cluster defects for RM-CAM repair and random defects for TMR improves recovery at high error rates while using fewer resources in NRAM.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By distinguishing cluster defects, which tend to form from layer misintegration or line-width variations, from randomly distributed defects, the method assigns rectangular ranges to a range matching CAM for repair and applies TMR to the remaining faults. Defect recovery results are reported for multiple fault scenarios, and the required mapping circuit structures for the two RAM sizes are presented along with their performance metrics.
What carries the argument
The range matching content-addressable memory (RM-CAM) that stores and matches rectangular ranges to locate and repair cluster defects, used hierarchically with TMR for random defects.
If this is right
- Higher defect recovery rates become possible at elevated error densities without proportional increases in redundancy overhead.
- The mapping circuits for 32 by 32 and 64 by 64 NRAMs demonstrate concrete speed, power, and area figures that scale with the hybrid scheme.
- Different fault distribution scenarios can be tested to confirm the method adapts to both clustered and scattered defects.
- The hierarchical assignment reduces overall resource use compared with uniform application of either technique.
Where Pith is reading between the lines
- The approach could extend to other nanoscale memory technologies where defect clustering follows similar geometric patterns.
- If the rectangular-range identification proves robust, it might reduce the need for exhaustive per-bit testing during manufacturing.
- Designers of future NRAM arrays could incorporate the RM-CAM as a dedicated repair block sized to expected cluster statistics.
Load-bearing premise
Cluster defects can be reliably identified as local rectangular ranges that RM-CAM can repair more efficiently than TMR while random defects are better addressed by TMR, and this separation produces net resource savings.
What would settle it
A simulation or hardware test showing that the combined RM-CAM plus TMR approach consumes more transistors or power, or achieves lower recovery rates, than applying TMR alone at the same high error rates.
read the original abstract
Due to the small size of nanoscale devices, they are highly prone to process disturbances which results in manufacturing defects. Some of the defects are randomly distributed throughout the nanodevice layer. Other disturbances tend to be local and lead to cluster defects caused by factors such as layer misintegration and line width variations. In this paper, we propose a method for identifying cluster defects from random ones. The motivation is to repair the cluster defects using rectangular ranges in a range matching content-addressable memory (RM-CAM) and random defects using triple-modular redundancy (TMR). It is believed a combination of these two approaches is more effective for repairing defects at high error rate with less resource. With the proposed fault repairing technique, defect recovery results are examined for different fault distribution scenarios. Also the mapping circuit structure required for two conceptual 32*32 and 64*64 bit RAMs are presented and their speed, power and transistor count are reported.
