An Efficient Non-Gaussian Chance Constraint Method for Stochastic Nonlinear Problems in Spaceflight

T0 review · 3 major / 5 minor · reviewed 2026-07-12 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A banana-shaped confidence contour from skew and kurtosis makes non-Gaussian chance constraints usable for spacecraft maneuver targeting.

desk verdict Solid applied GNC paper: banana-contour chance constraints with real Monte Carlo gains over LinCov, scoped honestly to weakly non-Gaussian regimes. read the letter →

arxiv 2607.03424 v1 pith:F5JDZA4Z submitted 2026-07-03 eess.SY cs.SY

Ethan R. Burnett , Spencer Boone , Niccolo Michelotti This is my paper · ORCID
classification eess.SYcs.SY
keywords chanceconstraintsnon-Gaussianuncertaintybananadistributionsspacecraftguidancehigher-ordermomentsconjugateunscentedtransformcislunarfreereturnimpulsivetargeting
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Standard chance-constrained spacecraft guidance assumes Gaussian uncertainty so that covariance ellipses can enforce safety at a stated probability. In nonlinear regimes such as cislunar free returns or long coast arcs, those ellipses become banana-shaped and the Gaussian chance constraint is wrong. This paper treats the true confidence contour as a first-order deformation of the covariance ellipse, with the deformation fixed by selected components of the skew and kurtosis tensors. The resulting closed-form banana contour is then turned into half-plane chance constraints that can be optimized with ordinary sequential-correction methods. On an asteroid keep-out problem and on Artemis-II-like lunar free-return midcourse corrections, the banana policy raises Monte Carlo constraint satisfaction well above linear-covariance results while remaining far cheaper than Monte Carlo-in-the-loop design.

What carries the argument

The banana contour (Key Result 1): after whitening by the covariance eigendecomposition, the principal coordinates are corrected to u(t)=a cos t + c(k) sqrt(lambda1) cos^2 t and v(t)=b sin t + alpha sqrt(lambda2)(k^2 cos^2 t - 1), with alpha and c taken from the third- and fourth-order moments; half-plane support is then reduced to a one-dimensional maximization or a log-integral-exp surrogate.

What would settle it

Propagate a realistic initial Gaussian through the same nonlinear dynamics used in the paper, compute the true Monte Carlo 3-sigma isoprobability contour, and check whether it systematically leaves the analytic banana contour; if large residual mismatch appears while the first four moments are still accurate, the geometric chance constraint is unreliable.

Watch

Extended reading notes

Core claim

For the weakly non-Gaussian banana distributions that arise in orbital mechanics, a first-order contour parameterized only by covariance scale plus skew-driven long-axis asymmetry and kurtosis-driven bend is accurate enough to serve as an explicit chance constraint. Enforcing half-planes against that contour (via active worst-case angle or a smooth conservative surrogate) yields impulsive targeting policies that are safer than linear-covariance policies and still tractable for real-time or rapid-trade use.

Load-bearing premise

The uncertainty stays only mildly non-Gaussian and banana-shaped, so a quadratic bend plus a first-order long-axis skew correction from the first four moments is enough to describe the true isoprobability contour.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper develops a chance-constrained impulsive targeting method for weakly non-Gaussian, banana-shaped state distributions common in nonlinear orbital mechanics. It parameterizes the confidence contour as a first-order deformation of the covariance ellipse using selected skew and kurtosis components (Key Result 1, Eqs. 31–32), then enforces half-plane chance constraints via an active worst-angle reduction and two smooth surrogates that address non-convex tip competition (Key Results 2–3). Higher-order moments are obtained with CUT4. Two examples—an asteroid keep-in box and a planar CR3BP Artemis II–like free-return midcourse sequence—show improved Monte Carlo constraint satisfaction relative to LinCov at moderate extra cost.

Significance. If the banana-regime modeling assumptions hold, this is a useful middle ground between LinCov chance constraints and Monte Carlo- or GMM-in-the-loop design for long-horizon, measurement-sparse spaceflight problems (cislunar free returns, deep-space flybys). Strengths include explicit moment-to-geometry derivations with Gaussian recovery, careful treatment of the non-convex support problem (including Appendices B–C), deterministic CUT-based moments suitable for optimization, and independent 5000-sample Monte Carlo checks against a real LinCov baseline. The free-return example is timely and operationally motivated. The contribution is primarily methodological application and constraint handling rather than a new uncertainty-propagation theory; geometric validity of the contour itself is partly external (Refs. 9–10).

major comments (3)
  1. [NUMERICAL RESULTS / GEOMETRIC CONSTRAINTS] Key Result 1 and the free-return example enforce multiple half-plane chance constraints each at k=3 / Φ(3) (Eqs. 84a–d; similarly six faces with Δ1=0.01 in Eqs. 75a–f). The manuscript does not state whether these are treated as independent risk allocations or as a joint chance constraint, nor how the joint success probability is bounded when several banana supports are active. For a chance-constrained guidance claim this is load-bearing: please clarify the risk-allocation policy and, if independent, report joint Monte Carlo success rates (not only per-face or aggregate violation percentages).
  2. [Key Result 1 / NUMERICAL RESULTS] The central geometric claim is that Eqs. (31)–(32) approximate true isoprobability contours well enough to certify chance constraints. End-to-end Monte Carlo of optimized policies (Figs. 4, 7–8, 10) supports improved satisfaction, and the free-return text asserts an excellent visual fit, but the paper does not report quantitative contour diagnostics (e.g., empirical coverage of the banana boundary at the design k, or Hausdorff/support error vs. a high-sample reference contour) for the distributions actually optimized. Adding such metrics for at least one slice in each example would make Key Result 1 independently checkable inside this manuscript rather than relying mainly on Refs. 9–10.
  3. [APPENDIX B] Appendix B introduces a covariance mix ρ between LinCov and CUT covariance and notes that ρ>0 produces a “double-counting” buffer that is “not completely rigorous.” The implementation uses ρ=0, which is fine, but the text still presents ρ as a practical tuning knob. Either remove the non-rigorous buffer recommendation or clearly mark it as an optional heuristic outside the formal chance-constraint guarantee, so readers do not treat buffered contours as certified kσ sets.
minor comments (5)
  1. [Table 1] Table 1: “Banana sampled” uses 18g vs. 6g+3Dg for analytic variants, yet total times are nearly identical because t_UQ dominates. A short sentence interpreting this (UQ cost, not constraint form, is the bottleneck) would better support the “efficient” title claim.
  2. [II. Lunar Free-Return] The free-return study is planar CR3BP with out-of-plane errors declared subdominant. Please state explicitly that the 6D composition claim is deferred to Ref. 10 and is not demonstrated here, so the end-to-end guidance claim is 2D.
  3. [DERIVATION OF NON-GAUSSIAN CONFIDENCE CONTOUR] Notation: a,b are used both as ellipse semi-axes (Eq. 4) and as whitening vectors (Eq. 21); the text notes this but it remains easy to misread Eqs. (25)–(26). Distinct symbols would help.
  4. [Throughout / REFERENCES] Typos/style: “DERIV ATION”, “exectution”, “Niccol `o”, and inconsistent “LinCov”/“linear covariance” labeling in figure captions. Also arXiv IDs in the reference list for related works by the same authors should be cross-checked for final publication.
  5. [Figure 2 / NUMERICAL RESULTS] Figure 2 demonstrates ga,τ vs. τ but does not give the τ values used in the asteroid or free-return optimizations; please report them for reproducibility.

Circularity Check

1 steps flagged · score 2.0 of 10

Minor self-citation of the banana-contour method origin (Ref. 9); application claims are independently Monte-Carlo-checked and not tautological.

  1. self citation load bearing [INTRODUCTION; DERIVATION OF NON-GAUSSIAN CONFIDENCE CONTOUR (opening)]
    "Ref. 9 introduces a promising new technique for analytically approximating confidence boundaries for the non-Gaussian “banana distributions” encountered in astrodynamics. ... The methodology works well for high-fidelity cases we’ve tested,10 ... In this paper, which is devoted to application of the method, we focus on planar (two-state) parameterizations ... The approach we will expand on was first outlined in Ref. 9."

    The geometric premise of the paper—that a first-order skew/kurtosis deformation of the covariance ellipse adequately approximates banana isoprobability contours—is attributed to prior work by the same lead authors (Ref. 9) with supporting high-fidelity checks in overlapping-author Ref. 10. This is not a uniqueness theorem that forbids alternatives, and this manuscript re-derives the formulas and validates guidance outcomes with independent Monte Carlo, so the self-citation is not load-bearing for the targeting claims; it only partially externalizes contour-accuracy justification.

full rationale

The paper re-derives the banana contour (ansatz Eq. 7, moment identities, Cornish–Fisher long-axis shift, Key Result 1 Eqs. 31–32) and the half-plane surrogates (Key Results 2–3) in closed form from covariance, skew, and kurtosis. α, β, and c(k) are computed from CUT moments, not fitted to match Monte Carlo isoprobability contours. Free parameters (τ, risk Δ, Gates sigmas) are stated and not reverse-engineered from the reported MC success rates. The asteroid and Artemis-like examples compare banana policies against LinCov and naive retargeting with independent 5000-sample Monte Carlo, so the central guidance claim does not reduce by construction to its inputs. The only circularity-adjacent element is that the geometric validity of the contour method is introduced as an expansion of Ref. 9 (same lead authors) and high-fidelity contour checks are deferred to Ref. 10 (overlapping authors). That is ordinary self-citation of prior method development, not a load-bearing uniqueness theorem or a fitted quantity renamed as a prediction. Score 2.

Assumptions & free parameters 5 free parameters · 6 assumptions · 2 invented entities

The central claim rests on a domain model of weakly banana-shaped uncertainty, a low-order geometric ansatz, standard moment estimators, and operational risk/smoothing knobs—not on new physical entities. Free parameters are optimizer/surrogate and error-model settings; axioms are standard probability/astrodynamics plus the paper’s first-order deformation model.

free parameters (5)
  • smoothing temperature τ (log-sum-exp / log-integral-exp surrogates)
    Chosen by hand to trade conservatism vs smoothness; Fig. 2 shows strong sensitivity; not derived from first principles.
  • Lipschitz bound L on ψ′ for conservative surrogate C(τ,L)
    Treated as fixed or occasionally updated overestimate; enters the enforceable constraint ga,τ ≤ 0.
  • risk allocations Δ1 and k (e.g. 3σ / Φ(3))
    Operational chance levels assigned per face; change the feasible set and reported satisfaction.
  • Gates maneuver-error sigmas (σs, σr, σp, σa) and navigation sigmas
    Scenario inputs (Tables 3–5); Burn 1 uses a pessimistic 3% proportional error that drives non-Gaussianity.
  • covariance mix ρ between LinCov and CUT covariance
    Appendix B introduces ρ as a tuning buffer; implementation sets ρ=0 but documents it as a free design choice.
assumptions (6)
  • domain assumption Propagated uncertainty of interest is weakly non-Gaussian and banana-shaped so a first-order deformation of the covariance ellipse is adequate.
    Stated in derivation section and conclusions; excludes multi-modal or strongly irregular distributions.
  • ad hoc to paper Quadratic ansatz ˆv ≈ β + α û² captures the dominant bend; higher-order or û∝v̂² terms are sub-dominant.
    Eq. 7 motivated by weakly nonlinear maps, not proved unique for orbital flows.
  • ad hoc to paper Univariate Cornish–Fisher first-order skew correction plus even t-periodic extension gives the long-axis asymmetry of the 2D contour.
    Eqs. 8–11 and 27–30; authors note four moments do not uniquely determine the isoprobability set.
  • domain assumption CUT4 (or equivalent deterministic moment method) supplies accurate enough third- and fourth-order central moments for contour coefficients.
    Appendix A; standard in uncertainty quantification but approximate for strong nonlinearity.
  • domain assumption Half-plane (or local half-plane) chance constraints and impulsive CR3BP/two-body dynamics model the operational problem.
    Geometric Constraints section and numerical examples; standard GNC modeling choice.
  • standard math Standard multivariate moment/cumulant identities for Gaussian vs non-Gaussian tensors (M(3)=0, Isserlis-type M(4)).
    Moment Identities section, Eqs. 12–15.
invented entities (2)
  • Banana confidence contour (u(t),v(t)) as first-order skew/kurtosis deformation of the kσ ellipse
    purpose: Closed-form non-Gaussian support geometry for chance constraints without sampling the full density.
    Defined in Key Result 1 from prior Ref. 9; empirical support via Monte Carlo overlays here, but not an independently measured physical object.
  • Conservative log-integral-exp chance surrogate ga,τ[ψ] with additive C(τ,L)
    purpose: Smooth upper bound on max_t ψ avoiding discontinuous active-angle jumps.
    Key Result 3 / Appendix C; mathematical construction internal to the paper.

how reviews work

0 comments
Cite this review

Pith. "Pith review of An Efficient Non-Gaussian Chance Constraint Method for Stochastic Nonlinear Problems in Spaceflight." pith.science (2026). https://pith.science/paper/F5JDZA4Z

@misc{pith2026260703424,
  author       = {Pith},
  title        = {Pith review of: An Efficient Non-Gaussian Chance Constraint Method for Stochastic Nonlinear Problems in Spaceflight},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/F5JDZA4Z}},
  note         = {Machine review of arXiv:2607.03424}
}
read the original abstract

Standard chance-constrained spacecraft guidance typically relies on the assumption that uncertainties in vehicle states obey Gaussian statistics. In frontier applications such as the cislunar environment or deep space flybys, the dynamics can be particularly nonlinear, and time between measurements can be long, leading to the need to make decisions whose outcomes produce non-Gaussian distributions. This paper demonstrates a non-Gaussian confidence boundary technique for stochastic guidance in such applications. Our approach is to consider the true confidence contour as a perturbation of the one predicted from covariance, then to derive perturbed boundary geometry from computed higher-order statistical moments. Applying this technique to so-called "banana-shaped distributions", found in orbital mechanics problems, enables a simple parameterization of the confidence contour using the skew and kurtosis tensors. This parameterization is then applied to a stochastic and nonlinear impulsive spacecraft maneuver targeting problem, with special treatment of a relevant non-convex constraint.

Figures

Figures reproduced from arXiv: 2607.03424 by the authors.

Figure 1
Figure 1. Non-Gaussian Chance Constraint Geometry Overcoming the Non-Convex Constraint I. Direct Gradient Smoothing: We must first identify exactly the tcrit angles, and then propose a stable alternative to the discrete jump in gradient between these values. Starting from Eq. (42), we first impose B(χ) = 0. Then ψ0(χ, t) = A(χ) + C(χ) sin t + D(χ) cos2 t. (55) Differentiating with respect to t, the critical points can be iden… view at source ↗
Figure 2
Figure 2. Example Demonstration of Conservative Surrogate for Various Values of [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3
Figure 3. Asteroid maneuver targeting scenario 13 [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: Monte Carlo Outcomes of LinCov vs. Banana Stochastic Control [PITH_FULL_IMAGE:figures/full_fig_p014_4.png]
Figure 5
Figure 5. Figure 5: Artemis II-like Planar Free Return [PITH_FULL_IMAGE:figures/full_fig_p015_5.png]
Figure 6
Figure 6. Figure 6: Post-flyby stochastic maneuver planning with banana policy: Correction Burn 1 [PITH_FULL_IMAGE:figures/full_fig_p018_6.png]
Figure 7

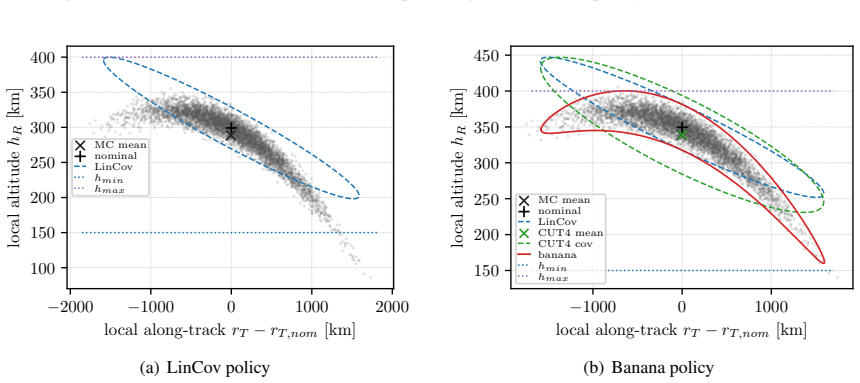

Figure 7. Figure 7: Arrival position constraint satisfaction with Monte Carlo [PITH_FULL_IMAGE:figures/full_fig_p018_7.png]
Figure 8
Figure 8. Figure 8: Arrival velocity constraint satisfaction with Monte Carlo [PITH_FULL_IMAGE:figures/full_fig_p019_8.png]
Figure 9
Figure 9. Figure 9: Pre-entry stochastic maneuver planning with banana policy: Correction Burn 2 [PITH_FULL_IMAGE:figures/full_fig_p019_9.png]
Figure 10
Figure 10. Figure 10: Arrival constraint satisfaction with Monte Carlo (banana policy) [PITH_FULL_IMAGE:figures/full_fig_p020_10.png]
