Enhancement of nitride-based solar cells using graphene as transparent contact layer

Miriam Cadenas , Mireia Mart\'inez , Kerly S\'anchez , Jordi Ib\'a\~nez , Sergi Hern\'andez , Sirona Valdueza-Felip , Ana M. Diez-Pascual , Fernando B. Naranjo This is my paper

Reviewed by Pith2026-06-27 07:48 UTCgrok-4.3pith:FA63FXGFopen to challenge →

classification physics.app-ph
keywords graphene contactAlInN solar cellssilicon substratestransparent conductive layershort-circuit current densitypower conversion efficiencynitride photovoltaics
0
0 comments X

The pith

Adding a graphene layer as semitransparent contact raises short-circuit current, fill factor, and efficiency in AlInN solar cells on silicon for three different aluminum contents.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the effect of transferring a monolayer graphene film onto AlxIn1-xN layers grown on p-type silicon substrates with an amorphous silicon buffer. Devices with x values of 0.22, 0.35, and 0.43 are fabricated and tested both with and without the graphene layer using a low-temperature transfer process. The results show consistent gains in short-circuit current density, fill factor, and power conversion efficiency across all compositions, with open-circuit voltage staying largely the same. A sympathetic reader would care because this points to a straightforward way to improve nitride-based solar cell performance using an existing transparent conductor without major changes to voltage output.

Core claim

Incorporating a transferred monolayer graphene film as a semitransparent conductive contact on the front surface of AlInN solar cells on silicon leads to clear improvements in short-circuit current density, fill factor, and overall power conversion efficiency for aluminum contents of 0.22, 0.35, and 0.43, while open-circuit voltage remains largely unaffected.

What carries the argument

A monolayer graphene film transferred at low temperature onto the front surface, serving as a semitransparent conductive contact layer.

If this is right

  • Short-circuit current density increases for all three studied Al compositions.
  • Fill factor improves across the same set of devices.
  • Power conversion efficiency rises while open-circuit voltage stays mostly constant.
  • The low-temperature graphene transfer works on the existing AlInN-on-Si structure with a-Si buffer.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same transfer approach might be tested on other thin-film solar cell stacks that already use silicon substrates to see if similar contact benefits appear.
  • If the graphene mainly reduces series resistance at the front surface, combining it with existing metal grids could be checked for additive effects.
  • Variations in graphene coverage or defects after transfer could be mapped directly against local photocurrent to confirm the contact mechanism.

Load-bearing premise

The performance gains come from the graphene functioning as an effective semitransparent conductive contact rather than from side effects of the transfer process or differences in device fabrication.

What would settle it

Fabricate matched pairs of devices, transfer graphene to one set, then remove or damage the graphene on those devices and re-measure to check whether the improvements in current density, fill factor, and efficiency disappear.

Figures

Figures reproduced from arXiv: 2606.11941 by Ana M. Diez-Pascual, Fernando B. Naranjo, Jordi Ib\'a\~nez, Kerly S\'anchez, Mireia Mart\'inez, Miriam Cadenas, Sergi Hern\'andez, Sirona Valdueza-Felip.

Figure 2

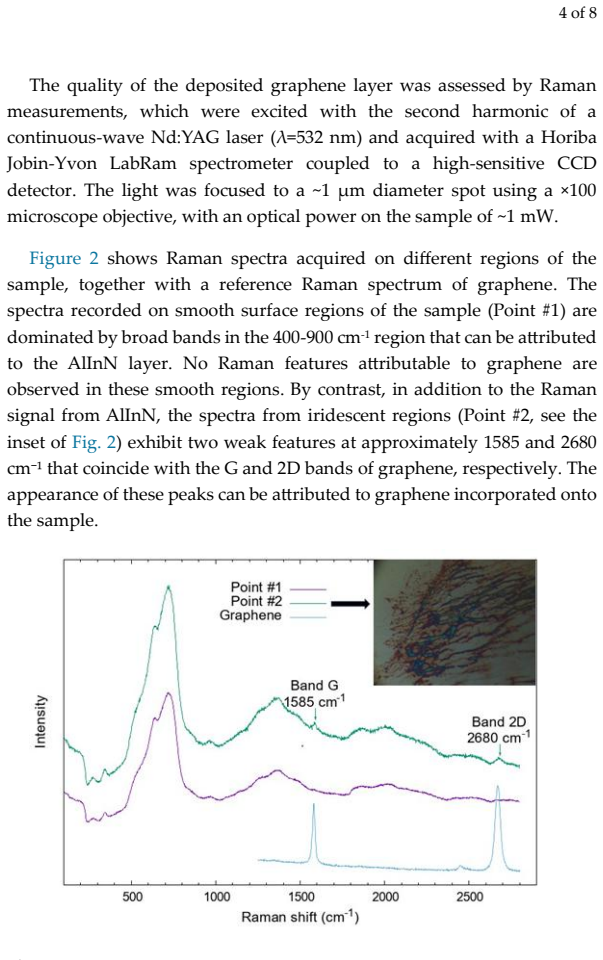

Figure 2. Figure 2: shows Raman spectra acquired on different regions of the sample, together with a reference Raman spectrum of graphene. The spectra recorded on smooth surface regions of the sample (Point #1) are dominated by broad bands in the 400-900 cm-1 region that can be attributed to the AlInN layer. No Raman features attributable to graphene are observed in these smooth regions. By contrast, in addition to the Raman … view at source ↗
read the original abstract

The effect of using a graphene layer as a semitransparent contact layer is studied in solar cells based on AlInN on Si (100) substrates. The devices consist of AlxIn1-xN layers deposited on p-type Si (100) substrates incorporating a thin amorphous silicon (a-Si) buffer layer to improve the heterointerface quality. Three aluminum contents are studied, namely: x=0.22, 0.35 and 0.43. Subsequently, a monolayer graphene film was transferred onto the front surface of the devices using a simple and low-temperature transfer process, acting as a semitransparent conductive contact. The photovoltaic characteristics were then evaluated under illumination and dark conditions in devices with and without the graphene layer. The results show that the incorporation of graphene leads to a clear improvement in the short-circuit current density, fill factor, and overall power conversion efficiency for all studied compositions, while the open-circuit voltage remains largely unaffected. These findings demonstrate the potential of graphene as an effective transparent conductive contact for nitride-based solar cells.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript examines Al_x In_{1-x}N / p-Si(100) solar cells incorporating a thin a-Si buffer layer for x = 0.22, 0.35, and 0.43. A monolayer graphene film is transferred at low temperature onto the front surface to serve as a semitransparent conductive contact; photovoltaic characteristics (J_sc, V_oc, FF, PCE) are compared under illumination and in the dark for devices with and without the graphene layer.

Significance. If the reported gains in J_sc, FF, and PCE can be isolated to the graphene layer, the low-temperature transfer approach would offer a practical route to transparent contacts for nitride-on-silicon heterojunction cells.

major comments (2)
  1. [Abstract] Abstract: the central claim that graphene incorporation produces the observed improvements rests on a with/without-graphene comparison performed after the low-temperature transfer step. No sham-transfer control (devices subjected to the identical transfer process but without graphene) is described; this leaves open the possibility that changes in surface passivation, interface states at the AlInN/a-Si boundary, or effective collection area arise from the transfer process itself rather than from graphene's sheet resistance or transmittance.
  2. [Abstract] Abstract (and implied results section): no numerical values, standard deviations, number of devices measured, or statistical tests are supplied for the claimed improvements in J_sc, FF, and PCE across the three compositions. Without these data the magnitude, reproducibility, and statistical significance of the enhancements cannot be assessed.
minor comments (1)
  1. [Abstract] Abstract: illumination intensity, spectral details, and exact transfer-process parameters (temperature, pressure, handling steps) should be stated to allow reproduction.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment below and have made revisions to strengthen the manuscript where feasible.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that graphene incorporation produces the observed improvements rests on a with/without-graphene comparison performed after the low-temperature transfer step. No sham-transfer control (devices subjected to the identical transfer process but without graphene) is described; this leaves open the possibility that changes in surface passivation, interface states at the AlInN/a-Si boundary, or effective collection area arise from the transfer process itself rather than from graphene's sheet resistance or transmittance.

    Authors: We agree this is a valid limitation of the current experimental design. The reported comparison is between devices measured before the transfer step and after graphene transfer; no sham-transfer (process without graphene) was performed. While the low-temperature transfer protocol was chosen specifically to minimize interface disruption, we cannot rigorously exclude contributions from the transfer process alone. In the revised manuscript we have added an explicit discussion of this caveat in the results section and note that future work will include sham-transfer controls. We maintain that the consistent gains across three distinct Al fractions, combined with graphene's established low sheet resistance and high transmittance, support attribution to the graphene layer, but we accept that the referee's point identifies a genuine gap in the present evidence. revision: partial

  2. Referee: [Abstract] Abstract (and implied results section): no numerical values, standard deviations, number of devices measured, or statistical tests are supplied for the claimed improvements in J_sc, FF, and PCE across the three compositions. Without these data the magnitude, reproducibility, and statistical significance of the enhancements cannot be assessed.

    Authors: The referee correctly notes that the abstract omitted quantitative details. The full manuscript contains the underlying J-V data, but we have now revised the abstract to report average percentage changes with standard deviations and have inserted a new summary table in the results section. The table lists J_sc, V_oc, FF, and PCE for each composition (typically 5 devices measured per condition), includes standard deviations, and reports p-values from paired t-tests comparing graphene and no-graphene devices. These additions allow direct evaluation of effect size, reproducibility, and statistical significance. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental device measurements with direct comparisons

full rationale

The paper is an experimental study reporting fabrication of AlInN/Si solar cells, low-temperature graphene transfer, and direct I-V measurements under illumination/dark conditions for devices with vs. without graphene. No equations, models, fitted parameters, predictions, or derivations are present. Claims rest on measured Jsc, FF, PCE, and Voc values; the with/without comparison is a standard control and does not reduce to any self-referential construction. No self-citations are load-bearing for any mathematical step. This matches the default non-circular case for experimental work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

This is an experimental materials-science study; the central claim rests on standard assumptions in semiconductor device characterization and thin-film processing rather than new theoretical constructs or fitted parameters.

axioms (1)
  • domain assumption Standard photovoltaic metrics (short-circuit current density, open-circuit voltage, fill factor, power conversion efficiency) are correctly defined and applied to these heterostructure devices
    The abstract reports changes in these quantities without re-deriving or redefining them.
