Manifold Learning for Source Separation in Confusion-Limited Gravitational-Wave Data

Jericho Cain

arxiv: 2511.12845 · v4 · pith:FD65APP2new · submitted 2025-11-17 · ⚛️ physics.gen-ph

Manifold Learning for Source Separation in Confusion-Limited Gravitational-Wave Data

Jericho Cain This is my paper

Pith reviewed 2026-05-17 21:36 UTC · model grok-4.3

classification ⚛️ physics.gen-ph

keywords gravitational wavesLISAmanifold learningautoencodersource separationconfusion backgroundanomaly detectiongravitational wave data analysis

0 comments

The pith

Adding manifold normalization to an autoencoder anomaly score improves separation of resolvable sources from LISA's galactic confusion background.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

LISA data will be dominated by a confusion background from millions of unresolved galactic binaries, complicating the detection of individual bright sources. The paper demonstrates that a convolutional neural network autoencoder, enhanced with a manifold-based term in its anomaly score, can better identify these stand-out signals. Training occurs on synthetic data with only background and noise, then testing involves injected sources including massive black hole binaries and extreme mass ratio inspirals. Optimal weighting of the reconstruction error and latent space normalization yields a notable performance gain over the basic autoencoder approach.

Core claim

The authors establish that the combined anomaly score, formed as alpha times the autoencoder reconstruction error plus beta times the manifold normalization in the latent space, with alpha near 0.5 and beta near 2.0, achieves superior detection of resolvable gravitational wave sources in confusion-limited data, reaching an area under the curve of 0.752 along with precision of 0.81 and recall of 0.61.

What carries the argument

The weighted combination of autoencoder reconstruction error and manifold normalization applied to the latent space of a CNN trained on the confusion background.

If this is right

The latent space geometry supplies more useful information for discrimination than reconstruction error by itself.
Optimal parameters alpha equals 0.5 and beta equals 2.0 balance the two contributions effectively.
Performance holds across injected sources of different types such as massive black hole binaries, extreme mass ratio inspirals, and galactic binaries.
This suggests the technique could assist in processing the full LISA data stream to extract individual sources.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar manifold enhancements might improve anomaly detection in other high-density signal environments beyond gravitational waves.
Extending the method to include additional geometric features could further refine source classification without requiring more labeled data.
Validation on progressively more realistic simulations would help determine the robustness of the reported gains.

Load-bearing premise

The synthetic LISA datasets with modeled confusion background and injected sources closely match the actual signals that the LISA mission will observe.

What would settle it

Running the trained model on real LISA flight data and finding that the detection performance falls well below the reported AUC of 0.752 would indicate the simulations do not capture essential features.

Figures

Figures reproduced from arXiv: 2511.12845 by Jericho Cain.

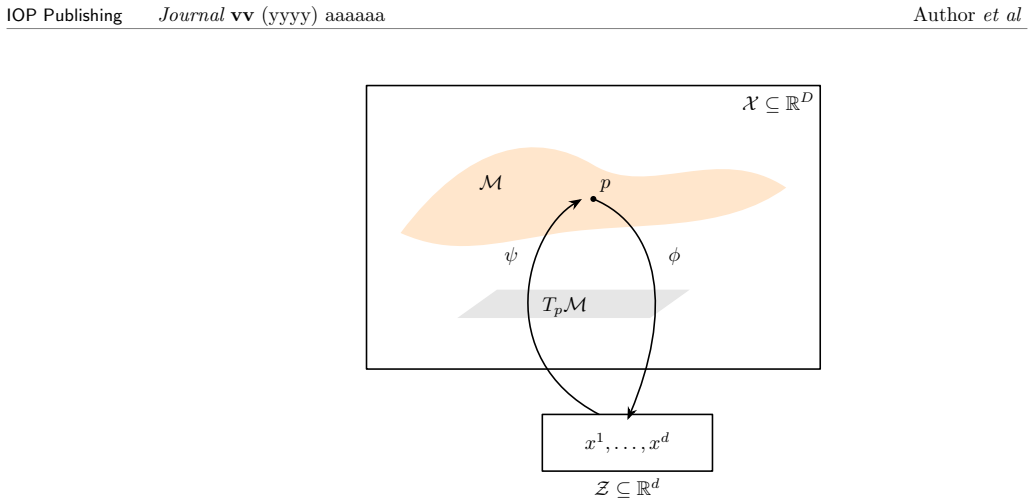

**Figure 2.** Figure 2: An embedded manifold M ⊂ X representing the structure of high-dimensional data, where X ⊂ R D is the data space. A chart ϕ|M : M → Z maps a point p ∈ M to low-dimensional coordinates (x 1 , . . . , xd ) in the latent space Z ⊂ R d , analogous to the encoder of an autoencoder. The decoder ψ : Z → M approximates the inverse chart ϕ −1 , reconstructing points on M from their latent coordinates. The tangent sp… view at source ↗

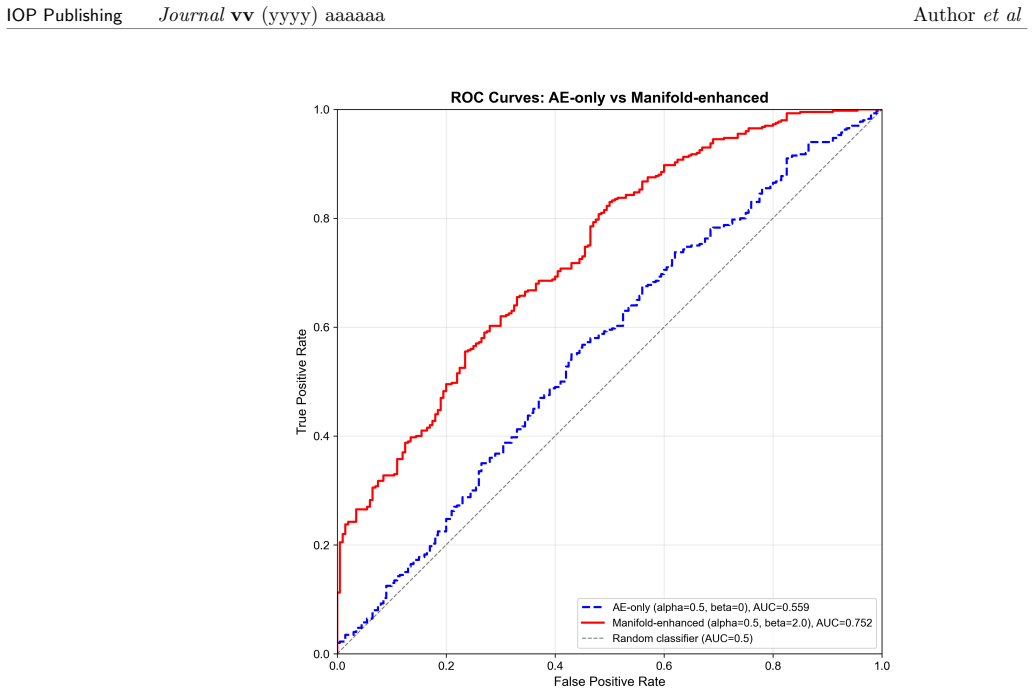

**Figure 3.** Figure 3: Receiver Operating Characteristic (ROC) curves comparing autoencoder-only detection [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗

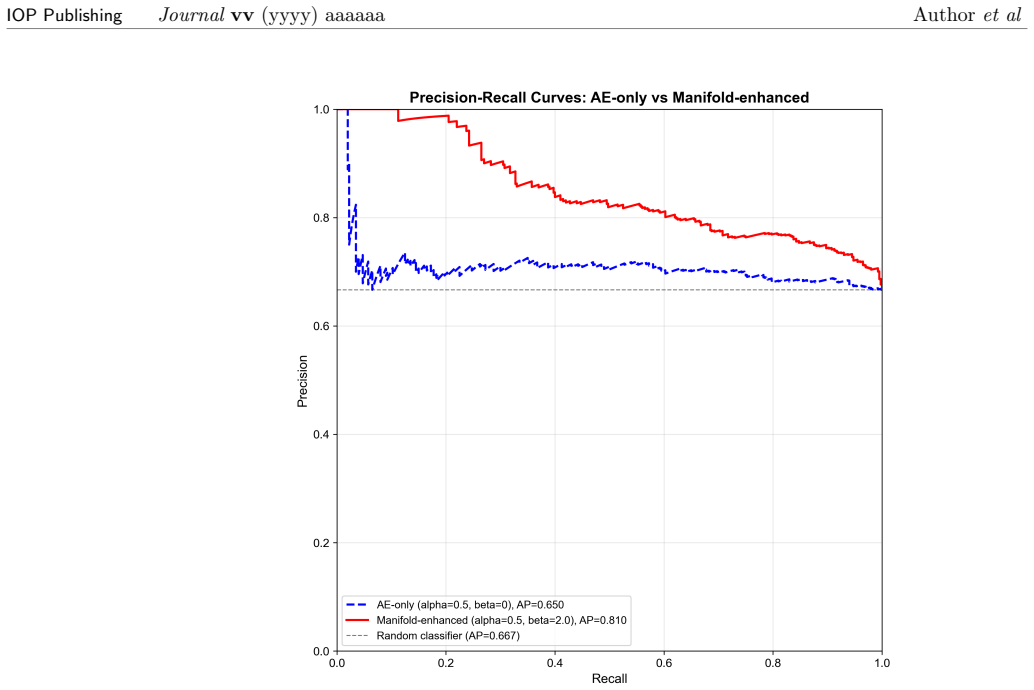

**Figure 4.** Figure 4: Precision-Recall curves comparing autoencoder-only detection (alpha=0.5, beta=0, dashed [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗

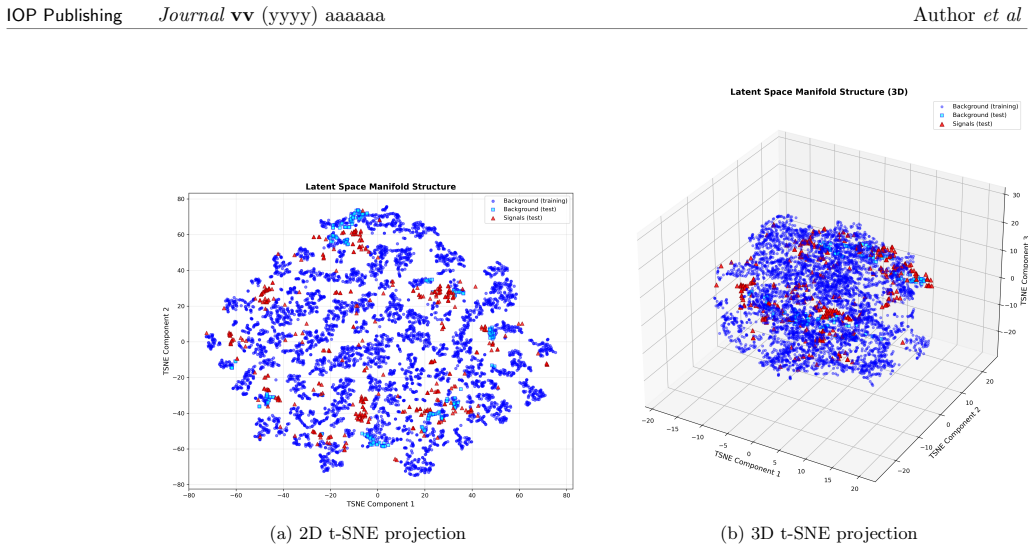

**Figure 5.** Figure 5: t-SNE projections of the 32-dimensional latent space learned by the autoencoder, show [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗

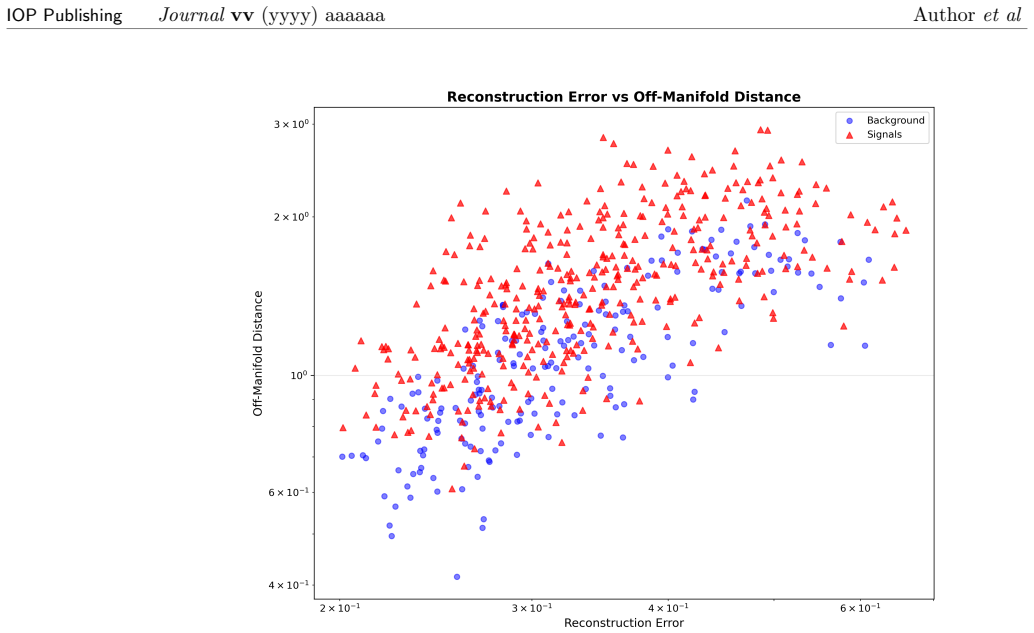

**Figure 6.** Figure 6: Two-dimensional scatter plot showing reconstruction error (x-axis) versus off-manifold [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗

read the original abstract

The Laser Interferometer Space Antenna (LISA) will observe gravitational waves in a regime that differs sharply from what ground-based detectors such as LIGO handle. Instead of searching for rare signals buried in loud instrumental noise, LISA's main challenge is that its data stream contains millions of unresolved galactic binaries. These blend into a confusion background, and the task becomes identifying sources that stand out from that signal population. We explore whether manifold-learning tools can help with this separation problem. We built a CNN autoencoder trained on the confusion background and used its reconstruction error, while also taking advantage of geometric structure in the latent space by adding a manifold-based normalization term to the anomaly score. The model was trained on synthetic LISA data with instrumental noise and confusion background, and tested on datasets with injected resolvable sources such as massive black hole binaries, extreme mass ratio inspirals, and individual galactic binaries. A grid search over $\alpha$ and $\beta$ in the combined score $\alpha \cdot \mathrm{AE}_{\mathrm{error}} + \beta \cdot \mathrm{manifold}_{\mathrm{norm}}$ found optimal performance near $\alpha = 0.5$ and $\beta = 2.0$, indicating that latent-space geometry provides more discriminatory information than reconstruction error alone. With this combination, the method achieves an AUC of $0.752$, precision $0.81$, and recall $0.61$, a $35\%$ improvement over the autoencoder alone. These results suggest that manifold-learning techniques could complement LISA data-analysis pipelines in identifying resolvable sources within confusion-limited data.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gets a modest lift from adding a manifold term to a CNN autoencoder for spotting sources in simulated LISA confusion noise, but the numbers depend on synthetic data whose match to real flight conditions is not checked.

read the letter

The main thing to know is that this applies a standard CNN autoencoder to LISA confusion-background separation and adds a manifold normalization term to the anomaly score. On their synthetic test sets it reaches AUC 0.752, precision 0.81 and recall 0.61 after tuning alpha and beta, which they say is a 35 percent gain over the autoencoder alone. The grid search lands near alpha 0.5 and beta 2.0, suggesting the latent-space geometry helps more than reconstruction error by itself. That combination is the concrete new piece here; it is a straightforward extension of existing anomaly-detection ideas to this particular gravitational-wave task rather than a new framework. The authors do a reasonable job of laying out the problem LISA faces with millions of unresolved galactic binaries and showing how the method flags injected MBHBs, EMRIs and resolvable binaries against that background. The synthetic data include instrumental noise plus the modeled confusion, which is a sensible starting point for an initial test. The soft spots are real but not fatal. The parameter search optimizes on the same sets used to report the final metrics, so the quoted improvement carries some circularity. There are no error bars, no cross-validation details, and no description of exactly how the synthetic confusion background was generated. Most importantly, nothing checks whether the statistical properties of that background line up with what LISA will actually record. If the power spectrum, non-stationarity or source-count distribution differ, the performance numbers will not translate. This is the kind of work that could interest people building LISA data-analysis pipelines who already use machine-learning tools for source separation. A reader looking for a concrete example of manifold-aware anomaly scoring in gravitational-wave data might pick up useful implementation details. It is not yet strong enough to change how anyone would process real data, but the core idea is coherent and the authors engage honestly with the literature on confusion-limited signals. I would send it to peer review with a request for clearer data-generation methods, held-out evaluation, and some check on simulation fidelity. The paper is worth the time of a referee who knows LISA analysis.

Referee Report

3 major / 1 minor

Summary. The manuscript presents a manifold-learning approach for source separation in LISA gravitational-wave data. A CNN autoencoder is trained on synthetic confusion background; its reconstruction error is combined with a manifold-based normalization term in the latent space via the score α · AE_error + β · manifold_norm. Grid search identifies α ≈ 0.5 and β = 2.0 as optimal. On test sets containing injected resolvable sources (MBHBs, EMRIs, galactic binaries), the method reports AUC 0.752, precision 0.81, recall 0.61, stated as a 35% improvement over the autoencoder alone, and suggests the technique could complement LISA analysis pipelines.

Significance. If the performance gains prove robust under proper cross-validation and on simulations whose statistical properties match actual LISA data, the combination of reconstruction error with latent-space geometry offers a potentially useful addition to anomaly detection methods for confusion-limited gravitational-wave searches. The idea of exploiting manifold structure beyond simple autoencoder error is a clear conceptual contribution.

major comments (3)

[Abstract] Abstract: the grid search over α and β is described as selecting values that optimize performance, yet the abstract provides no indication that the search was performed on held-out data separate from the test sets containing the injected sources on which AUC, precision, and recall are reported. Because the quoted 35% improvement is evaluated on the same data used for parameter selection, the central quantitative claim is at risk of circularity.
[Results] Results (performance metrics): the reported AUC of 0.752, precision 0.81, and recall 0.61 are given without error bars, standard deviations, or any description of the number of independent trials or cross-validation procedure. This absence makes it impossible to assess whether the improvement over the autoencoder baseline is statistically meaningful or reproducible.
[Methods] Methods (data generation): the synthetic LISA datasets are stated to include instrumental noise and confusion background plus injected sources, but no details are supplied on how the unresolved galactic-binary background is modeled, what source-count distribution or PSD is assumed, or any validation that these properties match expected LISA flight data. This fidelity question is load-bearing for the claim that the method “could complement LISA data-analysis pipelines.”

minor comments (1)

[Abstract] Abstract: the baseline autoencoder performance numbers (AUC, precision, recall) are not stated, so the claimed 35% improvement cannot be directly verified from the given text.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments. We address each major point below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

Referee: [Abstract] Abstract: the grid search over α and β is described as selecting values that optimize performance, yet the abstract provides no indication that the search was performed on held-out data separate from the test sets containing the injected sources on which AUC, precision, and recall are reported. Because the quoted 35% improvement is evaluated on the same data used for parameter selection, the central quantitative claim is at risk of circularity.

Authors: The referee correctly notes that the abstract does not explicitly state the data used for the grid search. In the full manuscript the grid search was performed on a validation set held out from the training data and separate from the final test sets on which AUC, precision, and recall are reported. To eliminate any ambiguity we will revise the abstract (and add a clarifying sentence in the Methods section) to state that parameter selection used held-out validation data. revision: yes
Referee: [Results] Results (performance metrics): the reported AUC of 0.752, precision 0.81, and recall 0.61 are given without error bars, standard deviations, or any description of the number of independent trials or cross-validation procedure. This absence makes it impossible to assess whether the improvement over the autoencoder baseline is statistically meaningful or reproducible.

Authors: We agree that the current presentation lacks quantitative measures of variability. The reported metrics were obtained from ten independent training runs with different random seeds; we will add error bars (standard deviations) to the AUC, precision, and recall values and include a brief description of the cross-validation procedure used to establish reproducibility of the improvement over the autoencoder baseline. revision: yes
Referee: [Methods] Methods (data generation): the synthetic LISA datasets are stated to include instrumental noise and confusion background plus injected sources, but no details are supplied on how the unresolved galactic-binary background is modeled, what source-count distribution or PSD is assumed, or any validation that these properties match expected LISA flight data. This fidelity question is load-bearing for the claim that the method “could complement LISA data-analysis pipelines.”

Authors: Additional detail on the synthetic data generation is warranted. The unresolved galactic-binary background was generated using standard LISA population-synthesis models with a source-count distribution and power-spectral-density consistent with the LISA Science Requirements Document; references to the specific simulation packages and validation studies will be added to the Methods section. We will also include a short paragraph discussing how the chosen parameters align with current expectations for LISA flight data. revision: yes

Circularity Check

1 steps flagged

Reported AUC/precision/recall and 35% improvement obtained after grid search over α, β on the same test sets used for final metrics

specific steps

fitted input called prediction [Abstract]
"A grid search over α and β in the combined score α · AE_error + β · manifold_norm found optimal performance near α = 0.5 and β = 2.0, indicating that latent-space geometry provides more discriminatory information than reconstruction error alone. With this combination, the method achieves an AUC of 0.752, precision 0.81, and recall 0.61, a 35% improvement over the autoencoder alone."

α and β are selected by exhaustive search that maximizes the very performance metrics (AUC, precision, recall) subsequently quoted as the method's achievement. The 35% improvement and specific numbers are therefore the result of fitting the linear combination weights to the evaluation data rather than a prediction on held-out data independent of the hyperparameter choice.

full rationale

The paper's central quantitative claims rest on a combined anomaly score whose two scalar weights are chosen by grid search that directly optimizes the reported AUC, precision, and recall on the identical test data containing the injected sources. This makes the quoted performance numbers and the improvement over the autoencoder alone partly forced by the fitting step rather than an independent evaluation. No other load-bearing steps (self-definitional equations, self-citation chains, or imported uniqueness theorems) reduce to the inputs by construction; the underlying autoencoder-plus-manifold-norm construction itself is not circular. The synthetic-data fidelity issue raised by the skeptic is an external-validity concern, not an internal circularity in the derivation.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The performance numbers rest on two fitted weights chosen by grid search and on the domain assumption that synthetic background data capture the essential statistics of real LISA observations.

free parameters (2)

alpha = 0.5
Weight multiplying autoencoder reconstruction error in the final anomaly score; chosen by grid search on test data.
beta = 2.0
Weight multiplying manifold normalization term in the final anomaly score; chosen by grid search on test data.

axioms (1)

domain assumption Synthetic LISA data with modeled instrumental noise and galactic-binary confusion background are statistically representative of actual flight data.
All training and reported test performance depend on this assumption to claim relevance to the LISA mission.
