Maximum entropy approaches for the study of triadic motifs in the Mergers & Acquisitions network

Ihusan Adam , Stefano Garlaschi , Jian-Hong Lin , Simone Piaggesi , Matteo Barigozzi , Andrea Gabrielli , Rossana Mastrandrea This is my paper

Pith reviewed 2026-05-25 18:10 UTC · model grok-4.3

classification ⚛️ physics.soc-ph
keywords mergers and acquisitions networktriadic motifsmaximum entropy ensemblesconfiguration modelsnull modelsbinary and weighted networkshigher-order organization
0
0 comments X

The pith

Maximum-entropy null models detect higher-order organization in the mergers and acquisitions network via motif comparison.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs maximum-entropy graph ensembles for the mergers and acquisitions network by fixing degree or strength sequences as constraints. These ensembles serve as null models to test whether observed triadic and dyadic motifs in the real network deviate significantly from random expectations. Such deviations would indicate that the network has organization at a level higher than what lower-order statistics like degrees can explain. Applying this to both binary and weighted versions of the M&A network allows researchers to probe the self-organizing properties of economic systems. This approach builds on similar methods used for interbank and trade networks to potentially identify structural changes.

Core claim

By comparing the counts of triadic and dyadic motifs in the real mergers and acquisitions network, both in its binary and weighted forms, against the distributions obtained from maximum-entropy configuration model ensembles that preserve the degree or strength sequences, one can determine whether the network exhibits statistically significant higher-order structural patterns beyond those captured by the constraints.

What carries the argument

Maximum-entropy configuration models that randomize the network while preserving the degree sequence (binary) or strength sequence (weighted), used to generate null distributions for motif significance testing.

If this is right

  • Significant over- or under-representation of certain triadic motifs points to genuine higher-order organization in the M&A network.
  • The method applies equally to binary link presence and weighted link strengths.
  • This can help detect topological changes in economic networks.
  • Similar to applications in interbank and world trade networks, it may aid in identifying early-warning signals for crises.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If higher-order motifs are found, it suggests that models based only on degrees or strengths are insufficient for simulating realistic M&A dynamics.
  • The approach could be extended to track motif evolution over time to monitor network stability.
  • Connections to other economic networks might reveal common higher-order principles in financial systems.

Load-bearing premise

The chosen maximum-entropy ensembles with degree or strength constraints capture all relevant lower-order structure, so any excess motif counts reflect true higher-order organization rather than missing constraints.

What would settle it

If the observed motif counts in the M&A network lie within the typical range of the maximum-entropy randomized ensembles for the chosen constraints, the evidence for higher-order organization would be absent.

Figures

Figures reproduced from arXiv: 1906.09135 by Andrea Gabrielli, Ihusan Adam, Jian-Hong Lin, Matteo Barigozzi, Rossana Mastrandrea, Simone Piaggesi, Stefano Garlaschi.

Figure 1
Figure 1. Figure 1: Caption [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

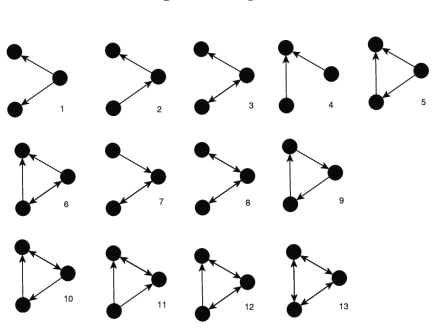

Figure 2. Figure 2: The 13 possible directed triadic motifs that can occur. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

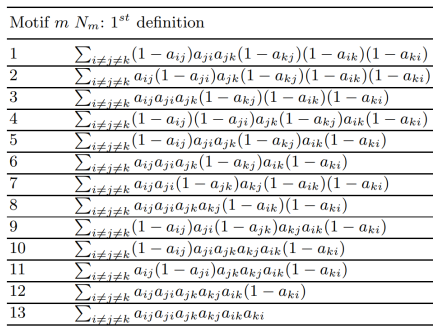

Figure 3. Figure 3: Here are displayed the formulas that have to be used, once the binary adjacency matrix is given, to [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

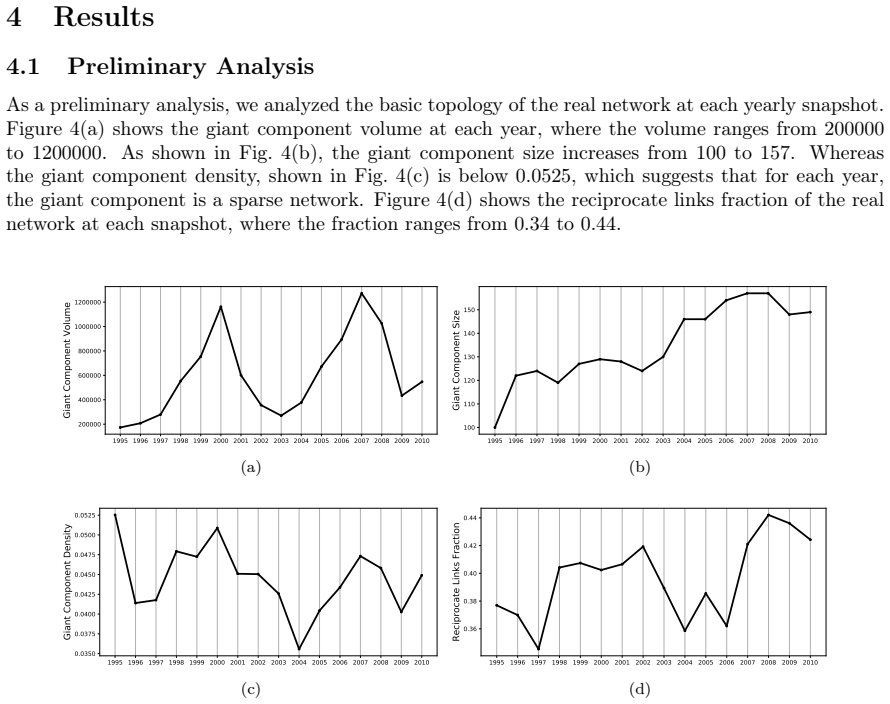

Figure 4. Figure 4: The giant component volume (a), size (b), density (c), and the reciprocate links fraction (d) of the [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

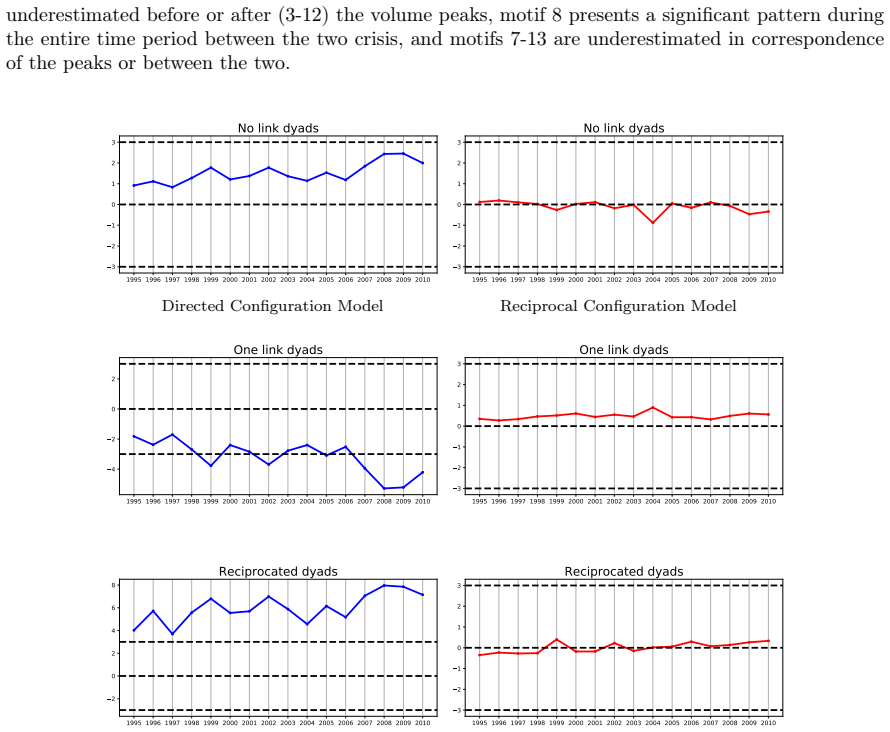

Figure 5. Figure 5: Temporal series of z-score statistics for different types of dyadic motifs. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6

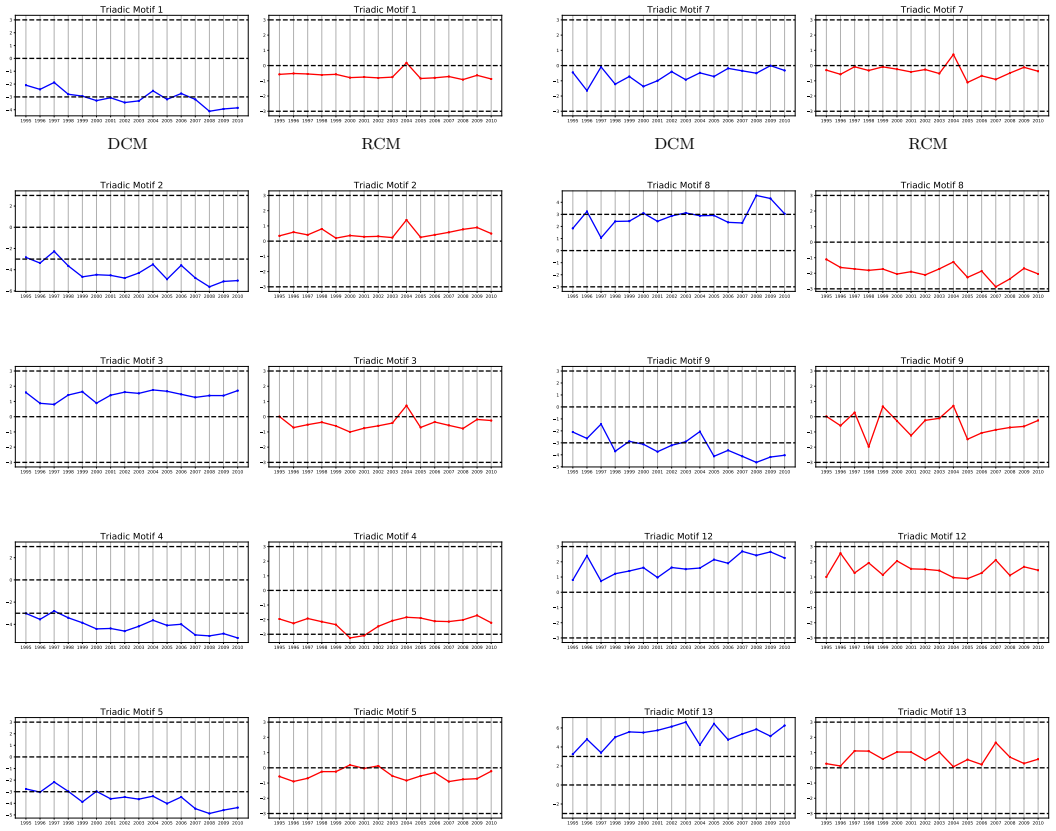

Figure 6. Figure 6: Temporal series of z-score statistics for several types of triadic motifs in the binary case. [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7

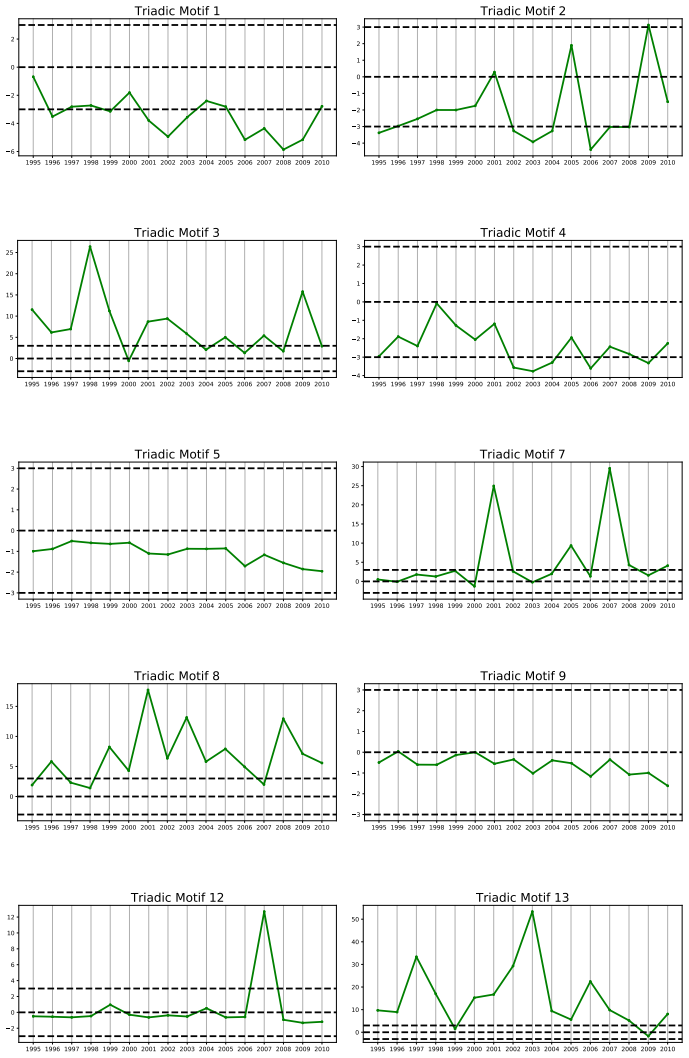

Figure 7. Figure 7: Temporal series of z-score statistics for the triadic motifs in the weighted case. [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
read the original abstract

In the past years statistical physics has been successfully applied for complex networks modelling. In particular, it has been shown that the maximum entropy principle can be exploited in order to construct graph ensembles for real-world networks which maximize the randomness of the graph structure keeping fixed some topological constraint. Such ensembles can be used as null models to detect statistically significant structural patterns and to reconstruct the network structure in cases of incomplete information. Recently, these randomizing methods have been used for the study of self-organizing systems in economics and finance, such as interbank and world trade networks, in order to detect topological changes and, possibly, early-warning signals for the economical crisis. In this work we consider the configuration models with different constraints for the network of mergers and acquisitions (M&As), Comparing triadic and dyadic motifs, for both the binary and weighted M&A network, with the randomized counterparts can shed light on its organization at higher order level.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript applies the maximum-entropy principle to construct configuration-model ensembles for the directed binary and weighted mergers-and-acquisitions (M&A) network, constraining only the in/out-degree or in/out-strength sequences. It then compares the observed counts of dyadic and triadic motifs against the corresponding ensemble averages to identify statistically significant higher-order structural patterns.

Significance. If the central comparison is shown to be robust, the work would usefully extend max-ent null-model techniques already applied to interbank and world-trade networks to the M&A domain, offering a concrete route to test whether triadic organization carries information beyond what is already fixed by the degree/strength sequences. The dual treatment of binary and weighted representations is a constructive feature.

major comments (2)
  1. [Section describing the null-model construction and motif enumeration] The directed configuration model (degree or strength sequence only) leaves reciprocity, in/out-degree correlations, and edge-weight correlations unconstrained. Any triadic excess reported in the results may therefore be a downstream consequence of these unmodeled dyadic features rather than an independent higher-order signal. The manuscript must either (i) demonstrate that the empirical dyadic motif counts lie inside the ensemble fluctuations or (ii) condition the null model on the observed dyadic statistics before interpreting triadic deviations.
  2. [Abstract and the paragraph outlining the comparison strategy] The abstract states that comparing dyadic and triadic motifs “can shed light on … higher order level,” yet the skeptic’s concern is not addressed by simply reporting both sets of motifs; an explicit test that the dyadic statistics are reproduced by the chosen ensemble is required for the higher-order claim to be load-bearing.
minor comments (1)
  1. [Abstract] The abstract repeats the phrase “maximum entropy principle” and “configuration models” without adding new information; a single concise statement of the concrete constraints and the motif classes examined would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and precise comments on the null-model assumptions and the requirements for a robust higher-order interpretation. We agree that the standard directed configuration model (fixing only in/out-degrees or strengths) does not constrain dyadic features such as reciprocity or degree correlations, and that an explicit verification is needed before attributing triadic deviations to higher-order structure. Below we respond point-by-point and commit to revisions that directly address these concerns.

read point-by-point responses

  1. Referee: The directed configuration model (degree or strength sequence only) leaves reciprocity, in/out-degree correlations, and edge-weight correlations unconstrained. Any triadic excess reported in the results may therefore be a downstream consequence of these unmodeled dyadic features rather than an independent higher-order signal. The manuscript must either (i) demonstrate that the empirical dyadic motif counts lie inside the ensemble fluctuations or (ii) condition the null model on the observed dyadic statistics before interpreting triadic deviations.

    Authors: We agree with the referee that the chosen null model leaves dyadic properties unconstrained and that this must be checked before claiming higher-order signals. In the revised manuscript we will add a dedicated subsection that reports the observed dyadic motif counts (including reciprocity and in/out-degree correlations) together with their ensemble means and standard deviations. This will explicitly test whether the dyadic statistics fall inside the fluctuations of the degree/strength-preserving ensemble. If they do, the triadic results can be interpreted as higher-order; if not, we will discuss the implications and note that a dyadically conditioned null model would be a natural extension. revision: yes

  2. Referee: The abstract states that comparing dyadic and triadic motifs “can shed light on … higher order level,” yet the skeptic’s concern is not addressed by simply reporting both sets of motifs; an explicit test that the dyadic statistics are reproduced by the chosen ensemble is required for the higher-order claim to be load-bearing.

    Authors: We accept that merely presenting both dyadic and triadic comparisons is insufficient without the explicit reproduction test. We will revise the abstract and the relevant methods/results paragraphs to state clearly that the higher-order interpretation rests on first verifying that the dyadic motif counts are statistically consistent with the ensemble. The new subsection described in the response to the first comment will supply this verification, thereby making the higher-order claim load-bearing. revision: yes

Circularity Check

0 steps flagged

No circularity; standard max-ent null model applied without internal reduction

full rationale

The paper applies the maximum-entropy configuration model (degree or strength sequence fixed) as a null model and compares observed dyadic/triadic motif counts against the ensemble. This is a standard, externally defined procedure with no derivation step in which a reported motif significance or higher-order claim reduces by construction to a parameter fitted inside the paper, a self-citation chain, or a renamed input. No equations or text in the abstract or described method exhibit self-definitional, fitted-input-called-prediction, or ansatz-smuggled patterns. The central claim therefore remains independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only; no explicit free parameters, axioms, or invented entities are stated. The implicit modeling choice is that the chosen constraints (degree or strength sequences) are sufficient to define the null model.
