Bayesian Classification with Probit-link Split-and-merge Gaussian Process Prior in EEG-based Brain-Computer Interfaces

T0 review · 4 major / 6 minor · reviewed 2026-08-02 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A probit-link split-and-merge Gaussian process prior lets a Bayesian P300 speller select the time points where target and non-target EEG responses differ, matching stepwise LDA accuracy while quantifying uncertainty.

desk verdict A useful extension of SMGP to stimulus-level probit modeling, but the evaluation's data-dependent hyperparameter choices inflate the uncertainty and simulation claims; the paper deserves review with revisions. read the letter →

arxiv 2605.30775 v2 pith:FMCHK3SC submitted 2026-05-29 stat.AP stat.ML

Yunong Wu , Jane E. Huggins , Jian Kang , Tianwen Ma This is my paper · ORCID
classification stat.APstat.ML MSC 62F1562H3062P10
keywords P300spellerbrain-computerinterfaceEEGclassificationfeatureselectionsplit-and-mergeGaussianprocessprobitlinkBayesianinferenceevent-relatedpotentials
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that a Bayesian generative classifier can make P300-speller EEG classification interpretable without sacrificing accuracy. It introduces a probit-link split-and-merge Gaussian process (P-SMGP) prior that, at each time point, either merges the target and non-target response curves or lets them differ, turning feature selection into a posterior inference problem. The authors report that in simulations P-SMGP beats stepwise LDA and Bayesian LDA in both parameter recovery and classification accuracy, while in real data it matches stepwise LDA and clearly outperforms Bayesian LDA, crossing a commonly cited 70% usability threshold at 10 sequences. If these claims hold, the payoff is a BCI pipeline that reveals which time windows actually separate target from non-target brain responses, with calibrated uncertainty, and a computationally lighter alternative to earlier sequence-level split-and-merge models.

What carries the argument

P-SMGP prior: β_k(t) = α_k(t)ζ(t) + α_0(t)(1−ζ(t)) for target curve k=1, with ζ(t)=Φ(ω(t)) and ω a Gaussian process with tridiagonal correlation. A threshold ζ0 converts ζ into split/merge intervals, and the GP kernels are approximated by leading Mercer eigenfunctions (95% variance) to make MCMC tractable. Character-level probability is then updated via Bayes' rule from stimulus-level log-likelihoods.

What would settle it

Permutation test: shuffle target/non-target labels within a participant's data and refit P-SMGP; if split intervals and the accuracy gap versus swLDA persist under label shuffling, the model is detecting noise rather than signal. Alternatively, set ζ0 and kernel hyperparameters using only a training subset and evaluate on held-out participants; if credible intervals widen substantially or accuracy drops to swLDA's level, the reported edge is partly an artifact of per-participant tuning.

Watch

Extended reading notes

Core claim

Central claim: a probit-link split-and-merge Gaussian process prior on the latent target (β1) and non-target (β0) ERP curves performs temporal feature selection and binary classification for P300 spellers in one generative model. A stochastic indicator ζ(t) blends two Gaussian-process curves, and a threshold ζ0 declares 'split' or 'merge' at each time point. The authors report that the posterior split intervals correspond to ERP components, credible intervals are narrower than BLDA's in flat regions, and accuracy is competitive with swLDA and above BLDA on real participants; in simulation it beats both.

Load-bearing premise

The validity of the reported credible intervals and accuracy rests on the assumption that the kernel hyperparameters and the split threshold ζ0, chosen by matching simulated prior functions to observed ERP waveforms and by signal-to-noise reasoning, are not effectively tuned on the same participants later used for inference; if they are, the uncertainty estimates and accuracy numbers are optimistically biased.

Editorial extensions

If this is right

  • BCI systems gain an explicit, uncertainty-quantified map of which time points carry target versus non-target information, replacing black-box feature selection.
  • Character-level decisions are updated by cumulative posterior probability, which the paper argues better respects the dependence among stimuli within a sequence than summing scores.
  • The merging mechanism should reduce overfitting in flat signal regions, yielding narrower credible intervals where nothing separates the two classes.
  • Computational cost drops relative to earlier split-and-merge GP formulations because the probit link avoids truncated normal sampling, making per-participant calibration more practical.
  • At 10 sequences, P-SMGP crosses a commonly cited 70% usability threshold in real data across all three interaction scenarios tested.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because the model outputs full posterior curves, one could turn the split intervals into a stopping rule: stop flashing once the posterior probability for a character exceeds a threshold, shortening spelling time—an adaptive use the paper's formulation naturally supports but does not develop.
  • The same latent splitting mechanism might transfer to other low-SNR EEG paradigms (e.g., error-related potentials or oddball tasks) where timing of the discriminating signal is unknown and interpretable selection is desired.
  • The hyperparameters (kernel length-scale, gamma, scale, and ζ0) are selected by matching prior draws to empirical waveforms and SNR reasoning; if those choices are re-tuned per participant, the reported credible intervals and accuracy gains may be partially optimistic, and a cross-validated tuning scheme would clarify the true margin.
  • A natural extension is to borrow strength across participants in the split/merge patterns, as the paper notes; if those patterns are consistent, source-participant priors could reduce calibration trials for new users.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes a Bayesian generative classification model for EEG-based P300 speller BCIs. The model, P-SMGP, assumes each EEG segment is a noisy mixture of target and non-target latent ERP functions β1 and β0, modeled as Gaussian processes linked by a probit split-and-merge indicator that selects time windows where the two functions differ. Posterior inference is carried out with NUTS in NumPyro, and predictions are aggregated at the character level via a weighted likelihood. The authors report simulation and real-data comparisons against swLDA and BLDA, claiming comparable or better accuracy, narrower credible intervals, and interpretable temporal feature selection. The central methodological novelty is the stimulus-level, probit-link formulation that avoids the computational cost and data-manipulation requirements of earlier SMGP and GLASS approaches.

Significance. If the evaluation concerns are resolved, this work would be a valuable contribution to interpretable BCI classification. The model is fully generative and well specified, the choice of a probit link for the split-and-merge indicator is computationally motivated, and the focus on stimulus-level modeling with character-level aggregation is a sensible design change relative to previous SMGP. The paper also provides code and detailed simulation studies. However, the empirical claims currently rest on an evaluation protocol that does not separate hyperparameter selection from inference, so the magnitudes of the reported advantages and the widths of the credible intervals are not yet trustworthy.

major comments (4)
  1. [§3.1, §4.2, §5.2] The kernel hyperparameters γ, s, ψ are selected by matching prior draws to the same empirical ERP waveforms used for posterior inference (§3.1 says 'identifying the optimal parameters whose corresponding functions exhibit morphological similarity to empirical ERP waveforms'; §5.2 says they are 'individually selected for each participant'). The posterior and predictive inferences condition on these selected values as if fixed. This double use of the data likely makes credible intervals for β1 and β0 over-narrow and biases accuracy comparisons in favor of P-SMGP. The paper must either split the data into selection and inference sets, perform a sensitivity analysis, or adopt a fully Bayesian treatment of the hyperparameters.
  2. [§4.2, §5.2] The split threshold ζ0 is chosen based on the data: ζ0=0.8 in simulation because of 'small variation and clear time-dependent patterns', and ζ0=0.5 in real data because of 'low signal-to-noise ratios'. Since ζ0 directly controls which time points are merged/split, data-dependent selection of ζ0 further accounts for the credible intervals and the reported feature-selection intervals. No justification is given that this choice is not informed by the same data used in evaluation, nor is the sensitivity of the results to ζ0 assessed.
  3. [§4.2, Table 1] In the simulation, the kernel parameters (s1=6.5, γ1=1.5, ψ1=1 and s0=9.5, γ0=1.5) are set to values that closely match the true ERP shapes generated from 'real participants from an existing database'. This gives P-SMGP an oracle-like advantage over swLDA and BLDA, which receive no such generative information. The claim in §4.3.2 and in the Discussion that P-SMGP 'consistently outperformed' the competitors is therefore not supported by a fair comparison. The simulation should be rerun with hyperparameters selected independently of the true signal shapes, or with the same prior information for all methods.
  4. [§5.3.2, Table 2, §6] The real-data results in Table 2 show that swLDA outperforms P-SMGP for several participants (e.g., K114, K151, K183, K184 in the BCI column), yet the Discussion states that P-SMGP 'replicated simulation advantages across three experimental scenarios' and 'performed slightly better than swLDA'. These statements are inconsistent with the table. The claimed advantages should be rephrased to accurately reflect comparable, not uniformly superior, performance; formal statistical tests or paired comparisons would be needed to support any superiority claim.
minor comments (6)
  1. [Figure 3] The caption says 'with 0.6 as the threshold', while the simulation uses ζ0=0.8 and the real data use ζ0=0.5. This may confuse readers; clarify that the figure is illustrative only.
  2. [§4.2] The sentence 'we consider the same P-SMGP process for both target and non-target EEG signals' is unclear. It presumably means the same prior process, but it sounds like the same realization; please rephrase.
  3. [§4.3.2] 'The testing prediction accuracy increased as the sequence size grows' – grammatical error; change 'grows' to 'grew' or rephrase.
  4. [§5.1] Typo: 'an 56-year old' should be 'a 56-year-old'.
  5. [§5.3.2] The statement that P-SMGP maintains 'less accuracy variance across sessions' is not supported by any variance or statistical test; either add supporting analysis or remove the claim.
  6. [General] The GitHub link is a strength, but the paper does not state the license or version of the code; please clarify.

Circularity Check

0 steps flagged · score 2.0 of 10

No significant circularity; data-dependent hyperparameter selection and disclosed self-citations are noted but do not reduce the derivation to its inputs.

full rationale

The paper's derivation chain is self-contained at the equation level. The generative model (Eq. 1) defines observed EEG as target/non-target response functions plus structured noise; the P-SMGP prior (Eq. 2) is a stochastic-process prior on those functions; Mercer's theorem yields a finite-dimensional eigenfunction approximation with an explicit prior on coefficients; MCMC produces posterior samples; and Section 3.3 computes held-out character-level probabilities by Bayes' rule. No equation is defined in terms of the quantity it purports to predict, and no fitted parameter is renamed as a prediction. The classification comparisons use standard external baselines (swLDA, BLDA) and evaluate on held-out stimuli, so the core accuracy claim is not forced by construction. The mild concerns are: (i) kernel hyperparameters (γ, s) are selected by matching prior draws to empirical ERP waveforms (Section 3.1), and the split threshold ζ0 is set from SNR reasoning in the real data (Section 5.2) and from the signal's variation in the simulation (Section 4.2); this is a form of double use of the data that can narrow credible intervals and inflate apparent precision. (ii) The simulation generates data from the same P-SMGP family, which gives an in-family advantage over discriminative baselines. These are statistical-validity and comparison-fairness concerns, not reductions of the derived results to the model inputs. Self-citations to Ma et al. (2022) and Zhao et al. (2025) are explicit, published, and are not used to forbid alternative models. Thus no significant circularity is found.

Assumptions & free parameters 3 free parameters · 6 assumptions · 0 invented entities

The model adds several hand-chosen hyperparameters and strong structural assumptions. The most consequential are the data-dependent kernel and threshold choices, which are neither estimated in the posterior nor justified by an external criterion, and the stimulus-type-only assumption that ignores stimulus location and order effects.

free parameters (3)
  • Kernel hyperparameters (γ, s, ψ) for target and non-target GPs = Simulation: (s1=6.5, γ1=1.5, ψ1=1), (s0=9.5, γ0=1.5, ψ0=1); real data: selected per participant by matching prior draws
    Section 3.1: hyperparameters are chosen by morphological similarity to empirical ERP waveforms, not estimated within the posterior; Section 5.2 states they are individually selected for each participant.
  • Split threshold ζ0 = 0.8 in simulation; 0.5 in real data
    Section 4.2 sets ζ0=0.8 because simulated signals have small variation; Section 5.2 sets ζ0=0.5 because real EEG has low SNR. The choice directly controls which time points are merged and therefore affects the feature-selection output.
  • Probit GP variance and correlation ψω, ρω = ψω=40, ρω=0.5
    Fixed model constants in Sections 4.2 and 5.2; chosen by hand rather than estimated or justified by an external criterion.
assumptions (6)
  • domain assumption ERP response shape depends only on target/non-target type, not on stimulus location or order
    Section 2.2: 'we assume that the shape and magnitude of ERP functions depend solely on the stimulus-type indicators, irrespective of the stimulus location or order.' This ignores known position/order effects in P300 spellers.
  • domain assumption Channel-wise independence of the GP priors for β0 and β1
    Section 2.3: 'We assume βk,e(t) (e=1,...,E) are independent.' This simplifies the model but may underestimate cross-channel structure.
  • domain assumption Noise decomposes into compound-symmetry channel effects and AR(1) temporal effects
    Section 2.2: ξ follows MVN(0,Cs) with compound symmetry and ε follows AR(1). The real noise structure may be more complex.
  • standard math Mercer eigenfunction truncation approximates the GP to 95% energy
    Section 3.1 relies on Mercer's theorem and truncates the eigenexpansion when the cumulative eigenvalue sum exceeds 95%. This is a standard approximation.
  • domain assumption The first two xDAWN components retain sufficient discriminative information
    Section 5.1: xDAWN spatial filtering is applied and 'the first two major components' are selected, reducing each segment to a 50-dimensional vector. The sufficiency of two components is assumed.
  • domain assumption The hard-threshold probit split-and-merge mechanism is a valid feature-selection representation
    Section 2.3 defines ζ(t) and the threshold ζ0; the model treats time points with ζ≤ζ0 as merged and uninformative. This is a modeling choice rather than an empirical fact.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Bayesian Classification with Probit-link Split-and-merge Gaussian Process Prior in EEG-based Brain-Computer Interfaces." pith.science (2026). https://pith.science/paper/FMCHK3SC

@misc{pith2026260530775,
  author       = {Pith},
  title        = {Pith review of: Bayesian Classification with Probit-link Split-and-merge Gaussian Process Prior in EEG-based Brain-Computer Interfaces},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/FMCHK3SC}},
  note         = {Machine review of arXiv:2605.30775}
}
read the original abstract

A Brain-Computer Interface (BCI) speller systems based on Event-Related Potentials (ERPs) enables users to select characters by detecting brain responses to visual stimuli, recorded through electroencephalogram (EEG). One challenge is to accurately identify target-related responses, such as the P300 component. However, existing methods tend to ignore feature selection, perform feature selection without interpretability, or require large computational effort or data manipulation. To address these limitations, we propose a novel Bayesian generative modeling framework to the binary classification of EEG responses to stimuli. Our approach employs a Probit-link Split-and-merge Gaussian Process (P-SMGP) prior to perform spatial-temporal feature selection, effectively capturing the distinctions between target and non-target ERP responses. Through both simulation studies and real EEG data analysis, our approach provides statistical interpretations on transformed ERP functions while maintaining comparable prediction accuracy with a computationally motivated design. These findings underscore the value of interpretable, stimulus-level modeling for advancing predictive and personalized BCI systems.

Figures

Figures reproduced from arXiv: 2605.30775 by the authors.

Figure 1
Figure 1. A simple illustration of the P300 ERP-based BCI design. The participant wearing an EEG cap is asked to face a virtual keyboard of 6 × 6 grid in the left column. While the virtual keyboard is randomly highlighting rows and columns, the human brain responds to the external stimuli, and the signals are recorded by a EEG device. A computer analyzes and interprets the EEG recordings and send the feedback to the virtual s… view at source ↗
Figure 2

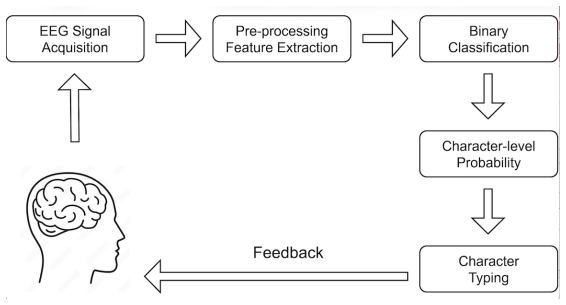

Figure 2. The conventional framework of P300 ERP-based BCI speller. The process starts with data collection via neuro-physiological sensors to record raw EEG signals. Signal pre-processing and feature extraction are applied to raw signals. A binary classification is performed to compute the stimulus-specific classifier scores and the character-level probability. Finally, the intended key is selected by identifying the most pl… view at source ↗
Figure 3

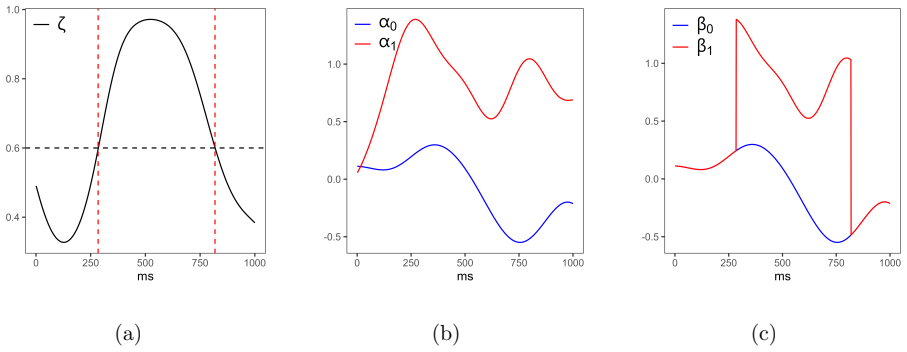

Figure 3. (a) The Split-and-Merge indicator ζ with 0.6 as the threshold. (b) Two simple Gaussian processes α1 and α0 before the split-and-merge process. (c) Two Gaussian processes β1 and β0 after the split-and-merge process based on ζ. where Xi,j = (Xi,j,e) E e=1 and Mi,j = (Mi,j,e) E e=1 are matrix-wise observed EEG signals and predicted EEG signals for the ith sequence and jth stimulus, respectively. Cs and Ct are the chann… view at source ↗
Figures from the paper (4 more)
Figure 4

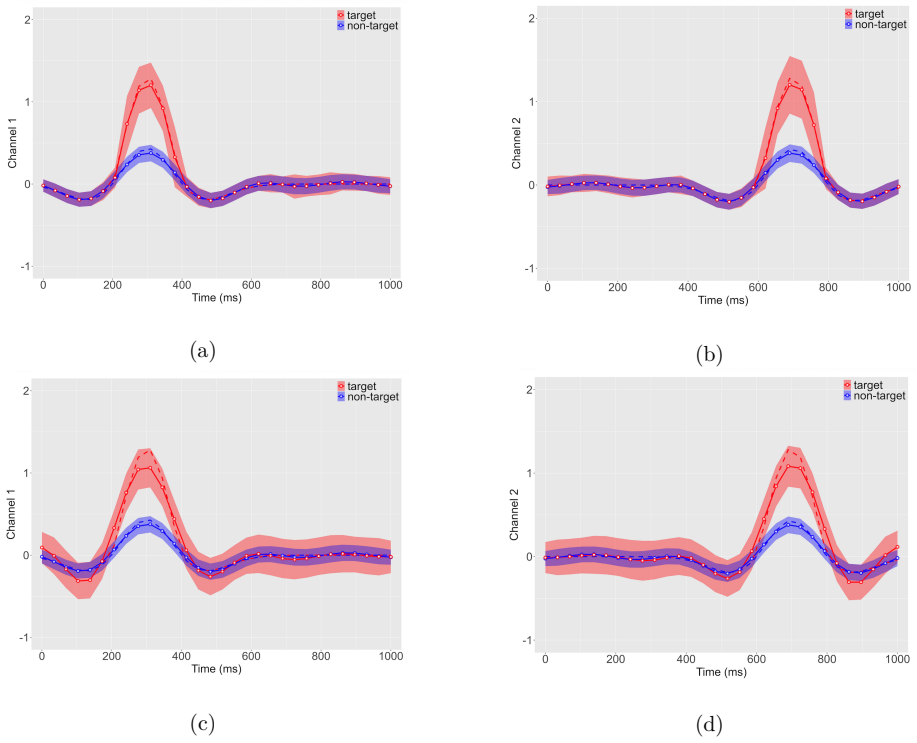

Figure 4. Figure 4: The estimated target and non-target ERP functions for the simulated dataset are shown in two rows: the upper row (a, b) uses P-SMGP, and the lower row (c, d) uses BLDA. Panels (a) and (c) display results for Channel 1, while panels (b) and (d) display results for Chann…
Figure 5

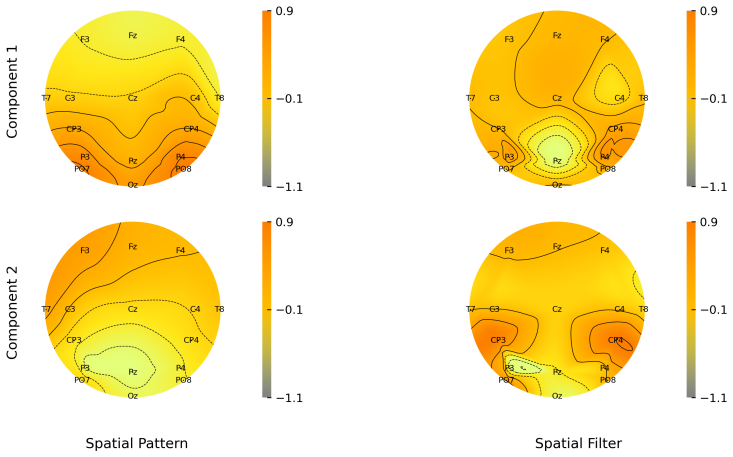

Figure 5. Figure 5: The left and right columns show the spatial patterns and spatial filters of the participant K178’s training data by xDAWN, respectively. 5.3.2 Prediction Performance To further evaluate the performance of different methods in real data analysis for K178, we compared th…
Figure 6

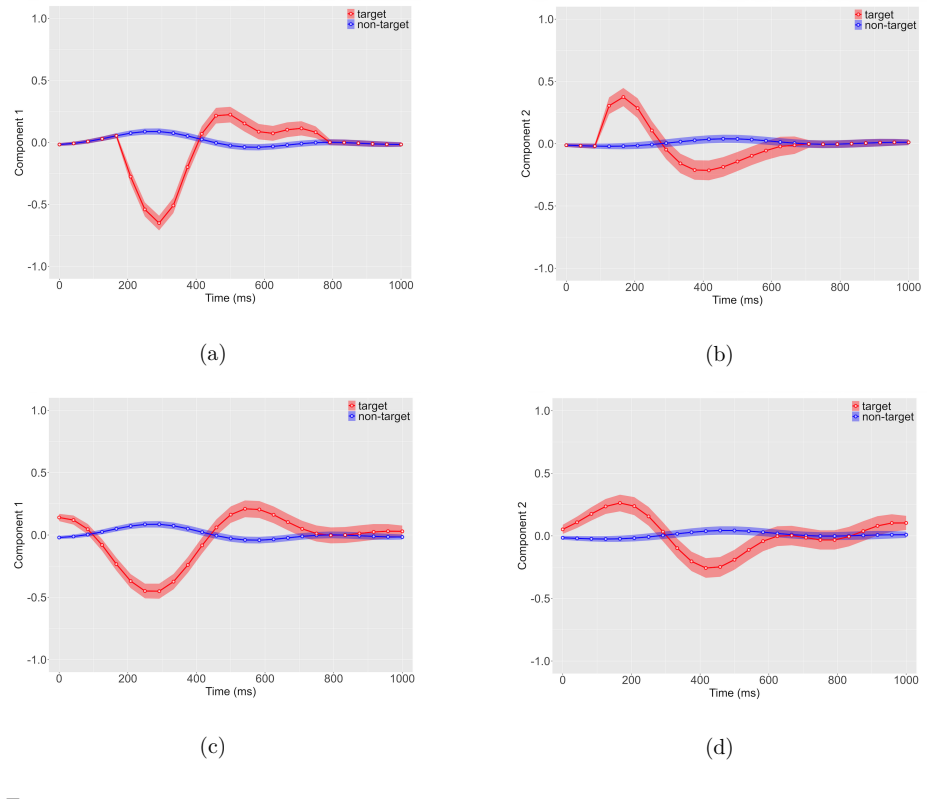

Figure 6. Figure 6: The estimated target and non-target transformed ERP functions of K178 by P-SMGP (a-b), and by BLDA (c-d). The left and right columns show the results of Components 1 and 2, respectively. 21 [PITH_FULL_IMAGE:figures/full_fig_p021_6.png]
Figure 7

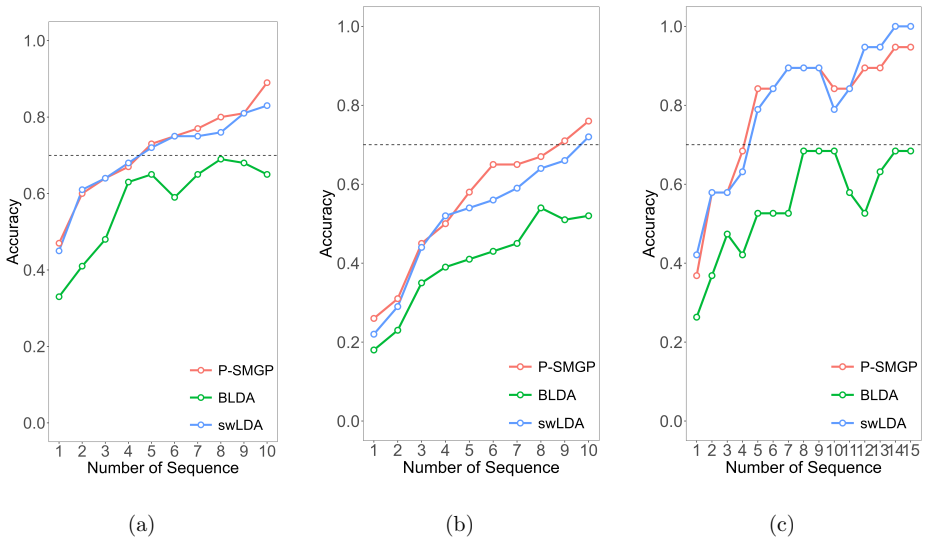

Figure 7. Figure 7: Prediction accuracy of P-SMGP, swLDA and BLDA for data from real participant K178 with different testing sequence sizes in (a) BCI (b) DYN (c) CMP scenarios. The dashed line indicates the critical 70% accuracy threshold (Kübler & Neumann 2005) for practical BCI usabili…
