LEGGOS I: The JWST LEGGOS Survey -- LEnsing and Galaxy Growth: Observing Substructures -- Unpacks the Nature of Clumpy Star Formation and Quenching in Gravitationally Lensed Galaxies beyond Cosmic Noon

Gourav Khullar , Michael Florian , Matthew B. Bayliss , Taylor A. Hutchison , Brian Welch , Keren Sharon , Jane R. Rigby , Dylan Berry
show 29 more authors
T. Emil Rivera-Thorsen H{\aa}kon Dahle Sedona H. Price Nikko J. Cleri Julissa Sarmiento Guillaume Mahler Michael D. Gladders Rachel Bezanson Alex Ross Pedram Abedi Rion Oh John Chisholm Keunho Kim Katherine E. Whitaker Aleena Ebey Cole Panzer Jacqueline Antwi-Danso Catherine Cerny Suhyeon C. Choe Juliana S. M. Karp James W. Kulp Tim B. Miller Grace M. Olivier M. Riley Owens David J. Setton Irene Shivaei Erik Solhaug Amritaansh Srivastava Sierra Bet
This is my paper

Pith reviewed 2026-06-26 16:11 UTC · model grok-4.3

classification 🌌 astro-ph.GA astro-ph.CO
keywords gravitational lensingclumpy star formationhigh-redshift galaxiesJWSTgalaxy quenchingintegral field spectroscopystellar populations
0
0 comments X

The pith

The LEGGOS survey introduces a joint lensing-photometry-spectroscopy framework that disentangles multiple stellar populations inside individual clumps of z~2-4 galaxies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents the JWST LEGGOS Survey targeting eight strongly lensed galaxies at redshifts 2 to 4, using NIRCam imaging and NIRSpec integral-field spectroscopy to resolve 10-200 parsec regions. It describes a uniform analysis framework that jointly models gravitational lensing reconstruction, multi-band photometry, and integral-field spectroscopy. This framework separates multiple stellar populations within clumps and surrounding diffuse regions, using Balmer line maps and emission-line ratios to trace star formation histories, dust attenuation, and nebular conditions. The approach breaks degeneracies common in photometry-only studies of clumps. The full dataset is positioned as connecting parsec-scale star formation physics directly to galaxy assembly beyond cosmic noon.

Core claim

The full survey dataset, with simultaneous flux and morphology constraints on clumpy source-plane regions, and a flexible spectrophotometric SPS modeling approach, provides a direct bridge between parsec-scale star formation physics and galaxy assembly at and beyond cosmic noon.

What carries the argument

The uniform analysis framework that jointly models lensing reconstruction, multi-band photometry, and integral field spectroscopy to disentangle multiple stellar populations within individual clumps and their surrounding diffuse regions.

If this is right

  • Spectroscopy identifies recent quenching in galaxies previously classified as UV star-forming based on photometry alone.
  • Some galaxies show uniform metallicities across the entire system while others have higher metallicities and harder ionization conditions in clumps relative to diffuse regions.
  • Maps of Balmer recombination lines and diagnostic ratios connect star formation histories, dust attenuation, and nebular conditions on sub-kpc scales.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be extended to compare clump properties in lensed versus unlensed systems at similar redshifts to test for selection effects.
  • Similar joint modeling might be applied to even higher-redshift galaxies once deeper integral-field data become available.

Load-bearing premise

The joint lensing reconstruction plus multi-band photometry plus integral-field spectroscopy modeling can reliably disentangle multiple stellar populations inside individual clumps without significant residual degeneracies.

What would settle it

If applying the joint modeling to the same clumps produces stellar population parameters that are inconsistent across independent emission-line diagnostics or yield large residual degeneracies in age, metallicity, or dust, the reliability of the disentangling would be undermined.

Figures

Figures reproduced from arXiv: 2606.20845 by Aleena Ebey, Alex Ross, Amritaansh Srivastava, Brian Welch, Catherine Cerny, Cole Panzer, David J. Setton, Dylan Berry, Erik Solhaug, Gourav Khullar, Grace M. Olivier, Guillaume Mahler, H{\aa}kon Dahle, Irene Shivaei, Jacqueline Antwi-Danso, James W. Kulp, Jane R. Rigby, John Chisholm, Juliana S. M. Karp, Julissa Sarmiento, Katherine E. Whitaker, Keren Sharon, Keunho Kim, Matthew B. Bayliss, Michael D. Gladders, Michael Florian, M. Riley Owens, Nikko J. Cleri, Pedram Abedi, Rachel Bezanson, Rion Oh, Sedona H. Price, Sierra Bet, Suhyeon C. Choe, Taylor A. Hutchison, T. Emil Rivera-Thorsen, Tim B. Miller.

Figure 1
Figure 1. Figure 1: RGB mosaics of JW ST LEGGOS Survey targets. Each subplot notes the filters that make up the synthetic RGB image, the target name and spectroscopic redshift. Tens of clumpy regions are detected in each ”primary” lensed arc, with half being sampled spectroscopically with NIRSpec/IFS (FOV in gold squares). (Bottom Right) The survey logo, highlighting the six new observed targets and the IFS component of the s… view at source ↗
Figure 2

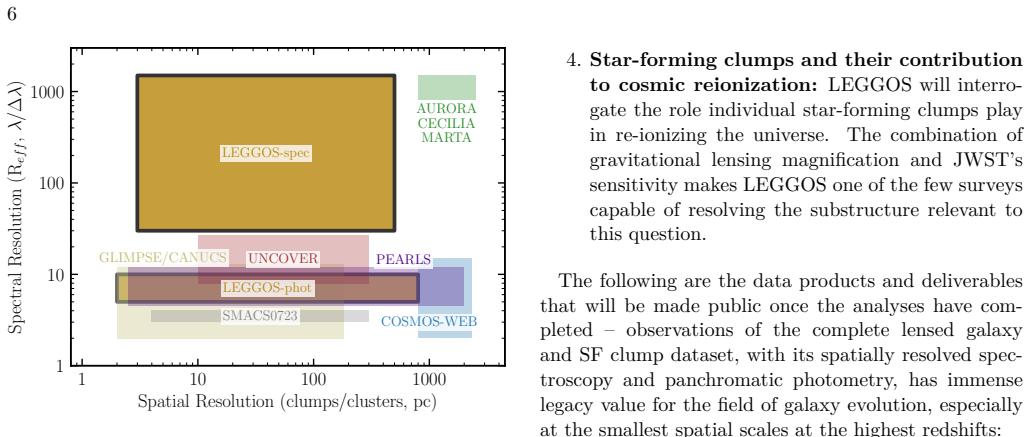

Figure 2. Figure 2: Effective Spectral vs Spatial Resolution for clump/star cluster-like observations in JWST surveys. uniquely positioned to answer given its resolved, high-S/N spectrophotometric coverage. 2. Stellar populations, physical conditions, and chemical conditions of clumpy star￾forming galaxies: Resolved star formation his￾tories encode the cumulative record of how galax￾ies have assembled their mass; LEGGOS will … view at source ↗
Figure 3

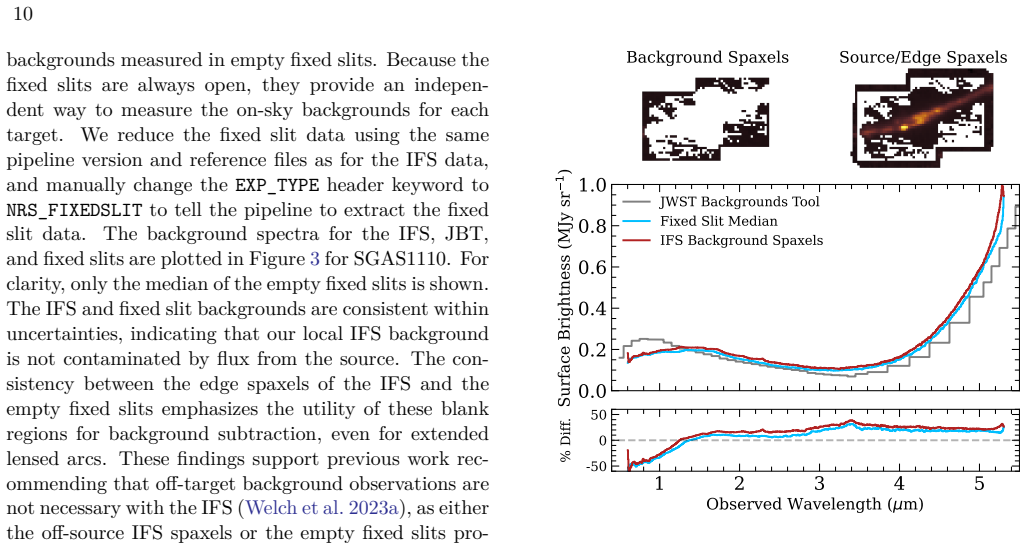

Figure 3. Figure 3: Backgrounds are measured locally in the NIR￾Spec/PRISM IFS data, as described in Section 3.1. The top panels show maps of [O iii] for SGAS1110, with the top left panel including only the spaxels used to measure the local background, while the top right panel shows the source and edge spaxels which are not used in background estimation. The middle panel shows the extracted background spectrum from the IFS c… view at source ↗
Figure 4
Figure 4. Figure 4: (Left) Gravitational Lens model for SGAS2111, with critical curve (locus of infinite magnification) at z = 2.86. Also shown in purple squares (and the zoomed in top inset) is the primary image of the arc, sampled with NIRSpec/IFS. (Right) (Top right) Source plane reconstruction of SGAS2111 using NIRCam imaging of Image A, the region which is spectroscopically sampled with the IFS, showing two distinct regi… view at source ↗
Figure 5

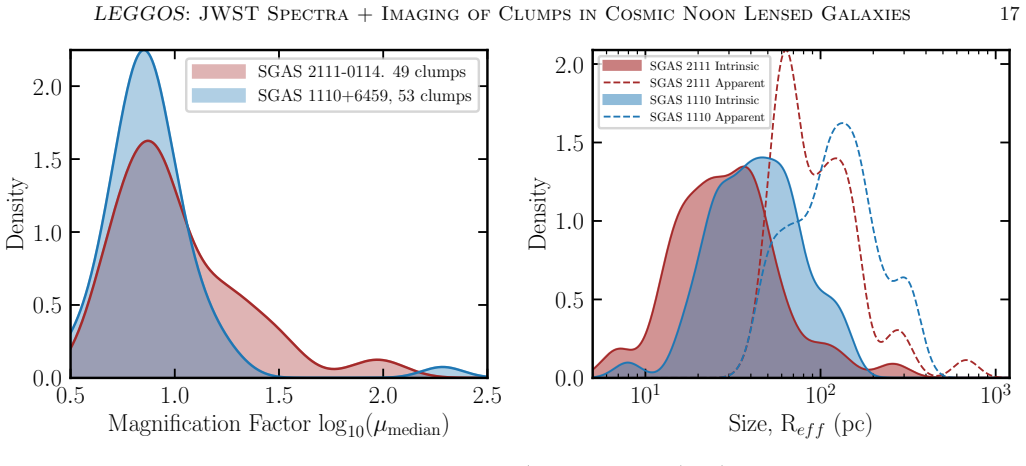

Figure 5. Figure 5: Probability distributions of magnification and intrinsic/source-plane sizes (Reff ) of clumps across galaxies SGAS2111 (red) and SGAS1110 (blue), estimated after Monte Carlo sampling the probability distributions of lens-model based magnifica￾tion and effective radii in the lensing image plane. LEGGOS will sample tens of 10-200pc high surface brightness regions within the sample galaxies. With all of this … view at source ↗
Figure 6

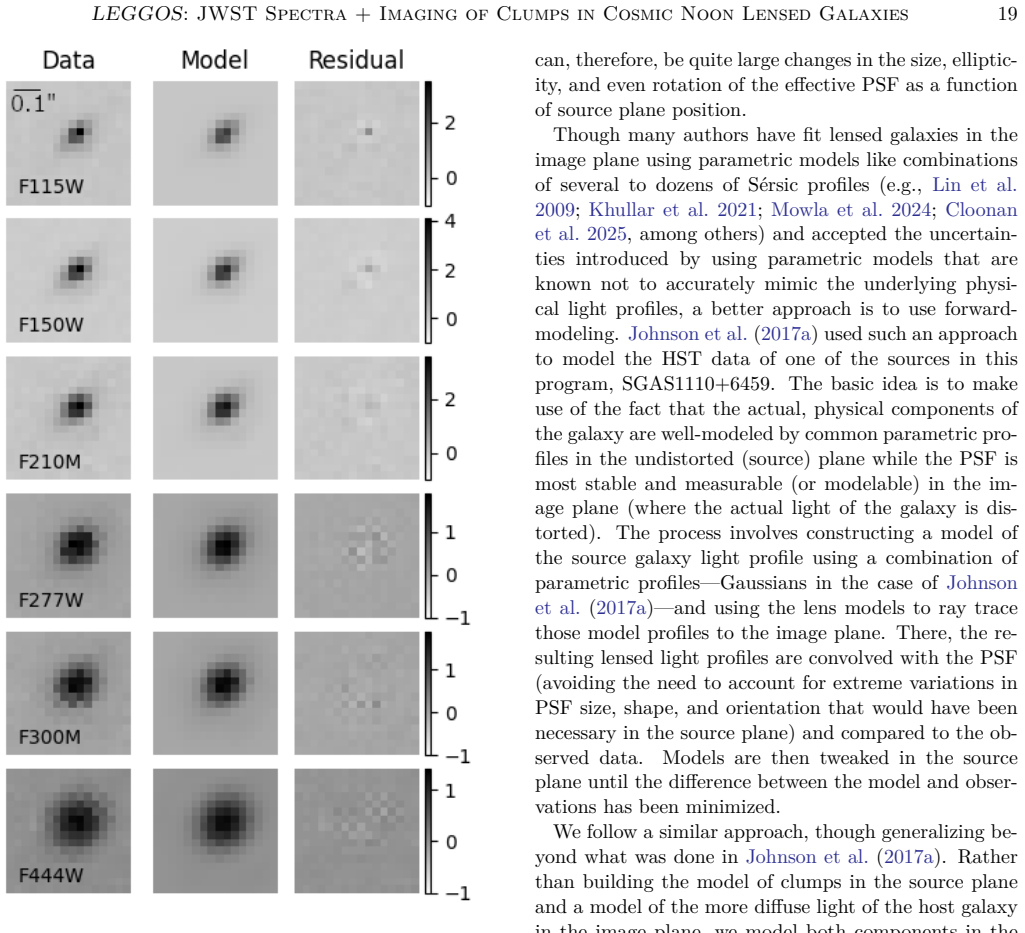

Figure 6. Figure 6: From left to right: The observed image plane NIRCam data for Clump 4 in SGAS2111, the forward￾modeled image plane, and the residual (colorbar units in MJy sr−1 ). At z=2.86, 0.1” corresponds to ∼750 pc, and a nominal magnification of 20× allows us to observe ∼ 150 pc regions. source galaxy would have looked like if it had not been lensed (i.e., in the “source plane”). However, because the observed light pr… view at source ↗
Figure 7

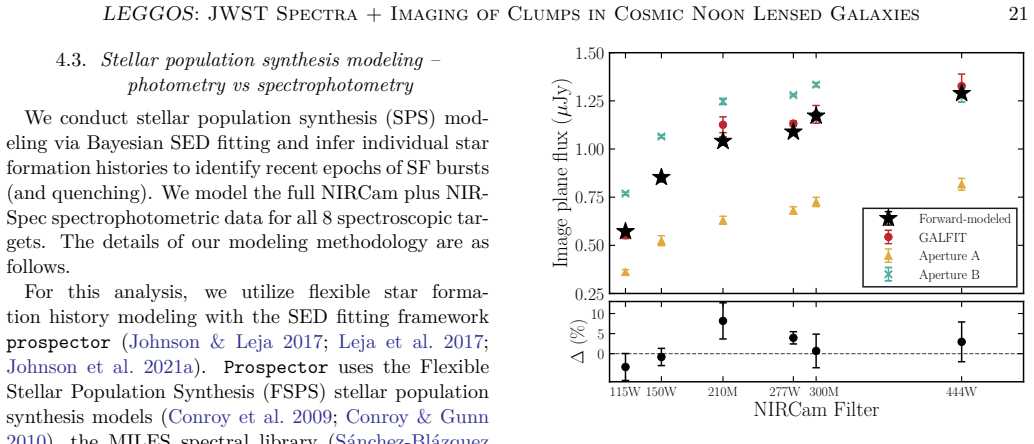

Figure 7. Figure 7: Comparison of photometry for Clump 4 in SGAS2111 derived from various aperture and model photom￾etry methods The bottom panel shows the percentage differ￾ence between GALFIT-based model photometry vs. forward modeled measurements; the fiducial methodology matches the GALFIT performance. ther a mass-metallicity relation (MZR) or SFH priors from semi-analytical galaxy models (such as the ones encoded in Univ… view at source ↗
Figure 8

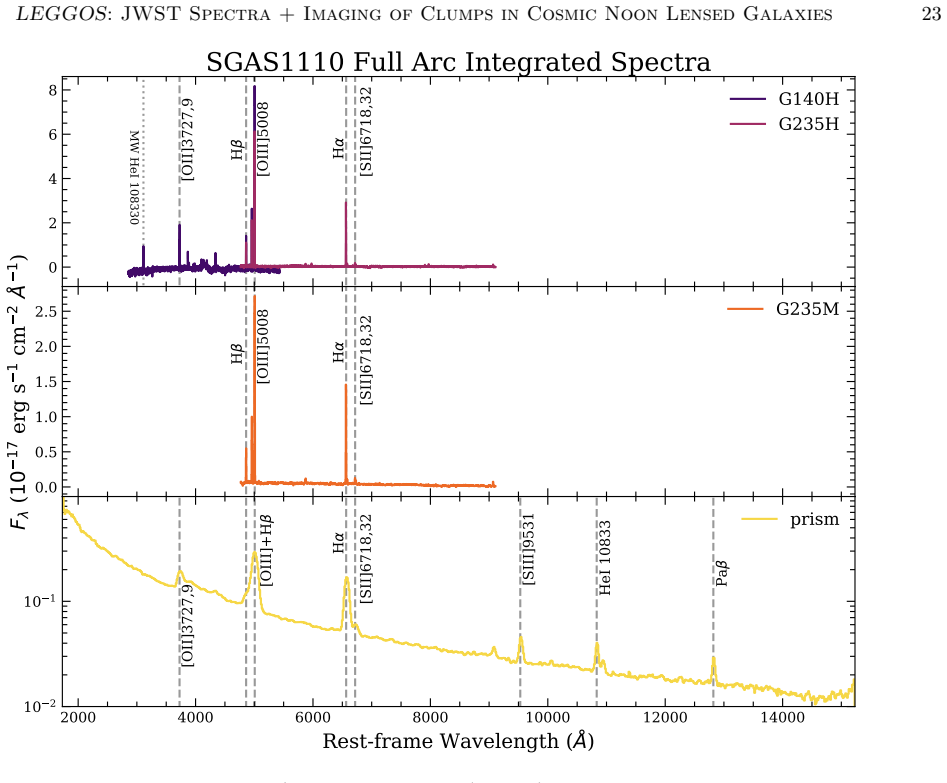

Figure 8. Figure 8: Integrated spectra from NIRSpec/IFS across the central (primary) image of the lensed arc; this is one of the highest redshift legacy dataset comprising observations from all NIRSpec modes – high-resolution H grating (top), medium-resolution M grating (middle), and low-resolution prism with the widest wavelength coverage (bottom). notably for the F444W image) where forward-modeled fluxes are systematically … view at source ↗
Figure 9

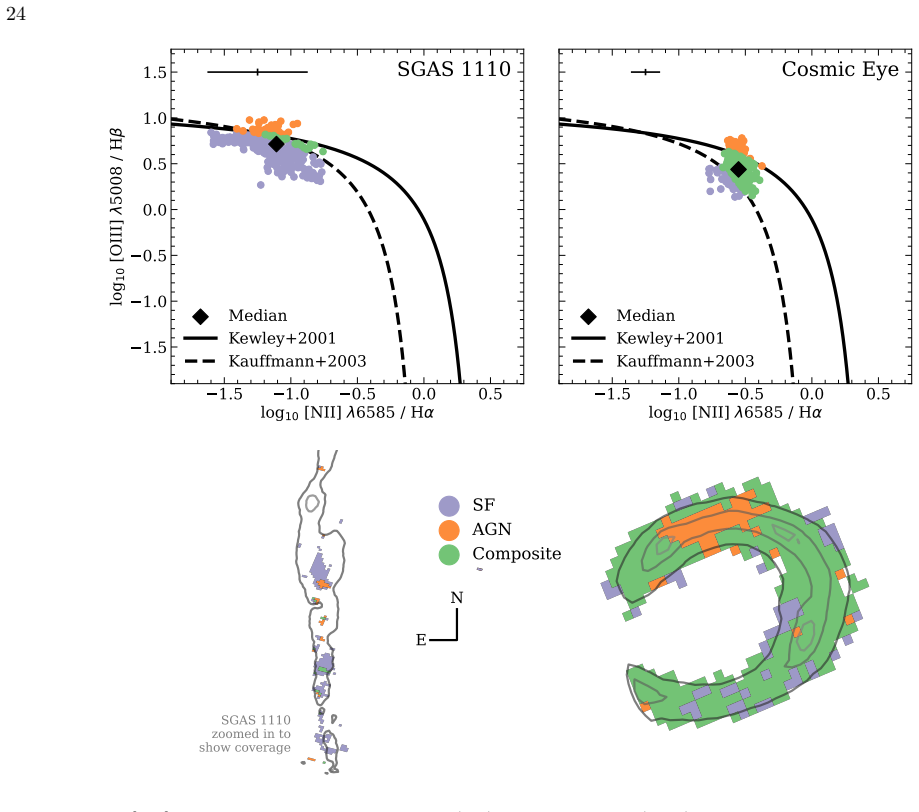

Figure 9. Figure 9: The [N ii]-BPT diagrams for the SGAS1110 (left) and Cosmic Eye (right). The top panels show the pixel-by-pixel [N ii]-BPT diagrams, with both galaxies exhibiting line ratios consistent with star forming (purple), composite (green), and AGN (orange) regions as defined by the Kewley et al. (2001) and Kauffmann et al. (2003) diagnostics. The black diamond shows the median line ratios of all pixels in the gala… view at source ↗
Figure 10

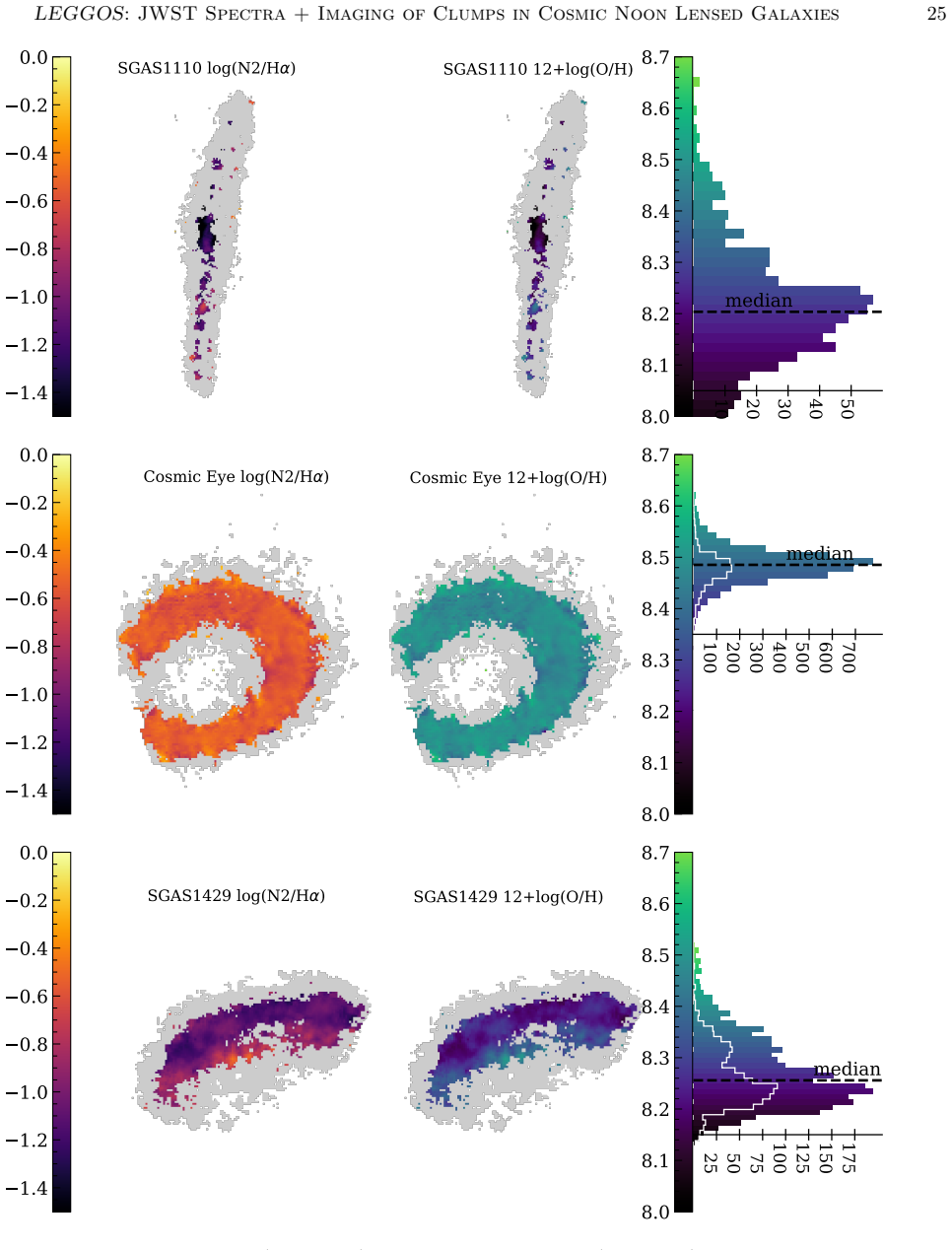

Figure 10. Figure 10: Maps of the N2 line ratio (left column) and N2-derived metallicity (right panel) are shown for three LEGGOS targets: SGAS1110 (top row), the Cosmic Eye (middle row), and SGAS1429 (bottom row). Histograms to the right of each metallicity map show the distribution of metallicity for individual spaxels in each source, with the median value indicated with a dashed black line. The white histograms plotted for … view at source ↗
Figure 11

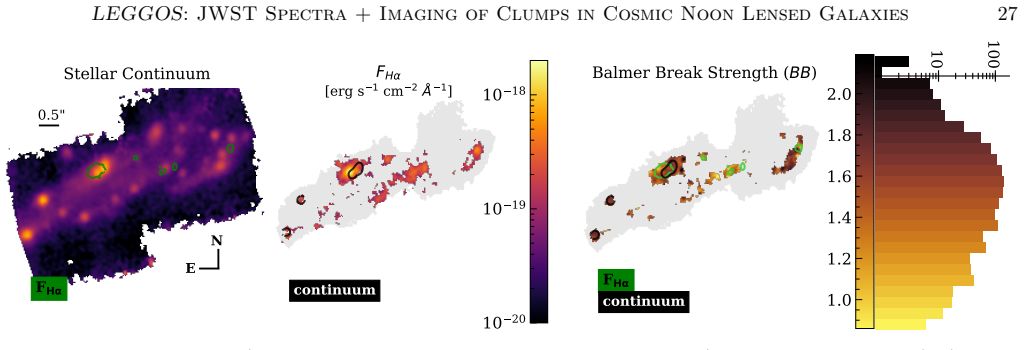

Figure 11. Figure 11: Selecting clumps/star clusters for investigation with LEGGOS NIRSpec/IFS prism observations. (left) Stellar continuum image of SGAS 2111 from IFS pointings. The green contours represent regions of higher Hα emission (FHα = 3×10−19 erg s−1 cm−2 Å −1 ). (center) Flux map of the Hα emission line, with black contours representing regions of higher stellar continuum (with the same flux limit, F = 3 × 10−19 erg… view at source ↗
Figure 12

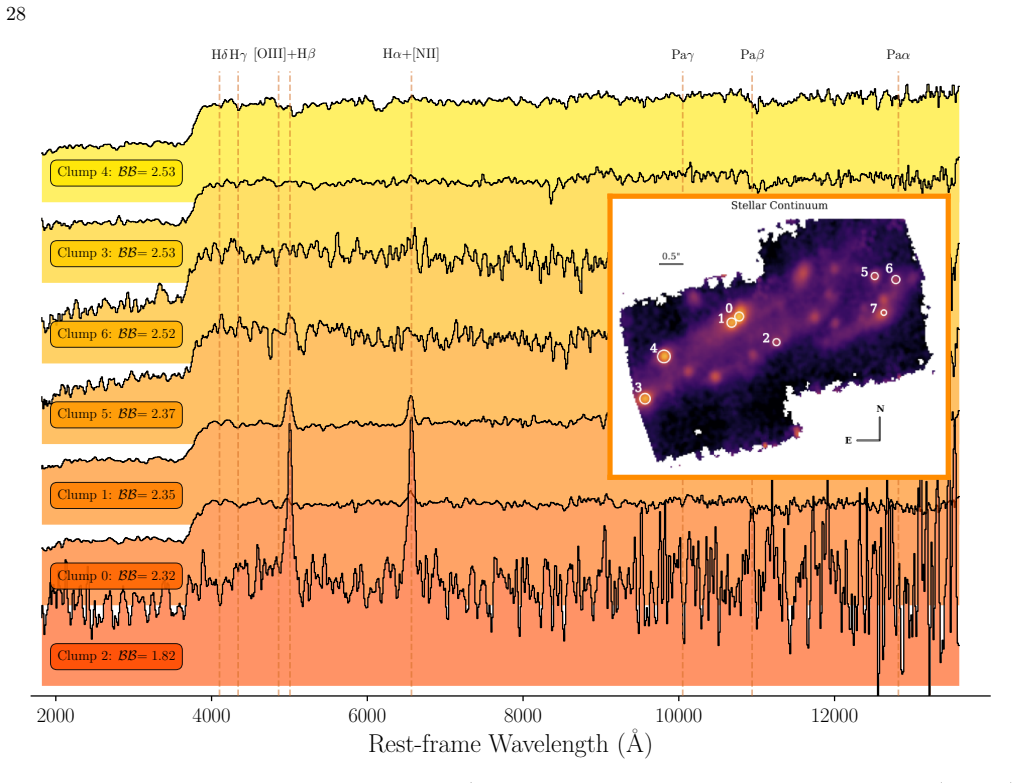

Figure 12. Figure 12: A gallery of spatially resolved JWST NIRSpec/prism spectra of visually identified ”clumps” in SGAS2111 (z = 2.86), plotted in decreasing order of Balmer break strength. Dotted vertical lines show prominent emission and absorption features from rest-frame 0.4−1.3µm. Inset shows the locations of all seven spectra (CLumps 0-6) spatially on a map of stellar continuum emission from NIRSpec/IFS. Using SGAS2111 … view at source ↗
Figure 13

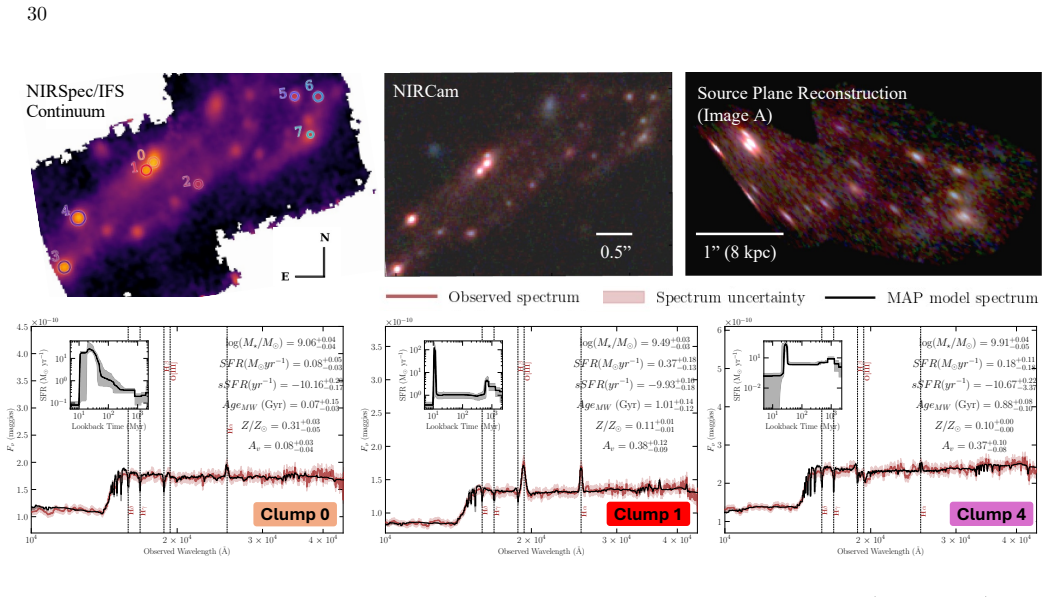

Figure 13. Figure 13: SED Fitting example of quenched “clumpy” regions within SGAS2111 - Clump 0, 1 and 4 (see [PITH_FULL_IMAGE:figures/full_fig_p030_13.png] view at source ↗
read the original abstract

We present first results from the JWST LEGGOS Survey (LEnsing and Galaxy Growth: Observing Substructures), aimed at studying the physics of clumpy star formation and quenching in eight lensed galaxies at $z\sim2$--4. LEGGOS combines multiple Cycle 2 JWST GO programs (GO 4125, GO 3843) and Cycle 1 archival data, and utilizes strong gravitational lensing with NIRCam imaging and NIRSpec integral-field spectroscopy. LEGGOS targets UV-bright, highly magnified systems to resolve $\sim$10--200 pc regions in both rest-frame optical continuum and nebular emission. This overview paper describes the survey design, data reduction and calibration strategy, and science-quality data products, and highlights early examples demonstrating how spectroscopy breaks key degeneracies inherent to photometry-only clump studies, including identifying recent quenching in previously-thought UV star forming galaxies. We introduce a uniform analysis framework that jointly models lensing reconstruction, multi-band photometry, and integral field spectroscopy to disentangle multiple stellar populations within individual clumps and their surrounding diffuse regions. Using maps of Balmer recombination lines and key emission line diagnostic ratios, we connect star formation histories, dust attenuation, and nebular conditions on sub-kpc scales -- LEGGOS galaxies range from uniform metallicities across the whole galaxy, to having higher clump metallicities and harder ionization conditions relative to diffuse regions. The full survey dataset, with simultaneous flux and morphology constraints on clumpy source-plane regions, and a flexible spectrophotometric SPS modeling approach, provides a direct bridge between parsec-scale star formation physics and galaxy assembly at and beyond cosmic noon, offering a robust and efficient means of resolving star formation in the first galaxies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents the JWST LEGGOS Survey overview, targeting eight strongly lensed galaxies at z~2-4 with NIRCam imaging and NIRSpec IFS. It describes survey design, data reduction/calibration, science-quality products, and early examples of a uniform joint lensing-photometry-IFS analysis framework using flexible spectrophotometric SPS modeling. The central claim is that this framework, combined with Balmer line maps and emission-line diagnostics, breaks photometry-only degeneracies to disentangle multiple stellar populations in clumps versus diffuse regions, thereby bridging parsec-scale star formation physics to galaxy assembly beyond cosmic noon.

Significance. If the joint modeling framework can be shown to deliver the claimed degeneracy reduction with quantified uncertainties, the survey would supply a high-value, publicly useful dataset of resolved clump properties in lensed systems at cosmic noon. The emphasis on uniform analysis across multiple programs and the release of science-quality data products are positive contributions to the field.

major comments (2)
  1. [§4] §4 (Uniform Analysis Framework): The claim that the joint lensing reconstruction + multi-band photometry + IFS modeling 'reliably disentangles multiple stellar populations' and that 'spectroscopy breaks key degeneracies' is load-bearing for the central bridge-to-physics assertion, yet the section provides only a high-level description without mock recovery tests, degeneracy metrics, or covariance matrices demonstrating residual uncertainties in age, dust, metallicity, or ionization parameters.
  2. [§5.1] §5.1 (Early Examples): The statement that spectroscopy identifies 'recent quenching in previously-thought UV star forming galaxies' and that galaxies show 'higher clump metallicities and harder ionization conditions' rests on the framework's performance, but no quantitative validation (e.g., recovery fractions from simulated clumps or comparison to photometry-only results) is presented to support these interpretations against source-plane reconstruction uncertainties.
minor comments (2)
  1. [Abstract, §2] The abstract and §2 would benefit from an explicit statement of the total number of clumps analyzed across the sample and the typical magnification factors achieved.
  2. [Figure captions] Figure captions for the early-example maps should include the spatial resolution in the source plane and the wavelength ranges used for the Balmer and diagnostic line maps.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments and for recognizing the potential value of the LEGGOS dataset and uniform analysis approach. We address each major comment below and outline targeted revisions to strengthen the quantitative support for the framework's performance.

read point-by-point responses

  1. Referee: [§4] §4 (Uniform Analysis Framework): The claim that the joint lensing reconstruction + multi-band photometry + IFS modeling 'reliably disentangles multiple stellar populations' and that 'spectroscopy breaks key degeneracies' is load-bearing for the central bridge-to-physics assertion, yet the section provides only a high-level description without mock recovery tests, degeneracy metrics, or covariance matrices demonstrating residual uncertainties in age, dust, metallicity, or ionization parameters.

    Authors: We agree that §4 would benefit from additional quantitative context to support the claims. As this is an overview paper, the full mock recovery tests and detailed covariance analysis are reserved for a companion methods paper. However, we will revise §4 to include example covariance matrices derived from the current spectrophotometric fits, a brief summary of internal consistency checks performed on the joint modeling, and explicit discussion of how the addition of IFS data reduces specific degeneracies (e.g., age-dust) relative to photometry-only constraints. These additions will be supported by the early results already shown. revision: partial

  2. Referee: [§5.1] §5.1 (Early Examples): The statement that spectroscopy identifies 'recent quenching in previously-thought UV star forming galaxies' and that galaxies show 'higher clump metallicities and harder ionization conditions' rests on the framework's performance, but no quantitative validation (e.g., recovery fractions from simulated clumps or comparison to photometry-only results) is presented to support these interpretations against source-plane reconstruction uncertainties.

    Authors: The interpretations in §5.1 are presented as early illustrative results from the joint framework. We acknowledge the value of direct quantitative comparisons. We will revise §5.1 to add side-by-side parameter comparisons (star-formation history, metallicity, ionization) between the joint lensing-photometry-IFS model and photometry-only fits for the example galaxies, along with a short discussion of how source-plane reconstruction uncertainties are propagated and mitigated by the simultaneous use of IFS constraints. Full end-to-end mock recovery tests for the specific science claims will appear in follow-up science papers. revision: partial

Circularity Check

0 steps flagged

No circularity: survey overview with descriptive claims only

full rationale

This is a survey design and data-products paper. The central claim is that the LEGGOS dataset and uniform analysis framework (joint lensing + photometry + IFS + SPS) supplies a bridge from parsec-scale physics to galaxy assembly. No derivation chain, fitted parameters, or predictions are presented that reduce to the inputs by construction. No equations, no self-citation load-bearing uniqueness theorems, and no renaming of known results as new derivations. The abstract and overview text are purely descriptive; the reader's circularity score of 2.0 is consistent with the absence of any load-bearing mathematical or predictive step. The paper is self-contained against external benchmarks as a methods and early-results description.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; ledger left empty pending full text.
