Spectral estimation for spatial point processes and random fields

Jake P. Grainger , Tuomas A. Rajala , David J. Murrell , Sofia C. Olhede This is my paper

Pith reviewed 2026-05-24 05:20 UTC · model grok-4.3

classification 📊 stat.ME
keywords spectral estimationspatial point processesrandom fieldsmultitaper analysisdiscrete Fourier transformirregular domainspartial associationspatial statistics
0
0 comments X

The pith

A multitaper framework using coupled tapers and the discrete Fourier transform enables spectral estimation for spatial point processes and random fields on irregular domains.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Spatial observations often mix regularly sampled random fields, point processes, and randomly sampled processes, making joint analysis desirable yet previously difficult due to missing practical tools. The paper supplies a multitaper framework that pairs discrete and continuous data tapers with the discrete Fourier transform to perform this analysis. The method extends to irregular domains rather than requiring Cartesian grids and supplies estimators of partial association between processes along with significance tests. These tools support fast computation and come with statements of their asymptotic and large-sample properties. The authors illustrate the approach on a large ecological dataset to show its applied value.

Core claim

We fill this gap by providing a multitaper analysis framework using coupled discrete and continuous data tapers, combined with the discrete Fourier transform for inference. Using this set of tools is important, as it forms the backbone for practical spectral analysis. In higher dimensions it is important not to be constrained to Cartesian product domains, and so we develop the methodology for spectral analysis using irregular domain data tapers, and the tapered discrete Fourier transform. We discuss its fast implementation, and the asymptotic as well as large finite domain properties. Estimators of partial association between different spatial processes are provided as are principled methods

What carries the argument

Multitaper analysis framework that couples discrete and continuous data tapers with the tapered discrete Fourier transform on irregular domains.

If this is right

  • Joint spectral analysis becomes feasible for collections that include lattice data, point processes, and randomly sampled spatial processes.
  • Spectral methods apply directly to irregular domains without forcing a Cartesian product structure.
  • Fast implementation is available together with explicit statements of asymptotic and large finite-domain behavior.
  • Partial-association estimators between distinct spatial processes come with principled significance procedures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same taper-coupling idea may transfer to mixed observation types in time-series or spatio-temporal settings.
  • Software packages implementing the irregular-domain tapered DFT would lower the barrier for ecologists and environmental scientists.
  • Direct comparison against existing periodogram or Whittle-likelihood methods on controlled irregular grids would quantify any practical gains in bias or variance.
  • The partial-association estimators could be extended to test for conditional independence in networks of spatial processes.

Load-bearing premise

The assumption that coupled discrete and continuous data tapers can be combined with the tapered discrete Fourier transform on irregular domains while preserving the claimed asymptotic and large finite-domain properties without introducing unaccounted bias or variance inflation.

What would settle it

A Monte Carlo experiment on an irregular spatial domain in which the multitaper spectral estimators exhibit bias or variance that exceeds the rates stated in the paper's asymptotic analysis.

Figures

Figures reproduced from arXiv: 2312.10176 by David J. Murrell, Jake P. Grainger, Sofia C. Olhede, Tuomas A. Rajala.

Figure 1
Figure 1. Figure 1: Simulated patterns (top), the inhomogeneous cross-L function (bottom left), and the partial coherence [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

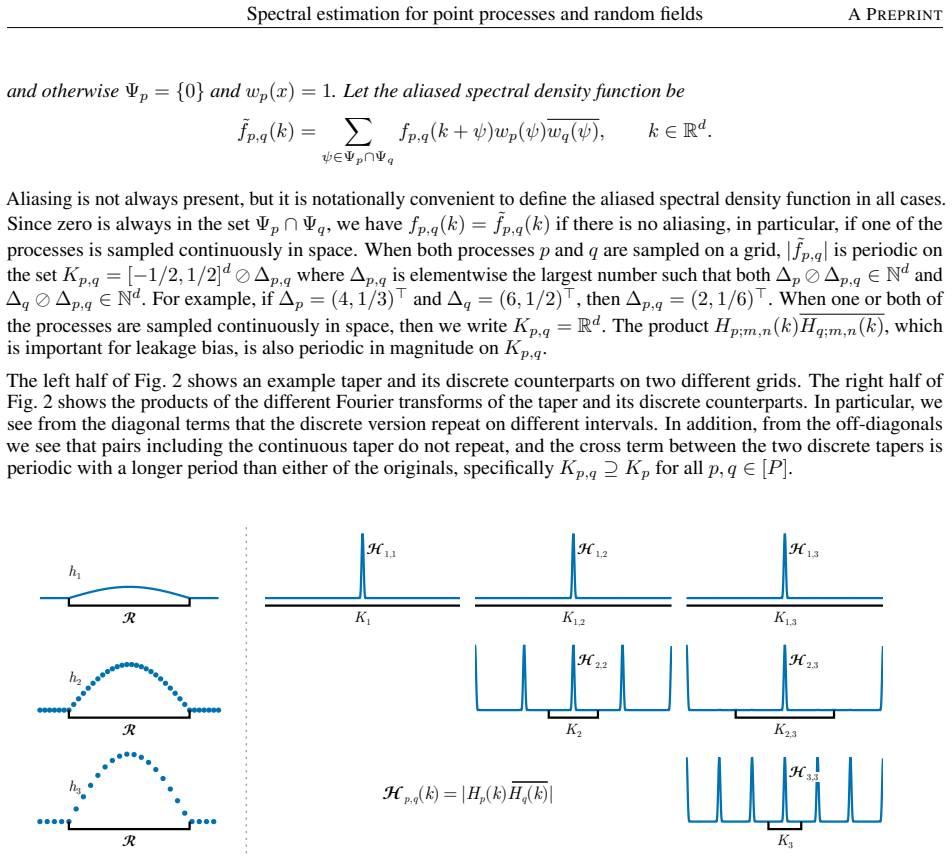

Figure 2
Figure 2. Figure 2: An illustration of the aliasing effects in one dimension, assuming the first process was recorded continuously, [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

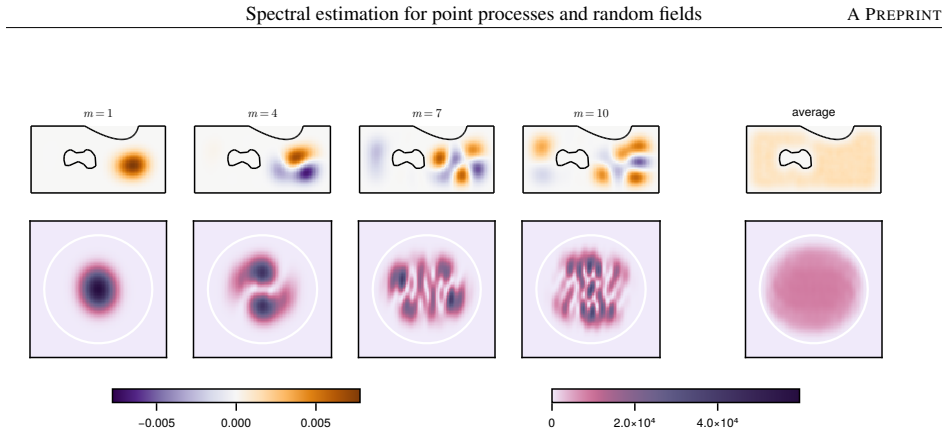

Figure 3
Figure 3. Figure 3: Four of the tapers and the total average absolute taper for an irregular region (top), and the corresponding [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗

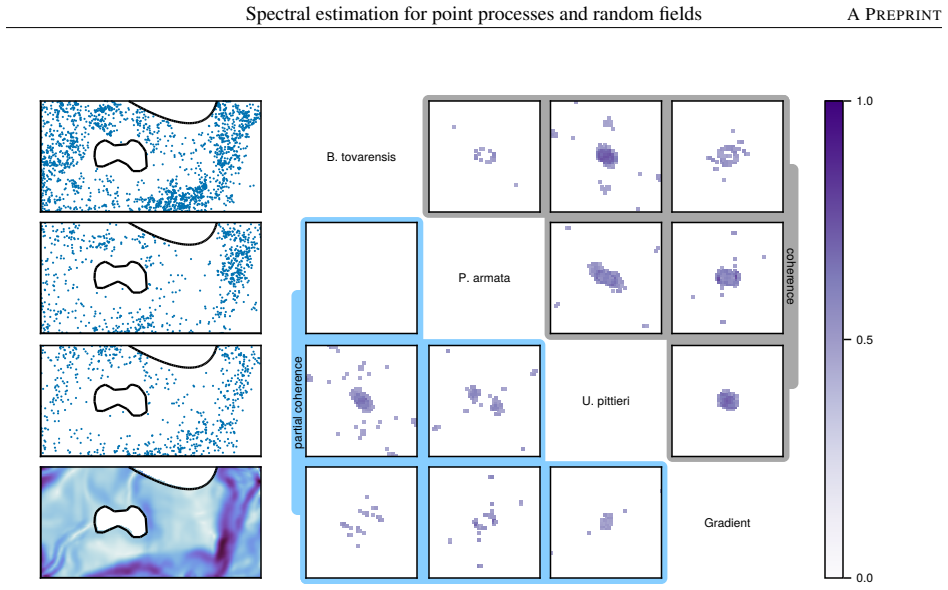

Figure 4
Figure 4. Figure 4: The results of computing the magnitude coherence (upper triangle) and magnitude partial coherence (lower [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗

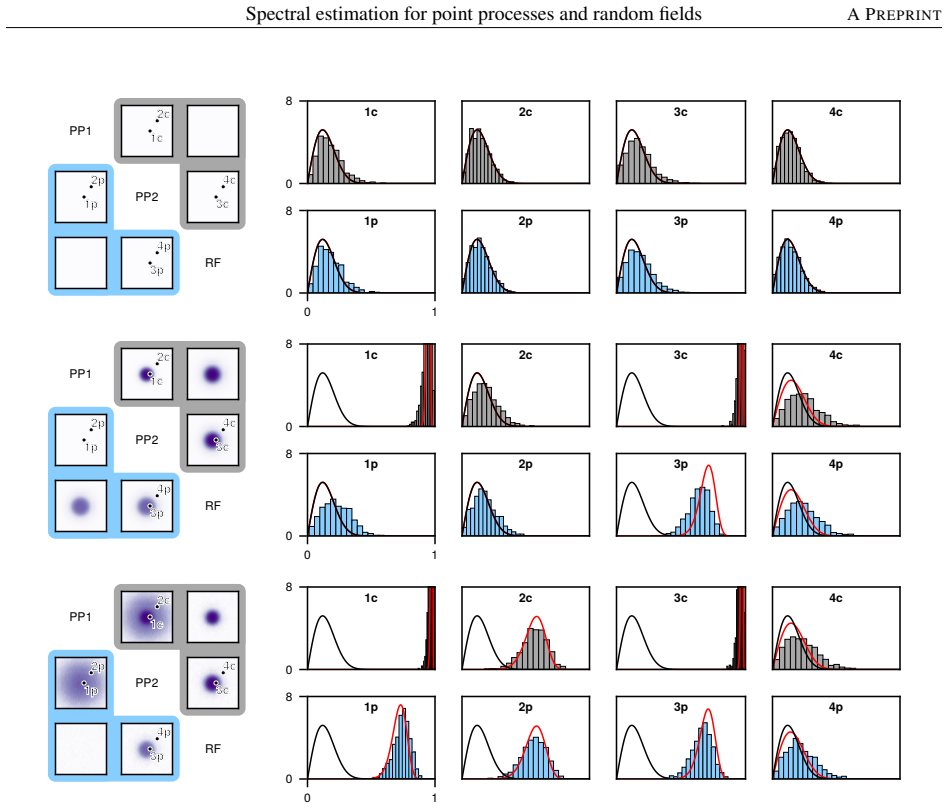

Figure 5
Figure 5. Figure 5: Results of the simulation study. The left column shows for each model the true magnitude (partial) coherence [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗

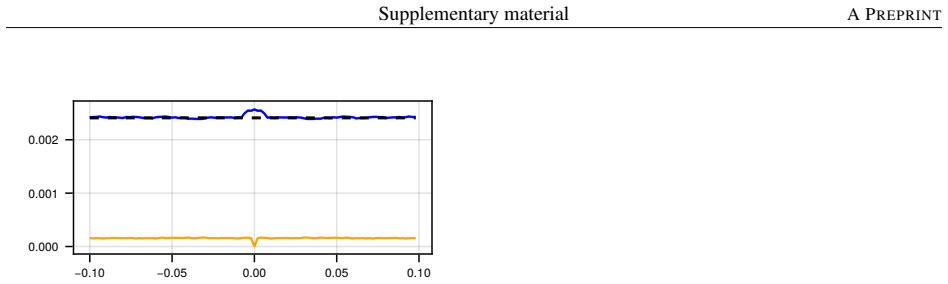

Figure 6
Figure 6. Figure 6: The true spectral density function of the IID marked Poisson process (dashed), the average of the multitaper [PITH_FULL_IMAGE:figures/full_fig_p059_6.png] view at source ↗

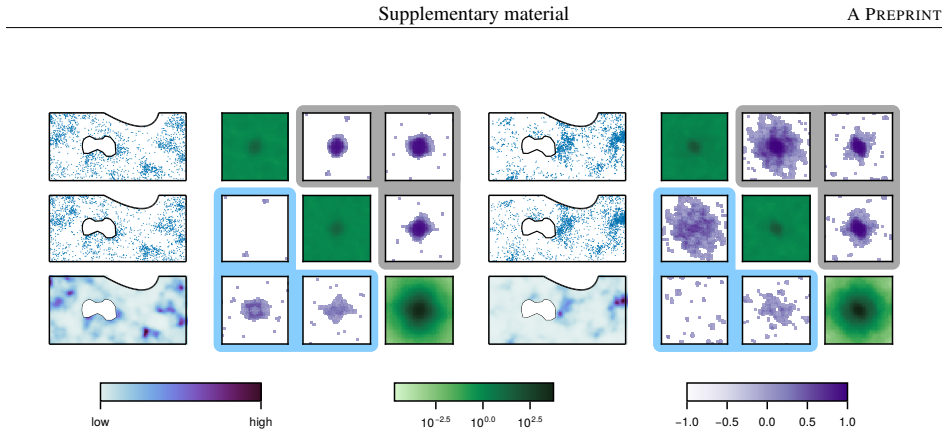

Figure 7
Figure 7. Figure 7: A realization of models 2 (left) and 3 (right). The spatial data has axes 0 to 1000 and 0 to 500, and the [PITH_FULL_IMAGE:figures/full_fig_p061_7.png] view at source ↗

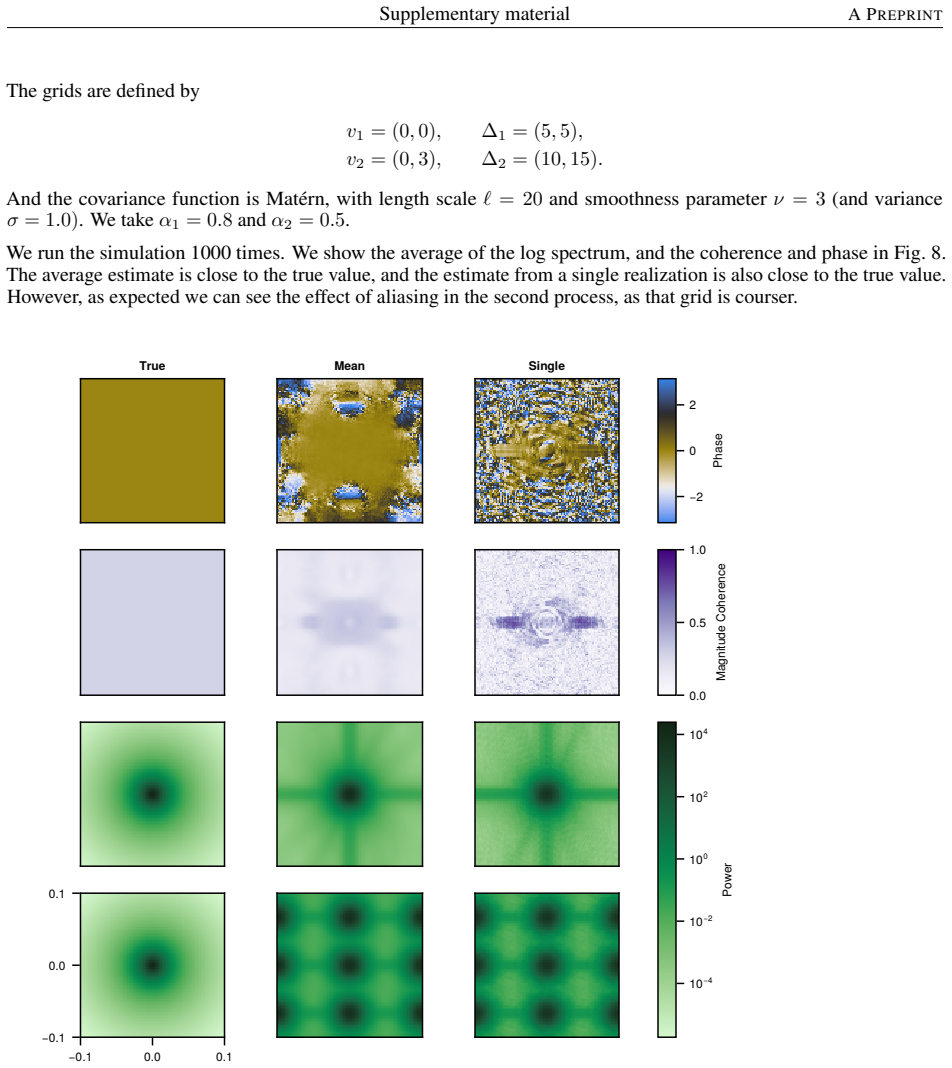

Figure 8
Figure 8. Figure 8: The log marginal spectra, coherence and phase for the colocation model. In each case, we show and the [PITH_FULL_IMAGE:figures/full_fig_p062_8.png] view at source ↗

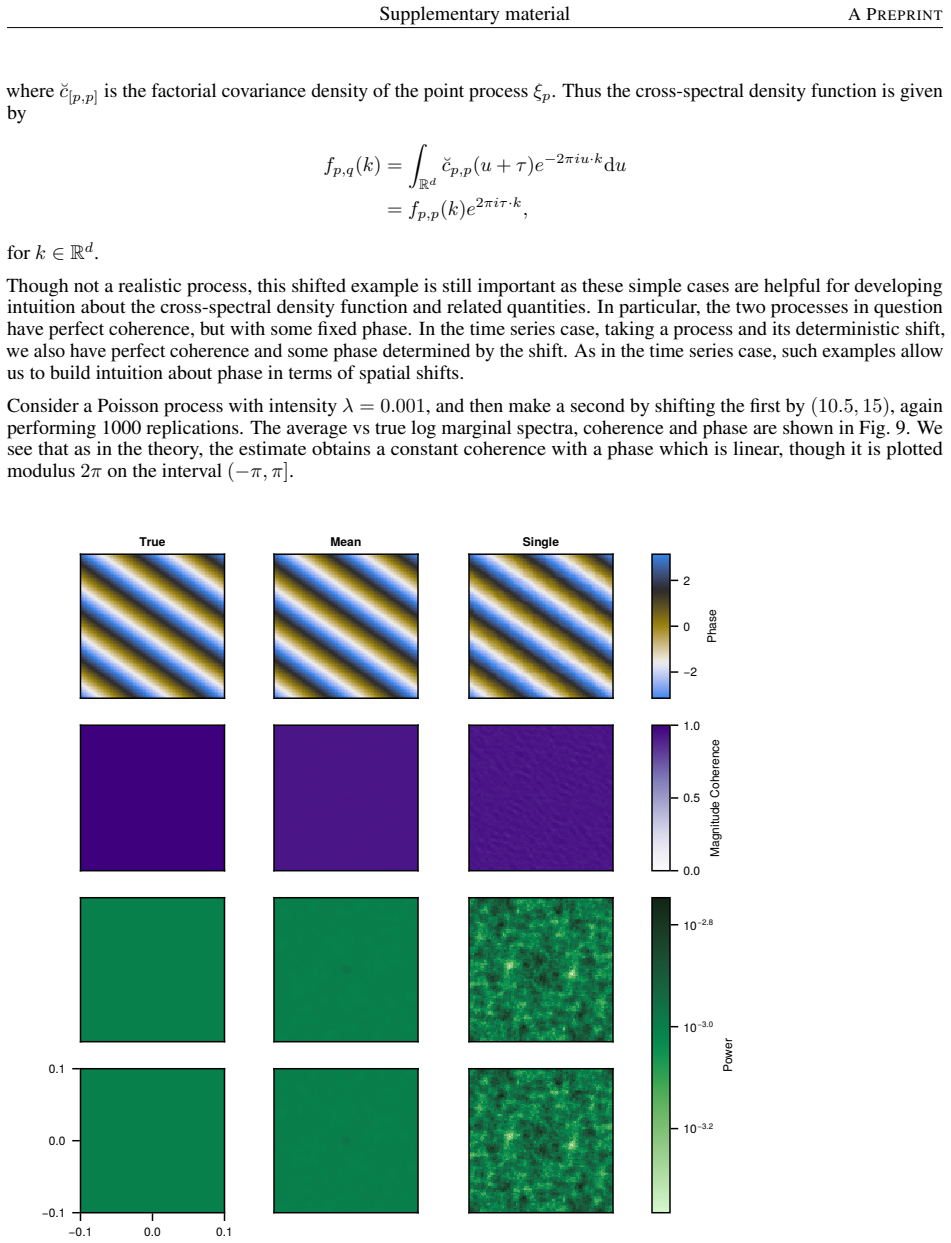

Figure 9
Figure 9. Figure 9: The log marginal spectra, coherence and phase for the shifted model. In each case, we show and the ground [PITH_FULL_IMAGE:figures/full_fig_p063_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The empirical distributions of the magnitude correlation and partial magnitude correlation for normal random [PITH_FULL_IMAGE:figures/full_fig_p065_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: The phase (upper triangle of the plot matrix) and partial phase (lower triangle) of [PITH_FULL_IMAGE:figures/full_fig_p066_11.png] view at source ↗
read the original abstract

Spatial variables can be observed in many different forms, such as regularly sampled random fields (lattice data), point processes, and randomly sampled spatial processes. Joint analysis of such collections of observations is clearly desirable, but complicated by the lack of an easily implementable analysis framework. We fill this gap by providing a multitaper analysis framework using coupled discrete and continuous data tapers, combined with the discrete Fourier transform for inference. Using this set of tools is important, as it forms the backbone for practical spectral analysis. In higher dimensions it is important not to be constrained to Cartesian product domains, and so we develop the methodology for spectral analysis using irregular domain data tapers, and the tapered discrete Fourier transform. We discuss its fast implementation, and the asymptotic as well as large finite domain properties. Estimators of partial association between different spatial processes are provided as are principled methods to determine their significance, and we demonstrate their practical utility on a large-scale ecological dataset.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript develops a multitaper spectral estimation framework for joint analysis of spatial point processes, lattice random fields, and irregularly sampled processes. It combines coupled discrete and continuous data tapers with the tapered discrete Fourier transform, extends the approach to irregular domains, derives fast implementations together with asymptotic and large finite-sample properties, supplies estimators of partial association between processes, and provides significance tests; the methods are illustrated on a large ecological dataset.

Significance. If the asymptotic claims and bias/variance control hold, the framework would supply a practical, implementable backbone for spectral analysis of heterogeneous spatial data on non-Cartesian domains and for partial-association inference, addressing a clear methodological gap with direct utility in ecology and spatial statistics.

major comments (2)
  1. [Abstract] Abstract: the central claim that coupled discrete/continuous tapers combined with the tapered DFT on irregular domains preserve the stated asymptotic and large finite-domain properties without unaccounted bias or variance inflation is load-bearing for all subsequent inference results, yet the provided text supplies no derivations, error bounds, or simulation validation that would allow verification of this property.
  2. [Abstract] Abstract: the partial-association estimators and their significance procedures are presented as a key contribution, but without explicit expressions, bias analysis, or comparison to existing cross-spectral methods it is impossible to assess whether they achieve the claimed principled significance control.
minor comments (1)
  1. [Abstract] The abstract refers to 'fast implementation' and 'large finite domain properties' without indicating where the algorithmic complexity or finite-sample bounds are stated.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their comments on our manuscript. We provide point-by-point responses to the major comments below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that coupled discrete/continuous tapers combined with the tapered DFT on irregular domains preserve the stated asymptotic and large finite-domain properties without unaccounted bias or variance inflation is load-bearing for all subsequent inference results, yet the provided text supplies no derivations, error bounds, or simulation validation that would allow verification of this property.

    Authors: The abstract serves as a high-level overview of the contributions. Detailed derivations of the asymptotic and large finite-domain properties, including error bounds and analysis of bias and variance for the coupled tapers and tapered DFT, are presented in Sections 3, 4, and 5 of the manuscript. Simulation studies validating these properties without unaccounted inflation are provided in Section 6. We are happy to revise the abstract to reference these sections explicitly if that would aid the reader. revision: partial

  2. Referee: [Abstract] Abstract: the partial-association estimators and their significance procedures are presented as a key contribution, but without explicit expressions, bias analysis, or comparison to existing cross-spectral methods it is impossible to assess whether they achieve the claimed principled significance control.

    Authors: Explicit mathematical expressions for the partial association estimators, along with their bias analysis and asymptotic properties, are derived in Section 7. The significance procedures are also detailed there, including comparisons to existing cross-spectral approaches in the related work section. These methods are applied to the ecological dataset in Section 8 to illustrate their performance. The full details in the manuscript allow for assessment of the significance control. revision: no

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The provided abstract and description outline a methodological contribution introducing a multitaper framework with coupled tapers and tapered DFT on irregular domains, plus partial association estimators. No equations, derivations, or self-citations are supplied that reduce any claimed prediction or result to a fitted input or prior self-referential definition by construction. The central claims rest on new technical development rather than renaming, smuggling ansatzes, or importing uniqueness from the authors' own prior work. This is the expected honest non-finding for a methods paper whose derivation chain is not shown to collapse into its inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated in the provided text.
